◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11368 - FTR(LHD)EURO4 W/DOC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#71686) — 47 parça

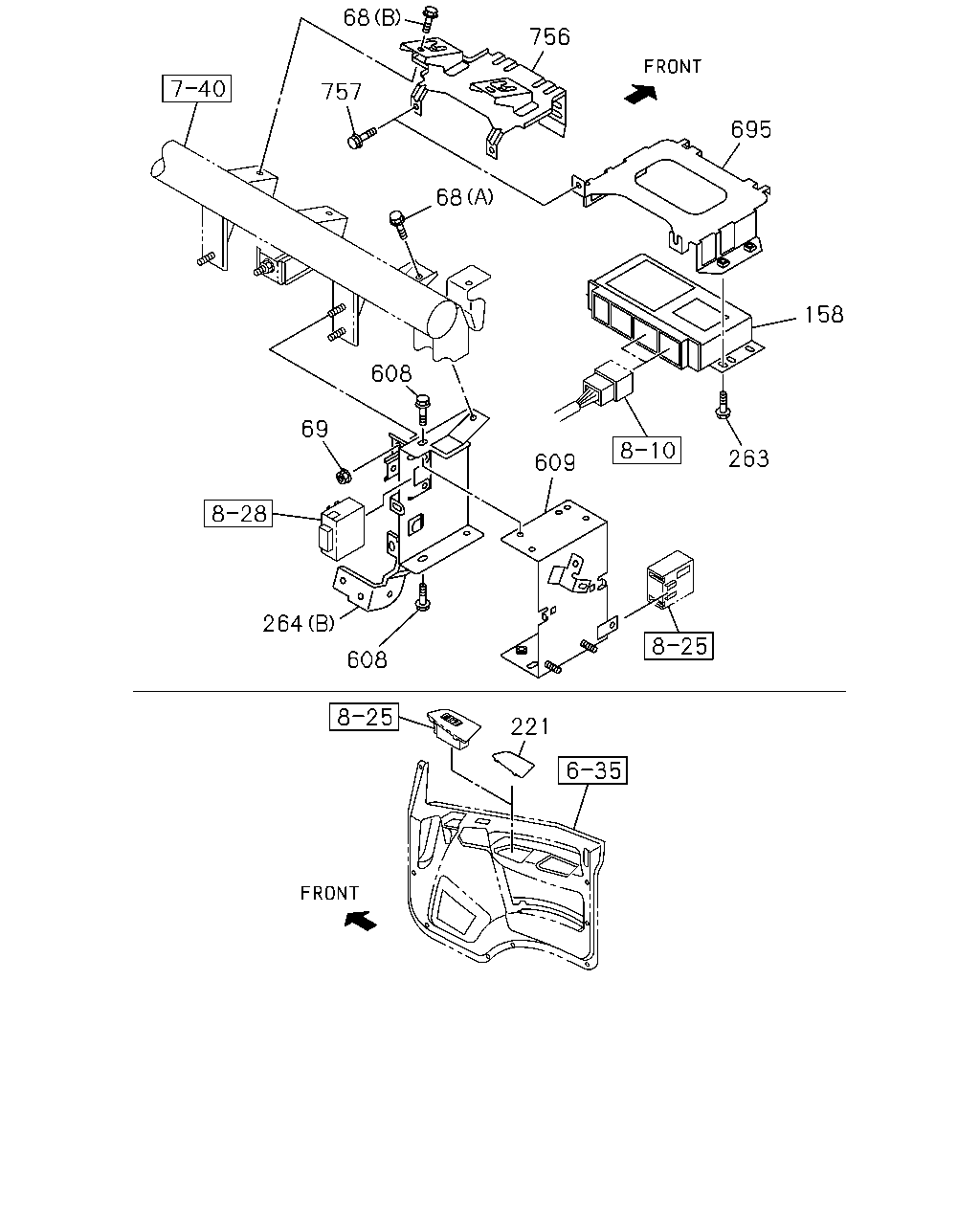

çizim 138059
68 756 757 695 68 158 608 69 263 609 264 608 221
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1206-
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1109-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1109-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> 		8-98220-158-0 01 1 1206-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11.00R-22.5-16 RIB(55N) BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> 		8-98220-159-0 01 1 1206-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) 		8-98170-647-0 01 1 1206-1206
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) EXC. BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> 		8-98170-647-0 01 1 1206-1206
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) EXC. VIN MODEL YEAR 2011<VZB> 		8-98170-647-0 01 1 1207-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) 		8-98170-647-0 01 1 1207-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11.00R-22.5-16 RIB(55N) 		8-98170-648-0 01 1 1206-1206
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11.00R-22.5-16 RIB(55N) EXC. BRAKE REGULATION ADR(TDU),VIN MODEL YEAR 2011<VZB> 		8-98170-648-0 01 1 1206-1206
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11.00R-22.5-16 RIB(55N) EXC. VIN MODEL YEAR 2011<VZB> 		8-98170-648-0 01 1 1207-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 11.00R-22.5-16 RIB(55N) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) 		8-98170-648-0 01 1 1207-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1109-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1109-
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 04 1 1206-
264 BRACKET; CONT UNIT
ECE R29<EFE> (B) 		8-98180-454-0 01 1 1505-
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98088-654-0 01 1 1206-
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1109-1504
264 BRACKET; CONT UNIT
EXC. ECE R29<EFE> (B) 		8-97616-354-5 01 1 1505-
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28650-616-0 05 1 1109-
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> 		8-98095-336-0 01 1 1109-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> 		8-98226-231-1 01 1 1309-
695 BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5> 		8-98045-016-1 01 1 1206-
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> 		8-98052-797-3 01 1 1206-
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 02 1 1206-

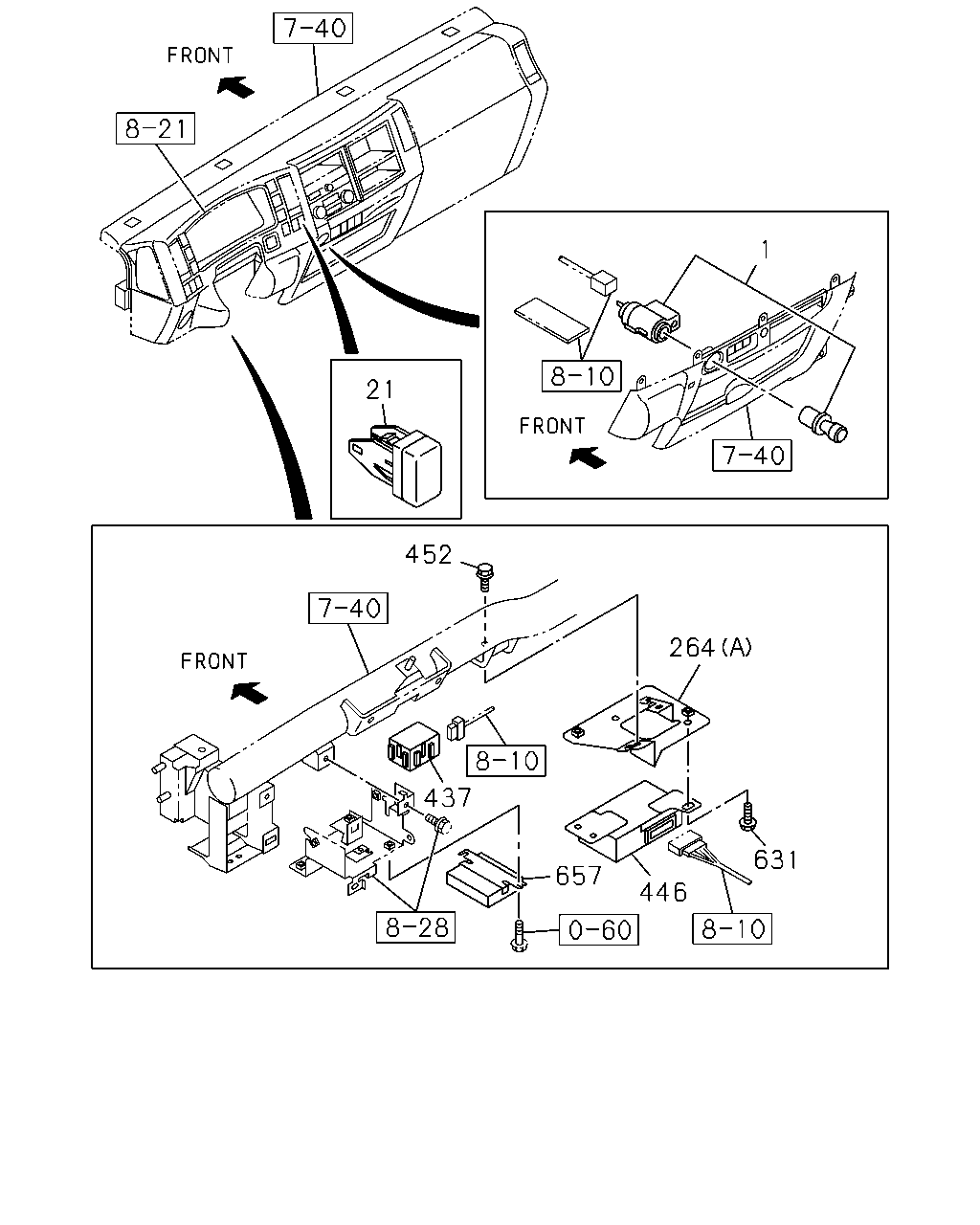

çizim 138283
21 1 452 437 264 631 446 657
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1109-
21 COVER; HOLE 8-98025-954-1 01 1 1109-
264 BRACKET; CONT UNIT
ECE R29<EFE> (B) 		8-98180-454-0 01 1 1505-
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98088-654-0 01 1 1206-
264 BRACKET; CONT UNIT
(B) 		8-97616-354-5 01 1 1109-1504
264 BRACKET; CONT UNIT
EXC. ECE R29<EFE> (B) 		8-97616-354-5 01 1 1505-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1109-
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		1-80111-116-2 01 1 1206-
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1206-
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1206-
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 1109-1401
657 CONTROL UNIT; MIMAMORI 8-98260-912-1 01 1 1402-
çizim 143841
507
BalonParca AdiParca NoAdetTipApplied Date
507 CONNECTOR 1-82690-666-0 01 1 1109-1205
507 CONNECTOR
EXC. COLOMBIA EQUIPMENT(CB7),H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1206-

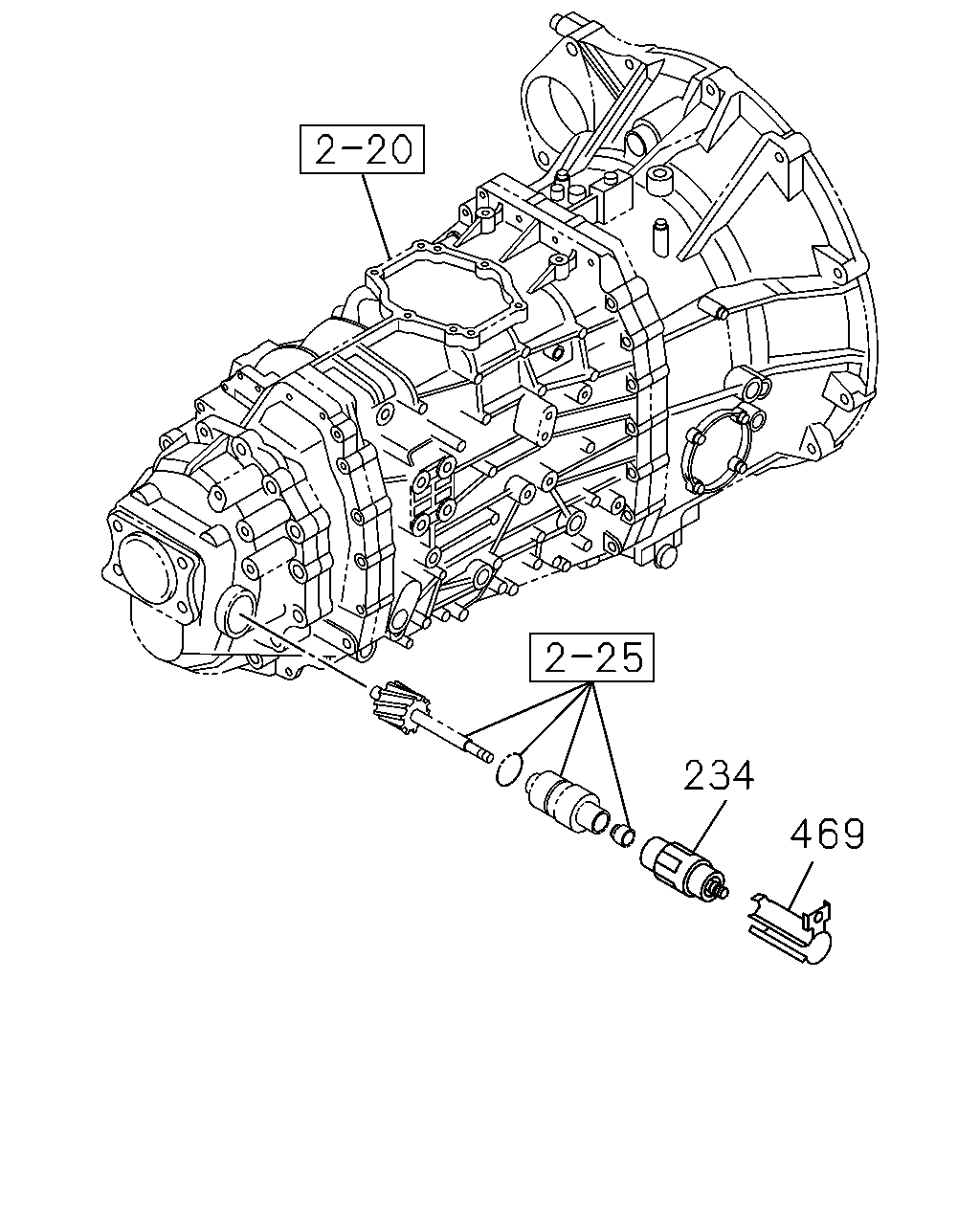

çizim 182756
234 469
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1109-
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1109-

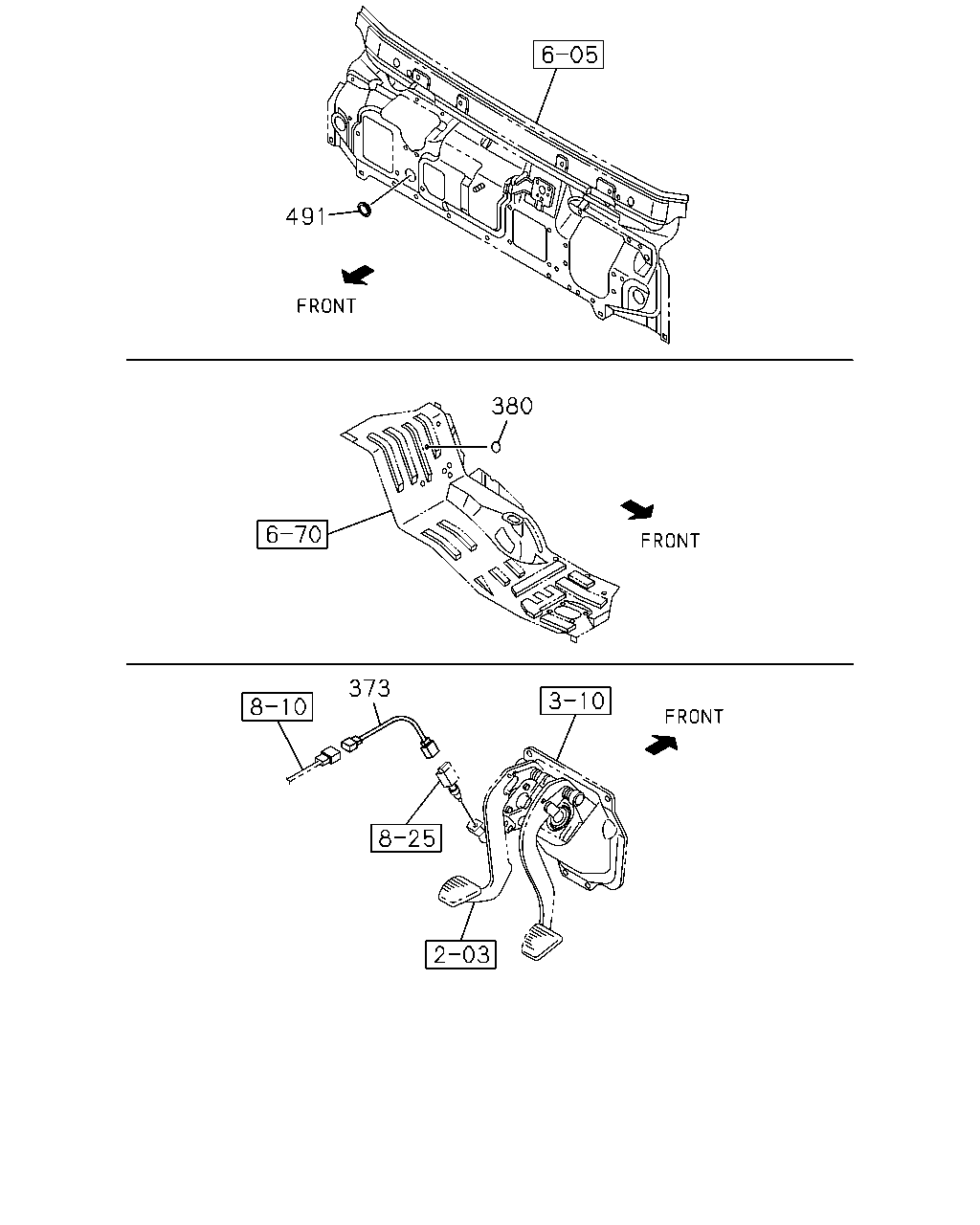

çizim 182762
491 380 373
BalonParca AdiParca NoAdetTipApplied Date
373 HARNESS; CLU SWITCH
H.S.A SYSTEM<6EP> 		8-98110-719-0 01 1 1206-
373 HARNESS; CLU SWITCH 8-98110-720-0 01 1 1109-1205
373 HARNESS; CLU SWITCH
EXC. H.S.A SYSTEM<6EP> 		8-98110-720-0 01 1 1206-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1109-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1109-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
