◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11368 - FTR(LHD)EURO4 W/DOC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#71684) — 25 parça

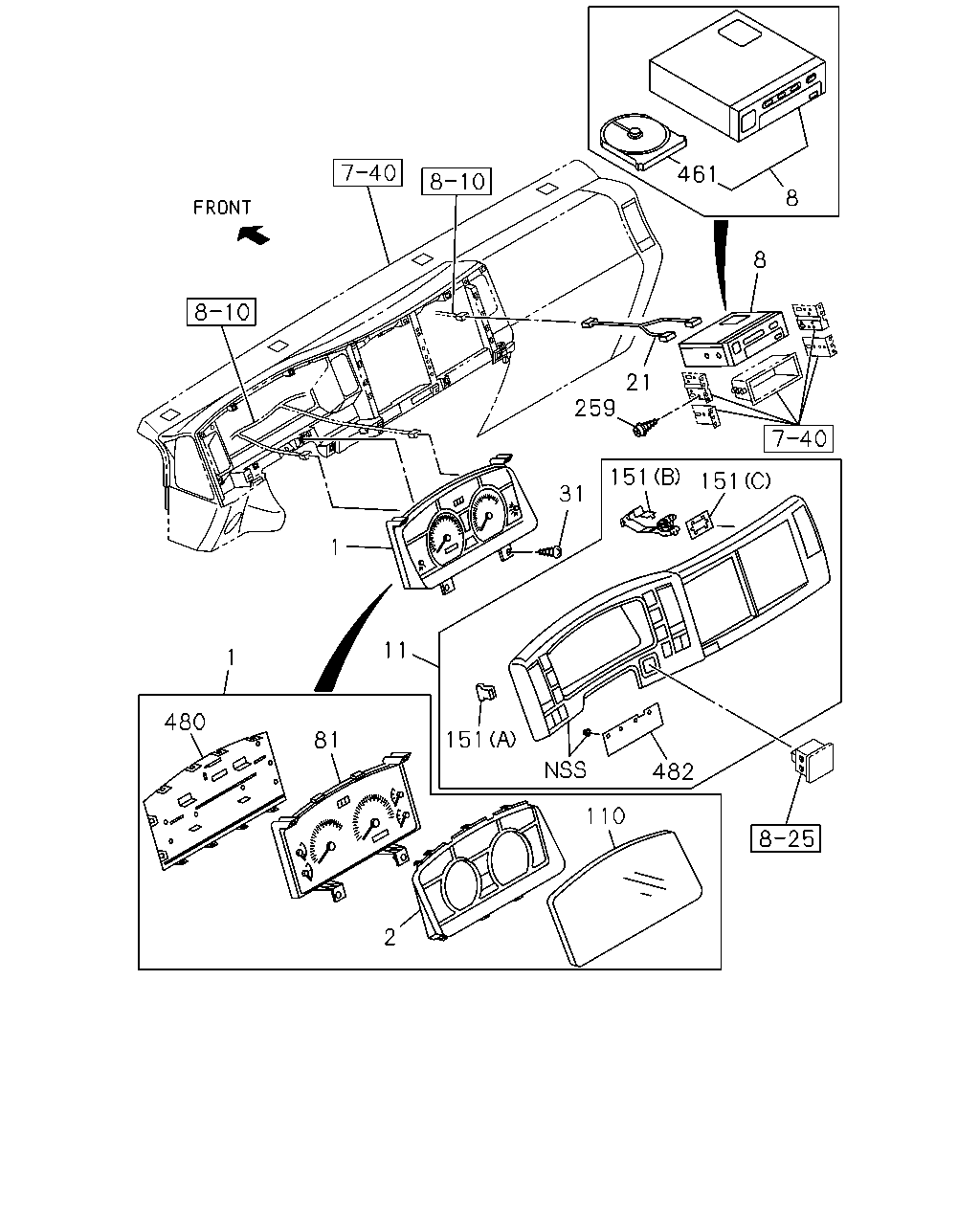

çizim 182757
8 461 8 21 259 31 151 151 482 110 151 11 2 81 480 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) 		8-98195-719-0 01 1 1206-
1 METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7) 		8-98095-682-3 01 1 1206-
1 METER COMPL; CLUSTER 8-98161-851-1 01 1 1109-1205
1 METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98161-851-1 01 1 1206-
2 PANEL; CLUSTER 8-98054-432-0 01 1 1109-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1109-
11 CLUSTER ASM; METER
ECE R29<EFE> DARK GRAY 		8-97418-534-1 01 1 1505-
11 CLUSTER ASM; METER
DARK GRAY 		8-97406-005-6 01 1 1109-1504
11 CLUSTER ASM; METER
EXC. ECE R29<EFE> DARK GRAY 		8-97406-005-6 01 1 1505-
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 1109-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1109-
81 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) 		8-98195-721-0 01 1 1206-
81 METER SUB ASM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7) 		8-98149-098-0 01 1 1206-
81 METER SUB ASM 8-98162-024-0 01 1 1109-1205
81 METER SUB ASM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98162-024-0 01 1 1206-
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 1109-
151 CLIP; METER CLUSTER
ECE R29<EFE> (A) 		8-98021-271-0 12 1 1505-
151 CLIP; METER CLUSTER
ECE R29<EFE> (B) 		8-98152-030-0 01 1 1505-
151 CLIP; METER CLUSTER
ECE R29<EFE> (C) 		8-98152-031-0 01 1 1505-
151 CLIP; METER CLUSTER
(A) 		8-98021-271-0 13 1 1109-1504
151 CLIP; METER CLUSTER
EXC. ECE R29<EFE> (A) 		8-98021-271-0 13 1 1505-
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1109-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1109-
480 COVER; METER
BLACK 		8-98054-433-0 01 1 1109-
482 SEAL; CLUSTER METER 8-98116-843-0 01 1 1109-
