◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11368 - FTR(LHD)EURO4 W/DOC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#71683) — 12 parça

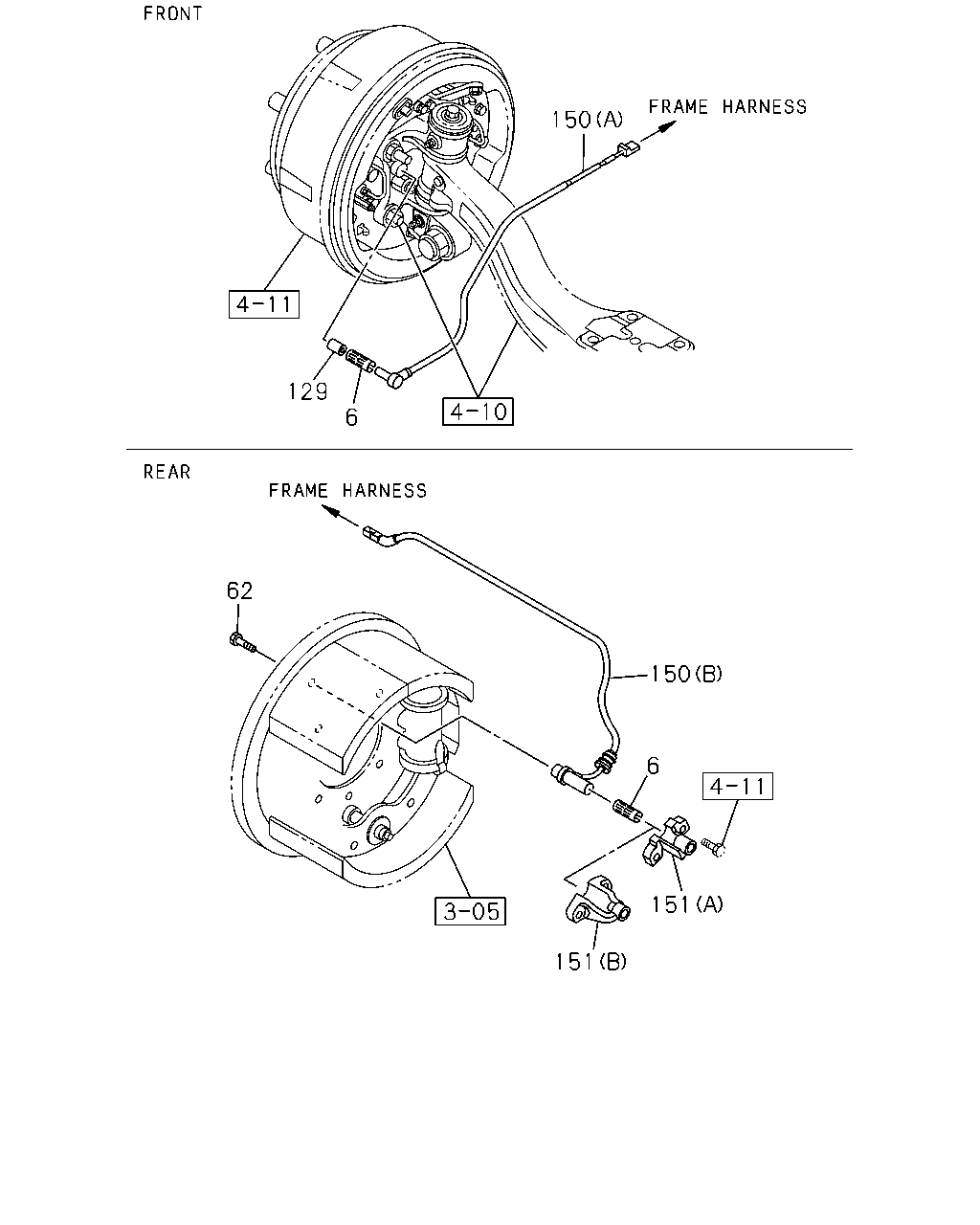

çizim 137896
150 129 6 62 150 6 151 151
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 1206-
6 HOLDER; SPD SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 1206-
62 BOLT; SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> M8X16 		9-05820-816-0 02 1 1206-1506
62 BOLT; SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507-
129 COLLAR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> 		1-83129-471-0 02 1 1206-
150 SENSOR; SPEED,ABS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A) 		1-83227-024-1 02 1 1206-
150 SENSOR; SPEED,ABS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B) 		8-98064-343-0 01 1 1206-
150 SENSOR; SPEED,ABS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B) 		8-98064-344-0 01 1 1206-
151 BRACKET; SPD SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A) 		1-83129-403-0 01 1 1206-1504
151 BRACKET; SPD SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B) 		8-98299-396-0 01 1 1505-
151 BRACKET; SPD SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A) 		1-83129-404-0 01 1 1206-1504
151 BRACKET; SPD SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B) 		8-98299-397-0 01 1 1505-
