Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#71682) — 276 parça

304 139 304 304 304 313 516 377 386 127 38 386 139 139 139 313 139 139 38 38 313 150 139 38 38 38 524 219 294 525 294 184 47

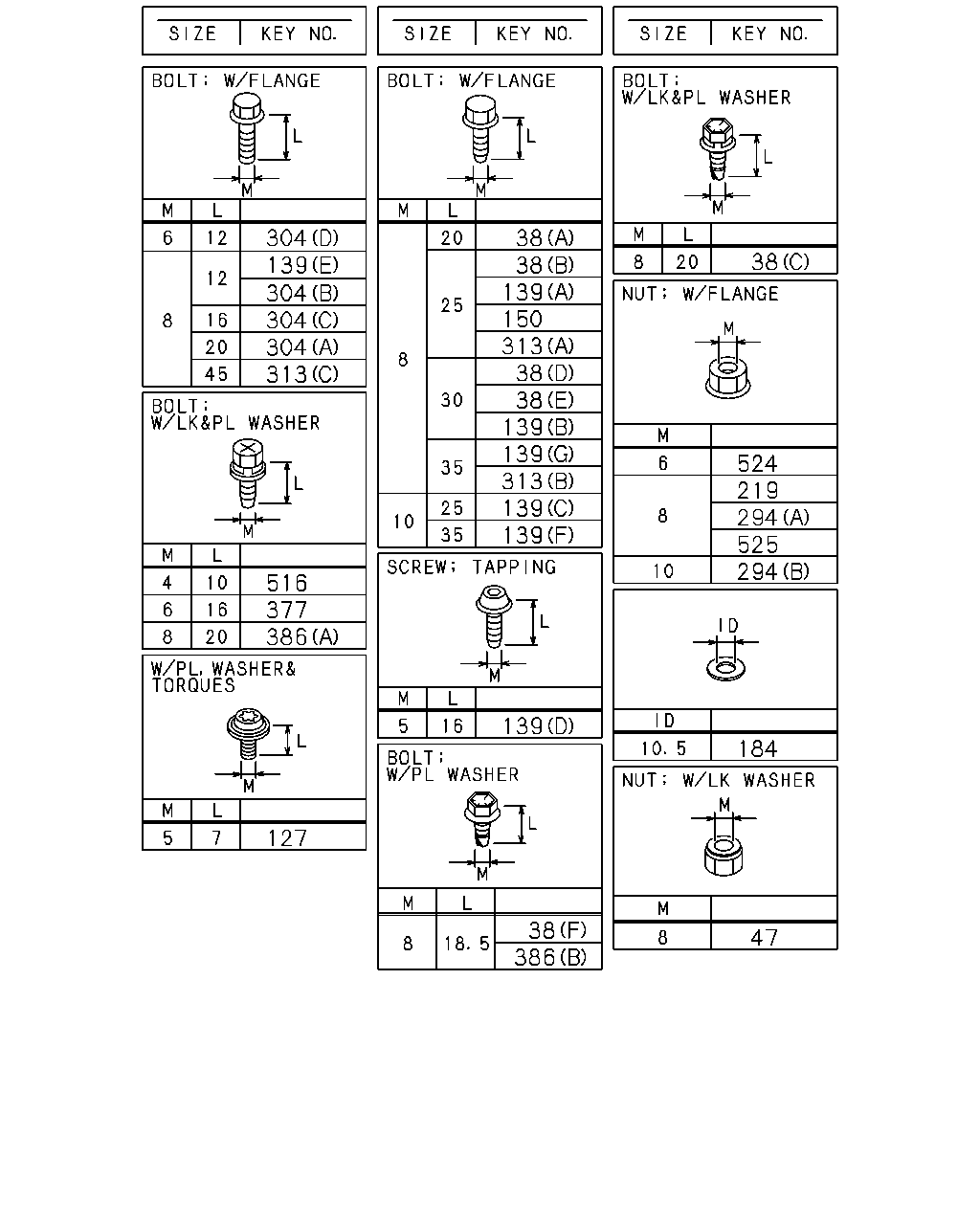

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (E) M8X30 FLANGE	0-28650-830-0	02	1	1206-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1109-1205
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1206-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE	0-28650-820-0	02	1	1206-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE	0-28650-820-0	02	1	1206-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	1109-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1109-
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1109-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1109-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	02	1	1206-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	04	1	1206-
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M8X35 FLANGE	0-28650-835-0	01	1	1206-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1109-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1109-1205
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1109-1205
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1206-
139	BOLT; BRKT EXC. COLOMBIA EQUIPMENT(CB7) (A) M8X25 FLANGE	0-28650-825-0	01	1	1206-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1109-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1109-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1109-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1109-
150	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1109-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1109-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1206-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	01	1	1206-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1109-1205
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	04	1	1206-
294	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	01	1	1206-1212
294	NUT COLOMBIA EQUIPMENT(CB7) (A) M8 FLANGE	0-91180-108-0	01	1	1206-1212
294	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	01	1	1301-
294	NUT COLOMBIA EQUIPMENT(CB7) EXC. BIO DIESEL FUEL B10<8NV> (A) M8 FLANGE	0-91180-108-0	01	1	1301-
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	02	1	1206-
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	04	1	1206-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1109-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1109-
304	BOLT; ENG HARNESS CLIP (D) M6X12 FLANGE	0-28050-612-0	01	1	1109-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1109-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1109-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1109-
313	BOLT; BRKT EXC. COLOMBIA EQUIPMENT(CB7) (B) M8X35 FLANGE	0-28650-835-0	01	1	1206-1212
313	BOLT; BRKT COLOMBIA EQUIPMENT(CB7) BIO DIESEL FUEL B10<8NV> (B) M8X35 FLANGE	0-28650-835-0	01	1	1301-
313	BOLT; BRKT EXC. COLOMBIA EQUIPMENT(CB7) (B) M8X35 FLANGE	0-28650-835-0	01	1	1301-
313	BOLT; BRKT (C) M8X45 FLANGE	0-28050-845-0	01	1	1109-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1109-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1109-1205
313	BOLT; BRKT COLOMBIA EQUIPMENT(CB7) (B) M8X35 FLANGE	0-28650-835-0	02	1	1206-1212
313	BOLT; BRKT COLOMBIA EQUIPMENT(CB7) EXC. BIO DIESEL FUEL B10<8NV> (B) M8X35 FLANGE	0-28650-835-0	02	1	1301-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1109-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1109-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1109-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1109-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1109-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1109-

305 48 306 305 305 16 16 16 16 305 305 305 16 48 48 48 48 213 16 48 16 581 48 223 16

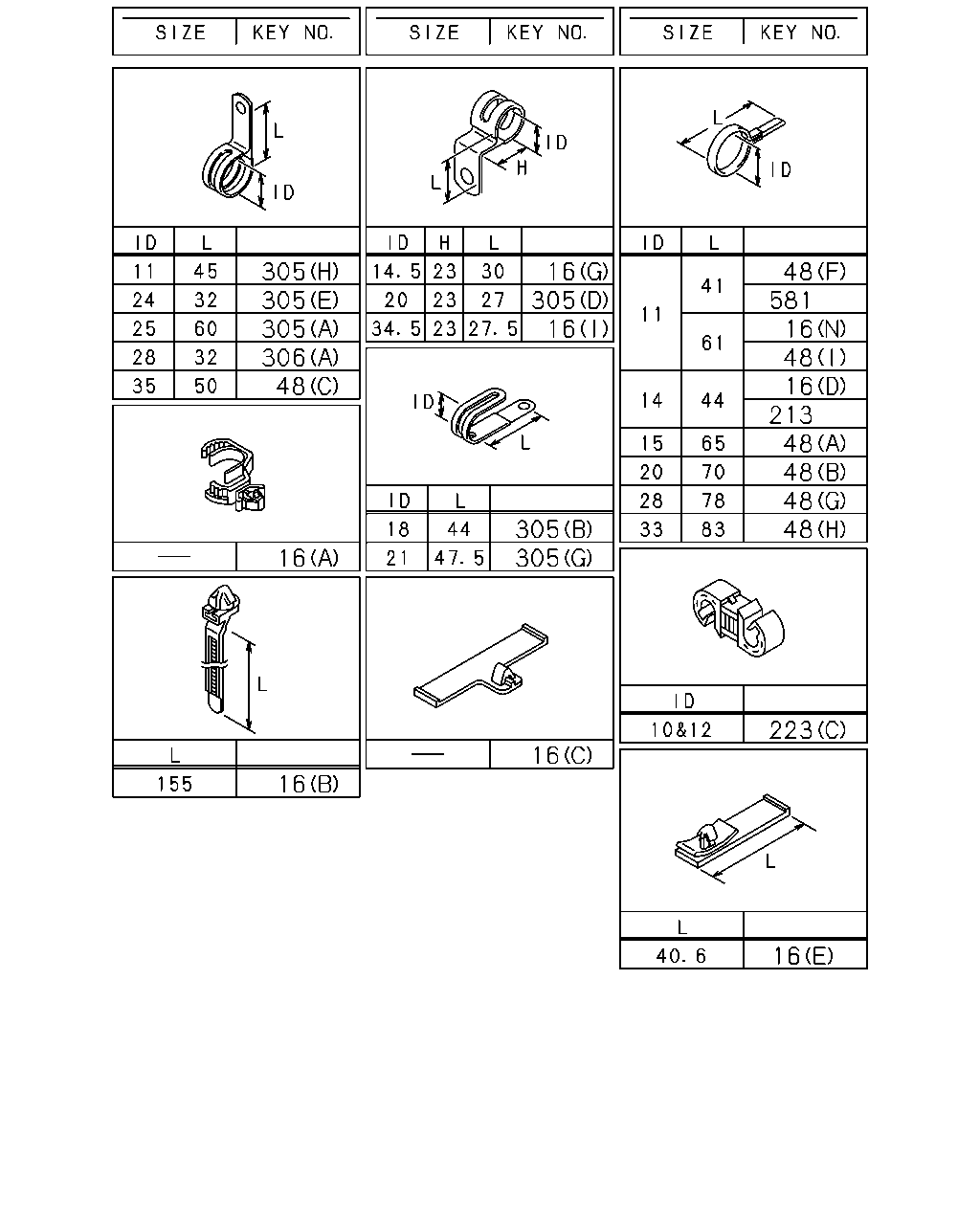

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS COLOMBIA EQUIPMENT(CB7) BIO DIESEL FUEL B10<8NV> (N) ID=11 L=61	1-09700-484-0	02	1	1301-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) ID=11 L=16	0-95235-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11X2 L=16	0-95325-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) L=140	5-09707-031-1	01	1	1206-
16	CLIP; HARNESS (H) ID=14 H=50 L=20	1-09700-843-0	02	1	1109-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1109-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1109-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1109-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1109-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1109-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1109-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1109-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	03	1	1109-1205
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (D) ID=14 L=44	9-09917-427-0	03	1	1206-
48	CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (H) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20 L=70	1-09700-485-0	03	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (F) ID=11 L=41	1-09700-403-0	01	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (A) ID=15 L=65	1-09700-466-0	01	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (B) ID=20 L=70	1-09700-485-0	01	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (G) ID=28 L=78	1-09700-858-0	02	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (H) ID=33 L=83	1-09701-291-0	04	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (I) ID=11 L=61	1-09700-484-0	01	1	1206-
48	CLIP; FRAME HARNESS EXC. CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	07	1	1206-
48	CLIP; FRAME HARNESS EXC. CHILE EQUIPMENT(KE1) (B) ID=20 L=70	1-09700-485-0	09	1	1206-
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	13	1	1109-1205
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	13	1	1206-
48	CLIP; FRAME HARNESS (B) ID=20 L=70	1-09700-485-0	02	1	1109-1201
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) ID=35 L=50	1-09701-214-0	01	1	1109-
48	CLIP; FRAME HARNESS (D) L=140	5-09707-031-1	02	1	1109-
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	04	1	1109-1205
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	04	1	1206-
48	CLIP; FRAME HARNESS (E) OD=9 H=9.5	1-09709-179-0	01	1	1109-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1109-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1206-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1109-1205
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1109-1205
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	1206-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1206-
223	CLIP; AIR TANK HARNESS (C) ID=10 & 12	1-09709-278-1	01	1	1109-1205
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=10 & 12	1-09709-278-1	01	1	1206-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1109-1205
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1206-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1109-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	1109-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1109-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1109-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1109-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1109-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1109-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1109-
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	1109-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1109-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1109-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1109-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1109-
581	CLIP; HARNESS,REAR SUSP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 L=41	1-09700-403-0	01	1	1206-

16 235 305 305 81 223 305 470 48 116 305 16 223 16 305 305 16 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS COLOMBIA EQUIPMENT(CB7) BIO DIESEL FUEL B10<8NV> (N) ID=11 L=61	1-09700-484-0	02	1	1301-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) ID=11 L=16	0-95235-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11X2 L=16	0-95325-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) L=140	5-09707-031-1	01	1	1206-
16	CLIP; HARNESS (H) ID=14 H=50 L=20	1-09700-843-0	02	1	1109-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1109-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1109-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1109-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1109-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1109-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1109-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1109-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	03	1	1109-1205
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (D) ID=14 L=44	9-09917-427-0	03	1	1206-
48	CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (H) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20 L=70	1-09700-485-0	03	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (F) ID=11 L=41	1-09700-403-0	01	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (A) ID=15 L=65	1-09700-466-0	01	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (B) ID=20 L=70	1-09700-485-0	01	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (G) ID=28 L=78	1-09700-858-0	02	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (H) ID=33 L=83	1-09701-291-0	04	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (I) ID=11 L=61	1-09700-484-0	01	1	1206-
48	CLIP; FRAME HARNESS EXC. CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	07	1	1206-
48	CLIP; FRAME HARNESS EXC. CHILE EQUIPMENT(KE1) (B) ID=20 L=70	1-09700-485-0	09	1	1206-
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	13	1	1109-1205
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	13	1	1206-
48	CLIP; FRAME HARNESS (B) ID=20 L=70	1-09700-485-0	02	1	1109-1201
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) ID=35 L=50	1-09701-214-0	01	1	1109-
48	CLIP; FRAME HARNESS (D) L=140	5-09707-031-1	02	1	1109-
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	04	1	1109-1205
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	04	1	1206-
48	CLIP; FRAME HARNESS (E) OD=9 H=9.5	1-09709-179-0	01	1	1109-
81	CLIP; HARNESS OD=9 H=6	1-09709-178-0	01	1	1109-1205
81	CLIP; HARNESS EXC. COLOMBIA EQUIPMENT(CB7) OD=9 H=6	1-09709-178-0	01	1	1206-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1109-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1206-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1109-1205
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1109-1205
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	1206-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1206-
223	CLIP; AIR TANK HARNESS (C) ID=10 & 12	1-09709-278-1	01	1	1109-1205
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=10 & 12	1-09709-278-1	01	1	1206-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1109-1205
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1206-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> ID=11 L=16	0-95235-025-0	02	1	1206-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1109-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	1109-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1109-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1109-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	1109-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1109-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	1109-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1109-
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	1109-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1109-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1109-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1109-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1109-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1109-

137 59 59 53 59 137 69 59 137 59 7 53 59

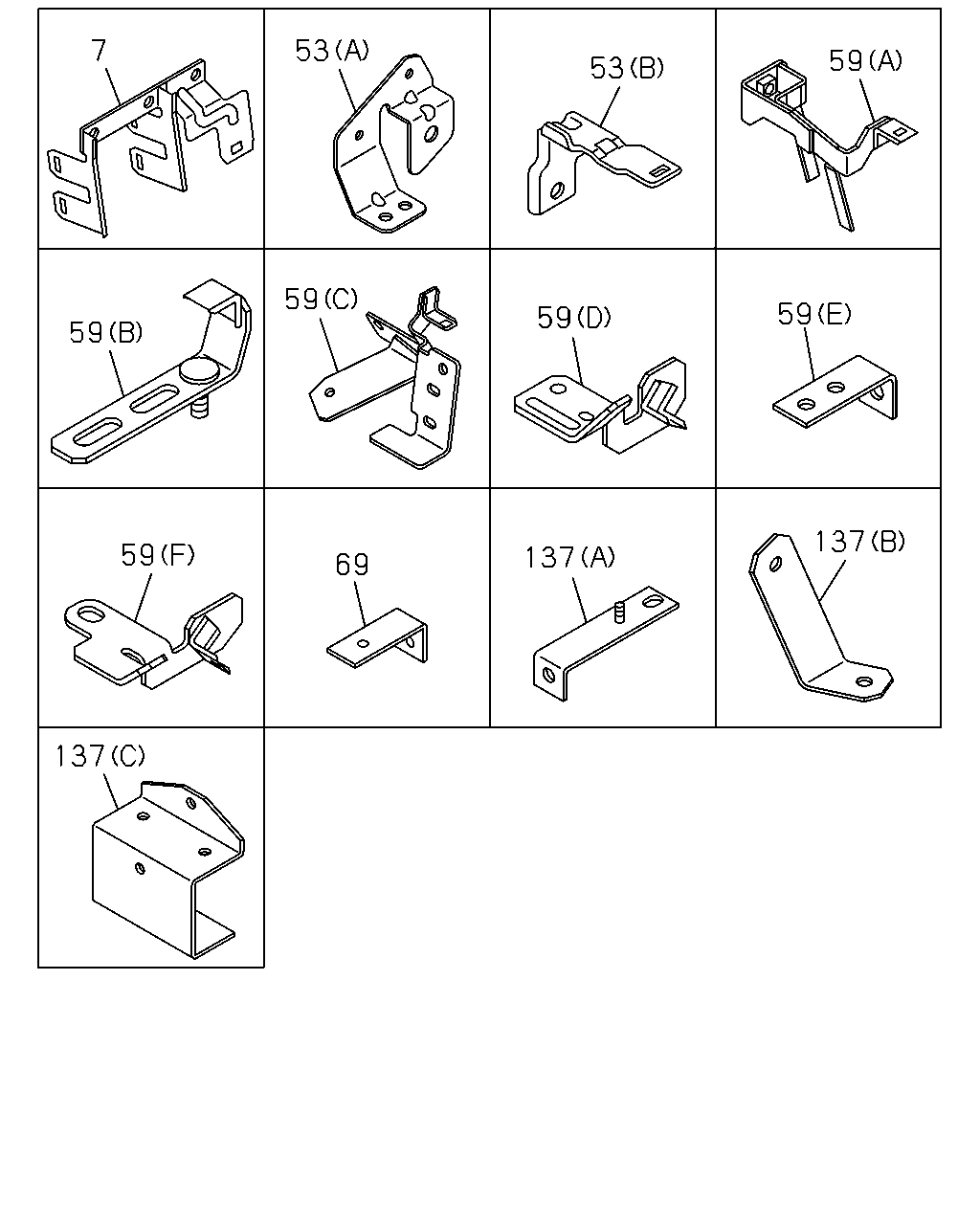

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1109-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1109-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	1109-
59	BRACKET; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) L=62	1-21464-170-2	01	1	1206-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1109-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1109-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (B)	8-98047-730-0	02	1	1109-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1109-
69	BRACKET; CLIP L=55	1-47475-304-0	01	1	1109-1205
69	BRACKET; CLIP EXC. COLOMBIA EQUIPMENT(CB7) L=55	1-47475-304-0	01	1	1206-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE<JE5> (C)	8-97609-797-1	02	1	1206-
137	BRACKET; HARNESS CLAMP (B)	8-97614-728-1	01	1	1109-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	1109-

14 16 48 14 16 183 206 217 225 14 14 1 1 538 178 178 178 503 530

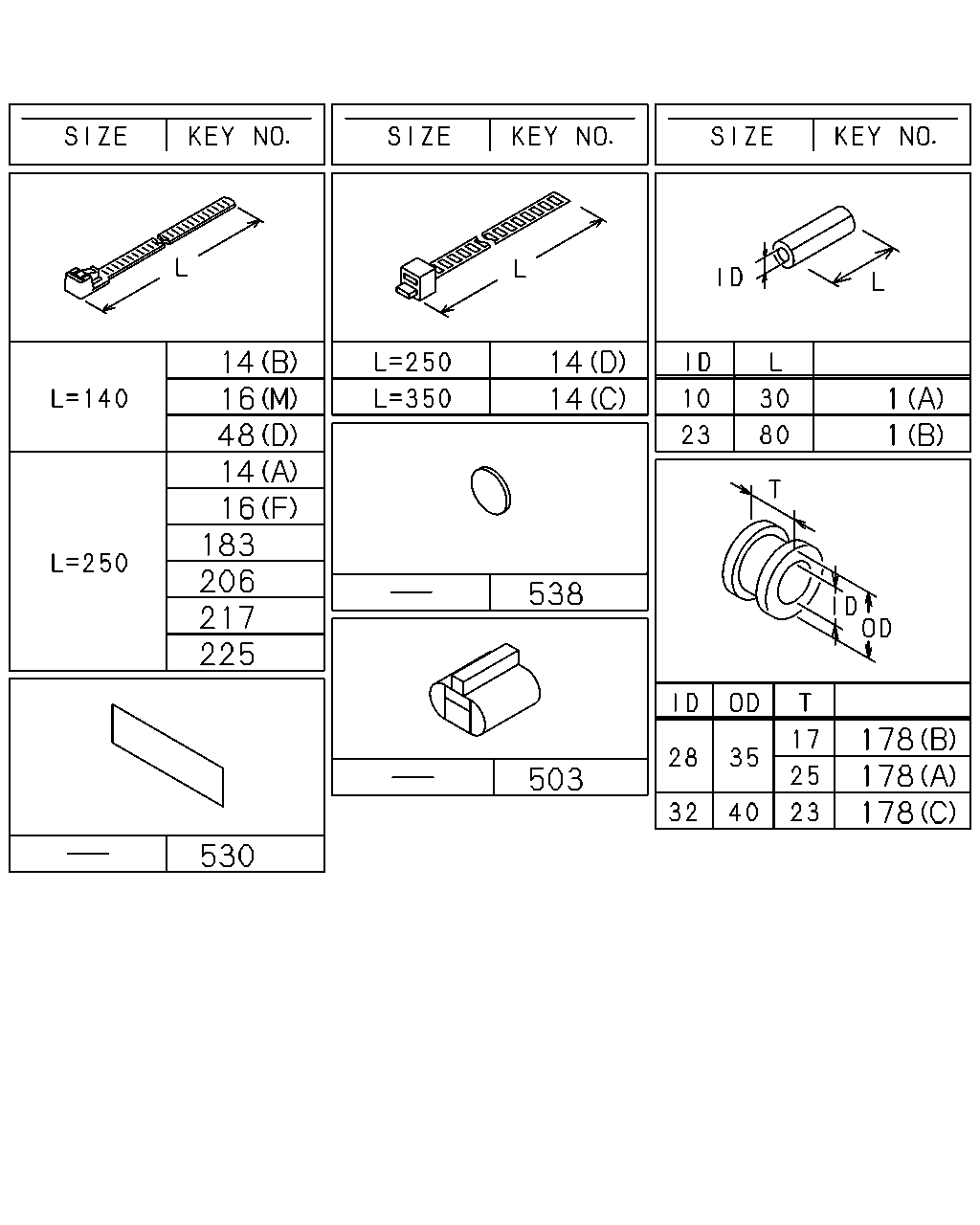

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1109-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1109-
14	CLIP; BAND,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (D) L=250	1-09707-126-0	02	1	1206-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1109-
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	13	1	1109-1205
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	13	1	1206-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	01	1	1109-1109
16	CLIP; HARNESS COLOMBIA EQUIPMENT(CB7) BIO DIESEL FUEL B10<8NV> (N) ID=11 L=61	1-09700-484-0	02	1	1301-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) ID=11 L=16	0-95235-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11X2 L=16	0-95325-025-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1206-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) L=140	5-09707-031-1	01	1	1206-
16	CLIP; HARNESS (H) ID=14 H=50 L=20	1-09700-843-0	02	1	1109-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1109-
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1109-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1109-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1109-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1109-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1109-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1109-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	03	1	1109-1205
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (D) ID=14 L=44	9-09917-427-0	03	1	1206-
48	CLIP; FRAME HARNESS EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (H) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20 L=70	1-09700-485-0	03	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (F) ID=11 L=41	1-09700-403-0	01	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (A) ID=15 L=65	1-09700-466-0	01	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (B) ID=20 L=70	1-09700-485-0	01	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (G) ID=28 L=78	1-09700-858-0	02	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) (H) ID=33 L=83	1-09701-291-0	04	1	1206-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (I) ID=11 L=61	1-09700-484-0	01	1	1206-
48	CLIP; FRAME HARNESS EXC. CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	07	1	1206-
48	CLIP; FRAME HARNESS EXC. CHILE EQUIPMENT(KE1) (B) ID=20 L=70	1-09700-485-0	09	1	1206-
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	13	1	1109-1205
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	13	1	1206-
48	CLIP; FRAME HARNESS (B) ID=20 L=70	1-09700-485-0	02	1	1109-1201
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) ID=35 L=50	1-09701-214-0	01	1	1109-
48	CLIP; FRAME HARNESS (D) L=140	5-09707-031-1	02	1	1109-
48	CLIP; FRAME HARNESS (A) ID=15 L=65	1-09700-466-0	04	1	1109-1205
48	CLIP; FRAME HARNESS CHILE EQUIPMENT(KE1) (A) ID=15 L=65	1-09700-466-0	04	1	1206-
48	CLIP; FRAME HARNESS (E) OD=9 H=9.5	1-09709-179-0	01	1	1109-
178	GROMMET; HARNESS ANTI LOCK BRAKE<JE5> (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1206-
178	GROMMET; HARNESS EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (C) ID=32 OD=40 T=23	1-09332-112-0	01	1	1206-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	02	1	1109-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1109-1205
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1109-1205
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1109-1205
178	GROMMET; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1206-1206
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1206-1206
178	GROMMET; HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1206-1206
178	GROMMET; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1206-1212
178	GROMMET; HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1206-1212
178	GROMMET; HARNESS EXC. COLOMBIA EQUIPMENT(CB7) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1206-1212
178	GROMMET; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1301-
178	GROMMET; HARNESS COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1301-
178	GROMMET; HARNESS COLOMBIA EQUIPMENT(CB7) BIO DIESEL FUEL B10<8NV> (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1301-
178	GROMMET; HARNESS EXC. COLOMBIA EQUIPMENT(CB7) (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1301-
183	CLIP; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1206-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1109-1205
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1206-1212
206	CLIP; FUEL TANK HARNESS COLOMBIA EQUIPMENT(CB7) L=250	5-09707-030-1	02	1	1206-1212
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1301-
206	CLIP; FUEL TANK HARNESS COLOMBIA EQUIPMENT(CB7) EXC. BIO DIESEL FUEL B10<8NV> L=250	5-09707-030-1	02	1	1301-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1109-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	08	1	1206-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	03	1	1109-1205
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	5-09707-030-1	03	1	1206-
503	CONNECTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82690-668-0	01	1	1109-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1109-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1109-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1109-

428 428 335 324 308 308 308 308 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1109-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1109-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1109-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1109-
312	BRACKET; CLIP HARNESS	8-97609-110-1	01	1	1109-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	1-47479-430-0	02	1	1206-1211
324	BRACKET; CLIP COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1)	1-47479-430-0	02	1	1212-1212
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5> COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1)	1-47479-430-0	02	1	1212-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1109-
428	BRACKET COLOMBIA EQUIPMENT(CB7) (A)	1-47476-658-0	01	1	1206-1212
428	BRACKET COLOMBIA EQUIPMENT(CB7) EXC. BIO DIESEL FUEL B10<8NV> (A)	1-47476-658-0	01	1	1301-
428	BRACKET (B)	8-97620-514-0	01	1	1109-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
