2 |

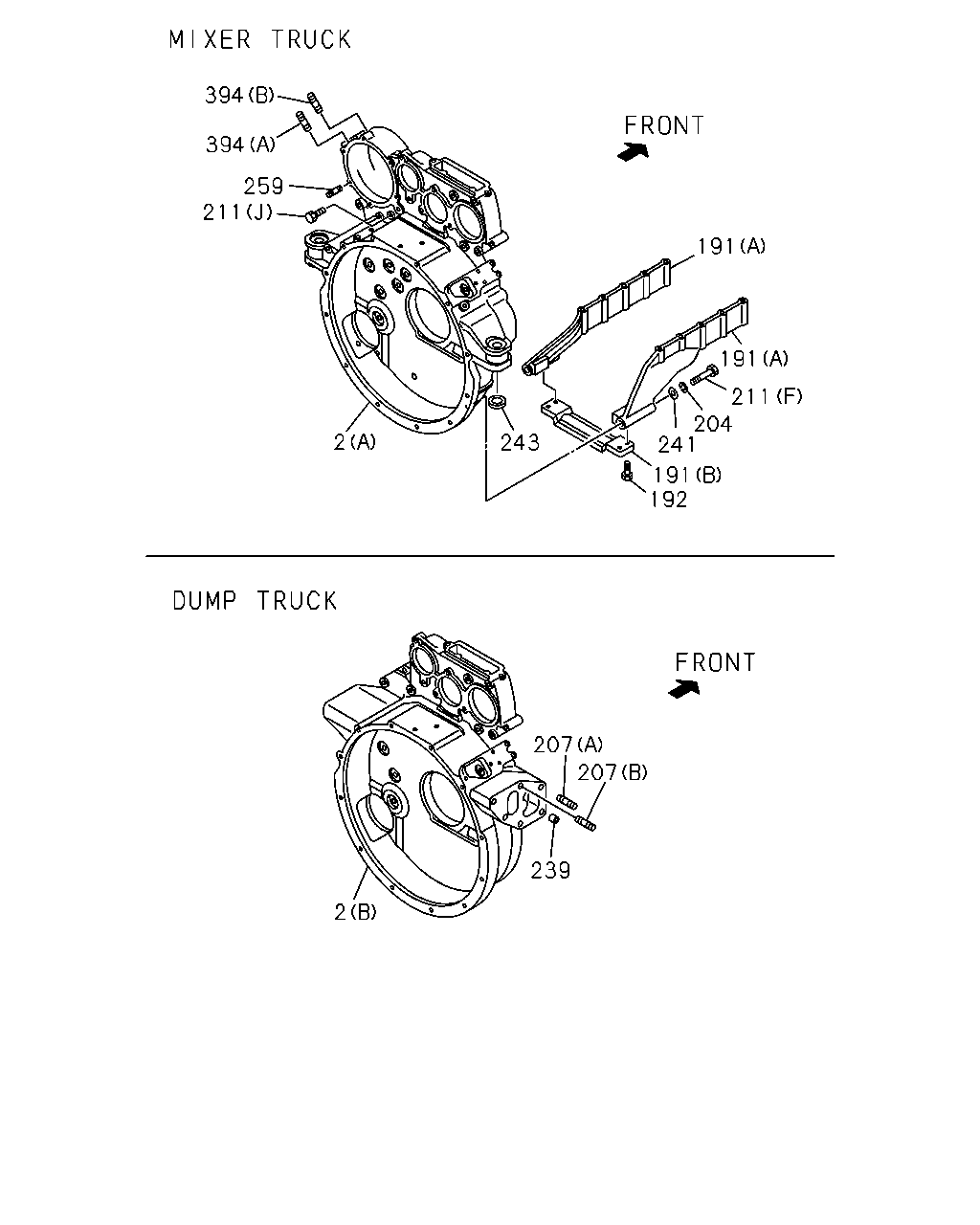

HOUSING; FLYWHEEL
DUMP TRUCK<RA1>
(B)
|
1-11341-452-4 |
01 |
1 |
9906-0008 |
| |
2 |
HOUSING; FLYWHEEL
DUMP TRUCK<RA1>
(B)
|
1-11341-599-0 |
01 |
1 |
0009- |
| |
2 |
HOUSING; FLYWHEEL
MIXER TRUCK<RA2>
(A)
|
1-11341-453-5 |
01 |
1 |
9907-0004 |
| |
2 |
HOUSING; FLYWHEEL
MIXER TRUCK<RA2>
(A)
|
1-11341-619-0 |
01 |
1 |
0005-0007 |
| |
2 |
HOUSING; FLYWHEEL
MIXER TRUCK<RA2>
(A)
|
1-11341-630-0 |
01 |
1 |
0008-0209 |
| |
2 |
HOUSING; FLYWHEEL
MIXER TRUCK<RA2>
(A)
|
1-11341-681-2 |
01 |
1 |
0210- |
| |
35 |

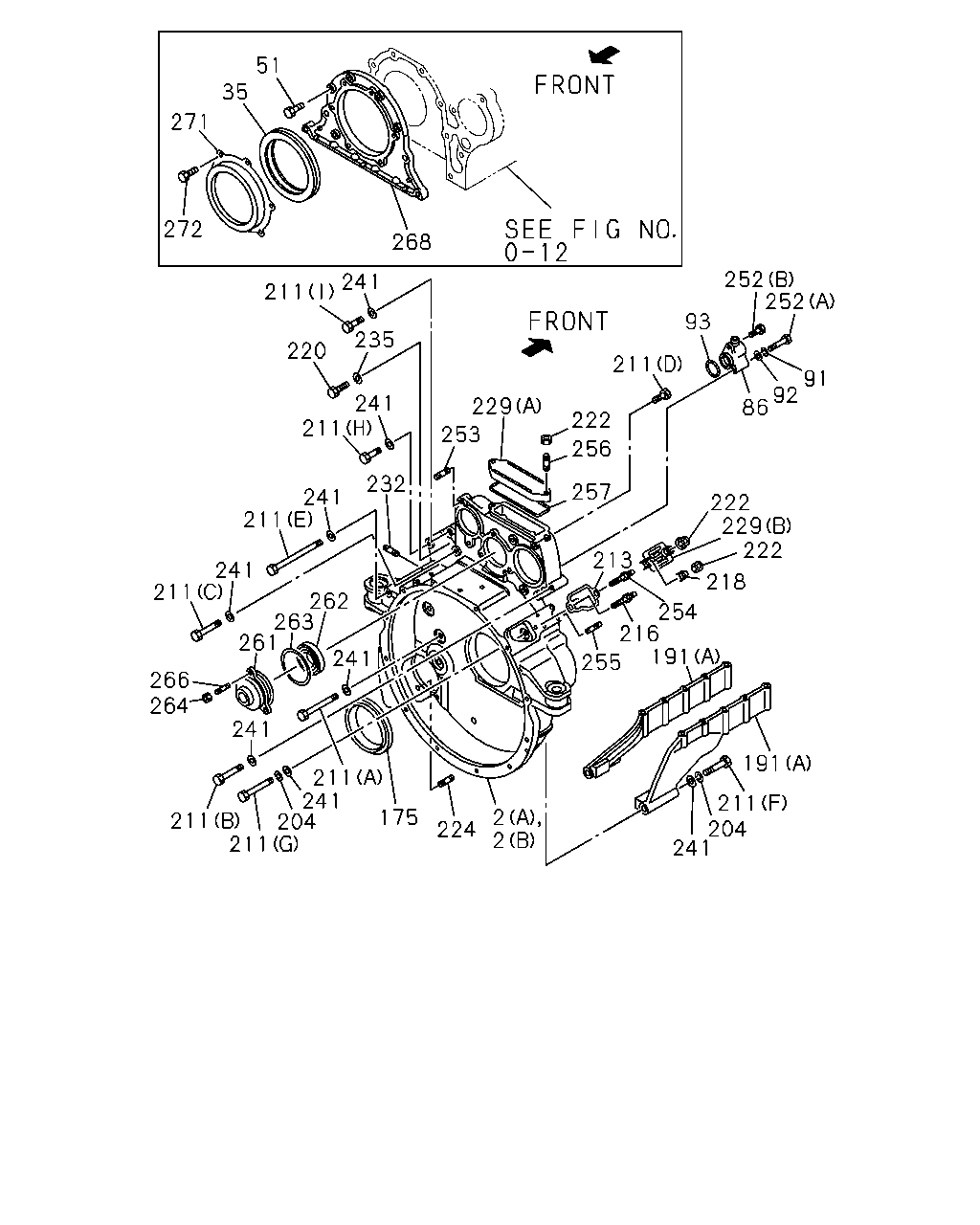

SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09625-524-3 |
01 |
1 |
9906- |
| |
51 |
BOLT; GEAR CASE COVER
M8X28 FLANGE
|
0-28080-828-0 |
08 |
1 |
9906- |
| |
86 |
ELBOW; TACHOMETER DRIVE
|
1-85860-033-2 |
01 |
1 |
9906- |
| |
91 |
WASHER; LK,ELBOW
ID=8.2
|
9-09150-508-0 |
01 |
1 |
9906- |
| |
92 |
WASHER; PL,ELBOW
ID=8.4
|
9-09160-508-0 |
01 |
1 |
9906- |
| |
93 |
GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=35.7
|
1-09623-416-0 |
01 |
1 |
9906- |
| |
175 |
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09625-525-2 |
01 |
1 |
9906- |
| |
191 |
STAY; FLYWHEEL HSG
(A)
|
1-11349-167-0 |
01 |
1 |
9906- |
| |
191 |
STAY; FLYWHEEL HSG
(A)
|
1-11349-168-0 |
01 |
1 |
9906- |
| |
191 |
STAY; FLYWHEEL HSG
MIXER TRUCK<RA2>
(B)
|
1-11349-169-0 |
01 |
1 |
9907-0301 |
| |
204 |
WASHER; LK,HSG
ID=10.2
|
9-09150-510-0 |
01 |
1 |
9906- |
| |
204 |
WASHER; LK,HSG
ID=14.2
|
9-09150-514-0 |
02 |
1 |
9906- |
| |
211 |
BOLT; HSG
DUMP TRUCK<RA1>
(H)
M14X55
|
0-16806-455-0 |
01 |
1 |
9906- |
| |
211 |
BOLT; HSG
DUMP TRUCK<RA1>
(B)
M14X75
|
0-16806-475-0 |
01 |
1 |
9906-9906 |
| |
211 |
BOLT; HSG
(B)
M14X75
|
0-16806-475-0 |
01 |
1 |
9907- |
| |
211 |
BOLT; HSG
DUMP TRUCK<RA1>
(C)
M14X95
|
0-16806-495-0 |
01 |
1 |
9906-9906 |
| |
211 |
BOLT; HSG
(C)
M14X95
|
0-16806-495-0 |
01 |
1 |
9907- |
| |
211 |
BOLT; HSG
DUMP TRUCK<RA1>
(D)
M10X25 FLANGE
|
0-28181-025-0 |
02 |
1 |
9906-9906 |
| |
211 |
BOLT; HSG
(D)
M10X25 FLANGE
|
0-28181-025-0 |
02 |
1 |
9907- |
| |
211 |
BOLT; HSG
DUMP TRUCK<RA1>
(I)
M10X28 FLANGE
|
0-28181-028-0 |
01 |
1 |
9906- |
| |
211 |
BOLT; HSG
DUMP TRUCK<RA1>
(E)
M14X230
|
1-09020-003-1 |
01 |
1 |
9906-9906 |
| |
211 |
BOLT; HSG
(E)
M14X230
|
1-09020-003-1 |
01 |
1 |
9907- |
| |
211 |
BOLT; HSG
DUMP TRUCK<RA1>
(F)
M14X155
|
1-09020-008-1 |
02 |
1 |
9906-9906 |
| |
211 |
BOLT; HSG
(F)
M14X155
|
1-09020-008-1 |
02 |
1 |
9907- |
| |
211 |
BOLT; HSG
DUMP TRUCK<RA1>
(G)
M10X115
|
9-09804-203-1 |
01 |
1 |
9906-9906 |
| |
211 |
BOLT; HSG
(G)
M10X115
|
9-09804-203-1 |
01 |
1 |
9907- |
| |
211 |
BOLT; HSG
DUMP TRUCK<RA1>
(A)
M14X125
|
9-09804-234-0 |
09 |
1 |
9906- |
| |
211 |
BOLT; HSG
MIXER TRUCK<RA2>
(J)
M10X22 FLANGE
|
0-28181-022-0 |
01 |
1 |
9907- |
| |
211 |
BOLT; HSG
MIXER TRUCK<RA2>
(A)
M14X125
|
9-09804-234-0 |
11 |
1 |
9907- |
| |
213 |
POINTER; FLYWHEEL HSG
DUMP TRUCK<RA1>
|
1-11342-019-0 |
01 |
1 |
9906- |
| |
213 |
POINTER; FLYWHEEL HSG
MIXER TRUCK<RA2>
|
1-11342-010-0 |
01 |
1 |
9907- |
| |
216 |
STUD; COVER,TIMING CHECK HOLE
DUMP TRUCK<RA1>
M8X14,M8X14 L=33
|
1-09300-058-1 |
02 |
1 |
9906- |
| |
218 |
WASHER; PL,COVER
|
1-11349-127-0 |
01 |
1 |
9906- |
| |
220 |
PLUG; GEAR CHECK HOLE
MIXER TRUCK<RA2>
|
1-09604-066-1 |
01 |
1 |
9907- |
| |
222 |
NUT; COVER,TIMING CHECK HOLE
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9906- |
| |
224 |
STUD; STARTER
M14X35 L=56
|
9-04411-435-0 |
03 |
1 |
9906- |
| |
229 |
COVER; TIMING CHECK HOLE
DUMP TRUCK<RA1>
(A)
|
1-11349-118-2 |
01 |
1 |
9906-9906 |
| |
229 |
COVER; TIMING CHECK HOLE
(A)
|
1-11349-118-2 |
01 |
1 |
9907- |
| |
229 |
COVER; TIMING CHECK HOLE
DUMP TRUCK<RA1>
(B)
|
1-11349-143-0 |
01 |
1 |
9906- |
| |
229 |
COVER; TIMING CHECK HOLE
MIXER TRUCK<RA2>
(B)
|
1-11349-126-0 |
01 |
1 |
9907- |
| |
232 |
STUD; OIL FILTER
DUMP TRUCK<RA1>
M10X25 L=40
|
9-04411-025-0 |
01 |
1 |
9906- |
| |
232 |
STUD; OIL FILTER
DUMP TRUCK<RA1>
M10X60 L=75
|
9-04411-060-0 |
01 |
1 |
9906- |
| |
232 |
STUD; OIL FILTER
MIXER TRUCK<RA2>
M10X25 L=40
|
9-04411-025-0 |
02 |
1 |
9907-0302 |
| |
235 |
GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE).
MIXER TRUCK<RA2>
ID=12.2
|
1-09630-084-0 |
01 |
1 |
9907- |
| |
241 |
WASHER; PL,HSG
ID=14 OD=30 T=6.0
|
1-09503-057-0 |
13 |
1 |
9906- |
| |
241 |
WASHER; PL,HSG
ID=15
|
9-09160-514-0 |
02 |
1 |
9906- |
| |
241 |
WASHER; PL,HSG
DUMP TRUCK<RA1>
ID=10.5 OD=18
|
9-09160-510-0 |
02 |
1 |
9906- |
| |
241 |
WASHER; PL,HSG
MIXER TRUCK<RA2>
ID=10.5 OD=18
|
9-09160-510-0 |
01 |
1 |
9907- |
| |
252 |
BOLT; GEAR BOX
(A)
M8X70
|
0-10805-870-0 |
01 |
1 |
9906- |
| |
252 |
BOLT; GEAR BOX
(B)
M8X22 W/LK&PL WASHER L=102
|
1-09009-129-1 |
01 |
1 |
9906- |
| |
253 |
STUD; POWER STRG PUMP
M10X25 L=45
|
9-04311-025-0 |
02 |
1 |
9906- |
| |
254 |
STUD; POINTER & COVER
M8X14,M8X14 L=33
|
1-09300-058-1 |
02 |
1 |
9906- |
| |
255 |
STUD; RELAY LEVER BRKT
M8X16 L=28
|
9-04110-816-0 |
04 |
1 |
9906- |
| |
256 |
STUD; COVER
M8X35 L=47
|
9-04110-835-0 |
02 |
1 |
9906- |
| |
257 |
GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-11349-142-0 |
01 |
1 |
9906- |
| |
261 |
COVER; INJ PUMP COUPLING
|
1-11349-117-0 |
01 |
1 |
9906- |
| |
262 |
BEARING
|
1-09810-126-0 |
01 |
1 |
9906- |
| |
263 |
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
|
1-09623-422-0 |
01 |
1 |
9906- |
| |
264 |
NUT; COVER
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
9906- |
| |
266 |
STUD; COVER & TACHO BOX
M8X36
|
1-09305-005-0 |
03 |
1 |
9906- |
| |
268 |
COVER; FRT
|
1-11320-056-1 |
01 |
1 |
9906- |
| |
271 |
COVER; DUST
|
1-11329-004-0 |
01 |
1 |
9906-0305 |
| |
272 |
BOLT; DUST COVER
M8X10 FLANGE
|
0-28080-810-0 |
06 |
1 |
9906-0305 |
