7-20 — MIRROR AND MIRROR STAY (#71669) — 105 parça

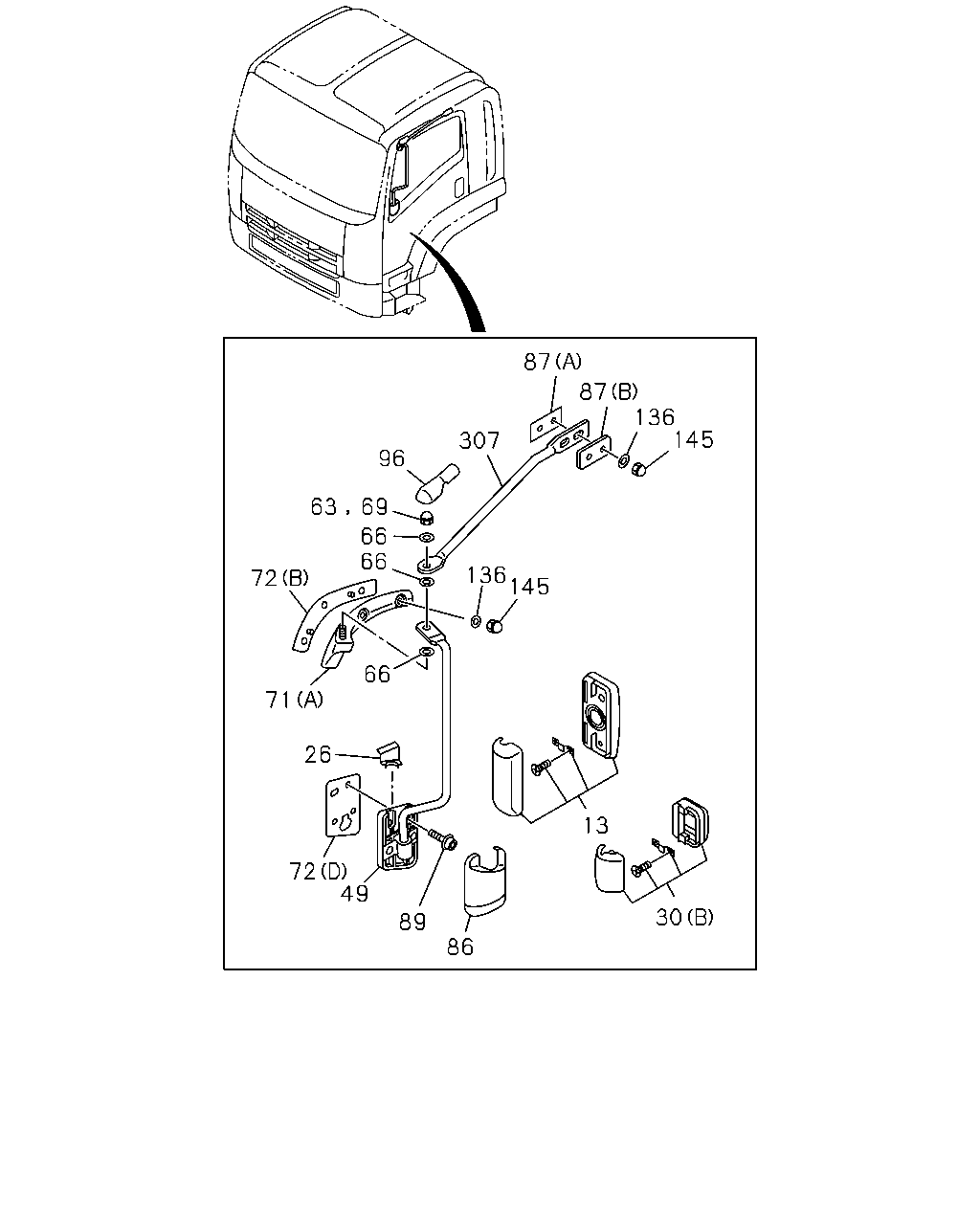

87 87 136 145 307 96 63 69 66 66 136 145 72 66 71 26 13 72 49 30 89 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	8-98055-992-1	01	1	1109-
13	MIRROR ASM; OUTSIDE RR VIEW	8-98055-991-1	01	1	1109-
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	1109-
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	1109-
30	MIRROR; UNDER EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B)	8-98043-061-0	02	1	1206-
30	MIRROR; UNDER EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A)	8-98043-065-0	01	1	1206-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	8-98055-994-0	01	1	1109-1504
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	8-98309-725-0	01	1	1505-
49	STAY; MIRROR SIDE	8-98060-216-1	01	1	1109-1202
49	STAY; MIRROR SIDE	8-98166-195-0	01	1	1203-
49	STAY; MIRROR SIDE	8-98060-215-1	01	1	1109-1202
49	STAY; MIRROR SIDE	8-98166-194-0	01	1	1203-
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	1109-
66	WASHER; PL EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	1206-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1109-
69	NUT; CAP EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) M10 CAP NUT	1-09984-134-0	01	1	1206-
71	BRACKET; OUTSIDE MIRROR EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B)	1-71798-484-1	01	1	1206-
71	BRACKET; OUTSIDE MIRROR (C)	8-98039-277-2	02	1	1109-1202
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	1109-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	1109-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (D)	8-98064-775-0	01	1	1109-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (E)	8-98092-491-3	01	1	1109-
72	SHEET (B)	8-98031-797-0	01	1	1109-
72	SHEET (D)	8-98101-865-0	01	1	1109-1202
72	SHEET (D)	8-98116-605-0	01	1	1203-
72	SHEET (C)	8-98031-796-0	01	1	1109-
72	SHEET (D)	8-98101-864-0	01	1	1109-1202
72	SHEET (D)	8-98116-604-0	01	1	1203-
72	SHEET MIRROR O/S UNDER VIEW<RR9> (E)	8-98060-225-1	01	1	1109-
72	SHEET MIRROR O/S UNDER VIEW<RR9> (A)	8-98064-773-0	01	1	1109-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	1109-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	1109-
87	SPACER EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B)	8-98063-789-0	01	1	1206-
87	SPACER (A)	8-98063-786-0	02	1	1109-
87	SPACER (B)	8-98063-789-0	02	1	1109-1205
87	SPACER COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B)	8-98063-789-0	02	1	1206-
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	1109-
96	CAP; MIRROR STAY	8-98080-173-0	02	1	1109-
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1109-
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	1109-
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	1109-
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	1109-

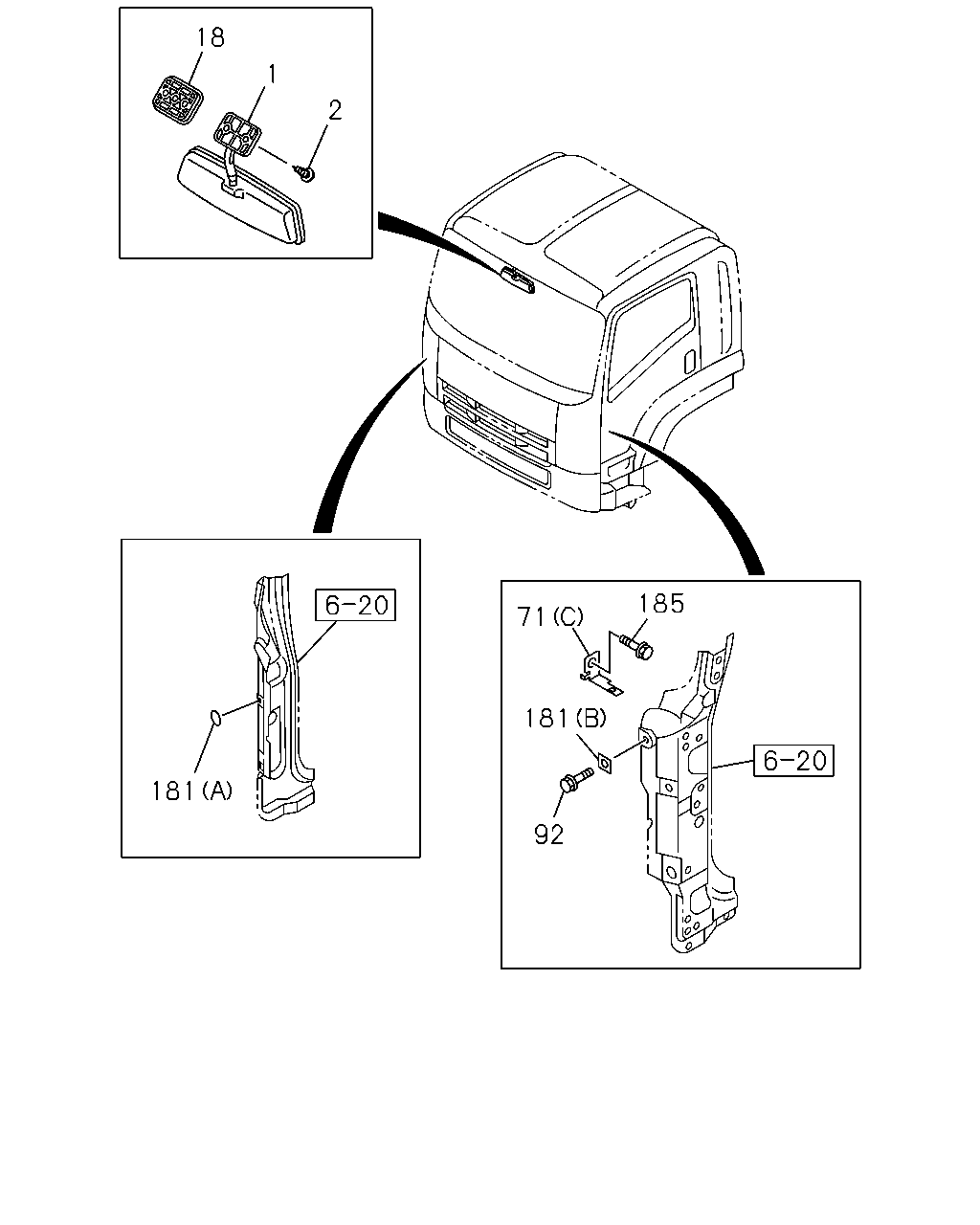

18 1 2 185 71 181 181 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1109-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1109-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1109-
71	BRACKET; OUTSIDE MIRROR EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B)	1-71798-484-1	01	1	1206-
71	BRACKET; OUTSIDE MIRROR (C)	8-98039-277-2	02	1	1109-1202
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	1109-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	1109-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (D)	8-98064-775-0	01	1	1109-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (E)	8-98092-491-3	01	1	1109-
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	01	1	1109-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	02	1	1109-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1109-
185	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	1109-1202

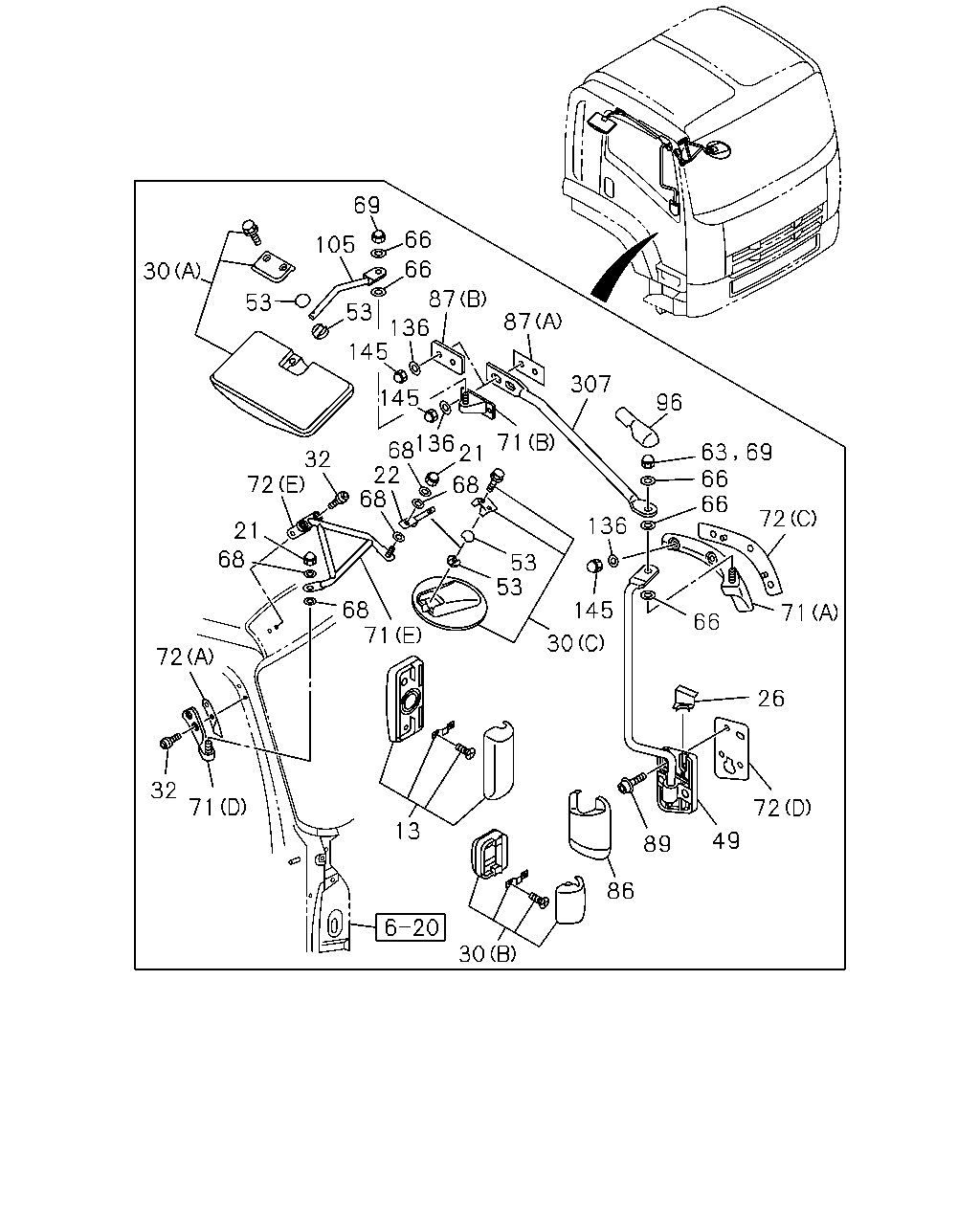

69 66 105 66 30 53 87 53 87 136 145 307 145 96 71 136 68 21 22 68 66 66 32 72 68 72 136 21 68 53 53 68 71 145 71 66 30 72 26 32 71 72 13 49 89 86 30 63 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	8-98055-992-1	01	1	1109-
13	MIRROR ASM; OUTSIDE RR VIEW	8-98055-991-1	01	1	1109-
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT	1-09984-134-0	02	1	1109-
22	STAY; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>	8-98092-493-0	01	1	1109-
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	1109-
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	1109-
30	MIRROR; UNDER EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B)	8-98043-061-0	02	1	1206-
30	MIRROR; UNDER EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (A)	8-98043-065-0	01	1	1206-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	8-98055-994-0	01	1	1109-1504
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	8-98309-725-0	01	1	1505-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER	8-98067-249-2	04	1	1109-
49	STAY; MIRROR SIDE	8-98060-216-1	01	1	1109-1202
49	STAY; MIRROR SIDE	8-98166-195-0	01	1	1203-
49	STAY; MIRROR SIDE	8-98060-215-1	01	1	1109-1202
49	STAY; MIRROR SIDE	8-98166-194-0	01	1	1203-
53	PIVOT; SIDE MIRROR MIRROR O/S UNDER VIEW<RR9> ID=19.1	1-71737-633-2	02	1	1109-1205
53	PIVOT; SIDE MIRROR MIRROR O/S UNDER VIEW<RR9> ID=19.1	1-71737-633-2	02	1	1206-
53	PIVOT; SIDE MIRROR EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) ID=19.1	1-71737-633-2	02	1	1206-
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	1109-
66	WASHER; PL EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	1206-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1109-
68	WASHER; STAY MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1109-
69	NUT; CAP EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) M10 CAP NUT	1-09984-134-0	01	1	1206-
71	BRACKET; OUTSIDE MIRROR EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B)	1-71798-484-1	01	1	1206-
71	BRACKET; OUTSIDE MIRROR (C)	8-98039-277-2	02	1	1109-1202
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	1109-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	1109-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (D)	8-98064-775-0	01	1	1109-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (E)	8-98092-491-3	01	1	1109-
72	SHEET (B)	8-98031-797-0	01	1	1109-
72	SHEET (D)	8-98101-865-0	01	1	1109-1202
72	SHEET (D)	8-98116-605-0	01	1	1203-
72	SHEET (C)	8-98031-796-0	01	1	1109-
72	SHEET (D)	8-98101-864-0	01	1	1109-1202
72	SHEET (D)	8-98116-604-0	01	1	1203-
72	SHEET MIRROR O/S UNDER VIEW<RR9> (E)	8-98060-225-1	01	1	1109-
72	SHEET MIRROR O/S UNDER VIEW<RR9> (A)	8-98064-773-0	01	1	1109-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	1109-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	1109-
87	SPACER EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B)	8-98063-789-0	01	1	1206-
87	SPACER (A)	8-98063-786-0	02	1	1109-
87	SPACER (B)	8-98063-789-0	02	1	1109-1205
87	SPACER COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) (B)	8-98063-789-0	02	1	1206-
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	1109-
96	CAP; MIRROR STAY	8-98080-173-0	02	1	1109-
105	STAY; SUB UNDER MIRROR EXC. COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1)	8-98080-109-2	01	1	1206-
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1109-
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	1109-
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	1109-
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	1109-
