◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11368 - FTR(LHD)EURO4 W/DOC ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#71644) — 6 parça

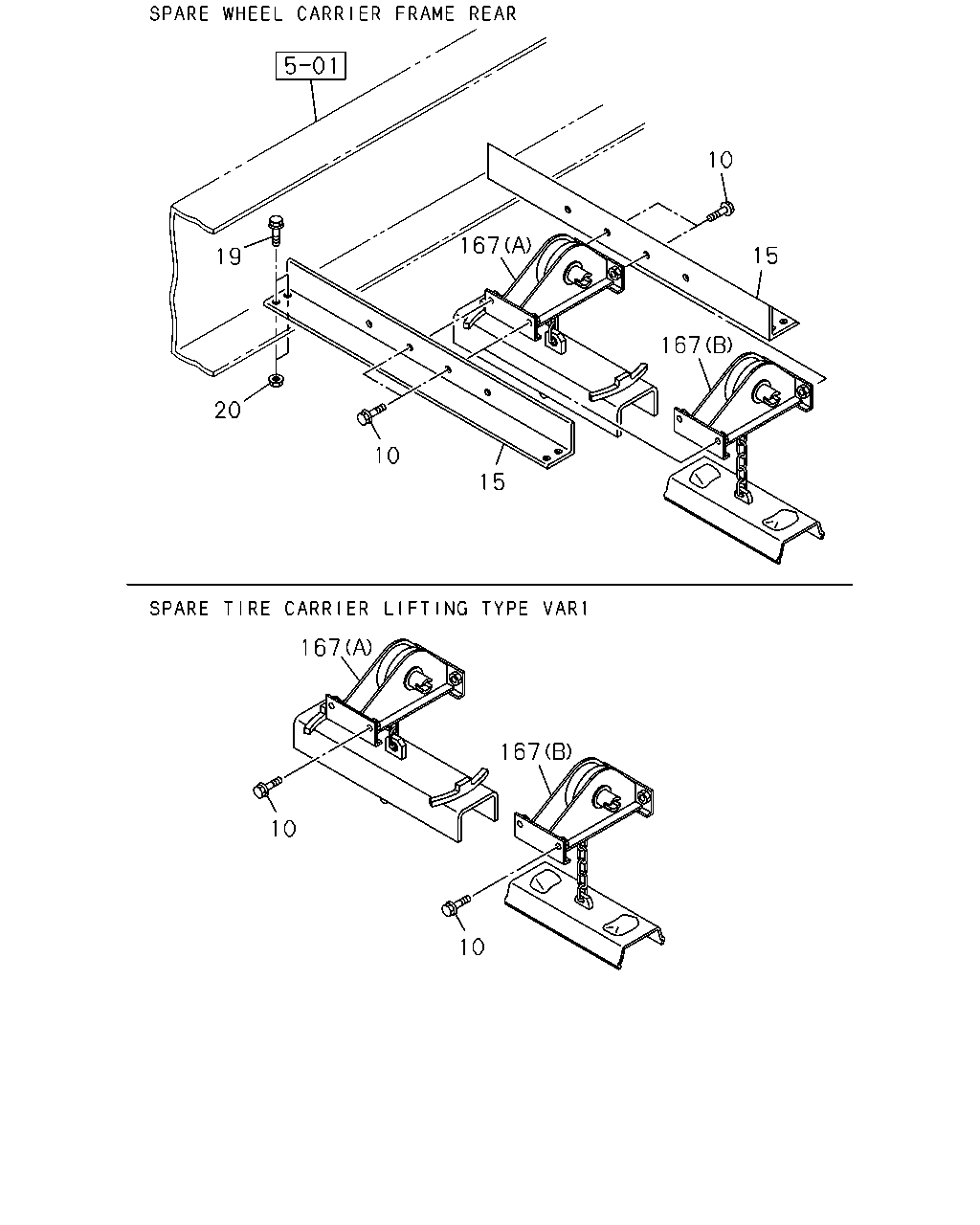

çizim 126035
10 167 15 19 167 20 10 15 167 167 10 10
BalonParca AdiParca NoAdetTipApplied Date
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 1109-
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-394-0 02 1 1109-
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28051-025-0 08 1 1109-
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 1109-
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-208-3 01 1 1206-
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-53630-210-4 01 1 1109-
