Isuzu WW
▶
TRUCKS
▶
FTR
▶
11368 - FTR(LHD)EURO4 W/DOC
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#71640) — 45 parça
◀

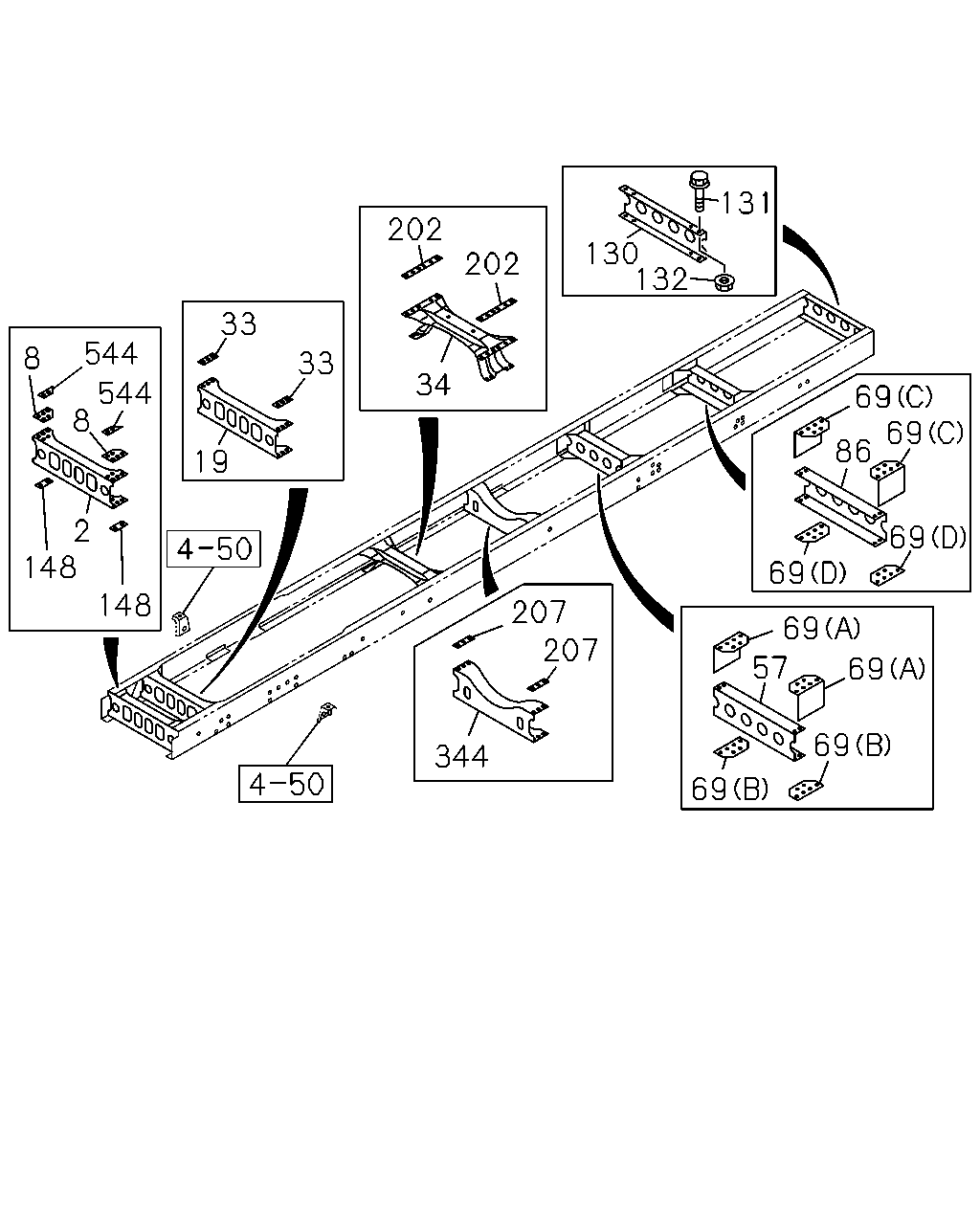

[501A] CROSS MEMBER (21 parça)
[501A] BRACKET (24 parça)
▶
131
130
132
202
202
33
544
8
33
34
544
8
69
69
86
19
69
2
148
69
148
207
207
69
57
69
69
344
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97610-852-7
01
1
1109-
8
GUSSET; 1ST C/MBR
8-97611-027-0
02
1
1109-
19
MEMBER; CROSS,2ND
8-97623-239-3
01
1
1109-
33
SPACER; 2ND C/MBR,UPR
8-97611-040-0
02
1
1109-
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
1109-
57
MEMBER; CROSS,RR SUSP FRT
8-97610-858-5
01
1
1109-
69
GUSSET; RR SUSP,UPR
(B)
8-97610-865-0
02
1
1109-
69
GUSSET; RR SUSP,UPR
(D)
8-97610-866-0
02
1
1109-
69
GUSSET; RR SUSP,UPR
(A)
8-97612-264-0
01
1
1109-
69
GUSSET; RR SUSP,UPR
(A)
8-97612-265-1
01
1
1109-
69
GUSSET; RR SUSP,UPR
(C)
8-97612-266-1
01
1
1109-
69
GUSSET; RR SUSP,UPR
(C)
8-97612-267-1
01
1
1109-
86
MEMBER; CROSS,RR SUSP RR
8-97610-858-5
01
1
1109-
130
MEMBER; CROSS,END
8-97610-869-1
01
1
1109-
131
BOLT; END C/MBR
M12X30 W/LK WASHER
0-50541-230-0
04
1
1109-
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
1109-
148
SPACER; C/MBR
8-97611-039-0
02
1
1109-
202
SPACER; 3RD C/MBR
8-97610-872-0
02
1
1109-
207
SPACER; 4TH C/MBR
0.24KG
8-97611-245-0
02
1
1109-
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1109-
544
PLATE; CAB FRT MTG
8-97617-891-0
02
1
1109-
118
98
103
103
117
118
98
101
117
106
138
82
18
11
13
105
106
138
82
46
25
46
23
25
25
25
26
25
23
25
25
26
39
26
25
26
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97619-549-0
02
1
1109-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1109-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1109-
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1109-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1109-
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1109-
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1109-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1109-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1109-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
1109-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1109-
39
BRACKET; FRT SPR,RR
8-98043-648-0
01
1
1109-
39
BRACKET; FRT SPR,RR
8-98043-649-0
01
1
1109-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1109-
82
NUT; BRKT
M14
0-91110-514-0
20
1
1109-
98
WASHER; LK,STOPPER
ID=14.2
0-91510-814-0
16
1
1109-
101
BRACKET; RR SPR,FRT
1-53353-072-1
02
1
1109-
103
STOPPER; SUB SPR
(A)
1-53356-038-1
02
1
1109-
103
STOPPER; SUB SPR
(B)
1-53357-029-1
02
1
1109-
105
BRACKET; RR SPR,RR
1-53353-072-1
02
1
1109-
106
BOLT; BRKT
M14X50
0-20951-450-0
20
1
1109-
117
BOLT; STOPPER
M14X50
0-20951-450-0
16
1
1109-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1109-
138
WASHER; LK,BRKT
ID=14.2
0-91510-814-0
20
1
1109-
