Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#71624) — 226 parça

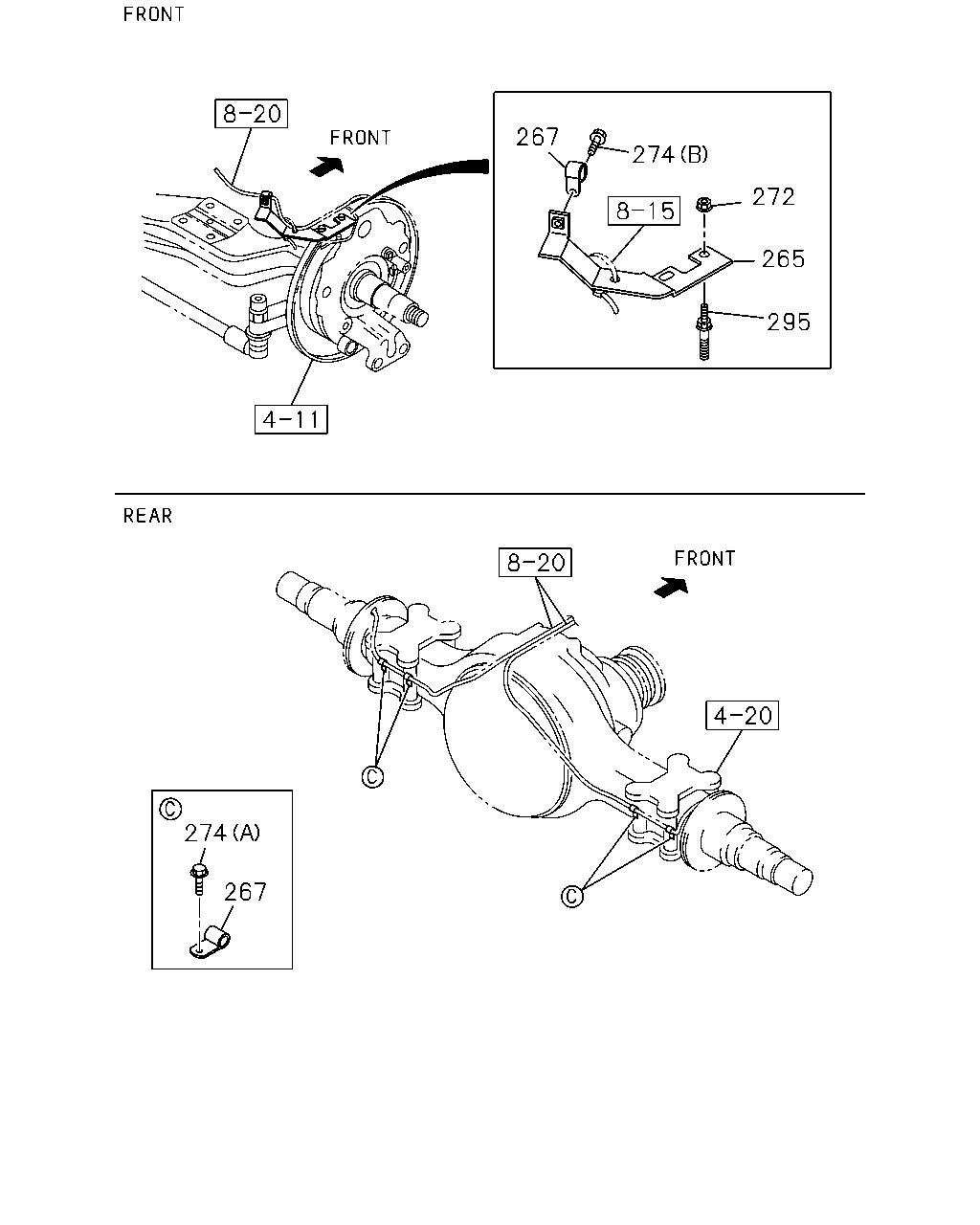

267 274 272 265 295 274 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98073-525-0	01	1	1206-
265	BRACKET; CLIP I BEAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98073-526-0	01	1	1206-
267	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> ID=11 L=20	0-95235-035-0	02	1	1206-
267	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> ID=11 L=20	0-95235-035-0	04	1	1206-
272	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-110-0	04	1	1206-
274	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE	0-28050-816-0	02	1	1206-
274	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5> (A) M8X10 FLANGE	0-28050-810-0	04	1	1206-
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20,M10X26 L=56	8-98010-334-0	04	1	1206-

48 21 44 21 45 44 48 3 8 6 34 33 32 45 21 8 6 21 5 18 17 80 66 25 6 8 8 60 305 2 58 6 8 59 8 275 11 305 11 80 74 304 59 66 61 58 73 81 68 74 304 30 32 34 33 275 73 37 30 68 36 25 61 1 37 2 5 40 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	8-98170-180-2	01	1	1206-
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98061-842-3	01	1	1206-
1	AXLE; FRT (A)	1-43111-113-6	01	1	1109-1205
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43111-113-6	01	1	1206-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43131-120-1	01	1	1206-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43132-120-1	01	1	1206-
2	KNUCKLE; FRT AXLE (A)	1-43131-079-1	01	1	1109-1205
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43131-079-1	01	1	1206-
2	KNUCKLE; FRT AXLE (A)	1-43132-079-1	01	1	1109-1205
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43132-079-1	01	1	1206-
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-3	02	1	1206-
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-3	02	1	1206-
3	KING PIN SET (A)	1-87831-302-2	02	1	1109-1205
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-87831-302-3	02	1	1206-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	1109-1205
5	PIN; KNUCKLE TO DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09740-072-0	02	1	1206-
6	SEAL; KING PIN	9-09926-024-0	04	1	1109-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1109-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1109-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	1109-1205
11	RING; SNAP,KNUCKLE PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09950-204-0	02	1	1206-
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M18X53	1-09009-066-0	01	1	1206-
17	BOLT; STOPPER KNUCKLE (A) M18X43	1-09009-190-0	02	1	1109-
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OCTAGON M18	1-09469-011-1	01	1	1206-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1109-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1109-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1109-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1109-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1109-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1109-
34	WASHER; LK,KEY BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1206-1302
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1109-1205
34	WASHER; LK,KEY BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1206-1302
34	WASHER; LK,KEY BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2	0-91510-510-0	02	1	1206-1302
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43133-073-3	01	1	1206-
36	ARM; KNUCKLE (A)	1-43133-063-3	01	1	1109-1205
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43133-063-3	01	1	1206-
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	1109-1205
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X179	8-98052-380-1	01	1	1206-
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	1109-1205
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X167	8-98052-381-1	01	1	1206-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1109-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-654-0	02	1	1206-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98100-655-0	02	1	1206-
44	COVER; KING PIN (A)	1-43175-014-1	02	1	1109-1205
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43175-014-1	02	1	1206-
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-656-1	04	1	1206-
45	GASKET; KING PIN COVER (A)	1-42319-044-0	02	1	1109-1205
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-42319-044-0	02	1	1206-
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28751-025-0	12	1	1206-
48	BOLT; COVER (A) M12X16 FLANGE	0-28051-216-0	08	1	1109-1205
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12X16 FLANGE	0-28051-216-0	08	1	1206-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43134-049-4	01	1	1206-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43135-049-4	01	1	1206-
58	ARM; TIE ROD (A)	1-43134-042-3	01	1	1109-1205
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43134-042-3	01	1	1206-
58	ARM; TIE ROD (A)	1-43135-042-3	01	1	1109-1205
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43135-042-3	01	1	1206-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1109-
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	1109-1205
60	BOLT; TIE ROD ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X193	8-98052-379-1	04	1	1206-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98096-753-0	01	1	1206-1306
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98096-754-0	01	1	1206-1306
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98228-107-0	01	1	1307-
61	ROD END; TIE ROD (A)	8-98171-444-0	01	1	1109-1205
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98171-444-0	01	1	1206-1306
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD (A)	8-98171-445-0	01	1	1109-1205
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98171-445-0	01	1	1206-1306
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98236-801-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1109-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1109-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1109-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1109-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1109-
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98171-947-0	01	1	1206-
81	ROD; TIE (A)	8-98172-133-0	01	1	1109-1109
81	ROD; TIE (A)	8-98193-965-0	01	1	1110-1205
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98193-965-0	01	1	1206-
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1109-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1109-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1109-
305	COVER; KNUCKLE	8-98052-291-0	02	1	1109-1205
305	COVER; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98052-291-0	02	1	1206-

2 18 17 1 33 34 18 17 313 30 21 48 80 66 295 30 25 220 40 36 58 32 80 44 59 59 275 45 66 58 73 68 8 6 61 313 9 68 304 74 17 2 81 74 275 3 73 61 6 18 8 8 304 48 21 45 44 295 44 45 48 8 33 6 21 32 25 6 8 34 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	8-98170-180-2	01	1	1206-
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98061-842-3	01	1	1206-
1	AXLE; FRT (A)	1-43111-113-6	01	1	1109-1205
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43111-113-6	01	1	1206-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43131-120-1	01	1	1206-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43132-120-1	01	1	1206-
2	KNUCKLE; FRT AXLE (A)	1-43131-079-1	01	1	1109-1205
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43131-079-1	01	1	1206-
2	KNUCKLE; FRT AXLE (A)	1-43132-079-1	01	1	1109-1205
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43132-079-1	01	1	1206-
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-3	02	1	1206-
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-3	02	1	1206-
3	KING PIN SET (A)	1-87831-302-2	02	1	1109-1205
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-87831-302-3	02	1	1206-
6	SEAL; KING PIN	9-09926-024-0	04	1	1109-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1109-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1109-
9	PLUG; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	1206-
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M18X53	1-09009-066-0	01	1	1206-
17	BOLT; STOPPER KNUCKLE (A) M18X43	1-09009-190-0	02	1	1109-
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OCTAGON M18	1-09469-011-1	01	1	1206-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1109-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1109-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1109-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1109-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1109-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1109-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1109-
34	WASHER; LK,KEY BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1206-1302
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1109-1205
34	WASHER; LK,KEY BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1206-1302
34	WASHER; LK,KEY BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2	0-91510-510-0	02	1	1206-1302
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43133-073-3	01	1	1206-
36	ARM; KNUCKLE (A)	1-43133-063-3	01	1	1109-1205
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43133-063-3	01	1	1206-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1109-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-654-0	02	1	1206-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98100-655-0	02	1	1206-
44	COVER; KING PIN (A)	1-43175-014-1	02	1	1109-1205
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43175-014-1	02	1	1206-
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-656-1	04	1	1206-
45	GASKET; KING PIN COVER (A)	1-42319-044-0	02	1	1109-1205
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-42319-044-0	02	1	1206-
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28751-025-0	12	1	1206-
48	BOLT; COVER (A) M12X16 FLANGE	0-28051-216-0	08	1	1109-1205
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12X16 FLANGE	0-28051-216-0	08	1	1206-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43134-049-4	01	1	1206-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-43135-049-4	01	1	1206-
58	ARM; TIE ROD (A)	1-43134-042-3	01	1	1109-1205
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43134-042-3	01	1	1206-
58	ARM; TIE ROD (A)	1-43135-042-3	01	1	1109-1205
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-43135-042-3	01	1	1206-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1109-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98096-753-0	01	1	1206-1306
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98096-754-0	01	1	1206-1306
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98228-107-0	01	1	1307-
61	ROD END; TIE ROD (A)	8-98171-444-0	01	1	1109-1205
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98171-444-0	01	1	1206-1306
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD (A)	8-98171-445-0	01	1	1109-1205
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98171-445-0	01	1	1206-1306
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98236-801-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1109-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1109-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1109-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1109-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1109-
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98171-947-0	01	1	1206-
81	ROD; TIE (A)	8-98172-133-0	01	1	1109-1109
81	ROD; TIE (A)	8-98193-965-0	01	1	1110-1205
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98193-965-0	01	1	1206-
220	STUD; KNUCKLE ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X145	1-09300-127-1	02	1	1206-
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1109-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20,M10X26 L=56	8-98010-334-0	04	1	1206-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1109-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1109-
313	STUD; TIE ROD ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X145	1-09300-127-1	04	1	1206-

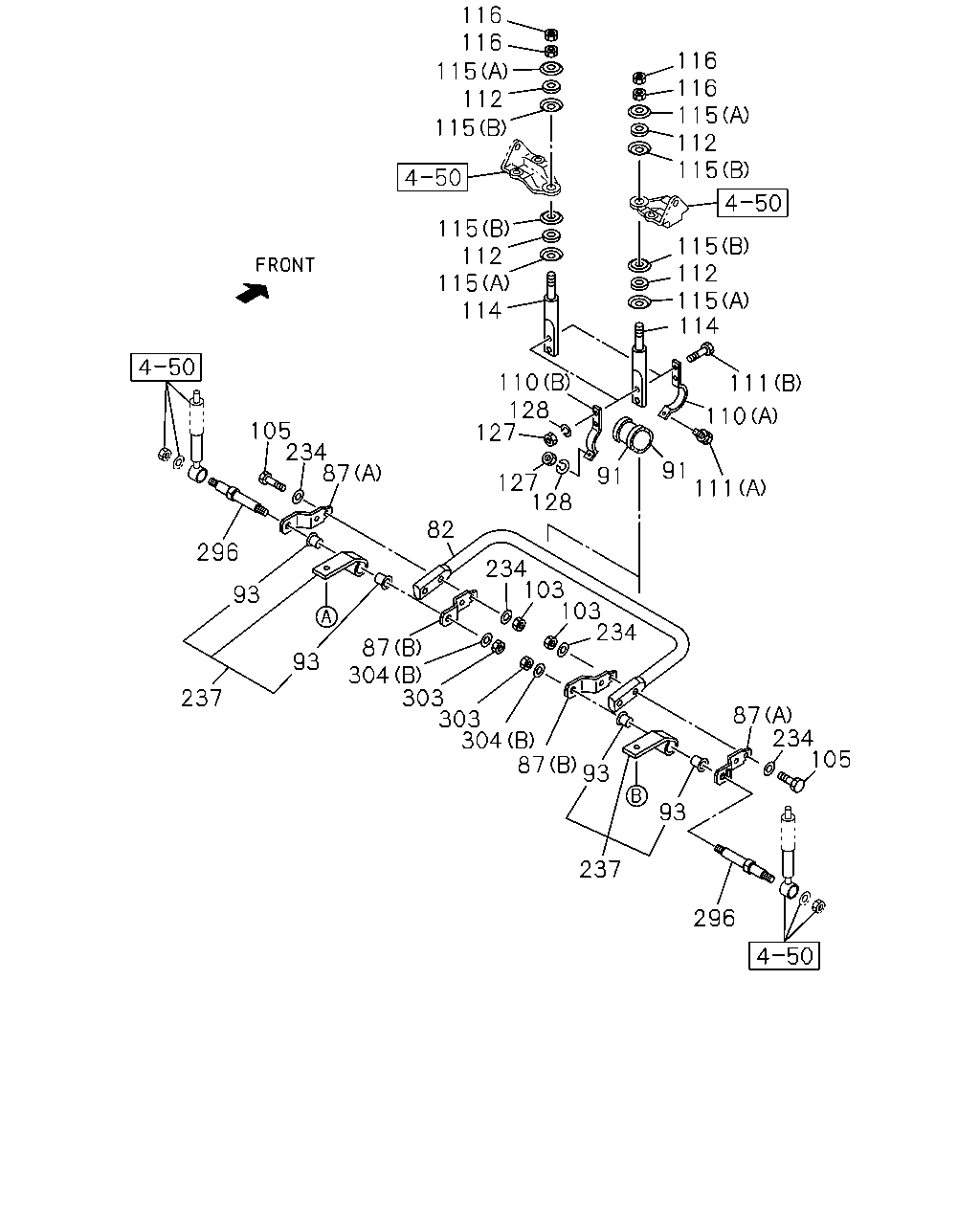

116 116 116 116 115 112 115 115 112 115 115 112 115 114 115 112 115 114 110 128 127 111 110 105 234 87 91 91 127 128 111 82 296 234 103 103 234 93 87 304 303 303 304 87 93 93 237 87 234 105 93 237 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	1109-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1109-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1109-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1109-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1109-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1109-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1109-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1109-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1109-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1109-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1109-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	1109-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	1109-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	1109-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	1109-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1109-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1109-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1109-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1109-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1109-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98013-020-1	02	1	1109-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1109-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1109-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1109-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
