Sayfa 3-78 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11368 - FTR(LHD)EURO4 W/DOC ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶

3-78 — FIXING PARTS; AIR PIPING (#71622) — 143 parça

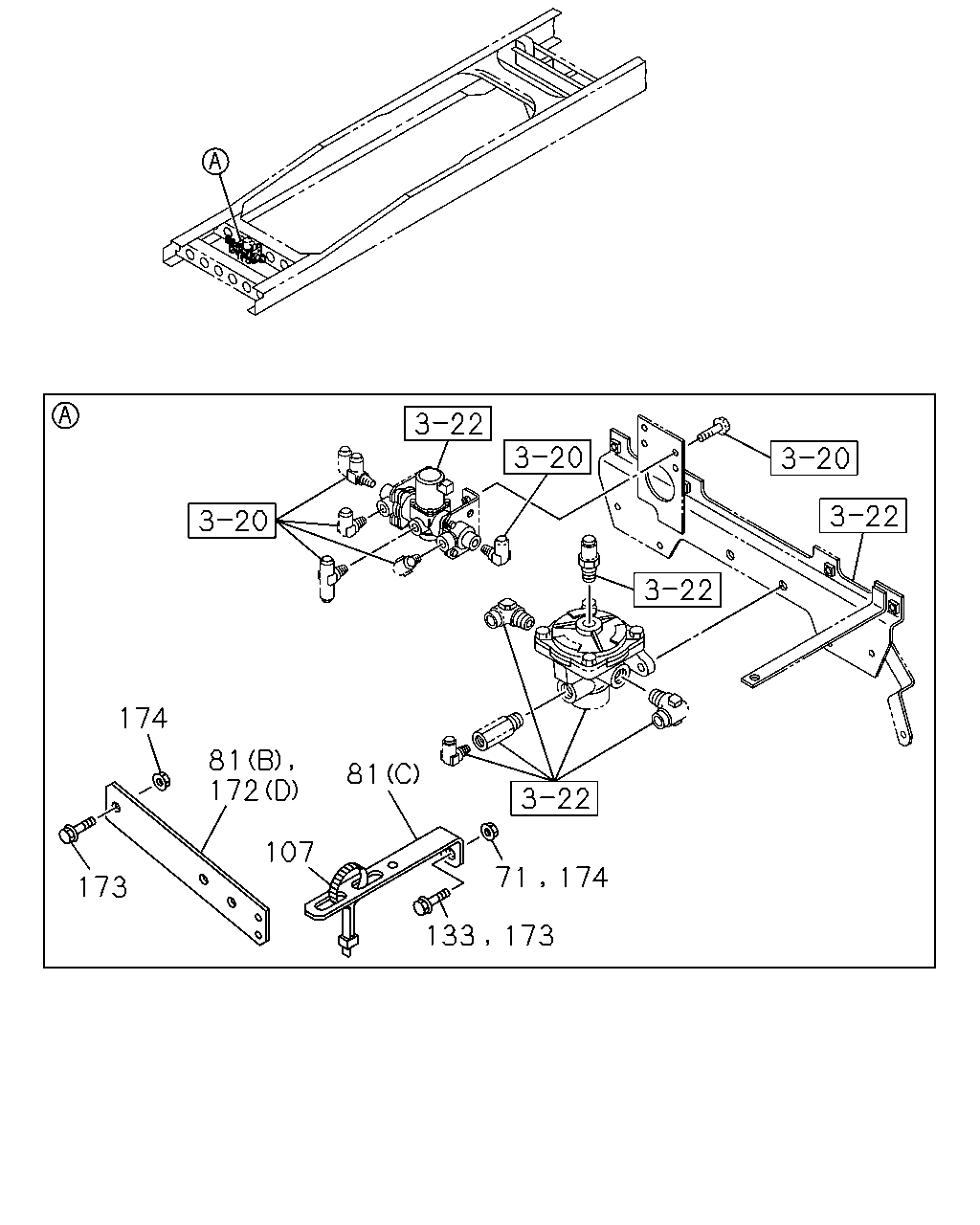

265 372 242 353 81 172 375 67 81 133 269 71 127 133 126 133 173 81 172 81 172 81 71 174 71 174 71 174 133 173 81 172 173 81 172 81 172 172 172 174 71 174 13 74 16 67 34 71 74 76 107 170 269 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	1109-1205
13	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 6.35	1-09709-273-1	01	1	1206-
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) L=225	1-47477-646-3	01	1	1206-
34	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (B) M8 FLANGE	0-91180-108-0	02	1	1206-
34	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	02	1	1109-1205
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M6 FLANGE	0-91180-106-0	02	1	1206-
67	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (A) L=150 H=30	1-47477-629-2	01	1	1206-
67	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (B)	1-47479-693-0	01	1	1206-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	08	1	1206-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	01	1	1206-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) M8 FLANGE	0-91180-108-0	04	1	1206-
71	NUT; BRKT H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	01	1	1206-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) M8 FLANGE	0-91180-108-0	01	1	1206-
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	03	1	1206-
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=12 & 15	1-09709-281-1	01	1	1206-
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (A) L=350	1-09707-183-0	09	1	1206-
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (A) L=350	1-09707-183-0	01	1	1206-
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (A) L=350	1-09707-183-0	11	1	1206-
76	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	1109-1205
76	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350	1-09707-183-0	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=150 H=30	1-47477-629-2	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F)	1-47479-693-0	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-420-2	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) L=65 B=25	8-98135-584-0	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J)	8-98177-873-0	02	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98182-332-0	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H)	8-98182-764-0	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	8-98186-380-0	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=60 H=30	1-47477-716-1	02	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (D) L=60 H=30	1-47477-716-1	02	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (C) L=100 H=30	1-47477-645-2	01	1	1206-
81	BRACKET; CLIP H.S.A SYSTEM<6EP> (C) L=100 H=30	1-47477-645-2	01	1	1206-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) L=350	1-09707-183-0	41	1	1206-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) L=350	1-09707-183-0	40	1	1206-
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> L=350	1-09707-183-0	01	1	1206-
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) M8X30 FLANGE	0-28650-830-0	01	1	1206-
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) M8 FLANGE	0-91180-108-0	01	1	1206-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1206-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	03	1	1206-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1206-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1206-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) M8X35 FLANGE	0-28650-835-0	02	1	1206-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	01	1	1206-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) M8X25 FLANGE	0-28650-825-0	01	1	1206-
170	CLIP; NYLON TUBE L=350	1-09707-183-0	30	1	1109-1205
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350	1-09707-183-0	30	1	1206-
172	BRACKET; TUBE CLIP (A) L=150 H=30	1-47477-629-2	01	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=150 H=30	1-47477-629-2	01	1	1206-
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	05	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=60 H=30	1-47477-716-1	05	1	1206-
172	BRACKET; TUBE CLIP (D)	8-98031-420-2	01	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98031-420-2	01	1	1206-
172	BRACKET; TUBE CLIP (F) L=65 B=25	8-98135-584-0	01	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) L=65 B=25	8-98135-584-0	01	1	1206-
172	BRACKET; TUBE CLIP (G)	8-98166-032-0	01	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98166-032-0	01	1	1206-
172	BRACKET; TUBE CLIP (H)	8-98169-222-0	01	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	8-98169-222-0	01	1	1206-
172	BRACKET; TUBE CLIP (I)	8-98177-873-0	02	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98177-873-0	02	1	1206-
172	BRACKET; TUBE CLIP (B)	8-98182-332-0	01	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98182-332-0	01	1	1206-
172	BRACKET; TUBE CLIP (E)	8-98182-764-0	01	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	8-98182-764-0	01	1	1206-
173	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	1109-1205
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1206-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1109-1205
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	1206-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	06	1	1109-1205
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	06	1	1206-
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	13	1	1109-1205
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	13	1	1206-
242	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98158-602-0	01	1	1206-
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1206-
269	CLIP; BAND,NYLON TUBE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	02	1	1206-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) L=350	1-09707-183-0	01	1	1206-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5> L=350	1-09707-183-0	03	1	1206-
286	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> L=350	1-09707-183-0	01	1	1206-
353	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=18 & 18	8-94323-068-0	01	1	1206-
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1206-
375	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1109-1205
375	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350	1-09707-183-0	01	1	1206-1402
375	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=350	1-09707-183-0	01	1	1206-1402
375	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350	1-09707-183-0	01	1	1403-

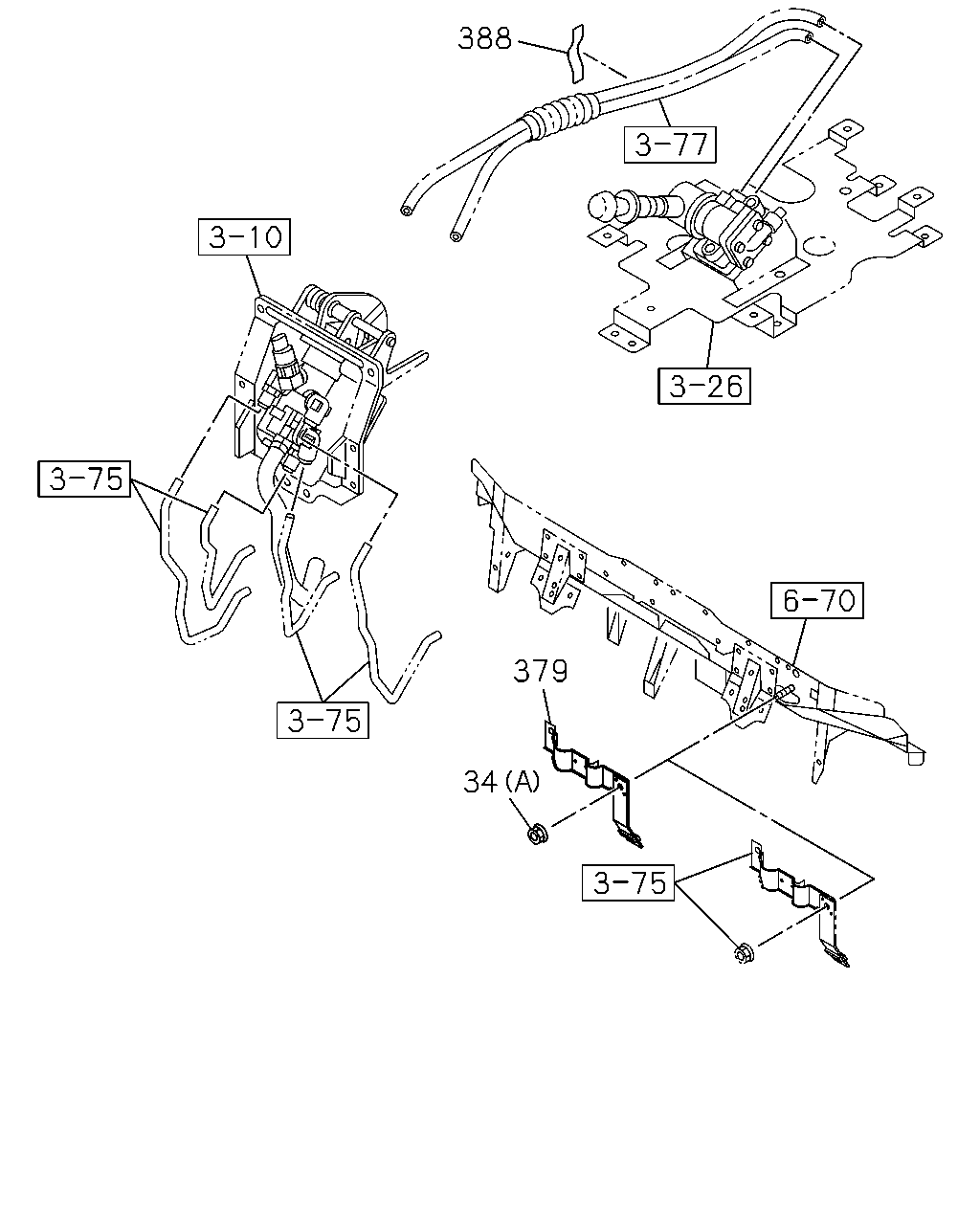

388 379 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (B) M8 FLANGE	0-91180-108-0	02	1	1206-
34	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	02	1	1109-1205
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M6 FLANGE	0-91180-106-0	02	1	1206-
379	BRACKET; NYLON TUBE	8-98112-515-1	01	1	1109-1205
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98112-515-1	01	1	1206-
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	1206-

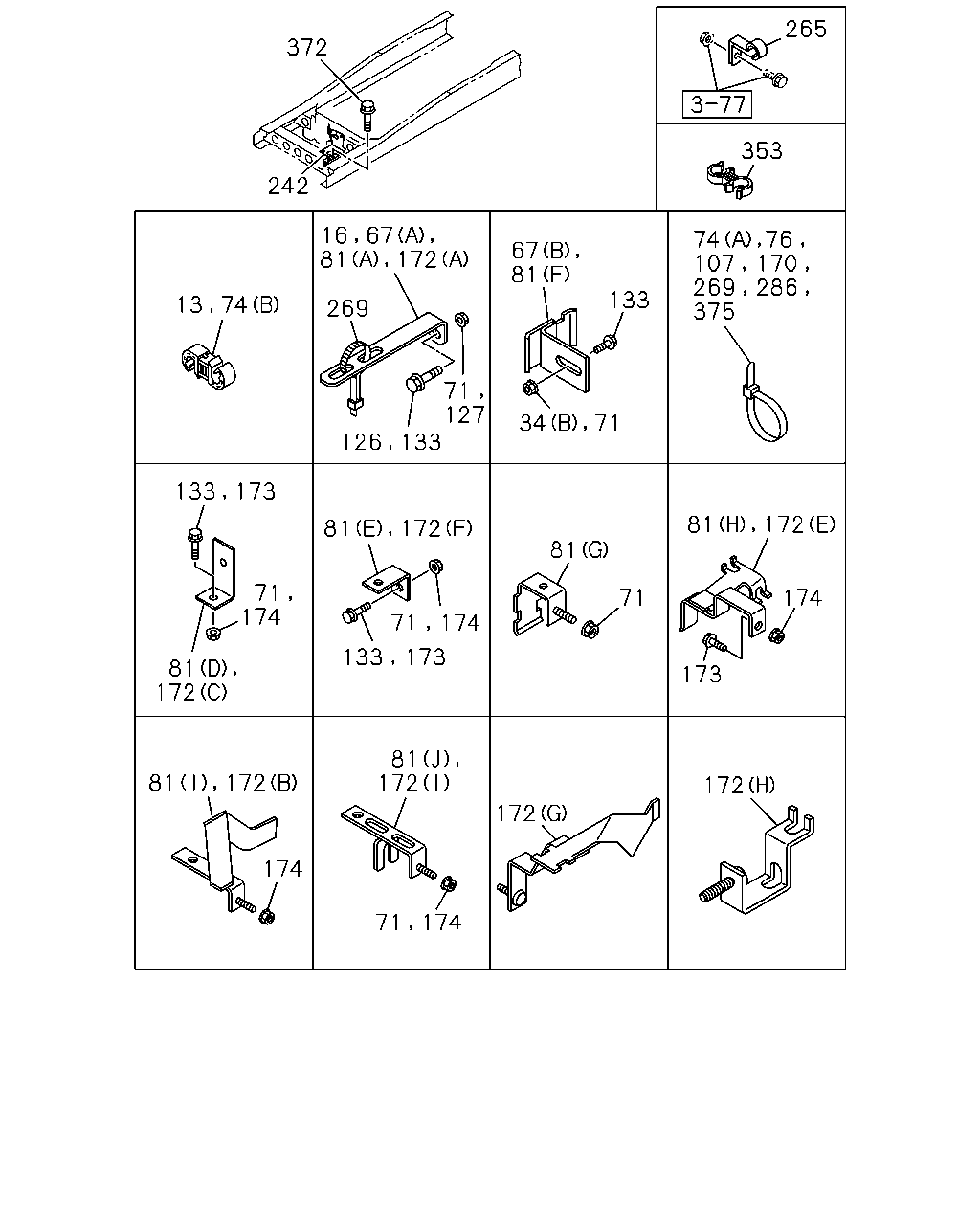

174 81 172 81 107 71 174 173 133 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	08	1	1206-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	01	1	1206-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) M8 FLANGE	0-91180-108-0	04	1	1206-
71	NUT; BRKT H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	01	1	1206-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) M8 FLANGE	0-91180-108-0	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=150 H=30	1-47477-629-2	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F)	1-47479-693-0	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-420-2	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) L=65 B=25	8-98135-584-0	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J)	8-98177-873-0	02	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98182-332-0	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H)	8-98182-764-0	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	8-98186-380-0	01	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=60 H=30	1-47477-716-1	02	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (D) L=60 H=30	1-47477-716-1	02	1	1206-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (C) L=100 H=30	1-47477-645-2	01	1	1206-
81	BRACKET; CLIP H.S.A SYSTEM<6EP> (C) L=100 H=30	1-47477-645-2	01	1	1206-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) L=350	1-09707-183-0	41	1	1206-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) L=350	1-09707-183-0	40	1	1206-
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> L=350	1-09707-183-0	01	1	1206-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1206-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	03	1	1206-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1206-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1206-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) M8X35 FLANGE	0-28650-835-0	02	1	1206-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	01	1	1206-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) M8X25 FLANGE	0-28650-825-0	01	1	1206-
172	BRACKET; TUBE CLIP (A) L=150 H=30	1-47477-629-2	01	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=150 H=30	1-47477-629-2	01	1	1206-
172	BRACKET; TUBE CLIP (C) L=60 H=30	1-47477-716-1	05	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=60 H=30	1-47477-716-1	05	1	1206-
172	BRACKET; TUBE CLIP (D)	8-98031-420-2	01	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98031-420-2	01	1	1206-
172	BRACKET; TUBE CLIP (F) L=65 B=25	8-98135-584-0	01	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) L=65 B=25	8-98135-584-0	01	1	1206-
172	BRACKET; TUBE CLIP (G)	8-98166-032-0	01	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98166-032-0	01	1	1206-
172	BRACKET; TUBE CLIP (H)	8-98169-222-0	01	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	8-98169-222-0	01	1	1206-
172	BRACKET; TUBE CLIP (I)	8-98177-873-0	02	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98177-873-0	02	1	1206-
172	BRACKET; TUBE CLIP (B)	8-98182-332-0	01	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98182-332-0	01	1	1206-
172	BRACKET; TUBE CLIP (E)	8-98182-764-0	01	1	1109-1205
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	8-98182-764-0	01	1	1206-
173	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	1109-1205
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1206-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1109-1205
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	1206-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	06	1	1109-1205
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	06	1	1206-
174	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	13	1	1109-1205
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	13	1	1206-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
