◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11368 - FTR(LHD)EURO4 W/DOC ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#71621) — 78 parça

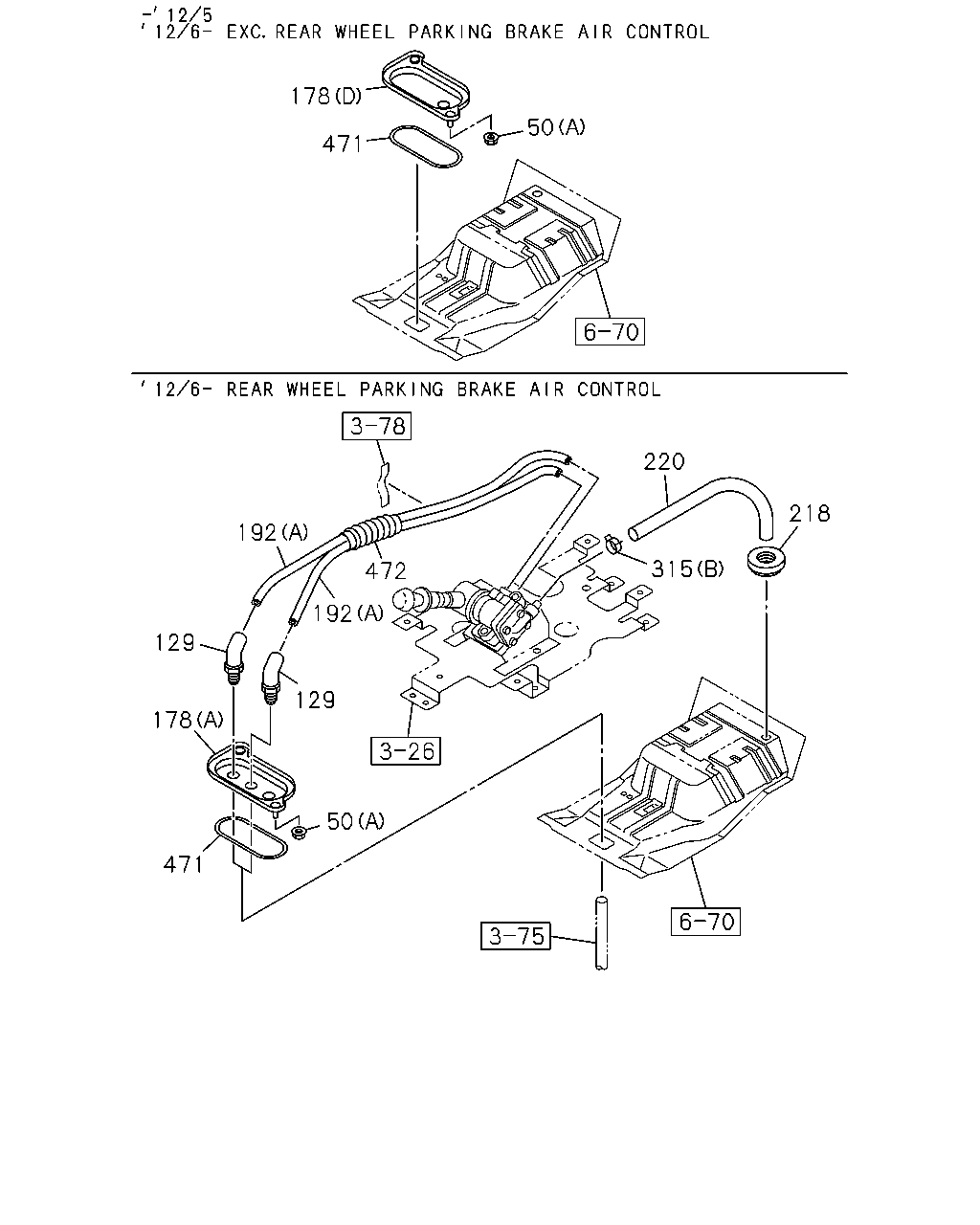

çizim 121836
178 50 471 220 218 192 315 472 192 129 129 178 50 471
BalonParca AdiParca NoAdetTipApplied Date
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 		0-91111-512-0 02 1 1206-
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16 		0-91111-516-0 01 1 1206-
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1109-1205
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1206-
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1206-
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98017-054-1 01 1 1206-
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98057-822-0 01 1 1206-
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98057-823-0 01 1 1206-
178 BRACKET; UNION
(D) 		8-98017-052-1 01 1 1109-1205
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98017-052-1 01 1 1206-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98085-803-0 01 1 1206-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98085-806-0 01 1 1206-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-98109-842-0 01 1 1206-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1109-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1109-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1109-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1109-
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1109-
218 GROMMET; VINYL HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24 		9-61166-007-0 01 1 1206-
220 HOSE; VINYL,EXH,PARKING BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1206-
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14 		8-94238-572-0 01 1 1206-
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18 		8-94323-068-0 01 1 1206-
471 SEAL; BRKT 1-79738-832-0 01 1 1109-1205
471 SEAL; BRKT 1-79738-832-0 01 1 1206-
472 TUBE; SPUTTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-708-0 01 1 1206-

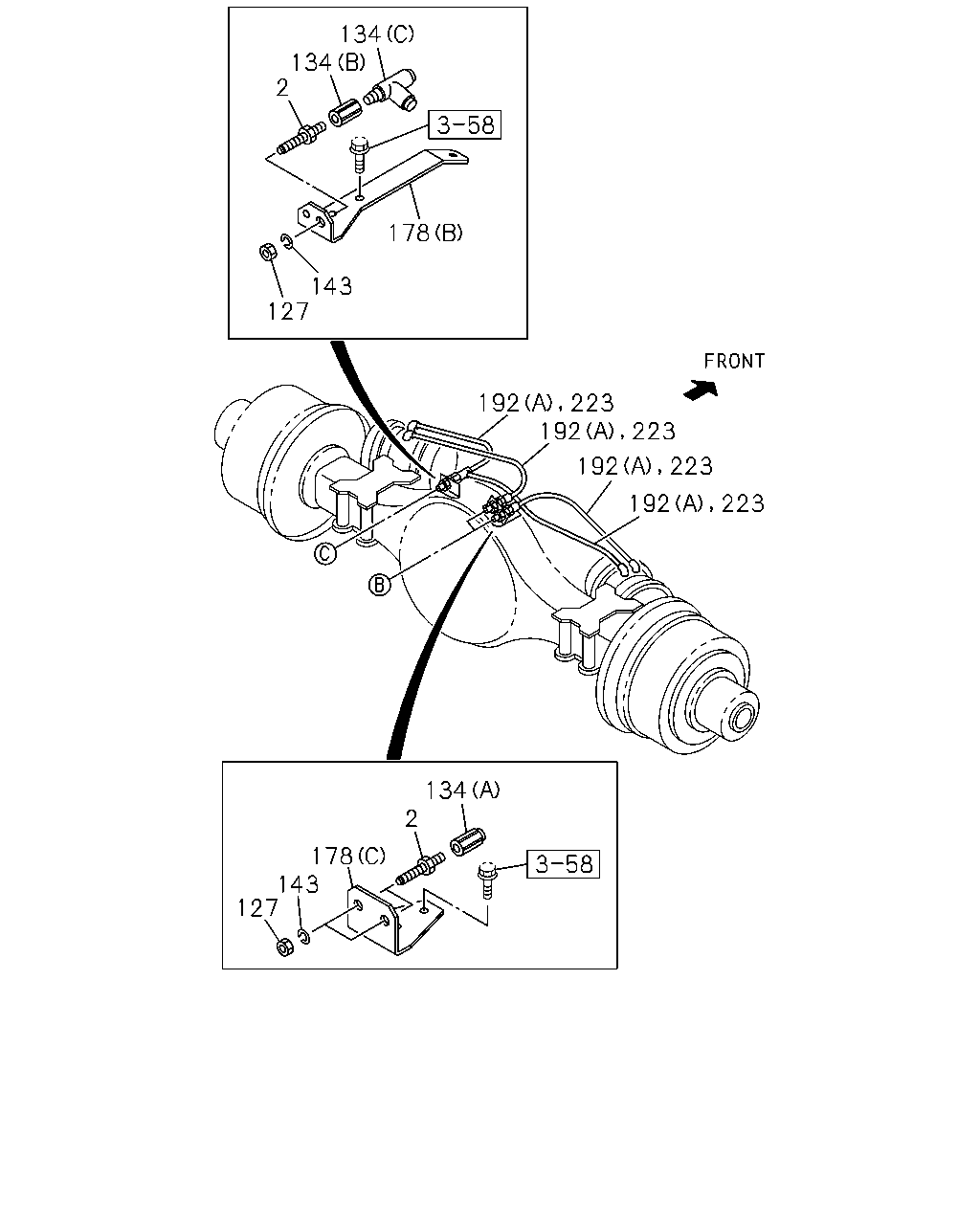

çizim 122217
134 134 2 178 143 127 192 223 192 223 134 2 178 143 127 192 223 192 223
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74 		0-92123-310-0 03 1 1206-
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		0-91111-516-0 03 1 1206-
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1206-
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1206-
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1206-
143 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		0-91510-816-0 03 1 1206-
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98017-054-1 01 1 1206-
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98057-822-0 01 1 1206-
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98057-823-0 01 1 1206-
178 BRACKET; UNION
(D) 		8-98017-052-1 01 1 1109-1205
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98017-052-1 01 1 1206-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98085-803-0 01 1 1206-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98085-806-0 01 1 1206-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-98109-842-0 01 1 1206-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1109-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1109-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1109-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1109-
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1109-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1109-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1109-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1109-

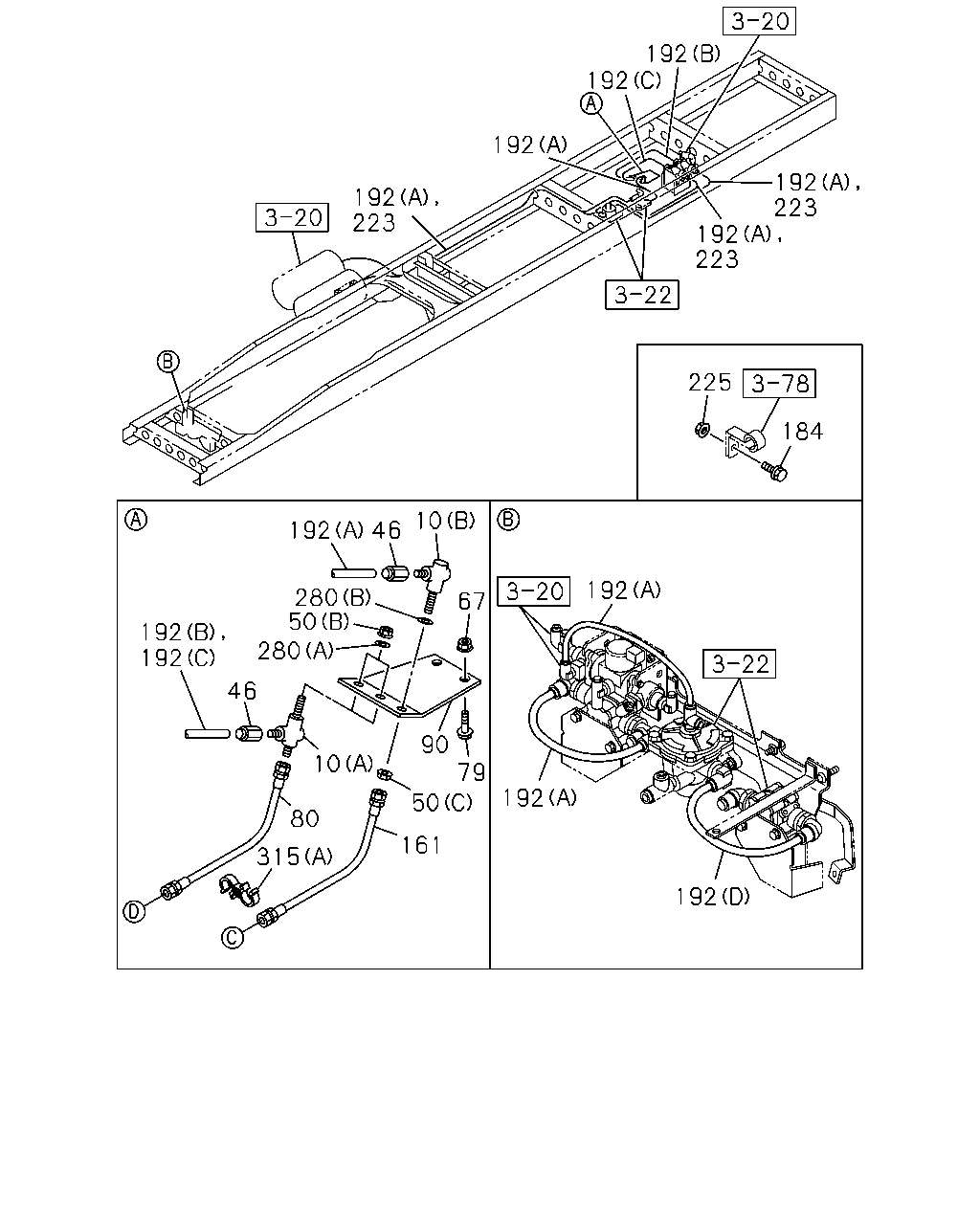

çizim 122288
192 192 192 192 223 192 223 192 223 225 184 10 192 46 192 280 50 280 67 192 192 46 90 79 10 192 50 80 161 315 192
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 ELBOW 		0-92135-210-0 01 1 1206-
10 CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 2WAY 		1-09650-182-1 02 1 1206-
46 NIPPLE; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 1206-
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 		0-91111-512-0 02 1 1206-
50 NUT; UNION BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16 		0-91111-516-0 01 1 1206-
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1109-1205
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1206-
67 NUT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 1206-
79 BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 02 1 1206-
80 HOSE; FLEX,POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580 		1-09363-772-0 02 1 1206-
80 HOSE; FLEX,POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) L=740 		1-09363-756-0 01 1 1206-
80 HOSE; FLEX,POWER CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) L=660 		1-09363-814-0 01 1 1206-
90 BRACKET; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-851-1 01 1 1206-
161 HOSE; FLEX,QUICK RELEASE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580 		1-09363-772-0 01 1 1206-
184 BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 1206-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98085-803-0 01 1 1206-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98085-806-0 01 1 1206-
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) 		8-98109-842-0 01 1 1206-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1109-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1109-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1109-
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1109-
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1109-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1109-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1109-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1109-
225 NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 1206-
280 WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.2 		0-91510-812-0 02 1 1206-
280 WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=16.2 		0-91510-816-0 01 1 1206-
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14 		8-94238-572-0 01 1 1206-
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18 		8-94323-068-0 01 1 1206-
