◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11368 - FTR(LHD)EURO4 W/DOC ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#71619) — 80 parça

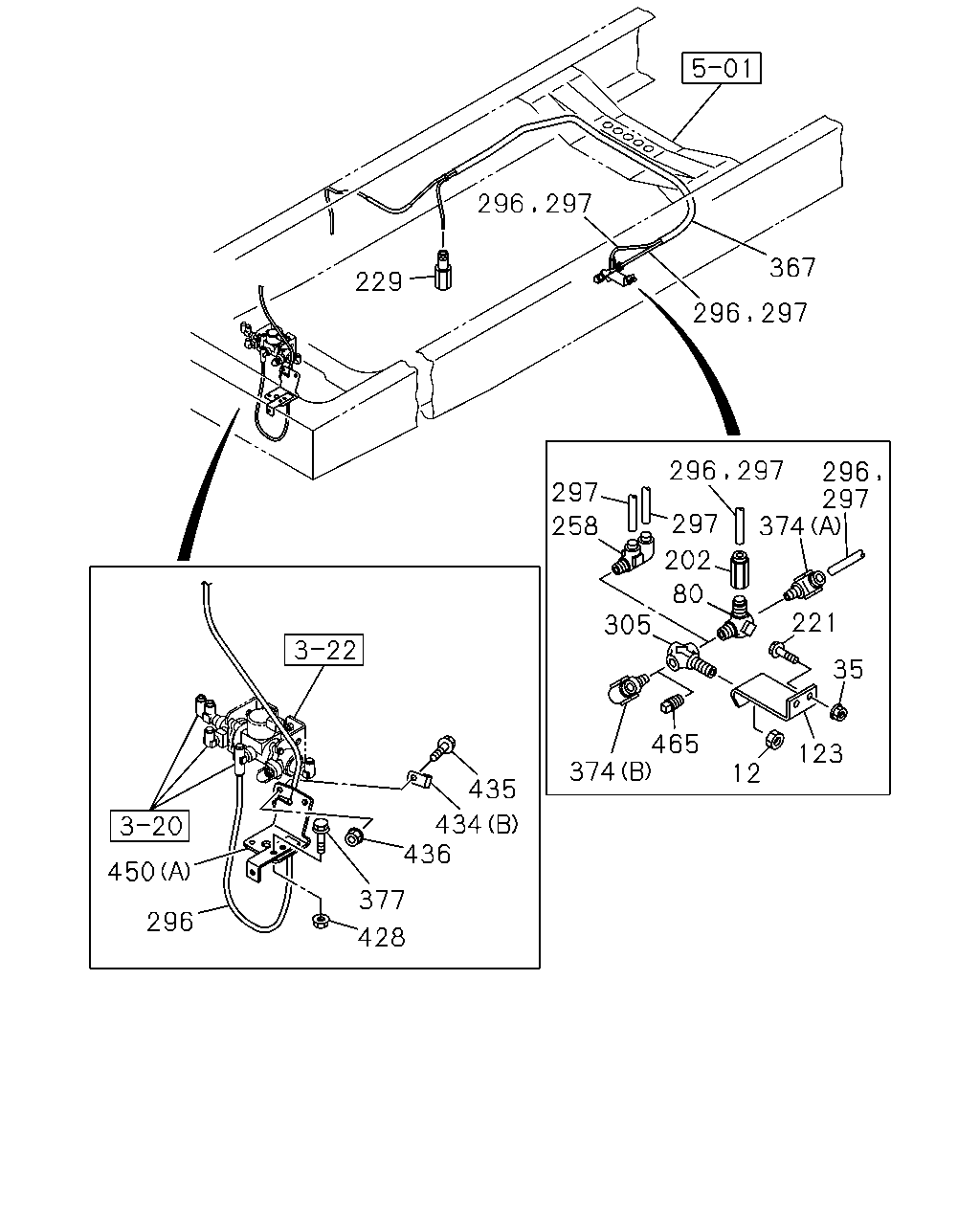

çizim 121216
367 229 296 297 374 297 297 258 202 80 305 221 35 465 374 123 12 435 434 436 450 377 296 428 296 297 296 297 296 297
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1109-
35 NUT; BRKT
EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 1109-
80 UNION; 3 WAY
EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1109-1111
123 BRACKET; UNION
EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1109-
202 ADAPTER
EXC. PTO CONTROL<SV6> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1109-1111
221 BOLT; BRKT
EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 1109-
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1206-
258 CONNECTOR; NYLON TUBE
EXC. PTO CONTROL<SV6> DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1112-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1109-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1109-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1109-
305 UNION ASM; NYLON TUBE
EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1109-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1109-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1109-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1109-
374 CONNECTOR
EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1109-1111
374 CONNECTOR
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1109-1205
374 CONNECTOR
H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1206-
374 CONNECTOR
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1206-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1109-1205
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28650-830-0 01 1 1206-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 1109-1205
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 1206-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1109-1205
428 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 01 1 1206-
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1109-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1109-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1109-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1109-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1109-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1109-
450 BRACKET; CLIP
(B) L=90 B=25 		1-47475-530-0 01 1 1109-1205
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=90 B=25 		1-47475-530-0 01 1 1206-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98158-602-0 01 1 1109-1205
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98158-602-0 01 1 1206-
465 PLUG
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 1109-1205
465 PLUG
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1206-

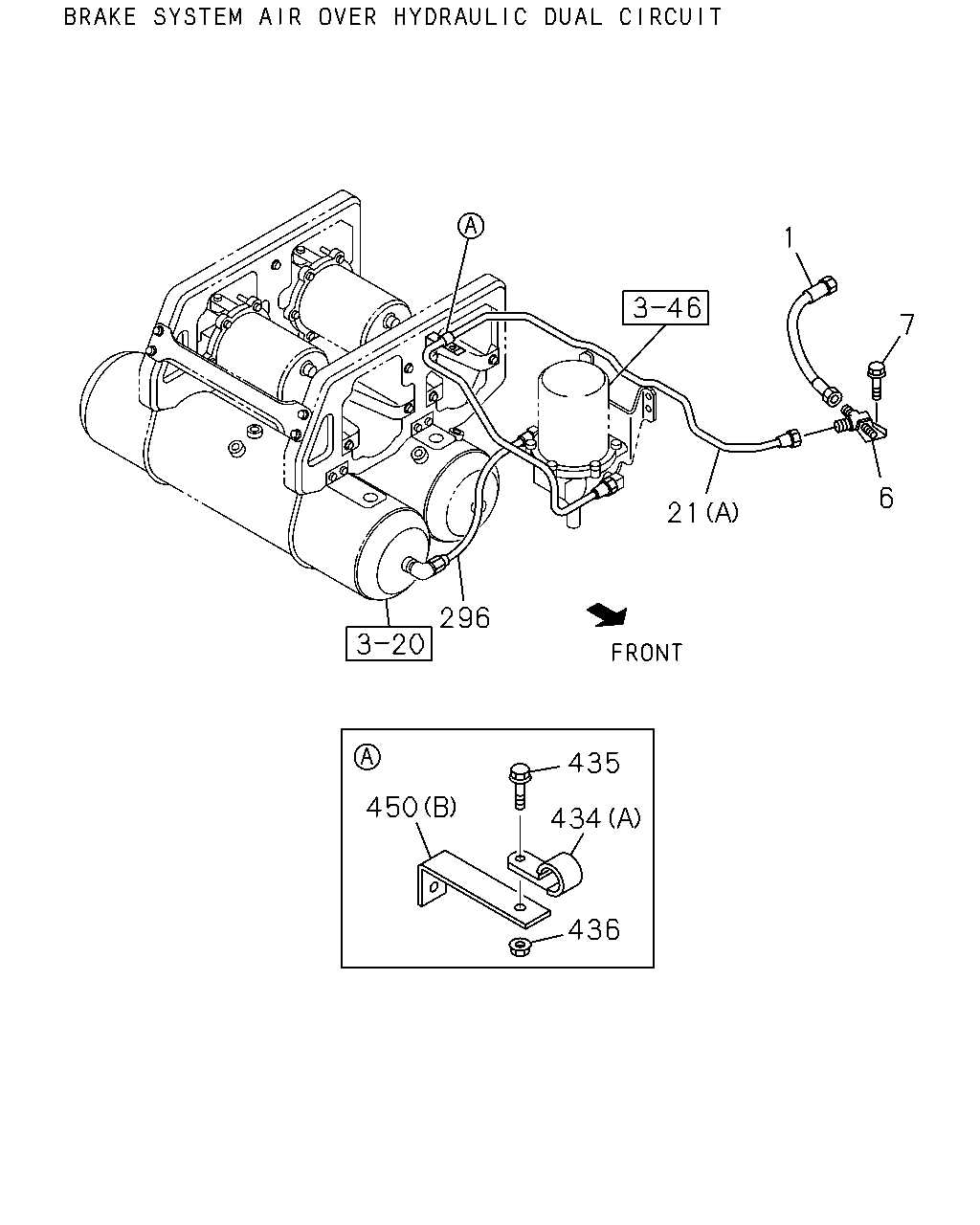

çizim 121316
1 7 6 21 296 435 450 434 436
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 1109-
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 1109-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1109-
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1715 		8-98095-083-0 01 1 1206-
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1823 		8-98120-240-0 01 1 1109-1205
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1823 		8-98120-240-0 01 1 1206-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1109-
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1109-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1109-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1109-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1109-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1109-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1109-
450 BRACKET; CLIP
(B) L=90 B=25 		1-47475-530-0 01 1 1109-1205
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=90 B=25 		1-47475-530-0 01 1 1206-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98158-602-0 01 1 1109-1205
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98158-602-0 01 1 1206-

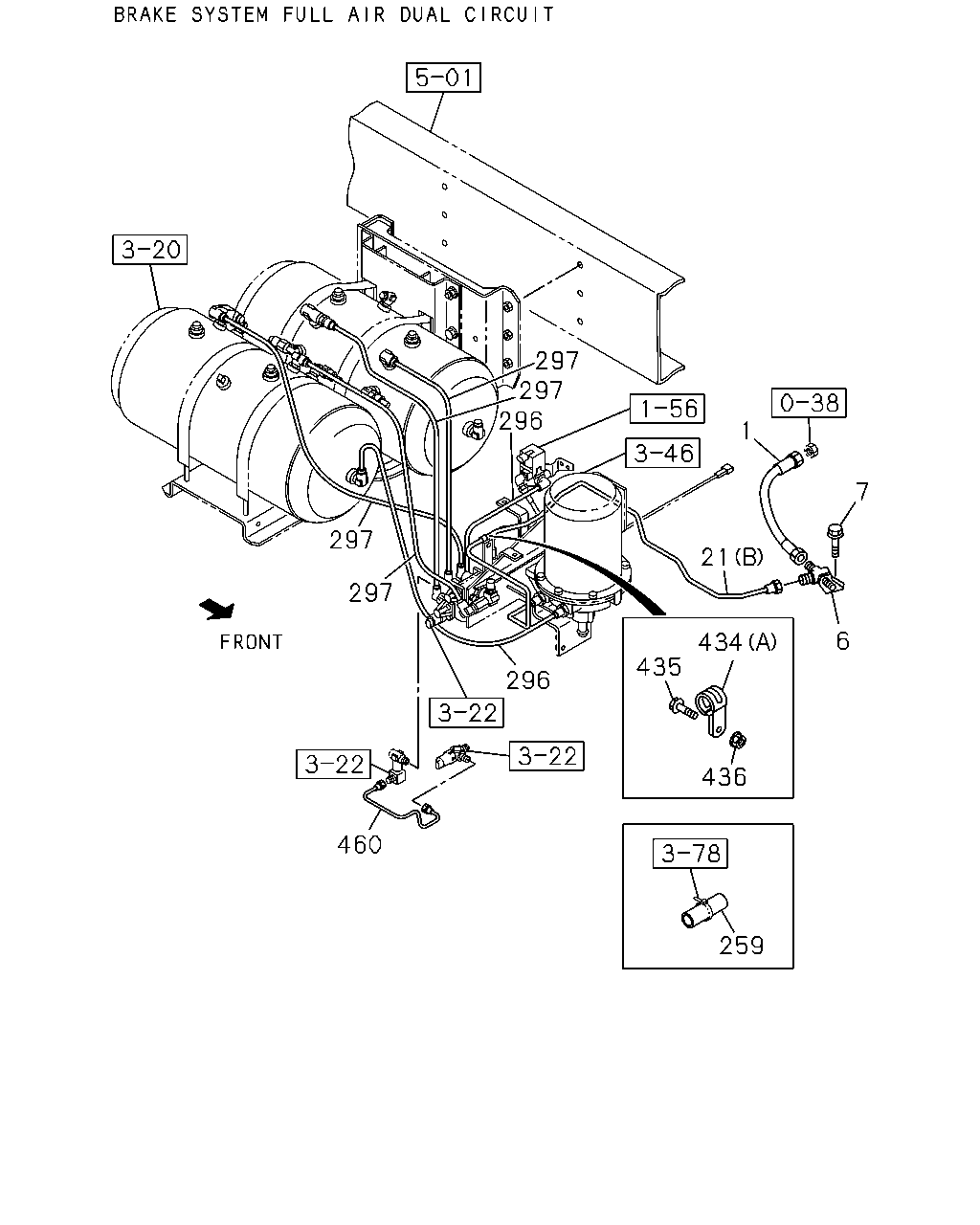

çizim 121633
297 297 296 1 7 297 21 297 6 434 435 296 436 460 259
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 1109-
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 1109-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1109-
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1715 		8-98095-083-0 01 1 1206-
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=1823 		8-98120-240-0 01 1 1109-1205
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1823 		8-98120-240-0 01 1 1206-
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40 		1-09337-013-0 01 1 1206-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1109-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1109-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1109-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1109-
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 02 1 1109-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1109-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1109-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1109-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1109-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1109-
460 PIPE; AIR,PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> 		8-98184-394-0 01 1 1206-
