1 |

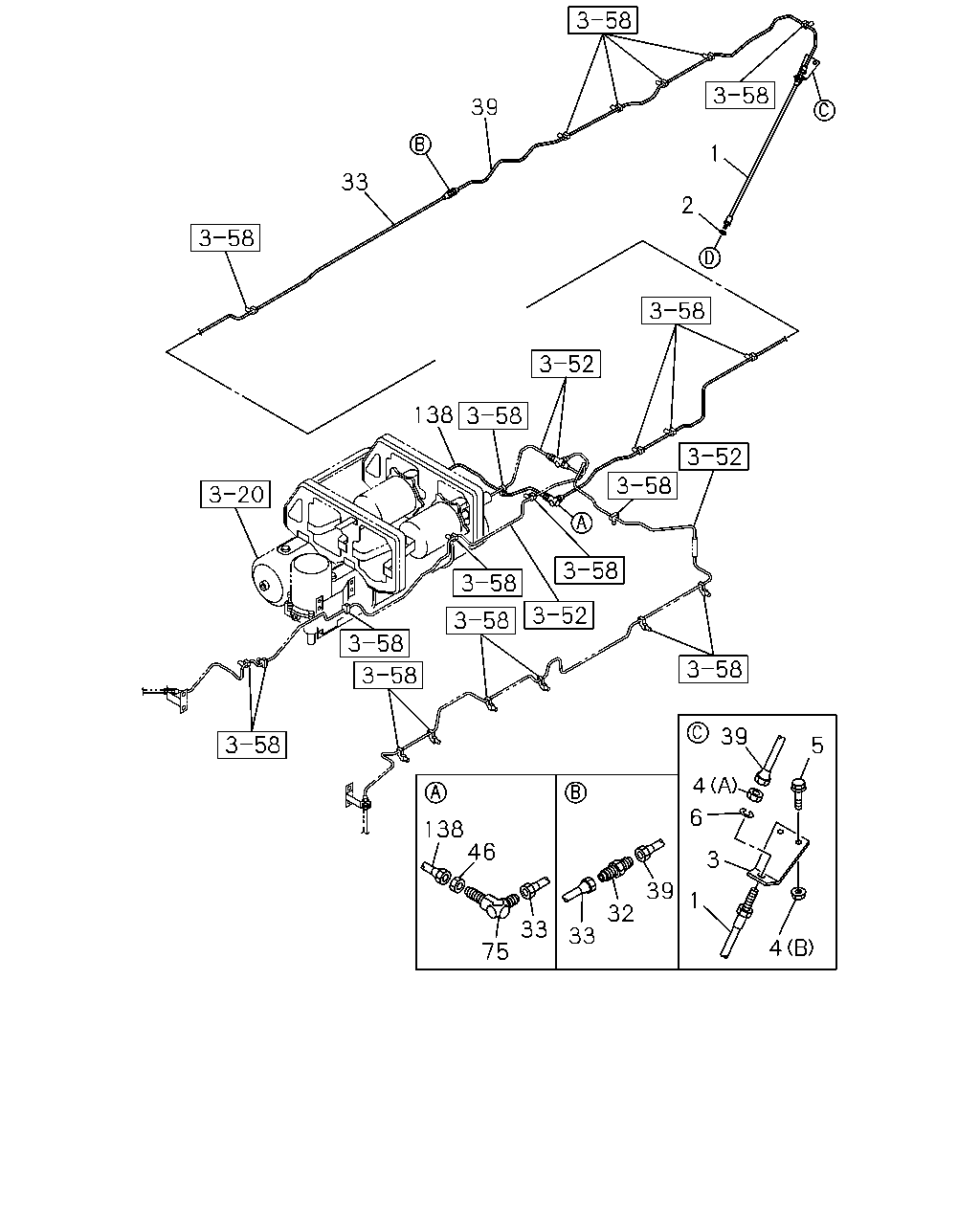

HOSE; FLEX,RR BRK
L=700
|
0-05212-700-0 |
01 |
1 |
1109-1205 |
| |
1 |
HOSE; FLEX,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=700
|
0-05212-700-0 |
01 |
1 |
1206- |
| |
2 |
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
|
9-09920-472-0 |
01 |
1 |
1109-1205 |
| |
2 |
GASKET; FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=9 OD=17
|
9-09920-472-0 |
01 |
1 |
1206- |
| |
3 |
BRACKET; FLEX HOSE,RR BRK
|
1-47465-251-0 |
01 |
1 |
1109-1205 |
| |
3 |
BRACKET; FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47465-251-0 |
01 |
1 |
1206- |
| |
4 |
NUT; BRKT,FLEX HOSE,RR BRK
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1109-1205 |
| |
4 |
NUT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1206- |
| |
4 |
NUT; BRKT,FLEX HOSE,RR BRK
(A)
M12
|
9-09840-280-0 |
01 |
1 |
1109-1205 |
| |
4 |
NUT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M12
|
9-09840-280-0 |
01 |
1 |
1206- |
| |
5 |
BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1109-1205 |
| |
5 |
BOLT; BRKT,FLEX HOSE,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1206- |
| |
6 |
WASHER; LK,FLEX HOSE
ID=12.2
|
0-91510-812-0 |
01 |
1 |
1109-1205 |
| |
6 |
WASHER; LK,FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=12.2
|
0-91510-812-0 |
01 |
1 |
1206- |
| |
32 |
UNION; OIL PIPE
M12 L=40
|
0-92113-006-0 |
01 |
1 |
1109-1205 |
| |
32 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12 L=40
|
0-92113-006-0 |
01 |
1 |
1206- |
| |
33 |
PIPE; OIL,UNION TO UNION
L=2102
SERVICED BY L=2200
|
1-47428-740-0 |
01 |
1 |
1109-1205 |
| |
33 |
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CHILE EQUIPMENT(KE1)
L=2102
SERVICED BY L=2200
|
1-47428-740-0 |
01 |
1 |
1206- |
| |
39 |
PIPE; OIL,UNION TO RR FLEX HOSE
L=2086
SERVICED BY L=2200
|
1-47428-740-0 |
01 |
1 |
1109-1205 |
| |
39 |
PIPE; OIL,UNION TO RR FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=2086
SERVICED BY L=2200
|
1-47428-740-0 |
01 |
1 |
1206- |
| |
46 |
NUT; UNION,OIL PIPE
M12
|
9-09840-280-0 |
01 |
1 |
1109-1205 |
| |
46 |
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12
|
9-09840-280-0 |
01 |
1 |
1206- |
| |
75 |
UNION; OIL PIPE
M12 ELBOW
|
0-92125-206-0 |
01 |
1 |
1109-1205 |
| |
75 |
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12 ELBOW
|
0-92125-206-0 |
01 |
1 |
1206- |
| |
138 |
PIPE; HYDRAULIC UNIT
L=504
SERVICED BY L=550
|
1-47428-724-0 |
01 |
1 |
1109-1205 |
| |
138 |
PIPE; HYDRAULIC UNIT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=504
SERVICED BY L=550
|
1-47428-724-0 |
01 |
1 |
1206- |
