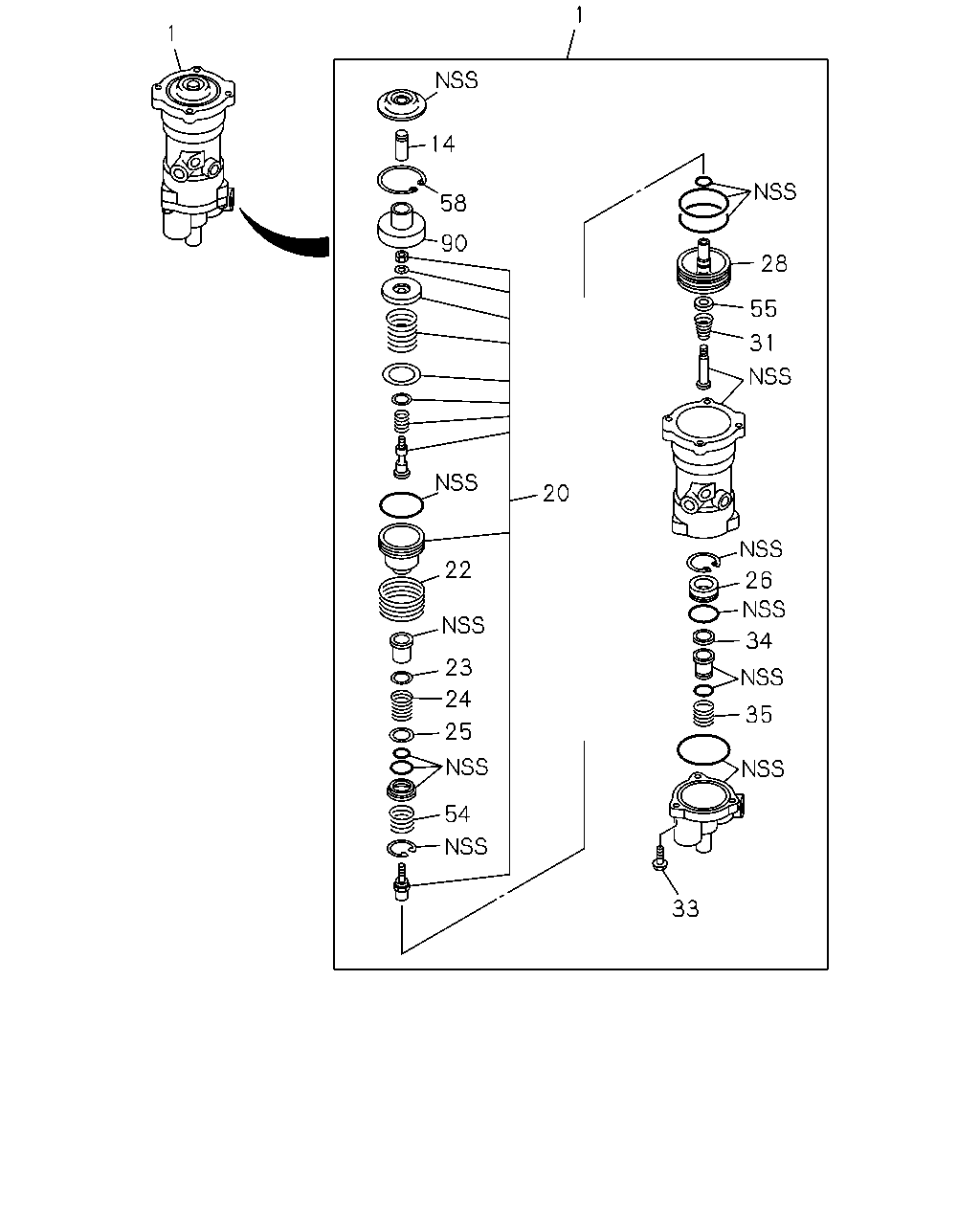

3-34 — BRAKE VALVE; AIR (#71612) — 26 parça

1 1 14 58 90 28 55 31 20 22 26 34 23 24 35 25 54 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48100-925-0	01	1	1206-1211
1	VALVE; BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98222-788-0	01	1	1212-
1	VALVE; BRK	1-48100-924-0	01	1	1109-1205
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48100-924-0	01	1	1206-1211
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98222-789-0	01	1	1212-
14	PLUNGER; BRK VLV	1-48119-641-0	01	1	1109-
20	PISTON; UPR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48119-651-0	01	1	1206-
20	PISTON; UPR,BRK VLV	1-48119-644-0	01	1	1109-1205
20	PISTON; UPR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-644-0	01	1	1206-
22	SPRING; PISTON,LWR,BRK VLV	1-48123-076-0	01	1	1109-
23	WASHER; UPR,BRK VLV	1-48129-299-0	01	1	1109-
24	SPRING; UPR,BRK VLV	1-48123-077-0	01	1	1109-
25	WASHER; PISTON,BRK VLV	1-48129-300-0	01	1	1109-
26	RETAINER; VLV,BRK VLV	1-48129-308-0	01	1	1109-
28	PISTON; LWR,BRK VLV	1-48129-302-0	01	1	1109-
31	SPRING; VLV,BRK VLV	1-48123-079-0	01	1	1109-
33	BOLT; BODY,BRK VLV	1-48119-213-0	03	1	1109-
34	RETAINER; VLV,BRK VLV	1-48129-307-0	01	1	1109-
35	SPRING; VLV,BRK VLV	1-48123-078-0	01	1	1109-
54	SPRING; PISTON,UPR,BRK VLV	1-48123-075-0	01	1	1109-
55	RETAINER; PLATE,BRK VLV	1-48129-305-0	01	1	1109-
58	RING; RET,EXH,BRK VLV	1-48219-198-0	01	1	1109-
90	GUIDE; PLUNGER	1-48119-642-0	01	1	1109-

2 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; BRK VLV	1-85576-454-0	01	1	1109-1211
2	REPAIR KIT; BRK VLV	8-98222-820-0	01	1	1212-
58	RING; RET,EXH,BRK VLV	1-48219-198-0	01	1	1109-
