3-26 — TRAILER CONTROL
(#71610) — 33 parça
◀

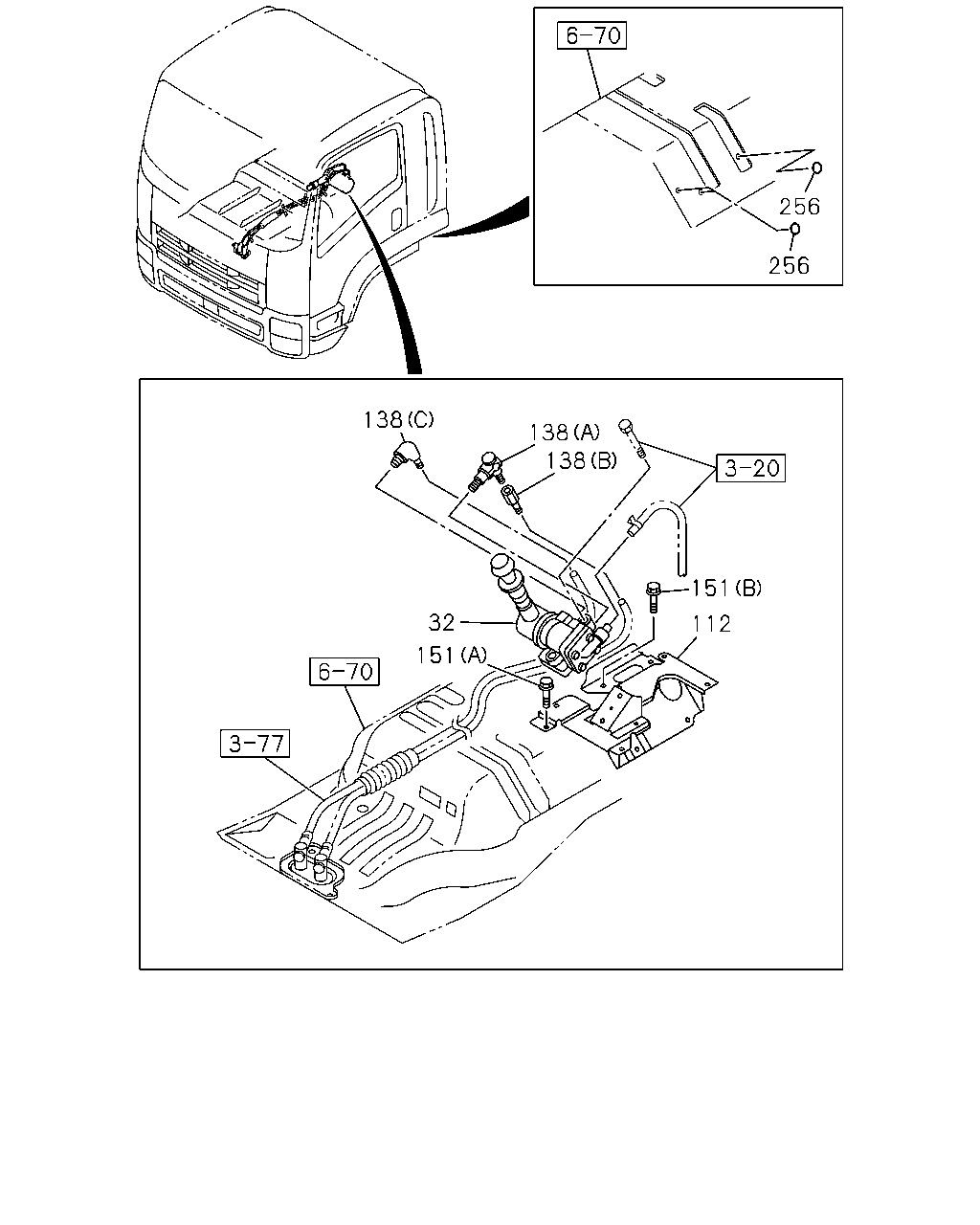

[326A] FIXING (8 parça)
[326A] COMPONENT AND REPAIR KIT (25 parça)
▶
256
256
138
138
138
151
32
112
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48460-306-0
01
1
1206-
112
BRACKET; CONT VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-97616-923-1
01
1
1206-
138
CONNECTOR; DELIVERY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
1206-
138
CONNECTOR; DELIVERY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1206-
138
CONNECTOR; DELIVERY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1206-
151
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M6X16
0-52000-616-0
03
1
1206-
151
BOLT; VLV BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X20 W/LK&PL WASHER
0-52000-820-0
02
1
1206-
256
SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK
1-76798-019-0
09
1
1206-
51
52
32
53
54
55
54
36
37
34
38
39
40
41
42
43
35
3
44
46
50
48
49
45
47
164
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) W/GREASE
1-48469-096-0
01
1
1206-
32
VALVE; BRK,HAND CONT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48460-306-0
01
1
1206-
34
SHIM; CAM HOLDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-055-0
AR
1
1206-
35
HOLDER; CAM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-054-0
01
1
1206-
36
RING; CAM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-056-0
01
1
1206-
37
GUIDE; CAM RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-058-0
01
1
1206-
38
SEAT; EXH VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-057-0
01
1
1206-
39
SPRING; RETURN,CAM RING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-063-0
01
1
1206-
40
RING; SNAP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-067-0
01
1
1206-
41
SEAT; FEED VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-066-0
01
1
1206-
42
VALVE; FEED
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-065-0
01
1
1206-
43
PISTON; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-064-0
01
1
1206-
44
RING; SNAP,FEED VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-068-0
02
1
1206-
45
SPRING; FEED VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-070-0
01
1
1206-
46
SPRING; MAIN,PISTON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-089-0
01
1
1206-
47
SHIM; MAIN SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-072-0
AR
1
1206-
48
WASHER; COVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-091-0
04
1
1206-
49
SCREW; COVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-092-0
04
1
1206-
50
COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-090-0
01
1
1206-
51
HANDLE ASM; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-122-0
01
1
1206-
52
SCREW; HANDLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-062-0
01
1
1206-
53
WASHER; HANDLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-061-0
01
1
1206-
54
SEAT; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-082-0
02
1
1206-
55
SPRING; RETURN,HANDLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-059-0
01
1
1206-
164
GREASE; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48469-084-0
01
1
1206-
