Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#71609) — 298 parça

102 108 108 108 58 25 220 99 67 102 105 237 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

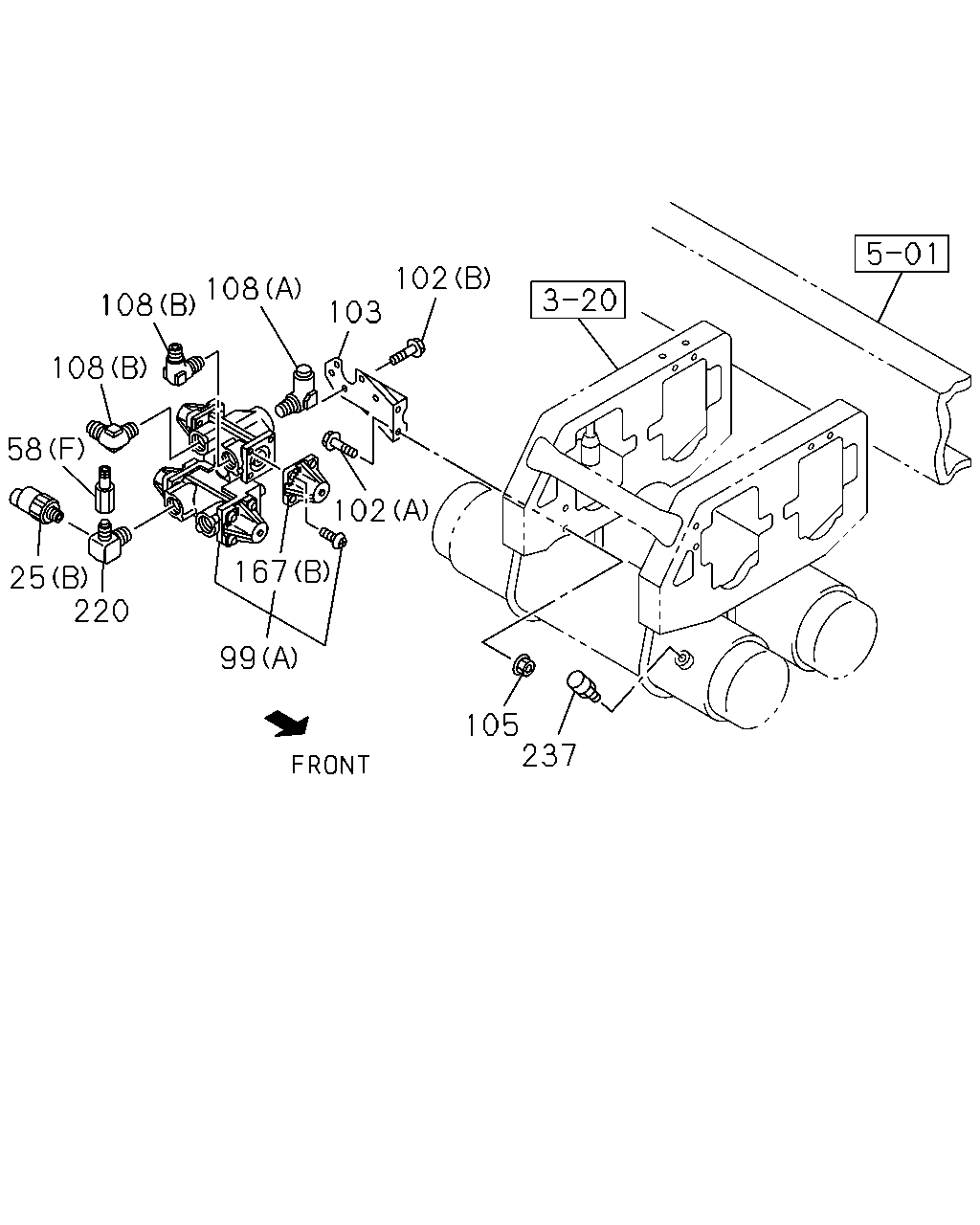

25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 2.0	8-98010-856-2	01	1	1206-
25	SWITCH; PRESSURE (B) STAMP 5.5	8-97609-249-0	01	1	1109-1205
25	SWITCH; PRESSURE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) STAMP 5.5	8-97609-249-0	01	1	1206-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) STAMP 5.5	8-97609-249-0	01	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E)	8-98148-475-0	01	1	1206-
58	ADAPTER (F) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1109-1205
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1206-
99	VALVE; PROTECTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> (B)	1-48110-294-3	01	1	1206-
99	VALVE; PROTECTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (B)	1-48110-288-3	01	1	1206-
99	VALVE; PROTECTION (A)	1-48110-287-3	01	1	1109-1205
99	VALVE; PROTECTION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48110-287-3	01	1	1206-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M10X35 FLANGE	0-28651-035-0	02	1	1206-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE	0-28650-820-0	02	1	1206-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	1109-1205
102	BOLT; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X16 FLANGE	0-28050-816-0	02	1	1206-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) M8X16 FLANGE	0-28050-816-0	02	1	1206-
102	BOLT; PROTECTION VALVE (A) M10X25 FLANGE	0-28651-025-0	02	1	1109-1205
102	BOLT; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28651-025-0	02	1	1206-
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	8-98177-510-0	01	1	1206-
103	BRACKET; PROTECTION VALVE	8-98098-183-0	01	1	1109-1205
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98098-183-0	01	1	1206-
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	1109-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1206-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) PT3/8 ELBOW	1-09660-696-0	01	1	1206-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1206-
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1109-1205
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-
108	CONNECTOR; ELBOW (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1109-1205
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1206-
220	CONNECTOR; 3WAY DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1109-1205
220	CONNECTOR; 3WAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN6 & PT1/4 & M12 3WAY	1-09656-698-0	01	1	1206-
237	VALVE; SAFETY	1-48320-012-2	01	1	1109-

105 102 58 108 232 58 10 108 99 167 103 237 58 58 108 102 102 11 108 292 10 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

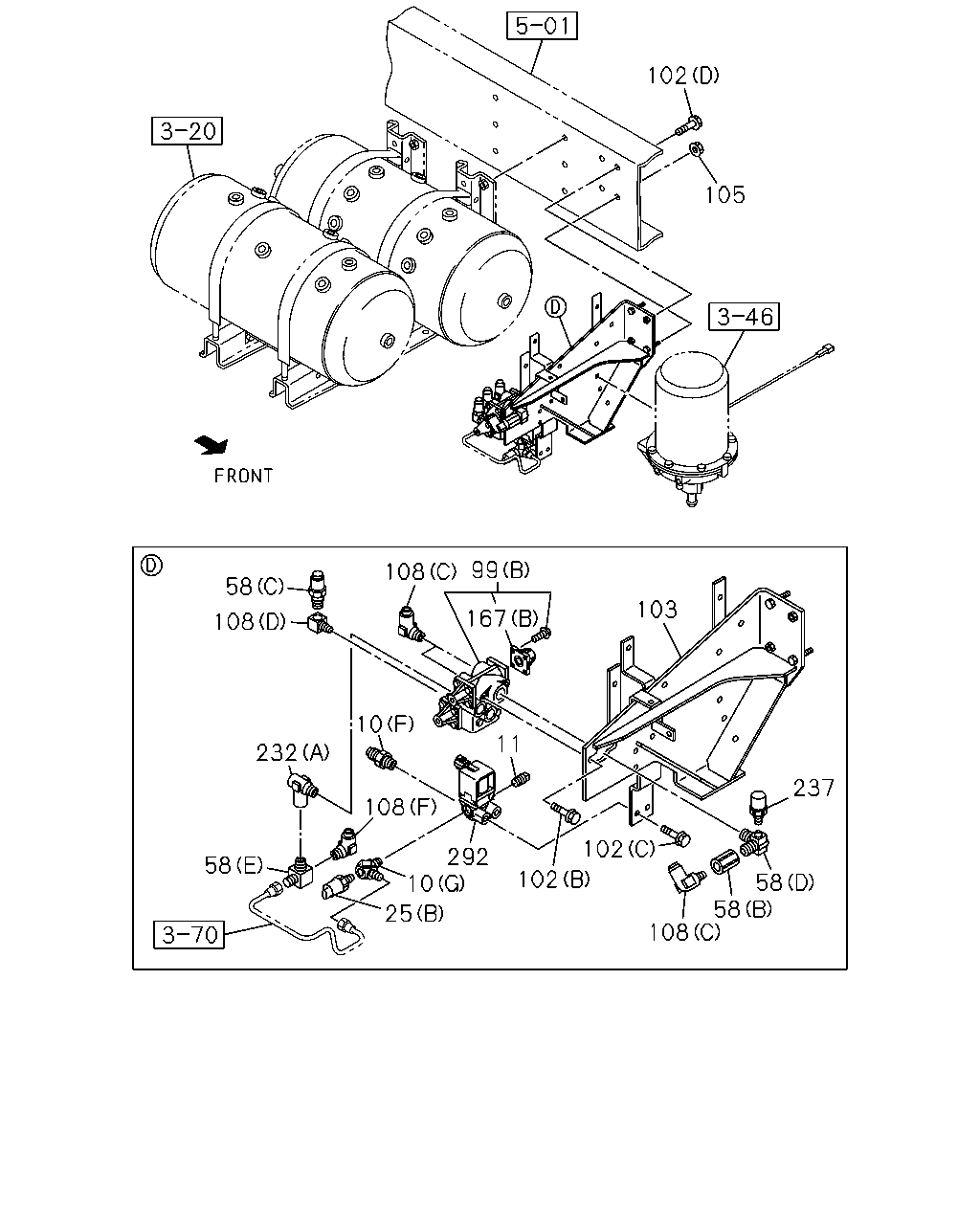

10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (G) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
11	PLUG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> PT1/4	9-99204-513-0	01	1	1206-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 2.0	8-98010-856-2	01	1	1206-
25	SWITCH; PRESSURE (B) STAMP 5.5	8-97609-249-0	01	1	1109-1205
25	SWITCH; PRESSURE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) STAMP 5.5	8-97609-249-0	01	1	1206-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) STAMP 5.5	8-97609-249-0	01	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E)	8-98148-475-0	01	1	1206-
58	ADAPTER (F) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1109-1205
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1206-
99	VALVE; PROTECTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> (B)	1-48110-294-3	01	1	1206-
99	VALVE; PROTECTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (B)	1-48110-288-3	01	1	1206-
99	VALVE; PROTECTION (A)	1-48110-287-3	01	1	1109-1205
99	VALVE; PROTECTION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48110-287-3	01	1	1206-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M10X35 FLANGE	0-28651-035-0	02	1	1206-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE	0-28650-820-0	02	1	1206-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	1109-1205
102	BOLT; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X16 FLANGE	0-28050-816-0	02	1	1206-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) M8X16 FLANGE	0-28050-816-0	02	1	1206-
102	BOLT; PROTECTION VALVE (A) M10X25 FLANGE	0-28651-025-0	02	1	1109-1205
102	BOLT; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28651-025-0	02	1	1206-
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	8-98177-510-0	01	1	1206-
103	BRACKET; PROTECTION VALVE	8-98098-183-0	01	1	1109-1205
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98098-183-0	01	1	1206-
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	1109-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1206-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) PT3/8 ELBOW	1-09660-696-0	01	1	1206-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1206-
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1109-1205
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-
108	CONNECTOR; ELBOW (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1109-1205
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1206-
167	COVER; VALVE (B)	1-48119-625-0	03	1	1109-1205
167	COVER; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48119-625-0	03	1	1206-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48119-625-0	04	1	1206-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (A)	1-48219-070-0	01	1	1206-1210
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1206-1210
167	COVER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1206-1210
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1211-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1211-
232	VALVE; CHECK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (B)	1-48320-031-1	01	1	1206-
232	VALVE; CHECK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1206-
237	VALVE; SAFETY	1-48320-012-2	01	1	1109-
292	VALVE ASM; MAGNETIC BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-82563-871-2	01	1	1206-

106 105 4 71 70 52 96 105 52 108 52 286 2 12 12 108 286 5 12 108 287 6 287 6 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

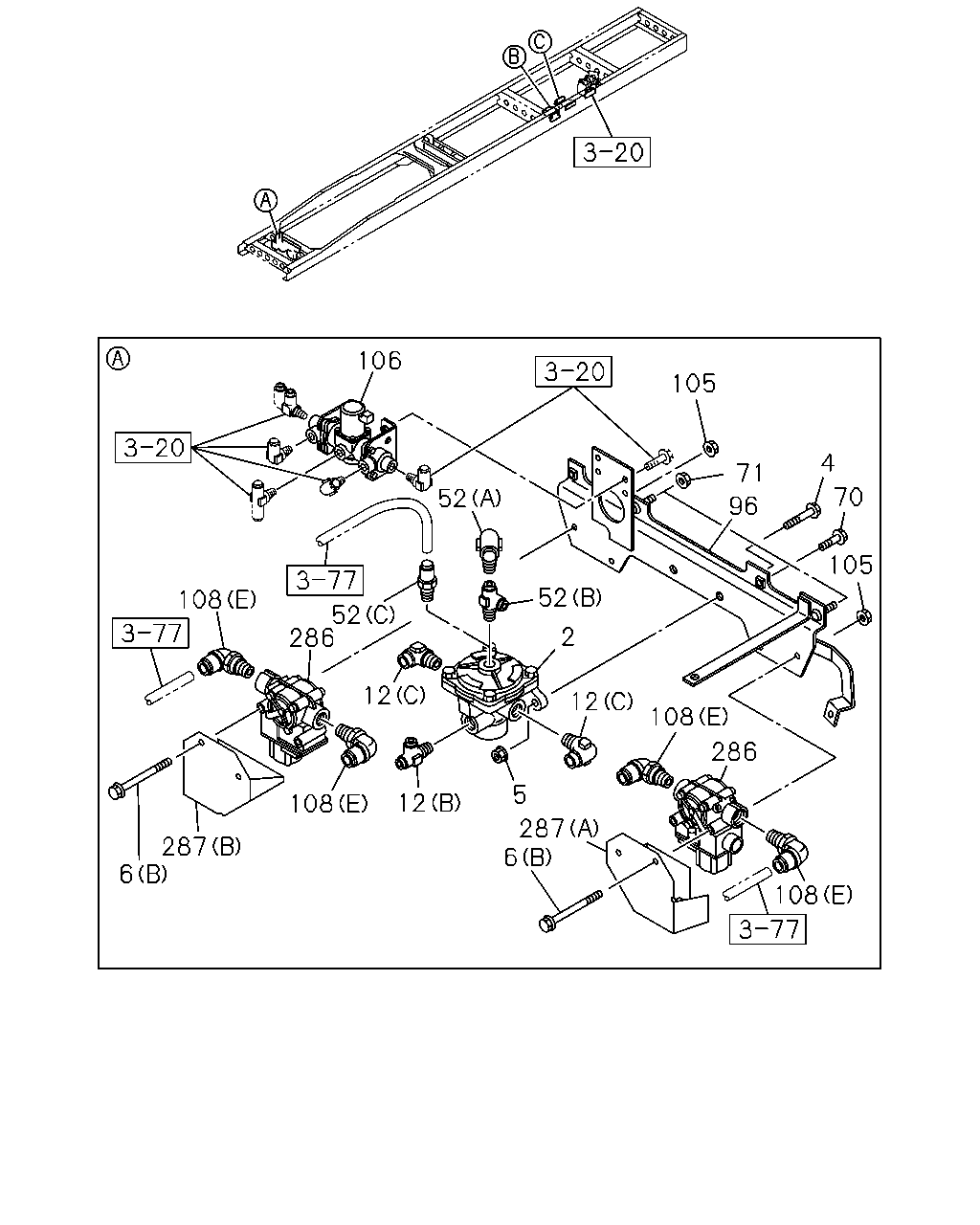

2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	1-48210-875-0	01	1	1206-1210
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1206-1210
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1206-1210
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1211-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1211-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> M10X35 FLANGE	0-28651-035-0	02	1	1206-1210
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) M10X35 FLANGE	0-28651-035-0	02	1	1206-1210
4	BOLT; RELAY VLV TO BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1206-1210
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) M10X35 FLANGE	0-28651-035-0	02	1	1211-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1211-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) M10X30 FLANGE	0-28651-030-0	02	1	1206-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> M10 FLANGE	0-91180-210-0	02	1	1206-1210
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1206-1210
5	NUT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1206-1210
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1211-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1211-
6	BOLT; VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X80 FLANGE	0-28050-880-0	04	1	1206-1410
6	BOLT; VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X85	1-09044-074-0	04	1	1411-
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X35 FLANGE	0-28650-835-0	02	1	1206-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1206-1210
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1206-1210
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1211-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-1210
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-1210
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-1210
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1211-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1211-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1206-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1206-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1206-1210
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1211-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1206-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1206-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	1206-
70	BOLT; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1206-
71	NUT; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1206-
96	BRACKET ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98273-968-0	01	1	1411-
96	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	8-98094-851-2	01	1	1206-1210
96	BRACKET ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98094-851-2	01	1	1206-1210
96	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98094-851-2	01	1	1211-1410
96	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98094-851-2	01	1	1411-
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	1109-
106	VALVE; HSA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1206-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1206-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) PT3/8 ELBOW	1-09660-696-0	01	1	1206-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1206-
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1109-1205
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-
108	CONNECTOR; ELBOW (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1109-1205
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1206-
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48240-115-0	02	1	1206-1410
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98215-454-0	02	1	1411-
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47479-611-1	01	1	1206-1410
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98273-493-0	01	1	1411-
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98073-401-0	01	1	1206-1410
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98273-494-0	01	1	1411-

195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

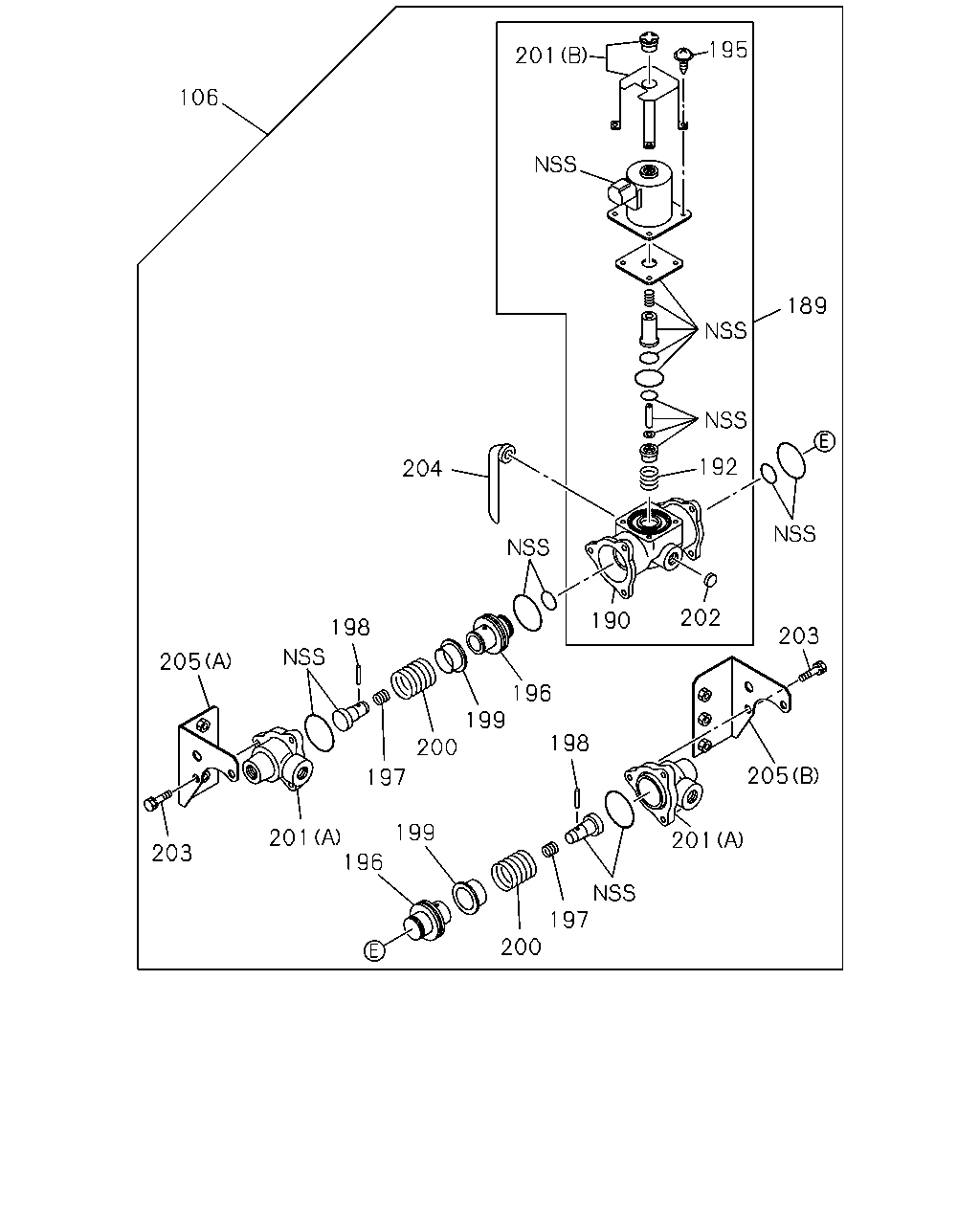

106	VALVE; HSA BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1206-
189	VALVE ASM; SOLENOID,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	1206-
190	BODY; SOLENOID VLV,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	1206-
192	SPRING; SOLENOID VLV,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	1206-
195	SCREW; SOLENOID VLV,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	1206-
196	PISTON; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	1206-
197	SPRING; INNER,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	1206-
198	PIN; STRAIGHT,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	1206-
199	RETAINER; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	1206-
200	SPRING; OUTER,HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	1206-
201	COVER; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	1206-
201	COVER; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	1206-
202	FILTER; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	1206-
203	SCREW; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	1206-
204	PIPE ASM; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1206-
205	BRACKET; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1206-
205	BRACKET; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1206-

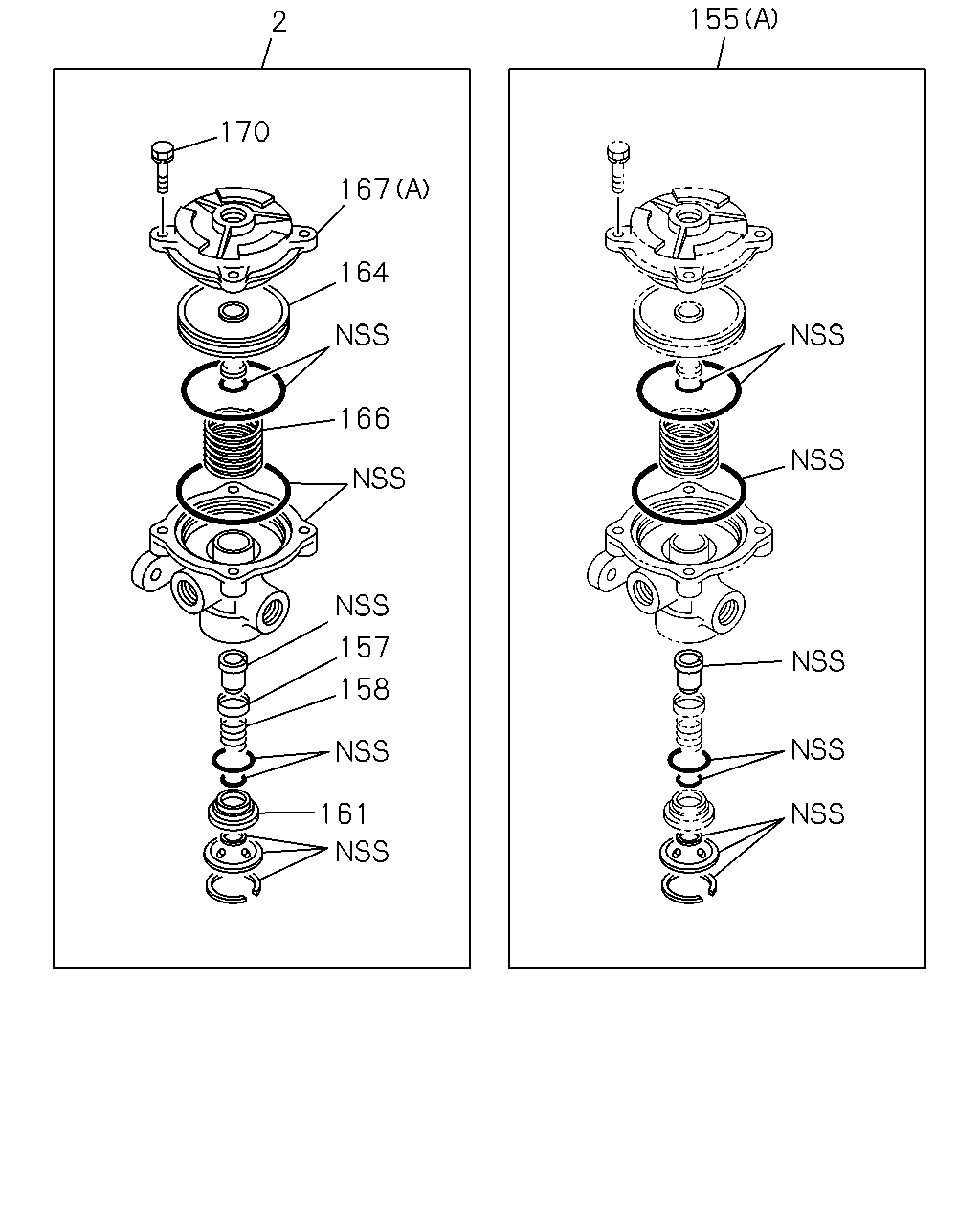

155 2 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	1-48210-875-0	01	1	1206-1210
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1206-1210
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1206-1210
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1211-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1211-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1206-1210
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1206-1210
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1206-1210
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1211-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1211-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1206-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	1-48213-002-0	01	1	1206-1210
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1206-1210
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1206-1210
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1211-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1211-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	1-47819-089-0	01	1	1206-1210
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1206-1210
158	SPRING; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1206-1210
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1211-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1211-
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	1-48129-014-0	01	1	1206-1210
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1206-1210
161	GUIDE; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1206-1210
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1211-
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1211-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	1-48219-071-0	01	1	1206-1210
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1206-1210
164	PISTON; RELAY VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1206-1210
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1211-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1211-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	1-47819-090-0	01	1	1206-1210
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1206-1210
166	SPRING; PISTON ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1206-1210
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1211-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1211-
167	COVER; VALVE (B)	1-48119-625-0	03	1	1109-1205
167	COVER; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48119-625-0	03	1	1206-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48119-625-0	04	1	1206-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (A)	1-48219-070-0	01	1	1206-1210
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1206-1210
167	COVER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1206-1210
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1211-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1211-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	1-48219-039-0	04	1	1206-1210
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1206-1210
170	SCREW; COVER TO BODY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1206-1210
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1211-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1211-

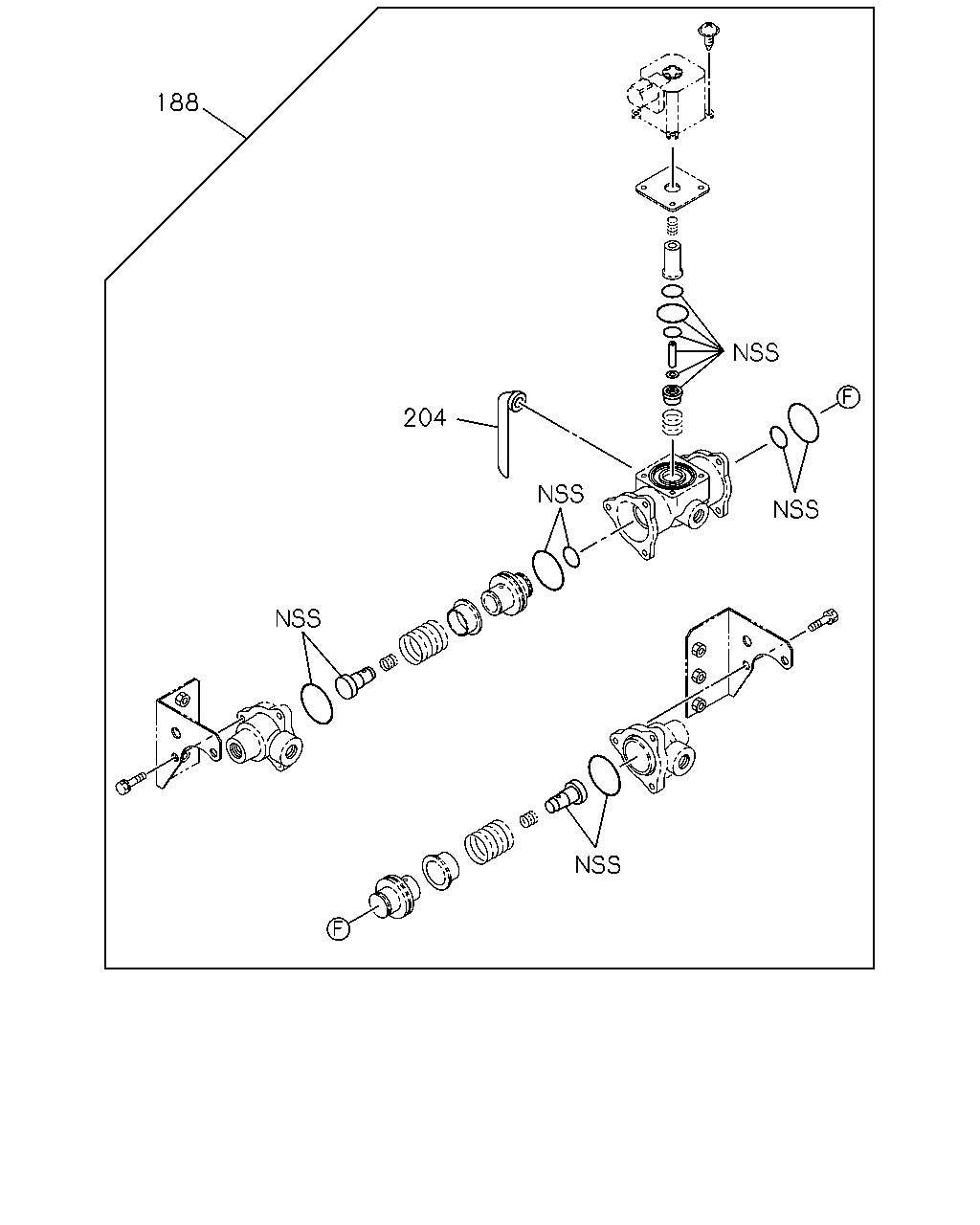

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	1206-
	204	PIPE ASM; HSA VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1206-

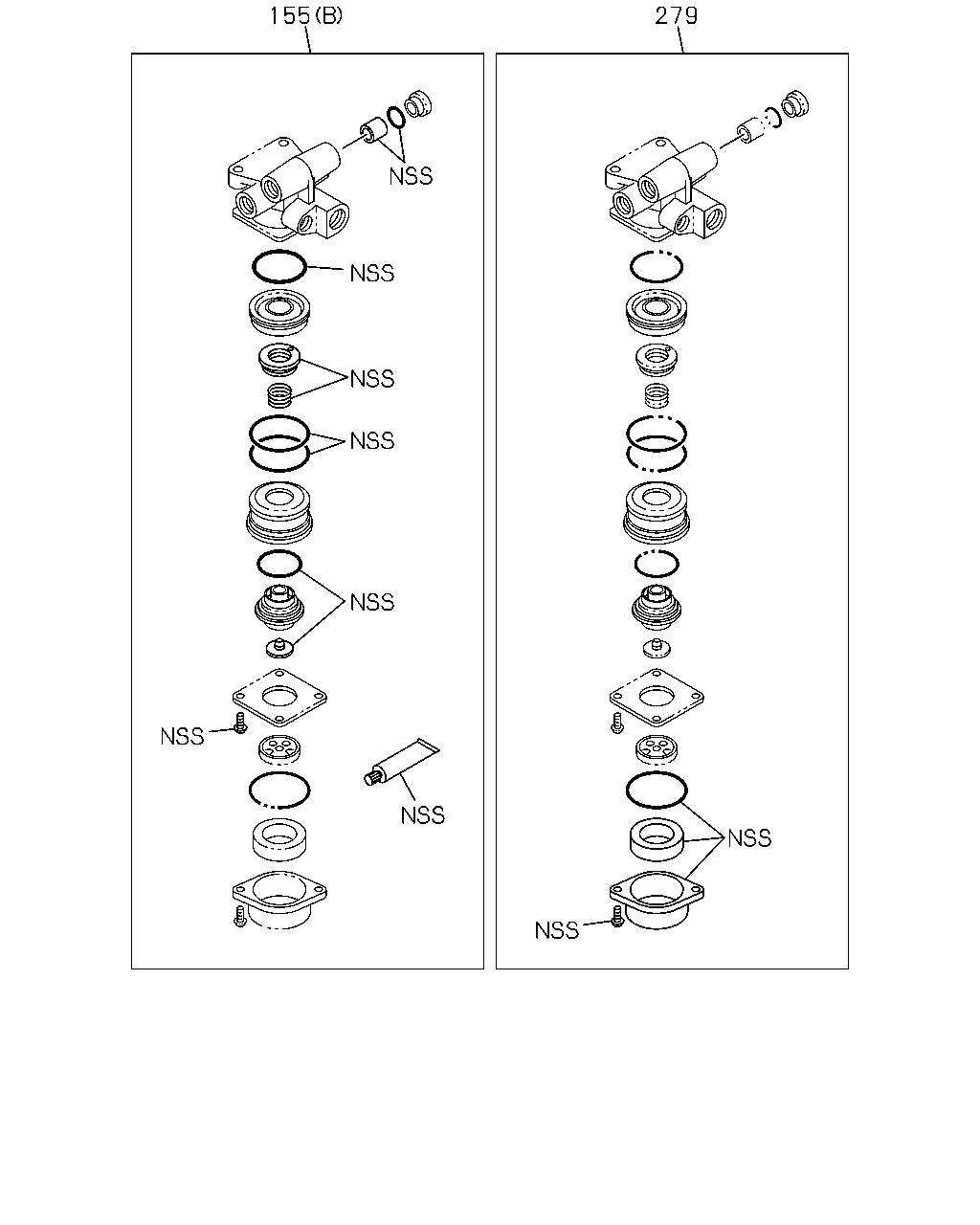

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (A)	1-85576-033-0	01	1	1206-1210
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1206-1210
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1206-1210
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1211-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1211-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1206-
279	REPAIR KIT; SILENCER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-409-0	01	1	1206-

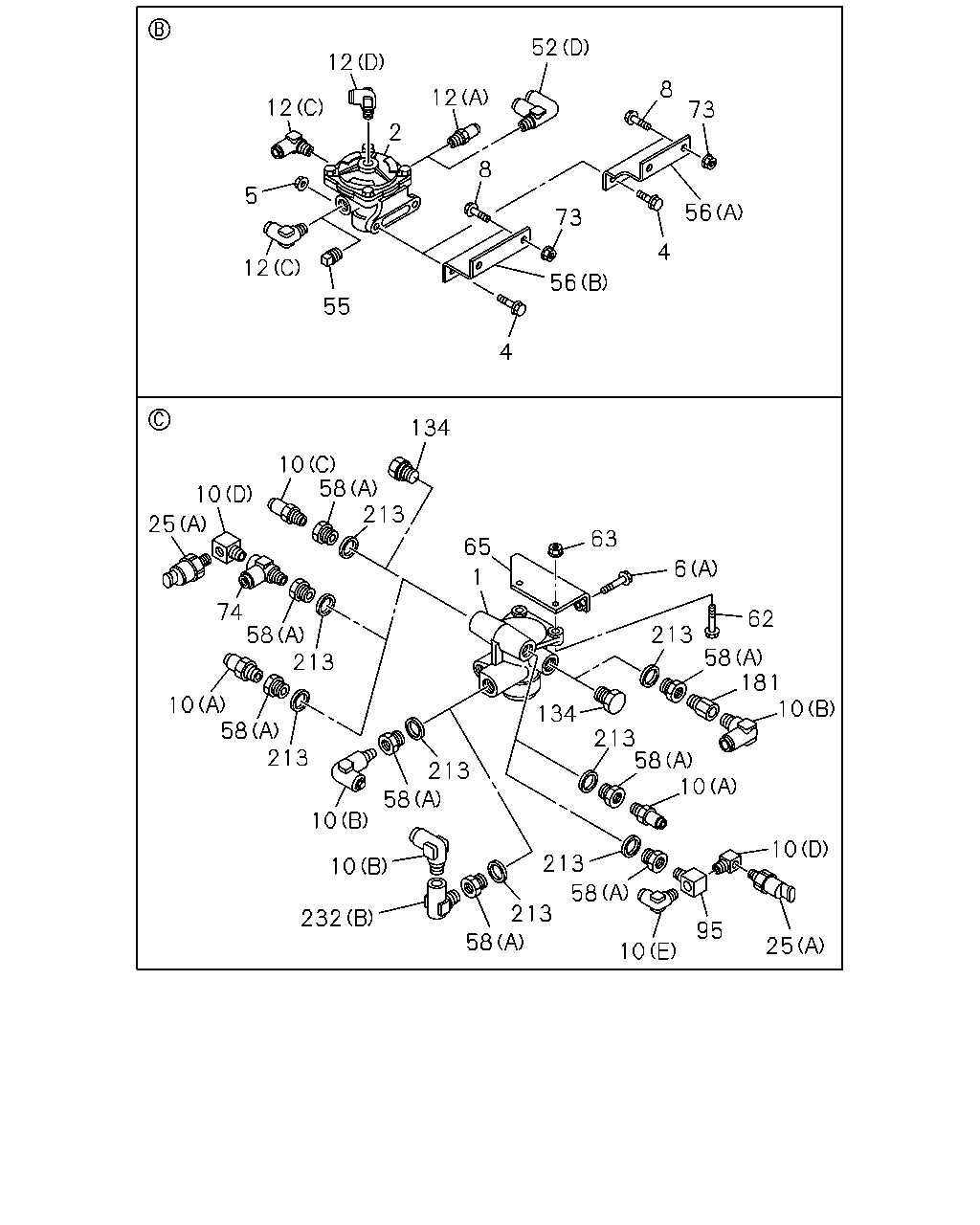

52 12 8 12 12 73 2 8 5 56 73 4 12 56 55 4 134 10 58 213 10 25 63 65 6 1 74 58 213 62 213 58 181 10 10 58 213 134 213 58 10 213 58 10 10 213 10 58 213 232 95 58 25 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48240-354-1	01	1	1206-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP>	1-48210-875-0	01	1	1206-1210
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1206-1210
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1206-1210
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1211-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1211-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> M10X35 FLANGE	0-28651-035-0	02	1	1206-1210
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) M10X35 FLANGE	0-28651-035-0	02	1	1206-1210
4	BOLT; RELAY VLV TO BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1206-1210
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) M10X35 FLANGE	0-28651-035-0	02	1	1211-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1211-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) M10X30 FLANGE	0-28651-030-0	02	1	1206-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> M10 FLANGE	0-91180-210-0	02	1	1206-1210
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1206-1210
5	NUT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1206-1210
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1211-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1211-
6	BOLT; VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X80 FLANGE	0-28050-880-0	04	1	1206-1410
6	BOLT; VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X85	1-09044-074-0	04	1	1411-
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X35 FLANGE	0-28650-835-0	02	1	1206-
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (G) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1206-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1206-1210
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1206-1210
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1211-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>,H.S.A SYSTEM<6EP> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-1210
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-1210
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-1210
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1211-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1211-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1206-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1206-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 2.0	8-98010-856-2	01	1	1206-
25	SWITCH; PRESSURE (B) STAMP 5.5	8-97609-249-0	01	1	1109-1205
25	SWITCH; PRESSURE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) STAMP 5.5	8-97609-249-0	01	1	1206-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) STAMP 5.5	8-97609-249-0	01	1	1206-
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1206-1210
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1211-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1206-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1206-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	1206-
55	PLUG; SUPPLY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) PT3/8	9-09204-517-0	01	1	1206-
56	BRACKET; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (B)	1-47478-233-0	01	1	1206-
56	BRACKET; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) (A)	8-98126-366-0	01	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1206-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E)	8-98148-475-0	01	1	1206-
58	ADAPTER (F) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1109-1205
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1206-
62	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1206-
63	NUT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1206-
65	BRACKET; RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47471-032-0	01	1	1206-
73	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1206-
74	CONNECTOR; 3WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHILE EQUIPMENT(KE1) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1206-
95	UNION; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1206-
134	PLUG; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	1-09661-502-0	01	1	1206-
181	ADAPTER; PRESSURE SW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) PT3/8	1-09664-210-0	01	1	1206-
213	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=22.5	9-09571-422-0	04	1	1206-
232	VALVE; CHECK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) (B)	1-48320-031-1	01	1	1206-
232	VALVE; CHECK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1206-

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	REPAIR KIT; PROTECTION VALVE	1-85576-452-2	01	1	1109-1205
241	REPAIR KIT; PROTECTION VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-452-2	01	1	1206-
241	REPAIR KIT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-85576-451-2	01	1	1206-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
