Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#71608) — 346 parça

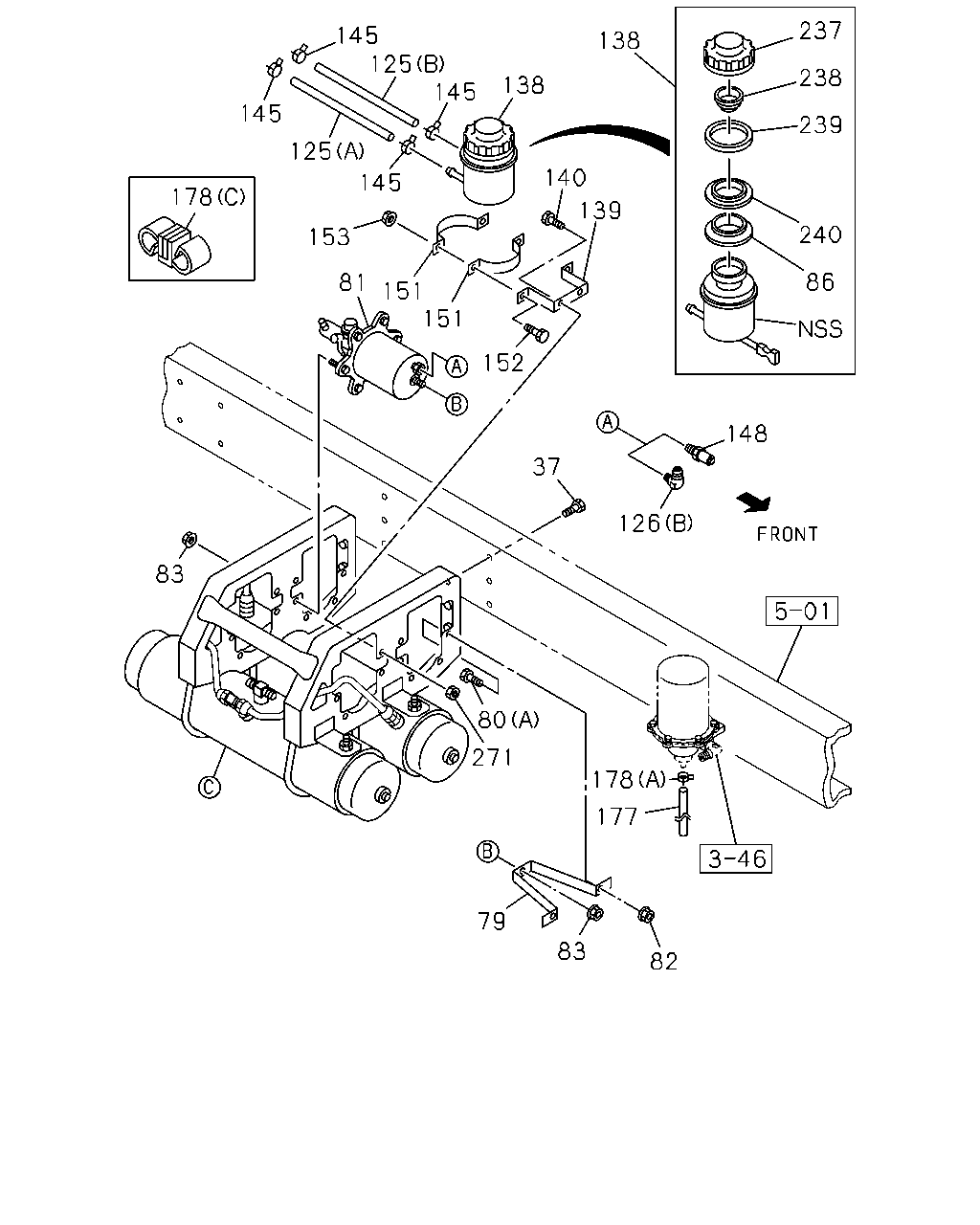

237 145 125 145 138 238 138 145 239 125 140 145 178 139 240 153 86 81 151 151 152 148 37 126 83 80 271 178 177 79 83 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	08	1	1206-
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	1109-1205
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1206-
79	STAY; AIR MASTER TO BRKT	8-98120-254-0	02	1	1109-1205
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98120-254-0	02	1	1206-
80	BOLT; BRKT BRAKE REGULATION ADR(TDU) (B) M10X30 FLANGE	0-28651-030-0	03	1	1206-
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1109-1205
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28651-025-0	04	1	1206-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-663-1	02	1	1109-1205
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ANTI LOCK BRAKE<JE5>	1-47800-663-1	02	1	1206-
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	1109-1205
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	04	1	1206-
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	1109-1205
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	10	1	1206-
86	SEAL; DUST	1-47529-019-0	01	1	1109-1205
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	1206-
125	HOSE; OIL TANK TO AIR MASTER (B) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1109-1205
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1206-
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98098-558-0	01	1	1109-1205
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98098-558-0	01	1	1206-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (E) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (F) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	04	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (G) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (H) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (J) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (F) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1206-
126	CONNECTOR; ELBOW (A) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1109-1205
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1206-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1109-1205
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1206-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1109-1205
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-185-1	01	1	1206-
139	BRACKET; OIL TANK	1-47537-081-2	01	1	1109-1205
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-081-2	01	1	1206-
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE	0-28651-025-0	02	1	1109-1205
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	02	1	1206-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1109-1205
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	1206-
148	CONNECTOR; AIR MASTER DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1109-1205
148	CONNECTOR; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1109-1205
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-056-2	02	1	1206-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1109-1205
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1206-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1109-1205
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	1206-
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1109-
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	1109-1205
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1206-
178	CLIP; HOSE (A) ID=21	8-94242-034-0	01	1	1109-
178	CLIP; HOSE (B) DIN15X2	9-09917-171-0	01	1	1109-1205
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN15X2	9-09917-171-0	01	1	1206-
237	CAP; OIL TANK	1-47525-030-0	01	1	1109-1205
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-030-0	01	1	1206-
238	PLATE; BAFFLE	1-47529-022-0	01	1	1109-1205
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	1206-
239	FILTER; DUST	1-47529-017-0	01	1	1109-1205
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	1206-
240	HOLDER; FILTER	1-47529-018-0	01	1	1109-1205
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	1206-
271	NUT; BRKT,HOSE M10 FLANGE	0-91180-210-0	02	1	1109-1205
271	NUT; BRKT,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	02	1	1206-

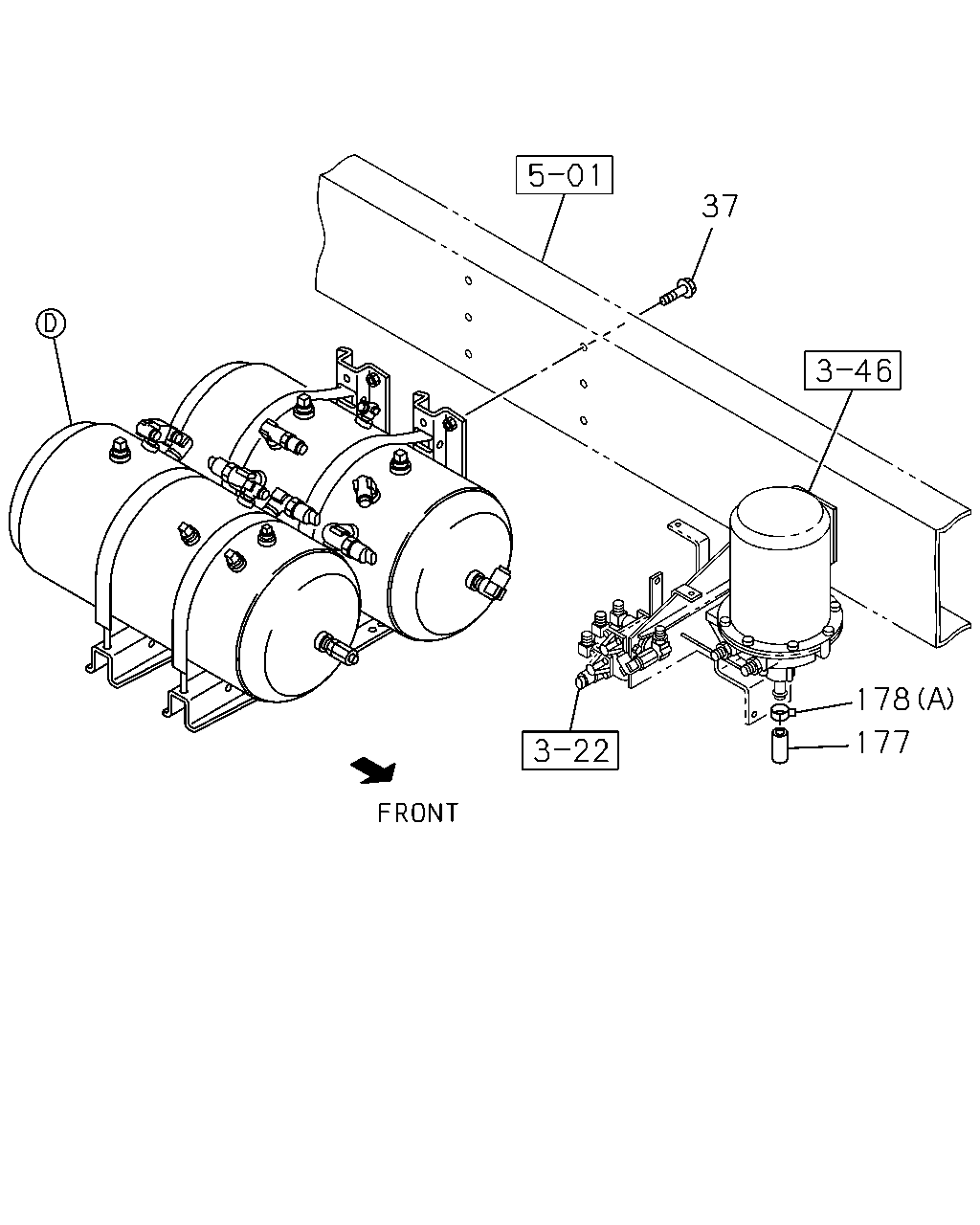

37 178 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	08	1	1206-
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	1109-1205
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1206-
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1109-
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	1109-1205
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1206-
178	CLIP; HOSE (A) ID=21	8-94242-034-0	01	1	1109-
178	CLIP; HOSE (B) DIN15X2	9-09917-171-0	01	1	1109-1205
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN15X2	9-09917-171-0	01	1	1206-

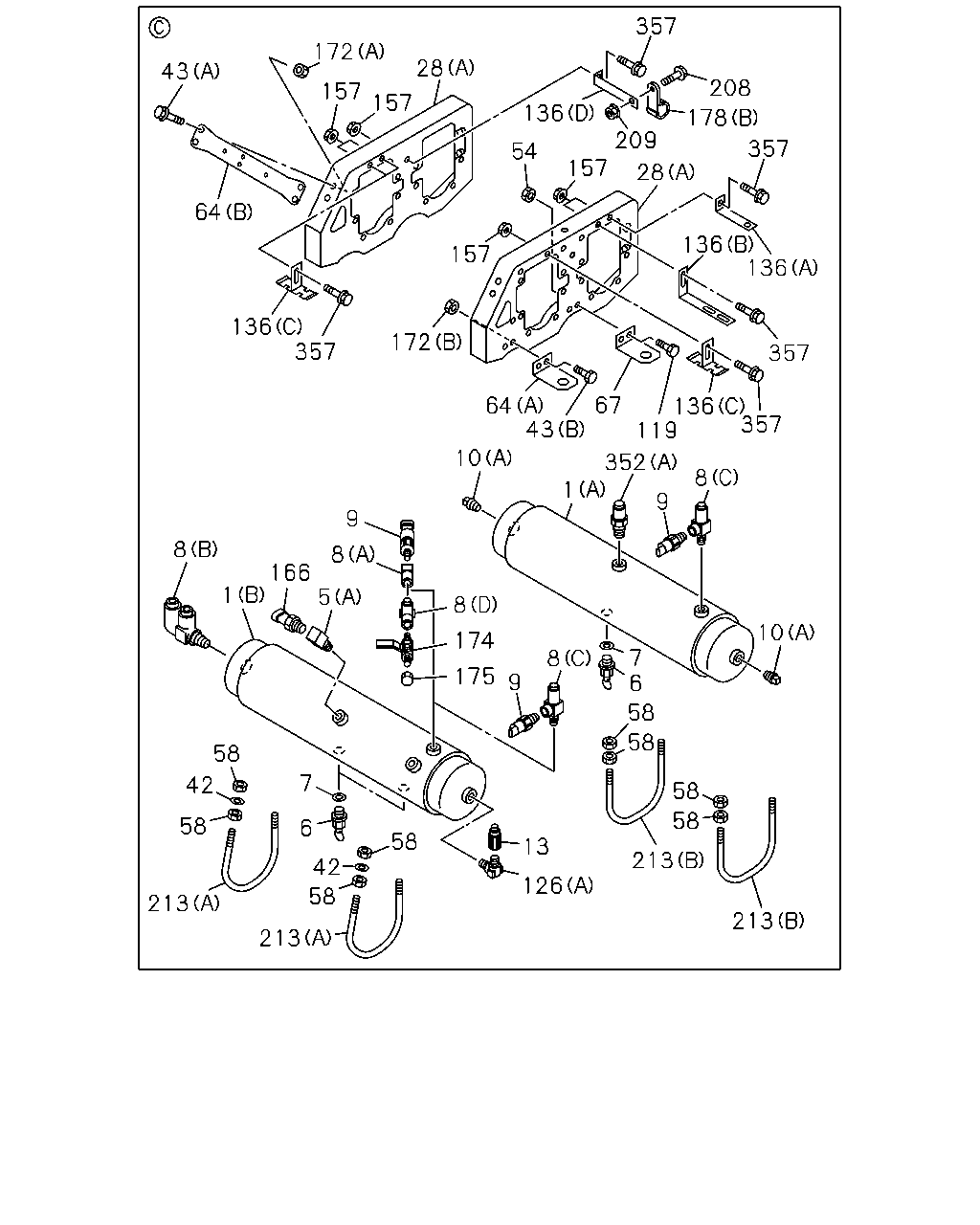

357 172 28 43 208 157 157 136 178 209 157 357 54 28 64 136 136 157 136 357 172 357 67 64 43 136 357 119 10 352 8 1 9 9 8 8 166 1 5 8 8 7 6 10 174 175 9 58 58 58 7 42 58 58 58 6 58 13 213 42 126 58 213 213 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (E)	8-98081-870-1	01	1	1206-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C)	1-48370-181-1	01	1	1206-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D)	8-98184-783-0	01	1	1206-
1	TANK ASM; AIR (B)	1-48370-500-0	01	1	1109-1205
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-500-0	01	1	1206-
1	TANK ASM; AIR (A)	1-48370-501-0	01	1	1109-1205
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-501-0	01	1	1206-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1206-
5	UNION; AIR TANK (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1109-1205
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1206-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	1206-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1206-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1109-1205
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	03	1	1206-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	1206-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1206-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1109-1205
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	03	1	1206-
8	CONNECTOR; AIR TANK (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1109-1205
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1206-
8	CONNECTOR; AIR TANK TIRE INFLATOR DEVICE<SG4> (C) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1109-1205
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> (C) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1206-
8	CONNECTOR; AIR TANK TIRE INFLATOR DEVICE<SG4> (D) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1109-1205
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> (D) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1206-
8	CONNECTOR; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1109-1205
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> (A) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1206-
8	CONNECTOR; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (C) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	02	1	1109-1205
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<SG4> (C) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	02	1	1206-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) STAMP 6.0	8-97615-622-0	04	1	1206-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	04	1	1206-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	02	1	1109-1205
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	02	1	1206-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) PT3/4	9-09204-526-0	03	1	1206-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	03	1	1206-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1109-1205
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (A) PT3/8	9-09204-517-0	02	1	1206-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (A) PT3/8	9-09204-517-0	02	1	1206-
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT3/8	9-09204-517-0	02	1	1206-
13	ADAPTER; NYLON TUBE DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1109-1205
13	ADAPTER; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1206-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (C)	8-98100-165-3	01	1	1206-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48317-601-5	02	1	1206-
28	BRACKET; AIR TANK (A)	1-53318-338-6	02	1	1109-1205
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-338-6	02	1	1206-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=10.5	0-91614-510-0	02	1	1206-
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	1109-1205
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	0-91610-608-0	04	1	1206-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) M8X25 FLANGE	0-28650-825-0	06	1	1206-
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28650-820-0	02	1	1109-1205
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	02	1	1206-
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28651-025-0	04	1	1109-1205
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28651-025-0	04	1	1206-
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1109-1205
54	NUT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	1206-
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1109-1205
58	NUT; BAND,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	16	1	1206-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C)	1-48317-607-0	01	1	1206-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D)	1-48317-691-0	01	1	1206-
64	STAY; AIR TANK,MAIN (A)	1-48317-349-0	01	1	1109-1205
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48317-349-0	01	1	1206-
64	STAY; AIR TANK,MAIN (B)	1-53318-293-1	01	1	1109-1205
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-53318-293-1	01	1	1206-
67	STAY; SUB TANK	1-48317-349-0	01	1	1109-1205
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	1206-
119	BOLT; STAY M8X20 FLANGE	0-28650-820-0	02	1	1109-1205
119	BOLT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1206-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (E) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (F) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	04	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (G) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (H) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (J) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (F) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1206-
126	CONNECTOR; ELBOW (A) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1109-1205
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1206-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1109-1205
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1206-
136	BRACKET; CLIP (A) L=90 B=25	1-47475-530-0	01	1	1109-1205
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=90 B=25	1-47475-530-0	01	1	1206-
136	BRACKET; CLIP (D) L=112	1-47475-694-1	01	1	1109-1205
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=112	1-47475-694-1	01	1	1206-
136	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	1109-1205
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=150 H=30	1-47477-629-2	01	1	1206-
136	BRACKET; CLIP (C)	1-47479-693-0	03	1	1109-1205
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47479-693-0	03	1	1206-
157	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1109-1205
157	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	06	1	1206-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1109-1205
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	01	1	1206-
172	NUT; STAY,AIR TANK,MAIN (B) M8 FLANGE	0-91180-108-0	02	1	1109-1205
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8 FLANGE	0-91180-108-0	02	1	1206-
172	NUT; STAY,AIR TANK,MAIN (A) M10 FLANGE	0-91180-210-0	04	1	1109-1205
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10 FLANGE	0-91180-210-0	04	1	1206-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1109-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1109-
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	1109-1205
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1206-
178	CLIP; HOSE (A) ID=21	8-94242-034-0	01	1	1109-
178	CLIP; HOSE (B) DIN15X2	9-09917-171-0	01	1	1109-1205
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN15X2	9-09917-171-0	01	1	1206-
208	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1109-1205
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	01	1	1206-
209	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1109-1205
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1206-
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	1109-1205
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	1206-
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	1109-1205
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	1206-
352	CONNECTOR; STRAIGHT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1206-
352	CONNECTOR; STRAIGHT (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1109-1205
352	CONNECTOR; STRAIGHT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
357	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	06	1	1109-1205
357	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	06	1	1206-

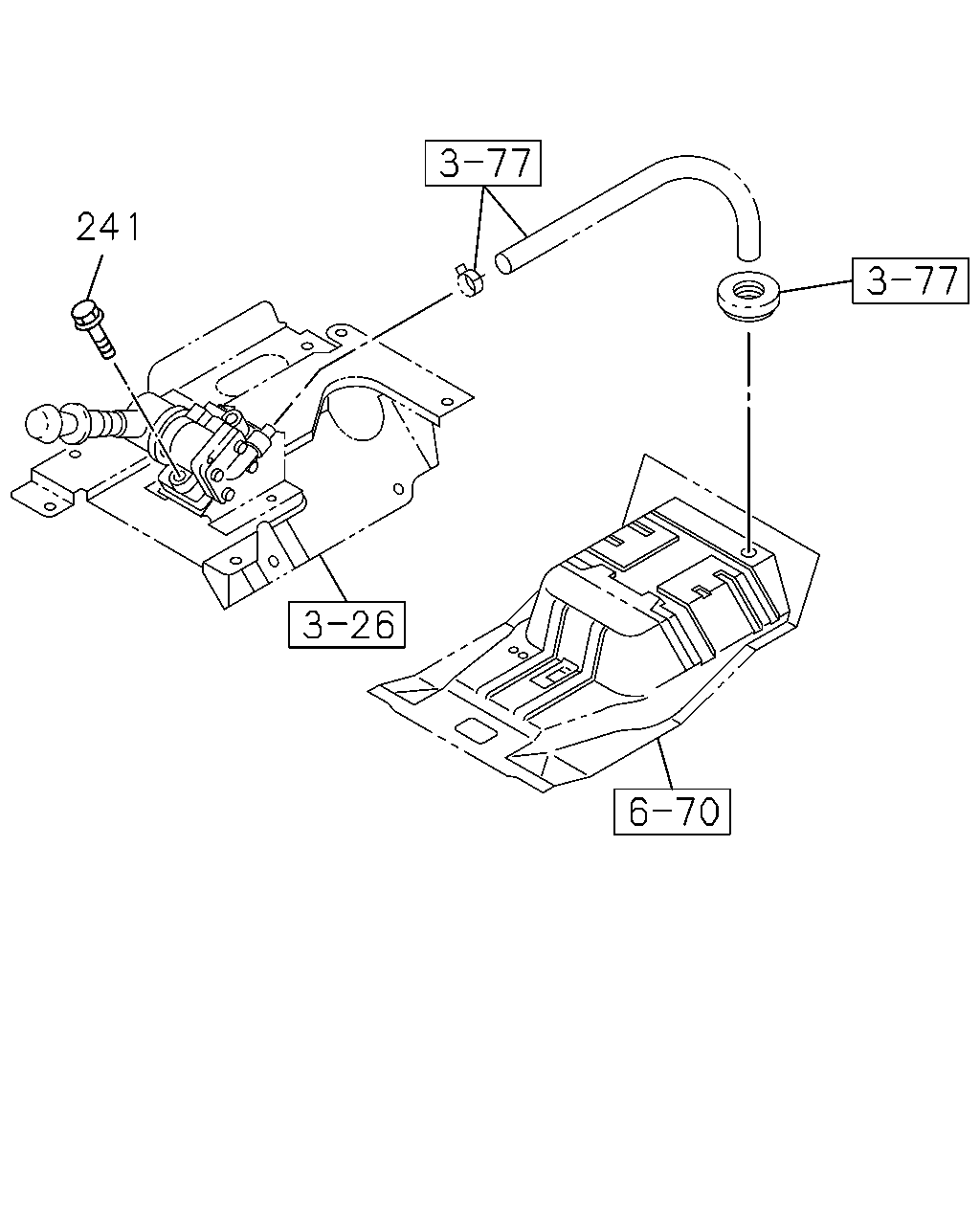

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	1206-

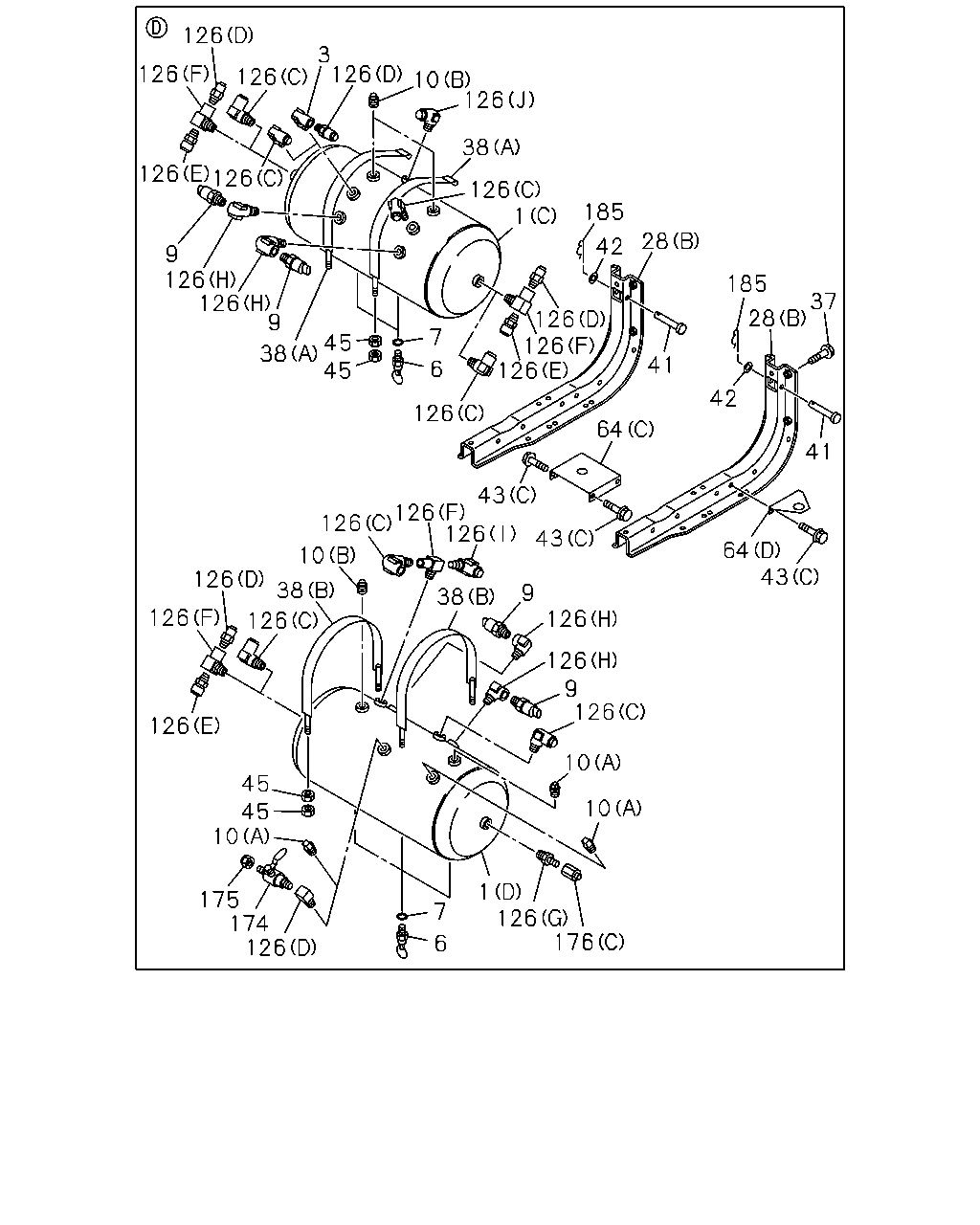

126 3 126 126 126 10 126 38 126 126 126 1 185 28 42 9 126 126 9 185 37 28 126 126 126 7 45 45 38 41 6 42 126 64 41 43 126 126 126 43 64 43 10 126 38 9 38 126 126 126 126 9 126 126 10 45 45 10 10 1 126 176 175 174 126 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (E)	8-98081-870-1	01	1	1206-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C)	1-48370-181-1	01	1	1206-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D)	8-98184-783-0	01	1	1206-
1	TANK ASM; AIR (B)	1-48370-500-0	01	1	1109-1205
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-500-0	01	1	1206-
1	TANK ASM; AIR (A)	1-48370-501-0	01	1	1109-1205
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-501-0	01	1	1206-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU)	1-48320-031-1	01	1	1206-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	1206-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1206-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1109-1205
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	03	1	1206-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	1206-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1206-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1109-1205
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	03	1	1206-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) STAMP 6.0	8-97615-622-0	04	1	1206-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) STAMP 5.5	8-97609-249-0	04	1	1206-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	02	1	1109-1205
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	02	1	1206-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) PT3/4	9-09204-526-0	03	1	1206-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	03	1	1206-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1109-1205
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (A) PT3/8	9-09204-517-0	02	1	1206-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (A) PT3/8	9-09204-517-0	02	1	1206-
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT3/8	9-09204-517-0	02	1	1206-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (C)	8-98100-165-3	01	1	1206-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48317-601-5	02	1	1206-
28	BRACKET; AIR TANK (A)	1-53318-338-6	02	1	1109-1205
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-338-6	02	1	1206-
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	08	1	1206-
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	1109-1205
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1206-
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A)	1-48317-108-2	02	1	1206-
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48317-109-2	02	1	1206-
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> OD=10 L=60	0-82254-060-0	02	1	1206-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=10.5	0-91614-510-0	02	1	1206-
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	1109-1205
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	0-91610-608-0	04	1	1206-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) M8X25 FLANGE	0-28650-825-0	06	1	1206-
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28650-820-0	02	1	1109-1205
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	02	1	1206-
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28651-025-0	04	1	1109-1205
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28651-025-0	04	1	1206-
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> M8	0-91110-508-0	12	1	1206-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C)	1-48317-607-0	01	1	1206-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D)	1-48317-691-0	01	1	1206-
64	STAY; AIR TANK,MAIN (A)	1-48317-349-0	01	1	1109-1205
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48317-349-0	01	1	1206-
64	STAY; AIR TANK,MAIN (B)	1-53318-293-1	01	1	1109-1205
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-53318-293-1	01	1	1206-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (E) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (F) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	04	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (G) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (H) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (J) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (F) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1206-
126	CONNECTOR; ELBOW (A) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1109-1205
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1206-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1109-1205
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1206-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1109-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1109-
176	ADAPTER ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1206-
176	ADAPTER ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/8	1-09664-210-0	01	1	1206-
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1206-
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	02	1	1206-

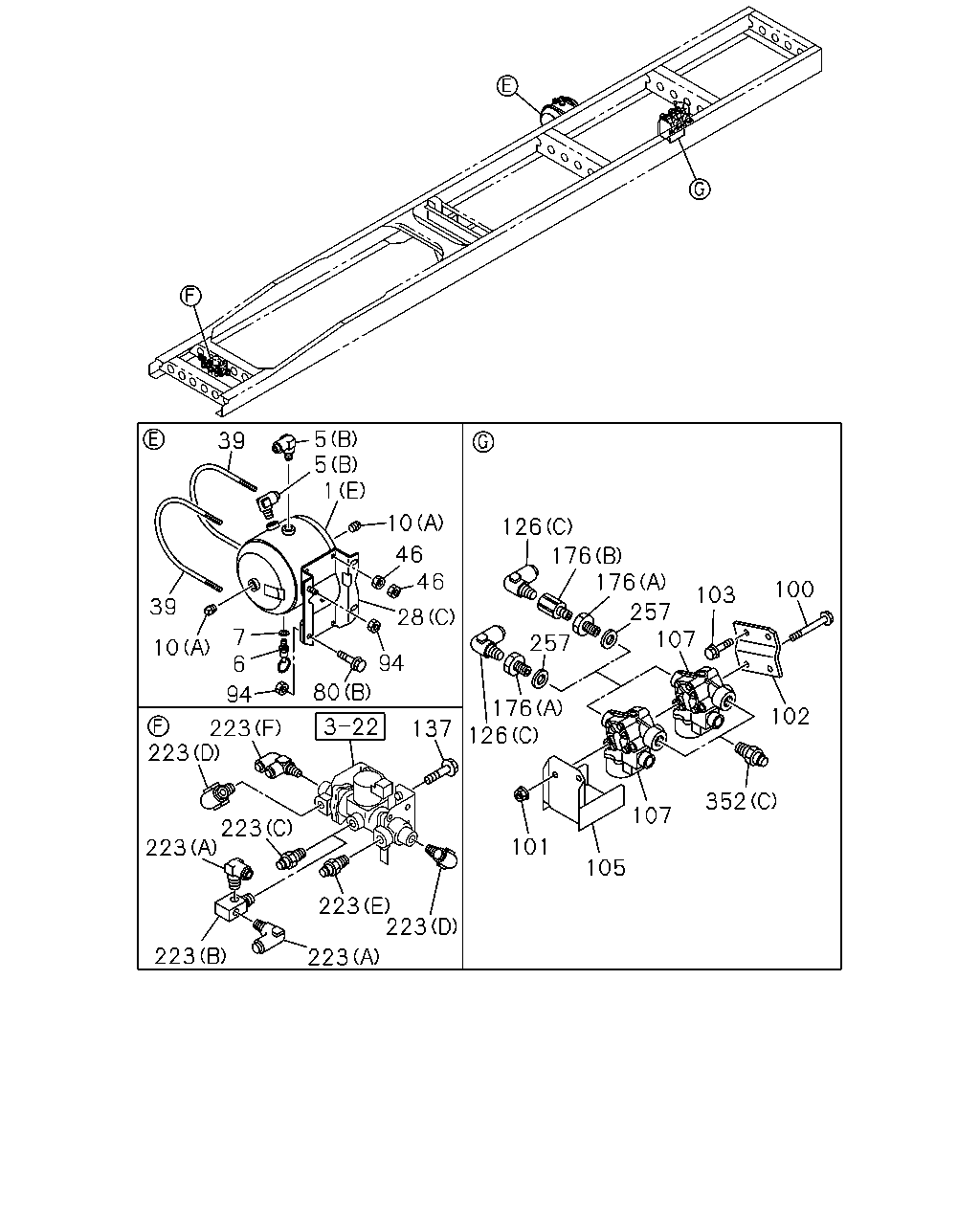

5 5 1 39 10 126 46 46 176 176 100 103 39 257 107 28 7 6 257 10 94 80 94 176 126 102 223 223 137 352 107 223 101 223 105 223 223 223 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (E)	8-98081-870-1	01	1	1206-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C)	1-48370-181-1	01	1	1206-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D)	8-98184-783-0	01	1	1206-
1	TANK ASM; AIR (B)	1-48370-500-0	01	1	1109-1205
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48370-500-0	01	1	1206-
1	TANK ASM; AIR (A)	1-48370-501-0	01	1	1109-1205
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-501-0	01	1	1206-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1206-
5	UNION; AIR TANK (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1109-1205
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1206-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU)	1-48312-015-0	01	1	1206-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1206-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1109-1205
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	03	1	1206-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) ID=14	1-09630-145-0	01	1	1206-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1206-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1109-1205
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	03	1	1206-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) PT3/4	9-09204-526-0	03	1	1206-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	03	1	1206-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1109-1205
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (A) PT3/8	9-09204-517-0	02	1	1206-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (A) PT3/8	9-09204-517-0	02	1	1206-
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT3/8	9-09204-517-0	02	1	1206-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (C)	8-98100-165-3	01	1	1206-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48317-601-5	02	1	1206-
28	BRACKET; AIR TANK (A)	1-53318-338-6	02	1	1109-1205
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-338-6	02	1	1206-
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) L=210	1-48317-458-1	02	1	1206-
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) M8	0-91110-508-0	08	1	1206-
80	BOLT; BRKT BRAKE REGULATION ADR(TDU) (B) M10X30 FLANGE	0-28651-030-0	03	1	1206-
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1109-1205
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28651-025-0	04	1	1206-
94	NUT; BRKT FIX BRAKE REGULATION ADR(TDU) M10 FLANGE	0-91180-210-0	04	1	1206-
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X140 FLANGE	0-28055-814-0	02	1	1206-
101	NUT; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1206-
102	BRACKET; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98075-781-0	01	1	1206-1410
102	BRACKET; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98272-718-0	01	1	1411-
103	BOLT; BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1206-
105	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47479-792-0	01	1	1206-1410
105	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98272-749-0	01	1	1411-
107	MODULATOR; RR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48240-115-0	02	1	1206-1410
107	MODULATOR; RR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98215-454-0	02	1	1411-
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (E) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BRAKE REGULATION ADR(TDU) (F) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	04	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (G) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (H) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (J) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) (F) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1206-
126	CONNECTOR; ELBOW (A) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1109-1205
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1206-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1109-1205
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1206-
137	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	1206-
176	ADAPTER ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1206-
176	ADAPTER ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/8	1-09664-210-0	01	1	1206-
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (C) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1206-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1206-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1206-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1206-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (C) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1206-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1206-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	1206-
257	GASKET; PLUG ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=22.5	9-09571-422-0	02	1	1206-
352	CONNECTOR; STRAIGHT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1206-
352	CONNECTOR; STRAIGHT (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1109-1205
352	CONNECTOR; STRAIGHT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1206-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
