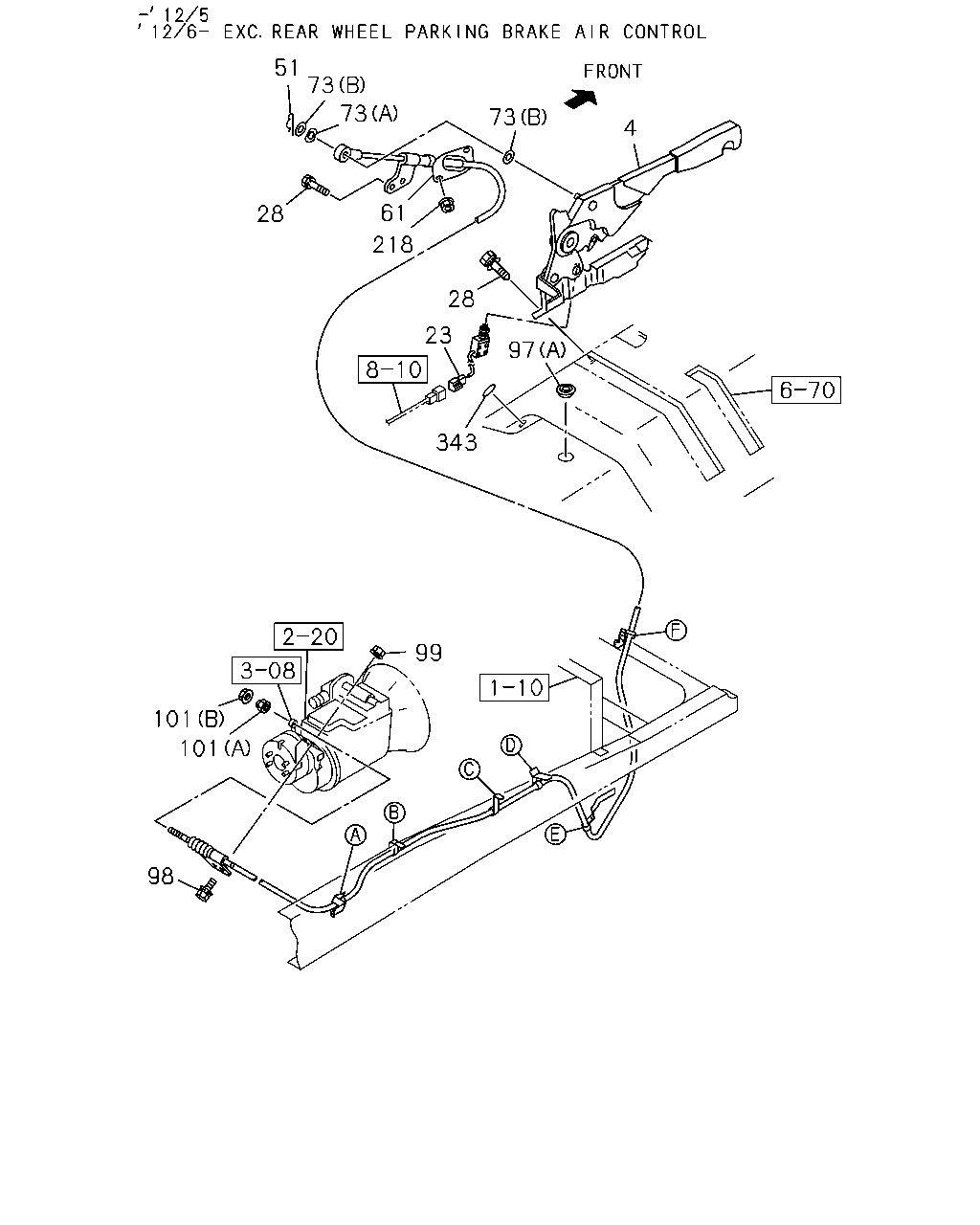

3-11 — PARKING BRAKE CONTROL (#71607) — 86 parça

51 73 73 73 4 61 28 218 28 23 97 343 99 101 101 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STEM; PARKING BRK	1-79996-697-0	01	1	1109-1205
4	STEM; PARKING BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-79996-697-0	01	1	1206-
23	SWITCH; PARKING BRK	1-82440-100-0	01	1	1109-1205
23	SWITCH; PARKING BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-82440-100-0	01	1	1206-
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1109-1205
28	BOLT; HAND BRK LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1206-
51	PIN; JOINT,RELAY LEVER	1-09987-243-1	01	1	1109-1205
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	1206-
61	CABLE; PARKING BRK L=4740	8-98135-025-1	01	1	1109-1205
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4740	8-98135-025-1	01	1	1206-
73	WASHER; PL,CABLE (A) ID=17 OD=30	0-91610-516-0	01	1	1109-1205
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30	0-91610-516-0	01	1	1206-
73	WASHER; PL,CABLE (B) ID=19	8-94206-429-1	02	1	1109-1205
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19	8-94206-429-1	02	1	1206-
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98029-219-1	01	1	1206-
97	GROMMET; PARKING BRK CABLE (A) OD=35	8-94122-971-0	01	1	1109-1205
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=35	8-94122-971-0	01	1	1206-
98	BOLT; RR COVER M10X30 FLANGE	0-28651-030-0	02	1	1109-1205
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1206-
99	NUT; CONT CABLE M10 FLANGE	0-91180-210-0	02	1	1109-1205
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	1206-
101	NUT; CABLE TO LEVER (B) M8 FLANGE	0-91180-108-0	01	1	1109-1205
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	1206-
101	NUT; CABLE TO LEVER (A) M8	1-46259-007-0	01	1	1109-1205
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	1-46259-007-0	01	1	1206-
218	NUT; BRKT,PARKING BRK CABLE M8 FLANGE	0-91180-108-0	02	1	1109-1205
218	NUT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1206-
343	SEAL OD=25 BLACK	1-76798-019-0	07	1	1109-1205
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	07	1	1206-

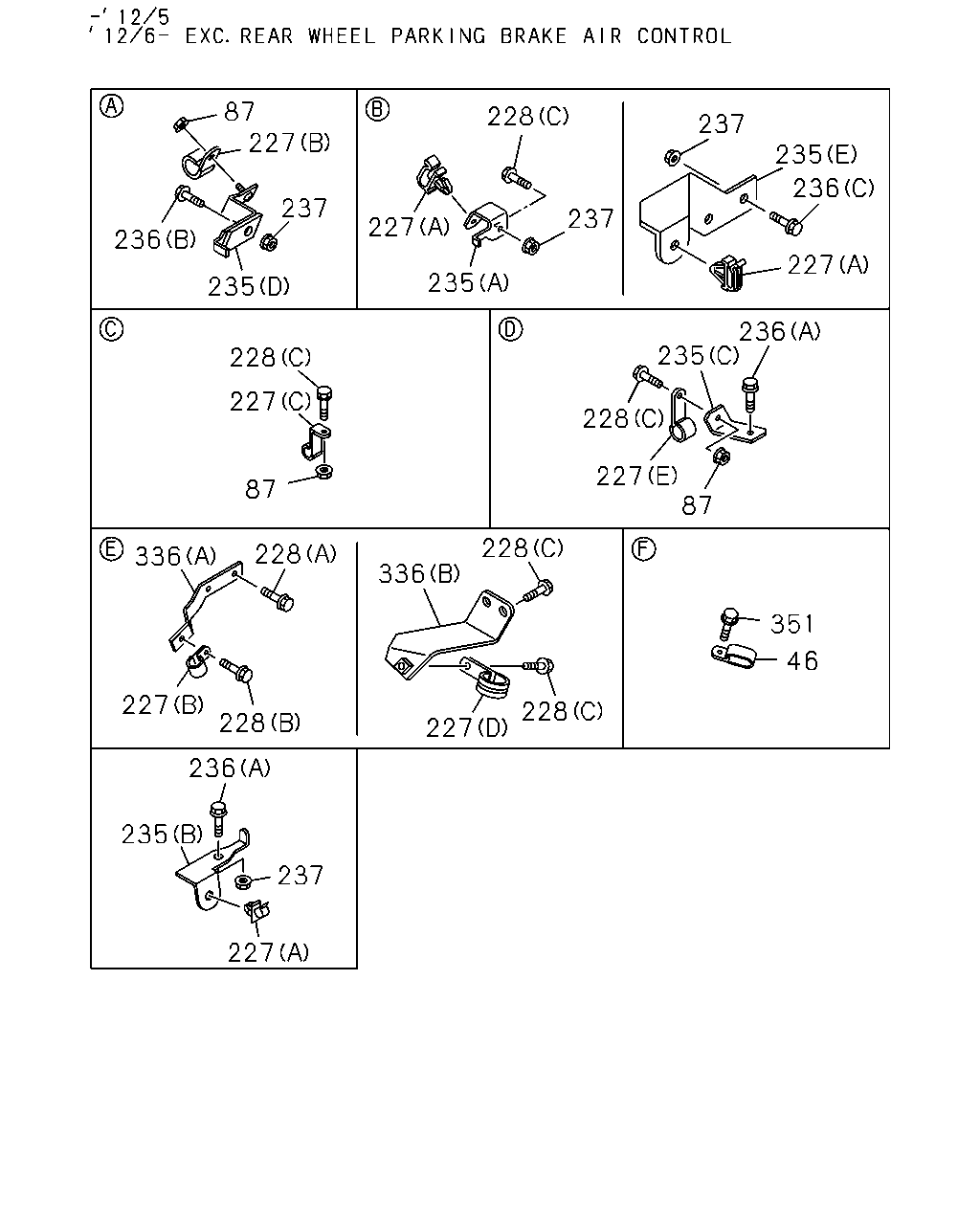

87 227 228 237 235 236 237 237 227 236 227 235 235 236 235 28 227 228 227 87 87 228 228 336 336 351 46 227 228 228 227 236 235 237 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1109-1205
28	BOLT; HAND BRK LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1206-
46	CLIP; FRT CABLE TO FLOOR ID=16 L=20	0-95235-535-0	01	1	1109-1205
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	01	1	1206-
87	NUT M8 FLANGE	0-91180-108-0	02	1	1109-1205
87	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1206-
227	CLIP; RAD (B) ID=13 L=20	0-95235-235-0	01	1	1109-1205
227	CLIP; RAD EXC. FRONT STABILIZER SHAFT<F59> (B) ID=13 L=20	0-95235-235-0	01	1	1109-1205
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20	0-95235-235-0	01	1	1206-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) ID=13 L=20	0-95235-235-0	01	1	1206-
227	CLIP; RAD (C) ID=25 H=60 L=35	1-09701-103-0	01	1	1109-1205
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=25 H=60 L=35	1-09701-103-0	01	1	1206-
227	CLIP; RAD (A) ID=9.5	5-09709-020-0	02	1	1109-1205
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=9.5	5-09709-020-0	02	1	1206-
227	CLIP; RAD (E) ID=14.5 L=40	8-98119-885-0	01	1	1109-1205
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=14.5 L=40	8-98119-885-0	01	1	1206-
227	CLIP; RAD FRONT STABILIZER SHAFT<F59> (D) ID=14.5 L=40	1-09701-014-0	01	1	1109-1205
227	CLIP; RAD FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=14.5 L=40	1-09701-014-0	01	1	1206-
228	BOLT; CLIP RAD MTG (C) M8X25 FLANGE	0-28650-825-0	02	1	1109-1205
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	1206-
228	BOLT; CLIP RAD MTG FRONT STABILIZER SHAFT<F59> (C) M8X25 FLANGE	0-28650-825-0	03	1	1109-1205
228	BOLT; CLIP RAD MTG FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	03	1	1206-
228	BOLT; CLIP RAD MTG EXC. FRONT STABILIZER SHAFT<F59> (B) M8X16 FLANGE	0-28050-816-0	01	1	1109-1205
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) M8X16 FLANGE	0-28050-816-0	01	1	1206-
228	BOLT; CLIP RAD MTG EXC. FRONT STABILIZER SHAFT<F59> (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1109-1205
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1206-
235	BRACKET; CONT CABLE TO FRAME (C)	1-82699-199-0	01	1	1109-1205
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-82699-199-0	01	1	1206-
235	BRACKET; CONT CABLE TO FRAME (D)	8-98077-903-2	01	1	1109-1205
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98077-903-2	01	1	1206-
235	BRACKET; CONT CABLE TO FRAME (B)	8-98100-153-0	01	1	1109-1111
235	BRACKET; CONT CABLE TO FRAME (E)	8-98100-152-0	01	1	1112-1205
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98100-152-0	01	1	1206-
235	BRACKET; CONT CABLE TO FRAME (A)	8-98126-934-0	01	1	1109-1111
236	BOLT; BRKT TO FRAME (C) M8X30 FLANGE	0-28650-830-0	02	1	1112-1205
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X30 FLANGE	0-28650-830-0	02	1	1206-
236	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	02	1	1109-1111
236	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	01	1	1112-1205
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	01	1	1206-
236	BOLT; BRKT TO FRAME (B) M10X30 FLANGE	0-28651-030-0	01	1	1109-1205
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28651-030-0	01	1	1206-1504
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28051-030-0	01	1	1505-
237	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1109-1111
237	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1112-1205
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1206-
237	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	02	1	1109-1111
237	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	01	1	1112-1205
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	1206-
336	BRACKET; RADIATOR FRONT STABILIZER SHAFT<F59> (B)	8-98105-405-0	01	1	1109-1205
336	BRACKET; RADIATOR FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98105-405-0	01	1	1206-
336	BRACKET; RADIATOR EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98044-680-0	01	1	1109-1205
336	BRACKET; RADIATOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (A)	8-98044-680-0	01	1	1206-
351	BOLT; CLIP M8X25 W/WASHER	0-51640-825-0	03	1	1109-1205
351	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	03	1	1206-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98029-219-1	01	1	1206-
97	GROMMET; PARKING BRK CABLE (A) OD=35	8-94122-971-0	01	1	1109-1205
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) OD=35	8-94122-971-0	01	1	1206-
