Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#71604) — 376 parça

346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47649-031-0	02	1	1206-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-034-1	02	1	1206-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1206-
301	CLIP; ANTI LOTATION EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1109-1205
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1206-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	1206-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1206-
319	RING; DRIVE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1109-1205
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1206-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1206-
327	SPRING; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1109-1205
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1206-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	1206-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	1206-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-041-0	02	1	1206-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	1206-
346	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-403-0	02	1	1206-
347	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-404-0	02	1	1206-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	1206-

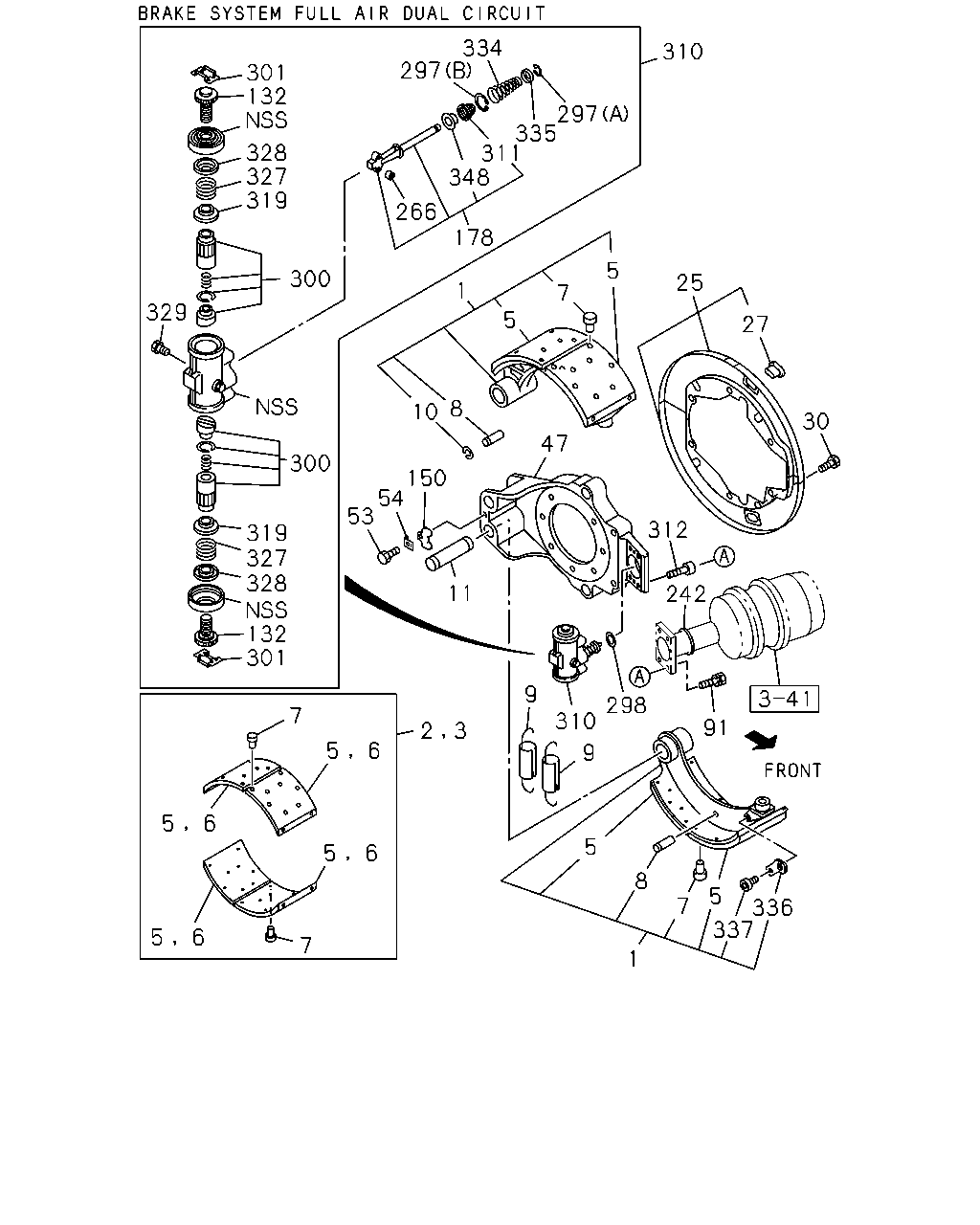

334 297 310 301 132 297 335 311 348 328 327 319 266 178 5 300 25 1 7 329 5 27 8 10 30 47 300 150 54 53 312 319 327 328 132 301 11 242 9 298 7 310 91 5 6 9 5 6 5 5 6 8 336 337 5 7 5 6 7 1 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-504-0	01	1	1206-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-506-0	01	1	1206-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-505-0	01	1	1206-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-507-0	01	1	1206-
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1206-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1206-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1206-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1206-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1206-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-1	02	1	1206-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1109-1205
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1206-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1109-1205
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1206-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1109-1205
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1206-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-1	02	1	1206-
3	LINING SET; RR BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1109-1205
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1206-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1109-1205
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1206-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1109-1205
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1206-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	1206-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1109-1205
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1206-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1109-1205
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1206-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-092-0	08	1	1206-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1109-1205
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1206-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1109-1205
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1206-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	1206-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	80	1	1109-1205
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	80	1	1206-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING L=18.5	1-09732-034-0	40	1	1109-1205
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING L=18.5	1-09732-034-0	40	1	1206-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING L=15.5	1-09732-053-0	40	1	1109-1205
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING L=15.5	1-09732-053-0	40	1	1206-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-175-0	04	1	1206-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1109-1205
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1206-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1109-1205
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1206-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-376-0	02	1	1206-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-09583-185-2	02	1	1109-1205
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09583-185-2	02	1	1206-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-359-0	04	1	1109-1205
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-359-0	04	1	1206-
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	04	1	1206-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	1206-
11	PIN; ANCHOR,RR WHEEL BRK L=106.5	1-47131-038-0	04	1	1109-1205
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	1206-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	1206-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	1206-
25	COVER SET; RR BRK DRUM	1-47151-458-1	02	1	1109-1205
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-458-1	02	1	1206-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1109-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1109-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1206-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1206-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1206-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47137-112-4	02	1	1109-1205
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-112-4	02	1	1206-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-577-0	02	1	1109-1205
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-577-0	02	1	1206-
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1109-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1109-
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X45 W/LK WASHER	0-50551-045-0	08	1	1206-1306
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X45	1-47139-174-0	08	1	1307-
132	SCREW; ADJ,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47623-035-2	04	1	1206-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47133-010-0	02	1	1206-
150	PLATE; LK,ANCHOR PIN EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1109-1205
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1206-
178	WEDGE; RR WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47640-012-0	02	1	1206-
242	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47159-186-0	04	1	1206-
266	ROLLER; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47643-007-0	04	1	1206-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47649-031-0	02	1	1206-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-034-1	02	1	1206-
298	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-231-0	02	1	1206-
300	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-247-1	04	1	1206-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1206-
301	CLIP; ANTI LOTATION EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1109-1205
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1206-
310	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47601-087-0	02	1	1206-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	1206-
312	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	1206-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1206-
319	RING; DRIVE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1109-1205
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1206-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1206-
327	SPRING; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1109-1205
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1206-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	1206-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	1206-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-041-0	02	1	1206-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	1206-
336	PLATE; PIVOT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-152-0	04	1	1206-
337	BOLT; PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-153-0	04	1	1206-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	1206-

5 6 5 6 30 7 25 5 6 5 6 27 15 5 112 57 56 9 47 7 5 1 60 58 62 61 8 4 111 11 94 51 5 7 51 55 54 53 5 1 95 94 4 97 96 100 99 98 99 100 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-504-0	01	1	1206-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-506-0	01	1	1206-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-505-0	01	1	1206-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-507-0	01	1	1206-
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1206-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1206-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1206-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1206-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1206-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-1	02	1	1206-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1109-1205
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1206-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1109-1205
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1206-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1109-1205
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1206-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-1	02	1	1206-
3	LINING SET; RR BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1109-1205
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1206-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1109-1205
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1206-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1109-1205
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1206-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-011-0	04	1	1109-1205
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	1206-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	1206-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1109-1205
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1206-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1109-1205
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1206-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-092-0	08	1	1206-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1109-1205
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1206-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1109-1205
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1206-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	1206-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	80	1	1109-1205
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	80	1	1206-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING L=18.5	1-09732-034-0	40	1	1109-1205
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING L=18.5	1-09732-034-0	40	1	1206-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING L=15.5	1-09732-053-0	40	1	1109-1205
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING L=15.5	1-09732-053-0	40	1	1206-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-175-0	04	1	1206-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1109-1205
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1206-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1109-1205
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1206-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-376-0	02	1	1206-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-09583-185-2	02	1	1109-1205
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09583-185-2	02	1	1206-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-359-0	04	1	1109-1205
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-359-0	04	1	1206-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	1206-
11	PIN; ANCHOR,RR WHEEL BRK L=106.5	1-47131-038-0	04	1	1109-1205
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	1206-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	1109-1205
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	1206-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	1206-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	1206-
25	COVER SET; RR BRK DRUM	1-47151-458-1	02	1	1109-1205
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-458-1	02	1	1206-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1109-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1109-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1206-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1206-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1206-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47137-112-4	02	1	1109-1205
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-112-4	02	1	1206-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-577-0	02	1	1109-1205
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-577-0	02	1	1206-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	1109-1205
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	1206-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	1109-1205
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	1206-
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1109-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1109-
55	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1109-1205
55	PLATE; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1206-
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	1109-1205
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	1206-
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	1109-1205
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	1206-
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	1109-1205
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	1206-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	1109-1205
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	1206-
61	INDICATOR; WEAR,RR BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	1109-1205
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	1206-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	1109-1205
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	1206-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47601-220-0	02	1	1109-1205
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-220-0	02	1	1206-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-183-0	02	1	1109-1205
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-183-0	02	1	1206-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-87830-886-0	02	1	1109-1205
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-886-0	02	1	1206-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-985-0	02	1	1109-1205
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-985-0	02	1	1206-
96	SCREW; BLEEDER,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=66.5	1-47615-005-0	02	1	1109-1205
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=66.5	1-47615-005-0	02	1	1206-
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	1109-1205
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	1206-
98	SPRING; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-09580-019-0	02	1	1109-1205
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09580-019-0	02	1	1206-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-302-0	04	1	1109-1205
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-302-0	04	1	1206-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-371-0	04	1	1109-1205
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-371-0	04	1	1206-
100	ROD; PUSH,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	1109-1205
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	1206-
111	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	1109-1205
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	1206-
112	BOLT; WHEEL CYL SETTING M12X32 W/LK WASHER	0-50551-232-0	04	1	1109-1205
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X32 W/LK WASHER	0-50551-232-0	04	1	1206-

95 19 319 317 301 245 245 327 318 309 19 99 99 309 246 318 301 327 97 245 94 317 319 245 2 3 2 3 175 5 6 5 6 186 5 6 5 6 7 7 25 5 6 7 27 112 7 5 6 5 6 5 6 5 1 8 9 174 30 9 7 5 4 8 47 5 53 11 150 7 4 5 54 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-504-0	01	1	1206-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47170-506-0	01	1	1206-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-505-0	01	1	1206-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47170-507-0	01	1	1206-
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	1206-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	1206-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	1206-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	1206-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1109-1205
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	1206-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-1	02	1	1206-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1109-1205
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	1206-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1109-1205
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	1206-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1109-1205
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	1206-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-1	02	1	1206-
3	LINING SET; RR BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1109-1205
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	1206-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1109-1205
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	1206-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1109-1205
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	1206-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-011-0	04	1	1109-1205
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	1206-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	1206-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1109-1205
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1206-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1109-1205
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1206-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-092-0	08	1	1206-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1109-1205
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1206-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1109-1205
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1206-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	1206-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	80	1	1109-1205
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	80	1	1206-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING L=18.5	1-09732-034-0	40	1	1109-1205
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING L=18.5	1-09732-034-0	40	1	1206-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING L=15.5	1-09732-053-0	40	1	1109-1205
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING L=15.5	1-09732-053-0	40	1	1206-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-175-0	04	1	1206-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1109-1205
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1206-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1109-1205
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1206-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-376-0	02	1	1206-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-09583-185-2	02	1	1109-1205
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09583-185-2	02	1	1206-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-359-0	04	1	1109-1205
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-359-0	04	1	1206-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	1206-
11	PIN; ANCHOR,RR WHEEL BRK L=106.5	1-47131-038-0	04	1	1109-1205
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	1206-
19	ADJUSTER; RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	1109-1205
19	ADJUSTER; RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	1206-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	1206-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	1206-
25	COVER SET; RR BRK DRUM	1-47151-458-1	02	1	1109-1205
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-458-1	02	1	1206-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1109-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1109-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	1-47137-549-0	01	1	1206-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	1-47137-550-0	01	1	1206-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	1-47137-472-0	02	1	1206-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE ADJUSTER MANUAL<BJR>	1-47137-112-4	02	1	1109-1205
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-112-4	02	1	1206-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-577-0	02	1	1109-1205
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-577-0	02	1	1206-
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	1109-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1109-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47601-220-0	02	1	1109-1205
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-220-0	02	1	1206-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-183-0	02	1	1109-1205
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-183-0	02	1	1206-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-87830-886-0	02	1	1109-1205
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-886-0	02	1	1206-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-985-0	02	1	1109-1205
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-985-0	02	1	1206-
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	1109-1205
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	1206-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-302-0	04	1	1109-1205
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-302-0	04	1	1206-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-371-0	04	1	1109-1205
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-371-0	04	1	1206-
112	BOLT; WHEEL CYL SETTING M12X32 W/LK WASHER	0-50551-232-0	04	1	1109-1205
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X32 W/LK WASHER	0-50551-232-0	04	1	1206-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47133-010-0	02	1	1206-
150	PLATE; LK,ANCHOR PIN EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1109-1205
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1206-
174	COVER; CYL,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	1109-1205
174	COVER; CYL,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	1206-
175	HANGER; RR WHEEL BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-145-0	02	1	1109-1205
175	HANGER; RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-145-0	02	1	1206-
186	BOLT; HANGER EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	1109-1205
186	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	1206-
245	SHAFT EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47623-027-1	04	1	1109-1205
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47623-027-1	04	1	1206-
245	SHAFT EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-121-0	04	1	1109-1205
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-121-0	04	1	1206-
246	BLEEDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1109-1205
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1206-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1206-
301	CLIP; ANTI LOTATION EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1109-1205
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1206-
309	SPRING; ADJUSTER SHAFT EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	1109-1205
309	SPRING; ADJUSTER SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	1206-
317	RING; RETAINER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-119-0	04	1	1109-1205
317	RING; RETAINER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-119-0	04	1	1206-
318	SPRING; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-542-0	04	1	1109-1205
318	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-542-0	04	1	1206-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1206-
319	RING; DRIVE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1109-1205
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1206-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1206-
327	SPRING; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1109-1205
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1206-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
