Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#7160) — 289 parça

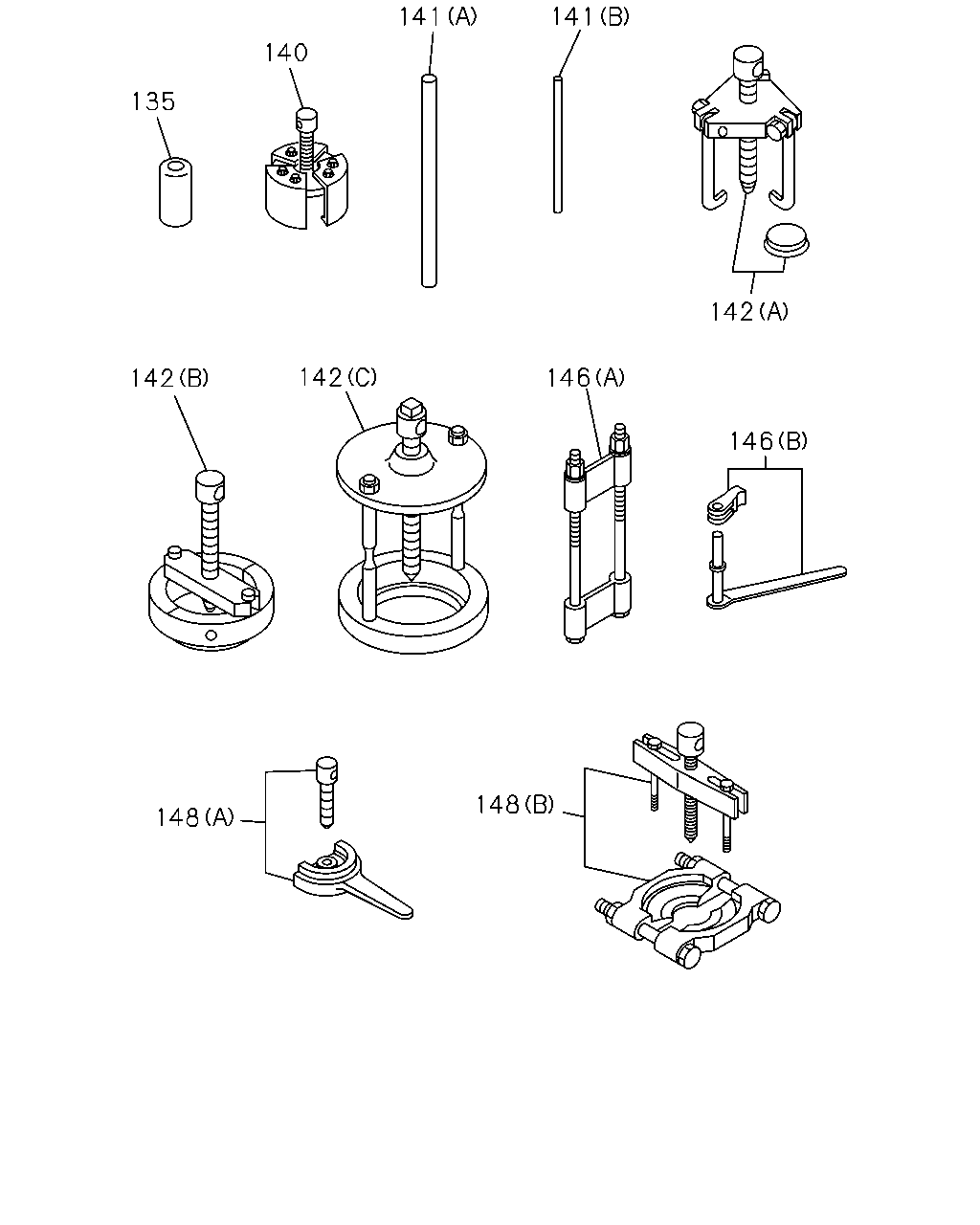

141 141 140 135 142 142 146 142 146 148 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0012-	●	●
140	REMOVER; WEAR RING 6SD1 TC(32L) EURO3 SPECIFICATION(NJX)	1-85210-053-0	01	1	0107-	●
140	REMOVER; WEAR RING 6SD1 TC-S(83L)	1-85210-053-0	01	1	0107-	●
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	0012-	●	●
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	0012-	●	●
141	HANDLE; WRENCH (B) OD=19 L=400	9-85114-306-0	01	1	0012-0106	●	●
141	HANDLE; WRENCH (B) OD=16 L=300	9-85114-307-0	01	1	0012-0106	●	●
142	PULLER ASM; TRANS BRG (A)	9-85210-148-0	01	1	0012-	●	●
142	PULLER ASM; TRANS BRG (B)	9-85210-186-0	01	1	0012-0106	●	●
142	PULLER ASM; TRANS BRG (C)	9-85210-192-0	01	1	0012-0106	●	●
146	REPLACER KIT; LEAF SPR (B)	1-85237-016-0	01	1	0012-	●	●
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	0012-	●	●
148	PULLER; COUNTER SHAFT BRG (A)	9-85210-129-1	01	1	0012-0106	●	●
148	PULLER; COUNTER SHAFT BRG (B)	9-85210-195-0	01	1	0012-	●	●

193 208 227 229 237 230 245 246 247 248 249 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
193	JACK ASM TOOL A KIT(SK9) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 15TON	1-85510-019-1	01	1	0012-0102	●	●
193	JACK ASM EXC. TOOL A KIT(SK9) 15TON	1-85510-019-1	01	1	0012-0102	●	●
193	JACK ASM INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 15TON	1-85510-019-1	01	1	0103-0106	●	●
193	JACK ASM EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,TOOL KIT DELETE(V68) 15TON	1-85510-019-1	01	1	0103-0106	●	●
193	JACK ASM INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) 15TON	1-85510-019-1	01	1	0107-0107	●	●
193	JACK ASM EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,EURO3 SPECIFICATION(NJX),TOOL KIT DELETE(V68) 15TON	1-85510-019-1	01	1	0107-0107	●	●
193	JACK ASM TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX) 15TON	1-85510-019-1	01	1	0107-0107	●
193	JACK ASM TOOL A KIT(SK9) EURO3 SPECIFICATION(NJX) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 15TON	1-85510-019-1	01	1	0107-0107	●
193	JACK ASM TOOL A KIT(SK9) 15TON	1-85510-019-1	01	1	0108-0111	●	●
193	JACK ASM EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) 15TON	1-85510-019-1	01	1	0108-0111	●	●
193	JACK ASM EURO3 SPECIFICATION(NJX) TOOL B KIT(SL1) 15TON	1-85510-019-1	01	1	0108-0111	●
193	JACK ASM TOOL A KIT(SK9),TOOL B KIT(SL1) 15TON	1-85510-019-2	01	1	0112-	●	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	0012-0102	●	●
208	HANDLE; JACK EXC. TOOL KIT DELETE(V68) L=600	1-85515-008-0	01	1	0103-0105	●	●
208	HANDLE; JACK EXC. TOOL KIT DELETE(V68) L=600	1-85515-009-0	01	1	0106-0106	●	●
208	HANDLE; JACK EXC. EURO3 SPECIFICATION(NJX),TOOL KIT DELETE(V68) L=600	1-85515-009-0	01	1	0107-0111	●	●
208	HANDLE; JACK EURO3 SPECIFICATION(NJX) L=600	1-85515-009-0	01	1	0107-0111	●
208	HANDLE; JACK TOOL A KIT(SK9),TOOL B KIT(SL1) EXC. EURO3 SPECIFICATION(NJX) L=600	1-85515-009-0	01	1	0112-	●	●
208	HANDLE; JACK EURO3 SPECIFICATION(NJX) L=600	1-85515-009-0	01	1	0112-	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0012-	●	●
229	FUNNEL; RAD EXC. TOOL A KIT(SK9)	9-85531-110-0	01	1	0012-0102	●	●
229	FUNNEL; RAD EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	9-85531-110-0	01	1	0103-0106	●	●
229	FUNNEL; RAD EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68)	9-85531-110-0	01	1	0107-0111	●	●
229	FUNNEL; RAD TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX)	9-85531-110-0	01	1	0107-0111	●
229	FUNNEL; RAD TOOL B KIT(SL1)	9-85531-110-0	01	1	0112-	●	●
230	PUMP; GREASE EXC. TOOL A KIT(SK9)	1-85556-007-2	01	1	0012-0102	●	●
230	PUMP; GREASE EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	1-85556-007-2	01	1	0103-0106	●	●
230	PUMP; GREASE EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68)	1-85556-007-2	01	1	0107-0111	●	●
230	PUMP; GREASE TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX)	1-85556-007-2	01	1	0107-0111	●
230	PUMP; GREASE TOOL B KIT(SL1)	1-85556-007-4	01	1	0112-	●	●
237	BAG; TOOL EXC. TOOL A KIT(SK9)	8-97130-902-0	01	1	0012-0102	●	●
237	BAG; TOOL EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	8-97130-902-0	01	1	0103-0106	●	●
237	BAG; TOOL EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68)	8-97130-902-0	01	1	0107-0111	●	●
237	BAG; TOOL TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX)	8-97130-902-0	01	1	0107-0111	●
237	BAG; TOOL TOOL B KIT(SL1)	8-97130-902-1	01	1	0112-	●	●
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	0012-	●	●
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0012-	●	●
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0012-	●	●
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	0012-	●	●
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	0012-	●	●
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	0012-	●	●
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	0012-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0012-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0012-	●	●

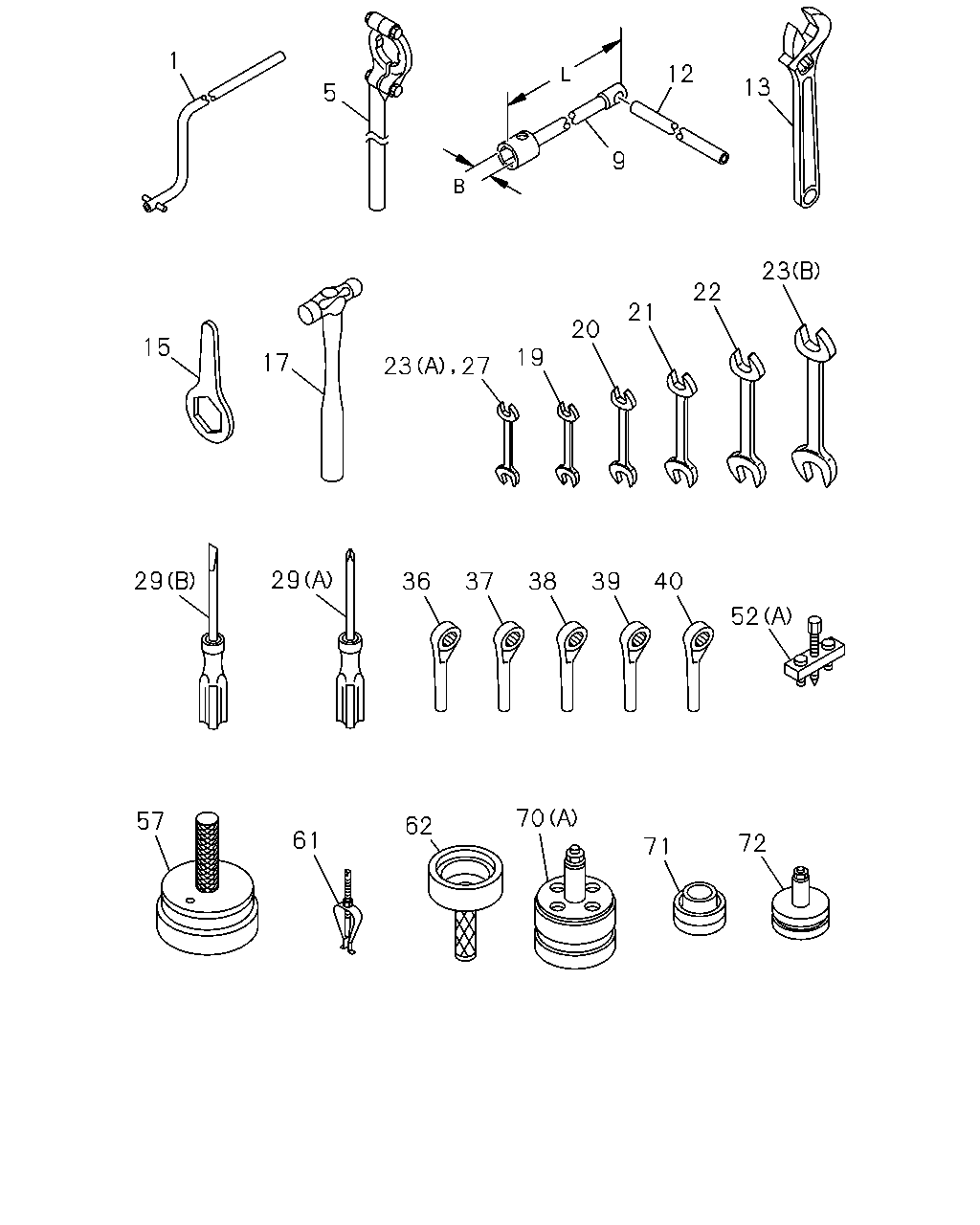

1 12 13 5 9 23 22 21 20 15 19 17 23 27 29 29 36 37 38 39 40 52 70 57 62 61 72 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER<SFB>	1-23111-004-0	01	1	0012-	●	●
5	WRENCH ASM; NUT,MAINSHAFT	1-85110-010-0	01	1	0012-	●	●
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. TOOL A KIT(SK9) B=33X30 L=450	1-85111-033-1	01	1	0012-0102	●	●
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) B=33X30 L=450	1-85111-033-1	01	1	0103-0106	●	●
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) B=33X30 L=450	1-85111-033-1	01	1	0107-0107	●	●
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> EURO3 SPECIFICATION(NJX) TOOL B KIT(SL1) B=33X30 L=450	1-85111-033-1	01	1	0107-0107	●
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL A KIT(SK9) B=33X30 L=450	1-85111-033-1	01	1	0108-0111	●	●
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) B=33X30 L=450	1-85111-033-1	01	1	0108-0111	●	●
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> EURO3 SPECIFICATION(NJX) TOOL B KIT(SL1) B=33X30 L=450	1-85111-033-1	01	1	0108-0111	●
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL A KIT(SK9),TOOL B KIT(SL1) B=33X30 L=450	1-85111-033-1	01	1	0112-	●	●
9	WRENCH; WHEEL PIN EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=440	1-85113-015-1	01	1	0012-0102	●	●
9	WRENCH; WHEEL PIN EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,TOOL KIT DELETE(V68) B=41X21 L=440	1-85113-015-1	01	1	0103-0106	●	●
9	WRENCH; WHEEL PIN TOOL A KIT(SK9) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=440	1-85113-015-1	01	1	0107-0111	●	●
9	WRENCH; WHEEL PIN EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9),TOOL KIT DELETE(V68) B=41X21 L=440	1-85113-015-1	01	1	0107-0111	●	●
9	WRENCH; WHEEL PIN EURO3 SPECIFICATION(NJX) TOOL B KIT(SL1) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=440	1-85113-015-1	01	1	0107-0111	●
9	WRENCH; WHEEL PIN TOOL A KIT(SK9),TOOL B KIT(SL1) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=440	1-85113-015-1	01	1	0112-	●	●
12	HANDLE; WRENCH,WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) OD=25 L=480	1-85116-011-0	01	1	0107-0107	●	●
12	HANDLE; WRENCH,WHEEL PIN EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,EURO3 SPECIFICATION(NJX),TOOL KIT DELETE(V68) OD=25 L=480	1-85116-011-0	01	1	0107-0107	●	●
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX) OD=25 L=480	1-85116-011-0	01	1	0107-0107	●
12	HANDLE; WRENCH,WHEEL PIN TOOL A KIT(SK9) EURO3 SPECIFICATION(NJX) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OD=25 L=480	1-85116-011-0	01	1	0107-0107	●
12	HANDLE; WRENCH,WHEEL PIN TOOL A KIT(SK9) OD=25 L=480	1-85116-011-0	01	1	0108-0111	●	●
12	HANDLE; WRENCH,WHEEL PIN EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) OD=25 L=480	1-85116-011-0	01	1	0108-0111	●	●
12	HANDLE; WRENCH,WHEEL PIN EURO3 SPECIFICATION(NJX) TOOL B KIT(SL1) OD=25 L=480	1-85116-011-0	01	1	0108-0111	●
12	HANDLE; WRENCH,WHEEL PIN TOOL A KIT(SK9),TOOL B KIT(SL1) OD=25 L=480	1-85116-011-0	01	1	0112-	●	●
12	HANDLE; WRENCH,WHEEL PIN TOOL A KIT(SK9) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OD=25 L=480	1-85116-011-0	01	1	0012-0102	●	●
12	HANDLE; WRENCH,WHEEL PIN EXC. TOOL A KIT(SK9) OD=25 L=480	1-85116-011-0	01	1	0012-0102	●	●
12	HANDLE; WRENCH,WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) OD=25 L=480	1-85116-011-0	01	1	0103-0106	●	●
12	HANDLE; WRENCH,WHEEL PIN EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,TOOL KIT DELETE(V68) OD=25 L=480	1-85116-011-0	01	1	0103-0106	●	●
13	WRENCH; MONKEY EXC. TOOL A KIT(SK9) L=255	1-85117-002-1	01	1	0012-0102	●	●
13	WRENCH; MONKEY EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) L=255	1-85117-002-1	01	1	0103-0106	●	●
13	WRENCH; MONKEY EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) L=255	1-85117-002-1	01	1	0107-0111	●	●
13	WRENCH; MONKEY TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX) L=255	1-85117-002-1	01	1	0107-0111	●
13	WRENCH; MONKEY TOOL B KIT(SL1) L=255	1-85117-002-1	01	1	0112-0907	●	●
13	WRENCH; MONKEY TOOL B KIT(SL1) L=247	1-85117-006-0	01	1	0908-	●	●
15	WRENCH; TOP GEAR NUT	9-85111-330-0	01	1	0012-	●	●
17	HAMMER EXC. TOOL A KIT(SK9)	9-85121-406-0	01	1	0012-0102	●	●
17	HAMMER EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	9-85121-406-0	01	1	0103-0106	●	●
17	HAMMER EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68)	9-85121-406-0	01	1	0107-0111	●	●
17	HAMMER TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX)	9-85121-406-0	01	1	0107-0111	●
17	HAMMER TOOL B KIT(SL1)	9-85121-406-0	01	1	0112-	●	●
19	WRENCH; 7X8 EXC. TOOL A KIT(SK9) 7X8	9-09592-107-0	01	1	0012-0102	●	●
19	WRENCH; 7X8 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 7X8	9-09592-107-0	01	1	0103-0106	●	●
19	WRENCH; 7X8 EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) 7X8	9-09592-107-0	01	1	0107-0111	●	●
19	WRENCH; 7X8 TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX) 7X8	9-09592-107-0	01	1	0107-0111	●
19	WRENCH; 7X8 TOOL B KIT(SL1) 7X8	9-09592-107-0	01	1	0112-	●	●
20	WRENCH; 10X12 EXC. TOOL A KIT(SK9) 10X12	9-09592-110-0	01	1	0012-0102	●	●
20	WRENCH; 10X12 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 10X12	9-09592-110-0	01	1	0103-0106	●	●
20	WRENCH; 10X12 EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) 10X12	9-09592-110-0	01	1	0107-0111	●	●
20	WRENCH; 10X12 TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX) 10X12	9-09592-110-0	01	1	0107-0111	●
20	WRENCH; 10X12 TOOL B KIT(SL1) 10X12	9-09592-110-0	01	1	0112-0607	●	●
20	WRENCH; 10X12 TOOL B KIT(SL1) 10X12	0-95902-510-0	01	1	0608-	●	●
21	WRENCH; 14X17 EXC. TOOL A KIT(SK9) 14X17	9-09592-114-0	01	1	0012-0102	●	●
21	WRENCH; 14X17 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 14X17	9-09592-114-0	01	1	0103-0106	●	●
21	WRENCH; 14X17 EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) 14X17	9-09592-114-0	01	1	0107-0111	●	●
21	WRENCH; 14X17 TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX) 14X17	9-09592-114-0	01	1	0107-0111	●
21	WRENCH; 14X17 TOOL B KIT(SL1) 14X17	9-09592-114-0	01	1	0112-0607	●	●
21	WRENCH; 14X17 TOOL B KIT(SL1) 14X17	0-95902-514-0	01	1	0608-	●	●
22	WRENCH; 19X22 EXC. TOOL A KIT(SK9) 19X22	9-99592-119-0	01	1	0012-0102	●	●
22	WRENCH; 19X22 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 19X22	9-99592-119-0	01	1	0103-0106	●	●
22	WRENCH; 19X22 EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) 19X22	9-99592-119-0	01	1	0107-0111	●	●
22	WRENCH; 19X22 TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX) 19X22	9-99592-119-0	01	1	0107-0111	●
22	WRENCH; 19X22 TOOL B KIT(SL1) 19X22	9-99592-119-0	01	1	0112-0607	●	●
22	WRENCH; 19X22 TOOL B KIT(SL1) 19X22	0-95902-519-0	01	1	0608-	●	●
23	WRENCH; 24X27 INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. TOOL A KIT(SK9) (A) 5.5X7	9-09592-105-0	01	1	0012-0102	●	●
23	WRENCH; 24X27 INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (A) 5.5X7	9-09592-105-0	01	1	0103-0106	●	●
23	WRENCH; 24X27 INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) (A) 5.5X7	9-09592-105-0	01	1	0107-0111	●	●
23	WRENCH; 24X27 INTERNATIONAL STANDARD ISO 10STUD<B3V> EURO3 SPECIFICATION(NJX) TOOL B KIT(SL1) (A) 5.5X7	9-09592-105-0	01	1	0107-0111	●
23	WRENCH; 24X27 INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT(SL1) (A) 5.5X7	9-09592-105-0	01	1	0112-	●	●
23	WRENCH; 24X27 EXC. TOOL A KIT(SK9) (B) 24X27	9-09592-124-0	01	1	0012-0102	●	●
23	WRENCH; 24X27 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (B) 24X27	9-09592-124-0	01	1	0103-0106	●	●
23	WRENCH; 24X27 EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) (B) 24X27	9-09592-124-0	01	1	0107-0111	●	●
23	WRENCH; 24X27 TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX) (B) 24X27	9-09592-124-0	01	1	0107-0111	●
23	WRENCH; 24X27 TOOL B KIT(SL1) (B) 24X27	9-09592-124-0	01	1	0112-0607	●	●
23	WRENCH; 24X27 TOOL B KIT(SL1) (B) 24X27	0-95902-524-0	01	1	0608-	●	●
27	WRENCH; OPEN END 5.5X7 EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,TOOL AKIT(SK9) 5.5X7	9-09592-105-0	01	1	0012-0102	●	●
27	WRENCH; OPEN END 5.5X7 EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,TOOL AKIT(SK9),TOOL KIT DELETE(V68) 5.5X7	9-09592-105-0	01	1	0103-0106	●	●
27	WRENCH; OPEN END 5.5X7 EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9),TOOL KIT DELETE(V68) 5.5X7	9-09592-105-0	01	1	0107-0111	●	●
27	WRENCH; OPEN END 5.5X7 TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 5.5X7	9-09592-105-0	01	1	0107-0111	●
27	WRENCH; OPEN END 5.5X7 TOOL B KIT(SL1) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 5.5X7	9-09592-105-0	01	1	0112-	●	●
29	DRIVER; SCREW EXC. TOOL A KIT(SK9) (A) <+> L=205	9-09595-022-0	01	1	0012-0102	●	●
29	DRIVER; SCREW EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (A) <+> L=205	9-09595-022-0	01	1	0103-0106	●	●
29	DRIVER; SCREW EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) (A) <+> L=205	9-09595-022-0	01	1	0107-0111	●	●
29	DRIVER; SCREW TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX) (A) <+> L=205	9-09595-022-0	01	1	0107-0111	●
29	DRIVER; SCREW TOOL B KIT(SL1) (A) <+> L=205	9-09595-022-0	01	1	0112-	●	●
29	DRIVER; SCREW EXC. TOOL A KIT(SK9) (A) <+> L=275	9-09595-023-0	01	1	0012-0102	●	●
29	DRIVER; SCREW EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (A) <+> L=275	9-09595-023-0	01	1	0103-0106	●	●
29	DRIVER; SCREW EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) (A) <+> L=275	9-09595-023-0	01	1	0107-0111	●	●
29	DRIVER; SCREW TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX) (A) <+> L=275	9-09595-023-0	01	1	0107-0111	●
29	DRIVER; SCREW TOOL B KIT(SL1) (A) <+> L=275	9-09595-023-0	01	1	0112-	●	●
29	DRIVER; SCREW EXC. TOOL A KIT(SK9) (B) <-> L=205	9-09595-126-0	01	1	0012-0102	●	●
29	DRIVER; SCREW EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (B) <-> L=205	9-09595-126-0	01	1	0103-0106	●	●
29	DRIVER; SCREW EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) (B) <-> L=205	9-09595-126-0	01	1	0107-0111	●	●
29	DRIVER; SCREW TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX) (B) <-> L=205	9-09595-126-0	01	1	0107-0111	●
29	DRIVER; SCREW TOOL B KIT(SL1) (B) <-> L=205	9-09595-126-0	01	1	0112-	●	●
29	DRIVER; SCREW EXC. TOOL A KIT(SK9) (B) <-> L=325	9-09595-129-0	01	1	0012-0102	●	●
29	DRIVER; SCREW EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (B) <-> L=325	9-09595-129-0	01	1	0103-0106	●	●
29	DRIVER; SCREW EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) (B) <-> L=325	9-09595-129-0	01	1	0107-0111	●	●
29	DRIVER; SCREW TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX) (B) <-> L=325	9-09595-129-0	01	1	0107-0111	●
29	DRIVER; SCREW TOOL B KIT(SL1) (B) <-> L=325	9-09595-129-0	01	1	0112-	●	●
36	WRENCH; 24	9-85111-377-0	01	1	0012-	●	●
37	WRENCH; 27	9-85111-375-0	01	1	0012-	●	●
38	WRENCH; 32	9-85111-358-0	01	1	0012-	●	●
39	WRENCH; 36	9-85111-374-0	01	1	0012-	●	●
40	WRENCH; 41	9-85111-356-0	01	1	0012-	●	●
52	REMOVER; WATER PUMP (A)	1-85210-047-0	01	1	0012-0203	●	●
52	REMOVER; WATER PUMP (A)	1-85210-047-0	01	1	0204-	●
52	REMOVER; WATER PUMP 6SD1 TC(32L) (A)	1-85210-047-0	01	1	0204-		●
52	REMOVER; WATER PUMP 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (B)	1-85210-062-0	AR	1	0204-		●
57	TOOL; SETTING CRANK GEAR 6SD1 TC(32L) EURO3 SPECIFICATION(NJX) ID=144.5	1-85221-072-0	02	1	0107-	●
57	TOOL; SETTING CRANK GEAR 6SD1 TC-S(83L) ID=144.5	1-85221-072-0	02	1	0107-	●
57	TOOL; SETTING CRANK GEAR 6SD1 TC(32L) EURO3 SPECIFICATION(NJX) ID=165.8	1-85221-075-0	01	1	0107-	●
57	TOOL; SETTING CRANK GEAR 6SD1 TC-S(83L) ID=165.8	1-85221-075-0	01	1	0107-	●
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	01	1	0012-0106	●	●
57	TOOL; SETTING CRANK GEAR EXC. EURO3 SPECIFICATION(NJX) ID=144.5	1-85221-072-0	01	1	0107-0203	●	●
57	TOOL; SETTING CRANK GEAR 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) ID=144.5	1-85221-072-0	01	1	0204-	●	●
57	TOOL; SETTING CRANK GEAR 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) OD=162	1-85220-045-0	AR	1	0204-		●
61	PULLER ASM; PILOT BRG 6SD1 TC(32L) EURO3 SPECIFICATION(NJX)	1-85220-028-0	01	1	0107-	●
61	PULLER ASM; PILOT BRG 6SD1 TC-S(83L)	1-85220-028-0	01	1	0107-	●
62	TOOL ASM; SETTING WEAR RING 6SD1 TC(32L) EURO3 SPECIFICATION(NJX)	1-85221-079-0	01	1	0107-	●
62	TOOL ASM; SETTING WEAR RING 6SD1 TC-S(83L)	1-85221-079-0	01	1	0107-	●
70	TOOL; SETTING,OIL SEAL (A)	1-85220-025-1	01	1	0012-0203	●	●
70	TOOL; SETTING,OIL SEAL (A)	1-85220-025-1	01	1	0204-	●
70	TOOL; SETTING,OIL SEAL 6SD1 TC(32L) (A)	1-85220-025-1	01	1	0204-		●
70	TOOL; SETTING,OIL SEAL 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (B)	1-85220-043-0	AR	1	0204-		●
71	TOOL; SETTING,OIL SEAL,FRT 6SD1 TC(32L) EURO3 SPECIFICATION(NJX)	1-85220-029-0	01	1	0107-	●
71	TOOL; SETTING,OIL SEAL,FRT 6SD1 TC-S(83L)	1-85220-029-0	01	1	0107-	●
72	TOOL; SETTING,OIL SEAL,RR 6SD1 TC(32L) EURO3 SPECIFICATION(NJX)	1-85220-030-0	01	1	0107-	●
72	TOOL; SETTING,OIL SEAL,RR 6SD1 TC-S(83L)	1-85220-030-0	01	1	0107-	●

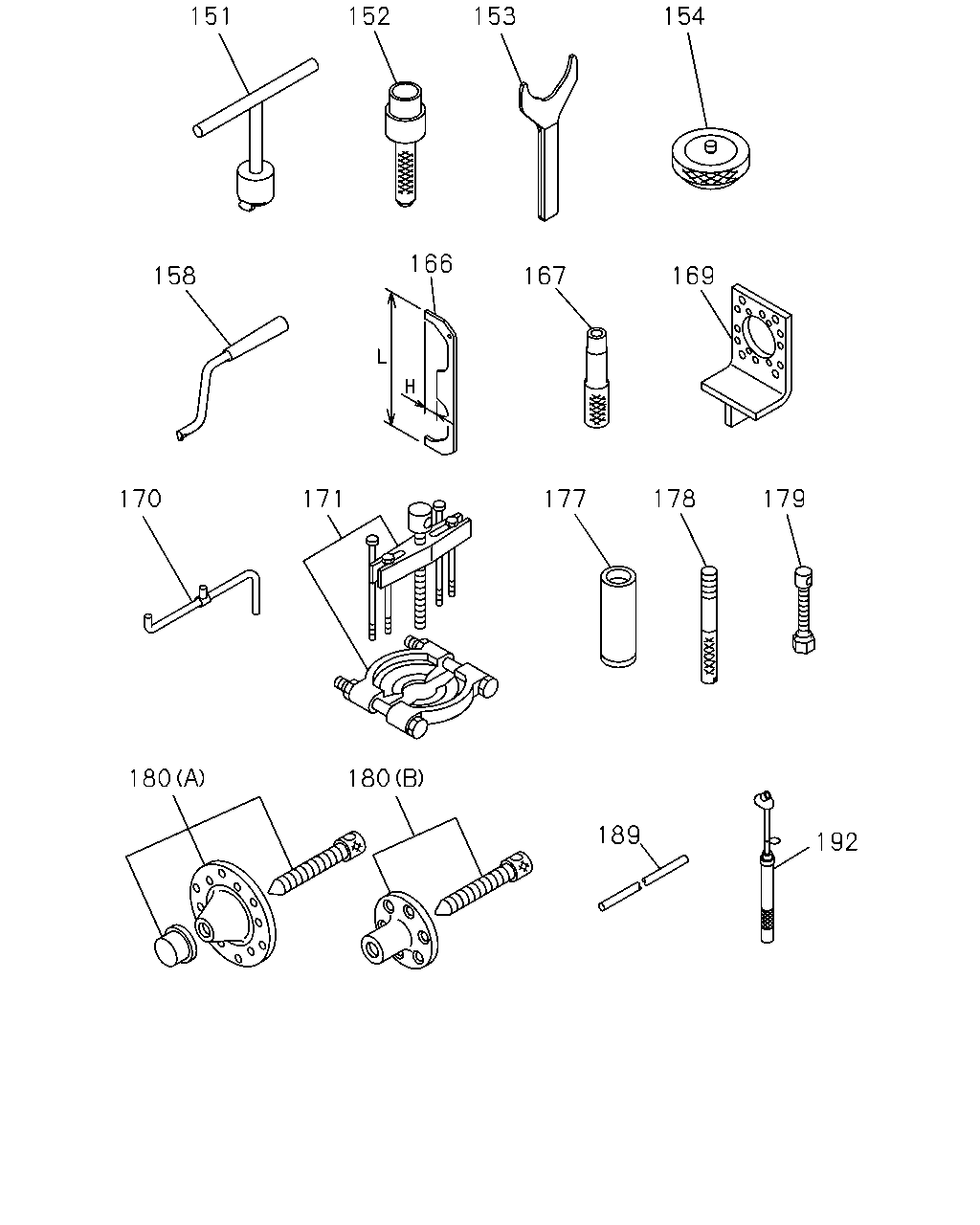

151 152 153 154 166 158 169 167 170 171 177 178 179 180 180 189 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0012-	●	●
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0012-	●	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0012-	●	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0012-	●	●
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0012-	●	●
166	ALIGNER; CLU RELEASE LEVER L=550 H=12.5	1-85253-001-0	01	1	0012-	●	●
167	ALIGNER; CLU PILOT	9-85241-409-0	01	1	0012-	●	●
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	0012-0106	●	●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	0012-0106	●	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0012-	●	●
177	SETTING TOOL KIT L=220	9-85221-323-0	01	1	0012-0106	●	●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	0012-	●	●
179	PULLER; SPD METER GEAR	9-85210-091-0	01	1	0012-	●	●
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	0012-	●	●
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	0012-0106	●	●
189	TUBE; AIR BREATHER EXC. TOOL A KIT(SK9) L=460	9-85291-414-0	01	1	0012-0102	●	●
189	TUBE; AIR BREATHER EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) L=460	9-85291-414-0	01	1	0103-0106	●	●
189	TUBE; AIR BREATHER EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68) L=460	9-85291-414-0	01	1	0107-0111	●	●
189	TUBE; AIR BREATHER TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX) L=460	9-85291-414-0	01	1	0107-0111	●
189	TUBE; AIR BREATHER TOOL B KIT(SL1) L=460	9-85291-414-0	01	1	0112-	●	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0012-	●	●

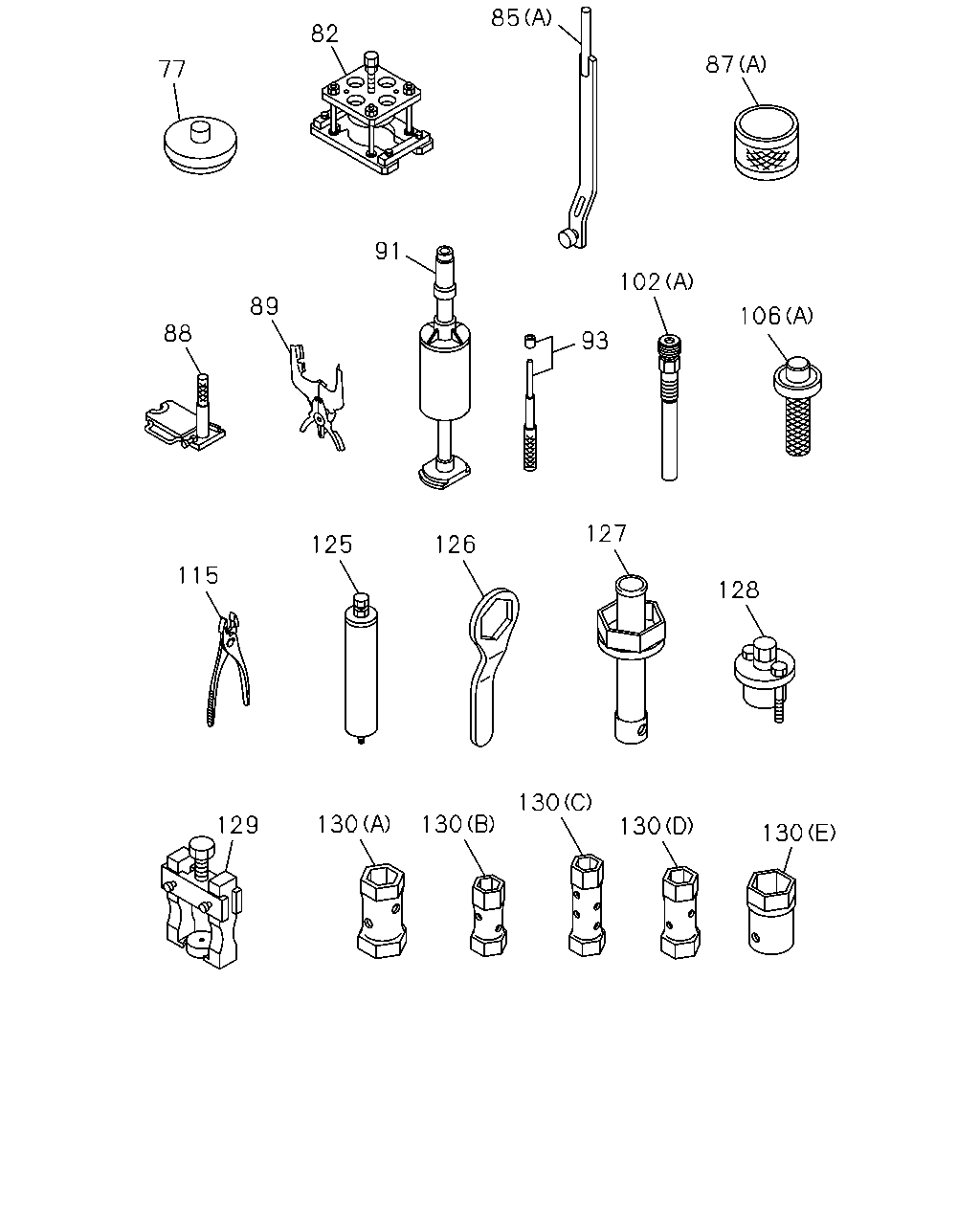

85 82 87 77 91 102 89 106 88 93 127 125 126 115 128 130 130 130 129 130 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
77	TOOL; SETTING,CYL LINER	1-85221-073-0	01	1	0012-0203	●	●
77	TOOL; SETTING,CYL LINER	1-85221-073-0	01	1	0204-	●
77	TOOL; SETTING,CYL LINER 6SD1 TC(32L)	1-85221-073-0	01	1	0204-		●
82	PULLER ASM; CR/SHF GEAR 6SD1 TC(32L) EURO3 SPECIFICATION(NJX)	1-85210-051-0	01	1	0107-	●
82	PULLER ASM; CR/SHF GEAR 6SD1 TC-S(83L)	1-85210-051-0	01	1	0107-	●
82	PULLER ASM; CR/SHF GEAR 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN)	1-85210-064-0	AR	1	0204-		●
85	REPLACER ASM; VALVE SPR (A)	1-85235-007-0	01	1	0012-0203	●	●
85	REPLACER ASM; VALVE SPR (A)	1-85235-007-0	01	1	0204-	●
85	REPLACER ASM; VALVE SPR 6SD1 TC(32L) (A)	1-85235-007-0	01	1	0204-		●
85	REPLACER ASM; VALVE SPR 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (B)	1-85235-013-0	AR	1	0204-		●
87	TOOL; PISTON (A)	1-85221-082-0	01	1	0012-0203	●	●
87	TOOL; PISTON (A)	1-85221-082-0	01	1	0204-	●
87	TOOL; PISTON 6SD1 TC(32L) (A)	1-85221-082-0	01	1	0204-		●
87	TOOL; PISTON 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (B)	1-85220-046-0	AR	1	0204-		●
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	0012-0203	●	●
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	0204-	●
88	TOOL; CONNROD BUSHING 6SD1 TC(32L)	1-85220-037-0	01	1	0204-		●
89	TOOL; PISTON RING	1-85221-029-0	01	1	0012-0106	●	●
91	REPLACER ASM; CYL LINER	1-85231-021-0	01	1	0012-0203	●	●
91	REPLACER ASM; CYL LINER	1-85231-021-0	01	1	0204-	●
91	REPLACER ASM; CYL LINER 6SD1 TC(32L)	1-85231-021-0	01	1	0204-		●
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	0012-0203	●	●
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	0204-	●
93	SETTING KIT; VALVE GUIDE 6SD1 TC(32L) L=260	9-85231-202-0	01	1	0204-		●
93	SETTING KIT; VALVE GUIDE 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) L=260	9-85231-202-0	AR	1	0204-		●
102	ADAPTER; COMP GAGE (A)	5-85317-001-0	01	1	0012-0203	●	●
102	ADAPTER; COMP GAGE (A)	5-85317-001-0	01	1	0204-	●
102	ADAPTER; COMP GAGE 6SD1 TC(32L) (A)	5-85317-001-0	01	1	0204-		●
102	ADAPTER; COMP GAGE 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (B)	1-85317-019-0	AR	1	0204-		●
106	TOOL; SETTING PILOT BRG 6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (A)	1-85221-080-0	01	1	0107-	●
106	TOOL; SETTING PILOT BRG 6SD1 TC-S(83L) (A)	1-85221-080-0	01	1	0107-	●
106	TOOL; SETTING PILOT BRG 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (B)	1-85221-057-0	AR	1	0204-		●
115	PLIER EXC. TOOL A KIT(SK9)	5-85171-001-0	01	1	0012-0102	●	●
115	PLIER EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	5-85171-001-0	01	1	0103-0106	●	●
115	PLIER EXC. EURO3 SPECIFICATION(NJX),TOOL A KIT(SK9), TOOLKIT DELETE(V68)	5-85171-001-0	01	1	0107-0111	●	●
115	PLIER TOOL B KIT(SL1) EURO3 SPECIFICATION(NJX)	5-85171-001-0	01	1	0107-0111	●
115	PLIER TOOL B KIT(SL1)	5-85171-001-0	01	1	0112-0212	●	●
115	PLIER TOOL B KIT(SL1)	5-85171-002-0	01	1	0301-	●	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0012-	●	●
126	WRENCH; FRT HUB BRG NUT L=257 B=63	9-85111-373-0	01	1	0012-0106	●	●
127	WRENCH ASM; HUB BRG NUT L=400 B=105	9-85113-509-0	01	1	0012-	●	●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	0012-	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0012-	●	●
130	WRENCH; BOX (E) B=63	9-85111-368-0	01	1	0012-	●	●
130	WRENCH; BOX (A) B=46 & 54 L=165	9-85112-320-0	01	1	0012-0106	●	●
130	WRENCH; BOX (B) B=32 & 41 L=150	9-85112-322-0	01	1	0012-0106	●	●
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	0012-0106	●	●
130	WRENCH; BOX (D) B=41 & 46 L=165	9-85113-401-0	01	1	0012-0106	●	●

53 50 52 51 54 84 70 73 59 75 102 85 87 95 296 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	REPLACER; NOZZLE HOLDER 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) L=300	1-85230-013-0	AR	1	0204-		●
51	PULLER ASM; WATER PUMP 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN)	1-85220-047-0	AR	1	0204-		●
52	REMOVER; WATER PUMP (A)	1-85210-047-0	01	1	0012-0203	●	●
52	REMOVER; WATER PUMP (A)	1-85210-047-0	01	1	0204-	●
52	REMOVER; WATER PUMP 6SD1 TC(32L) (A)	1-85210-047-0	01	1	0204-		●
52	REMOVER; WATER PUMP 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (B)	1-85210-062-0	AR	1	0204-		●
53	PULLER; TAPER BUSHING 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN)	1-85210-063-0	AR	1	0204-		●
54	PULLER; THERMOSTAT SEAL 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN)	1-85210-067-0	AR	1	0204-		●
59	PULLER ASM; TIMING GEAR 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN)	1-85210-065-0	AR	1	0204-		●
70	TOOL; SETTING,OIL SEAL (A)	1-85220-025-1	01	1	0012-0203	●	●
70	TOOL; SETTING,OIL SEAL (A)	1-85220-025-1	01	1	0204-	●
70	TOOL; SETTING,OIL SEAL 6SD1 TC(32L) (A)	1-85220-025-1	01	1	0204-		●
70	TOOL; SETTING,OIL SEAL 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (B)	1-85220-043-0	AR	1	0204-		●
73	TOOL; SETTING,THERMOSTAT SEAL 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN)	1-85221-034-0	AR	1	0204-		●
75	TOOL; SETTING,OIL SEAL 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN)	1-85220-049-0	AR	1	0204-		●
84	REPLACER; VALVE SEAL 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) EXHAUST	1-85221-184-0	AR	1	0204-		●
84	REPLACER; VALVE SEAL 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) INLET	1-85221-187-0	AR	1	0204-		●
85	REPLACER ASM; VALVE SPR (A)	1-85235-007-0	01	1	0012-0203	●	●
85	REPLACER ASM; VALVE SPR (A)	1-85235-007-0	01	1	0204-	●
85	REPLACER ASM; VALVE SPR 6SD1 TC(32L) (A)	1-85235-007-0	01	1	0204-		●
85	REPLACER ASM; VALVE SPR 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (B)	1-85235-013-0	AR	1	0204-		●
87	TOOL; PISTON (A)	1-85221-082-0	01	1	0012-0203	●	●
87	TOOL; PISTON (A)	1-85221-082-0	01	1	0204-	●
87	TOOL; PISTON 6SD1 TC(32L) (A)	1-85221-082-0	01	1	0204-		●
87	TOOL; PISTON 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (B)	1-85220-046-0	AR	1	0204-		●
95	SETTING TOOL; BRIDGE GUIDE 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN)	9-85221-324-0	AR	1	0204-		●
102	ADAPTER; COMP GAGE (A)	5-85317-001-0	01	1	0012-0203	●	●
102	ADAPTER; COMP GAGE (A)	5-85317-001-0	01	1	0204-	●
102	ADAPTER; COMP GAGE 6SD1 TC(32L) (A)	5-85317-001-0	01	1	0204-		●
102	ADAPTER; COMP GAGE 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (B)	1-85317-019-0	AR	1	0204-		●
106	TOOL; SETTING PILOT BRG 6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (A)	1-85221-080-0	01	1	0107-	●
106	TOOL; SETTING PILOT BRG 6SD1 TC-S(83L) (A)	1-85221-080-0	01	1	0107-	●
106	TOOL; SETTING PILOT BRG 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (B)	1-85221-057-0	AR	1	0204-		●
296	REPLACER; SLINGER 6WA1 TC-C(55L) EURO2 SPECIFICATION(THN)	1-85210-027-0	AR	1	0204-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
