◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#7159) — 56 parça
çizim 43569
24 127 26 25 30 36 36 36 39 36 40 36 39
BalonParca AdiParca NoAdetTipApplied Date A B
24 TANK ASM; WASHER
WIPER MOTOR KIT<ST7> 		1-83330-033-0 01 1 0012-0109 ● ●
24 TANK ASM; WASHER
WINDSHIELD WASHER<C11> 		1-83330-033-0 01 1 0110- ● ●
25 BRACKET; WASHER TANK
WIPER MOTOR KIT<ST7> 		9-83561-926-0 01 1 0012-0109 ● ●
25 BRACKET; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-926-0 01 1 0110- ● ●
26 HANGER; WASHER TANK
WIPER MOTOR KIT<ST7> 		9-83561-925-0 01 1 0012-0109 ● ●
26 HANGER; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-925-0 01 1 0110- ● ●
30 MOTOR ASM; FRT WASHER TANK
WIPER MOTOR KIT<ST7> 		9-83561-208-0 01 1 0012-0109 ● ●
30 MOTOR ASM; FRT WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-208-0 01 1 0110- ● ●
36 HOSE; WASHER
WIPER MOTOR KIT<ST7> SERVICED BY L=10000 		9-09914-906-0 01 1 0012-0109 ● ●
36 HOSE; WASHER
WINDSHIELD WASHER<C11> SERVICED BY L=10000 		9-09914-906-0 01 1 0110- ● ●
39 NOZZLE; WINDSHIELD WASHER
WIPER MOTOR KIT<ST7> 		1-83334-012-0 02 1 0012-0109 ● ●
39 NOZZLE; WINDSHIELD WASHER
WINDSHIELD WASHER<C11> 		1-83334-012-0 02 1 0110- ● ●
40 JOINT; WASHER HOSE
WIPER MOTOR KIT<ST7> 		9-83565-006-0 01 1 0012-0109 ● ●
40 JOINT; WASHER HOSE
WINDSHIELD WASHER<C11> 		9-83565-006-0 01 1 0110- ● ●
127 BAND; WASHER TANK
WIPER MOTOR KIT<ST7> 		9-83561-928-0 01 1 0012-0109 ● ●
127 BAND; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-928-0 01 1 0110- ● ●

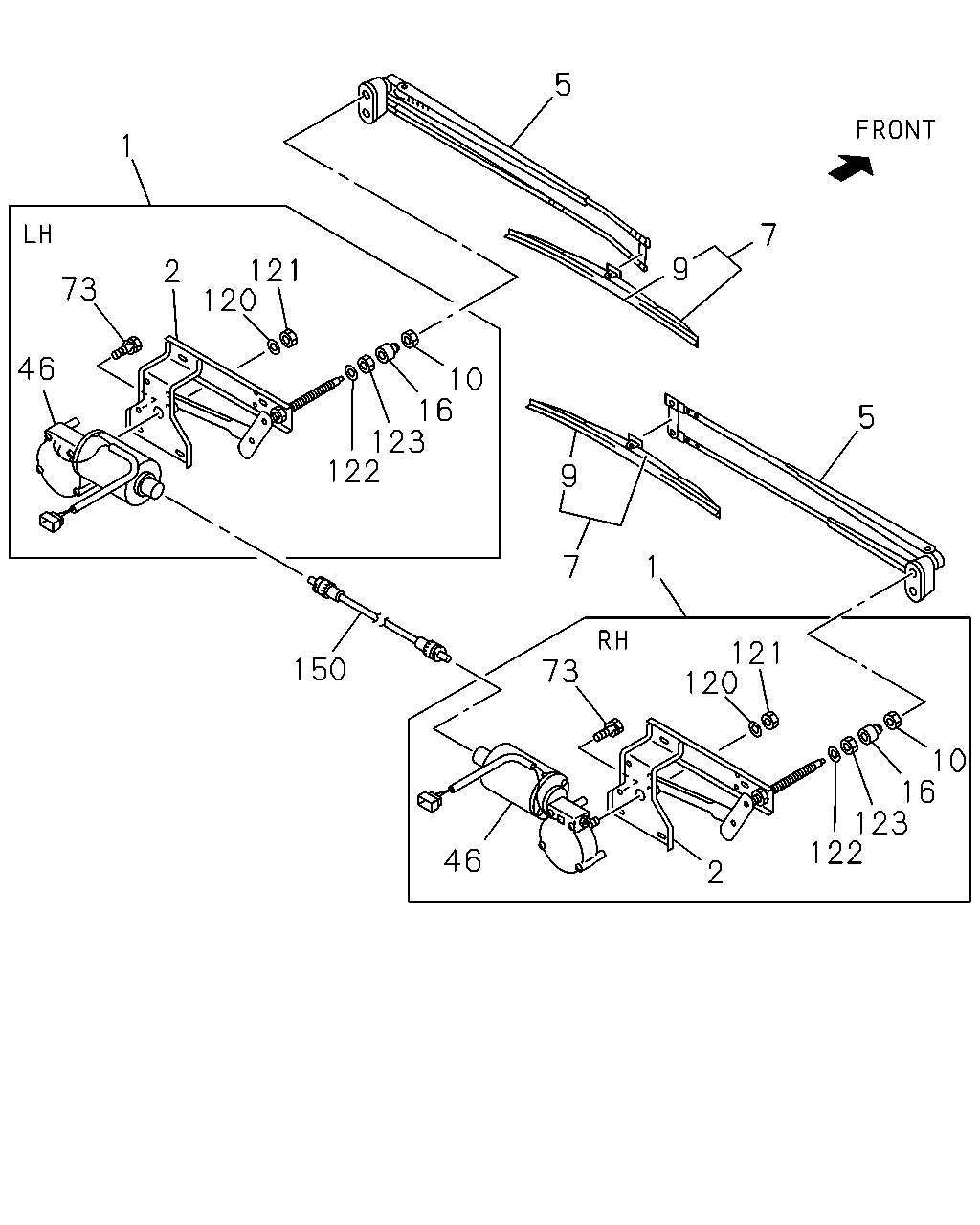

çizim 43630
5 1 7 9 121 120 2 73 46 10 16 123 122 5 9 1 7 121 120 150 73 10 16 123 122 46 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83310-071-0 01 1 0012-0111 ● ●
1 LINK ASM; FRT WIPER
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83310-071-0 01 1 0112- ● ●
1 LINK ASM; FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83310-114-0 01 1 0012-0111 ● ●
1 LINK ASM; FRT WIPER
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83310-114-0 01 1 0112- ● ●
2 LINK; FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83314-117-0 01 1 0012-0111 ● ●
2 LINK; FRT WIPER
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83314-117-0 01 1 0112- ● ●
2 LINK; FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83312-082-0 01 1 0012-0111 ● ●
2 LINK; FRT WIPER
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83312-082-0 01 1 0112- ● ●
5 ARM; WIPER
WIPER MOTOR KIT<ST7> 		1-83314-121-0 01 1 0012-0111 ● ●
5 ARM; WIPER
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83314-121-0 01 1 0112- ● ●
5 ARM; WIPER
WIPER MOTOR KIT<ST7> 		1-83314-120-0 01 1 0012-0111 ● ●
5 ARM; WIPER
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83314-120-0 01 1 0112- ● ●
7 BLADE; WIPER
WIPER MOTOR KIT<ST7> 		1-83315-039-0 02 1 0012-0111 ● ●
7 BLADE; WIPER
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83315-039-0 02 1 0112- ● ●
9 RUBBER; FRT WIPER BLADE
WIPER MOTOR KIT<ST7> 		1-83355-009-0 02 1 0012-0111 ● ●
9 RUBBER; FRT WIPER BLADE
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83355-009-0 02 1 0112- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
WIPER MOTOR KIT<ST7> 		1-83318-049-0 02 1 0012-0111 ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83318-049-0 02 1 0112- ● ●
16 SEAL; BALL JOINT
WIPER MOTOR KIT<ST7> 		1-83318-048-0 02 1 0012-0111 ● ●
16 SEAL; BALL JOINT
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83318-048-0 02 1 0112- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
WIPER MOTOR KIT<ST7> 		1-83311-059-0 01 1 0012-0111 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83311-059-0 01 1 0112- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
WIPER MOTOR KIT<ST7> 		1-83311-065-0 01 1 0012-0111 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83311-065-0 01 1 0112- ● ●
73 BOLT
WIPER MOTOR KIT<ST7> 		1-83318-079-0 06 1 0012-0111 ● ●
73 BOLT
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83318-079-0 06 1 0112- ● ●
120 WASHER; ARM TO BRKT
WIPER MOTOR KIT<ST7> 		1-83318-045-0 01 1 0012-0111 ● ●
120 WASHER; ARM TO BRKT
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83318-045-0 01 1 0112- ● ●
120 WASHER; ARM TO BRKT
WIPER MOTOR KIT<ST7> 		1-83318-077-0 01 1 0012-0111 ● ●
120 WASHER; ARM TO BRKT
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83318-077-0 01 1 0112- ● ●
121 NUT; ARM TO BRKT
WIPER MOTOR KIT<ST7> 		1-83318-044-0 01 1 0012-0111 ● ●
121 NUT; ARM TO BRKT
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83318-044-0 01 1 0112- ● ●
121 NUT; ARM TO BRKT
WIPER MOTOR KIT<ST7> 		1-83318-078-0 01 1 0012-0111 ● ●
121 NUT; ARM TO BRKT
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83318-078-0 01 1 0112- ● ●
122 WASHER; PIVOT FIX,FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83318-046-0 02 1 0012-0111 ● ●
122 WASHER; PIVOT FIX,FRT WIPER
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83318-046-0 02 1 0112- ● ●
123 NUT; PIVOT FIX,FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83318-050-0 02 1 0012-0111 ● ●
123 NUT; PIVOT FIX,FRT WIPER
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83318-050-0 02 1 0112- ● ●
150 SHAFT; FLEX,WIPER MOTOR TO WIPER
WIPER MOTOR KIT<ST7> 		1-83124-080-0 01 1 0012-0111 ● ●
150 SHAFT; FLEX,WIPER MOTOR TO WIPER
WIPER MOTOR KIT<ST7> EXC. HONG KONG EQUIPMENT(PQ1) 		1-83124-080-0 01 1 0112- ● ●
