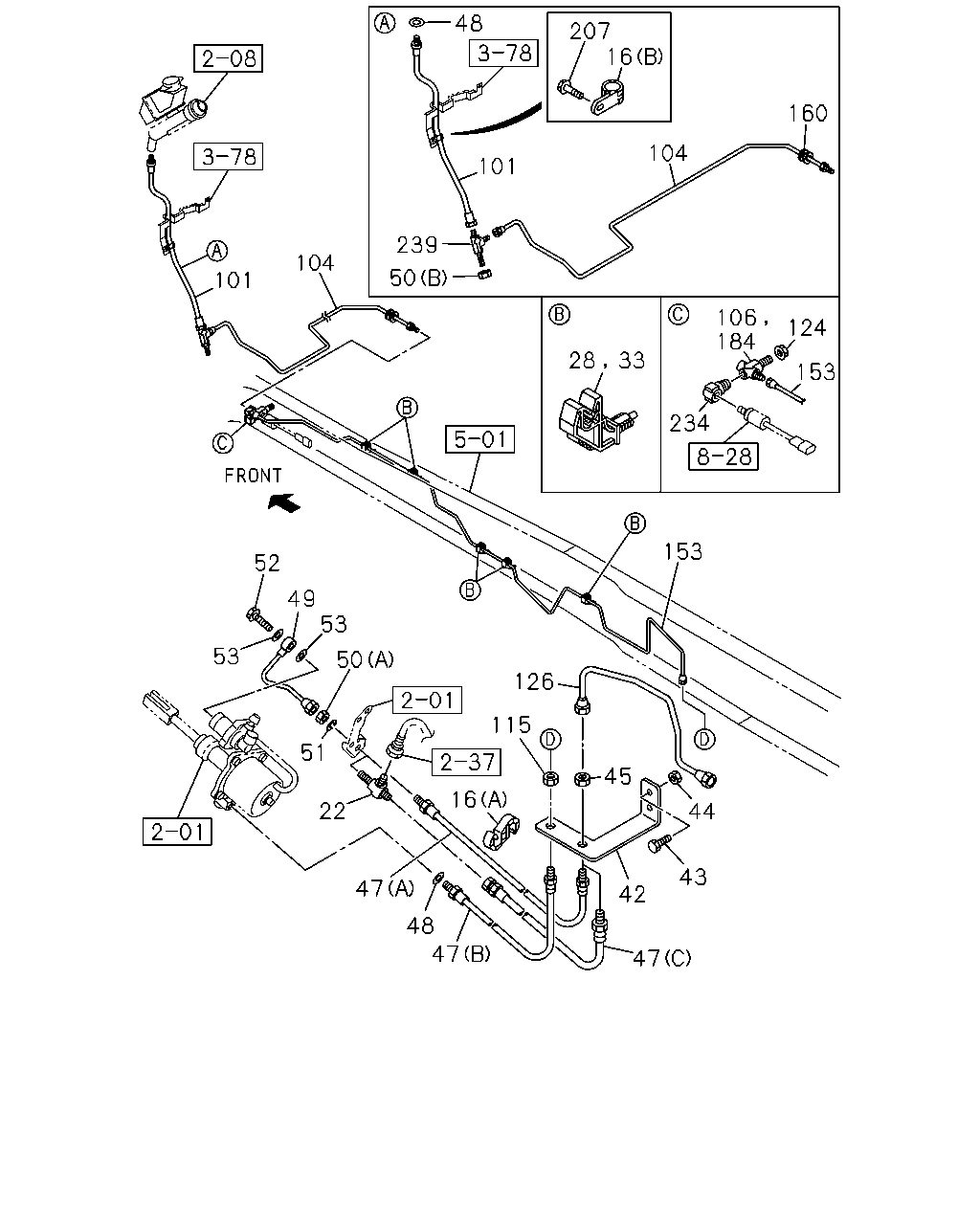

16 |
CLIP; FLEX HOSE
(B)
ID=18 L=28
|
1-09701-067-0 |
01 |
1 |
1109- |
| |
16 |
CLIP; FLEX HOSE
(A)
ID=10 & 12
|
1-09709-278-1 |
01 |
1 |
1109- |
| |
22 |
UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8>
M12 3WAY
|
0-92138-706-0 |
01 |
1 |
1206- |
| |
28 |
CLIP; OIL PIPE
ID=6.35
|
1-09701-247-1 |
01 |
1 |
1109- |
| |
33 |
CLIP; OIL PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=6.35
|
1-09701-247-1 |
05 |
1 |
1206- |
| |
33 |
CLIP; OIL PIPE
ID=6.35
|
1-09701-247-1 |
03 |
1 |
1109-1205 |
| |
33 |
CLIP; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=6.35
|
1-09701-247-1 |
03 |
1 |
1206- |
| |
42 |
BRACKET; FLEX HOSE,CLU CONT
|
8-98105-654-0 |
01 |
1 |
1109- |
| |
43 |
BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
1109- |
| |
44 |
NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1109- |
| |
45 |
NUT; FLEX HOSE,CLU CONT
M12
|
9-09840-280-0 |
01 |
1 |
1109- |
| |
47 |
HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8>
(C)
L=380
|
1-09363-884-0 |
01 |
1 |
1206- |
| |
47 |
HOSE; FLEX,CLU CONT
(A)
L=470
|
1-09363-716-0 |
01 |
1 |
1109-1205 |
| |
47 |
HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>
(A)
L=470
|
1-09363-716-0 |
01 |
1 |
1206- |
| |
47 |
HOSE; FLEX,CLU CONT
(B)
L=375
|
1-09364-407-0 |
01 |
1 |
1109- |
| |
48 |
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
|
9-09571-410-0 |
02 |
1 |
1109- |
| |
49 |
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239
|
1-49117-401-0 |
01 |
1 |
1109- |
| |
50 |
NUT; UNION
(B)
M12
|
0-91111-512-0 |
01 |
1 |
1109- |
| |
50 |
NUT; UNION
(A)
M12
|
9-09840-280-0 |
01 |
1 |
1109- |
| |
51 |
WASHER; LK
ASSISTOR SHIFT CONTROL<WX8>
ID=12.2
|
0-91510-512-0 |
01 |
1 |
1206- |
| |
51 |
WASHER; LK
ID=12.2
|
0-91510-812-0 |
01 |
1 |
1109-1205 |
| |
51 |
WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8>
ID=12.2
|
0-91510-812-0 |
01 |
1 |
1206- |
| |
52 |
BOLT; EYE,AIR PIPE
M14X27 FLANGE
|
1-09675-086-0 |
01 |
1 |
1109- |
| |
53 |
GASKET; JOINT BOLT
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
1109-1312 |
| |
53 |
GASKET; JOINT BOLT
ID=14.2 OD=19.2
|
8-98251-345-0 |
02 |
1 |
1401- |
| |
101 |
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=480
|
8-98072-349-0 |
01 |
1 |
1109- |
| |
104 |
PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1270
SERVICED BY L=1370
|
1-47428-734-0 |
01 |
1 |
1109- |
| |
106 |
UNION; OIL PIPE
H.S.A SYSTEM<6EP>
M12 3WAY
|
8-98051-113-0 |
01 |
1 |
1206- |
| |
106 |
UNION; OIL PIPE
H.S.A SYSTEM<6EP>
M12 3WAY
|
8-98051-113-0 |
01 |
1 |
1109- |
| |
115 |
NUT; FLEX HOSE,CLU CONT
M12
|
9-09840-280-0 |
01 |
1 |
1109- |
| |
124 |
NUT; PIPE UNION
M12
|
0-91111-512-0 |
01 |
1 |
1109- |
| |
126 |
PIPE; AIR,UNION TO UNION
L=350
|
8-98110-637-0 |
01 |
1 |
1109-1205 |
| |
126 |
PIPE; AIR,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=350
|
8-98110-637-0 |
01 |
1 |
1206- |
| |
153 |
PIPE ASM; CLU,UNION TO FLEX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=2738
|
8-98152-246-0 |
01 |
1 |
1206- |
| |
153 |
PIPE ASM; CLU,UNION TO FLEX
L=2686
|
8-98185-616-0 |
01 |
1 |
1109-1205 |
| |
153 |
PIPE ASM; CLU,UNION TO FLEX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=2686
|
8-98185-616-0 |
01 |
1 |
1206- |
| |
160 |
GROMMET; OIL PIPE
ID=28 OD=35 T=17
|
9-09956-256-2 |
01 |
1 |
1109- |
| |
184 |
UNION; FLEX HOSE
|
8-98150-865-0 |
01 |
1 |
1109-1205 |
| |
184 |
UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>
|
8-98150-865-0 |
01 |
1 |
1206- |
| |
207 |
BOLT; CLIP
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
1109- |
| |
234 |
CONNECTOR; ELBOW
H.S.A SYSTEM<6EP>
PT1/8 ELBOW
|
8-94338-418-1 |
01 |
1 |
1206- |
| |
239 |
UNION; CLU HOSE
M12 2WAY
|
1-09654-059-2 |
01 |
1 |
1109- |
