Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#71584) — 431 parça

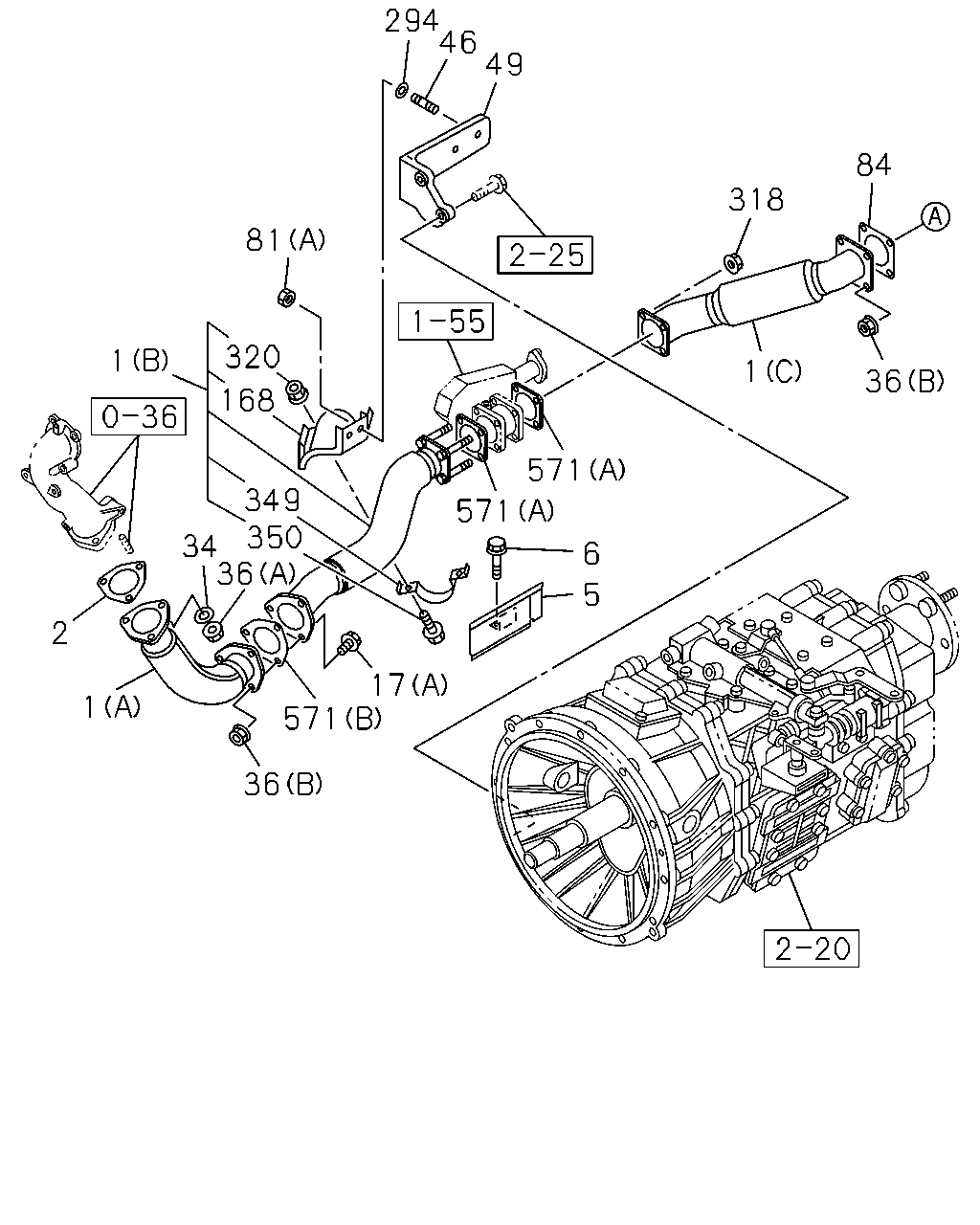

294 46 49 84 318 81 320 168 1 1 36 571 349 350 34 36 571 6 5 2 17 571 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (C)	8-98096-668-2	01	1	1109-
1	PIPE; EXH (B)	8-98119-515-0	01	1	1109-1209
1	PIPE; EXH (B)	8-98230-001-0	01	1	1210-1301
1	PIPE; EXH (B)	8-98234-516-1	01	1	1302-
1	PIPE; EXH (A)	8-98182-389-0	01	1	1109-1301
1	PIPE; EXH (A)	8-98234-511-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	1109-
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5>	8-98073-436-0	01	1	1206-1406
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5>	8-98255-001-0	01	1	1407-
6	BOLT; HEAT PROTECTOR ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28650-825-0	02	1	1206-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-1205
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE	0-28051-235-0	04	1	1206-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1109-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1109-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	1109-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1109-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1109-
46	BOLT; BRKT,EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1109-
49	BRACKET; EXH PIPE TO TRANS	8-98120-493-0	01	1	1109-
81	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) (B) M8 FLANGE	0-91180-108-0	02	1	1206-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	03	1	1206-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	01	1	1302-
84	GASKET; EXH PIPE	8-98096-305-0	01	1	1109-
168	BRACKET; EXH PIPE,FRT	8-98071-144-0	01	1	1109-1209
168	BRACKET; EXH PIPE,FRT	8-98221-369-1	01	1	1210-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	1109-
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	1109-
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	1109-
349	CLAMP; EXH PIPE	8-98115-162-0	01	1	1109-
350	BOLT; CLAMP,EXH PIPE M10X30 FLANGE	0-28651-030-0	02	1	1109-
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1109-
571	GASKET (B) ID=81	8-98043-481-0	01	1	1109-

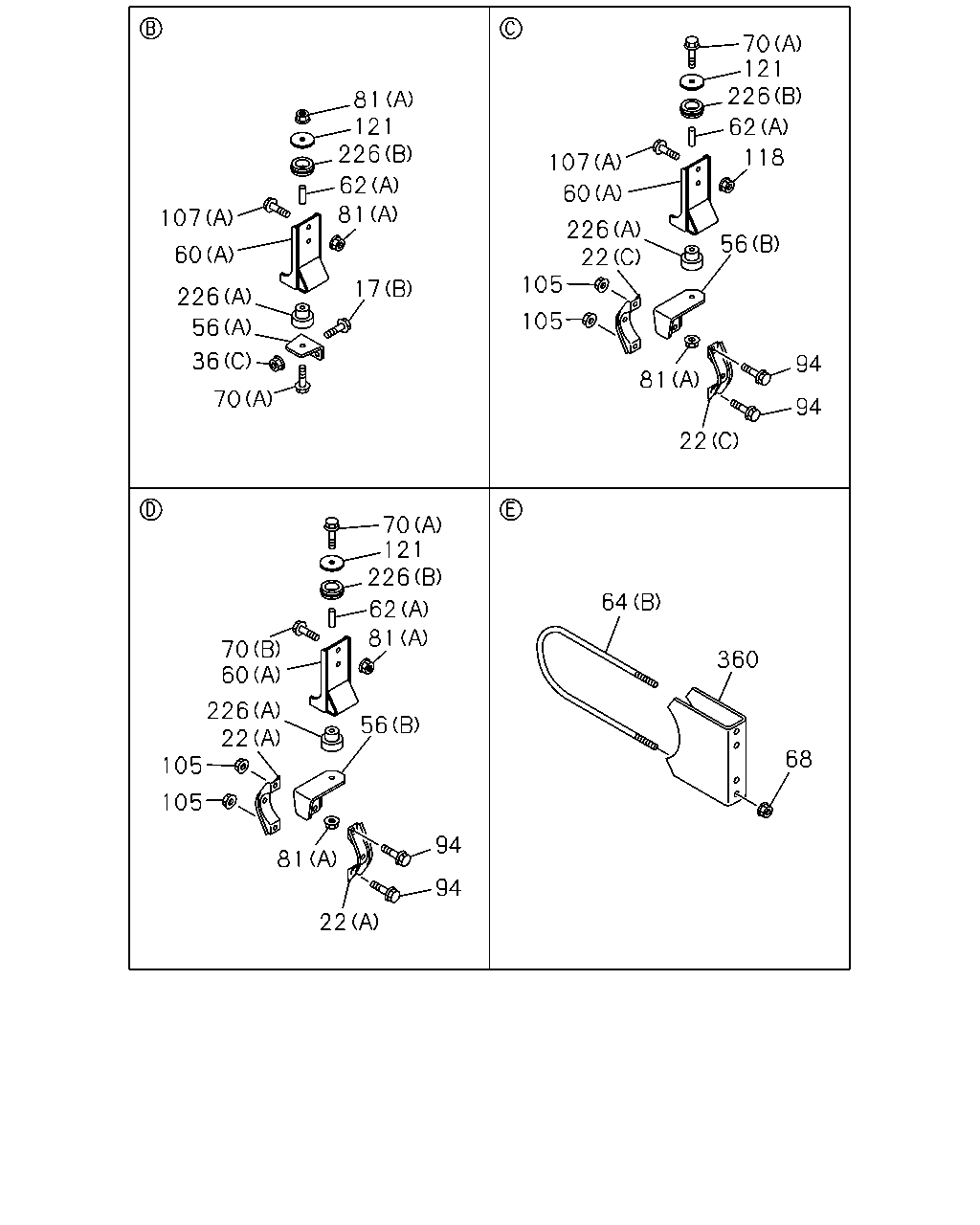

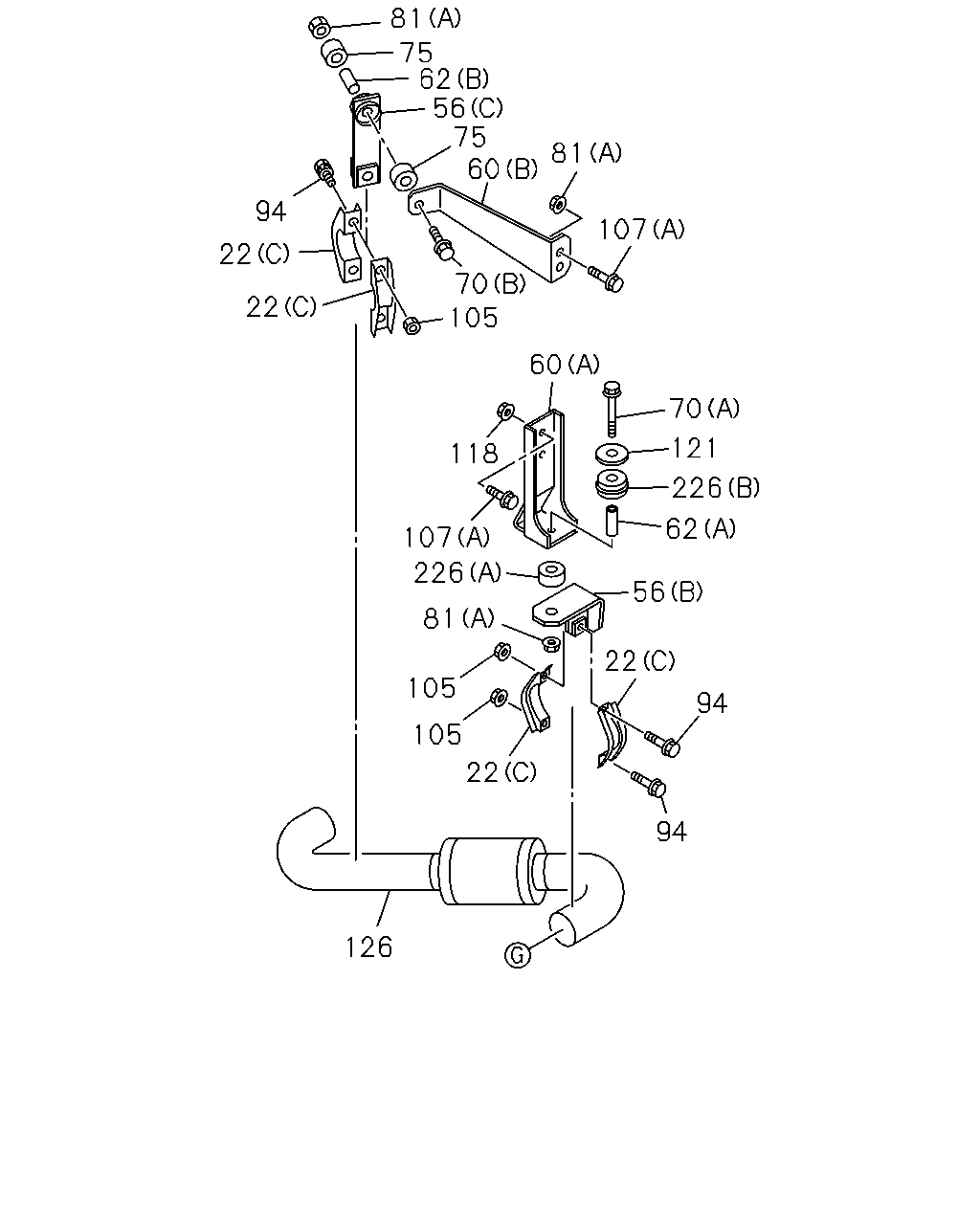

81 75 62 56 75 60 81 94 107 22 70 105 22 60 70 121 118 226 62 107 226 56 81 22 105 94 105 22 94 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE (B) ID=97	1-22133-043-1	01	1	1109-1205
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) (B) ID=97	1-22133-043-1	01	1	1206-
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	02	1	1109-1205
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	02	1	1206-
22	CLAMP; EXH PIPE EXC. CHILE EQUIPMENT(KE1) (C) ID=80-84	1-22133-233-0	02	1	1206-
22	CLAMP; EXH PIPE (A) ID=94-98	1-22133-237-0	02	1	1109-1205
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) (A) ID=94-98	1-22133-237-0	02	1	1206-
56	BRACKET; CLAMP,EXH PIPE EXC. CHILE EQUIPMENT(KE1) (C)	1-22131-528-1	01	1	1206-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	1109-
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1109-1205
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1109-1205
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) (B)	8-98070-639-0	01	1	1206-1309
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1206-1309
56	BRACKET; CLAMP,EXH PIPE (B)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) (B)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT EXC. CHILE EQUIPMENT(KE1) (B)	8-98108-507-0	01	1	1206-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98070-628-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98245-532-0	01	1	1310-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT EXC. CHILE EQUIPMENT(KE1) (B) L=22	9-22159-024-0	01	1	1206-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT CHILE EQUIPMENT(KE1) (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT CHILE EQUIPMENT(KE1) (A) L=39	8-98060-852-0	01	1	1302-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT EXC. CHILE EQUIPMENT(KE1) (B) M10X50 FLANGE	0-28051-050-0	01	1	1206-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-1205
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (B) M10X35 FLANGE	0-28651-035-0	02	1	1206-
75	RUBBER; SUPPORT,BRKT EXC. CHILE EQUIPMENT(KE1) OD=40	1-22159-193-0	02	1	1206-
81	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) (B) M8 FLANGE	0-91180-108-0	02	1	1206-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	03	1	1206-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	01	1	1302-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1109-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1109-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1109-1205
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1206-
105	NUT; CLAMP EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1206-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	03	1	1109-1205
105	NUT; CLAMP CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	03	1	1206-
107	BOLT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10X35 FLANGE	0-28651-035-0	02	1	1206-
107	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1109-1205
107	BOLT; BRKT CHILE EQUIPMENT(KE1) (B) M8X35 FLANGE	0-28650-835-0	02	1	1206-
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1109-1203
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1109-1203
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	04	1	1204-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1109-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1302-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1109-1205
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1109-1205
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1109-1205
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1206-1301
121	WASHER; PL,BRKT CHILE EQUIPMENT(KE1) ID=11 OD=54	1-09503-154-2	01	1	1206-1301
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1206-1301
121	WASHER; PL,BRKT CHILE EQUIPMENT(KE1) ID=11 OD=54	1-09503-154-2	01	1	1302-
126	PIPE; EXH,RR EXC. CHILE EQUIPMENT(KE1)	8-98069-920-0	01	1	1206-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1302-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1302-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1109-1205
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1109-1205
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1109-1205
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (A)	8-94457-277-1	01	1	1206-1301
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1109-1205
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1109-1205
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1109-1205
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (B)	8-94457-278-1	01	1	1206-1301
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (B)	8-94457-278-1	01	1	1302-

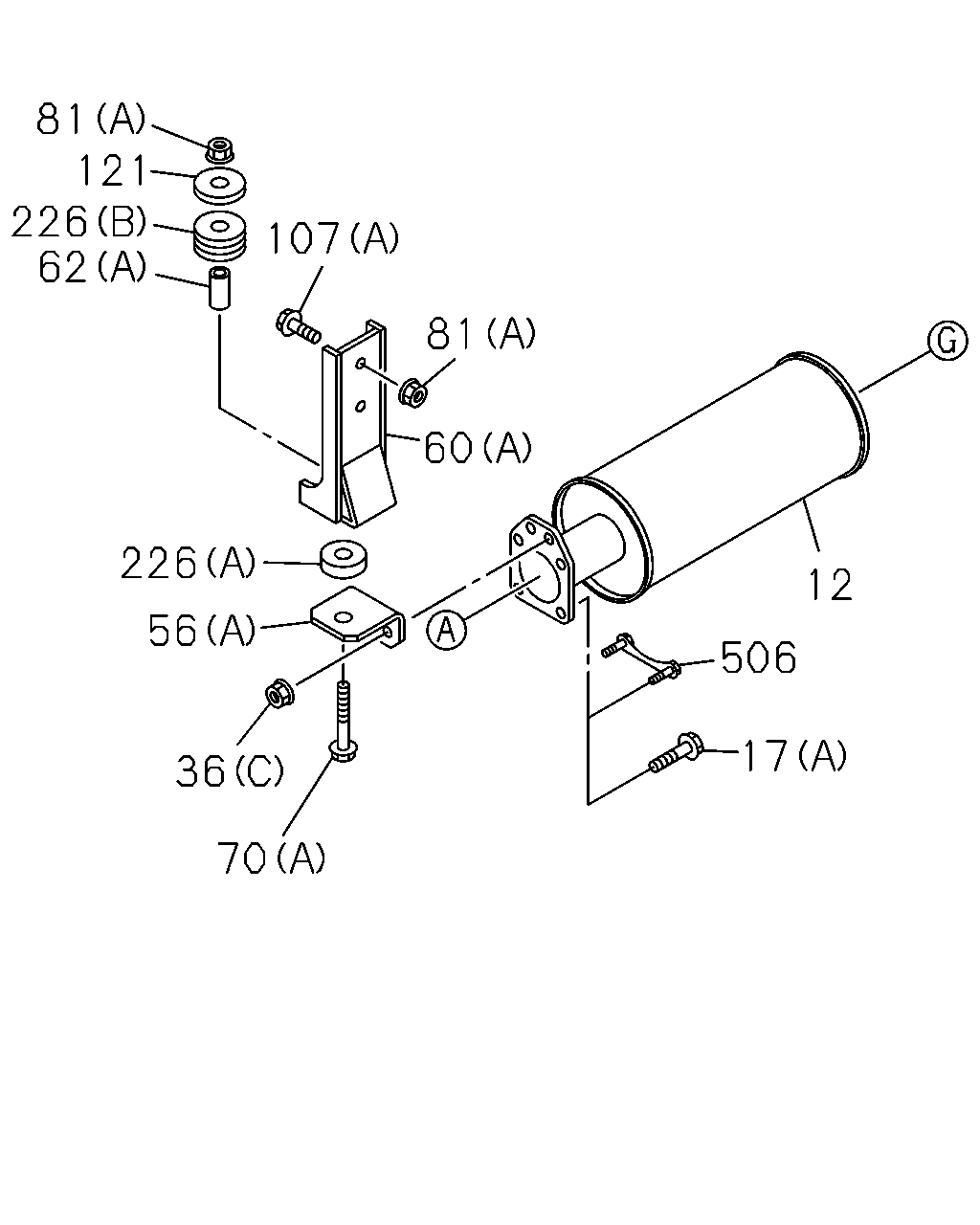

17 506 12 60 81 107 226 81 62 226 36 70 121 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH	8-98165-988-0	01	1	1109-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-1205
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE	0-28051-235-0	04	1	1206-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1109-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	1109-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1109-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1109-
56	BRACKET; CLAMP,EXH PIPE EXC. CHILE EQUIPMENT(KE1) (C)	1-22131-528-1	01	1	1206-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	1109-
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1109-1205
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1109-1205
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) (B)	8-98070-639-0	01	1	1206-1309
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1206-1309
56	BRACKET; CLAMP,EXH PIPE (B)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) (B)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT EXC. CHILE EQUIPMENT(KE1) (B)	8-98108-507-0	01	1	1206-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98070-628-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98245-532-0	01	1	1310-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT EXC. CHILE EQUIPMENT(KE1) (B) L=22	9-22159-024-0	01	1	1206-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT CHILE EQUIPMENT(KE1) (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT CHILE EQUIPMENT(KE1) (A) L=39	8-98060-852-0	01	1	1302-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT EXC. CHILE EQUIPMENT(KE1) (B) M10X50 FLANGE	0-28051-050-0	01	1	1206-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-1205
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (B) M10X35 FLANGE	0-28651-035-0	02	1	1206-
81	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) (B) M8 FLANGE	0-91180-108-0	02	1	1206-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	03	1	1206-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	01	1	1302-
107	BOLT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10X35 FLANGE	0-28651-035-0	02	1	1206-
107	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1109-1205
107	BOLT; BRKT CHILE EQUIPMENT(KE1) (B) M8X35 FLANGE	0-28650-835-0	02	1	1206-
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1109-1203
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1109-1203
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	04	1	1204-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1302-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1109-1205
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1109-1205
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1109-1205
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1206-1301
121	WASHER; PL,BRKT CHILE EQUIPMENT(KE1) ID=11 OD=54	1-09503-154-2	01	1	1206-1301
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1206-1301
121	WASHER; PL,BRKT CHILE EQUIPMENT(KE1) ID=11 OD=54	1-09503-154-2	01	1	1302-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1302-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1302-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1109-1205
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1109-1205
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1109-1205
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (A)	8-94457-277-1	01	1	1206-1301
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1109-1205
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1109-1205
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1109-1205
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (B)	8-94457-278-1	01	1	1206-1301
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (B)	8-94457-278-1	01	1	1302-
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> M12X35	1-22131-963-0	02	1	1206-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1109-1203

107 81 58 68 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	BRACKET; EXH PIPE,RR	8-98056-460-0	01	1	1109-1205
58	BRACKET; EXH PIPE,RR CHILE EQUIPMENT(KE1)	8-98056-460-0	01	1	1206-
64	U-BOLT; EXH PIPE,RR (B)	1-22113-063-1	01	1	1109-1205
64	U-BOLT; EXH PIPE,RR CHILE EQUIPMENT(KE1) (B)	1-22113-063-1	01	1	1206-
64	U-BOLT; EXH PIPE,RR (A)	1-22113-100-0	01	1	1109-1205
64	U-BOLT; EXH PIPE,RR CHILE EQUIPMENT(KE1) (A)	1-22113-100-0	01	1	1206-
68	NUT; U BOLT M8 FLANGE	0-91180-108-0	04	1	1109-1205
68	NUT; U BOLT CHILE EQUIPMENT(KE1) M8 FLANGE	0-91180-108-0	04	1	1206-
81	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) (B) M8 FLANGE	0-91180-108-0	02	1	1206-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	03	1	1206-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	01	1	1302-
107	BOLT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10X35 FLANGE	0-28651-035-0	02	1	1206-
107	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1109-1205
107	BOLT; BRKT CHILE EQUIPMENT(KE1) (B) M8X35 FLANGE	0-28650-835-0	02	1	1206-
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1109-1203
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1109-1203
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	04	1	1204-

70 121 226 81 121 226 62 118 107 62 81 60 107 22 2 56 60 105 17 226 105 56 36 94 81 70 94 22 70 121 226 64 62 81 70 60 360 226 22 56 68 105 105 94 81 94 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	1109-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-1205
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE	0-28051-235-0	04	1	1206-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1109-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-
22	CLAMP; EXH PIPE (B) ID=97	1-22133-043-1	01	1	1109-1205
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) (B) ID=97	1-22133-043-1	01	1	1206-
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	02	1	1109-1205
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	02	1	1206-
22	CLAMP; EXH PIPE EXC. CHILE EQUIPMENT(KE1) (C) ID=80-84	1-22133-233-0	02	1	1206-
22	CLAMP; EXH PIPE (A) ID=94-98	1-22133-237-0	02	1	1109-1205
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) (A) ID=94-98	1-22133-237-0	02	1	1206-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	1109-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1109-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1109-
56	BRACKET; CLAMP,EXH PIPE EXC. CHILE EQUIPMENT(KE1) (C)	1-22131-528-1	01	1	1206-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	1109-
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1109-1205
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1109-1205
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) (B)	8-98070-639-0	01	1	1206-1309
56	BRACKET; CLAMP,EXH PIPE (B)	8-98070-639-0	01	1	1206-1309
56	BRACKET; CLAMP,EXH PIPE (B)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) (B)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT EXC. CHILE EQUIPMENT(KE1) (B)	8-98108-507-0	01	1	1206-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1109-1205
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1206-1301
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98070-628-0	01	1	1302-1309
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) (A)	8-98245-532-0	01	1	1310-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT EXC. CHILE EQUIPMENT(KE1) (B) L=22	9-22159-024-0	01	1	1206-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1109-1205
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT CHILE EQUIPMENT(KE1) (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1206-1301
62	TUBE; DIST,BRKT CHILE EQUIPMENT(KE1) (A) L=39	8-98060-852-0	01	1	1302-
64	U-BOLT; EXH PIPE,RR (B)	1-22113-063-1	01	1	1109-1205
64	U-BOLT; EXH PIPE,RR CHILE EQUIPMENT(KE1) (B)	1-22113-063-1	01	1	1206-
64	U-BOLT; EXH PIPE,RR (A)	1-22113-100-0	01	1	1109-1205
64	U-BOLT; EXH PIPE,RR CHILE EQUIPMENT(KE1) (A)	1-22113-100-0	01	1	1206-
68	NUT; U BOLT M8 FLANGE	0-91180-108-0	04	1	1109-1205
68	NUT; U BOLT CHILE EQUIPMENT(KE1) M8 FLANGE	0-91180-108-0	04	1	1206-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT EXC. CHILE EQUIPMENT(KE1) (B) M10X50 FLANGE	0-28051-050-0	01	1	1206-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1109-1205
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1206-1301
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (A) M10X70 FLANGE	0-28051-070-0	01	1	1302-
70	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-1205
70	BOLT; BRKT CHILE EQUIPMENT(KE1) (B) M10X35 FLANGE	0-28651-035-0	02	1	1206-
81	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) (B) M8 FLANGE	0-91180-108-0	02	1	1206-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	03	1	1109-1205
81	NUT; BRKT CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	03	1	1206-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	01	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1109-1205
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	02	1	1206-1301
81	NUT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10 FLANGE	0-91180-210-0	01	1	1302-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1109-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1109-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1109-1205
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1206-
105	NUT; CLAMP EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1206-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	03	1	1109-1205
105	NUT; CLAMP CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	03	1	1206-
107	BOLT; BRKT EXC. CHILE EQUIPMENT(KE1) (A) M10X35 FLANGE	0-28651-035-0	02	1	1206-
107	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1109-1205
107	BOLT; BRKT CHILE EQUIPMENT(KE1) (B) M8X35 FLANGE	0-28650-835-0	02	1	1206-
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1109-1203
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1109-1203
107	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	04	1	1204-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1109-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1302-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1109-1205
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1109-1205
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1109-1205
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1206-1301
121	WASHER; PL,BRKT CHILE EQUIPMENT(KE1) ID=11 OD=54	1-09503-154-2	01	1	1206-1301
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1206-1301
121	WASHER; PL,BRKT CHILE EQUIPMENT(KE1) ID=11 OD=54	1-09503-154-2	01	1	1302-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1302-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1302-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1109-1205
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1109-1205
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1109-1205
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (A)	8-94457-277-1	01	1	1206-1301
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (A)	8-94457-277-1	01	1	1302-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1109-1205
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1109-1205
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1109-1205
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (B)	8-94457-278-1	01	1	1206-1301
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1206-1301
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) (B)	8-94457-278-1	01	1	1302-
360	PIECE; DIST,EXH PIPE	1-22113-064-0	01	1	1109-1205
360	PIECE; DIST,EXH PIPE CHILE EQUIPMENT(KE1)	1-22113-064-0	01	1	1206-

11 128 12 506 17 415 22 97 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	PIPE; EXH,RR	8-98104-955-0	01	1	1109-1205
11	PIPE; EXH,RR CHILE EQUIPMENT(KE1)	8-98104-955-0	01	1	1206-
12	SILENCER ASM; EXH	8-98165-988-0	01	1	1109-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-1205
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (A) M12X35 FLANGE	0-28051-235-0	04	1	1206-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1109-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1109-
22	CLAMP; EXH PIPE (B) ID=97	1-22133-043-1	01	1	1109-1205
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) (B) ID=97	1-22133-043-1	01	1	1206-
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	02	1	1109-1205
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	02	1	1206-
22	CLAMP; EXH PIPE EXC. CHILE EQUIPMENT(KE1) (C) ID=80-84	1-22133-233-0	02	1	1206-
22	CLAMP; EXH PIPE (A) ID=94-98	1-22133-237-0	02	1	1109-1205
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) (A) ID=94-98	1-22133-237-0	02	1	1206-
97	WASHER; PL,CLAMP ID=10.5	0-91610-710-0	01	1	1109-1205
97	WASHER; PL,CLAMP CHILE EQUIPMENT(KE1) ID=10.5	0-91610-710-0	01	1	1206-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1109-1205
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1206-
105	NUT; CLAMP EXC. CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1206-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	03	1	1109-1205
105	NUT; CLAMP CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	03	1	1206-
128	PIPE; EXH,RR	8-98114-834-1	01	1	1109-1205
128	PIPE; EXH,RR CHILE EQUIPMENT(KE1)	8-98114-834-1	01	1	1206-
415	BOLT; CLAMP M10X35 FLANGE	0-28651-035-0	01	1	1109-1205
415	BOLT; CLAMP CHILE EQUIPMENT(KE1) M10X35 FLANGE	0-28651-035-0	01	1	1206-
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> M12X35	1-22131-963-0	02	1	1206-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1109-1203

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
