1-31 — AIR DUCT (#71579) — 57 parça

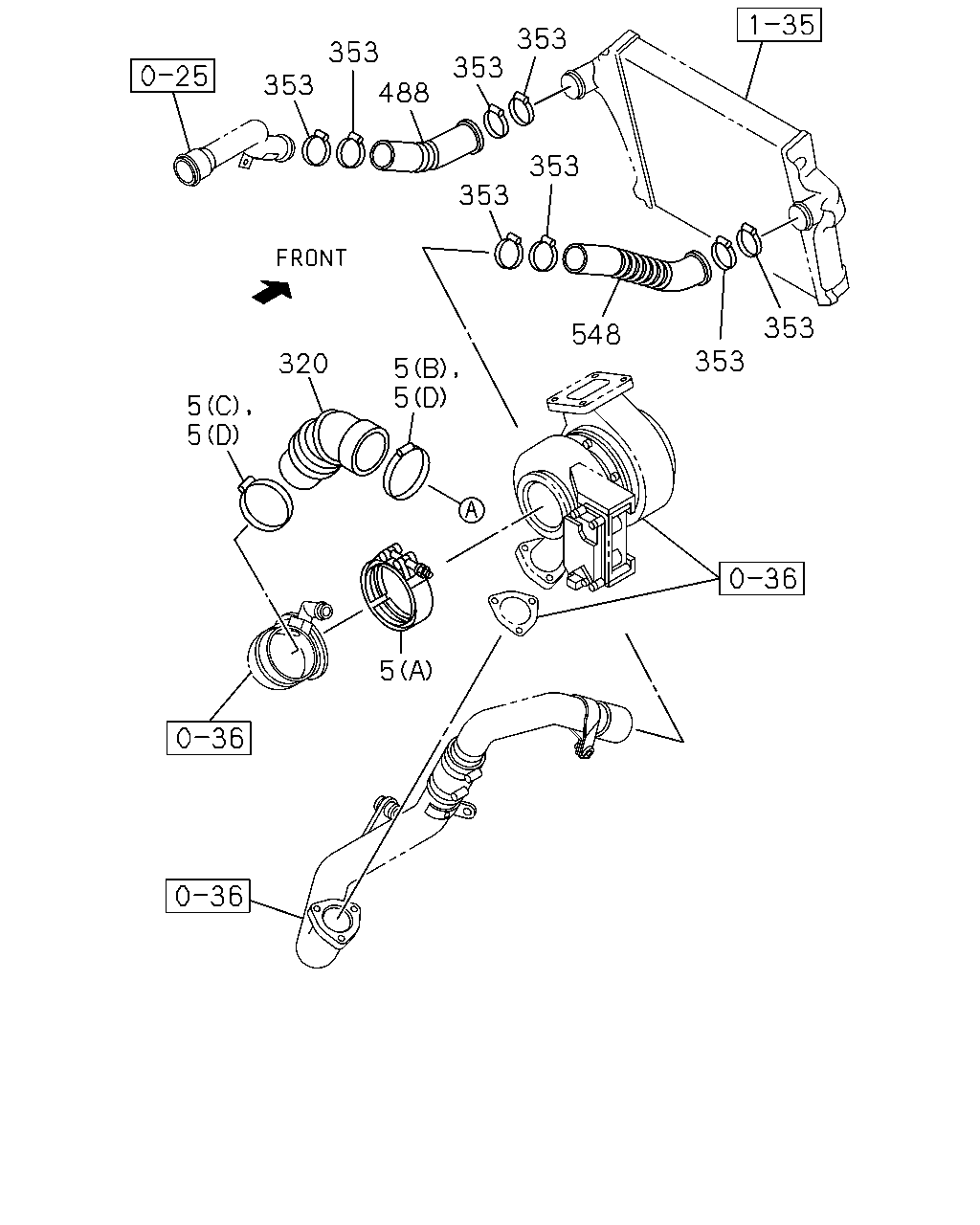

çizim 92042
353 353 353 353 488 353 353 353 548 353 320 5 5 5 5 5
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 01 1 1206-
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 01 1 1206-
5 CLIP; AIR DUCT
(A) ID=114 		8-15178-030-0 01 1 1109-
5 CLIP; AIR DUCT
(B) ID=110-130 		8-98133-359-0 01 1 1109-1205
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=110-130 		8-98133-359-0 01 1 1206-
5 CLIP; AIR DUCT
(C) ID=100-120 		8-98133-366-0 01 1 1109-1205
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (C) ID=100-120 		8-98133-366-0 01 1 1206-
320 HOSE; CONN,ACL 8-98012-859-2 01 1 1109-
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1206-
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 1109-1205
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1206-
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1109-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 1109-
çizim 182692
558 49 242 58 56 56 49 56 56 58 49 242 242 5 245 61 58 48 225 424 159 26 560 49 450 316 252 357 558 379 357 71 543 174 225 424 159 357 357 209 379 296 210
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 01 1 1206-
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 01 1 1206-
5 CLIP; AIR DUCT
(A) ID=114 		8-15178-030-0 01 1 1109-
5 CLIP; AIR DUCT
(B) ID=110-130 		8-98133-359-0 01 1 1109-1205
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=110-130 		8-98133-359-0 01 1 1206-
5 CLIP; AIR DUCT
(C) ID=100-120 		8-98133-366-0 01 1 1109-1205
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (C) ID=100-120 		8-98133-366-0 01 1 1206-
26 DUCT; AIR INT 8-98010-361-2 01 1 1109-
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1109-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1109-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1109-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1109-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1109-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1109-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1109-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1109-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1109-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1109-
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1109-
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1109-
209 BRACKET; ACL 8-98021-995-1 01 1 1109-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1109-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1109-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1109-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1109-
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1109-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1109-
252 DUCT; AIR INT 8-98012-861-1 01 1 1109-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1109-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1109-
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=26 		1-09707-091-0 02 1 1206-
357 CLIP; RUBBER HOSE
ID=26 		1-09707-091-0 01 1 1109-1205
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=26 		1-09707-091-0 01 1 1206-
357 CLIP; RUBBER HOSE
ID=29.5 		8-97354-979-0 01 1 1109-1205
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=29.5 		8-97354-979-0 01 1 1206-
379 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98077-469-0 01 1 1206-
379 HOSE; RUBBER
(A) 		8-97619-194-0 01 1 1109-1205
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97619-194-0 01 1 1206-
424 PIPE; AIR,INL 8-98081-834-0 01 1 1109-
450 CLAMP; HOSE 9-09915-504-1 01 1 1109-
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1109-
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1109-
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 1109-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1109-
