8-28 — CHASSIS ELECTRICAL (#7157) — 157 parça

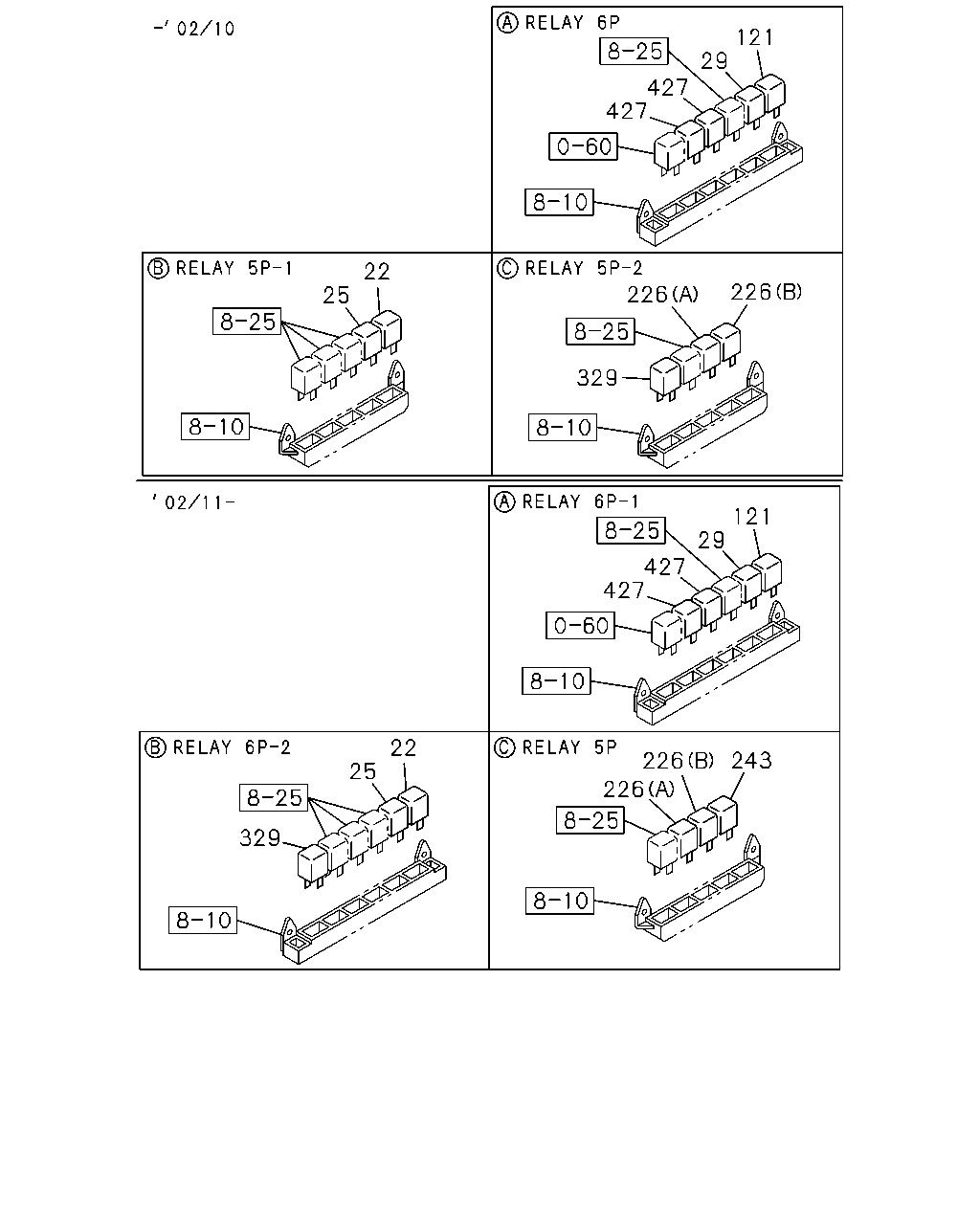

çizim 43519
121 29 427 427 226 22 226 25 329 121 29 427 427 22 243 226 25 226 329
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A JIDECO 		8-97062-815-1 01 1 0012-0111 ● ●
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
25 RELAY; TAIL LAMP
24V 12.5A JIDECO 		8-97062-815-1 01 1 0012-0111 ● ●
25 RELAY; TAIL LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
29 RELAY; HORN
24V 12.5A JIDECO 		8-97062-815-1 01 1 0012-0111 ● ●
29 RELAY; HORN
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
121 RELAY; PARKING BRK
24V 12.5A JIDECO 		8-97062-815-1 01 1 0012-0111 ● ●
121 RELAY; PARKING BRK
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
226 RELAY; EXH BRK
(A) 24V 12.5A JIDECO 		8-97062-815-1 01 1 0012-0106 ● ●
226 RELAY; EXH BRK
ANTI SKID BRK SYSTEM<SFL> (A) 24V 12.5A JIDECO 		8-97062-815-1 01 1 0012-0106 ●
226 RELAY; EXH BRK
(A) 24V 12.5A JIDECO 		8-97062-815-1 01 1 0107-0111 ● ●
226 RELAY; EXH BRK
EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> (A) 24V 12.5A JIDECO 		8-97062-815-1 01 1 0107-0111 ●
226 RELAY; EXH BRK
(A) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0203 ● ●
226 RELAY; EXH BRK
EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> (A) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0203 ●
226 RELAY; EXH BRK
EXHAUST BRAKE<NF8> (A) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0204- ●
226 RELAY; EXH BRK
ANTI SKID BRK SYSTEM<SFL> (A) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0204- ●
226 RELAY; EXH BRK
(A) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0204- ●
226 RELAY; EXH BRK
6WA1 TC-C(55L) (B) 24V 12.5A JIDECO 		1-82550-326-0 01 1 0204- ●
243 RELAY; ACCEL CONT
6SD1 TC-S(83L) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0211- ●
329 RELAY; BACK LAMP
24V 12.5A JIDECO 		8-97062-815-1 01 1 0012-0111 ● ●
329 RELAY; BACK LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
427 RELAY; RETARDER
BRAKE SYSTEM RETARDER<RE2> 24V 12.5A JIDECO 		8-97062-815-1 02 1 0012-0111 ● ●
427 RELAY; RETARDER
BRAKE SYSTEM RETARDER<RE2> 24V 12.5A MATSUSHITA 		8-97262-933-0 02 1 0112- ● ●

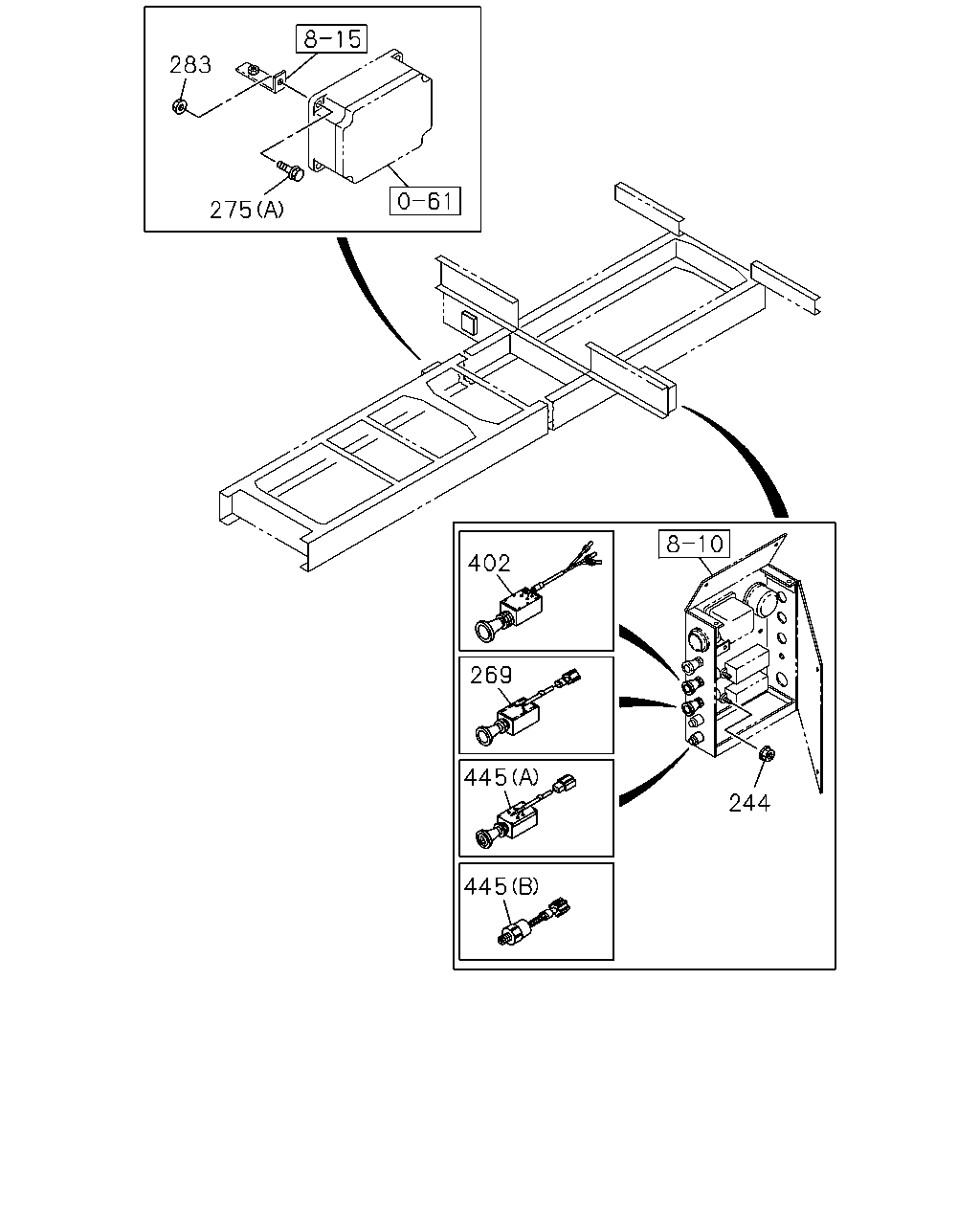

çizim 44087
283 275 402 269 445 244 445
BalonParca AdiParca NoAdetTipApplied Date A B
244 NUT; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M6 FLANGE 		0-91150-106-0 04 1 0012-0602 ● ●
244 NUT; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
244 NUT; FUSE BOX
EURO2 SPECIFICATION(THN) M5 		0-91110-505-0 02 1 0601- ● ●
244 NUT; FUSE BOX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) M5 		0-91110-505-0 02 1 0601- ●
269 SWITCH; BATTERY,ENG ROOM
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82340-358-1 01 1 0012-0706 ● ●
269 SWITCH; BATTERY,ENG ROOM
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		8-97621-398-0 01 1 0707- ● ●
275 BOLT; BRKT
EURO3 SPECIFICATION(NJX) (B) M8X20 FLANGE 		0-28680-820-0 08 1 0107-0512 ●
275 BOLT; BRKT
EURO3 SPECIFICATION(NJX) (B) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ●
275 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0012-0512 ● ●
275 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0012-0602 ● ●
283 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
402 SWITCH; IGNITION SAFETY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82340-382-1 01 1 0012-0706 ● ●
402 SWITCH; IGNITION SAFETY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		8-97621-399-0 01 1 0707- ● ●
445 SWITCH; ENG STOP
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 		1-82380-107-1 01 1 0012- ● ●
445 SWITCH; ENG STOP
6WA1 TC-C(55L) (A) 		1-82340-443-0 01 1 0204-0210 ●
445 SWITCH; ENG STOP
6SD1 TC-S(83L) (A) 		1-82340-443-0 01 1 0211-0706 ●
445 SWITCH; ENG STOP
6WA1 TC-C(55L) (A) 		1-82340-443-0 01 1 0211-0706 ●
445 SWITCH; ENG STOP
6SD1 TC-S(83L) (A) 		8-97621-409-0 01 1 0707-0711 ●
445 SWITCH; ENG STOP
6WA1 TC-C(55L) (A) 		8-97621-409-0 01 1 0707-0711 ●
445 SWITCH; ENG STOP
6SD1 TC-S(83L) (A) 		8-98106-482-0 01 1 0712- ●
445 SWITCH; ENG STOP
6WA1 TC-C(55L) (A) 		8-98106-482-0 01 1 0712- ●

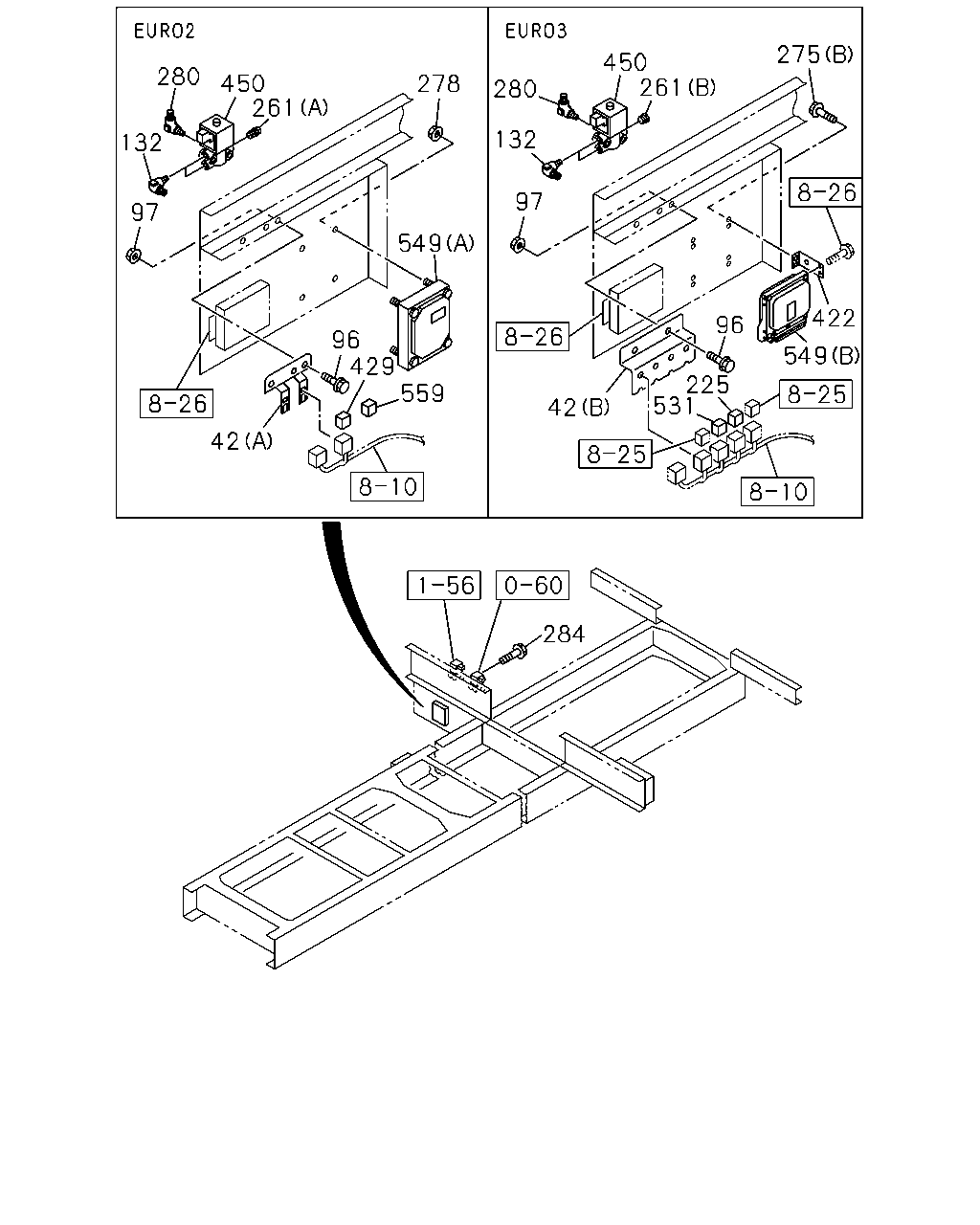

çizim 44581
275 450 261 280 450 261 278 280 132 132 97 97 549 422 96 96 429 559 549 225 531 42 42 284
BalonParca AdiParca NoAdetTipApplied Date A B
42 BRACKET; RELAY
EURO3 SPECIFICATION(NJX) (B) 		1-82698-282-0 01 1 0107-0210 ●
42 BRACKET; RELAY
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (B) 		1-82698-282-0 01 1 0211- ●
42 BRACKET; RELAY
6SD1 TC-S(83L) (B) 		1-82698-282-0 01 1 0211- ●
42 BRACKET; RELAY
EURO2 SPECIFICATION(THN) (A) 		8-97258-763-0 01 1 0012- ● ●
96 BOLT; BRKT FIX
EURO2 SPECIFICATION(THN) M6X16 FLANGE 		0-28680-616-0 02 1 0012-0106 ● ●
96 BOLT; BRKT FIX
EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M6X16 FLANGE 		0-28680-616-0 02 1 0107-0210 ●
96 BOLT; BRKT FIX
EURO2 SPECIFICATION(THN) M6X16 FLANGE 		0-28680-616-0 02 1 0107-0210 ●
96 BOLT; BRKT FIX
EURO2 SPECIFICATION(THN) M6X16 FLANGE 		0-28680-616-0 02 1 0211-0512 ● ●
96 BOLT; BRKT FIX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) M6X16 FLANGE 		0-28680-616-0 02 1 0211-0512 ●
96 BOLT; BRKT FIX
EURO2 SPECIFICATION(THN) M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ●
96 BOLT; BRKT FIX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) M6X16 FLANGE 		0-28650-616-0 02 1 0601- ●
97 NUT; BRKT FIX
EURO2 SPECIFICATION(THN) M6 FLANGE 		0-91150-106-0 02 1 0012-0106 ● ●
97 NUT; BRKT FIX
EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M6 FLANGE 		0-91150-106-0 02 1 0107-0210 ●
97 NUT; BRKT FIX
EURO2 SPECIFICATION(THN) M6 FLANGE 		0-91150-106-0 02 1 0107-0210 ●
97 NUT; BRKT FIX
EURO2 SPECIFICATION(THN) M6 FLANGE 		0-91150-106-0 02 1 0211-0602 ● ●
97 NUT; BRKT FIX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) M6 FLANGE 		0-91150-106-0 02 1 0211-0602 ●
97 NUT; BRKT FIX
EURO2 SPECIFICATION(THN) M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
97 NUT; BRKT FIX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
132 CONNECTOR; OUTLET,MAG VLV
BRAKE SYSTEM RETARDER<RE2> M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0012- ● ●
225 RELAY; SAFETY
EURO3 SPECIFICATION(NJX) 24V 12.5A JIDECO 		8-97062-815-1 01 1 0107-0111 ●
225 RELAY; SAFETY
EURO3 SPECIFICATION(NJX) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ●
261 PLUG; MAG VLV
EURO3 SPECIFICATION(NJX) BRAKE SYSTEM RETARDER<RE2> (B) PT1/4 		1-09605-019-0 01 1 0107- ●
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (A) PT1/4 		9-99204-513-0 01 1 0012-0106 ● ●
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) (A) PT1/4 		9-99204-513-0 01 1 0107-0203 ●
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (A) PT1/4 		9-99204-513-0 01 1 0107-0203 ●
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (A) PT1/4 		9-99204-513-0 01 1 0204- ● ●
275 BOLT; BRKT
EURO3 SPECIFICATION(NJX) (B) M8X20 FLANGE 		0-28680-820-0 08 1 0107-0512 ●
275 BOLT; BRKT
EURO3 SPECIFICATION(NJX) (B) M8X20 FLANGE 		0-28650-820-0 08 1 0601- ●
275 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0012-0512 ● ●
275 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
278 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 04 1 0012-0106 ● ●
278 NUT; CONT UNIT
EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE 		0-91150-106-0 04 1 0107-0210 ●
278 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 04 1 0107-0210 ●
278 NUT; CONT UNIT
EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE 		0-91150-106-0 04 1 0211-0602 ● ●
278 NUT; CONT UNIT
EXC. EURO3 SPECIFICATION(NJX) M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
280 CONNECTOR; IN,MAG VLV
BRAKE SYSTEM RETARDER<RE2> M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0012- ● ●
284 BOLT; MAG VLV
6WA1 TC-C(55L) M8X25 FLANGE 		0-28680-825-0 02 1 0204-0512 ●
284 BOLT; MAG VLV
6WA1 TC-C(55L) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
422 BRACKET; CONT UNIT
EURO3 SPECIFICATION(NJX) 		1-82698-327-0 04 1 0107- ●
429 RELAY; POWER CUT
EURO2 SPECIFICATION(THN) 24V 12.5A JIDECO 		8-97062-815-1 01 1 0012-0111 ● ●
429 RELAY; POWER CUT
EURO2 SPECIFICATION(THN) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
450 VALVE; MAG
BRAKE SYSTEM RETARDER<RE2> 		1-82563-597-5 01 1 0012- ● ●
531 RELAY; MAIN
EURO3 SPECIFICATION(NJX) 24V 12.5A JIDECO 		8-97062-815-1 01 1 0107-0111 ●
531 RELAY; MAIN
EURO3 SPECIFICATION(NJX) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ●
549 CONTROL UNIT; ENGINE
EURO2 SPECIFICATION(THN) EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-80110-441-0 01 1 0012-0106 ●
549 CONTROL UNIT; ENGINE
EURO2 SPECIFICATION(THN) (A) 		1-80110-441-0 01 1 0012-0106 ●
549 CONTROL UNIT; ENGINE
EURO2 SPECIFICATION(THN) (A) 		1-80110-441-0 01 1 0107-0203 ● ●
549 CONTROL UNIT; ENGINE
6SD1 TC(32L) EURO2 SPECIFICATION(THN) ISUZU M/T<X9A> (A) 		1-80110-441-0 01 1 0204-0907 ●
549 CONTROL UNIT; ENGINE
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (A) 		1-80110-441-0 01 1 0204-0907 ●
549 CONTROL UNIT; ENGINE
6SD1 TC(32L) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (A) 		1-80110-441-0 01 1 0908- ●
549 CONTROL UNIT; ENGINE
6SD1 TC(32L) (A) 		1-80110-441-0 01 1 0908- ●
549 CONTROL UNIT; ENGINE
ENG CONTROL TICS(Q3P) (A) 		1-80110-849-1 01 1 0211-0410 ●
549 CONTROL UNIT; ENGINE
6SD1 TC-S(83L) (A) 		1-80110-849-1 01 1 0411- ●
549 CONTROL UNIT; ENGINE
HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION(THN) (A) 		1-80110-177-0 01 1 0012-0106 ●
549 CONTROL UNIT; ENGINE
EURO3 SPECIFICATION(NJX) (B) 		1-80110-820-2 01 1 0107- ●
549 CONTROL UNIT; ENGINE
6SD1 TC(32L) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EURO2 SPECIFICATION(THN) (A) 		1-80110-177-0 01 1 0204- ●
549 CONTROL UNIT; ENGINE
6WA1 TC-C(55L) (A) 		1-80110-724-0 01 1 0204-0211 ●
549 CONTROL UNIT; ENGINE
6WA1 TC-C(55L) (A) 		1-80111-046-0 01 1 0212- ●
559 RELAY; MAG VLV
6SD1 TC-S(83L) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0211- ●

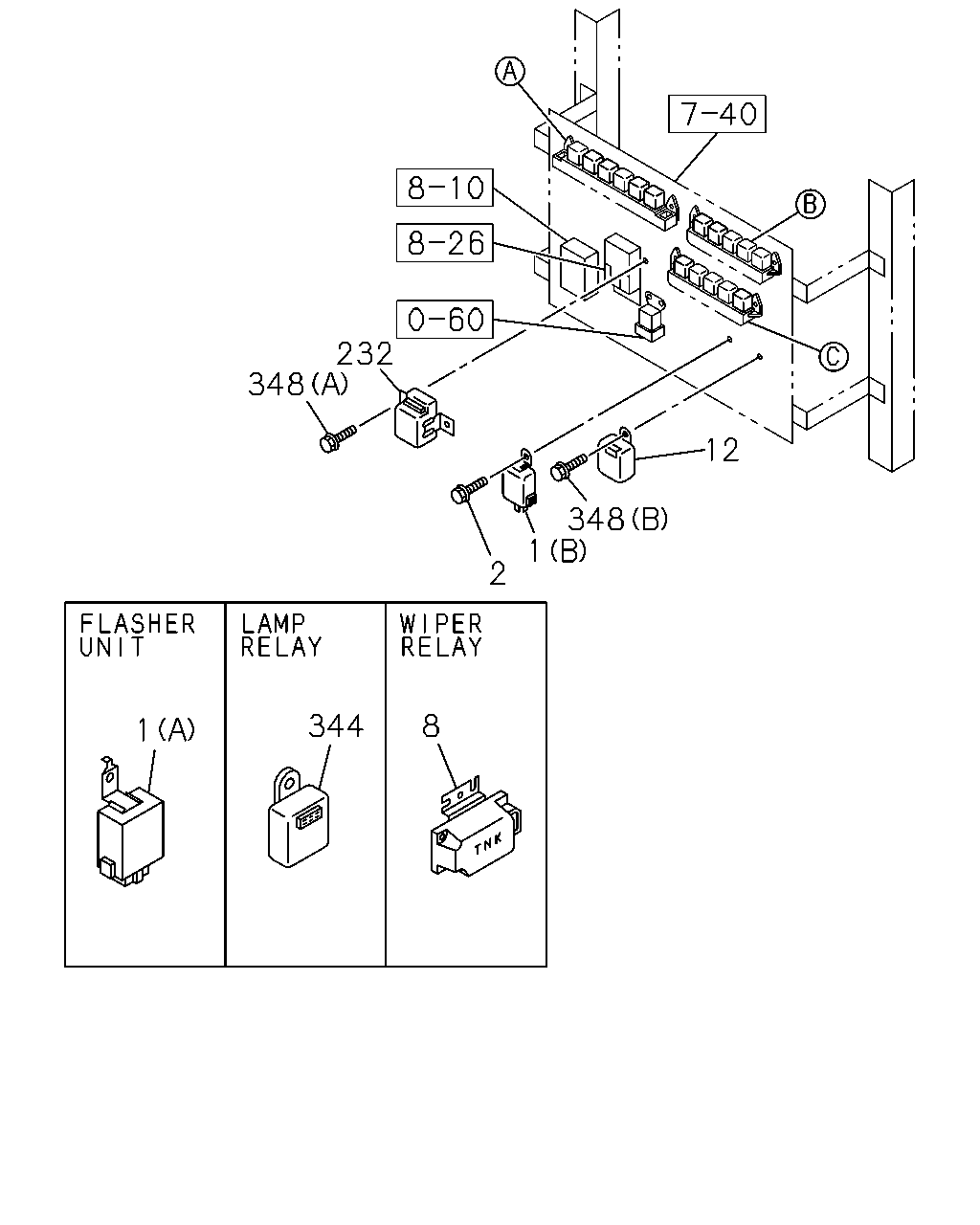

çizim 44968
232 348 12 348 1 2 344 8 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> TURN SIGNAL LAMP SIDE<TEL> (A) 		1-83470-052-0 01 1 0012- ● ●
1 UNIT; FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. TURN SIGNAL LAMP SIDE<TEL> (A) 		1-83470-051-0 01 1 0012- ● ●
1 UNIT; FLASHER
TURN SIGNAL LAMP SIDE<TEL> (B) 		1-83470-058-0 01 1 0012- ● ●
1 UNIT; FLASHER
EXC. TURN SIGNAL LAMP SIDE<TEL> (B) 		1-83470-055-0 01 1 0012- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28680-616-0 01 1 0012-0512 ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ●
8 RELAY; WIPER
WIPER MOTOR KIT<ST7> TNK 		1-82550-169-0 01 1 0012- ● ●
12 RELAY; LAMP,FAILURE INDICATOR 1-82550-143-2 01 1 0012- ● ●
232 RELAY; WARNING BUZZER
INDICATOR WARNING BUZZER(WF9) 		1-82550-119-1 01 1 0012- ● ●
344 RELAY; LAMP
LAMPS TAIL AND STOP DELUXE<T81> 		1-82550-201-0 01 1 0012- ● ●
348 SCREW; LAMP FAILURE RELAY
INDICATOR WARNING BUZZER(WF9) (A) M6X16 FLANGE 		0-28680-616-0 02 1 0012-0201 ●
348 SCREW; LAMP FAILURE RELAY
INDICATOR WARNING BUZZER(WF9) (A) M6X16 FLANGE 		0-28680-616-0 02 1 0202-0512 ● ●
348 SCREW; LAMP FAILURE RELAY
INDICATOR WARNING BUZZER(WF9) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ●
348 SCREW; LAMP FAILURE RELAY
(B) M6X16 FLANGE 		0-28680-616-0 01 1 0012-0512 ● ●
348 SCREW; LAMP FAILURE RELAY
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ●

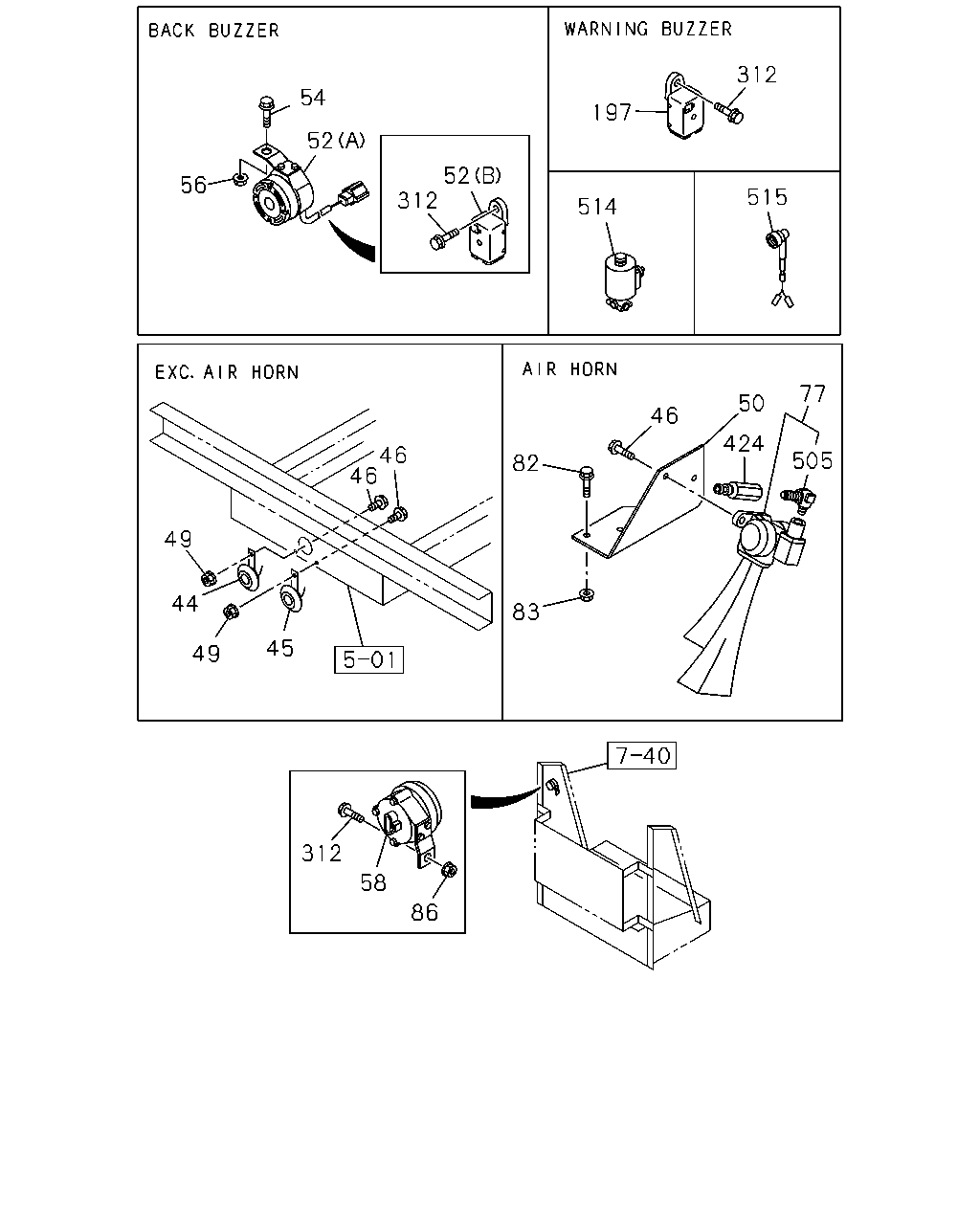

çizim 44999
312 54 197 52 52 312 56 515 514 77 50 46 424 46 46 505 82 49 44 83 45 49 312 58 86
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE
EXC. AIR HORN(WB8) 		1-83410-061-1 01 1 0012- ● ●
45 HORN; LOW NOTE
EXC. AIR HORN(WB8) 		1-83410-062-1 01 1 0012- ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 0012-0512 ● ●
46 BOLT; HORN TO BODY
EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 0012-0602 ● ●
49 NUT; HORN TO BODY
EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
50 BRACKET; HORN
AIR HORN(WB8) 		1-47478-948-0 01 1 0012- ● ●
52 BUZZER; BACK
A/T<X9D> (B) 		1-83460-040-0 01 1 0204- ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (A) METRO 		1-83460-088-1 01 1 0012-0612 ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (A) METRO 		8-98069-867-0 01 1 0701- ● ●
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X30 FLANGE 		0-28681-030-0 01 1 0012-0512 ● ●
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ●
56 NUT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10 FLANGE 		0-91150-210-0 01 1 0012-0602 ● ●
56 NUT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO 		1-83460-074-1 01 1 0012-0612 ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO 		8-98069-865-0 01 1 0701- ● ●
77 HORN ASM
AIR HORN(WB8) 		1-83430-041-2 01 1 0012- ● ●
82 BOLT; BRKT,HORN
AIR HORN(WB8) M8X30 FLANGE 		0-28680-830-0 02 1 0012-0512 ● ●
82 BOLT; BRKT,HORN
AIR HORN(WB8) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
83 NUT; BRKT,HORN
AIR HORN(WB8) M8 FLANGE 		0-91150-108-0 02 1 0012-0602 ● ●
83 NUT; BRKT,HORN
AIR HORN(WB8) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
86 NUT; BUZZER
M6 FLANGE 		0-91150-106-0 01 1 0012-0602 ● ●
86 NUT; BUZZER
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
197 BUZZER; WARNING,AIR HEAT OIL BRK
INDICATOR WARNING BUZZER(WF9) 		1-83460-051-1 01 1 0012- ● ●
312 BOLT; BUZZER
M6X16 FLANGE 		0-28680-616-0 01 1 0012-0203 ● ●
312 BOLT; BUZZER
INDICATOR WARNING BUZZER(WF9) M6X16 FLANGE 		0-28680-616-0 01 1 0012-0203 ● ●
312 BOLT; BUZZER
M6X16 FLANGE 		0-28680-616-0 01 1 0204-0512 ● ●
312 BOLT; BUZZER
INDICATOR WARNING BUZZER(WF9) M6X16 FLANGE 		0-28680-616-0 01 1 0204-0512 ● ●
312 BOLT; BUZZER
A/T<X9D> M6X16 FLANGE 		0-28680-616-0 01 1 0204-0512 ●
312 BOLT; BUZZER
M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ●
312 BOLT; BUZZER
INDICATOR WARNING BUZZER(WF9) M6X16 FLANGE 		0-28650-616-0 01 1 0601- ● ●
312 BOLT; BUZZER
A/T<X9D> M6X16 FLANGE 		0-28650-616-0 01 1 0601- ●
424 ADAPTER
AIR HORN(WB8) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0012- ● ●
505 JOINT; AIR HORN
AIR HORN(WB8) 		1-83439-006-0 01 1 0012- ● ●
514 VALVE; SOLENOID
6SD1 TC(32L) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) BRAKE SYSTEM RETARDER<RE2> 		1-82563-803-0 01 1 0204- ●
515 HARNESS; VLV
6SD1 TC(32L) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) BRAKE SYSTEM RETARDER<RE2> 		1-82449-002-0 02 1 0204- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
