◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11368 - FTR(LHD)EURO4 W/DOC ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#71559) — 74 parça

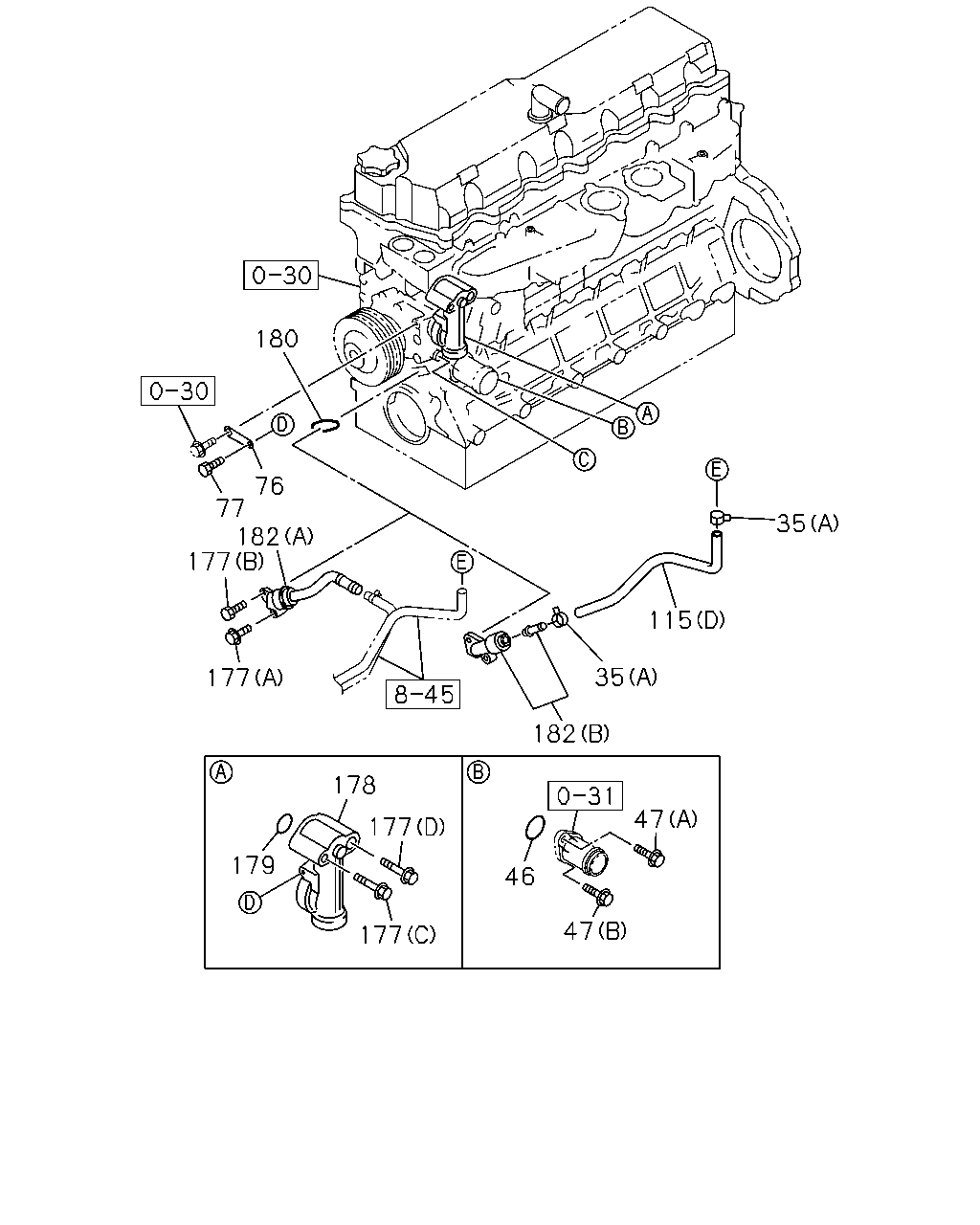

çizim 44657
180 76 77 182 177 35 115 35 177 182 178 47 177 179 46 47 177
BalonParca AdiParca NoAdetTipApplied Date
35 CLIP; RUBBER HOSE
(B) ID=20.8 		8-94125-862-1 01 1 1109-
35 CLIP; RUBBER HOSE
(A) ID=20 		8-98127-648-0 08 1 1109-
35 CLIP; RUBBER HOSE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) ID=20 		8-98127-648-0 02 1 1109-1205
35 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KD PREPARATORY PACK<6HF> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) ID=20 		8-98127-648-0 02 1 1206-
35 CLIP; RUBBER HOSE
MANUAL TRANSMISSION<X9C> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. KD PREPARATORY PACK<6HF> (A) ID=20 		8-98127-648-0 02 1 1206-
35 CLIP; RUBBER HOSE
MANUAL TRANSMISSION<X9C> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) ID=20 		8-98127-648-0 02 1 1206-
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 1109-
47 BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE 		0-28050-845-0 01 1 1109-
47 BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1109-
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 1109-
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 1109-
115 HOSE; RUBBER
(B) 		8-97606-735-1 01 1 1109-
115 HOSE; RUBBER
(A) 		8-97606-749-0 02 1 1109-
115 HOSE; RUBBER
(C) 		8-98043-192-0 01 1 1109-
115 HOSE; RUBBER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-97618-843-0 01 1 1109-1205
115 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KD PREPARATORY PACK<6HF> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D) 		8-97618-843-0 01 1 1206-
115 HOSE; RUBBER
MANUAL TRANSMISSION<X9C> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. KD PREPARATORY PACK<6HF> (D) 		8-97618-843-0 01 1 1206-
115 HOSE; RUBBER
MANUAL TRANSMISSION<X9C> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-97618-843-0 01 1 1206-
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 1109-
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1109-
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 1109-
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 1109-
178 DUCT; WATER,BYPASS 8-94396-627-3 01 1 1109-
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 1109-1408
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1409-
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 1109-
182 DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94394-348-5 01 1 1109-
182 DUCT; WATER,HTR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94396-727-3 01 1 1109-1205
182 DUCT; WATER,HTR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KD PREPARATORY PACK<6HF> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) 		8-94396-727-3 01 1 1206-
182 DUCT; WATER,HTR
MANUAL TRANSMISSION<X9C> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. KD PREPARATORY PACK<6HF> (B) 		8-94396-727-3 01 1 1206-
182 DUCT; WATER,HTR
MANUAL TRANSMISSION<X9C> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94396-727-3 01 1 1206-

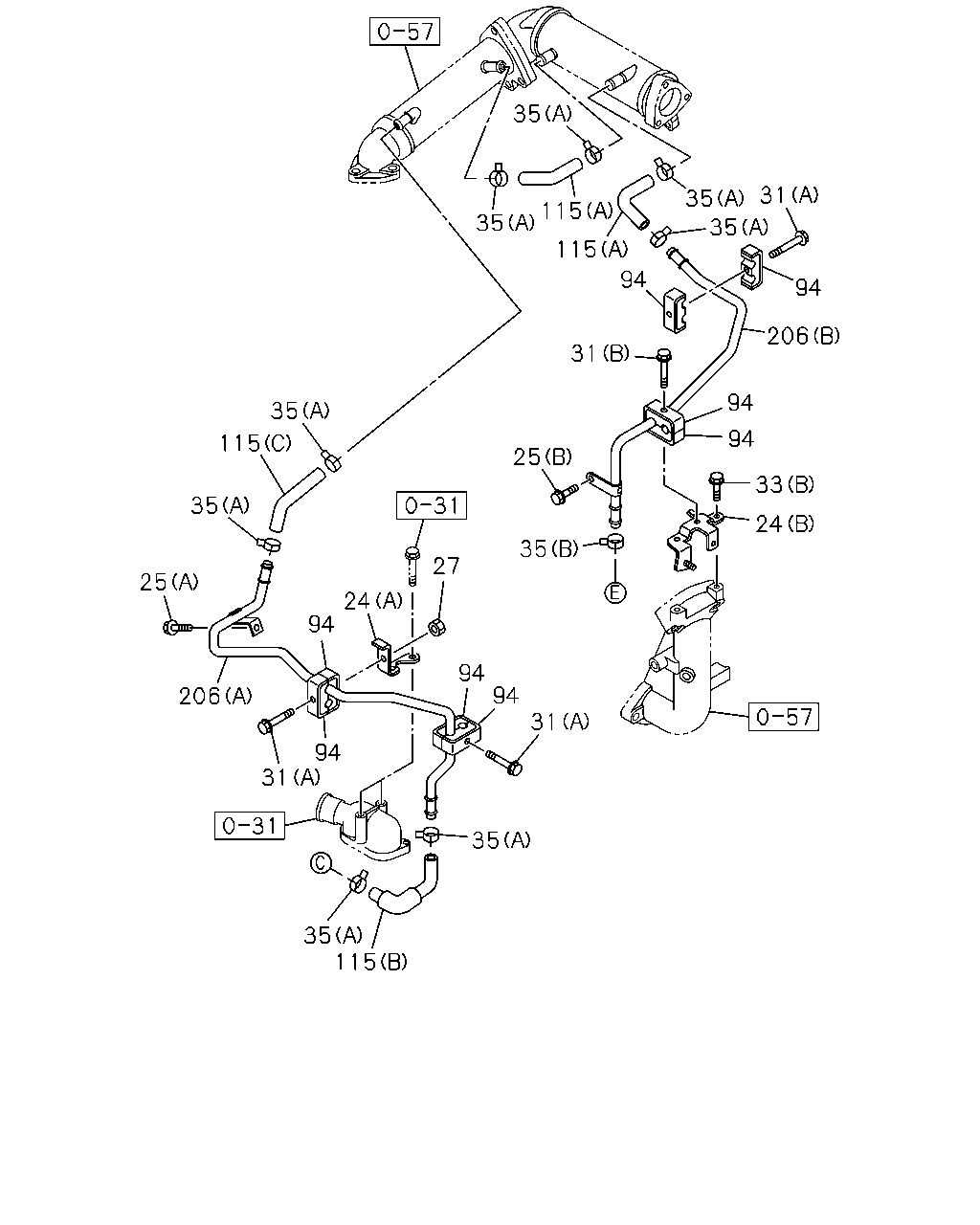

çizim 60496
35 35 115 115 31 94 25 35 24 33 94 94 206 94 31 35 35 35 115 35 25 206 31 35 115 35 31 94 94 27 24 94 94
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(A) 		8-98000-557-2 01 1 1109-
24 BRACKET; WATER PIPE
(B) 		8-98051-626-1 01 1 1109-
25 BOLT; WATER PIPE
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1109-
25 BOLT; WATER PIPE
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1109-
27 NUT; PIPE FIX
M6 FLANGE 		0-91180-106-0 01 1 1109-
31 BOLT; CLIP
(B) M6X45 FLANGE 		0-28050-645-0 01 1 1109-
31 BOLT; CLIP
(A) M6X40 FLANGE 		0-28650-640-0 03 1 1109-
33 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1109-
33 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1109-
35 CLIP; RUBBER HOSE
(B) ID=20.8 		8-94125-862-1 01 1 1109-
35 CLIP; RUBBER HOSE
(A) ID=20 		8-98127-648-0 08 1 1109-
35 CLIP; RUBBER HOSE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) ID=20 		8-98127-648-0 02 1 1109-1205
35 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KD PREPARATORY PACK<6HF> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) ID=20 		8-98127-648-0 02 1 1206-
35 CLIP; RUBBER HOSE
MANUAL TRANSMISSION<X9C> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. KD PREPARATORY PACK<6HF> (A) ID=20 		8-98127-648-0 02 1 1206-
35 CLIP; RUBBER HOSE
MANUAL TRANSMISSION<X9C> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) ID=20 		8-98127-648-0 02 1 1206-
94 CLIP; WATER PIPE 8-97605-129-1 08 1 1109-
115 HOSE; RUBBER
(B) 		8-97606-735-1 01 1 1109-
115 HOSE; RUBBER
(A) 		8-97606-749-0 02 1 1109-
115 HOSE; RUBBER
(C) 		8-98043-192-0 01 1 1109-
115 HOSE; RUBBER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-97618-843-0 01 1 1109-1205
115 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KD PREPARATORY PACK<6HF> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D) 		8-97618-843-0 01 1 1206-
115 HOSE; RUBBER
MANUAL TRANSMISSION<X9C> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. KD PREPARATORY PACK<6HF> (D) 		8-97618-843-0 01 1 1206-
115 HOSE; RUBBER
MANUAL TRANSMISSION<X9C> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-97618-843-0 01 1 1206-
206 PIPE; WATER,EGR COOLER
(A) 		8-97604-928-2 01 1 1109-
206 PIPE; WATER,EGR COOLER
(B) 		8-98000-480-1 01 1 1109-

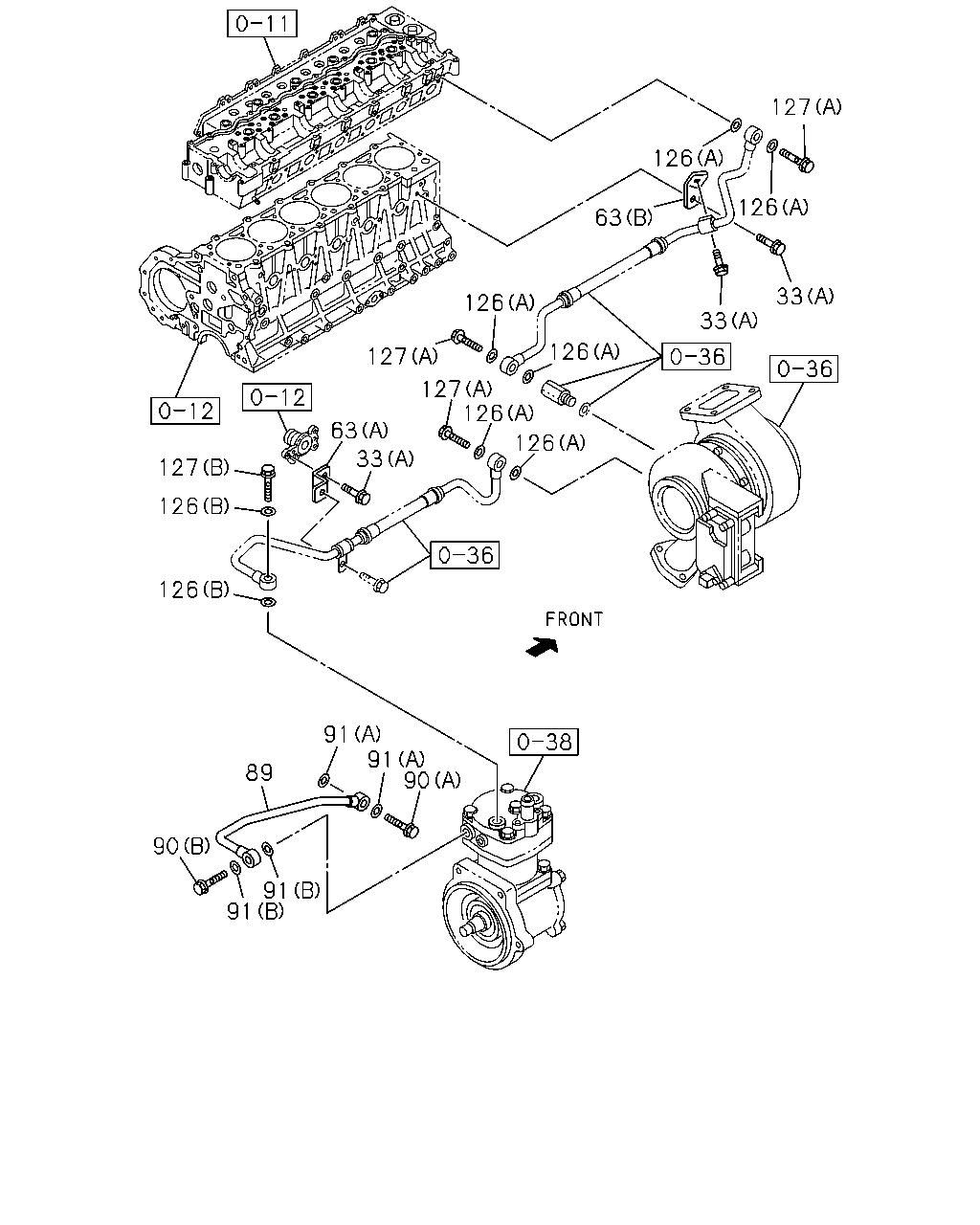

çizim 60813
127 126 126 63 33 126 33 126 127 127 126 63 126 33 127 126 126 91 91 90 89 90 91 91
BalonParca AdiParca NoAdetTipApplied Date
33 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1109-
33 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1109-
63 BRACKET; WATER PIPE
(B) 		8-98046-784-0 01 1 1109-
63 BRACKET; WATER PIPE
(A) 		8-98153-457-0 01 1 1109-1205
63 BRACKET; WATER PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98153-457-0 01 1 1206-
89 PIPE; WATER,AIR CMPR,IN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-97610-086-0 01 1 1206-
89 PIPE; WATER,AIR CMPR,IN 8-97611-095-0 01 1 1109-1205
89 PIPE; WATER,AIR CMPR,IN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-97611-095-0 01 1 1206-
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1109-
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 1109-
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1109-1312
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 1109-
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		1-09630-085-0 06 1 1109-1312
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		8-98251-345-0 06 1 1401-
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 02 1 1109-
127 BOLT; EYE
(A) M14X27 EYE-BOLT 		1-09675-193-0 03 1 1109-
127 BOLT; EYE
(B) M16X28 		8-94383-489-0 01 1 1109-
