◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#7155) — 127 parça

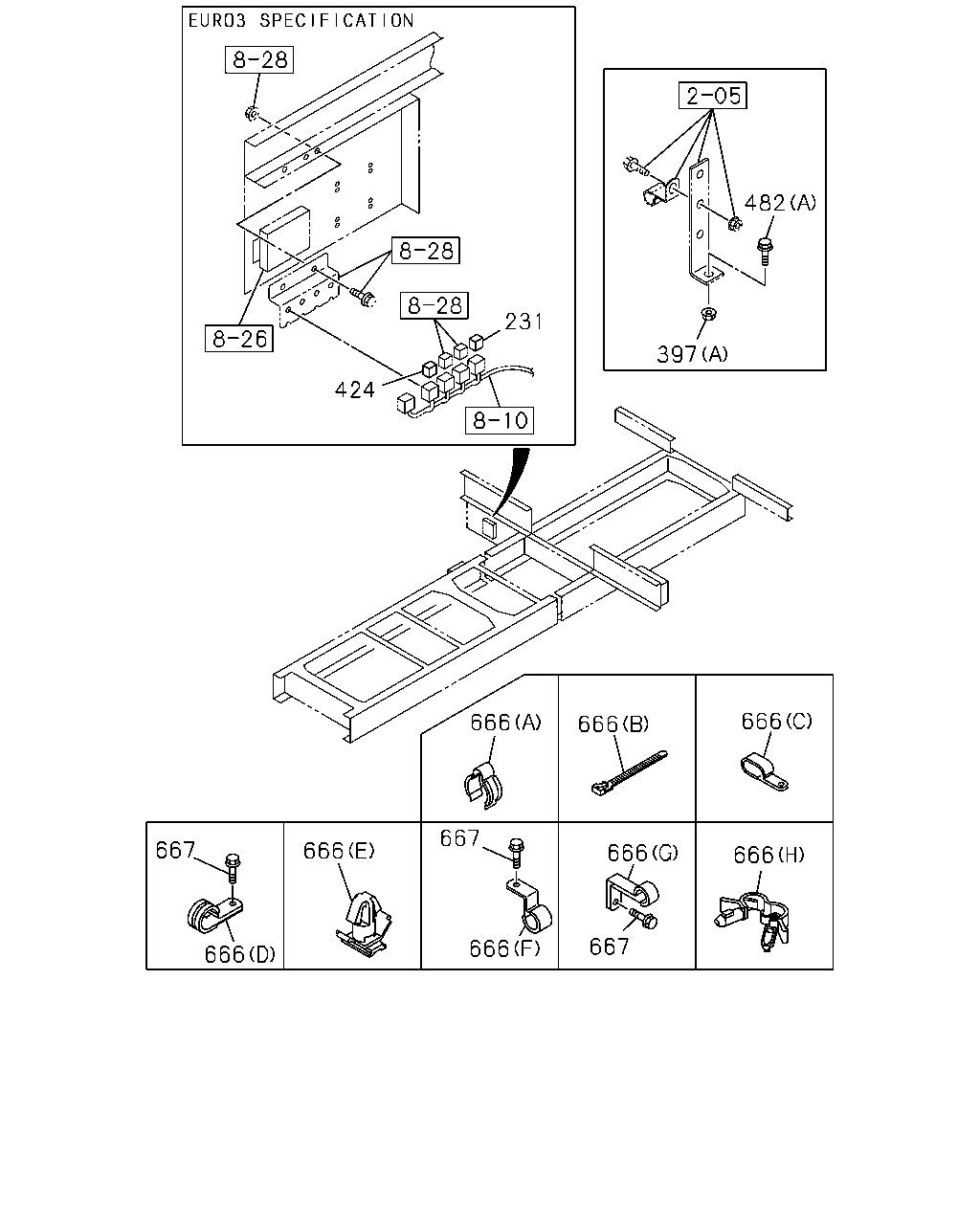

çizim 41668
482 231 397 424 666 666 666 667 667 666 666 666 667 666 666
BalonParca AdiParca NoAdetTipApplied Date A B
231 RELAY; NEUTRAL
FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0012-0106 ● ●
231 RELAY; NEUTRAL
FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0107-0111 ● ●
231 RELAY; NEUTRAL
EURO3 SPECIFICATION(NJX) 24V 12.5A JIDECO 		8-97062-815-1 01 1 0107-0111 ●
231 RELAY; NEUTRAL
FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0208 ● ●
231 RELAY; NEUTRAL
EURO3 SPECIFICATION(NJX) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0208 ●
231 RELAY; NEUTRAL
FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0209- ● ●
231 RELAY; NEUTRAL
EURO3 SPECIFICATION(NJX) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0209- ●
397 NUT; BRKT FIX
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M8 FLANGE 		0-91150-108-0 03 1 0204-0602 ●
397 NUT; BRKT FIX
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M8 FLANGE 		0-91180-108-0 03 1 0603- ●
397 NUT; BRKT FIX
(A) M8 FLANGE 		0-91150-108-0 01 1 0012-0602 ●
397 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
424 RELAY
EURO3 SPECIFICATION(NJX) 24V 12.5A JIDECO 		8-97062-815-1 01 1 0107-0111 ●
424 RELAY
EURO3 SPECIFICATION(NJX) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ●
482 BOLT; BRKT
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M8X20 FLANGE 		0-28680-820-0 03 1 0204-0512 ●
482 BOLT; BRKT
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
482 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0012-0512 ●
482 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
666 CLIP; AXLE HARNESS
ANTI SKID BRK SYSTEM<SFL> (A) 		1-09709-301-0 06 1 0012- ●
666 CLIP; AXLE HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (E) OD=9 H=9.5 		1-09709-179-0 01 1 0012- ●
666 CLIP; AXLE HARNESS
(E) OD=9 H=9.5 		1-09709-179-0 01 1 0012- ●
666 CLIP; AXLE HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (A) 		1-09709-301-0 02 1 0012- ●
666 CLIP; AXLE HARNESS
ANTI SKID BRK SYSTEM<SFL> (B) L=140 		5-09707-031-1 03 1 0012- ●
666 CLIP; AXLE HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (H) ID=5-12 L=18 		1-09709-287-0 01 1 0103-0202 ●
666 CLIP; AXLE HARNESS
(H) ID=5-12 L=18 		1-09709-287-0 01 1 0103-0202 ●
666 CLIP; AXLE HARNESS
EXC. ANTI SKID BRK SYSTEM<SFL> (H) ID=5-12 L=18 		1-09709-287-0 01 1 0203- ●
666 CLIP; AXLE HARNESS
(D) ID=11 L=16 		9-09525-025-0 01 1 0012-0106 ● ●
666 CLIP; AXLE HARNESS
ANTI SKID BRK SYSTEM<SFL> (C) ID=11X2 L=16 		9-09535-025-0 01 1 0012-0606 ●
666 CLIP; AXLE HARNESS
ANTI SKID BRK SYSTEM<SFL> (C) ID=11X2 L=16 		0-95325-025-0 01 1 0607- ●
666 CLIP; AXLE HARNESS
(D) ID=11 L=16 		9-09525-025-0 01 1 0107-0606 ● ●
666 CLIP; AXLE HARNESS
(D) ID=11 L=16 		0-95235-025-0 01 1 0607- ● ●
666 CLIP; AXLE HARNESS
(F) ID=11 H=20 L=25 		1-09700-848-0 01 1 0012- ●
666 CLIP; AXLE HARNESS
(G) ID=11 H=45 L=25 		1-09700-866-0 01 1 0012- ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0012-0512 ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
667 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 03 1 0012-0512 ●
667 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●

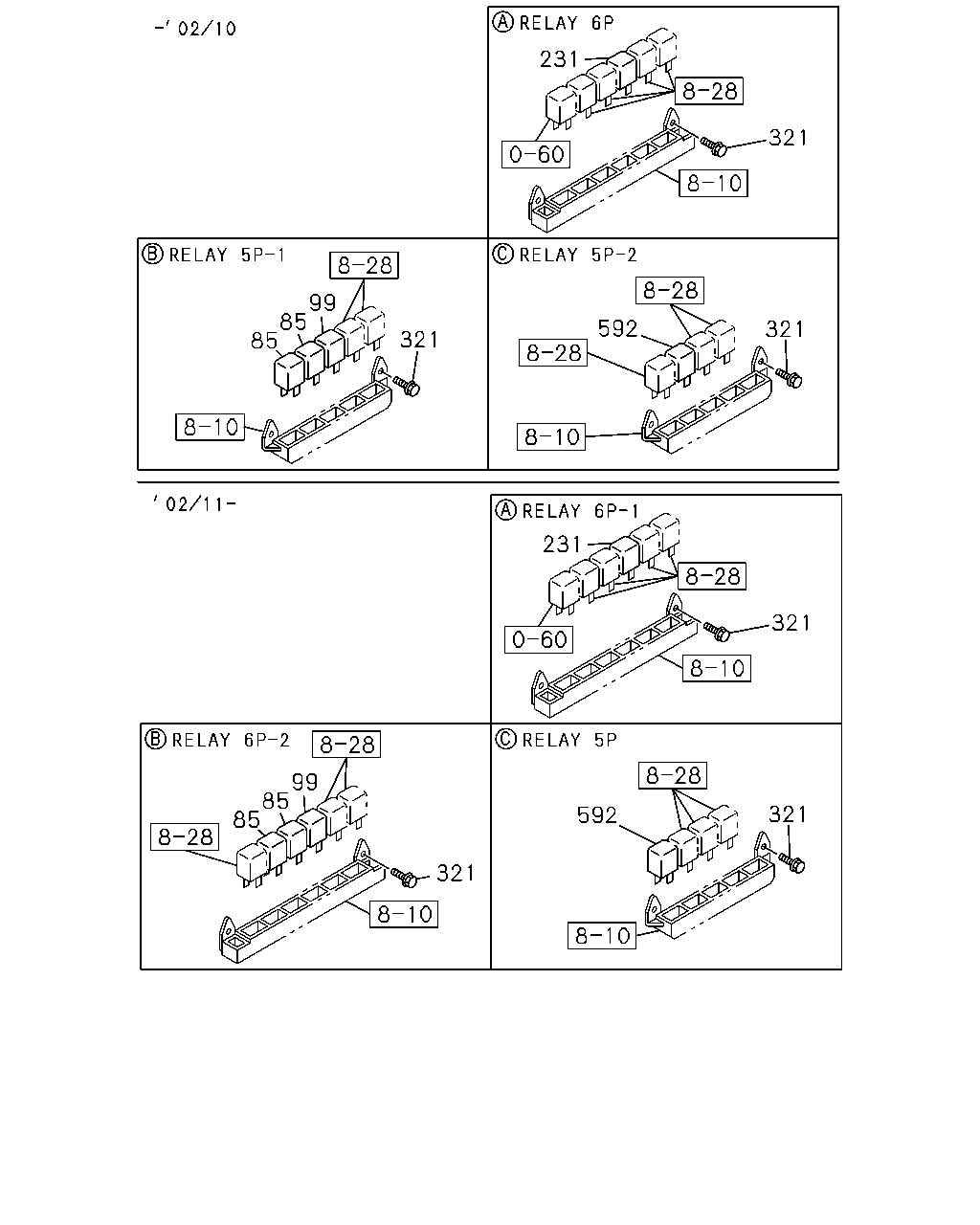

çizim 43489
231 321 99 85 85 592 321 321 231 321 99 85 85 321 592 321
BalonParca AdiParca NoAdetTipApplied Date A B
85 RELAY; HEADLAMP
24V 12.5A JIDECO 		8-97062-815-1 02 1 0012-0111 ● ●
85 RELAY; HEADLAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 02 1 0112- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0012-0102 ● ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0103-0111 ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0103-0111 ● ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
231 RELAY; NEUTRAL
FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0012-0106 ● ●
231 RELAY; NEUTRAL
FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0107-0111 ● ●
231 RELAY; NEUTRAL
EURO3 SPECIFICATION(NJX) 24V 12.5A JIDECO 		8-97062-815-1 01 1 0107-0111 ●
231 RELAY; NEUTRAL
FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0208 ● ●
231 RELAY; NEUTRAL
EURO3 SPECIFICATION(NJX) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112-0208 ●
231 RELAY; NEUTRAL
FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0209- ● ●
231 RELAY; NEUTRAL
EURO3 SPECIFICATION(NJX) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0209- ●
321 BOLT; RELAY
M6X16 FLANGE 		0-28680-616-0 06 1 0012-0512 ● ●
321 BOLT; RELAY
M6X16 FLANGE 		0-28650-616-0 06 1 0601- ● ●
592 RELAY; WEAR INDICATOR
24V 12.5A JIDECO 		8-97062-815-1 01 1 0012-0111 ● ●
592 RELAY; WEAR INDICATOR
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0112- ● ●
çizim 44580
505 259 482 397 281 538 414 536 536
BalonParca AdiParca NoAdetTipApplied Date A B
259 SWITCH; RETARDER
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) 		1-82340-407-1 01 1 0204- ●
281 SWITCH; SELECT,TRANS CONT
A/T<X9D> 		1-82380-152-0 01 1 0204- ●
397 NUT; BRKT FIX
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M8 FLANGE 		0-91150-108-0 03 1 0204-0602 ●
397 NUT; BRKT FIX
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M8 FLANGE 		0-91180-108-0 03 1 0603- ●
397 NUT; BRKT FIX
(A) M8 FLANGE 		0-91150-108-0 01 1 0012-0602 ●
397 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
414 SWITCH; KICK DOWN
A/T<X9D> 		1-82380-139-0 01 1 0204- ●
482 BOLT; BRKT
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M8X20 FLANGE 		0-28680-820-0 03 1 0204-0512 ●
482 BOLT; BRKT
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (B) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
482 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0012-0512 ●
482 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
505 BRACKET; SW
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) 		1-47479-144-0 01 1 0204- ●
536 HARNESS; SW
6SD1 TC(32L) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) BRAKE SYSTEM RETARDER<RE2> 		1-82449-002-0 01 1 0204- ●
538 CAP; SW
6SD1 TC(32L) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) BRAKE SYSTEM RETARDER<RE2> MARK"N" 		1-82389-014-0 01 1 0204- ●
538 CAP; SW
6SD1 TC(32L) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) BRAKE SYSTEM RETARDER<RE2> MARK"R" 		1-82389-015-0 01 1 0204- ●
538 CAP; SW
6SD1 TC(32L) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) BRAKE SYSTEM RETARDER<RE2> MARK"D" 		1-82389-016-0 01 1 0204- ●
538 CAP; SW
6SD1 TC(32L) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) BRAKE SYSTEM RETARDER<RE2> MARK"1" 		1-82389-019-0 01 1 0204- ●
538 CAP; SW
6SD1 TC(32L) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) BRAKE SYSTEM RETARDER<RE2> MARK"2" 		1-82389-020-0 01 1 0204- ●
538 CAP; SW
6SD1 TC(32L) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) BRAKE SYSTEM RETARDER<RE2> MARK"3" 		1-82389-021-0 01 1 0204- ●

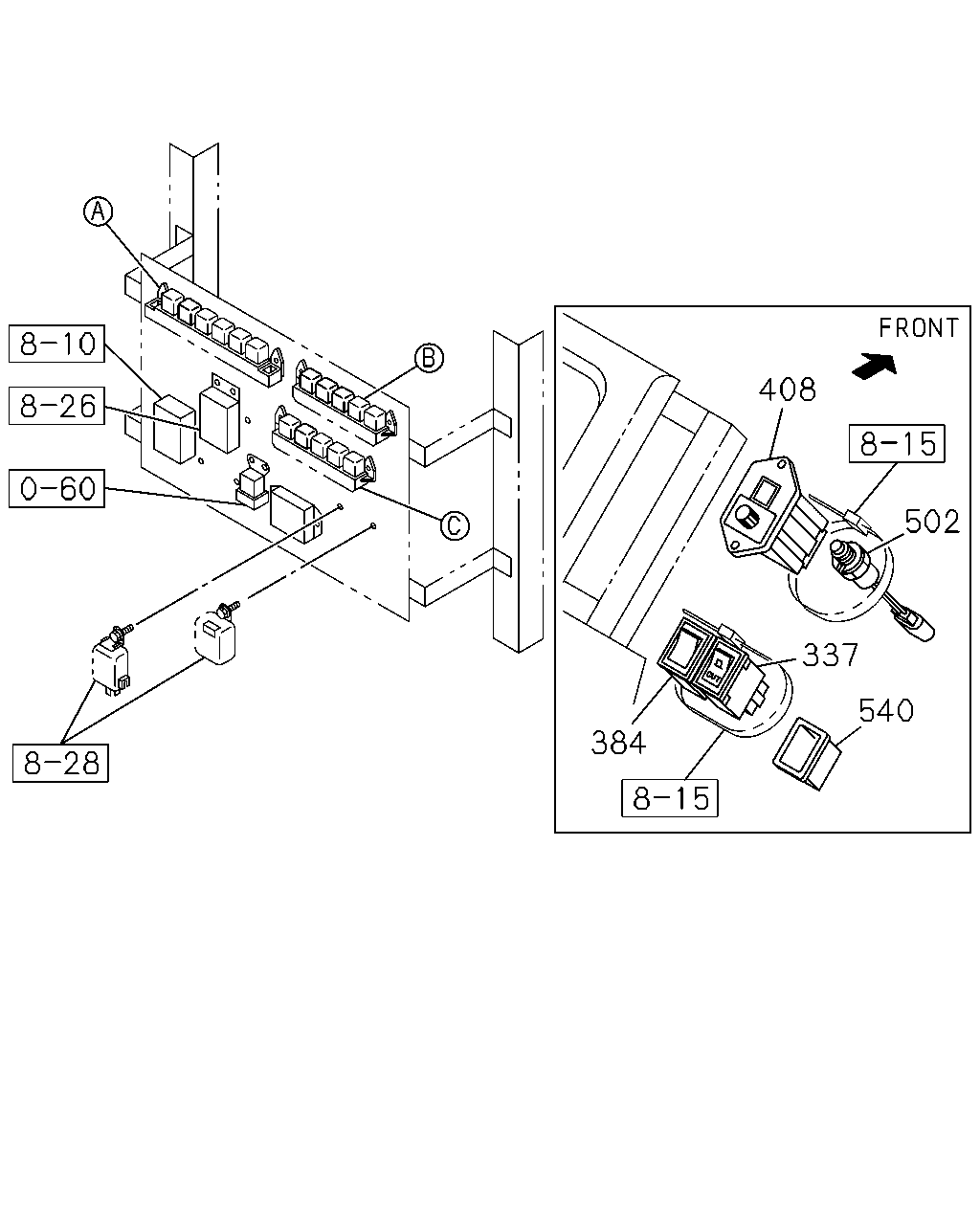

çizim 44927
408 502 337 540 384
BalonParca AdiParca NoAdetTipApplied Date A B
337 SWITCH; EXH
FOOT BRAKE W/EXHAUST BRAKE<SJB> 		1-82350-220-2 01 1 0012- ● ●
384 SWITCH; IDLING CONT,ELEC
EURO3 SPECIFICATION(NJX) 		1-82350-213-1 01 1 0107-0203 ●
384 SWITCH; IDLING CONT,ELEC
EURO3 SPECIFICATION(NJX) 		1-82350-213-1 01 1 0204-0210 ●
384 SWITCH; IDLING CONT,ELEC
6WA1 TC-C(55L) 		1-82350-213-1 01 1 0204-0210 ●
384 SWITCH; IDLING CONT,ELEC
EURO3 SPECIFICATION(NJX) 		1-82350-213-1 01 1 0211- ●
384 SWITCH; IDLING CONT,ELEC
6SD1 TC-S(83L) 		1-82350-213-1 01 1 0211- ●
384 SWITCH; IDLING CONT,ELEC
6WA1 TC-C(55L) 		1-82350-213-1 01 1 0211- ●
408 SWITCH; DIAGNOSIS MONITOR 1-82250-342-0 01 1 0012- ● ●
502 SWITCH; DIAGNOSIS
ANTI SKID BRK SYSTEM<SFL> 		1-82380-107-1 01 1 0012- ●
540 BEZEL; SW
FOOT BRAKE W/EXHAUST BRAKE<SJB> 		1-82490-017-0 01 1 0012-0106 ● ●
540 BEZEL; SW
FOOT BRAKE W/EXHAUST BRAKE<SJB> 		1-82490-017-0 01 1 0107-0203 ● ●
540 BEZEL; SW
EURO3 SPECIFICATION(NJX) 		1-82490-017-0 01 1 0107-0203 ●
540 BEZEL; SW
FOOT BRAKE W/EXHAUST BRAKE<SJB> 		1-82490-017-0 01 1 0204-0210 ● ●
540 BEZEL; SW
EURO3 SPECIFICATION(NJX) 		1-82490-017-0 01 1 0204-0210 ●
540 BEZEL; SW
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) 		1-82490-017-0 01 1 0204-0210 ●
540 BEZEL; SW
6WA1 TC-C(55L) 		1-82490-017-0 01 1 0204-0210 ●
540 BEZEL; SW
FOOT BRAKE W/EXHAUST BRAKE<SJB> 		1-82490-017-0 01 1 0211- ● ●
540 BEZEL; SW
EURO3 SPECIFICATION(NJX) 		1-82490-017-0 01 1 0211- ●
540 BEZEL; SW
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) 		1-82490-017-0 01 1 0211- ●
540 BEZEL; SW
6WA1 TC-C(55L),6SD1 TC-S(83L) 		1-82490-017-0 01 1 0211- ●

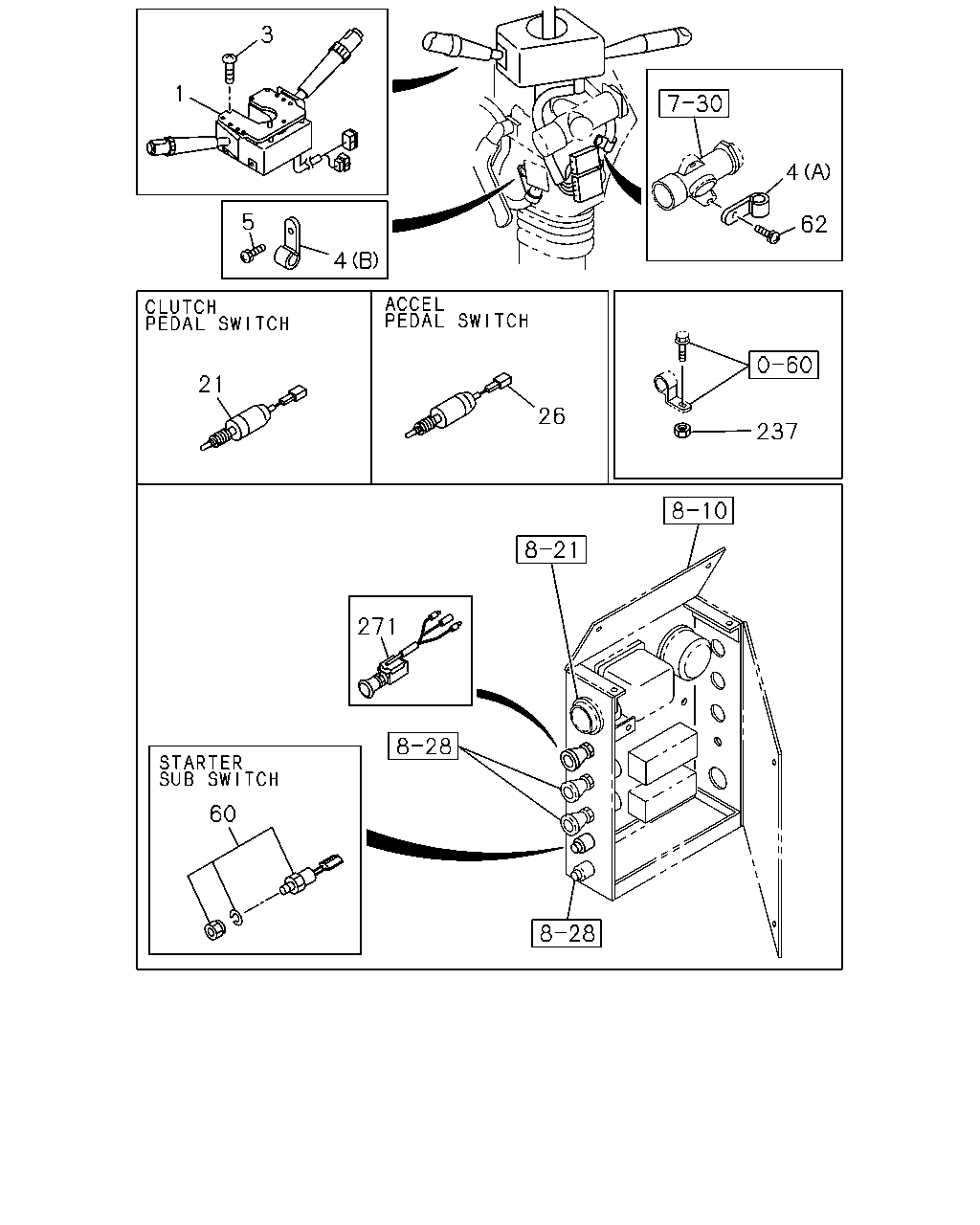

çizim 45055
3 1 4 5 62 4 21 26 237 271 60
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) 		1-82360-620-0 01 1 0204-0312 ●
1 SWITCH; COMB
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) 		1-82360-716-0 01 1 0401- ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> 		1-82360-359-3 01 1 0012-0103 ● ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> 		1-82360-606-0 01 1 0104-0203 ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> BRAKE SYSTEM RETARDER<RE2> 		1-82360-606-0 01 1 0204-0312 ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> BRAKE SYSTEM RETARDER<RE2> 		1-82360-712-0 01 1 0401- ● ●
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82360-357-4 01 1 0012-0103 ● ●
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82360-604-0 01 1 0104-0203 ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82360-604-0 01 1 0204-0312 ● ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82360-711-0 01 1 0401- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0012-0604 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ● ●
4 CLIP; COMB SW
(A) ID=16 L=20 		9-09525-535-0 01 1 0012-0606 ● ●
4 CLIP; COMB SW
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ● ●
4 CLIP; COMB SW
(B) ID=19 L=32 		9-09525-862-0 01 1 0012-0012 ● ●
4 CLIP; COMB SW
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0012- ● ●
5 SCREW; COMB SW CABLE
M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0012-0110 ● ●
5 SCREW; COMB SW CABLE
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111- ● ●
21 SWITCH; CLU
6SD1 TC-S(83L) 		1-82440-116-3 01 1 0211- ●
21 SWITCH; CLU 1-82380-114-2 01 1 0012-0203 ● ●
21 SWITCH; CLU
EXHAUST BRAKE<NF8> 		1-82380-114-3 01 1 0204-0210 ● ●
21 SWITCH; CLU
EXHAUST BRAKE<NF8> EXC. EURO3 SPECIFICATION(NJX) 		1-82380-114-3 01 1 0211- ● ●
21 SWITCH; CLU
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) 		1-82380-114-3 01 1 0211- ●
26 SWITCH; ACCEL 1-82440-098-1 01 1 0012-0203 ● ●
26 SWITCH; ACCEL
6SD1 TC(32L) EXHAUST BRAKE<NF8> EXC. EURO3 SPECIFICATION(NJX) 		1-82440-098-1 01 1 0204- ● ●
60 SWITCH; STARTER SUB
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82380-107-1 01 1 0012- ● ●
62 BOLT; STARTER SW
M8X30 W/PL WASHER 		1-09981-482-2 02 1 0012-0111 ● ●
62 BOLT; STARTER SW
M8X30 W/PL WASHER 		1-09980-621-1 02 1 0112- ● ●
237 NUT
M8 FLANGE 		0-91150-108-0 01 1 0012-0602 ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
237 NUT
M8 FLANGE 		0-91150-108-0 03 1 0012-0602 ●
237 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
271 SWITCH; OIL PRESS METER
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82340-526-1 01 1 0012-0706 ● ●
271 SWITCH; OIL PRESS METER
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		8-97621-401-0 01 1 0707- ● ●
