8-21 — METER ASM (#7154) — 72 parça

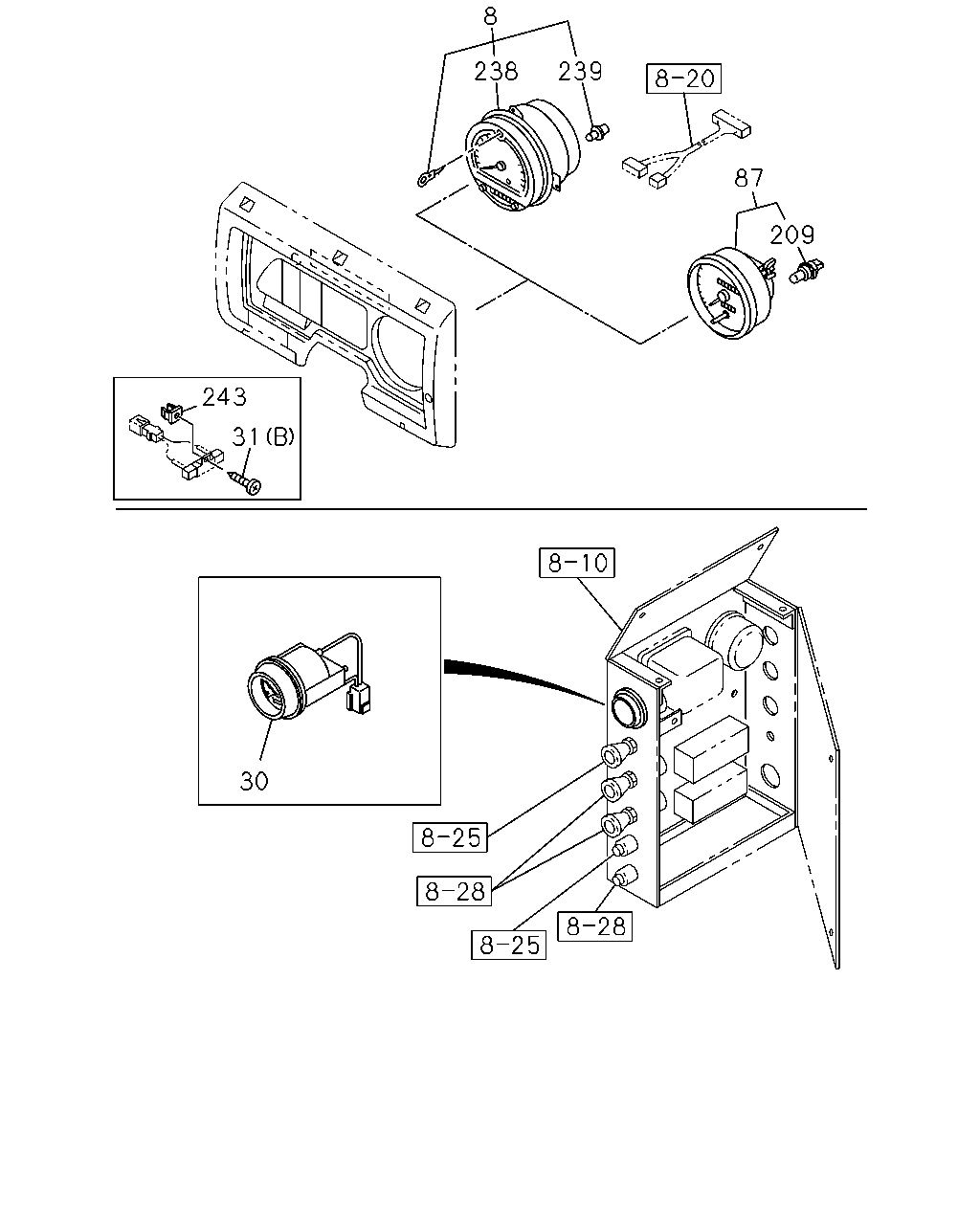

çizim 7147
8 238 239 87 209 243 31 30
BalonParca AdiParca NoAdetTipApplied Date A B
8 TACHOGRAPH; CLUSTER METER
ELECTRICAL TACHOGRAPH 15-6(PN3) 		1-83120-745-0 01 1 0012-0204 ● ●
8 TACHOGRAPH; CLUSTER METER
ELECTRICAL TACHOGRAPH 15-6(PN3) 		1-83120-934-0 01 1 0205- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H(WC8) 		1-83120-743-0 01 1 0012-0204 ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H(WC8) 		1-83120-932-0 01 1 0205- ● ●
30 GAUGE; OIL PRESSURE
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-83150-232-0 01 1 0012- ● ●
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		9-03920-620-0 08 1 0012-0604 ● ●
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		0-36230-620-0 08 1 0605- ● ●
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		9-07066-416-0 01 1 0012-0603 ● ●
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		0-71040-416-0 01 1 0604- ● ●
87 SPEEDOMETER
EXC. ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) 		1-83120-490-1 01 1 0012- ● ●
209 BULB; SPEEDOMETER
EXC. ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 0012- ● ●
238 PANEL; TACHOGRAPH
ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) 		1-83129-311-0 01 1 0012- ● ●
239 BULB; TACHOGRAPH
ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) 24V 1.8W 		1-82194-076-0 03 1 0012-0204 ● ●
239 BULB; TACHOGRAPH
ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) 24V 1.4W 		1-82194-101-0 03 1 0205- ● ●
243 GROMMET; SCREW
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> D=7.5X7.5 L=7 		8-94430-147-0 01 1 0012- ● ●

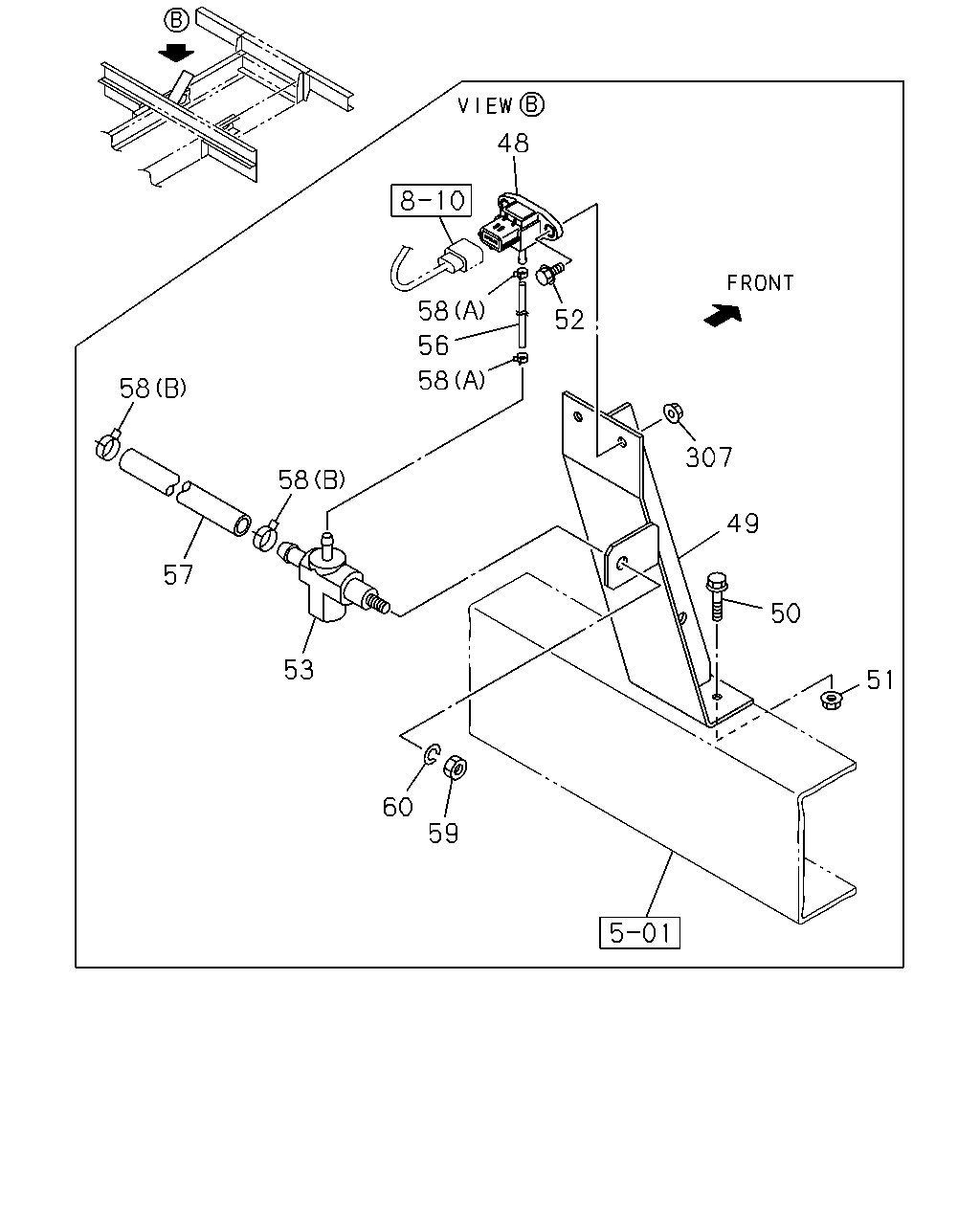

çizim 41667
48 58 52 56 58 58 307 58 49 57 50 53 51 60 59
BalonParca AdiParca NoAdetTipApplied Date A B
48 SENSOR; BOOST
6WA1 TC-C(55L) 		1-81531-011-0 01 1 0204- ●
49 BRACKET; SENSOR
6WA1 TC-C(55L) 		1-82698-190-0 01 1 0204- ●
50 BOLT; FIX
6WA1 TC-C(55L) M8X25 FLANGE 		0-28680-825-0 02 1 0204-0512 ●
50 BOLT; FIX
6WA1 TC-C(55L) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
51 NUT; FIX
6WA1 TC-C(55L) M8 FLANGE 		0-91150-108-0 02 1 0204-0602 ●
51 NUT; FIX
6WA1 TC-C(55L) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
52 BOLT; SENSOR
6WA1 TC-C(55L) M6X16 FLANGE 		0-28680-616-0 02 1 0204-0512 ●
52 BOLT; SENSOR
6WA1 TC-C(55L) M6X16 FLANGE 		0-28650-616-0 02 1 0601- ●
53 UNION; BOOST UNIT
6WA1 TC-C(55L) 		1-09661-017-0 01 1 0204- ●
56 HOSE; NIPPLE TO SENSOR
6WA1 TC-C(55L) L=50 SERVICED BY L=3000 		0-04740-300-0 01 1 0204- ●
57 HOSE; BOOST
6WA1 TC-C(55L) 		1-83159-020-0 01 1 0204- ●
58 CLIP; HOSE
6WA1 TC-C(55L) (B) ID=20.8 		8-94125-862-1 02 1 0204- ●
58 CLIP; HOSE
6WA1 TC-C(55L) (A) ID=7.8 		8-94246-958-0 02 1 0204- ●
59 NUT; UNION
6WA1 TC-C(55L) M10 		9-09111-410-0 01 1 0204-0512 ●
59 NUT; UNION
6WA1 TC-C(55L) M10 		0-91111-510-0 01 1 0601- ●
60 WASHER; LK,UNION
6WA1 TC-C(55L) ID=10.2 		9-09150-510-0 01 1 0204-0603 ●
60 WASHER; LK,UNION
6WA1 TC-C(55L) ID=10.2 		0-91510-510-0 01 1 0604- ●
307 NUT
6WA1 TC-C(55L) M6 FLANGE 		0-91150-106-0 02 1 0204-0602 ●
307 NUT
6WA1 TC-C(55L) M6 FLANGE 		0-91180-106-0 02 1 0603- ●

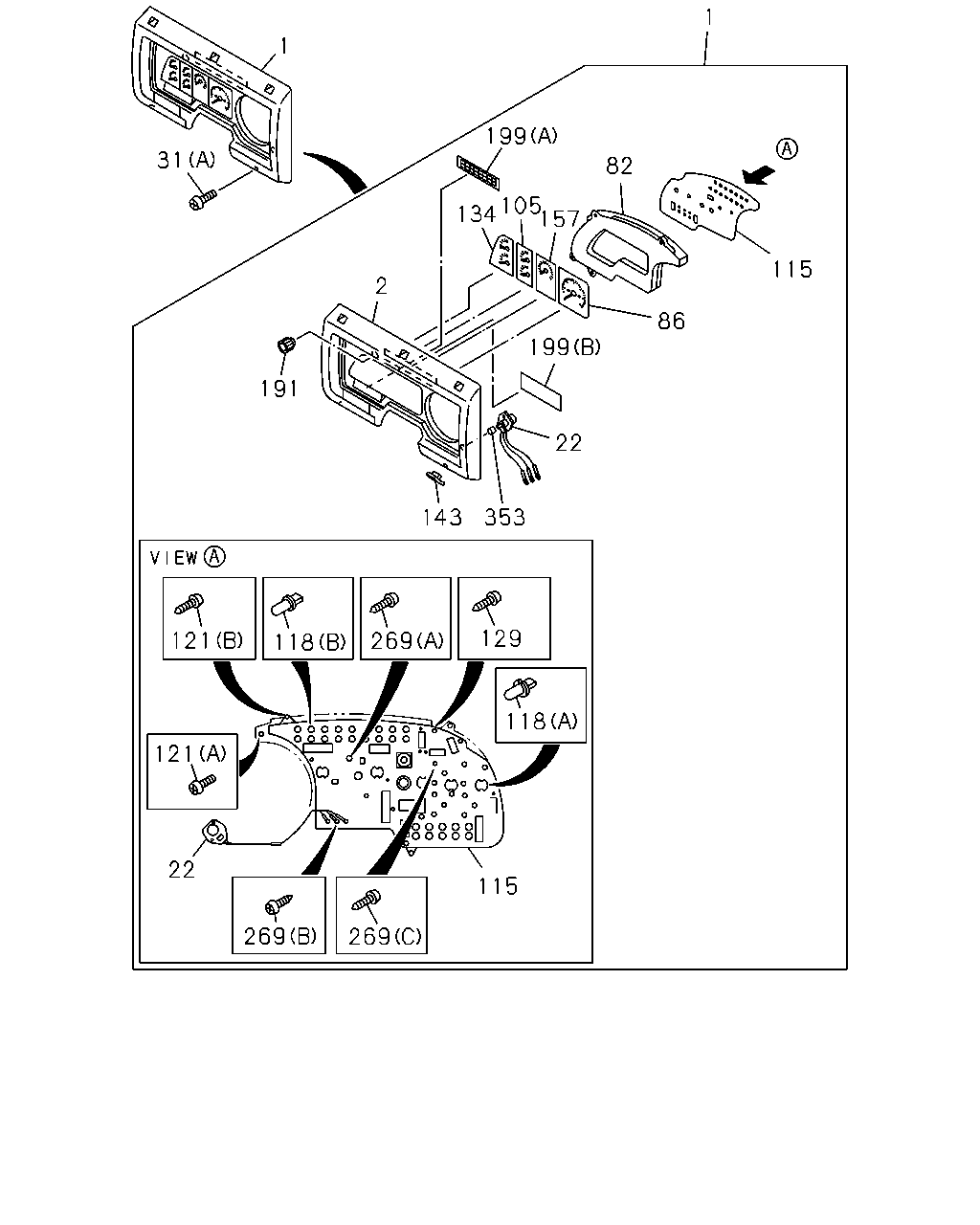

çizim 42164
1 1 199 31 82 105 134 157 115 2 86 199 191 22 143 353 129 121 269 118 118 121 22 115 269 269
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
EURO3 SPECIFICATION(NJX) 		1-83115-888-0 01 1 0107-0210 ●
1 METER COMPL; CLUSTER
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) 		1-83115-888-0 01 1 0211- ●
1 METER COMPL; CLUSTER
6SD1 TC-S(83L) 		1-83115-888-0 01 1 0211- ●
1 METER COMPL; CLUSTER 1-83115-802-0 01 1 0012-0106 ● ●
1 METER COMPL; CLUSTER
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) 		1-83115-802-0 01 1 0107- ● ●
1 METER COMPL; CLUSTER
6WA1 TC-C(55L) 		1-83115-803-0 01 1 0204- ●
2 PANEL; CLUSTER 1-83119-508-0 01 1 0012- ● ●
22 RHEOSTAT; CLUSTER METER 1-83119-470-0 01 1 0012- ● ●
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		9-03920-620-0 08 1 0012-0604 ● ●
31 SCREW; METER,INST PANEL
(A) M6X20 W/LK&PL WASHER 		0-36230-620-0 08 1 0605- ● ●
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		9-07066-416-0 01 1 0012-0603 ● ●
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M4X16 TAPPING 		0-71040-416-0 01 1 0604- ● ●
82 CASE ASM; CLUSTER METER 1-83119-509-0 01 1 0012- ● ●
86 TACHOMETER; CLUSTER METER
EURO3 SPECIFICATION(NJX) 		1-83120-924-0 01 1 0107-0210 ●
86 TACHOMETER; CLUSTER METER
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) 		1-83120-924-0 01 1 0211- ●
86 TACHOMETER; CLUSTER METER
6SD1 TC-S(83L) 		1-83120-924-0 01 1 0211- ●
86 TACHOMETER; CLUSTER METER 1-83120-704-0 01 1 0012-0106 ● ●
86 TACHOMETER; CLUSTER METER
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) 		1-83120-704-0 01 1 0107- ● ●
86 TACHOMETER; CLUSTER METER
6WA1 TC-C(55L) 		1-83120-693-0 01 1 0204- ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-275-0 01 1 0012- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-437-0 01 1 0012- ● ●
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 05 1 0012- ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 18 1 0012- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING 		1-83119-442-0 04 1 0012- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-515-0 04 1 0012- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 0012- ● ●
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-276-0 01 1 0012- ● ●
143 COVER; CLUSTER METER 1-83119-516-0 05 1 0012- ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-241-0 01 1 0012- ● ●
191 KNOB; BULB CHECK 1-83119-431-0 01 1 0012- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 0012- ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-794-0 01 1 0012- ● ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-439-0 04 1 0012- ● ●
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-440-0 03 1 0012- ● ●
269 SCREW; METER CLUSTER
(C) M3 TAPPING 		1-83119-441-0 11 1 0012- ● ●
353 KNOB; RHEOSTAT 1-83119-471-0 01 1 0012- ● ●
çizim 43580
393 262
BalonParca AdiParca NoAdetTipApplied Date A B
262 METER; OIL THERMO
A/T<X9D> 		1-83160-094-0 01 1 0204- ●
393 CONNECTOR; THERMO METER
6SD1 TC(32L) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) BRAKE SYSTEM RETARDER<RE2> 		1-82699-838-0 01 1 0204- ●
