Sayfa 8-26 - Isuzu EPC

8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#71529) — 23 parça

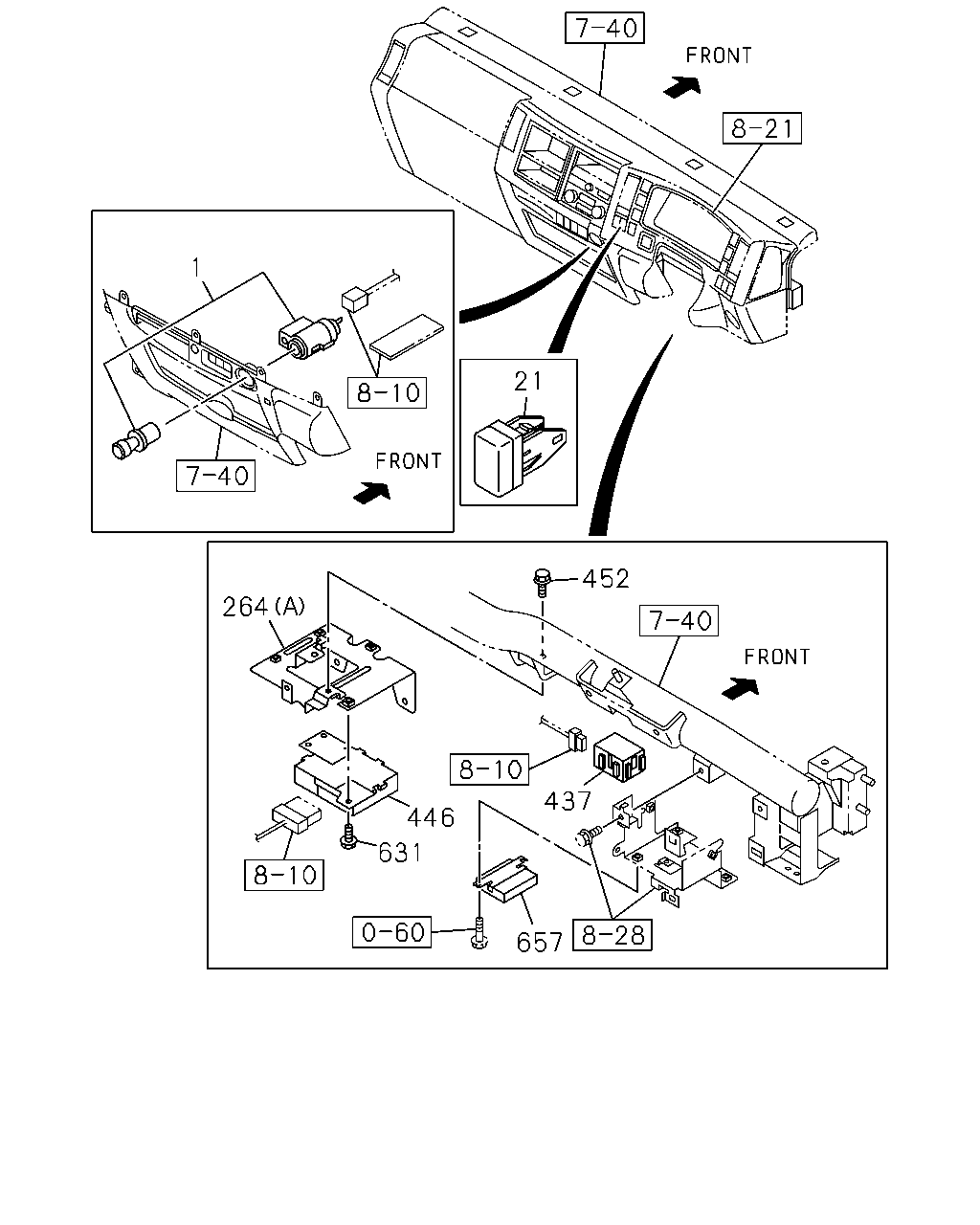

21 1 452 437 657 631 264 446

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LIGHTER; CIGAR	8-98142-962-0	01	1	1103-
21	COVER; HOLE	8-98025-954-1	01	1	1103-
264	BRACKET; CONT UNIT (B)	8-97609-985-9	01	1	1103-
264	BRACKET; CONT UNIT H.S.A SYSTEM<6EP> (A)	8-98064-901-0	01	1	1103-
437	CONVERTER; DC HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO	8-97359-129-0	01	1	1103-
446	CONTROL UNIT; HSA H.S.A SYSTEM<6EP>	8-98136-318-1	01	1	1103-
452	BOLT; BRKT H.S.A SYSTEM<6EP> M6X16 FLANGE	0-28650-616-0	02	1	1103-
631	BOLT; CONT UNIT H.S.A SYSTEM<6EP> M6X16 FLANGE	0-28650-616-0	02	1	1103-
657	CONTROL UNIT; MIMAMORI	8-98013-144-8	01	1	1103-1401
657	CONTROL UNIT; MIMAMORI	8-98260-912-0	01	1	1402-

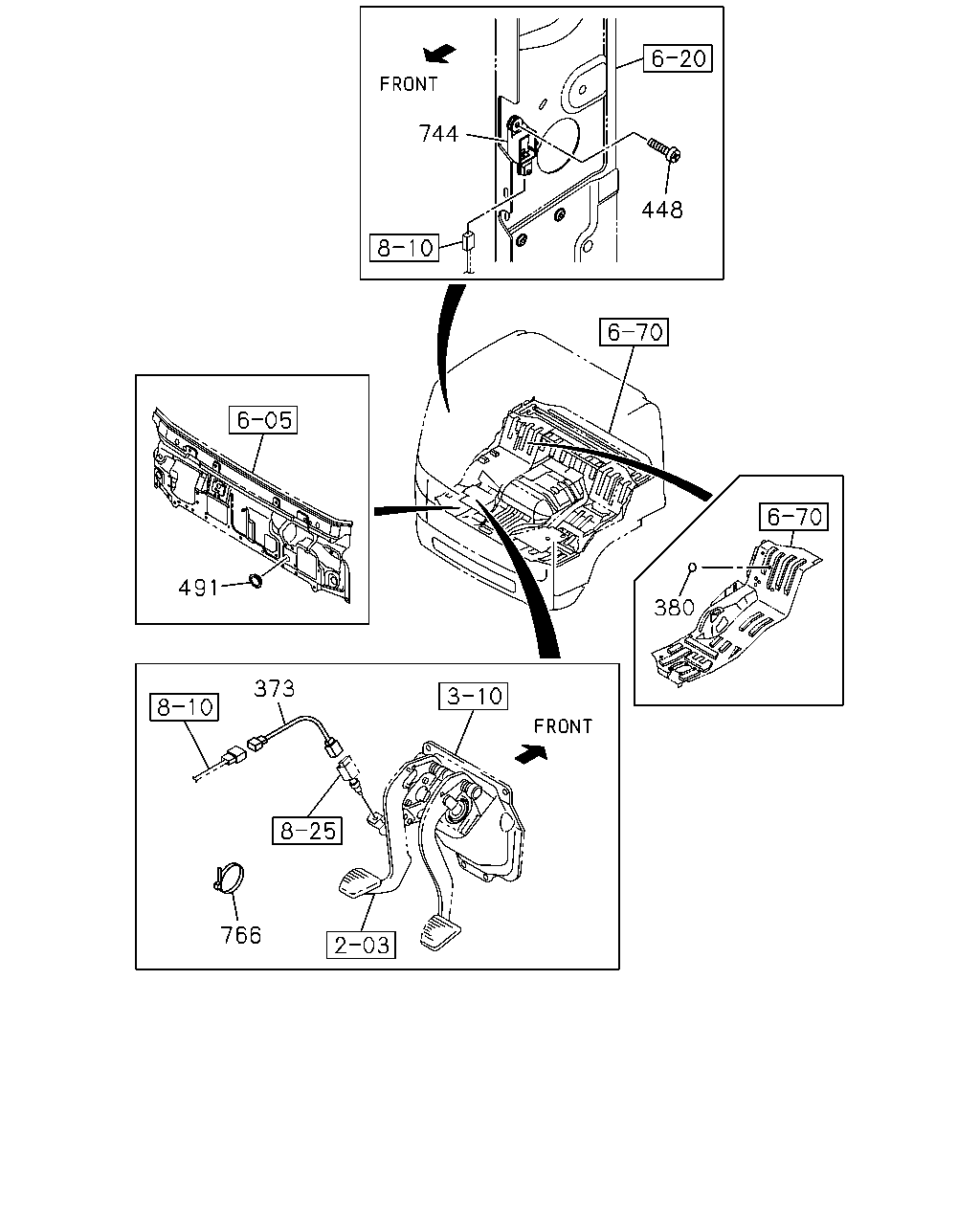

744 448 491 380 373 766

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
373	HARNESS; CLU SWITCH	8-98059-419-2	01	1	1103-
380	SEAL OD=25 BLACK	1-76798-019-0	01	1	1103-
448	BOLT; SENSOR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER	8-97105-796-1	02	1	1103-
491	PLUG; HOLE,CONT UNIT OD=60	8-98054-651-0	01	1	1103-
744	SENSOR; AIR BAG AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-97386-841-2	01	1	1103-
766	BAND; CLIP EXC. H.S.A SYSTEM<6EP> L=140	5-09707-031-1	01	1	1103-

68 69 264 507

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
68	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	01	1	1103-
69	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	1103-
264	BRACKET; CONT UNIT (B)	8-97609-985-9	01	1	1103-
264	BRACKET; CONT UNIT H.S.A SYSTEM<6EP> (A)	8-98064-901-0	01	1	1103-
507	CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82690-666-0	01	1	1103-

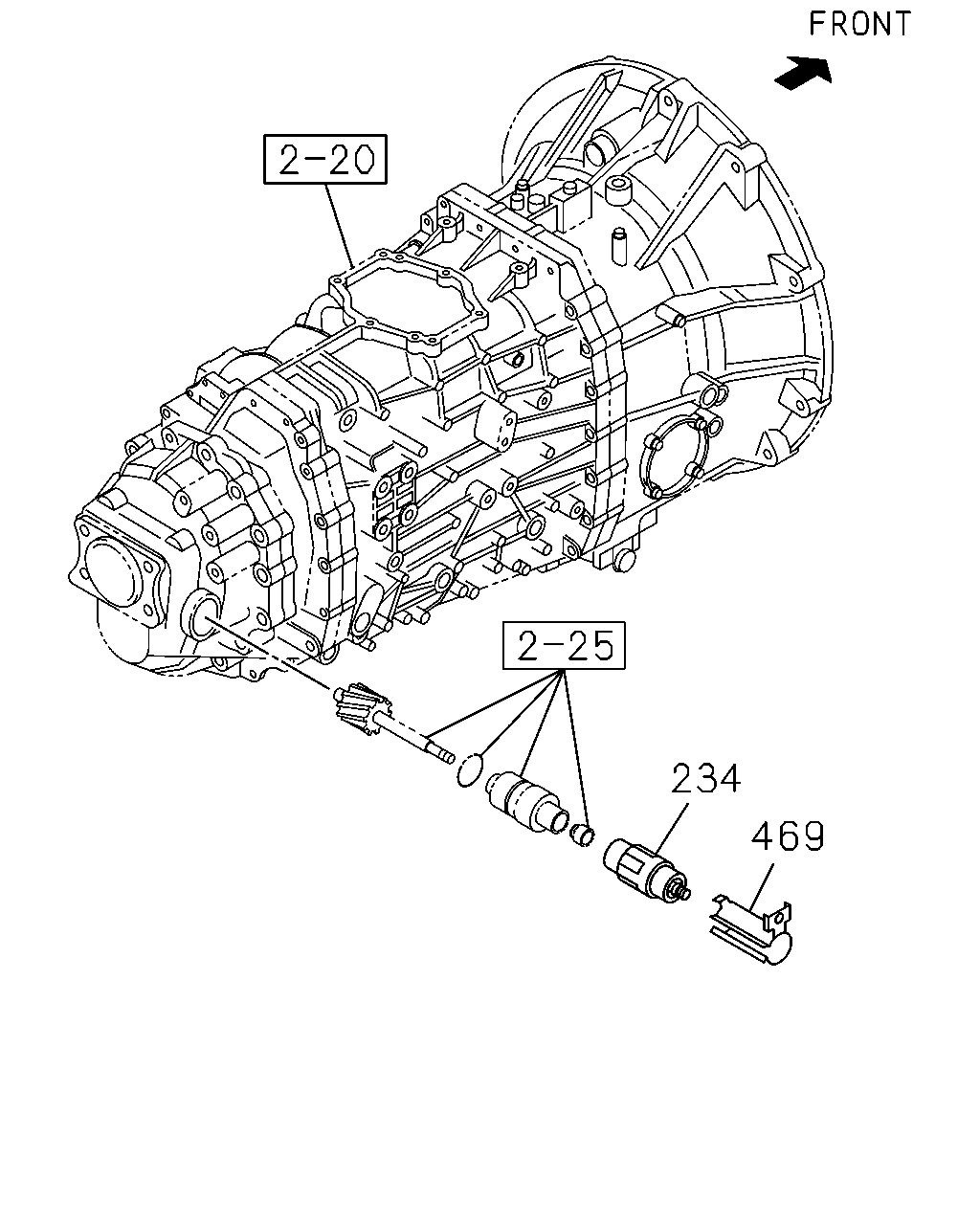

234 469

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	234	SENSOR; VEHICLE SPD 25 PULSE ALUMINUM	8-97328-058-1	01	1	1103-
	469	PROTECTOR; SPEED SENSOR	8-98119-901-0	01	1	1103-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
