8-15 — FIXING PARTS; WIRING HARNESS (#71526) — 162 parça

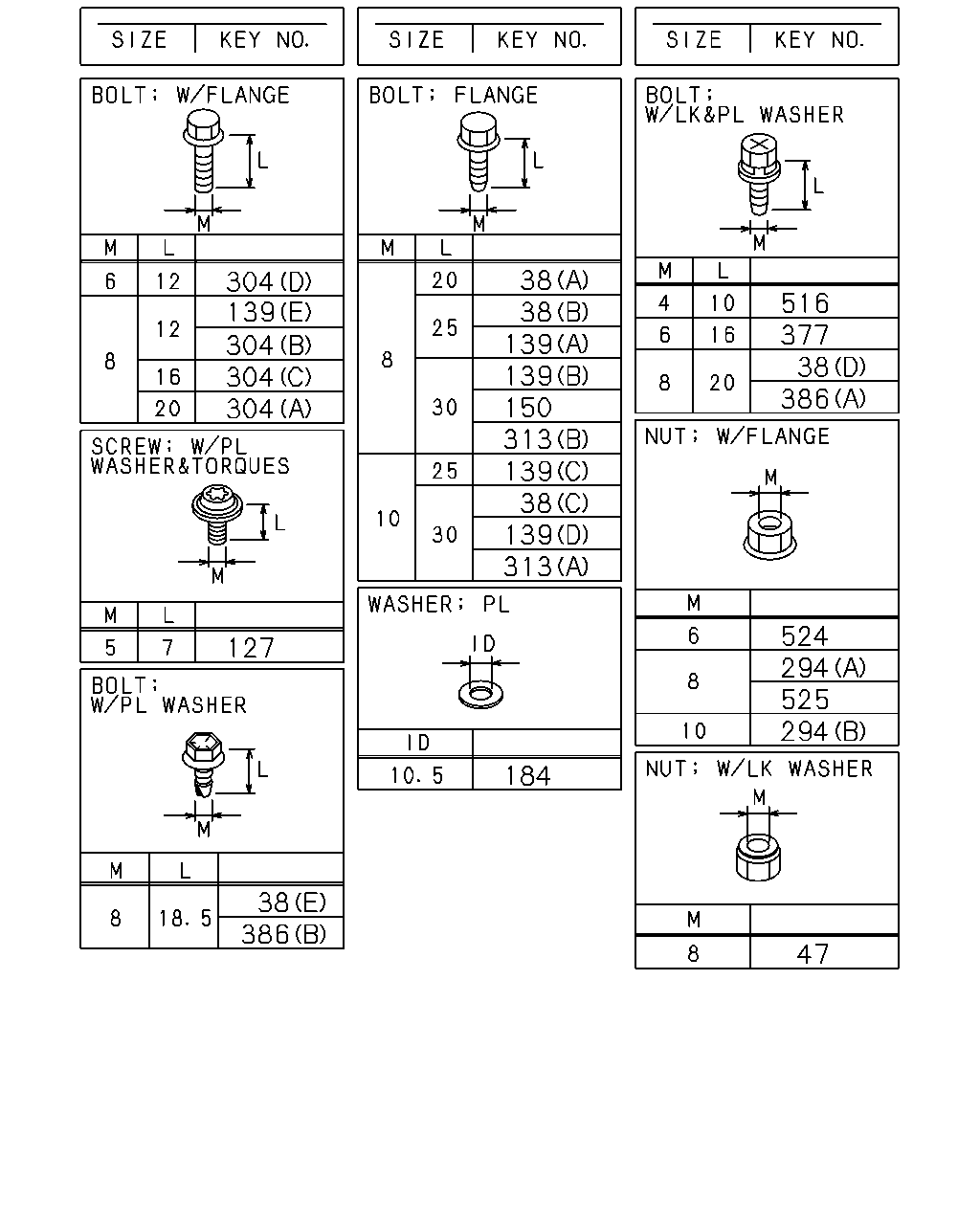

çizim 136625
304 304 139 304 304 127 38 386 38 139 38 139 313 150 139 139 38 313 184 516 38 377 386 524 525 294 294 47
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1103-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1103-
38 BOLT; CLIP,HARNESS
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1103-
38 BOLT; CLIP,HARNESS
(D) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1103-1201
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1103-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1103-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1103-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1103-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1103-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1103-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1103-
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 01 1 1103-
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 01 1 1103-
150 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1103-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1103-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1103-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1103-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 1103-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1103-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1103-
304 BOLT; ENG HARNESS CLIP
(D) M6X12 FLANGE 		0-28050-612-0 01 1 1103-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1103-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1103-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1103-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1103-
313 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1103-
313 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1103-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1103-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1103-1202
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1103-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1103-
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 1103-
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 1103-
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 1103-

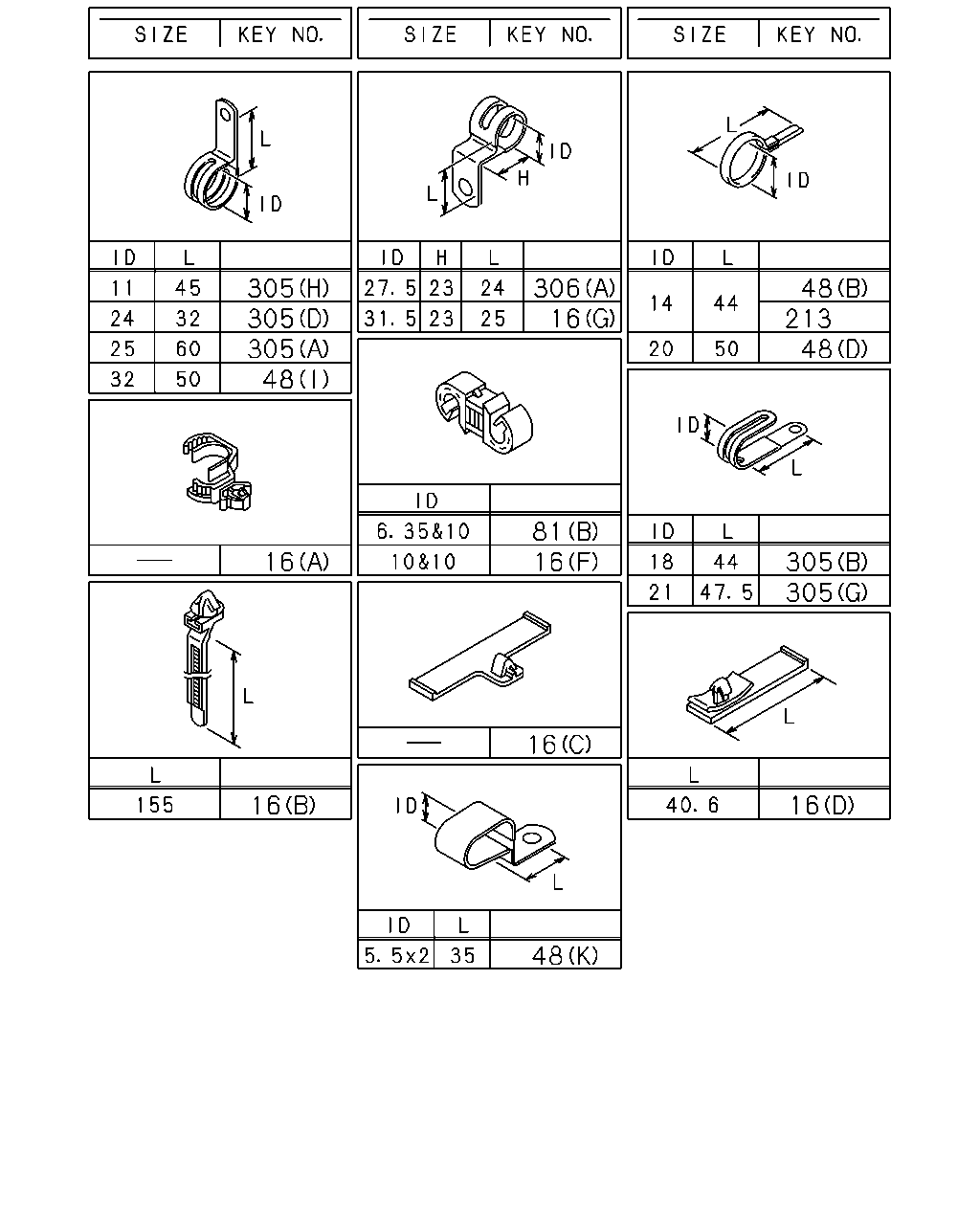

çizim 136792
305 305 305 48 306 16 48 213 48 81 16 305 305 16 16 16 16 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1103-
16 CLIP; HARNESS
(F) ID=10 & 10 		1-09709-277-1 04 1 1103-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1103-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1103-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1103-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1103-
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6 		1-09709-178-0 01 1 1103-
48 CLIP; FRAME HARNESS
(K) ID=5.5X2 L=35 		1-09700-974-0 01 1 1103-
48 CLIP; FRAME HARNESS
(I) ID=32 L=50 		1-09701-055-1 01 1 1103-
48 CLIP; FRAME HARNESS
(J) L=600 		1-09707-107-1 01 1 1103-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1103-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1103-
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1103-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1103-
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 19 1 1103-
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=22 		1-09709-292-0 01 1 1103-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1103-1201
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 1202-
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1103-
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1103-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1103-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1103-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1103-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1103-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1103-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1103-
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 1103-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 1103-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1103-
305 CLIP; ENG HARNESS
(K) L=140 		8-97122-360-0 01 1 1103-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1103-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1103-
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1103-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1103-

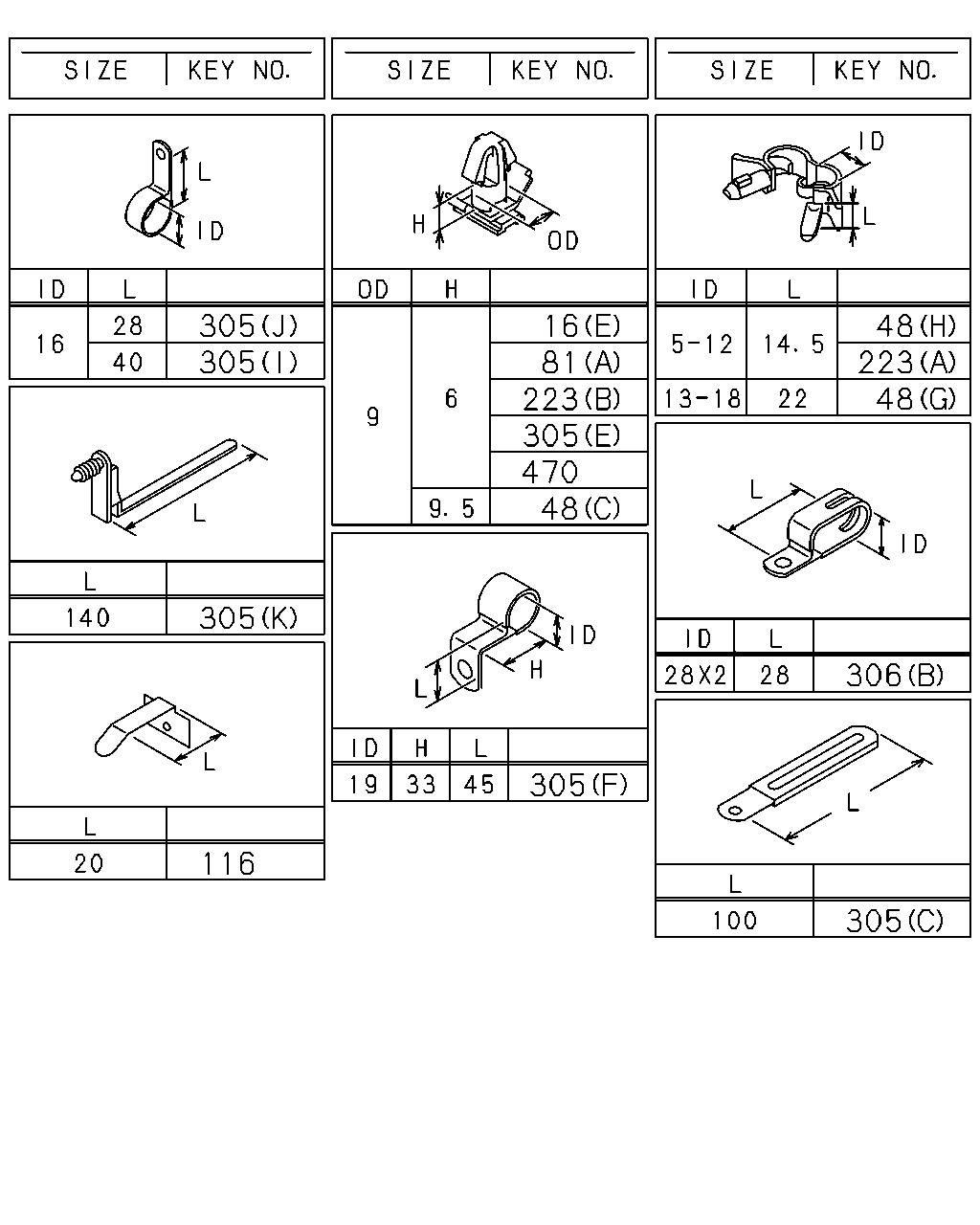

çizim 136795
305 305 16 81 223 305 470 48 48 223 48 305 306 305 116 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(G) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1103-
16 CLIP; HARNESS
(F) ID=10 & 10 		1-09709-277-1 04 1 1103-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1103-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1103-
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1103-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1103-
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6 		1-09709-178-0 01 1 1103-
48 CLIP; FRAME HARNESS
(K) ID=5.5X2 L=35 		1-09700-974-0 01 1 1103-
48 CLIP; FRAME HARNESS
(I) ID=32 L=50 		1-09701-055-1 01 1 1103-
48 CLIP; FRAME HARNESS
(J) L=600 		1-09707-107-1 01 1 1103-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1103-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1103-
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1103-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1103-
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 19 1 1103-
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=22 		1-09709-292-0 01 1 1103-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1103-1201
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 1202-
81 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1103-
81 CLIP; HARNESS
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1103-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1103-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 03 1 1103-
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 04 1 1103-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1103-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1103-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1103-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1103-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1103-
305 CLIP; ENG HARNESS
(E) OD=9 H=6 		1-09709-178-0 01 1 1103-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 1103-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1103-
305 CLIP; ENG HARNESS
(K) L=140 		8-97122-360-0 01 1 1103-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1103-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1103-
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1103-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1103-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1103-

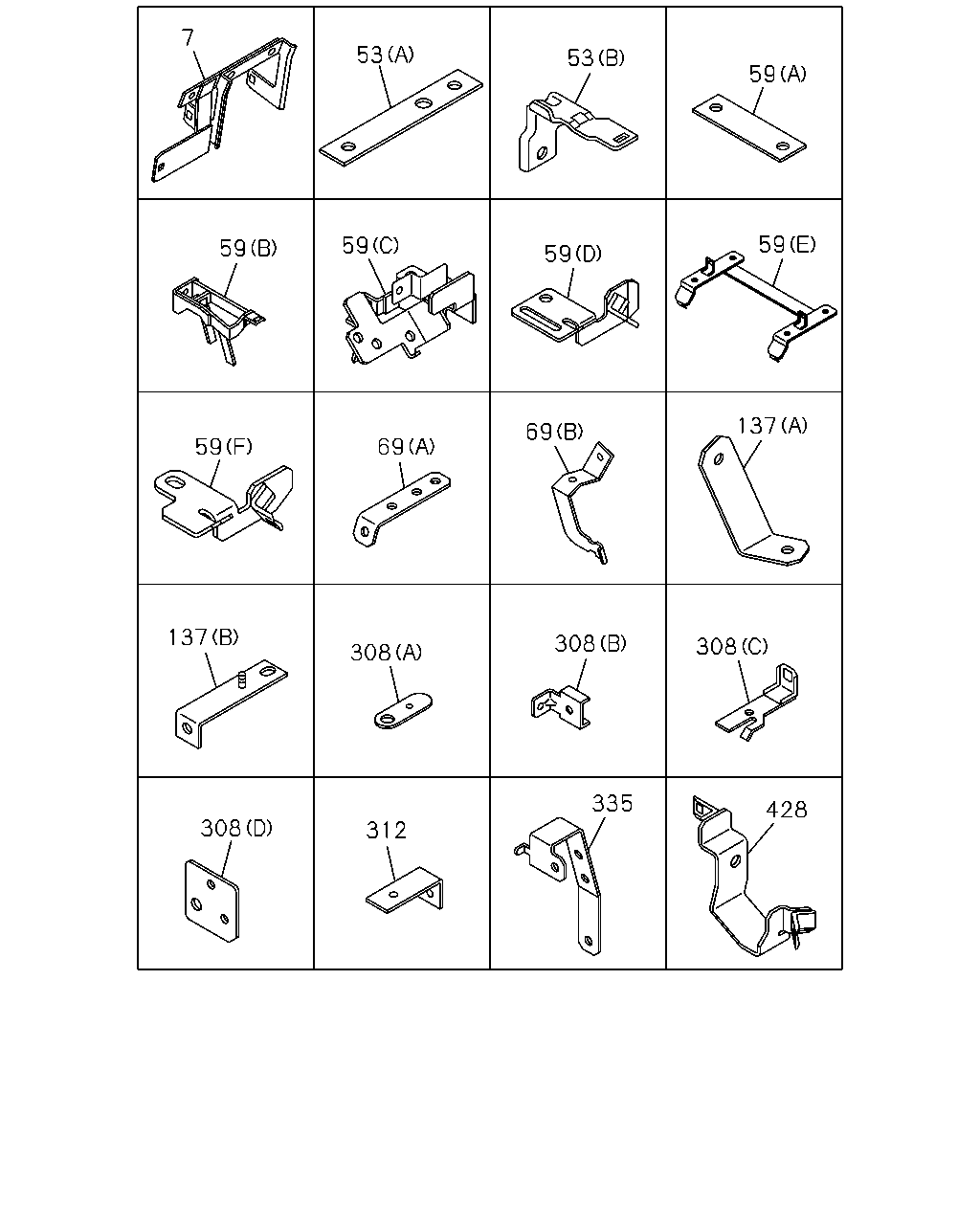

çizim 137117
7 53 53 59 59 59 59 59 59 69 69 137 137 308 308 308 308 312 335 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1103-
53 BRACKET; HARNESS
(A) L=170 		1-47479-380-0 01 1 1103-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1103-
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 1103-
59 BRACKET; FRAME HARNESS
(E) 		8-97619-533-0 01 1 1103-
59 BRACKET; FRAME HARNESS
(A) L=85 		8-98044-743-0 01 1 1103-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1103-1502
59 BRACKET; FRAME HARNESS
(F) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(C) 		8-97619-534-0 01 1 1103-
69 BRACKET; CLIP
(A) 		1-82698-167-0 01 1 1103-
69 BRACKET; CLIP
(B) 		8-97616-357-3 01 1 1103-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1103-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1103-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1103-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1103-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1103-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1103-
312 BRACKET; CLIP HARNESS
L=55 		1-47475-304-0 01 1 1103-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1103-
428 BRACKET 8-98090-952-0 01 1 1103-

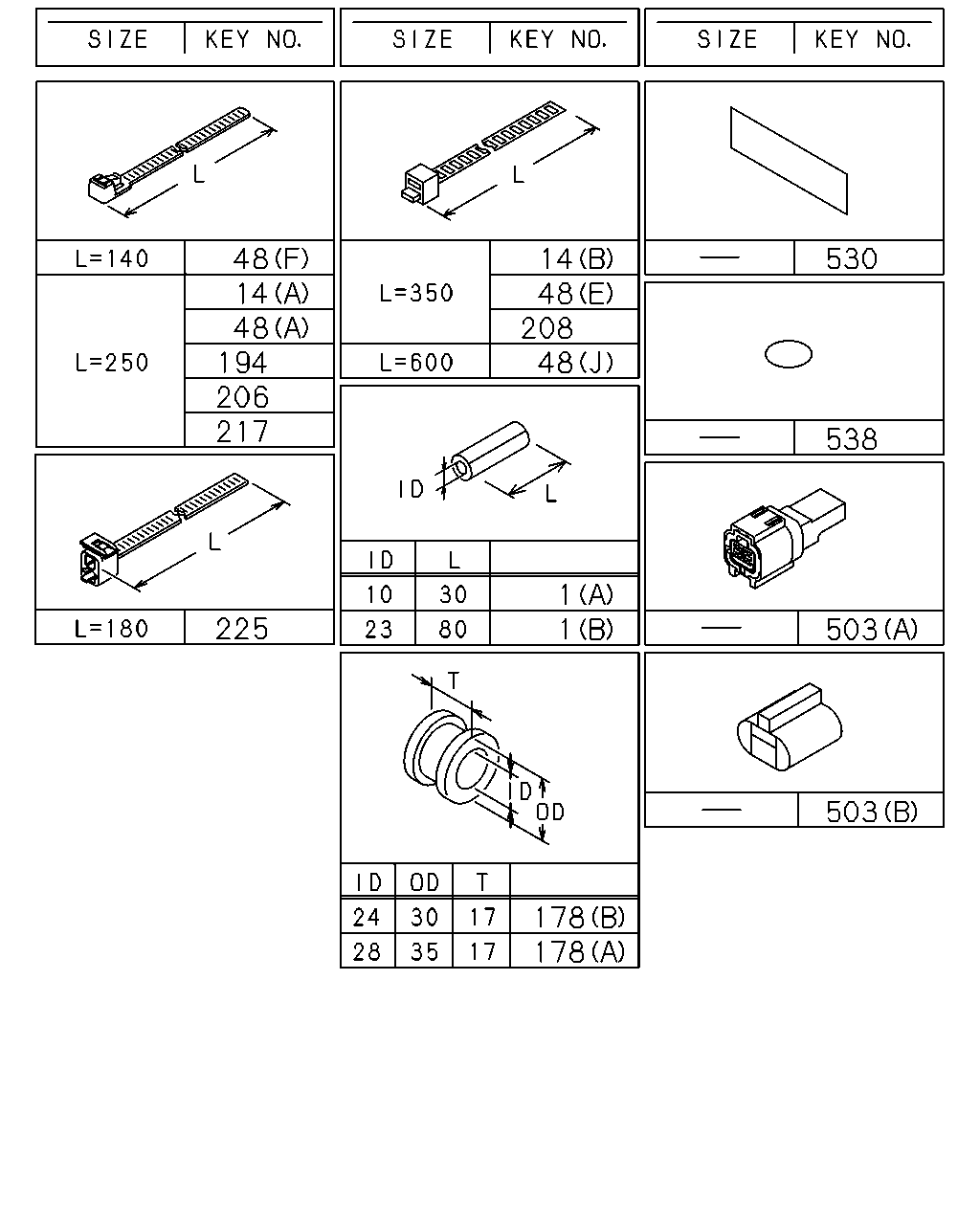

çizim 137226
48 14 48 194 206 217 14 48 208 48 530 538 1 1 225 503 503 178 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1103-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1103-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1103-
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 13 1 1103-1205
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 13 1 1206-
48 CLIP; FRAME HARNESS
(K) ID=5.5X2 L=35 		1-09700-974-0 01 1 1103-
48 CLIP; FRAME HARNESS
(I) ID=32 L=50 		1-09701-055-1 01 1 1103-
48 CLIP; FRAME HARNESS
(J) L=600 		1-09707-107-1 01 1 1103-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1103-
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1103-
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 1103-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1103-
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 19 1 1103-
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=22 		1-09709-292-0 01 1 1103-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1103-1201
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 1202-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1103-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1103-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1103-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1103-
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 1103-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 03 1 1103-
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 1103-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1103-
225 CLIP; AIR TANK HARNESS
L=180 		1-09707-162-1 01 1 1103-
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 1103-
503 CONNECTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-82690-668-0 01 1 1103-
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1103-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1103-1305
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1103-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
