7-50 — FRONT SEAT (#71519) — 242 parça

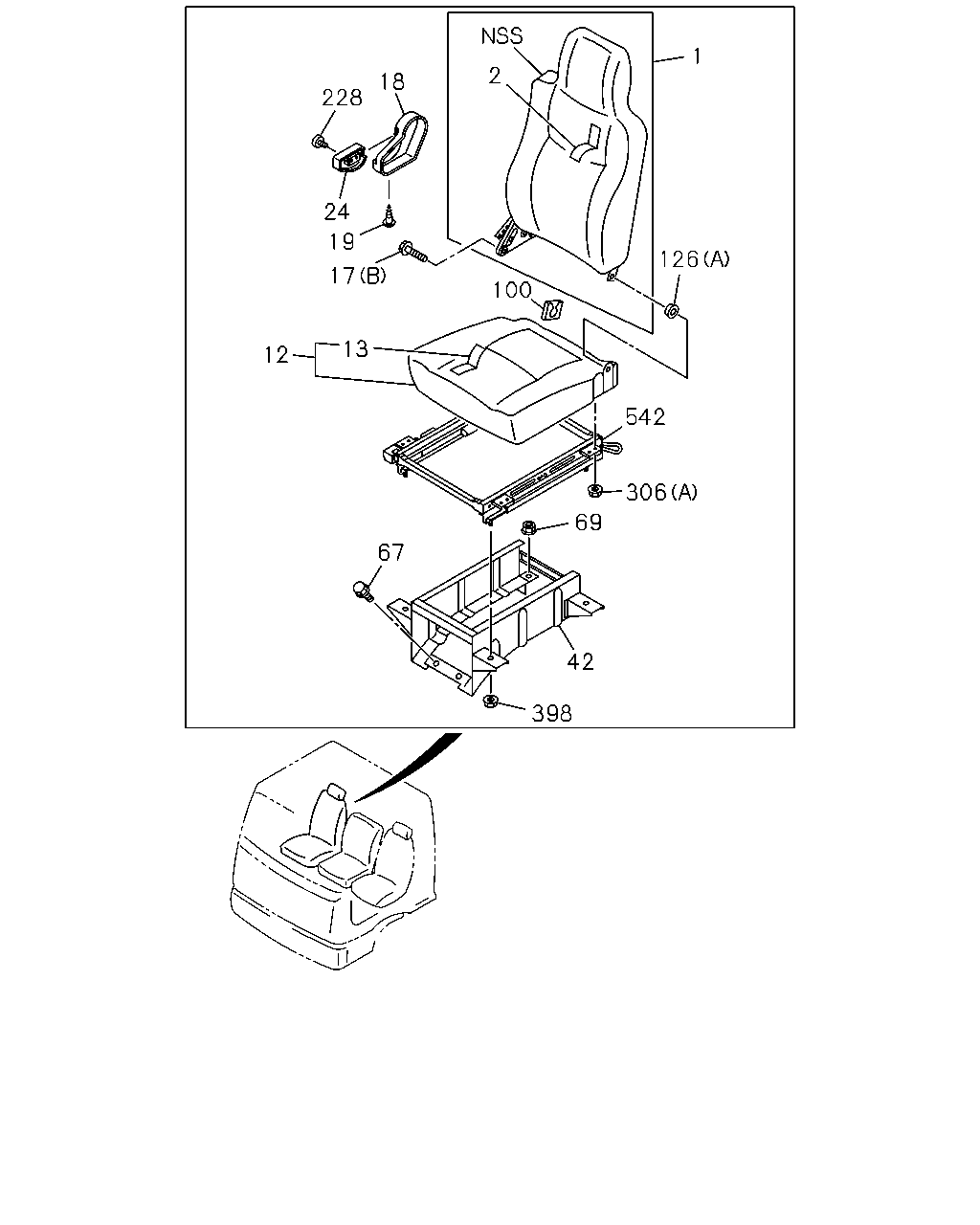

çizim 134068
1 2 18 228 24 19 126 17 100 13 12 542 306 69 67 42 398
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-407-1 01 1 1103-
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1103-
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1103-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-412-0 01 1 1103-
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1103-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1103-
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1103-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-397-2 01 1 1103-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97414-123-2 01 1 1103-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-954-2 01 1 1103-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1103-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-401-2 01 1 1103-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1103-
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 04 1 1103-1203
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1204-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 04 1 1103-1203
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1204-
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1103-
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1103-
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1103-
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1103-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1103-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1103-
100 COVER; HINGE 8-98203-070-0 01 1 1110-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 1105-1109
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1103-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1103-1104
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1105-1109
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1110-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1103-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1103-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1103-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1103-
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 1103-
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 1103-1502
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1503-

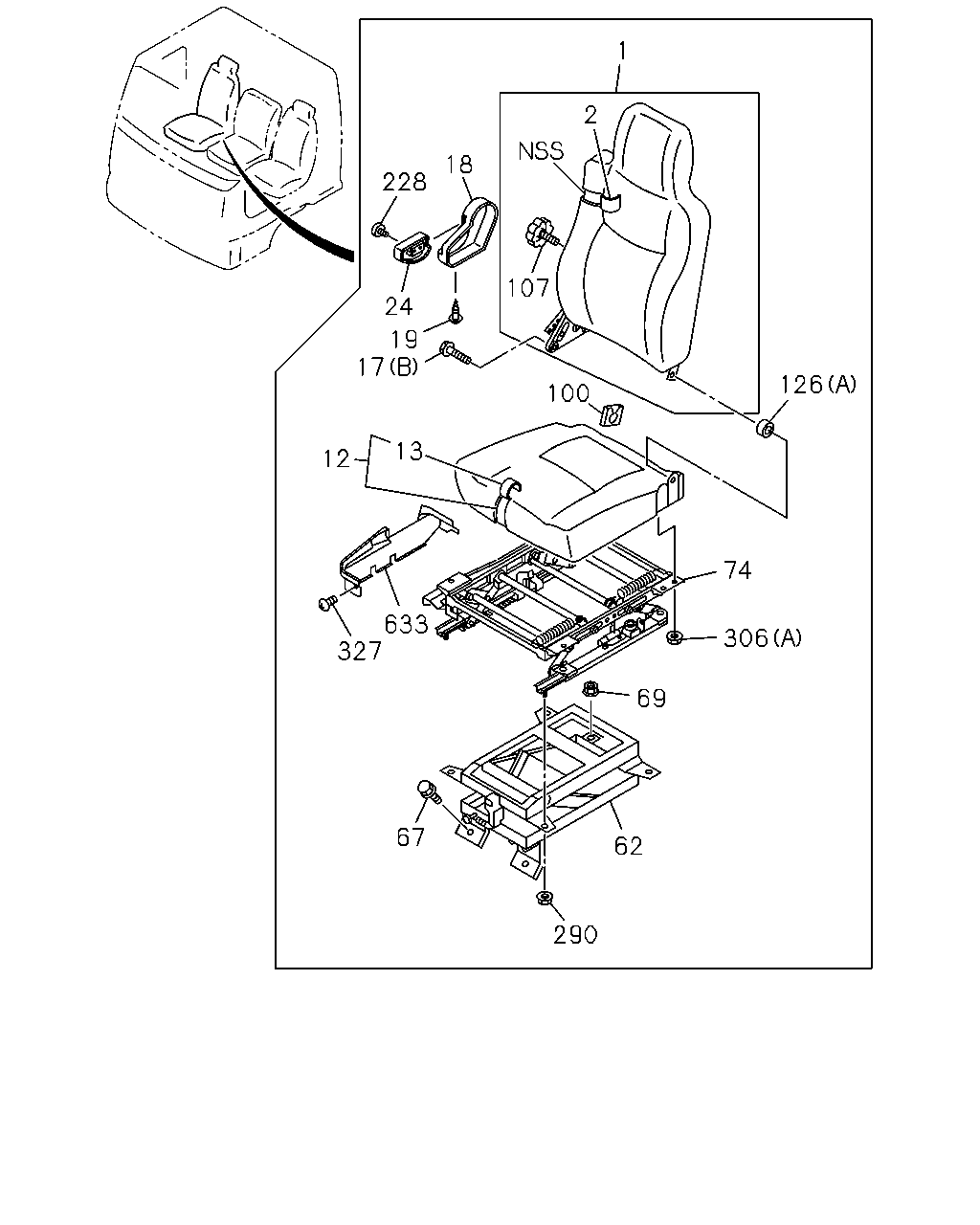

çizim 135055
1 2 18 228 107 24 19 17 126 100 13 12 74 633 327 306 69 67 62 290
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-407-1 01 1 1103-
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1103-
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97409-955-5 01 1 1103-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-412-0 01 1 1103-
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1103-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-910-2 01 1 1103-
12 CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1103-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-397-2 01 1 1103-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97414-123-2 01 1 1103-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97409-954-2 01 1 1103-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1103-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97421-401-2 01 1 1103-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97411-909-1 01 1 1103-
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 04 1 1103-1203
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1204-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 04 1 1103-1203
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1204-
18 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1103-
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1103-
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1103-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-183-8 01 1 1103-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-448-0 01 1 1404-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1103-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98003-678-0 01 1 1103-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-640-0 01 1 1503-
100 COVER; HINGE 8-98203-070-0 01 1 1110-
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98063-174-0 01 1 1103-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 1105-1109
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1103-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1103-1104
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1105-1109
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1110-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1103-
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1103-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1103-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1103-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1103-
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-273-0 01 1 1102-
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-956-0 01 1 1103-

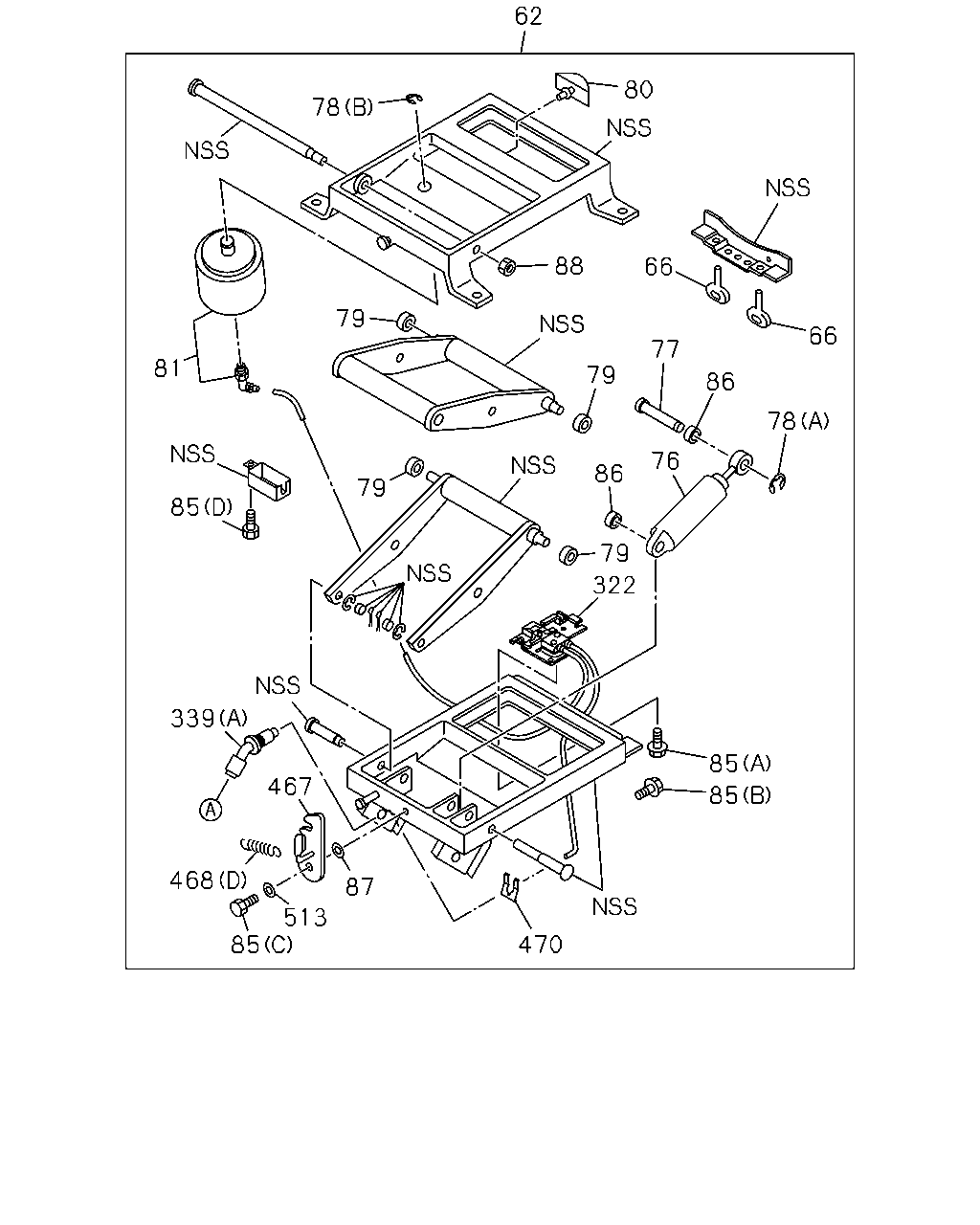

çizim 135085
62 80 66 77 86 66 78 76 79 86 79 322 85 85 470 85 468 513 87 467 339 85 81 79 78 88 79
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-183-8 01 1 1103-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-448-0 01 1 1404-
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-145-0 02 1 1103-
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-139-0 01 1 1103-
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-138-2 01 1 1103-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 1103-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 1103-
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-159-0 04 1 1103-1403
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-489-0 04 1 1404-
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-123-0 01 1 1103-
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-151-2 01 1 1103-1312
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98242-816-0 01 1 1401-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-09980-577-1 01 1 1103-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12 		1-75538-208-1 02 1 1103-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 1103-1312
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1103-
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 		0-91510-508-0 01 1 1103-
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 		1-75537-273-1 01 1 1103-
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-186-3 01 1 1103-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1103-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1103-
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-134-0 01 1 1103-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1103-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1103-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1103-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1103-
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-137-0 01 1 1103-
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-133-0 01 1 1103-

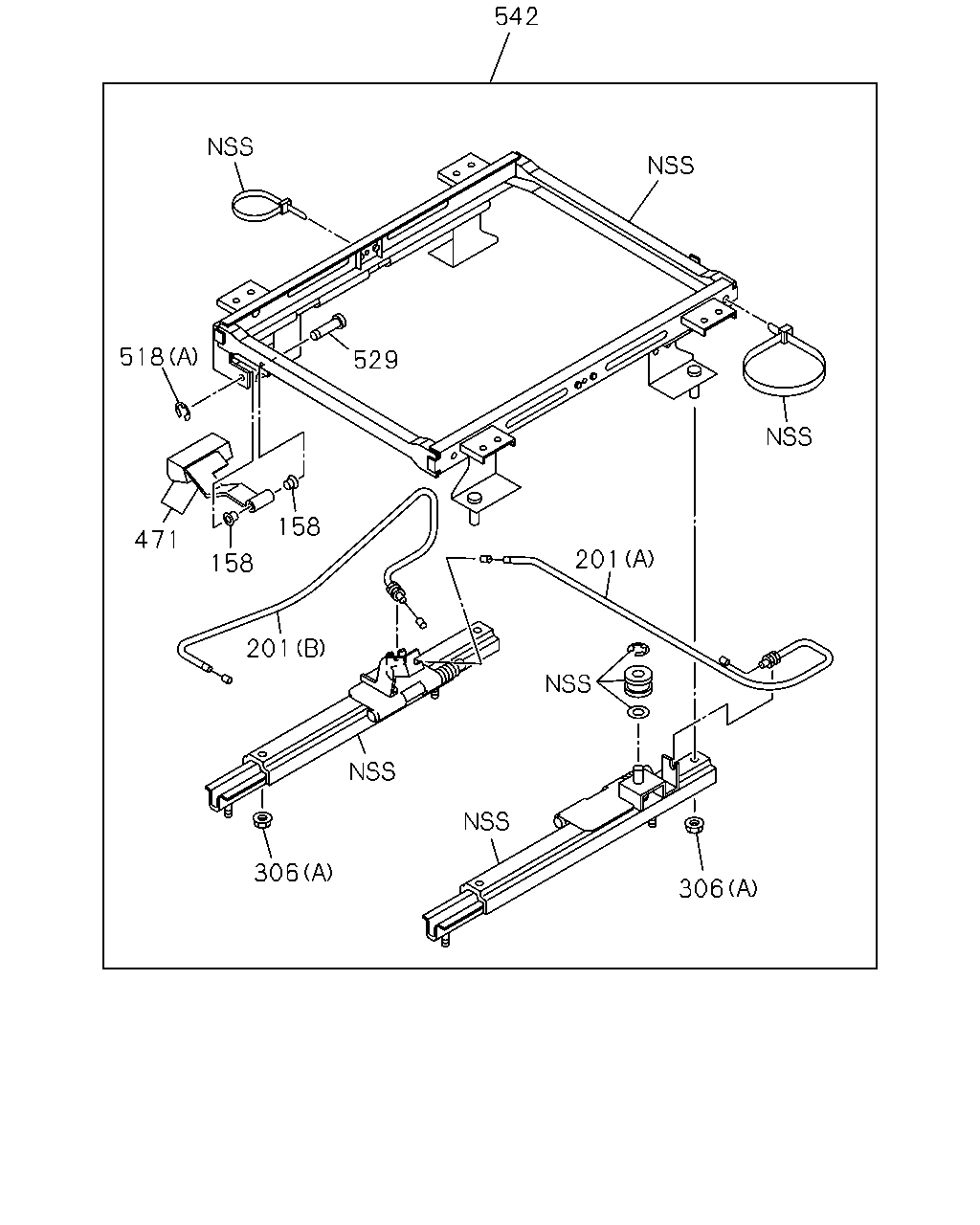

çizim 135188
542 518 529 158 471 201 158 201 306 306
BalonParca AdiParca NoAdetTipApplied Date
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1103-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1103-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1103-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1103-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1103-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1103-
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1103-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1103-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1103-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1103-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1103-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1103-
529 PIN; LINK 1-75518-262-0 01 1 1103-
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 1103-1502
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1503-

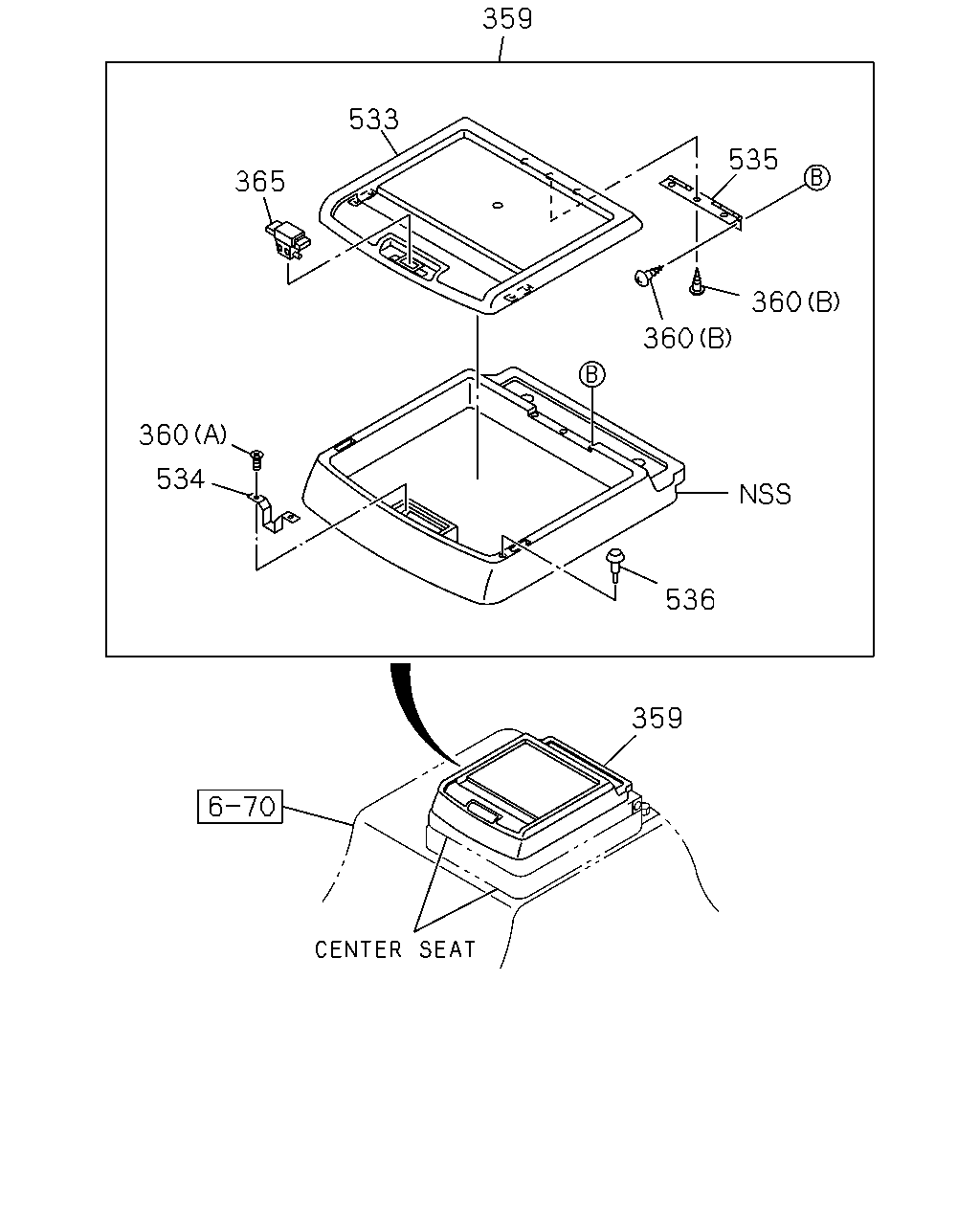

çizim 135221
359 533 535 365 360 360 360 534 536 359
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1103-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 1105-1109
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1103-1104
360 SCREW; PARCEL
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1105-1109
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1110-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1103-1104
360 SCREW; PARCEL
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1110-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1103-1110
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72538-312-0 01 1 1105-1109
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1103-1104
365 LOCK ASM; SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1105-1109
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1110-
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1103-
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72538-190-0 01 1 1105-1109
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1103-1104
534 STRIKER; PARCEL BOX
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1105-1109
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1110-
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72447-391-1 01 1 1105-1109
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1103-1104
535 HINGE; PARCEL BOX
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1105-1109
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1110-
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72538-187-0 02 1 1105-1109
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1103-1104
536 RUBBER; CUSHION
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1105-1109
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1110-

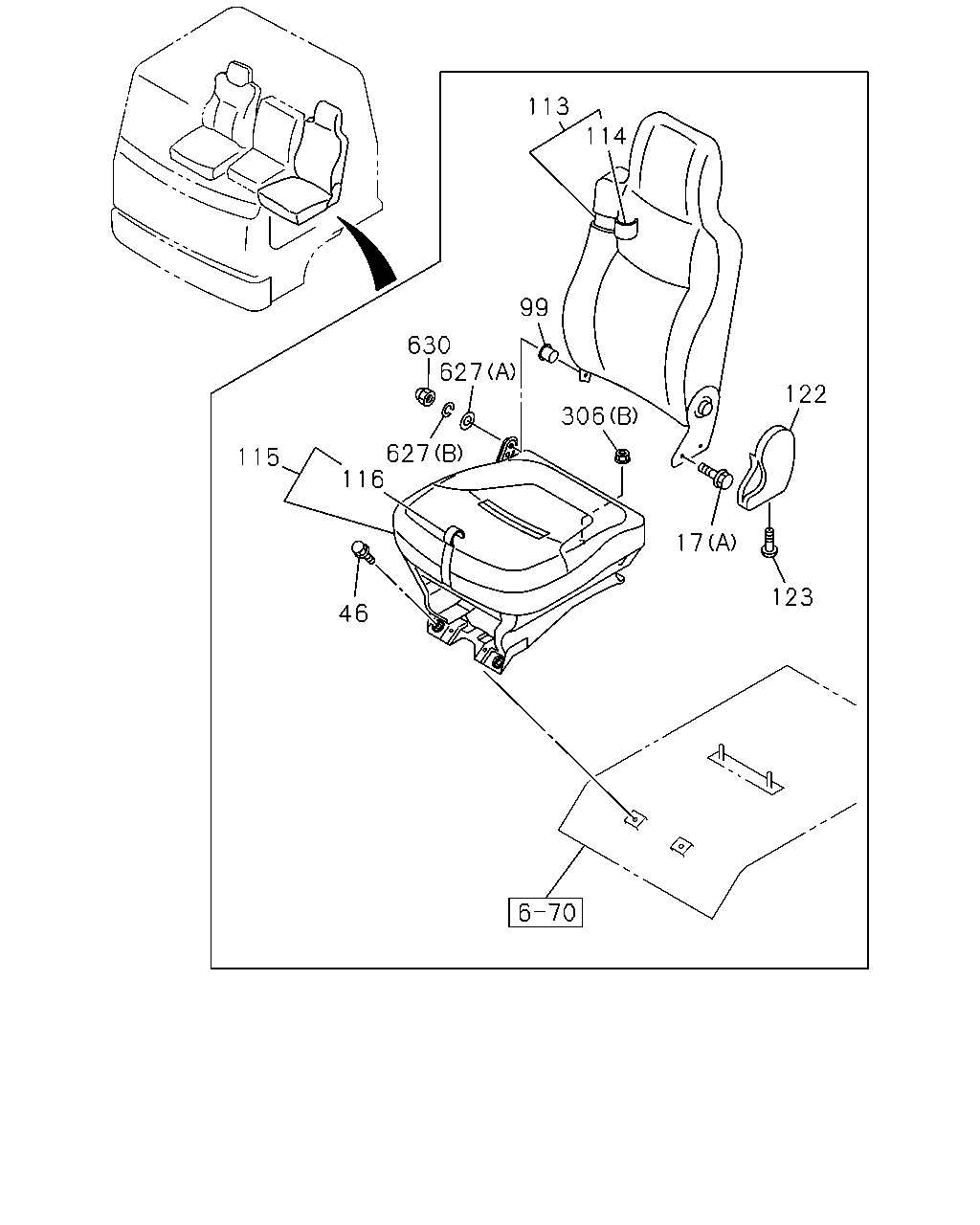

çizim 135238
113 114 99 630 627 122 306 627 116 115 17 123 46
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 04 1 1103-1203
17 BOLT; RECLINING
(B) M10X20 		8-98062-661-0 02 1 1204-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 04 1 1103-1203
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1204-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1103-
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1103-
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-422-0 01 1 1103-
113 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-966-1 01 1 1103-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-424-0 01 1 1103-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97411-916-0 01 1 1103-
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-418-1 01 1 1103-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-965-1 01 1 1103-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-420-0 01 1 1103-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97411-915-0 01 1 1103-
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1103-
123 SCREW; COVER,RECLINING 8-98070-026-0 01 1 1103-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1103-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1103-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1103-
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1103-
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1103-
630 NUT; CAP
M8 		8-98063-225-0 01 1 1103-

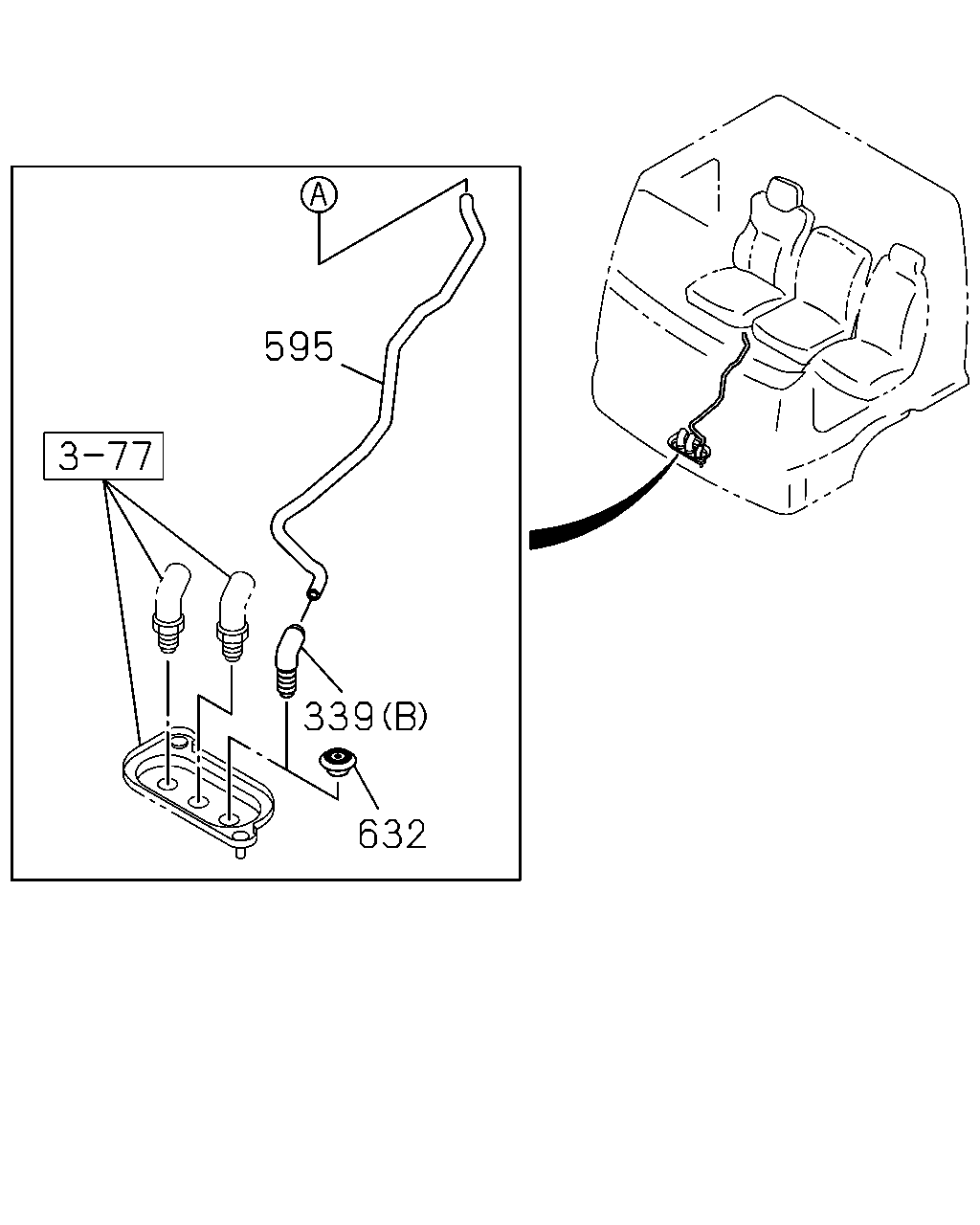

çizim 135261
595 339 632
BalonParca AdiParca NoAdetTipApplied Date
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1103-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1103-
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> 		8-98067-762-0 01 1 1103-
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 1103-

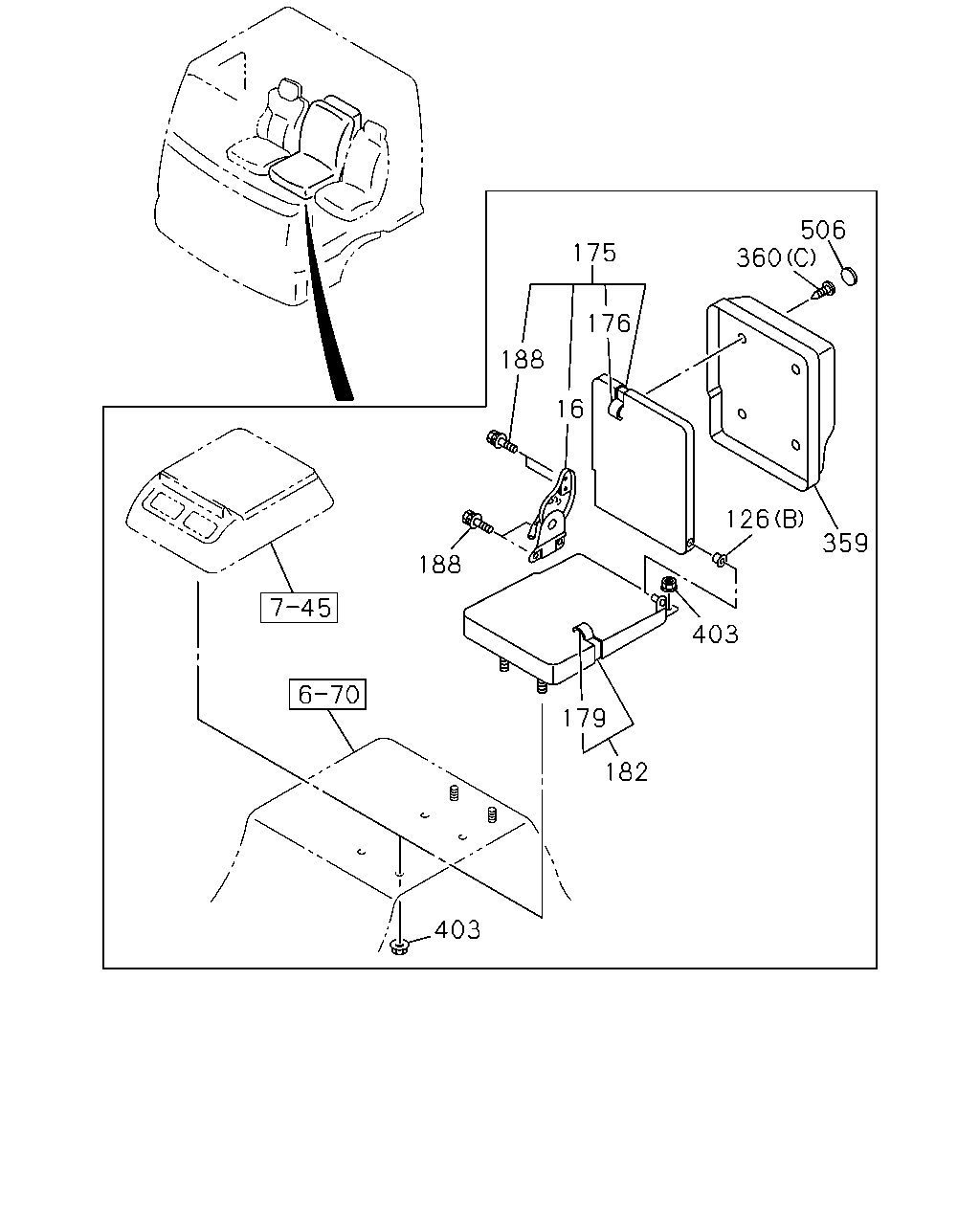

çizim 190296
506 360 175 176 188 16 126 359 188 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-75418-062-1 01 1 1105-1109
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1103-1104
16 ADJUSTER ASM; RECLINING
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1105-1109
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1110-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 1105-1109
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1103-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1103-1104
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1105-1109
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1110-
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-434-1 01 1 1103-
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-1 01 1 1103-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-435-1 01 1 1103-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-1 01 1 1103-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-432-1 01 1 1103-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-974-1 01 1 1103-
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-430-3 01 1 1103-
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-973-3 01 1 1103-
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE 		1-75198-053-0 04 1 1105-1109
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1103-1104
188 BOLT; BACK TO CUSHION
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1105-1109
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1110-
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1103-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 1105-1109
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1103-1104
360 SCREW; PARCEL
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1105-1109
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1110-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1103-1104
360 SCREW; PARCEL
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1110-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1103-1110
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111-
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1103-
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1103-
çizim 190300
468 74 51 512 468 51 532 278 518 543 302 51 278 543 512 51 518 518 532 278 302 518 543 543 468 529 468 302 518 471 543 518 551 518 302 302 158 158 551 302 72 518 551 302 551 518 201 201 63 518 518 63 302 72 518
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-325-1 04 1 1103-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-199-1 01 1 1103-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-323-0 01 1 1103-
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-334-1 02 1 1103-1502
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98003-678-0 01 1 1103-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-640-0 01 1 1503-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1103-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1103-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1103-
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-244-0 03 1 1103-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-266-2 02 1 1103-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-270-1 04 1 1103-1502
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-336-1 02 1 1103-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1103-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1103-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1103-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1103-
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1103-
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-243-1 02 1 1103-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1103-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1103-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1103-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1103-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1103-
529 PIN; LINK 1-75518-262-0 01 1 1103-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-203-0 01 1 1103-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-204-1 01 1 1103-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-335-0 02 1 1103-1502
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4 		9-09160-508-0 04 1 1103-
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-265-0 04 1 1103-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
