7-40 — INSTRUMENT PANEL AND BOX (#71515) — 127 parça

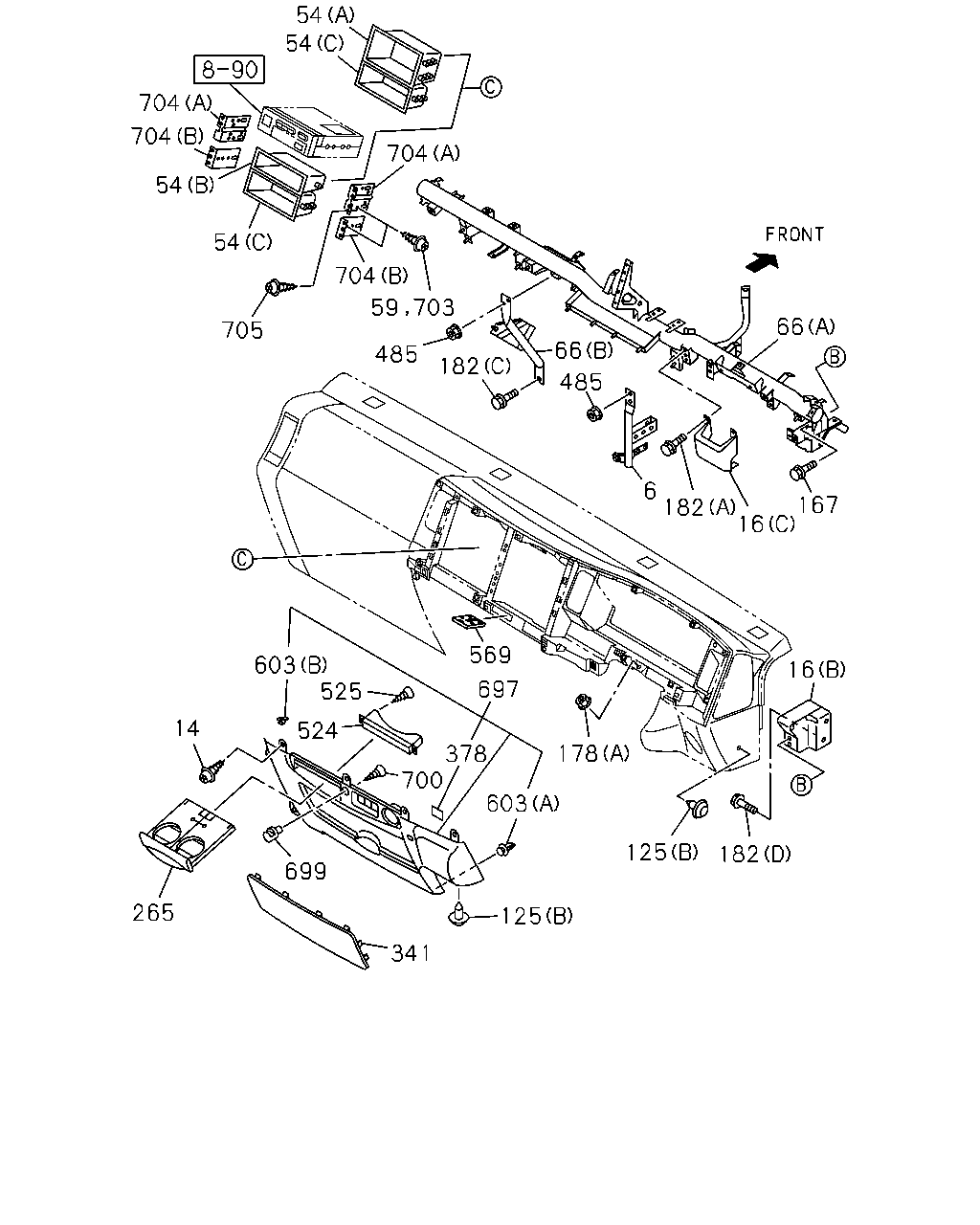

çizim 132846
54 54 704 704 54 54 705 704 59 703 485 182 66 485 6 182 16 167 66 16 182 125 125 341 603 700 378 697 569 525 524 603 14 265 699 178 704
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 1103-1109
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1103-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1103-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1103-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1103-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1103-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98010-154-0 01 1 1103-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1103-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1103-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1103-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1103-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1103-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1103-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1103-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97585-566-9 01 1 1103-1111
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98170-399-0 01 1 1112-1406
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-604-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98009-970-9 01 1 1103-1111
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98170-401-0 01 1 1112-1406
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-605-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-580-2 01 1 1103-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98151-167-0 01 1 1103-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1103-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1103-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1103-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1103-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1103-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1103-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1103-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1103-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1103-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1103-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1103-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1103-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1103-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1103-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1103-
569 HOLDER; CARD 8-97410-276-1 01 1 1103-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1103-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1103-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1103-
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1103-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1103-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1103-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1103-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1103-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1103-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1103-1209
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-

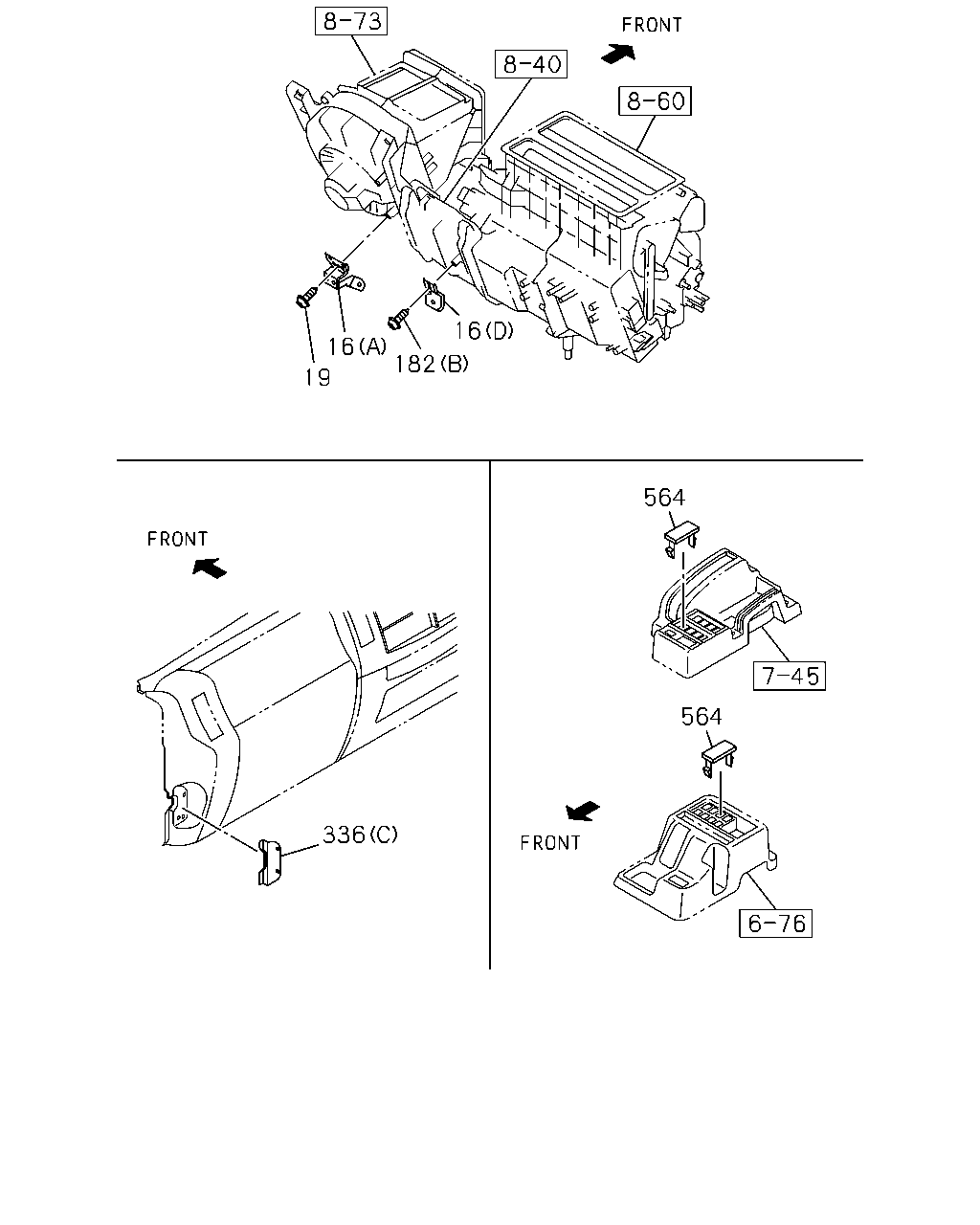

çizim 133161
16 16 182 19 564 564 336
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1103-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1103-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1103-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1103-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98010-154-0 01 1 1103-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1103-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1103-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1103-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1103-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1103-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1103-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1103-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1103-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1103-
564 COVER; SW 8-97043-732-1 06 1 1103-

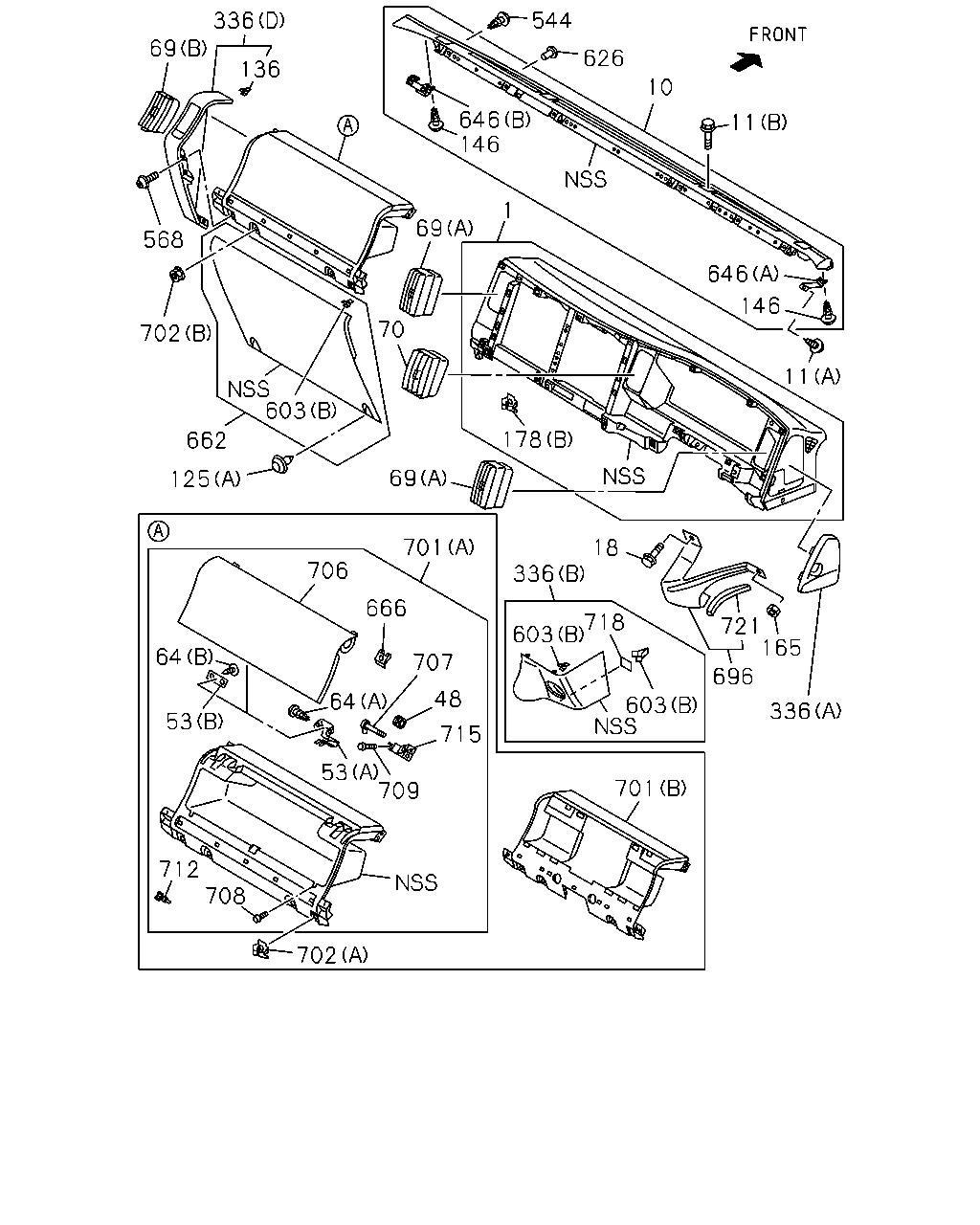

çizim 190303
336 69 544 136 568 702 662 125 603 69 178 11 146 646 70 69 1 146 646 626 11 10 701 666 706 707 48 715 709 702 708 712 53 64 64 53 18 336 718 603 603 336 696 721 165 701
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1103-
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1103-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1103-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1103-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1103-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1103-1311
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1103-1311
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1103-1405
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1103-1405
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1103-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1103-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1103-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1103-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1103-
136 CLIP; INST COVER 8-98076-254-0 02 1 1103-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1103-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1103-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1103-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1103-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1103-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1103-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1103-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1103-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1103-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1103-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1103-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1103-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1103-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1103-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1103-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1103-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 1103-
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1103-1311
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98066-085-1 01 1 1103-
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-2 01 1 1103-
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1103-1405
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1103-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1103-
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1103-1405
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1103-1311
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1103-
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1103-
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1103-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1103-1311
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1103-1311
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1103-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1103-
