◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#7151) — 574 parça

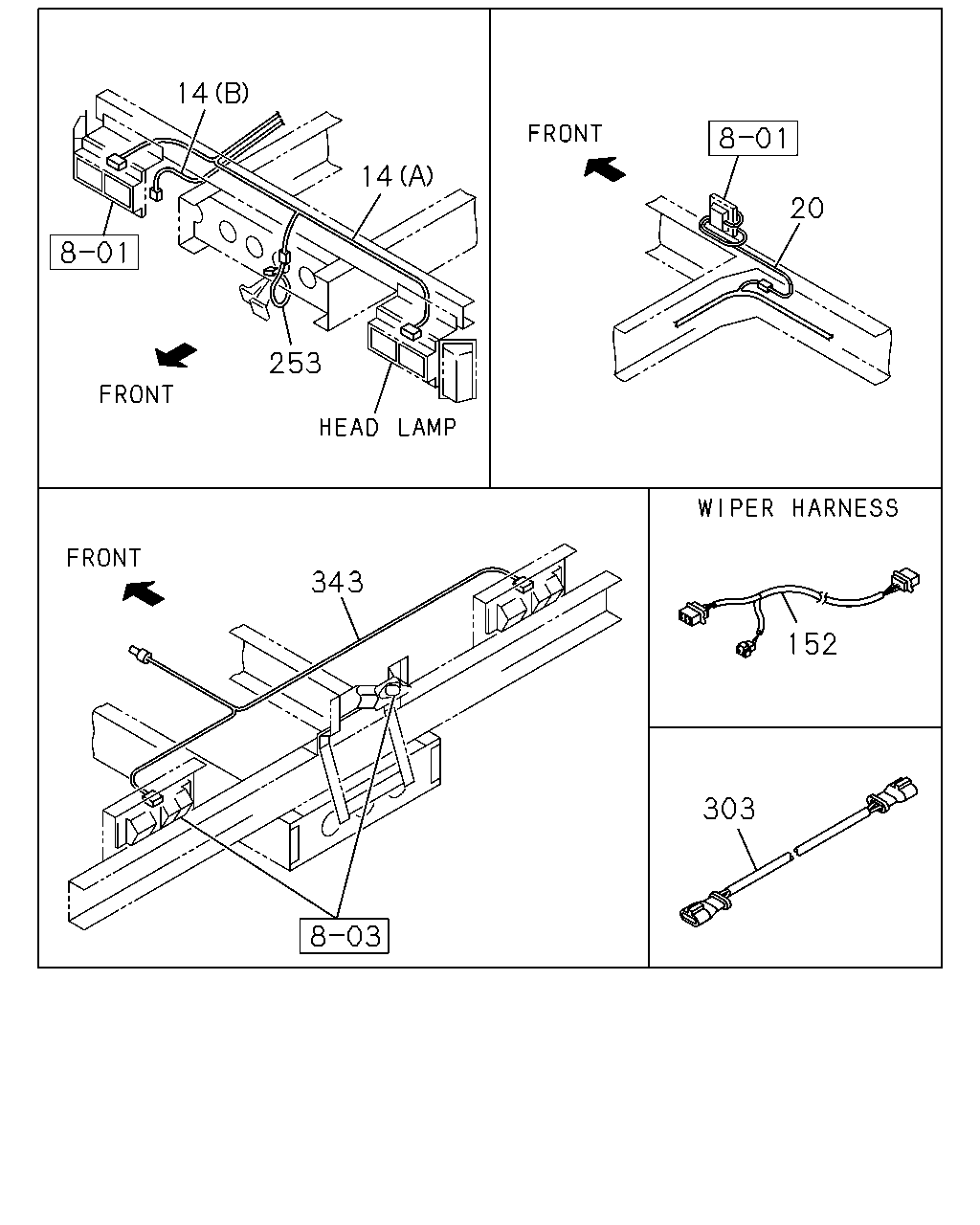

çizim 6672
14 14 20 253 343 152 303
BalonParca AdiParca NoAdetTipApplied Date A B
14 HARNESS; HEADLAMP
(B) 		1-82639-071-1 02 1 0012-0102 ● ●
14 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82639-071-2 02 1 0103-0407 ● ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (B) 		1-82639-071-2 02 1 0103-0407 ● ●
14 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82639-071-2 02 1 0408-0409 ● ●
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82639-072-2 02 1 0103-0407 ● ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82639-072-2 02 1 0408-0409 ● ●
14 HARNESS; HEADLAMP
(B) 		1-82639-072-2 02 1 0410- ● ●
14 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82673-574-0 02 1 0012- ● ●
20 HARNESS; SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> 		1-82638-388-1 02 1 0012- ● ●
152 HARNESS; WIPER
WIPER MOTOR KIT<ST7> 		1-82625-630-0 01 1 0012- ● ●
253 HARNESS; EXT,HORN
AIR HORN(WB8) 		1-82673-576-0 01 1 0012- ● ●
253 HARNESS; EXT,HORN
EXC. AIR HORN(WB8) 		1-82673-575-0 01 1 0012- ● ●
303 HARNESS; WATER LEVEL 1-82670-567-0 01 1 0012- ● ●
343 HARNESS; EXT,RR COMB LAMP
LAMPS TAIL AND STOP DELUXE<T81> 		1-82673-577-0 02 1 0012- ● ●

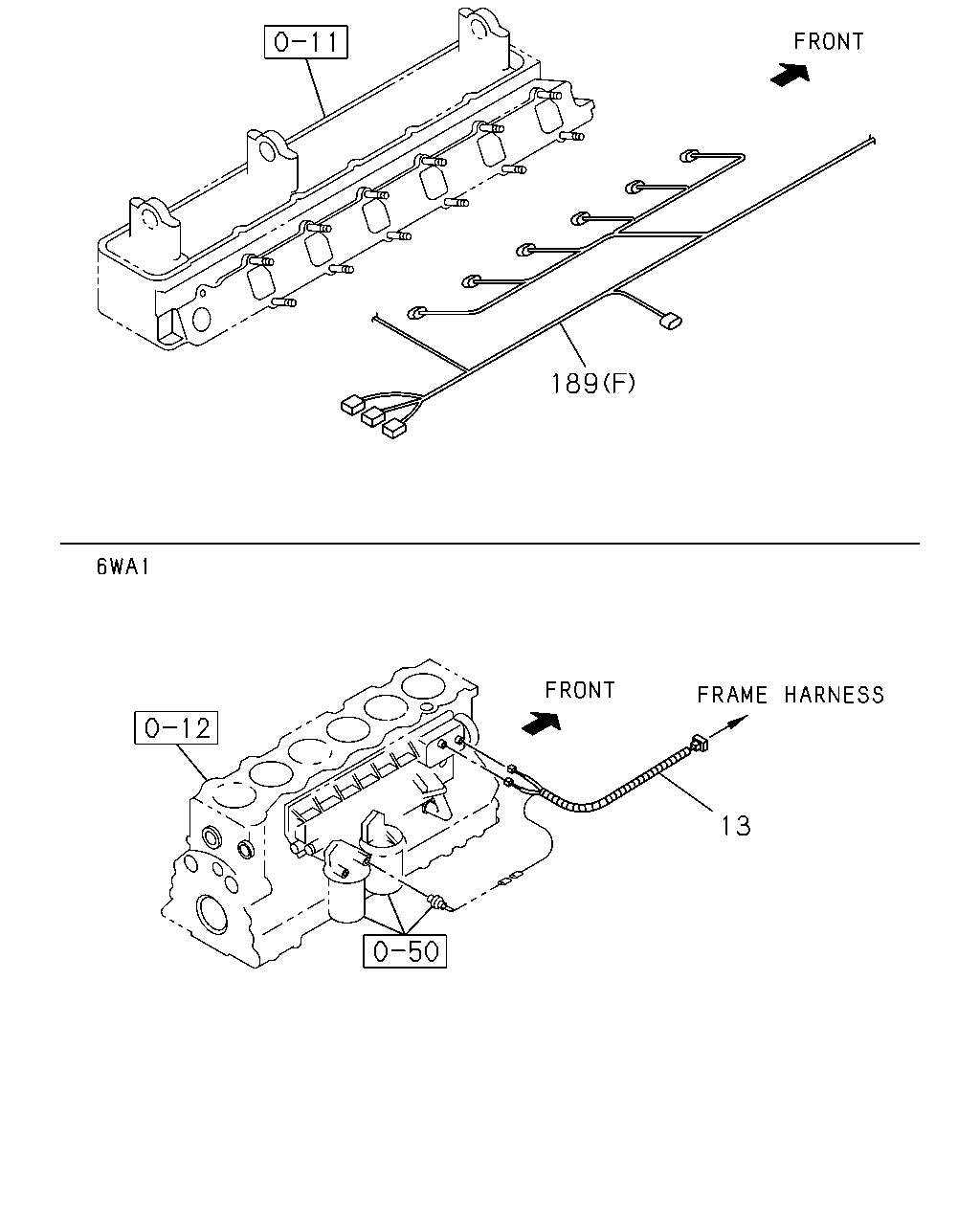

çizim 9057
189 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) 		1-82640-553-4 01 1 0204- ●
189 HARNESS; EXT
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (E) L=250 		1-82659-134-1 01 1 0204- ●
189 HARNESS; EXT
A/T<X9D> (E) L=250 		1-82659-134-1 01 1 0204- ●
189 HARNESS; EXT
A/T<X9D> (A) 		1-82671-987-0 01 1 0204- ●
189 HARNESS; EXT
A/T<X9D> (B) 		1-82671-988-0 01 1 0204- ●
189 HARNESS; EXT
A/T<X9D> (C) 		1-82672-258-0 01 1 0204- ●
189 HARNESS; EXT
A/T<X9D> (D) 		1-82672-259-0 01 1 0204- ●
189 HARNESS; EXT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (F) 		1-82641-167-1 01 1 0107-0210 ●
189 HARNESS; EXT
6SD1 TC-S(83L) (F) 		1-82641-167-1 01 1 0107-0210 ●
189 HARNESS; EXT
EURO3 SPECIFICATION(NJX) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> (F) 		1-82641-167-1 01 1 0211- ●
189 HARNESS; EXT
6SD1 TC-S(83L) (F) 		1-82641-184-0 01 1 0211- ●

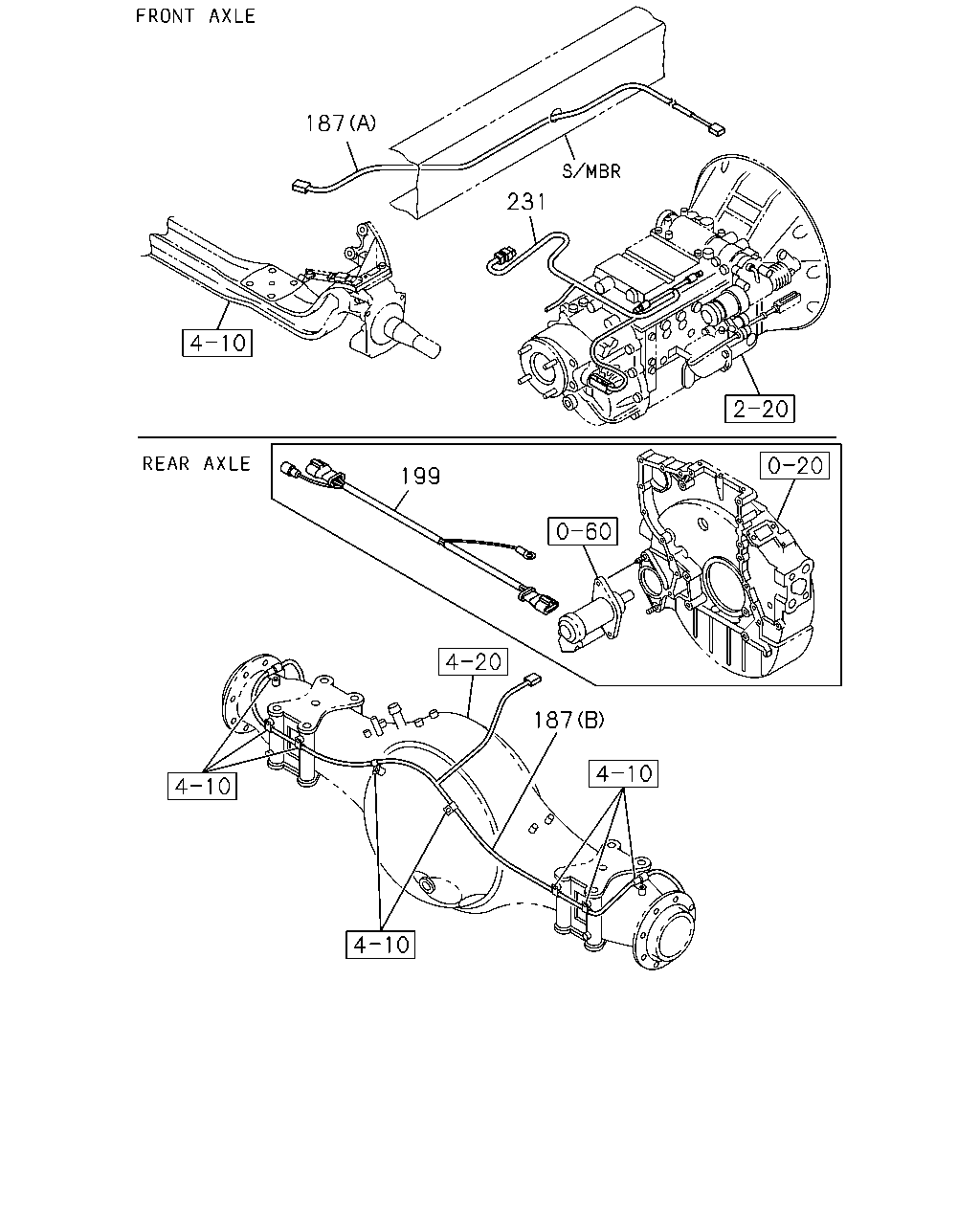

çizim 9459
187 231 199 187
BalonParca AdiParca NoAdetTipApplied Date A B
187 HARNESS; AXLE
(B) 		1-82673-558-1 01 1 0012-0012 ●
187 HARNESS; AXLE
(B) 		1-82674-560-0 01 1 0012-0104 ●
187 HARNESS; AXLE
(B) 		1-82674-935-0 01 1 0105- ●
187 HARNESS; AXLE
(A) 		1-82674-250-0 02 1 0012-0012 ●
187 HARNESS; AXLE
(A) 		1-82674-558-0 02 1 0012-0104 ●
187 HARNESS; AXLE
(A) 		1-82674-936-0 02 1 0105- ●
187 HARNESS; AXLE
(A) 		1-82672-470-1 02 1 0012-0012 ●
187 HARNESS; AXLE
(A) 		1-82674-557-0 02 1 0012- ●
187 HARNESS; AXLE
(B) 		1-82673-227-2 01 1 0012-0012 ●
187 HARNESS; AXLE
(B) 		1-82674-559-0 01 1 0012- ●
199 HARNESS; STARTER
EURO3 SPECIFICATION(NJX) 		1-82641-169-1 01 1 0107-0210 ●
199 HARNESS; STARTER
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) 		1-82641-169-1 01 1 0211- ●
199 HARNESS; STARTER
6SD1 TC-S(83L) 		1-82641-169-1 01 1 0211- ●
199 HARNESS; STARTER 1-82641-150-2 01 1 0012-0106 ● ●
199 HARNESS; STARTER
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) 		1-82641-150-2 01 1 0107- ● ●
199 HARNESS; STARTER
6WA1 TC-C(55L) 		1-82641-151-1 01 1 0204- ●
231 HARNESS; TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-82673-573-0 01 1 0012- ● ●
231 HARNESS; TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82673-572-0 01 1 0012-0203 ● ●
231 HARNESS; TRANS
ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82673-572-0 01 1 0204- ● ●

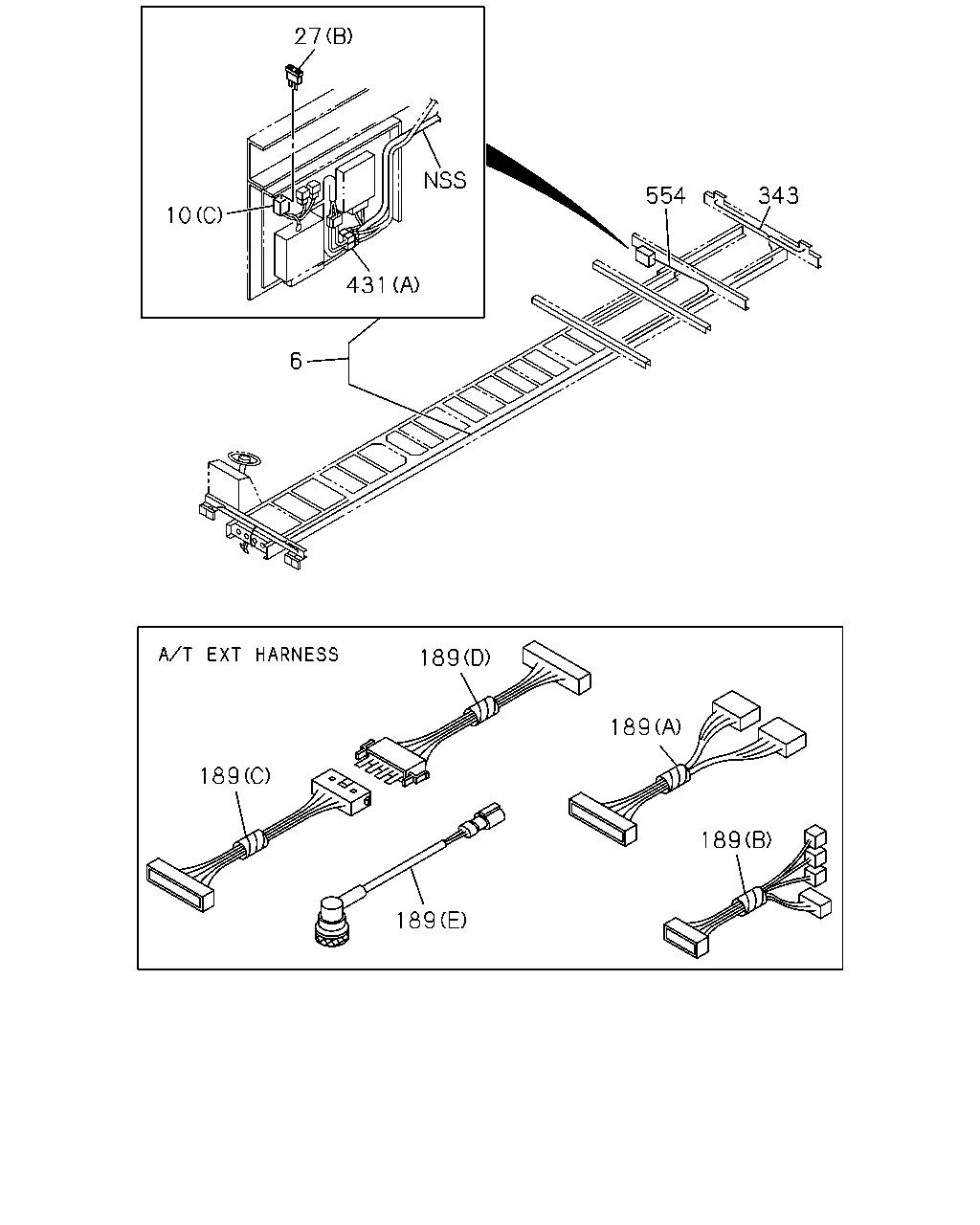

çizim 42130
27 554 343 10 431 6 189 189 189 189 189
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-567-3 01 1 0012-0106 ●
6 HARNESS; FRAME
EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82674-680-3 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82674-680-3 01 1 0211- ●
6 HARNESS; FRAME
EURO3 SPECIFICATION(NJX) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82674-679-3 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82674-679-3 01 1 0211- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> 		1-82673-569-3 01 1 0012-0106 ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> 		1-82673-753-3 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> 		1-82673-753-3 01 1 0211- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82673-568-3 01 1 0012-0106 ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. EURO3 SPECIFICATION(NJX) 		1-82673-568-3 01 1 0107-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX),ANTI SKID BRK SYSTEM<SFL> 		1-82673-568-3 01 1 0204- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82674-681-3 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82674-681-3 01 1 0211- ●
6 HARNESS; FRAME
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82673-566-3 01 1 0012-0106 ●
6 HARNESS; FRAME
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82673-566-3 01 1 0107-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) ISUZU M/T<X9A> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX),ANTI SKID BRK SYSTEM<SFL> 		1-82673-566-3 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC(32L) A/T<X9D> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82674-214-1 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC(32L) ANTI SKID BRK SYSTEM<SFL> ISUZU M/T<X9A> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82673-567-3 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) 		1-82674-215-1 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) 		1-82673-569-3 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC-S(83L) ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82675-478-1 01 1 0211- ●
6 HARNESS; FRAME
6SD1 TC-S(83L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> 		1-82674-435-1 01 1 0211- ●
6 HARNESS; FRAME
6SD1 TC-S(83L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82675-479-1 01 1 0211- ●
6 HARNESS; FRAME
6SD1 TC-S(83L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82675-477-1 01 1 0211- ●
6 HARNESS; FRAME
EURO2 SPECIFICATION(THN) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-564-3 01 1 0012-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) EURO2 SPECIFICATION(THN) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-564-3 01 1 0204-0907 ●
6 HARNESS; FRAME
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-564-3 01 1 0908- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO2 SPECIFICATION(THN) 		1-82673-565-3 01 1 0012-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO2 SPECIFICATION(THN) 		1-82673-565-3 01 1 0204-0907 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-565-3 01 1 0908- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. EURO2 SPECIFICATION(THN) 		1-82674-041-2 01 1 0012-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. EURO2 SPECIFICATION(THN) 		1-82674-041-2 01 1 0204-0907 ●
6 HARNESS; FRAME
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO2 SPECIFICATION(THN) 		1-82674-040-2 01 1 0012-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO2 SPECIFICATION(THN) 		1-82674-040-2 01 1 0204-0907 ●
6 HARNESS; FRAME
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-571-3 01 1 0204- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-570-3 01 1 0204- ●
10 BOX; FUSE,HARNESS
EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC-S(83L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 10AX1 15AX1 		1-82510-585-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC-S(83L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
(C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0012-0106 ● ●
10 BOX; FUSE,HARNESS
EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
(C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
(D) 10AX13 15AX5 25AX2 30AX1 		1-82510-578-0 01 1 0012-0203 ● ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) ISUZU M/T<X9A> (D) 10AX13 15AX5 25AX2 30AX1 		1-82510-578-0 01 1 0204- ● ●
10 BOX; FUSE,HARNESS
(E) 10AX1 25AX1 		1-82510-579-0 01 1 0012-0203 ● ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> (E) 10AX1 25AX1 		1-82510-579-0 01 1 0204- ● ●
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A 		1-82510-234-2 01 1 0012- ● ●
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 100A 		1-82510-235-2 01 1 0012- ● ●
27 FUSE UNIT
(B) 10A RED 		5-82516-002-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 15A BLUE 		5-82516-003-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 25A CLEAR 		5-82516-005-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 7.5A BROWN 		8-94159-007-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 30A GREEN 		8-94159-008-0 AR 1 0012- ● ●
27 FUSE UNIT
(A) 100A 		9-82941-126-0 AR 1 0012- ● ●
27 FUSE UNIT
(A) 125A 		9-82941-130-1 AR 1 0012- ● ●
189 HARNESS; EXT
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) (E) L=250 		1-82659-134-1 01 1 0204- ●
189 HARNESS; EXT
A/T<X9D> (E) L=250 		1-82659-134-1 01 1 0204- ●
189 HARNESS; EXT
A/T<X9D> (A) 		1-82671-987-0 01 1 0204- ●
189 HARNESS; EXT
A/T<X9D> (B) 		1-82671-988-0 01 1 0204- ●
189 HARNESS; EXT
A/T<X9D> (C) 		1-82672-258-0 01 1 0204- ●
189 HARNESS; EXT
A/T<X9D> (D) 		1-82672-259-0 01 1 0204- ●
189 HARNESS; EXT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (F) 		1-82641-167-1 01 1 0107-0210 ●
189 HARNESS; EXT
6SD1 TC-S(83L) (F) 		1-82641-167-1 01 1 0107-0210 ●
189 HARNESS; EXT
EURO3 SPECIFICATION(NJX) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> (F) 		1-82641-167-1 01 1 0211- ●
189 HARNESS; EXT
6SD1 TC-S(83L) (F) 		1-82641-184-0 01 1 0211- ●
343 HARNESS; EXT,RR COMB LAMP
LAMPS TAIL AND STOP DELUXE<T81> 		1-82673-577-0 02 1 0012- ● ●
431 CONNECTOR; JOINT
EURO3 SPECIFICATION(NJX) (C) 		1-82695-164-0 02 1 0107-0210 ●
431 CONNECTOR; JOINT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (C) 		1-82695-164-0 02 1 0211- ●
431 CONNECTOR; JOINT
EURO3 SPECIFICATION(NJX) (D) 4P 		8-97077-939-0 01 1 0107-0210 ●
431 CONNECTOR; JOINT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (D) 4P 		8-97077-939-0 01 1 0211- ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 03 1 0012- ● ●
431 CONNECTOR; JOINT
(B) 10P 		8-97077-943-0 01 1 0012-0106 ● ●
431 CONNECTOR; JOINT
EXC. EURO3 SPECIFICATION(NJX) (B) 10P 		8-97077-943-0 01 1 0107- ●
431 CONNECTOR; JOINT
(B) 10P 		8-97077-943-0 01 1 0107- ●
554 HARNESS; AUTO MISSION
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX) 		1-82674-216-0 01 1 0204- ●

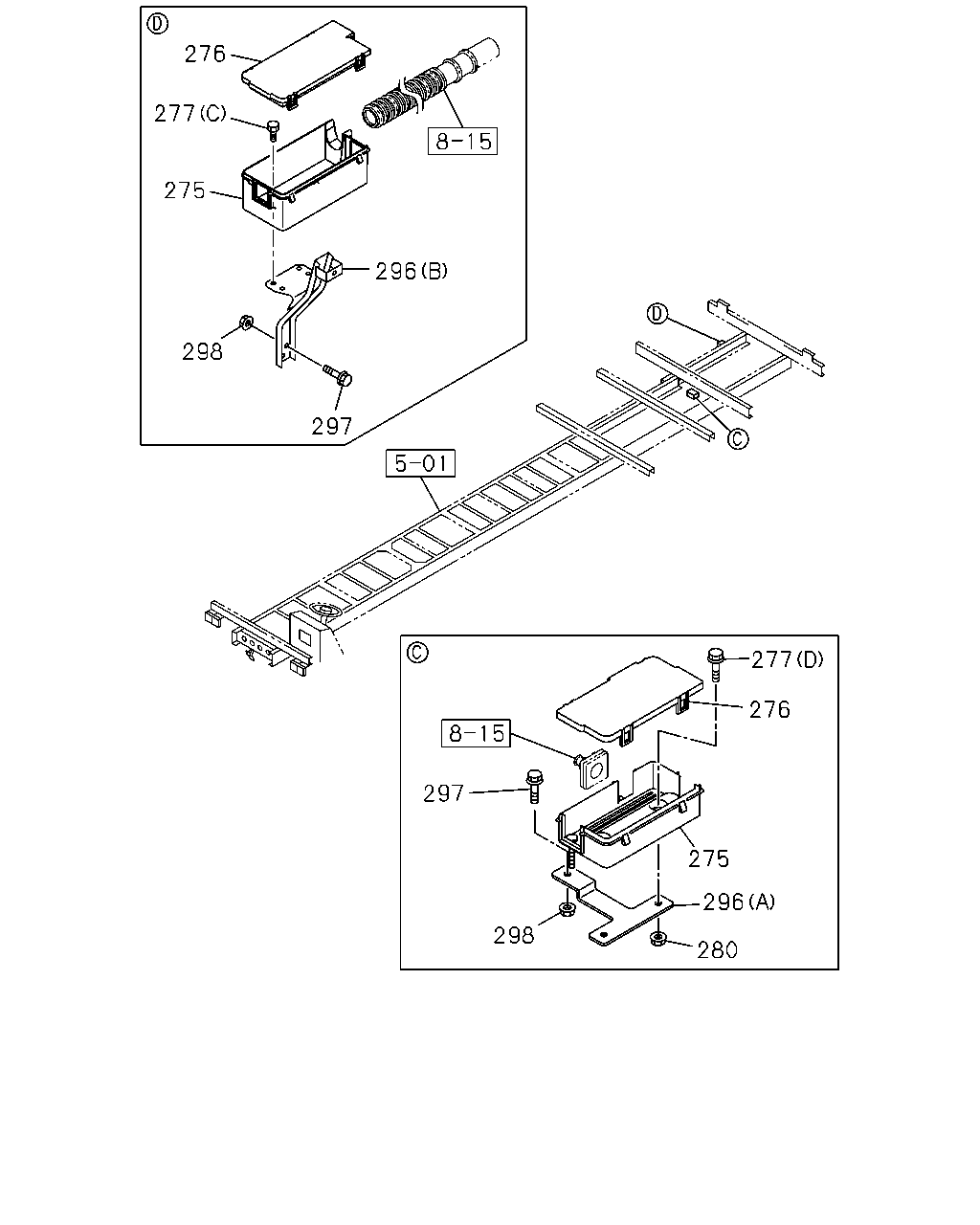

çizim 42191
276 277 275 296 298 297 277 276 297 275 296 298 280
BalonParca AdiParca NoAdetTipApplied Date A B
275 BOX ASM; FRAME HARNESS
EURO2 SPECIFICATION(THN) 		1-82699-147-2 01 1 0012-0106 ● ●
275 BOX ASM; FRAME HARNESS
EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) 		1-82699-147-2 01 1 0107-0203 ●
275 BOX ASM; FRAME HARNESS
EURO2 SPECIFICATION(THN) 		1-82699-147-2 01 1 0107-0203 ●
275 BOX ASM; FRAME HARNESS
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) 		1-82699-147-2 01 1 0204-0210 ● ●
275 BOX ASM; FRAME HARNESS
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) 		1-82699-147-2 01 1 0211-0907 ● ●
275 BOX ASM; FRAME HARNESS
6SD1 TC-S(83L) 		1-82699-147-2 01 1 0211-0907 ●
275 BOX ASM; FRAME HARNESS
6SD1 TC(32L),6SD1 TC-S(83L) 		1-82699-147-2 01 1 0908- ● ●
275 BOX ASM; FRAME HARNESS
6WA1 TC-C(55L) 		1-82699-474-2 01 1 0204- ●
276 COVER; BOX,FRAME HARNESS
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) 		1-82699-215-0 01 1 0908- ● ●
276 COVER; BOX,FRAME HARNESS
EURO2 SPECIFICATION(THN) 		1-82699-151-1 01 1 0012-0106 ● ●
276 COVER; BOX,FRAME HARNESS
EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) 		1-82699-151-1 01 1 0107-0203 ●
276 COVER; BOX,FRAME HARNESS
EURO2 SPECIFICATION(THN) 		1-82699-151-1 01 1 0107-0203 ●
276 COVER; BOX,FRAME HARNESS
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) 		1-82699-151-1 01 1 0204-0210 ● ●
276 COVER; BOX,FRAME HARNESS
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) 		1-82699-151-1 01 1 0211- ● ●
276 COVER; BOX,FRAME HARNESS
6SD1 TC-S(83L) 		1-82699-151-1 01 1 0211- ●
276 COVER; BOX,FRAME HARNESS
6WA1 TC-C(55L) 		1-82699-475-2 01 1 0204- ●
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE 		0-28680-820-0 02 1 0012-0512 ● ●
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE 		0-28680-830-0 04 1 0012-0512 ● ●
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ●
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X12 WING 		1-09064-006-0 02 1 0012- ● ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION(THN) (C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0012-0106 ● ●
277 BOLT; BOX ASM FIX
EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0107-0907 ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION(THN) (C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0107-0907 ●
277 BOLT; BOX ASM FIX
(C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0908- ● ●
277 BOLT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE 		0-28680-825-0 04 1 0012-0512 ● ●
277 BOLT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
280 NUT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91150-108-0 04 1 0012-0602 ● ●
280 NUT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE 		0-91150-108-0 04 1 0012-0602 ● ●
280 NUT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
280 NUT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
280 NUT; BOX ASM FIX
EURO2 SPECIFICATION(THN) M8 		9-09110-408-0 02 1 0012-0106 ● ●
280 NUT; BOX ASM FIX
EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8 		9-09110-408-0 02 1 0107-0203 ●
280 NUT; BOX ASM FIX
EURO2 SPECIFICATION(THN) M8 		9-09110-408-0 02 1 0107-0203 ●
280 NUT; BOX ASM FIX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8 		9-09110-408-0 02 1 0204-0210 ● ●
280 NUT; BOX ASM FIX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8 		9-09110-408-0 02 1 0211-0512 ● ●
280 NUT; BOX ASM FIX
6SD1 TC-S(83L) M8 		9-09110-408-0 02 1 0211-0512 ●
280 NUT; BOX ASM FIX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8 		0-91110-508-0 02 1 0601-0907 ● ●
280 NUT; BOX ASM FIX
6SD1 TC-S(83L) M8 		0-91110-508-0 02 1 0601-0907 ●
280 NUT; BOX ASM FIX
6SD1 TC(32L),6SD1 TC-S(83L) M8 		0-91110-508-0 02 1 0908- ● ●
296 BRACKET; HARNESS BOX
EURO2 SPECIFICATION(THN) (A) 		1-82698-227-0 01 1 0012-0106 ● ●
296 BRACKET; HARNESS BOX
EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A) 		1-82698-227-0 01 1 0107-0203 ●
296 BRACKET; HARNESS BOX
EURO2 SPECIFICATION(THN) (A) 		1-82698-227-0 01 1 0107-0203 ●
296 BRACKET; HARNESS BOX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A) 		1-82698-227-0 01 1 0204-0210 ● ●
296 BRACKET; HARNESS BOX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (A) 		1-82698-227-0 01 1 0211-0907 ● ●
296 BRACKET; HARNESS BOX
6SD1 TC-S(83L) (A) 		1-82698-227-0 01 1 0211-0907 ●
296 BRACKET; HARNESS BOX
6SD1 TC(32L),6SD1 TC-S(83L) (A) 		1-82698-227-0 01 1 0908- ● ●
296 BRACKET; HARNESS BOX
6WA1 TC-C(55L) (B) 		1-53441-598-1 01 1 0204- ●
297 BOLT; BOX BRKT
EURO2 SPECIFICATION(THN) M8X25 FLANGE 		0-28680-825-0 01 1 0012-0106 ● ●
297 BOLT; BOX BRKT
EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8X25 FLANGE 		0-28680-825-0 01 1 0107-0203 ●
297 BOLT; BOX BRKT
EURO2 SPECIFICATION(THN) M8X25 FLANGE 		0-28680-825-0 01 1 0107-0203 ●
297 BOLT; BOX BRKT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8X25 FLANGE 		0-28680-825-0 01 1 0204-0210 ● ●
297 BOLT; BOX BRKT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ●
297 BOLT; BOX BRKT
6SD1 TC-S(83L) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ●
297 BOLT; BOX BRKT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0907 ● ●
297 BOLT; BOX BRKT
6SD1 TC-S(83L) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0907 ●
297 BOLT; BOX BRKT
6SD1 TC(32L),6SD1 TC-S(83L) M8X25 FLANGE 		0-28650-825-0 01 1 0908- ● ●
297 BOLT; BOX BRKT
6WA1 TC-C(55L) M8X30 FLANGE 		0-28680-830-0 02 1 0204-0512 ●
297 BOLT; BOX BRKT
6WA1 TC-C(55L) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
298 NUT; BOX BRKT
EURO2 SPECIFICATION(THN) M8 FLANGE 		0-91150-108-0 01 1 0012-0106 ● ●
298 NUT; BOX BRKT
EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8 FLANGE 		0-91150-108-0 01 1 0107-0203 ●
298 NUT; BOX BRKT
EURO2 SPECIFICATION(THN) M8 FLANGE 		0-91150-108-0 01 1 0107-0203 ●
298 NUT; BOX BRKT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8 FLANGE 		0-91150-108-0 01 1 0204-0210 ● ●
298 NUT; BOX BRKT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ●
298 NUT; BOX BRKT
6SD1 TC-S(83L) M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ●
298 NUT; BOX BRKT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8 FLANGE 		0-91180-108-0 01 1 0603-0907 ● ●
298 NUT; BOX BRKT
6SD1 TC-S(83L) M8 FLANGE 		0-91180-108-0 01 1 0603-0907 ●
298 NUT; BOX BRKT
6SD1 TC(32L),6SD1 TC-S(83L) M8 FLANGE 		0-91180-108-0 01 1 0908- ● ●
298 NUT; BOX BRKT
6WA1 TC-C(55L) M8 FLANGE 		0-91150-108-0 02 1 0204-0602 ●
298 NUT; BOX BRKT
6WA1 TC-C(55L) M8 FLANGE 		0-91180-108-0 02 1 0603- ●

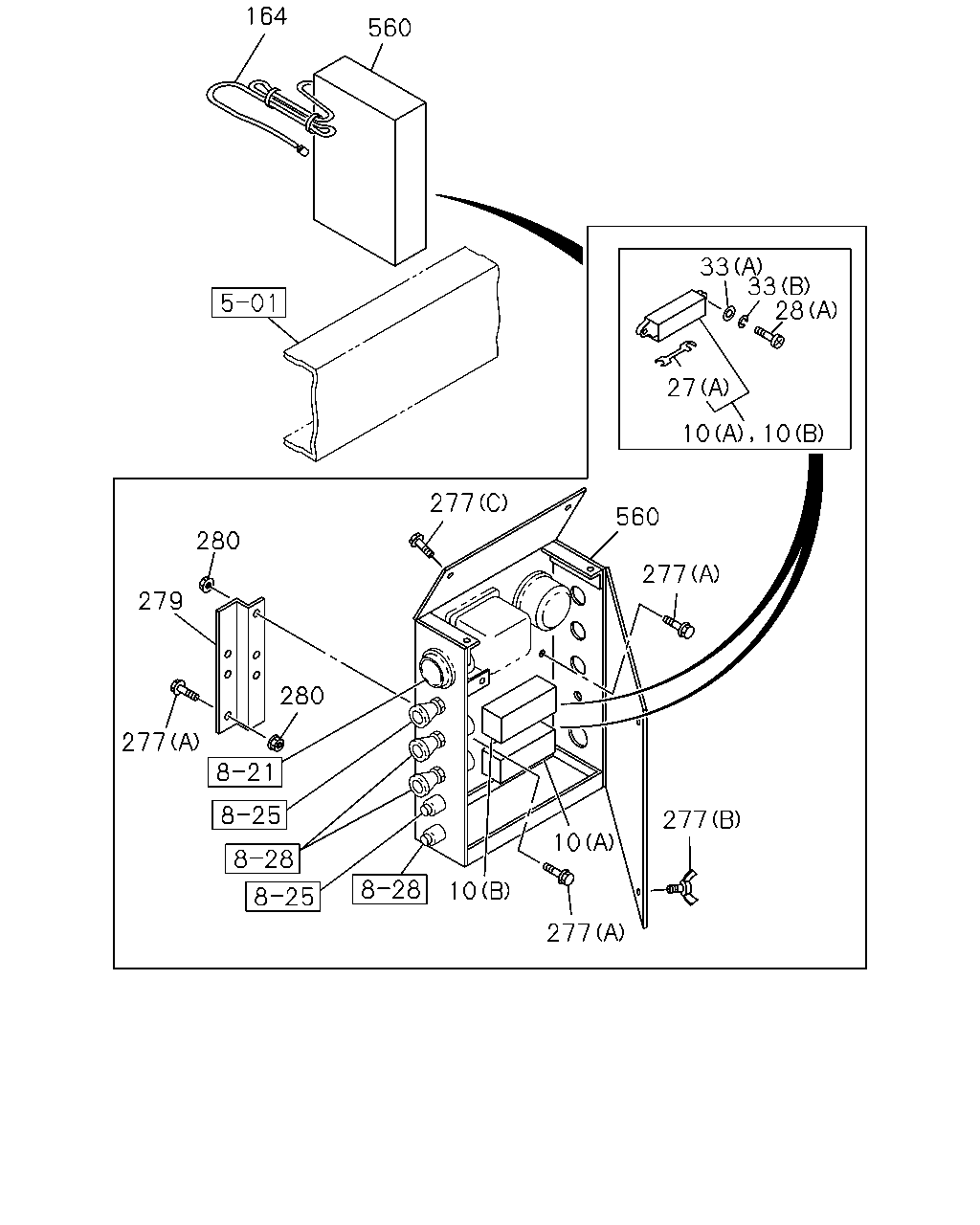

çizim 43420
164 560 33 33 28 27 10 10 277 560 280 277 279 280 277 277 10 10 277
BalonParca AdiParca NoAdetTipApplied Date A B
10 BOX; FUSE,HARNESS
EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC-S(83L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 10AX1 15AX1 		1-82510-585-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC-S(83L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
(C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0012-0106 ● ●
10 BOX; FUSE,HARNESS
EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
(C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
(D) 10AX13 15AX5 25AX2 30AX1 		1-82510-578-0 01 1 0012-0203 ● ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) ISUZU M/T<X9A> (D) 10AX13 15AX5 25AX2 30AX1 		1-82510-578-0 01 1 0204- ● ●
10 BOX; FUSE,HARNESS
(E) 10AX1 25AX1 		1-82510-579-0 01 1 0012-0203 ● ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> (E) 10AX1 25AX1 		1-82510-579-0 01 1 0204- ● ●
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A 		1-82510-234-2 01 1 0012- ● ●
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 100A 		1-82510-235-2 01 1 0012- ● ●
27 FUSE UNIT
(B) 10A RED 		5-82516-002-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 15A BLUE 		5-82516-003-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 25A CLEAR 		5-82516-005-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 7.5A BROWN 		8-94159-007-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 30A GREEN 		8-94159-008-0 AR 1 0012- ● ●
27 FUSE UNIT
(A) 100A 		9-82941-126-0 AR 1 0012- ● ●
27 FUSE UNIT
(A) 125A 		9-82941-130-1 AR 1 0012- ● ●
28 SCREW; FUSE BOX
(B) M6X42 		8-97811-324-0 02 1 0012- ● ●
28 SCREW; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER 		9-03910-625-0 04 1 0012-0604 ● ●
28 SCREW; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER 		0-36220-625-0 04 1 0605- ● ●
28 SCREW; FUSE BOX
EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0012-0106 ● ●
28 SCREW; FUSE BOX
EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0107-0210 ●
28 SCREW; FUSE BOX
EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0107-0210 ●
28 SCREW; FUSE BOX
EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0211- ● ●
28 SCREW; FUSE BOX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (C) M5X12 		9-93490-512-0 02 1 0211- ●
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		9-09150-506-0 02 1 0012-0603 ● ●
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		0-91510-506-0 02 1 0604- ● ●
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 02 1 0012- ● ●
33 WASHER; LK,FUSE BOX FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=6.1 		9-09150-506-0 04 1 0012-0603 ● ●
33 WASHER; LK,FUSE BOX FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=6.1 		0-91510-506-0 04 1 0604- ● ●
33 WASHER; LK,FUSE BOX FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=6.4 		9-09160-506-0 04 1 0012- ● ●
164 HARNESS; ELEC
EURO3 SPECIFICATION(NJX) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82673-755-0 01 1 0107- ●
164 HARNESS; ELEC
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82673-754-0 01 1 0012-0106 ● ●
164 HARNESS; ELEC
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> EXC. EURO3 SPECIFICATION(NJX) 		1-82673-754-0 01 1 0107- ●
164 HARNESS; ELEC
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82673-754-0 01 1 0107- ●
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE 		0-28680-820-0 02 1 0012-0512 ● ●
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE 		0-28680-830-0 04 1 0012-0512 ● ●
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ●
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X12 WING 		1-09064-006-0 02 1 0012- ● ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION(THN) (C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0012-0106 ● ●
277 BOLT; BOX ASM FIX
EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0107-0907 ●
277 BOLT; BOX ASM FIX
EURO2 SPECIFICATION(THN) (C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0107-0907 ●
277 BOLT; BOX ASM FIX
(C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0908- ● ●
277 BOLT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE 		0-28680-825-0 04 1 0012-0512 ● ●
277 BOLT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
279 BRACKET; CONNECTOR BOX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-48495-200-2 02 1 0012- ● ●
280 NUT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91150-108-0 04 1 0012-0602 ● ●
280 NUT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE 		0-91150-108-0 04 1 0012-0602 ● ●
280 NUT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
280 NUT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
280 NUT; BOX ASM FIX
EURO2 SPECIFICATION(THN) M8 		9-09110-408-0 02 1 0012-0106 ● ●
280 NUT; BOX ASM FIX
EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8 		9-09110-408-0 02 1 0107-0203 ●
280 NUT; BOX ASM FIX
EURO2 SPECIFICATION(THN) M8 		9-09110-408-0 02 1 0107-0203 ●
280 NUT; BOX ASM FIX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8 		9-09110-408-0 02 1 0204-0210 ● ●
280 NUT; BOX ASM FIX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8 		9-09110-408-0 02 1 0211-0512 ● ●
280 NUT; BOX ASM FIX
6SD1 TC-S(83L) M8 		9-09110-408-0 02 1 0211-0512 ●
280 NUT; BOX ASM FIX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) M8 		0-91110-508-0 02 1 0601-0907 ● ●
280 NUT; BOX ASM FIX
6SD1 TC-S(83L) M8 		0-91110-508-0 02 1 0601-0907 ●
280 NUT; BOX ASM FIX
6SD1 TC(32L),6SD1 TC-S(83L) M8 		0-91110-508-0 02 1 0908- ● ●
560 BOX; ELECTRIC
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82698-164-3 01 1 0012- ● ●

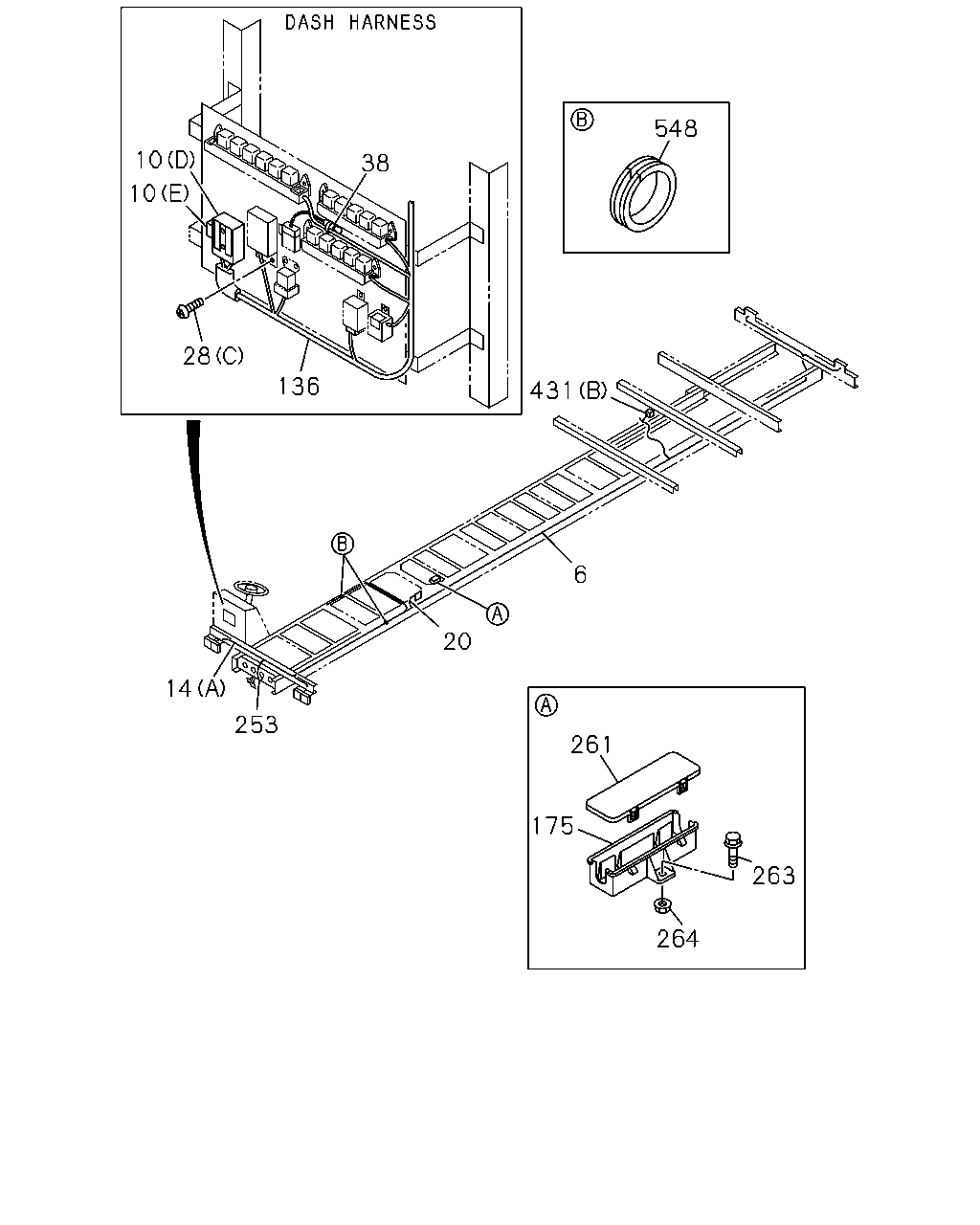

çizim 44439
548 10 38 10 28 136 431 6 20 14 253 261 175 263 264
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-567-3 01 1 0012-0106 ●
6 HARNESS; FRAME
EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82674-680-3 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82674-680-3 01 1 0211- ●
6 HARNESS; FRAME
EURO3 SPECIFICATION(NJX) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82674-679-3 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82674-679-3 01 1 0211- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> 		1-82673-569-3 01 1 0012-0106 ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> 		1-82673-753-3 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> 		1-82673-753-3 01 1 0211- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82673-568-3 01 1 0012-0106 ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. EURO3 SPECIFICATION(NJX) 		1-82673-568-3 01 1 0107-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX),ANTI SKID BRK SYSTEM<SFL> 		1-82673-568-3 01 1 0204- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82674-681-3 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82674-681-3 01 1 0211- ●
6 HARNESS; FRAME
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82673-566-3 01 1 0012-0106 ●
6 HARNESS; FRAME
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82673-566-3 01 1 0107-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) ISUZU M/T<X9A> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX),ANTI SKID BRK SYSTEM<SFL> 		1-82673-566-3 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC(32L) A/T<X9D> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82674-214-1 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC(32L) ANTI SKID BRK SYSTEM<SFL> ISUZU M/T<X9A> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82673-567-3 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) 		1-82674-215-1 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) 		1-82673-569-3 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC-S(83L) ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82675-478-1 01 1 0211- ●
6 HARNESS; FRAME
6SD1 TC-S(83L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> 		1-82674-435-1 01 1 0211- ●
6 HARNESS; FRAME
6SD1 TC-S(83L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82675-479-1 01 1 0211- ●
6 HARNESS; FRAME
6SD1 TC-S(83L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82675-477-1 01 1 0211- ●
6 HARNESS; FRAME
EURO2 SPECIFICATION(THN) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-564-3 01 1 0012-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) EURO2 SPECIFICATION(THN) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-564-3 01 1 0204-0907 ●
6 HARNESS; FRAME
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-564-3 01 1 0908- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO2 SPECIFICATION(THN) 		1-82673-565-3 01 1 0012-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO2 SPECIFICATION(THN) 		1-82673-565-3 01 1 0204-0907 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-565-3 01 1 0908- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. EURO2 SPECIFICATION(THN) 		1-82674-041-2 01 1 0012-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. EURO2 SPECIFICATION(THN) 		1-82674-041-2 01 1 0204-0907 ●
6 HARNESS; FRAME
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO2 SPECIFICATION(THN) 		1-82674-040-2 01 1 0012-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO2 SPECIFICATION(THN) 		1-82674-040-2 01 1 0204-0907 ●
6 HARNESS; FRAME
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-571-3 01 1 0204- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-570-3 01 1 0204- ●
10 BOX; FUSE,HARNESS
EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC-S(83L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 10AX1 15AX1 		1-82510-585-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC-S(83L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
(C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0012-0106 ● ●
10 BOX; FUSE,HARNESS
EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
(C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
(D) 10AX13 15AX5 25AX2 30AX1 		1-82510-578-0 01 1 0012-0203 ● ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) ISUZU M/T<X9A> (D) 10AX13 15AX5 25AX2 30AX1 		1-82510-578-0 01 1 0204- ● ●
10 BOX; FUSE,HARNESS
(E) 10AX1 25AX1 		1-82510-579-0 01 1 0012-0203 ● ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> (E) 10AX1 25AX1 		1-82510-579-0 01 1 0204- ● ●
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A 		1-82510-234-2 01 1 0012- ● ●
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 100A 		1-82510-235-2 01 1 0012- ● ●
14 HARNESS; HEADLAMP
(B) 		1-82639-071-1 02 1 0012-0102 ● ●
14 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82639-071-2 02 1 0103-0407 ● ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (B) 		1-82639-071-2 02 1 0103-0407 ● ●
14 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82639-071-2 02 1 0408-0409 ● ●
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82639-072-2 02 1 0103-0407 ● ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82639-072-2 02 1 0408-0409 ● ●
14 HARNESS; HEADLAMP
(B) 		1-82639-072-2 02 1 0410- ● ●
14 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82673-574-0 02 1 0012- ● ●
20 HARNESS; SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> 		1-82638-388-1 02 1 0012- ● ●
28 SCREW; FUSE BOX
(B) M6X42 		8-97811-324-0 02 1 0012- ● ●
28 SCREW; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER 		9-03910-625-0 04 1 0012-0604 ● ●
28 SCREW; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER 		0-36220-625-0 04 1 0605- ● ●
28 SCREW; FUSE BOX
EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0012-0106 ● ●
28 SCREW; FUSE BOX
EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0107-0210 ●
28 SCREW; FUSE BOX
EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0107-0210 ●
28 SCREW; FUSE BOX
EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0211- ● ●
28 SCREW; FUSE BOX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (C) M5X12 		9-93490-512-0 02 1 0211- ●
38 HARNESS; CHAS
ENGINE OVERRUN BUZZER<SK4> 		1-82625-451-0 01 1 0012- ● ●
136 HARNESS; DASH
ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-807-3 01 1 0012-0106 ●
136 HARNESS; DASH
EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82660-352-1 01 1 0107- ●
136 HARNESS; DASH
EURO3 SPECIFICATION(NJX) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82660-351-1 01 1 0107- ●
136 HARNESS; DASH
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> 		1-82629-809-3 01 1 0012-0106 ●
136 HARNESS; DASH
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> 		1-82660-353-1 01 1 0107- ●
136 HARNESS; DASH
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82629-808-3 01 1 0012-0106 ●
136 HARNESS; DASH
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-808-3 01 1 0012-0106 ●
136 HARNESS; DASH
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. EURO3 SPECIFICATION(NJX) 		1-82629-808-3 01 1 0107-0203 ●
136 HARNESS; DASH
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-808-3 01 1 0107-0203 ●
136 HARNESS; DASH
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX),ANTI SKID BRK SYSTEM<SFL> 		1-82629-808-3 01 1 0204- ● ●
136 HARNESS; DASH
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82629-861-1 01 1 0107- ●
136 HARNESS; DASH
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82629-806-3 01 1 0012-0106 ●
136 HARNESS; DASH
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-806-3 01 1 0012-0106 ●
136 HARNESS; DASH
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82629-806-3 01 1 0107-0203 ●
136 HARNESS; DASH
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-806-3 01 1 0107-0203 ●
136 HARNESS; DASH
6SD1 TC(32L) ISUZU M/T<X9A> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX),ANTI SKID BRK SYSTEM<SFL> 		1-82629-806-3 01 1 0204- ● ●
136 HARNESS; DASH
6SD1 TC(32L) A/T<X9D> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82660-040-4 01 1 0204- ●
136 HARNESS; DASH
6SD1 TC(32L) ANTI SKID BRK SYSTEM<SFL> ISUZU M/T<X9A> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82629-807-3 01 1 0204- ●
136 HARNESS; DASH
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) 		1-82660-041-4 01 1 0204- ●
136 HARNESS; DASH
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) 		1-82629-809-3 01 1 0204- ●
136 HARNESS; DASH
6SD1 TC-S(83L) ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82660-771-0 01 1 0211- ●
136 HARNESS; DASH
6SD1 TC-S(83L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> 		1-82660-301-0 01 1 0211- ●
136 HARNESS; DASH
6SD1 TC-S(83L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82660-772-0 01 1 0211- ●
136 HARNESS; DASH
6SD1 TC-S(83L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82660-770-0 01 1 0211- ●
136 HARNESS; DASH
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-811-3 01 1 0204- ●
136 HARNESS; DASH
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-810-3 01 1 0204- ●
175 BOX; CONNECTOR
ANTI SKID BRK SYSTEM<SFL> 		1-82699-467-0 03 1 0012-0203 ●
175 BOX; CONNECTOR
ANTI SKID BRK SYSTEM<SFL> 		1-82699-467-0 03 1 0204- ●
253 HARNESS; EXT,HORN
AIR HORN(WB8) 		1-82673-576-0 01 1 0012- ● ●
253 HARNESS; EXT,HORN
EXC. AIR HORN(WB8) 		1-82673-575-0 01 1 0012- ● ●
261 COVER; CONNECTOR BOX
ANTI SKID BRK SYSTEM<SFL> 		1-82699-320-0 03 1 0012-0203 ●
261 COVER; CONNECTOR BOX
ANTI SKID BRK SYSTEM<SFL> 		1-82699-320-0 03 1 0204- ●
263 BOLT; CONNECTOR BOX
ANTI SKID BRK SYSTEM<SFL> M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 0012-0103 ●
263 BOLT; CONNECTOR BOX
ANTI SKID BRK SYSTEM<SFL> M8X30 W/LK&PL WASHER 		8-94279-144-0 03 1 0104-0203 ●
263 BOLT; CONNECTOR BOX
ANTI SKID BRK SYSTEM<SFL> M8X30 W/LK&PL WASHER 		8-94279-144-0 03 1 0204- ●
264 NUT; CONNECTOR BOX
ANTI SKID BRK SYSTEM<SFL> M8 FLANGE 		0-91150-108-0 03 1 0012-0203 ●
264 NUT; CONNECTOR BOX
ANTI SKID BRK SYSTEM<SFL> M8 FLANGE 		0-91150-108-0 03 1 0204-0602 ●
264 NUT; CONNECTOR BOX
ANTI SKID BRK SYSTEM<SFL> M8 FLANGE 		0-91180-108-0 03 1 0603- ●
431 CONNECTOR; JOINT
EURO3 SPECIFICATION(NJX) (C) 		1-82695-164-0 02 1 0107-0210 ●
431 CONNECTOR; JOINT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (C) 		1-82695-164-0 02 1 0211- ●
431 CONNECTOR; JOINT
EURO3 SPECIFICATION(NJX) (D) 4P 		8-97077-939-0 01 1 0107-0210 ●
431 CONNECTOR; JOINT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (D) 4P 		8-97077-939-0 01 1 0211- ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 03 1 0012- ● ●
431 CONNECTOR; JOINT
(B) 10P 		8-97077-943-0 01 1 0012-0106 ● ●
431 CONNECTOR; JOINT
EXC. EURO3 SPECIFICATION(NJX) (B) 10P 		8-97077-943-0 01 1 0107- ●
431 CONNECTOR; JOINT
(B) 10P 		8-97077-943-0 01 1 0107- ●
548 GROMMET
ID=18 OD=23 T=12 		1-09332-035-0 02 1 0012- ●

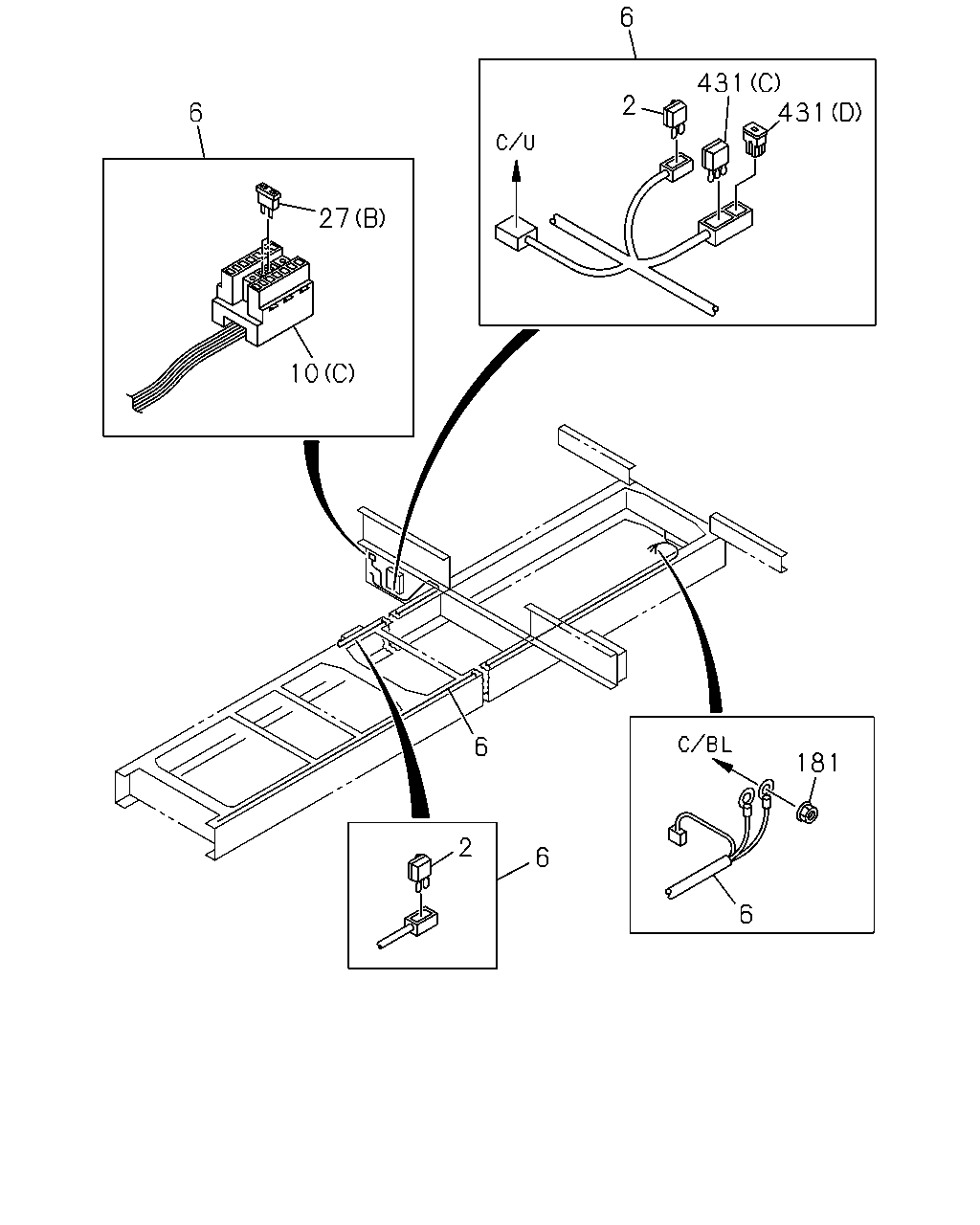

çizim 44462
6 431 431 2 6 27 10 6 181 2 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
EURO3 SPECIFICATION(NJX) BLACK 2P-1.5A 		8-94422-639-1 02 1 0107-0210 ●
2 DIODE; CABLE HARNESS
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) BLACK 2P-1.5A 		8-94422-639-1 02 1 0211- ●
2 DIODE; CABLE HARNESS
6WA1 TC-C(55L) BLACK 2P-1.5A 		8-94422-639-1 01 1 0204- ●
6 HARNESS; FRAME
ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-567-3 01 1 0012-0106 ●
6 HARNESS; FRAME
EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82674-680-3 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82674-680-3 01 1 0211- ●
6 HARNESS; FRAME
EURO3 SPECIFICATION(NJX) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82674-679-3 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82674-679-3 01 1 0211- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> 		1-82673-569-3 01 1 0012-0106 ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> 		1-82673-753-3 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> 		1-82673-753-3 01 1 0211- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82673-568-3 01 1 0012-0106 ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. EURO3 SPECIFICATION(NJX) 		1-82673-568-3 01 1 0107-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX),ANTI SKID BRK SYSTEM<SFL> 		1-82673-568-3 01 1 0204- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82674-681-3 01 1 0107-0210 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82674-681-3 01 1 0211- ●
6 HARNESS; FRAME
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82673-566-3 01 1 0012-0106 ●
6 HARNESS; FRAME
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82673-566-3 01 1 0107-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) ISUZU M/T<X9A> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX),ANTI SKID BRK SYSTEM<SFL> 		1-82673-566-3 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC(32L) A/T<X9D> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82674-214-1 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC(32L) ANTI SKID BRK SYSTEM<SFL> ISUZU M/T<X9A> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82673-567-3 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) 		1-82674-215-1 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) 		1-82673-569-3 01 1 0204- ●
6 HARNESS; FRAME
6SD1 TC-S(83L) ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82675-478-1 01 1 0211- ●
6 HARNESS; FRAME
6SD1 TC-S(83L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> 		1-82674-435-1 01 1 0211- ●
6 HARNESS; FRAME
6SD1 TC-S(83L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82675-479-1 01 1 0211- ●
6 HARNESS; FRAME
6SD1 TC-S(83L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82675-477-1 01 1 0211- ●
6 HARNESS; FRAME
EURO2 SPECIFICATION(THN) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-564-3 01 1 0012-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) EURO2 SPECIFICATION(THN) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-564-3 01 1 0204-0907 ●
6 HARNESS; FRAME
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-564-3 01 1 0908- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO2 SPECIFICATION(THN) 		1-82673-565-3 01 1 0012-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO2 SPECIFICATION(THN) 		1-82673-565-3 01 1 0204-0907 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-565-3 01 1 0908- ●
6 HARNESS; FRAME
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. EURO2 SPECIFICATION(THN) 		1-82674-041-2 01 1 0012-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. EURO2 SPECIFICATION(THN) 		1-82674-041-2 01 1 0204-0907 ●
6 HARNESS; FRAME
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO2 SPECIFICATION(THN) 		1-82674-040-2 01 1 0012-0203 ●
6 HARNESS; FRAME
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO2 SPECIFICATION(THN) 		1-82674-040-2 01 1 0204-0907 ●
6 HARNESS; FRAME
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-571-3 01 1 0204- ●
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-570-3 01 1 0204- ●
10 BOX; FUSE,HARNESS
EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC-S(83L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 10AX1 15AX1 		1-82510-585-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC-S(83L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
(C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0012-0106 ● ●
10 BOX; FUSE,HARNESS
EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
(C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
(D) 10AX13 15AX5 25AX2 30AX1 		1-82510-578-0 01 1 0012-0203 ● ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) ISUZU M/T<X9A> (D) 10AX13 15AX5 25AX2 30AX1 		1-82510-578-0 01 1 0204- ● ●
10 BOX; FUSE,HARNESS
(E) 10AX1 25AX1 		1-82510-579-0 01 1 0012-0203 ● ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> (E) 10AX1 25AX1 		1-82510-579-0 01 1 0204- ● ●
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A 		1-82510-234-2 01 1 0012- ● ●
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 100A 		1-82510-235-2 01 1 0012- ● ●
27 FUSE UNIT
(B) 10A RED 		5-82516-002-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 15A BLUE 		5-82516-003-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 25A CLEAR 		5-82516-005-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 7.5A BROWN 		8-94159-007-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 30A GREEN 		8-94159-008-0 AR 1 0012- ● ●
27 FUSE UNIT
(A) 100A 		9-82941-126-0 AR 1 0012- ● ●
27 FUSE UNIT
(A) 125A 		9-82941-130-1 AR 1 0012- ● ●
181 NUT; GLOW PLUG HARNESS
GLOW PLUG<KM5> M4 FLANGE 		5-09440-007-0 01 1 0107-0201 ●
181 NUT; GLOW PLUG HARNESS
INTAKE HEATER<SL2> M4 FLANGE 		5-09440-007-0 01 1 0202- ● ●
181 NUT; GLOW PLUG HARNESS
GLOW PLUG<KM5> M4 FLANGE 		5-09440-007-0 01 1 0202- ●
431 CONNECTOR; JOINT
EURO3 SPECIFICATION(NJX) (C) 		1-82695-164-0 02 1 0107-0210 ●
431 CONNECTOR; JOINT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (C) 		1-82695-164-0 02 1 0211- ●
431 CONNECTOR; JOINT
EURO3 SPECIFICATION(NJX) (D) 4P 		8-97077-939-0 01 1 0107-0210 ●
431 CONNECTOR; JOINT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (D) 4P 		8-97077-939-0 01 1 0211- ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 03 1 0012- ● ●
431 CONNECTOR; JOINT
(B) 10P 		8-97077-943-0 01 1 0012-0106 ● ●
431 CONNECTOR; JOINT
EXC. EURO3 SPECIFICATION(NJX) (B) 10P 		8-97077-943-0 01 1 0107- ●
431 CONNECTOR; JOINT
(B) 10P 		8-97077-943-0 01 1 0107- ●

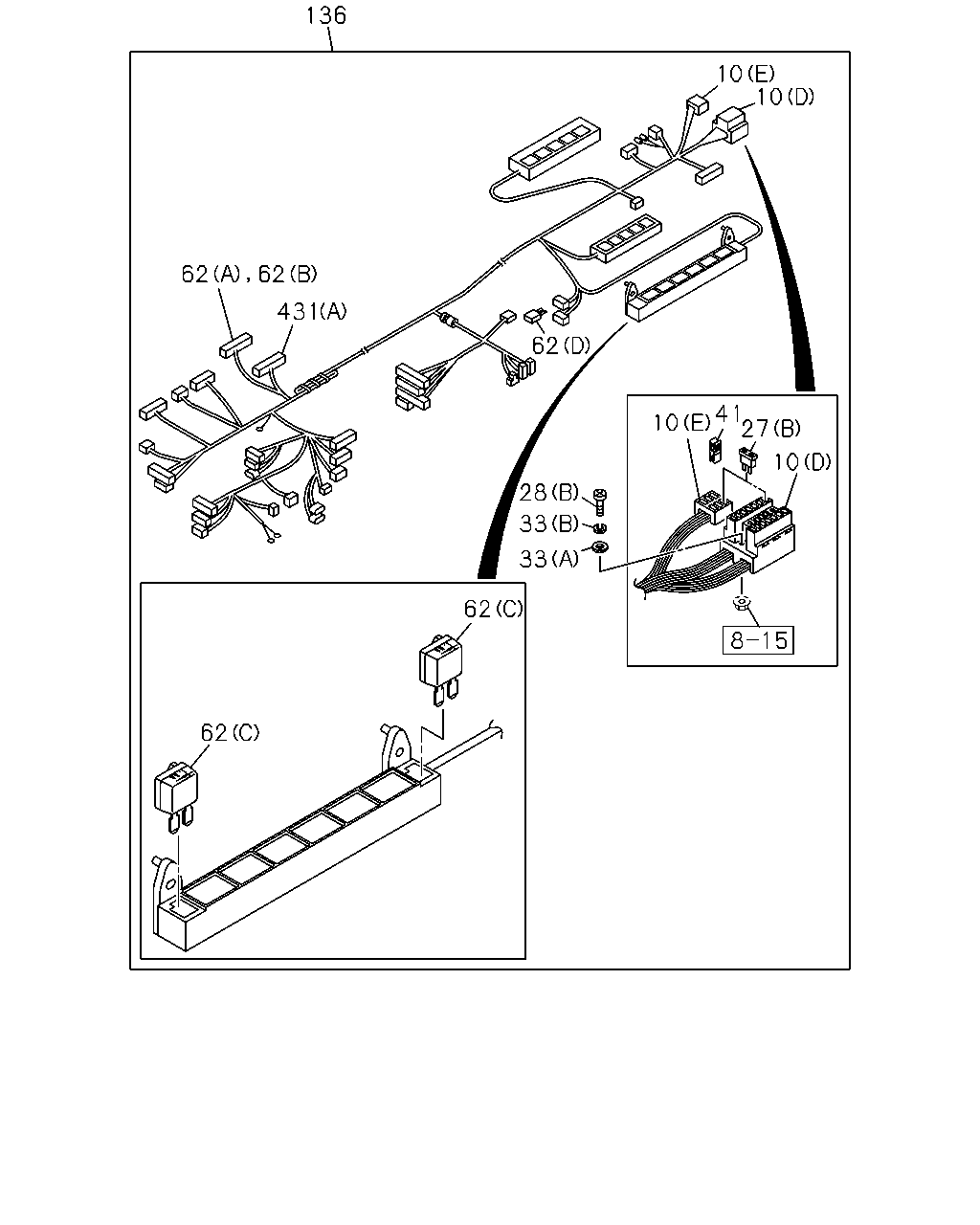

çizim 46978
136 10 10 62 62 431 62 41 10 27 10 28 33 33 62 62
BalonParca AdiParca NoAdetTipApplied Date A B
10 BOX; FUSE,HARNESS
EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC-S(83L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 10AX1 15AX1 		1-82510-585-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0204-0210 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6SD1 TC-S(83L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0211- ●
10 BOX; FUSE,HARNESS
(C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0012-0106 ● ●
10 BOX; FUSE,HARNESS
EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
(C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0107-0203 ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0204- ●
10 BOX; FUSE,HARNESS
(D) 10AX13 15AX5 25AX2 30AX1 		1-82510-578-0 01 1 0012-0203 ● ●
10 BOX; FUSE,HARNESS
6SD1 TC(32L) ISUZU M/T<X9A> (D) 10AX13 15AX5 25AX2 30AX1 		1-82510-578-0 01 1 0204- ● ●
10 BOX; FUSE,HARNESS
(E) 10AX1 25AX1 		1-82510-579-0 01 1 0012-0203 ● ●
10 BOX; FUSE,HARNESS
ISUZU M/T<X9A> (E) 10AX1 25AX1 		1-82510-579-0 01 1 0204- ● ●
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A 		1-82510-234-2 01 1 0012- ● ●
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 100A 		1-82510-235-2 01 1 0012- ● ●
27 FUSE UNIT
(B) 10A RED 		5-82516-002-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 15A BLUE 		5-82516-003-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 25A CLEAR 		5-82516-005-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 7.5A BROWN 		8-94159-007-0 AR 1 0012- ● ●
27 FUSE UNIT
(B) 30A GREEN 		8-94159-008-0 AR 1 0012- ● ●
27 FUSE UNIT
(A) 100A 		9-82941-126-0 AR 1 0012- ● ●
27 FUSE UNIT
(A) 125A 		9-82941-130-1 AR 1 0012- ● ●
28 SCREW; FUSE BOX
(B) M6X42 		8-97811-324-0 02 1 0012- ● ●
28 SCREW; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER 		9-03910-625-0 04 1 0012-0604 ● ●
28 SCREW; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER 		0-36220-625-0 04 1 0605- ● ●
28 SCREW; FUSE BOX
EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0012-0106 ● ●
28 SCREW; FUSE BOX
EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0107-0210 ●
28 SCREW; FUSE BOX
EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0107-0210 ●
28 SCREW; FUSE BOX
EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0211- ● ●
28 SCREW; FUSE BOX
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (C) M5X12 		9-93490-512-0 02 1 0211- ●
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		9-09150-506-0 02 1 0012-0603 ● ●
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		0-91510-506-0 02 1 0604- ● ●
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 02 1 0012- ● ●
33 WASHER; LK,FUSE BOX FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=6.1 		9-09150-506-0 04 1 0012-0603 ● ●
33 WASHER; LK,FUSE BOX FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=6.1 		0-91510-506-0 04 1 0604- ● ●
33 WASHER; LK,FUSE BOX FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=6.4 		9-09160-506-0 04 1 0012- ● ●
41 PULLER; FUSE
6SD1 TC-S(83L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> L=25.3 B=11.5 		8-94121-482-0 01 1 0211- ●
41 PULLER; FUSE
6SD1 TC-S(83L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL> 7.5A BROWN 		8-94159-007-0 01 1 0211- ●
41 PULLER; FUSE
6SD1 TC-S(83L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 7.5A BROWN 		8-94159-007-0 01 1 0211- ●
41 PULLER; FUSE
L=31.0 B=10.0 		8-94369-144-0 01 1 0012-0210 ● ●
41 PULLER; FUSE
6SD1 TC(32L),6WA1 TC-C(55L) L=31.0 B=10.0 		8-94369-144-0 01 1 0211- ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 0012-0106 ● ●
62 DIODE; HARNESS
EURO3 SPECIFICATION(NJX) (C) BLACK 2P-1.5A 		8-94422-639-1 06 1 0107-0210 ●
62 DIODE; HARNESS
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (C) BLACK 2P-1.5A 		8-94422-639-1 06 1 0211- ●
62 DIODE; HARNESS
6SD1 TC-S(83L) (C) BLACK 2P-1.5A 		8-94422-639-1 06 1 0211- ●
62 DIODE; HARNESS
(B) BLACK 11P 		1-82699-704-0 01 1 0012-0203 ● ●
62 DIODE; HARNESS
ISUZU M/T<X9A> (B) BLACK 11P 		1-82699-704-0 01 1 0204- ● ●
62 DIODE; HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 05 1 0012-0106 ● ●
62 DIODE; HARNESS
EXC. EURO3 SPECIFICATION(NJX) (C) BLACK 2P-1.5A 		8-94422-639-1 05 1 0107- ●
62 DIODE; HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 05 1 0107- ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 0107- ● ●
62 DIODE; HARNESS
6WA1 TC-C(55L) (D) BLACK 3P-1.5A 		8-94422-640-1 01 1 0204-0210 ●
62 DIODE; HARNESS
6SD1 TC-S(83L) (D) BLACK 3P-1.5A 		8-94422-640-1 01 1 0211- ●
62 DIODE; HARNESS
6WA1 TC-C(55L) (D) BLACK 3P-1.5A 		8-94422-640-1 01 1 0211- ●
136 HARNESS; DASH
ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-807-3 01 1 0012-0106 ●
136 HARNESS; DASH
EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82660-352-1 01 1 0107- ●
136 HARNESS; DASH
EURO3 SPECIFICATION(NJX) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82660-351-1 01 1 0107- ●
136 HARNESS; DASH
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> 		1-82629-809-3 01 1 0012-0106 ●
136 HARNESS; DASH
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> 		1-82660-353-1 01 1 0107- ●
136 HARNESS; DASH
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82629-808-3 01 1 0012-0106 ●
136 HARNESS; DASH
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-808-3 01 1 0012-0106 ●
136 HARNESS; DASH
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. EURO3 SPECIFICATION(NJX) 		1-82629-808-3 01 1 0107-0203 ●
136 HARNESS; DASH
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-808-3 01 1 0107-0203 ●
136 HARNESS; DASH
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX),ANTI SKID BRK SYSTEM<SFL> 		1-82629-808-3 01 1 0204- ● ●
136 HARNESS; DASH
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO3 SPECIFICATION(NJX) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82629-861-1 01 1 0107- ●
136 HARNESS; DASH
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82629-806-3 01 1 0012-0106 ●
136 HARNESS; DASH
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-806-3 01 1 0012-0106 ●
136 HARNESS; DASH
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82629-806-3 01 1 0107-0203 ●
136 HARNESS; DASH
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-806-3 01 1 0107-0203 ●
136 HARNESS; DASH
6SD1 TC(32L) ISUZU M/T<X9A> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX),ANTI SKID BRK SYSTEM<SFL> 		1-82629-806-3 01 1 0204- ● ●
136 HARNESS; DASH
6SD1 TC(32L) A/T<X9D> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82660-040-4 01 1 0204- ●
136 HARNESS; DASH
6SD1 TC(32L) ANTI SKID BRK SYSTEM<SFL> ISUZU M/T<X9A> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO3 SPECIFICATION(NJX) 		1-82629-807-3 01 1 0204- ●
136 HARNESS; DASH
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) A/T<X9D> EXC. EURO3 SPECIFICATION(NJX) 		1-82660-041-4 01 1 0204- ●
136 HARNESS; DASH
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) 		1-82629-809-3 01 1 0204- ●
136 HARNESS; DASH
6SD1 TC-S(83L) ANTI SKID BRK SYSTEM<SFL> EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82660-771-0 01 1 0211- ●
136 HARNESS; DASH
6SD1 TC-S(83L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) ANTI SKID BRK SYSTEM<SFL> 		1-82660-301-0 01 1 0211- ●
136 HARNESS; DASH
6SD1 TC-S(83L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. ANTI SKID BRK SYSTEM<SFL> 		1-82660-772-0 01 1 0211- ●
136 HARNESS; DASH
6SD1 TC-S(83L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), ANTISKID BRK SYSTEM<SFL> 		1-82660-770-0 01 1 0211- ●
136 HARNESS; DASH
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-811-3 01 1 0204- ●
136 HARNESS; DASH
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-810-3 01 1 0204- ●
431 CONNECTOR; JOINT
EURO3 SPECIFICATION(NJX) (C) 		1-82695-164-0 02 1 0107-0210 ●
431 CONNECTOR; JOINT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (C) 		1-82695-164-0 02 1 0211- ●
431 CONNECTOR; JOINT
EURO3 SPECIFICATION(NJX) (D) 4P 		8-97077-939-0 01 1 0107-0210 ●
431 CONNECTOR; JOINT
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (D) 4P 		8-97077-939-0 01 1 0211- ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 03 1 0012- ● ●
431 CONNECTOR; JOINT
(B) 10P 		8-97077-943-0 01 1 0012-0106 ● ●
431 CONNECTOR; JOINT
EXC. EURO3 SPECIFICATION(NJX) (B) 10P 		8-97077-943-0 01 1 0107- ●
431 CONNECTOR; JOINT
(B) 10P 		8-97077-943-0 01 1 0107- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
