Isuzu WW
▶
TRUCKS
▶
FSR
▶
11367 - FSR-R W/DOC EXC.SPA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#71500) — 53 parça
◀

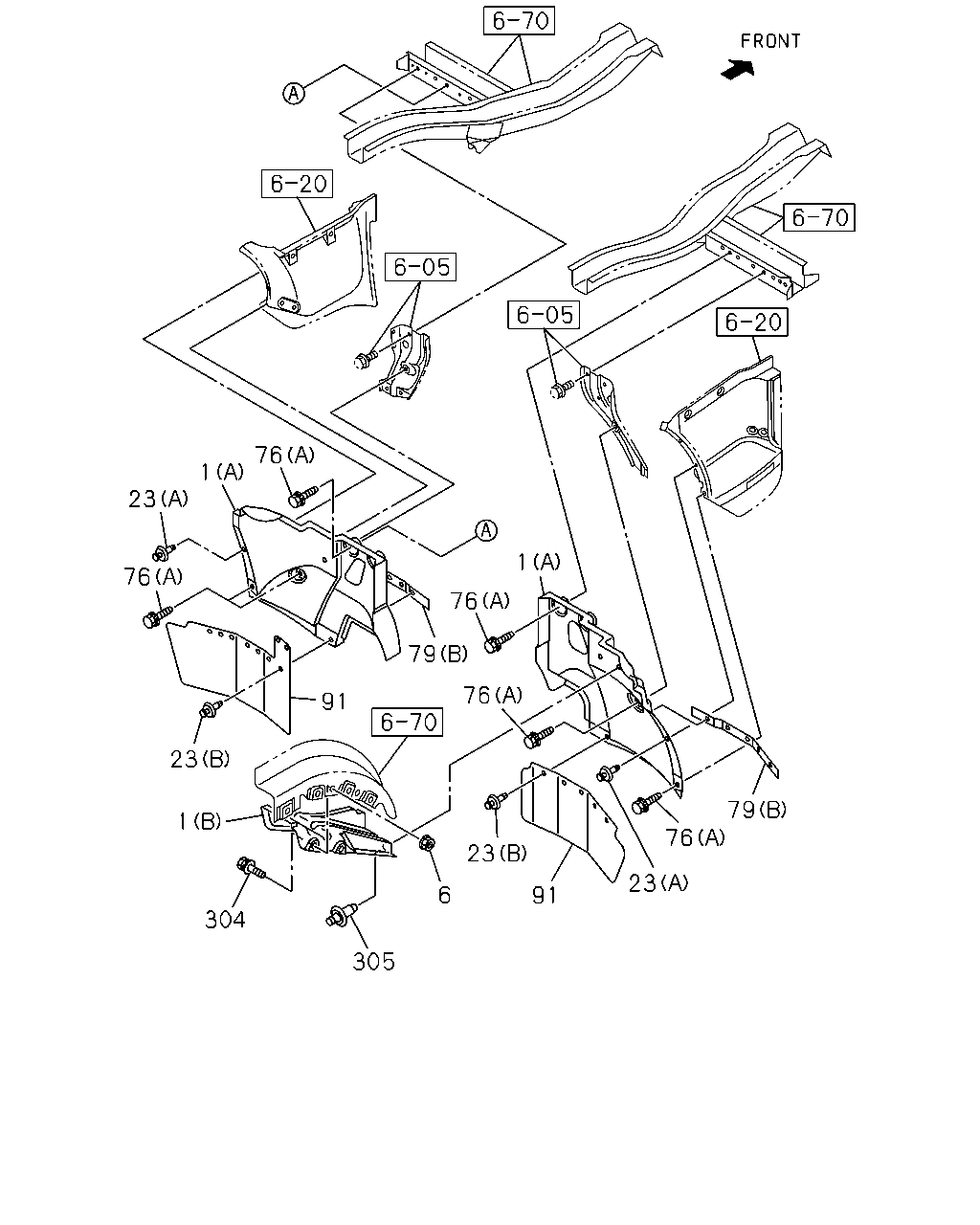

[647A] MUD GUARD;FRONT AND SPLASH GUARD (15 parça)

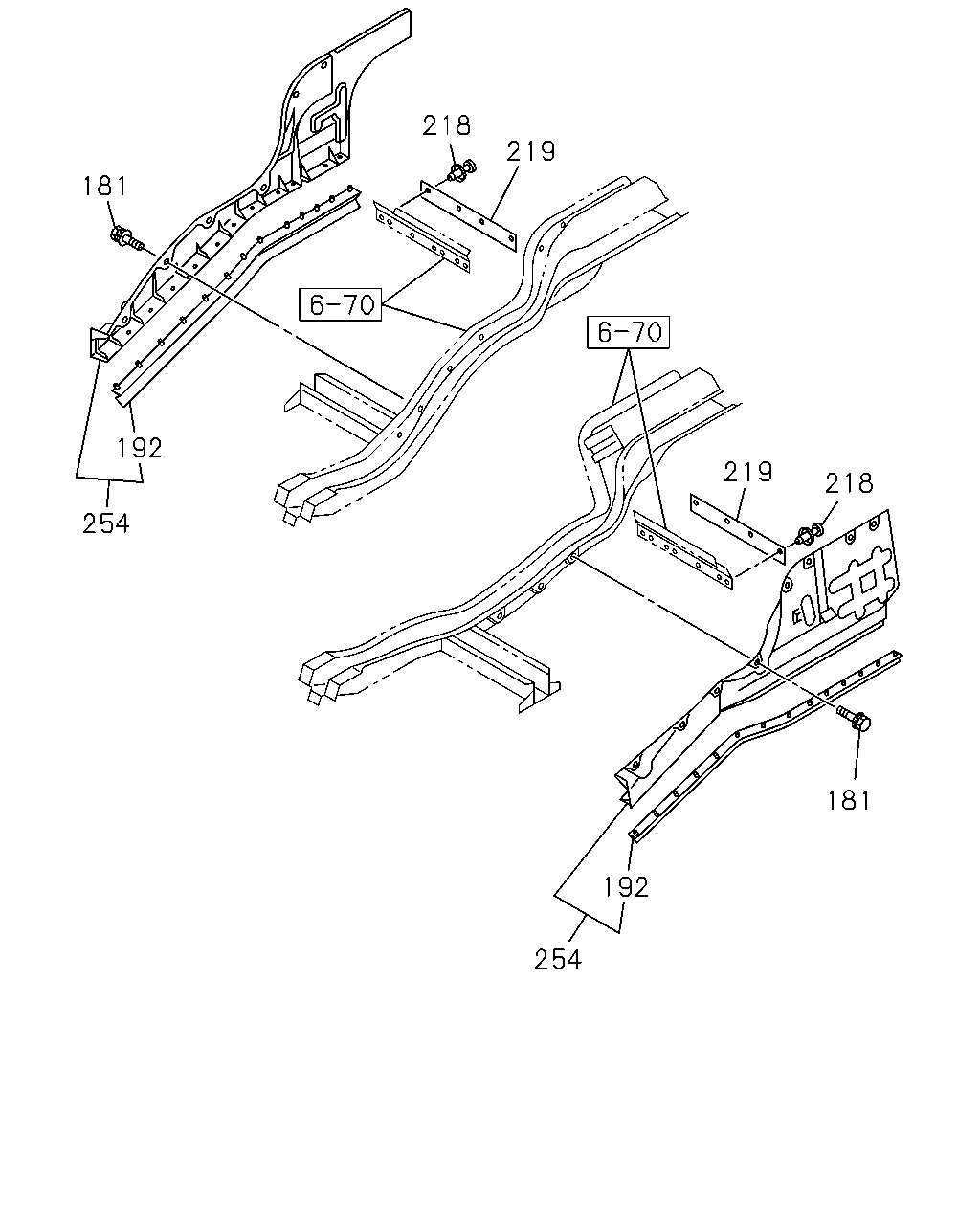

[647A] MUD COVER AND SEAL (7 parça)

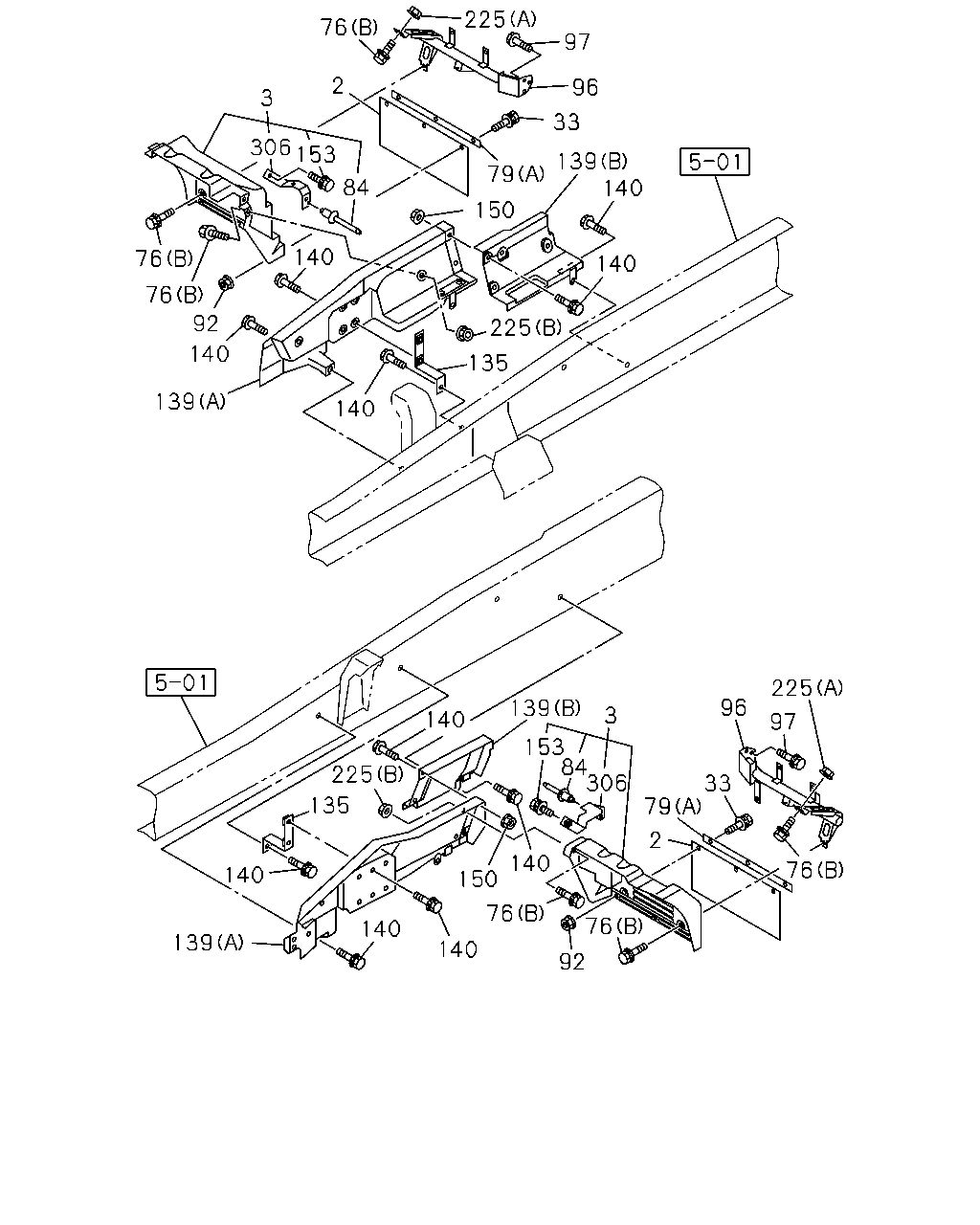

[647A] MUD GUARD;REAR AND SIDE PANEL (31 parça)
▶
76
1
23
1
76
76
79
76
91
23
79
1
76
23
23
6
91
304
305
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B)
8-98075-188-0
01
1
1103-
1
GUARD; MUD,FRT
(A)
8-98152-647-0
01
1
1103-
1
GUARD; MUD,FRT
(A)
8-98152-646-0
01
1
1103-
6
NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE
8-94197-199-0
02
1
1103-
23
FASTENER; MUD COVER
(B)
1-09470-001-0
08
1
1103-
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
04
1
1103-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1103-1211
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1212-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1103-
79
RETAINER; MUD COVER
(A)
1-79931-484-0
02
1
1103-
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1103-
91
COVER; MUD,FRT
8-98092-836-0
01
1
1103-
91
COVER; MUD,FRT
8-98092-834-0
01
1
1103-
304
BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER
1-09980-495-0
02
1
1103-
305
FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5
1-09987-248-1
02
1
1103-
218
219
181
192
219
218
254
181
192
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
16
1
1103-
192
SEAL; MUD COVER
8-98041-159-2
01
1
1103-
192
SEAL; MUD COVER
8-98041-158-1
01
1
1103-
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1103-
219
FLAP; MUD GUARD
8-98041-150-1
02
1
1103-
254
COVER; MUD,VALANCE
8-98039-926-1
01
1
1103-
254
COVER; MUD,VALANCE
8-98039-925-2
01
1
1103-
139
140
135
225
140
140
140
76
150
140
92
76
139
3
153
84
306
2
79
33
96
225
97
76
139
140
92
76
76
140
135
225
140
140
139
33
96
97
225
76
2
3
306
153
84
140
79
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; MUD,TIRE RR
1-79931-482-0
02
1
1103-
3
GUARD; MUD,RR
1-79931-471-0
01
1
1103-1212
3
GUARD; MUD,RR
8-98196-103-0
01
1
1301-
3
GUARD; MUD,RR
1-79931-475-0
01
1
1103-1212
3
GUARD; MUD,RR
8-98196-111-0
01
1
1301-
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
06
1
1103-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1103-1211
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1212-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1103-
79
RETAINER; MUD COVER
(A)
1-79931-484-0
02
1
1103-
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1103-
84
RIVET; MUD GUARD
5-09734-006-1
02
1
1301-
84
RIVET; MUD GUARD
5-09734-006-1
02
1
1301-
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
06
1
1103-
96
STAY; MUD GUARD
8-98066-745-2
01
1
1103-
96
STAY; MUD GUARD
1-79931-479-3
01
1
1103-
97
BOLT; STAY TO FRAME
M10X30 FLANGE
0-28651-030-0
07
1
1103-
135
BRACKET; SIDE PANEL
1-53457-191-0
02
1
1103-
139
PANEL; SIDE
(B)
1-53194-591-0
01
1
1103-
139
PANEL; SIDE
(A)
8-98090-078-0
01
1
1103-
139
PANEL; SIDE
(B)
1-53194-590-0
01
1
1103-
139
PANEL; SIDE
(A)
8-98090-077-0
01
1
1103-
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
06
1
1103-
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
10
1
1103-
150
NUT; SIDE PANEL
M8 W/DISHED WASHER
8-97329-625-0
04
1
1103-
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1301-
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1301-
225
NUT; MUD GUARD
(A) M8 FLANGE
0-91180-108-0
02
1
1103-
225
NUT; MUD GUARD
(B) M8 W/DISHED WASHER
8-97329-625-0
02
1
1103-
306
BRACKET; MUD GUARD
8-98196-125-0
01
1
1301-
306
BRACKET; MUD GUARD
8-98196-126-0
01
1
1301-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
