Sayfa 1-10 - Isuzu EPC

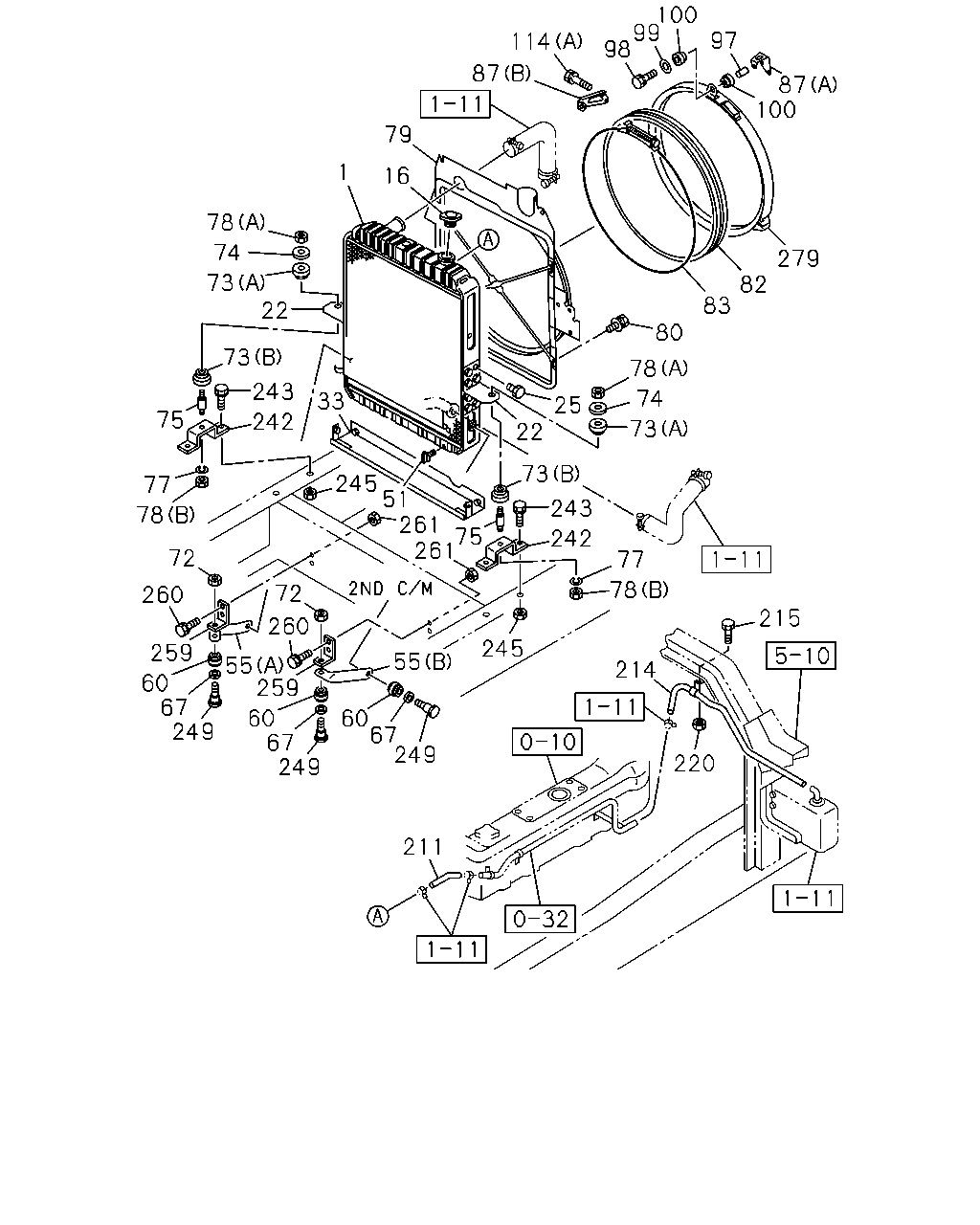

1-10 — RADIATOR (#715) — 266 parça

100 99 98 97 114 87 100 87 79 1 16 78 74 279 73 22 82 83 80 73 78 243 33 74 25 22 75 242 73 73 245 51 261 75 261 77 243 78 242 72 77 72 78 260 215 260 55 259 245 259 55 214 60 67 249 60 67 249 60 67 249 220 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-678-0	01	1	9204-	●
1	RADIATOR ASM	1-21410-650-1	01	1	9204-		●
1	RADIATOR ASM	1-21410-679-1	01	1	9505-			●
16	CAP; RAD	1-21450-053-1	01	1	9204-	●	●	●
22	BRACKET; RAD MTG	1-21464-315-0	01	1	9204-	●
22	BRACKET; RAD MTG	1-21464-314-0	01	1	9204-	●
22	BRACKET; RAD MTG	1-21464-308-0	01	1	9204-		●
22	BRACKET; RAD MTG	1-21464-307-0	01	1	9204-		●
22	BRACKET; RAD MTG	1-21464-317-0	01	1	9505-			●
22	BRACKET; RAD MTG	1-21464-316-0	01	1	9505-			●
25	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	9-01960-816-0	12	1	9204-	●
25	BOLT; BRKT (B) M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9204-	●
25	BOLT; BRKT M8X16 W/LK WASHER	9-01900-816-0	20	1	9204-9302		●
25	BOLT; BRKT M8X16 W/LK&PL WASHER	0-50140-816-0	20	1	9303-		●
25	BOLT; BRKT M8X16 W/LK WASHER	9-01900-816-0	16	1	9505-			●
33	PROTECTOR; RAD	1-21419-036-0	01	1	9204-		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9204-	●	●	●
55	STAY; RAD TO UPR MBR (A)	1-21464-168-2	01	1	9204-		●
55	STAY; RAD TO UPR MBR (B)	1-21464-169-2	01	1	9204-		●
60	GROMMET	1-09332-117-0	04	1	9204-		●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	9204-		●
72	NUT; STAY,RAD MBR M8	9-09110-408-0	02	1	9204-		●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9204-	●	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9204-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9204-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-010-0	02	1	9204-	●	●	●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9204-	●	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9204-	●	●	●
78	NUT; CUSHION RUBBER (B) M12	9-99110-412-0	02	1	9204-	●	●	●
79	GUIDE; FAN,RAD	1-21551-350-1	01	1	9204-	●
79	GUIDE; FAN,RAD	1-21551-290-4	01	1	9204-		●
79	GUIDE; FAN,RAD	1-21551-349-3	01	1	9505-			●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9204-9302	●	●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9303-	●
80	BOLT; FAN GUIDE M6X14 FLANGE	0-28080-614-0	04	1	9303-		●	●
82	COVER; FAN,RAD	1-21559-203-0	01	1	9204-	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9204-		●
82	COVER; FAN,RAD	1-21559-157-0	01	1	9505-			●
83	CLIP; FAN COVER	1-09707-177-2	01	1	9204-	●	●
87	STAY; FAN GUIDE (A)	1-21559-195-2	01	1	9204-	●
87	STAY; FAN GUIDE (B)	1-21559-204-0	01	1	9204-	●
87	STAY; FAN GUIDE (A)	1-21559-213-0	01	1	9204-		●
87	STAY; FAN GUIDE (B)	1-21559-214-0	01	1	9204-		●
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9505-			●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9505-			●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9505-			●
97	TUBE; DIST,FAN GUIDE ID=11.8 L=27	1-21559-149-0	03	1	9204-		●
98	BOLT; RAD FAN GUIDE M8X28 FLANGE	0-28080-828-0	03	1	9204-9308	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9309-	●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28080-845-0	03	1	9204-		●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28080-830-0	03	1	9505-			●
99	WASHER; PL ID=8.4 OD=18	9-09164-608-0	03	1	9204-	●		●
99	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9204-		●
100	RUBBER; MTG	1-09337-006-0	06	1	9204-9307	●
100	RUBBER; MTG	1-09337-027-0	06	1	9308-	●		●
100	RUBBER; MTG	1-09337-017-0	06	1	9204-		●
114	BOLT; STAY (B) M10X25 W/LK WASHER	0-50051-025-0	02	1	9204-	●
114	BOLT; STAY (A) M10X20 W/LK WASHER	0-50051-020-0	02	1	9204-	●	●
211	HOSE; RAD TO PIPE L=260 SERVICED BY L=3000	0-03257-300-0	01	1	9204-	●	●
211	HOSE; RAD TO PIPE L=200 SERVICED BY L=3000	0-03257-300-0	01	1	9505-			●
214	HOSE; PIPE TO RESERVE TANK L=880 SERVICED BY L=3000	0-03257-300-0	01	1	9204-9204	●
214	HOSE; PIPE TO RESERVE TANK L=840 SERVICED BY L=3000	0-03257-300-0	01	1	9205-	●
214	HOSE; PIPE TO RESERVE TANK L=740 SERVICED BY L=3000	0-03257-300-0	01	1	9204-9204		●
214	HOSE; PIPE TO RESERVE TANK L=700 SERVICED BY L=3000	0-03257-300-0	01	1	9205-		●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	9505-			●
215	BOLT; CLIP M8X18	0-28010-818-0	01	1	9204-9204	●	●
215	BOLT; CLIP M8X18 FLANGE	0-28080-818-0	01	1	9205-	●	●
220	NUT; CLIP M8	9-09110-408-0	01	1	9204-	●	●
220	NUT; CLIP M8	9-09110-408-0	03	1	9505-			●
242	BRACKET; RAD	1-21464-336-0	02	1	9204-		●
243	BOLT; BRKT M12X35 W/LK WASHER	0-50041-235-0	04	1	9204-		●
245	NUT; BRKT M12	9-99110-412-0	04	1	9204-		●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	9204-		●
259	BRACKET; RAD STAY	1-21523-007-0	01	1	9204-9505	●		●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	9506-	●		●
259	BRACKET; RAD STAY	1-21464-170-2	02	1	9204-		●
260	BOLT; BRKT M8X18	0-28010-818-0	02	1	9204-9204	●
260	BOLT; BRKT M8X18 FLANGE	0-28080-818-0	02	1	9205-	●		●
260	BOLT; BRKT M8X25 FLANGE	0-28010-825-0	04	1	9204-9204		●
260	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	04	1	9205-		●
261	NUT; BRKT M8	9-09110-408-0	02	1	9204-	●		●
261	NUT; BRKT M8	9-09110-408-0	04	1	9204-		●
279	BELL MOUTH	1-21551-268-0	01	1	9204-	●
279	BELL MOUTH	1-21551-316-0	01	1	9204-		●
279	BELL MOUTH	8-94397-008-1	01	1	9505-			●

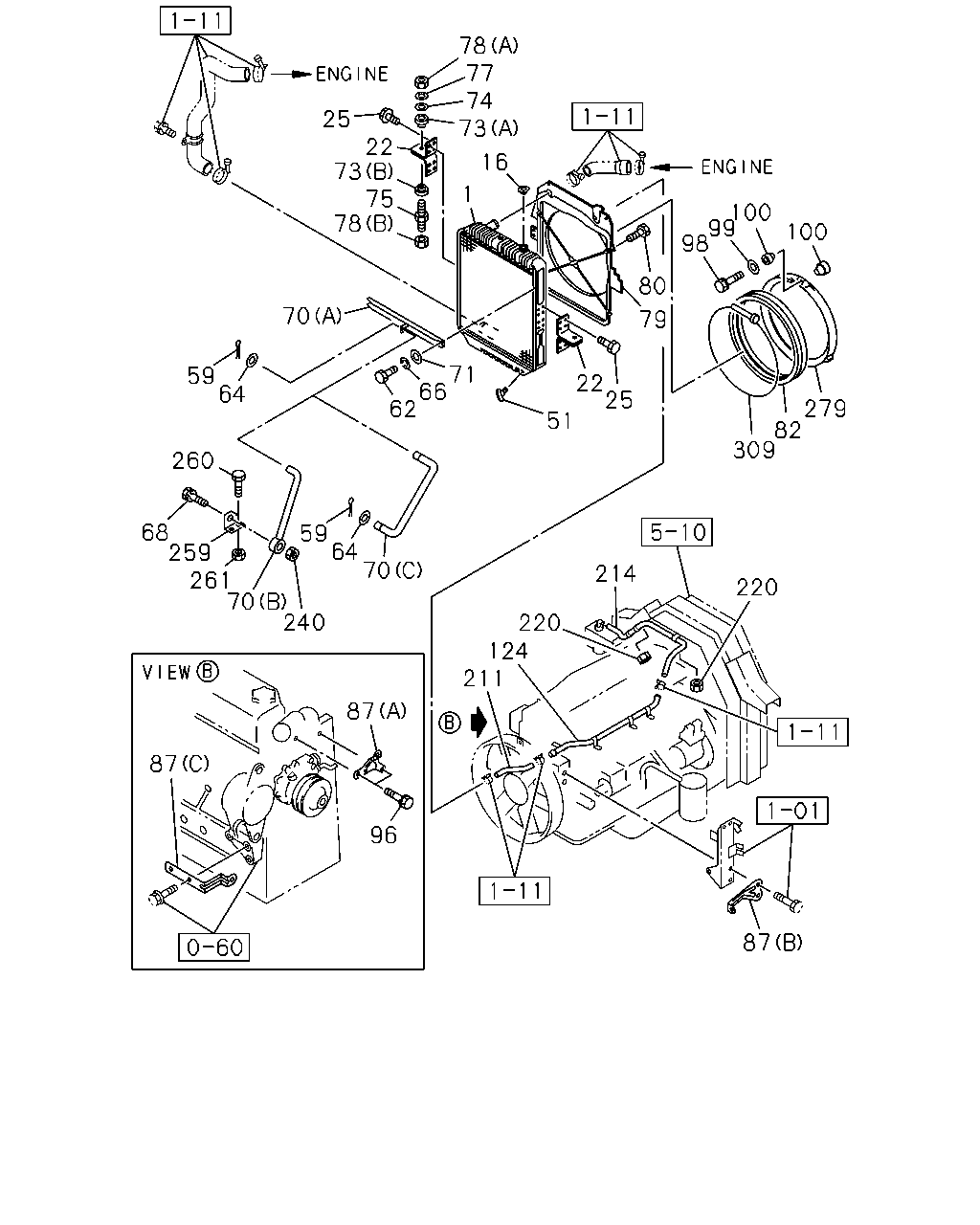

78 77 74 73 25 22 73 75 78 16 1 100 99 98 100 80 70 79 71 66 62 59 64 22 25 279 82 309 51 260 68 259 261 70 240 59 64 70 214 220 220 124 211 87 87 96 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-678-0	01	1	9204-	●
1	RADIATOR ASM	1-21410-650-1	01	1	9204-		●
1	RADIATOR ASM	1-21410-679-1	01	1	9505-			●
16	CAP; RAD	1-21450-053-1	01	1	9204-	●	●	●
22	BRACKET; RAD MTG	1-21464-315-0	01	1	9204-	●
22	BRACKET; RAD MTG	1-21464-314-0	01	1	9204-	●
22	BRACKET; RAD MTG	1-21464-308-0	01	1	9204-		●
22	BRACKET; RAD MTG	1-21464-307-0	01	1	9204-		●
22	BRACKET; RAD MTG	1-21464-317-0	01	1	9505-			●
22	BRACKET; RAD MTG	1-21464-316-0	01	1	9505-			●
25	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	9-01960-816-0	12	1	9204-	●
25	BOLT; BRKT (B) M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9204-	●
25	BOLT; BRKT M8X16 W/LK WASHER	9-01900-816-0	20	1	9204-9302		●
25	BOLT; BRKT M8X16 W/LK&PL WASHER	0-50140-816-0	20	1	9303-		●
25	BOLT; BRKT M8X16 W/LK WASHER	9-01900-816-0	16	1	9505-			●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9204-	●	●	●
59	PIN; SNAP,STAY	1-09987-158-1	01	1	9204-9505	●		●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9506-	●		●
62	BOLT; STAY M10X16	9-02041-016-0	02	1	9204-	●		●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	01	1	9204-9505	●		●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9506-	●		●
66	WASHER; LK,STAY ID=10.2	9-09150-510-0	02	1	9204-	●		●
68	BOLT; STAY TO BRKT M8X40 FLANGE	0-28080-840-0	01	1	9204-9506	●		●
70	STAY; RAD (B)	1-21522-058-0	01	1	9204-9505	●
70	STAY; RAD (C)	1-21522-067-0	01	1	9506-	●
70	STAY; RAD (A)	1-21522-040-1	01	1	9204-	●		●
70	STAY; RAD (B)	1-21522-057-0	01	1	9505-9505			●
70	STAY; RAD (C)	1-21522-068-0	01	1	9506-			●
71	WASHER; PL,STAY ID=10.5 OD=22	9-09160-610-0	02	1	9204-	●		●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9204-	●	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9204-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9204-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-010-0	02	1	9204-	●	●	●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9204-	●	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9204-	●	●	●
78	NUT; CUSHION RUBBER (B) M12	9-99110-412-0	02	1	9204-	●	●	●
79	GUIDE; FAN,RAD	1-21551-350-1	01	1	9204-	●
79	GUIDE; FAN,RAD	1-21551-290-4	01	1	9204-		●
79	GUIDE; FAN,RAD	1-21551-349-3	01	1	9505-			●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9204-9302	●	●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9303-	●
80	BOLT; FAN GUIDE M6X14 FLANGE	0-28080-614-0	04	1	9303-		●	●
82	COVER; FAN,RAD	1-21559-203-0	01	1	9204-	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9204-		●
82	COVER; FAN,RAD	1-21559-157-0	01	1	9505-			●
87	STAY; FAN GUIDE (A)	1-21559-195-2	01	1	9204-	●
87	STAY; FAN GUIDE (B)	1-21559-204-0	01	1	9204-	●
87	STAY; FAN GUIDE (A)	1-21559-213-0	01	1	9204-		●
87	STAY; FAN GUIDE (B)	1-21559-214-0	01	1	9204-		●
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9505-			●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9505-			●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9505-			●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9505-			●
98	BOLT; RAD FAN GUIDE M8X28 FLANGE	0-28080-828-0	03	1	9204-9308	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9309-	●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28080-845-0	03	1	9204-		●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28080-830-0	03	1	9505-			●
99	WASHER; PL ID=8.4 OD=18	9-09164-608-0	03	1	9204-	●		●
99	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9204-		●
100	RUBBER; MTG	1-09337-006-0	06	1	9204-9307	●
100	RUBBER; MTG	1-09337-027-0	06	1	9308-	●		●
100	RUBBER; MTG	1-09337-017-0	06	1	9204-		●
124	PIPE; WATER,TANK TO RAD	8-94396-222-1	01	1	9505-			●
211	HOSE; RAD TO PIPE L=260 SERVICED BY L=3000	0-03257-300-0	01	1	9204-	●	●
211	HOSE; RAD TO PIPE L=200 SERVICED BY L=3000	0-03257-300-0	01	1	9505-			●
214	HOSE; PIPE TO RESERVE TANK L=880 SERVICED BY L=3000	0-03257-300-0	01	1	9204-9204	●
214	HOSE; PIPE TO RESERVE TANK L=840 SERVICED BY L=3000	0-03257-300-0	01	1	9205-	●
214	HOSE; PIPE TO RESERVE TANK L=740 SERVICED BY L=3000	0-03257-300-0	01	1	9204-9204		●
214	HOSE; PIPE TO RESERVE TANK L=700 SERVICED BY L=3000	0-03257-300-0	01	1	9205-		●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	9505-			●
220	NUT; CLIP M8	9-09110-408-0	01	1	9204-	●	●
220	NUT; CLIP M8	9-09110-408-0	03	1	9505-			●
240	NUT; STAY M8	9-09110-408-0	01	1	9204-9506	●		●
259	BRACKET; RAD STAY	1-21523-007-0	01	1	9204-9505	●		●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	9506-	●		●
259	BRACKET; RAD STAY	1-21464-170-2	02	1	9204-		●
260	BOLT; BRKT M8X18	0-28010-818-0	02	1	9204-9204	●
260	BOLT; BRKT M8X18 FLANGE	0-28080-818-0	02	1	9205-	●		●
260	BOLT; BRKT M8X25 FLANGE	0-28010-825-0	04	1	9204-9204		●
260	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	04	1	9205-		●
261	NUT; BRKT M8	9-09110-408-0	02	1	9204-	●		●
261	NUT; BRKT M8	9-09110-408-0	04	1	9204-		●
279	BELL MOUTH	1-21551-268-0	01	1	9204-	●
279	BELL MOUTH	1-21551-316-0	01	1	9204-		●
279	BELL MOUTH	8-94397-008-1	01	1	9505-			●
309	WIRE; FAN COVER	1-09704-088-0	01	1	9505-			●

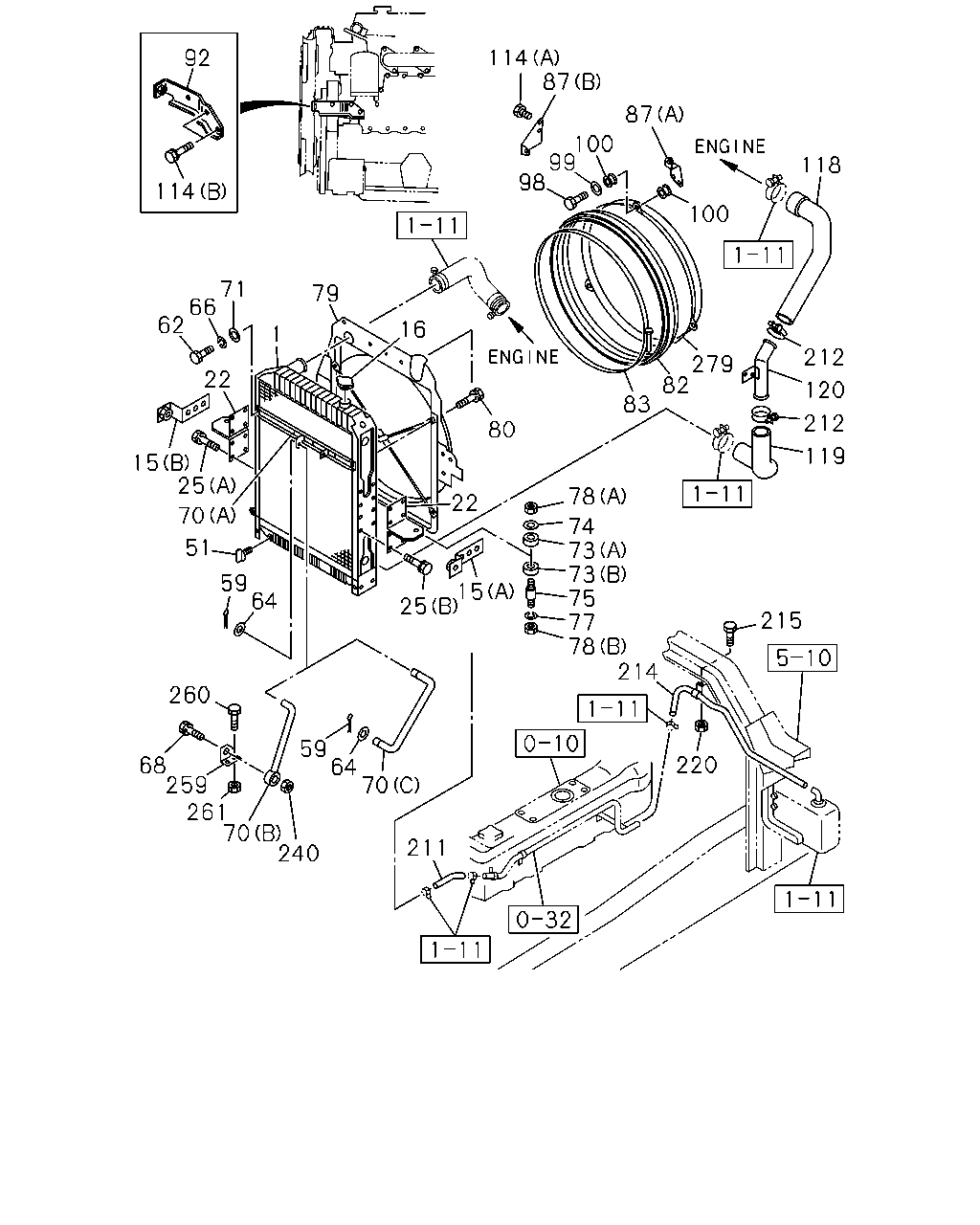

92 114 87 87 100 99 98 118 114 100 71 66 62 79 16 1 212 279 82 22 120 83 212 80 119 15 25 78 22 70 74 73 73 75 77 78 214 51 59 64 15 25 215 260 59 64 70 220 68 259 261 70 240 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-678-0	01	1	9204-	●
1	RADIATOR ASM	1-21410-650-1	01	1	9204-		●
1	RADIATOR ASM	1-21410-679-1	01	1	9505-			●
15	BRACKET; PIPE,RAD (A)	1-21464-358-0	01	1	9204-	●
15	BRACKET; PIPE,RAD (B)	1-21464-359-0	01	1	9204-	●
16	CAP; RAD	1-21450-053-1	01	1	9204-	●	●	●
22	BRACKET; RAD MTG	1-21464-315-0	01	1	9204-	●
22	BRACKET; RAD MTG	1-21464-314-0	01	1	9204-	●
22	BRACKET; RAD MTG	1-21464-308-0	01	1	9204-		●
22	BRACKET; RAD MTG	1-21464-307-0	01	1	9204-		●
22	BRACKET; RAD MTG	1-21464-317-0	01	1	9505-			●
22	BRACKET; RAD MTG	1-21464-316-0	01	1	9505-			●
25	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	9-01960-816-0	12	1	9204-	●
25	BOLT; BRKT (B) M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9204-	●
25	BOLT; BRKT M8X16 W/LK WASHER	9-01900-816-0	20	1	9204-9302		●
25	BOLT; BRKT M8X16 W/LK&PL WASHER	0-50140-816-0	20	1	9303-		●
25	BOLT; BRKT M8X16 W/LK WASHER	9-01900-816-0	16	1	9505-			●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9204-	●	●	●
59	PIN; SNAP,STAY	1-09987-158-1	01	1	9204-9505	●		●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9506-	●		●
62	BOLT; STAY M10X16	9-02041-016-0	02	1	9204-	●		●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	01	1	9204-9505	●		●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9506-	●		●
66	WASHER; LK,STAY ID=10.2	9-09150-510-0	02	1	9204-	●		●
68	BOLT; STAY TO BRKT M8X40 FLANGE	0-28080-840-0	01	1	9204-9506	●		●
70	STAY; RAD (B)	1-21522-058-0	01	1	9204-9505	●
70	STAY; RAD (C)	1-21522-067-0	01	1	9506-	●
70	STAY; RAD (A)	1-21522-040-1	01	1	9204-	●		●
70	STAY; RAD (B)	1-21522-057-0	01	1	9505-9505			●
70	STAY; RAD (C)	1-21522-068-0	01	1	9506-			●
71	WASHER; PL,STAY ID=10.5 OD=22	9-09160-610-0	02	1	9204-	●		●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9204-	●	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9204-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9204-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-010-0	02	1	9204-	●	●	●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9204-	●	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9204-	●	●	●
78	NUT; CUSHION RUBBER (B) M12	9-99110-412-0	02	1	9204-	●	●	●
79	GUIDE; FAN,RAD	1-21551-350-1	01	1	9204-	●
79	GUIDE; FAN,RAD	1-21551-290-4	01	1	9204-		●
79	GUIDE; FAN,RAD	1-21551-349-3	01	1	9505-			●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9204-9302	●	●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9303-	●
80	BOLT; FAN GUIDE M6X14 FLANGE	0-28080-614-0	04	1	9303-		●	●
82	COVER; FAN,RAD	1-21559-203-0	01	1	9204-	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9204-		●
82	COVER; FAN,RAD	1-21559-157-0	01	1	9505-			●
83	CLIP; FAN COVER	1-09707-177-2	01	1	9204-	●	●
87	STAY; FAN GUIDE (A)	1-21559-195-2	01	1	9204-	●
87	STAY; FAN GUIDE (B)	1-21559-204-0	01	1	9204-	●
87	STAY; FAN GUIDE (A)	1-21559-213-0	01	1	9204-		●
87	STAY; FAN GUIDE (B)	1-21559-214-0	01	1	9204-		●
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9505-			●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9505-			●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9505-			●
92	BRACKET; FAN GUIDE	1-21559-202-1	01	1	9204-	●
98	BOLT; RAD FAN GUIDE M8X28 FLANGE	0-28080-828-0	03	1	9204-9308	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9309-	●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28080-845-0	03	1	9204-		●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28080-830-0	03	1	9505-			●
99	WASHER; PL ID=8.4 OD=18	9-09164-608-0	03	1	9204-	●		●
99	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9204-		●
100	RUBBER; MTG	1-09337-006-0	06	1	9204-9307	●
100	RUBBER; MTG	1-09337-027-0	06	1	9308-	●		●
100	RUBBER; MTG	1-09337-017-0	06	1	9204-		●
114	BOLT; STAY (B) M10X25 W/LK WASHER	0-50051-025-0	02	1	9204-	●
114	BOLT; STAY (A) M10X20 W/LK WASHER	0-50051-020-0	02	1	9204-	●	●
118	HOSE; WATER,ENG SIDE	1-21437-255-1	01	1	9204-	●
119	HOSE; WATER,RAD SIDE	1-21437-254-1	01	1	9204-	●
120	PIPE; HOSE TO HOSE,RAD OUTLET	1-21431-413-0	01	1	9204-	●
211	HOSE; RAD TO PIPE L=260 SERVICED BY L=3000	0-03257-300-0	01	1	9204-	●	●
211	HOSE; RAD TO PIPE L=200 SERVICED BY L=3000	0-03257-300-0	01	1	9505-			●
212	CLIP; HOSE ID=63	1-09704-067-0	02	1	9204-	●
214	HOSE; PIPE TO RESERVE TANK L=880 SERVICED BY L=3000	0-03257-300-0	01	1	9204-9204	●
214	HOSE; PIPE TO RESERVE TANK L=840 SERVICED BY L=3000	0-03257-300-0	01	1	9205-	●
214	HOSE; PIPE TO RESERVE TANK L=740 SERVICED BY L=3000	0-03257-300-0	01	1	9204-9204		●
214	HOSE; PIPE TO RESERVE TANK L=700 SERVICED BY L=3000	0-03257-300-0	01	1	9205-		●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	9505-			●
215	BOLT; CLIP M8X18	0-28010-818-0	01	1	9204-9204	●	●
215	BOLT; CLIP M8X18 FLANGE	0-28080-818-0	01	1	9205-	●	●
220	NUT; CLIP M8	9-09110-408-0	01	1	9204-	●	●
220	NUT; CLIP M8	9-09110-408-0	03	1	9505-			●
240	NUT; STAY M8	9-09110-408-0	01	1	9204-9506	●		●
259	BRACKET; RAD STAY	1-21523-007-0	01	1	9204-9505	●		●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	9506-	●		●
259	BRACKET; RAD STAY	1-21464-170-2	02	1	9204-		●
260	BOLT; BRKT M8X18	0-28010-818-0	02	1	9204-9204	●
260	BOLT; BRKT M8X18 FLANGE	0-28080-818-0	02	1	9205-	●		●
260	BOLT; BRKT M8X25 FLANGE	0-28010-825-0	04	1	9204-9204		●
260	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	04	1	9205-		●
261	NUT; BRKT M8	9-09110-408-0	02	1	9204-	●		●
261	NUT; BRKT M8	9-09110-408-0	04	1	9204-		●
279	BELL MOUTH	1-21551-268-0	01	1	9204-	●
279	BELL MOUTH	1-21551-316-0	01	1	9204-		●
279	BELL MOUTH	8-94397-008-1	01	1	9505-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
