◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11367 - FSR-R W/DOC EXC.SPA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#71497) — 41 parça

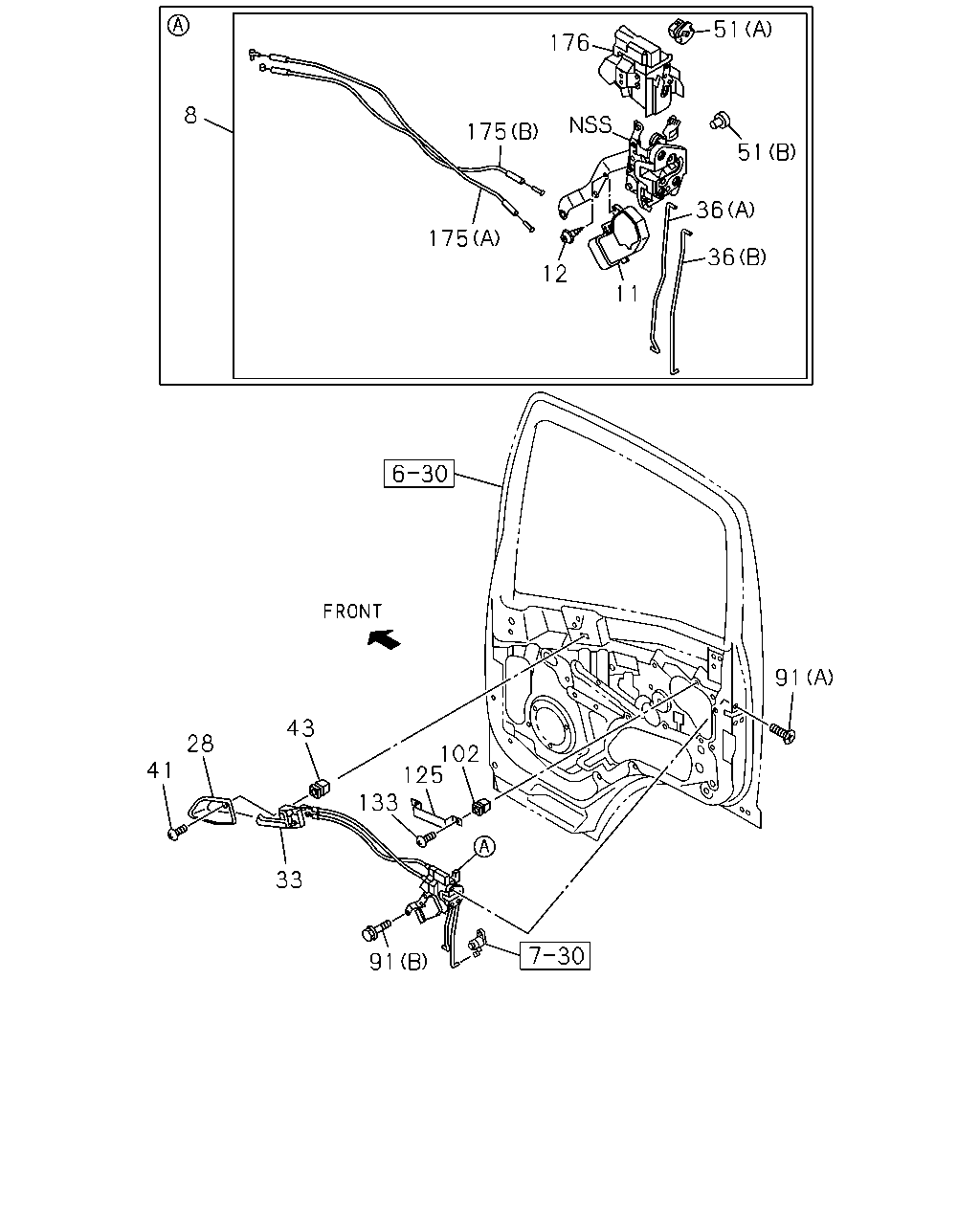

çizim 130890
51 176 8 175 51 36 175 36 12 11 91 43 28 102 125 133 41 33 91
BalonParca AdiParca NoAdetTipApplied Date
8 LOCK; DOOR,FRT DOOR 8-98029-055-2 01 1 1103-
8 LOCK; DOOR,FRT DOOR 8-98029-056-2 01 1 1103-
11 ACTUATOR; DOOR LK,FRT 8-98058-231-0 01 1 1103-
11 ACTUATOR; DOOR LK,FRT 8-98058-233-0 01 1 1103-
12 SCREW; DOOR LK 8-97310-549-0 02 1 1103-
12 SCREW; DOOR LK 8-97310-549-0 02 1 1103-
28 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-312-0 01 1 1103-
28 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97405-311-0 01 1 1103-
33 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-310-1 01 1 1103-
33 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-309-1 01 1 1103-
36 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-532-0 01 1 1103-
36 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-536-0 01 1 1103-
36 LINK; DOOR LOCK,OUTSIDE
(A) 		8-98058-531-0 01 1 1103-
36 LINK; DOOR LOCK,OUTSIDE
(B) 		8-98058-535-0 01 1 1103-
41 SCREW; INSIDE HANDLE
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1103-
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1103-
51 SNAP; FRT DOOR LOCK CONT ROD
(A) BLUE 		8-98058-227-0 01 1 1103-
51 SNAP; FRT DOOR LOCK CONT ROD
(B) RED 		8-98058-229-0 01 1 1103-
51 SNAP; FRT DOOR LOCK CONT ROD
(A) NATURAL 		8-98058-226-0 01 1 1103-
51 SNAP; FRT DOOR LOCK CONT ROD
(B) BLACK 		8-98058-228-0 01 1 1103-
91 BOLT; DOOR LOCK
(B) M6X10 FLANGE 		0-28050-610-0 02 1 1103-
91 BOLT; DOOR LOCK
(A) M6X14.5 		8-98004-342-0 06 1 1103-
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1103-
125 BRACKET; DOOR PULL 8-97585-927-0 02 1 1103-
133 SCREW; DOOR PULL STAY
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 1103-
175 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 1103-
175 CABLE ASM; LOCK CONTROL
(B) 		8-98058-539-0 01 1 1103-
175 CABLE ASM; LOCK CONTROL
(A) 		8-98058-538-0 01 1 1103-
175 CABLE ASM; LOCK CONTROL
(A) 		8-98058-537-0 01 1 1103-
176 COVER; DOOR LOCK 8-98058-239-0 01 1 1103-
176 COVER; DOOR LOCK 8-98058-238-0 01 1 1103-

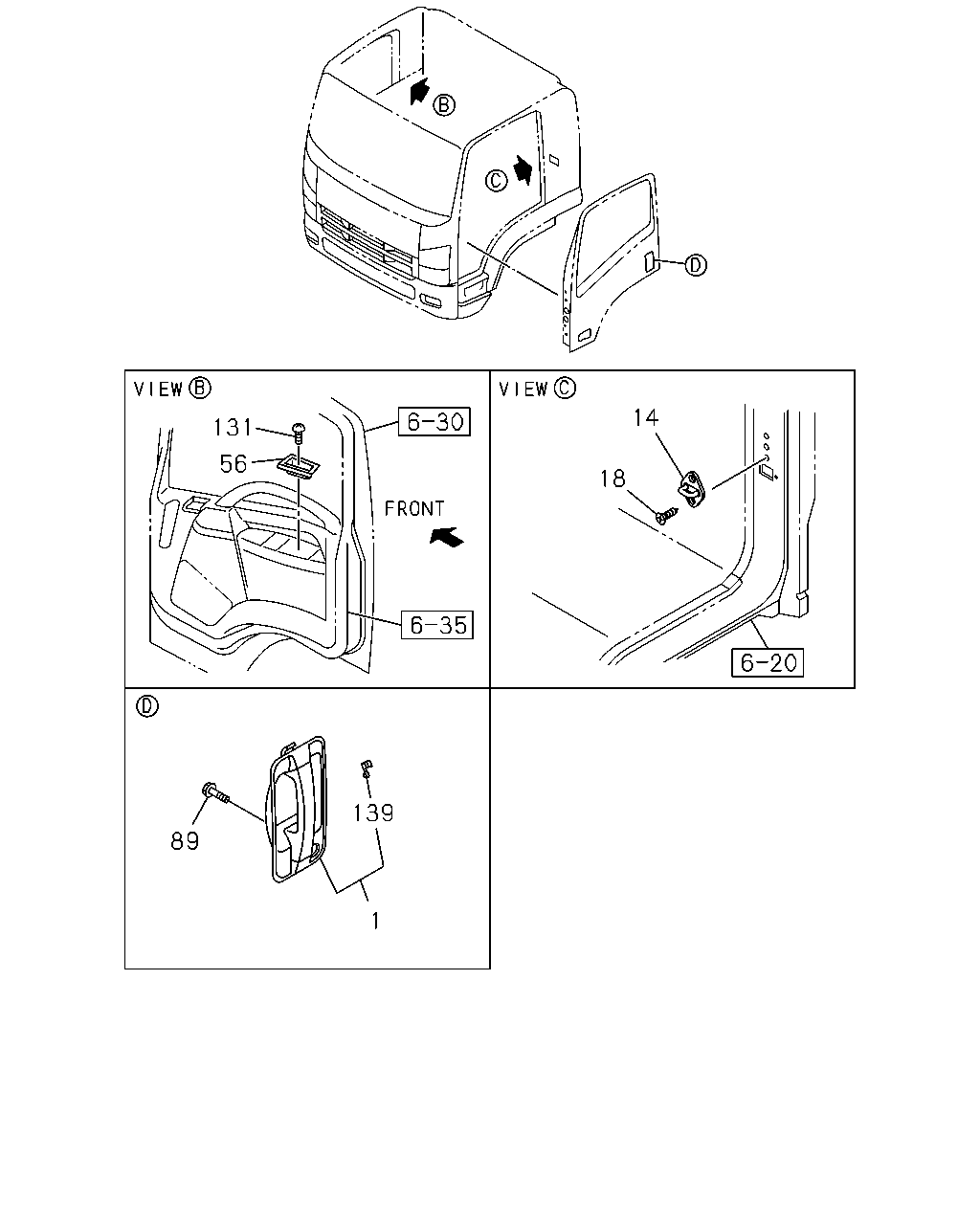

çizim 190285
14 131 56 18 139 89 1
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,FRT DOOR 8-98037-100-2 01 1 1103-
1 HANDLE; OUTSIDE,FRT DOOR 8-98037-101-2 01 1 1103-
14 STRIKER; FRT DOOR 8-98029-173-2 02 1 1103-
18 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 1103-
56 ESCUTCHEON; LOCK KNOB
GRAY 		8-97405-314-1 01 1 1103-
56 ESCUTCHEON; LOCK KNOB
GRAY 		8-97405-315-1 01 1 1103-
89 BOLT; DOOR OUTSIDE HANDLE
M6X10 FLANGE 		0-28050-610-0 04 1 1103-
131 SCREW; ESCUTCHEON,DOOR PULL
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1103-
139 HOLDER; ROD,DOOR HANDLE
WHITE 		8-97333-303-0 01 1 1103-
139 HOLDER; ROD,DOOR HANDLE
BLACK 		8-98095-813-0 01 1 1103-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
