◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#7149) — 192 parça

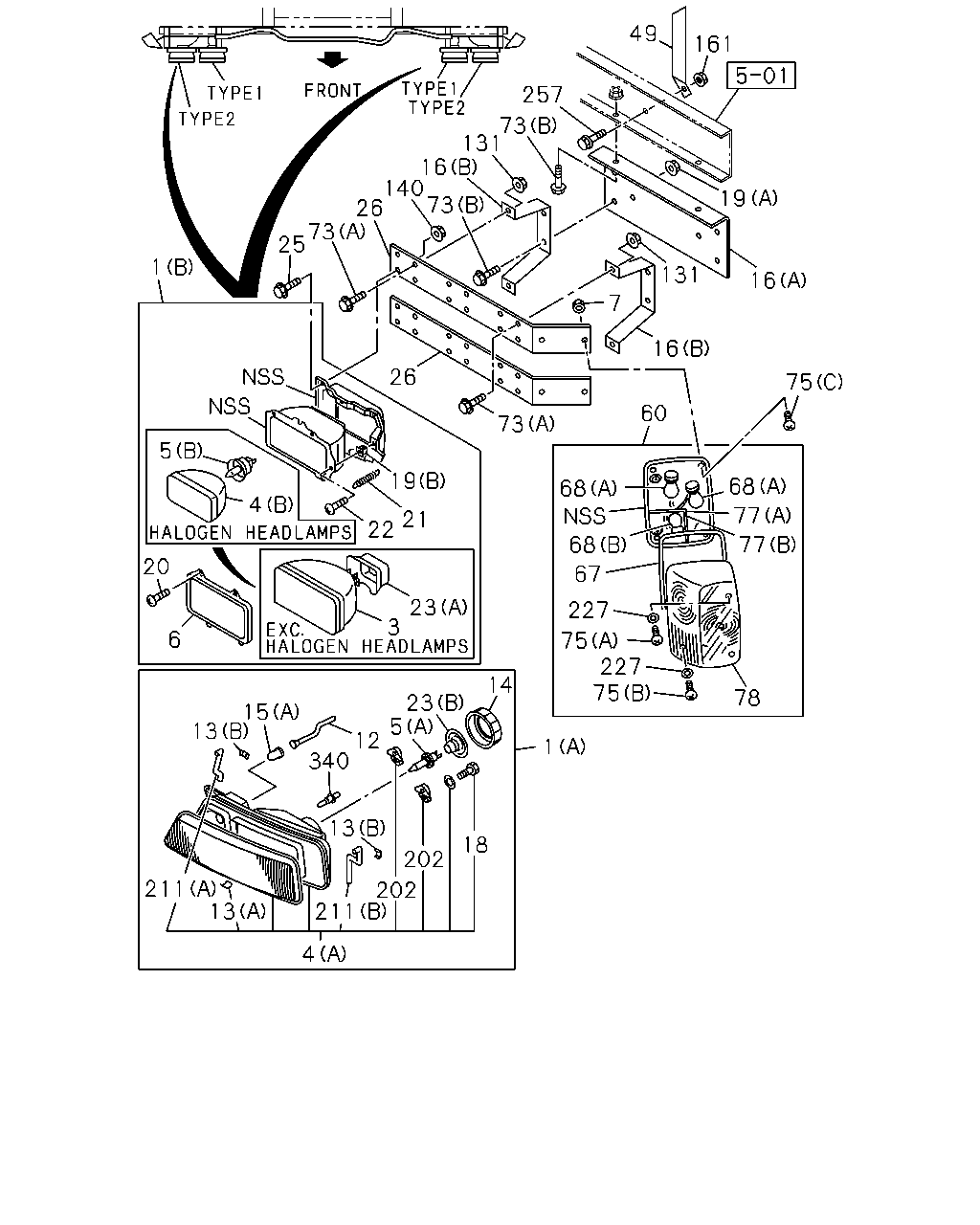

çizim 5951
49 161 257 73 131 16 140 26 73 19 73 25 1 131 16 7 16 26 75 60 73 5 68 77 19 68 4 21 22 77 68 20 67 23 227 3 6 75 227 75 14 78 23 5 15 13 12 340 1 13 18 202 211 13 202 211 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 1 24V 70W 		1-82110-257-2 01 1 0012-0407 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 1 24V 70W 		1-82110-257-2 01 1 0408-0409 ● ●
1 LAMP ASM; HEAD
(B) TYPE 1 24V 70W 		1-82110-257-2 01 1 0410-0712 ● ●
1 LAMP ASM; HEAD
(B) TYPE 1 24V 70W 		1-82110-484-0 01 1 0801- ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 2 24V 75/70W 		1-82110-260-2 01 1 0012-0407 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 2 24V 75/70W 		1-82110-260-2 01 1 0408-0409 ● ●
1 LAMP ASM; HEAD
(B) TYPE 2 24V 75/70W 		1-82110-260-2 01 1 0410- ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 1 24V 70W 		1-82110-256-2 01 1 0012-0407 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 1 24V 70W 		1-82110-256-2 01 1 0408-0409 ● ●
1 LAMP ASM; HEAD
(B) TYPE 1 24V 70W 		1-82110-256-2 01 1 0410-0712 ● ●
1 LAMP ASM; HEAD
(B) TYPE 1 24V 70W 		1-82110-482-0 01 1 0801- ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 2 24V 75/70W 		1-82110-258-2 01 1 0012-0407 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 2 24V 75/70W 		1-82110-258-2 01 1 0408-0409 ● ●
1 LAMP ASM; HEAD
(B) TYPE 2 24V 75/70W 		1-82110-258-2 01 1 0410- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 1 24V 55W 		1-82110-251-3 01 1 0012-0407 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (B) TYPE 1 24V 55W 		1-82110-251-3 01 1 0012-0407 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 1 24V 55W 		1-82110-251-3 01 1 0408-0409 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 24V 50/65W 		1-82110-254-4 01 1 0012-0407 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (B) 24V 50/65W 		1-82110-254-4 01 1 0012-0407 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 24V 50/65W 		1-82110-254-4 01 1 0408-0409 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 1 24V 55W 		1-82110-250-3 01 1 0012-0407 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (B) TYPE 1 24V 55W 		1-82110-250-3 01 1 0012-0407 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 1 24V 55W 		1-82110-250-3 01 1 0408-0409 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 24V 50/65W 		1-82110-252-4 01 1 0012-0407 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (B) 24V 50/65W 		1-82110-252-4 01 1 0012-0407 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 24V 50/65W 		1-82110-252-4 01 1 0408-0409 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82110-396-2 01 1 0012-0509 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-97609-414-1 01 1 0510- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82110-395-2 01 1 0012-0509 ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-97609-413-1 01 1 0510- ● ●
3 SEALED BEAM; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W 		1-82191-023-0 02 1 0012-0407 ● ●
3 SEALED BEAM; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> 24V 55W 		1-82191-023-0 02 1 0012-0407 ● ●
3 SEALED BEAM; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W 		1-82191-023-0 02 1 0408-0409 ● ●
3 SEALED BEAM; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 65/50W 		1-82191-042-0 02 1 0012-0407 ● ●
3 SEALED BEAM; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> 24V 65/50W 		1-82191-042-0 02 1 0012-0407 ● ●
3 SEALED BEAM; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 65/50W 		1-82191-042-0 02 1 0408-0409 ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 2 24V 75/70W 		1-82191-031-0 02 1 0012-0407 ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 2 24V 75/70W 		1-82191-031-0 02 1 0408-0409 ● ●
4 HEADLAMP UNIT
(B) TYPE 2 24V 75/70W 		1-82191-031-0 02 1 0410- ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 1 24V 70W 		1-82191-032-0 02 1 0012-0407 ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) TYPE 1 24V 70W 		1-82191-032-0 02 1 0408-0409 ● ●
4 HEADLAMP UNIT
(B) TYPE 1 24V 70W 		1-82191-032-0 02 1 0410- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82119-129-0 01 1 0012- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82119-128-0 01 1 0012- ● ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 24V 75/70W 		1-82193-006-0 02 1 0012-0407 ● ●
5 BULB; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 24V 75/70W 		1-82193-006-0 02 1 0408-0409 ● ●
5 BULB; HEADLAMP
(B) 24V 75/70W 		1-82193-006-0 02 1 0410- ● ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 24V 70W 		1-82193-007-0 02 1 0012-0407 ● ●
5 BULB; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 24V 70W 		1-82193-007-0 02 1 0408-0409 ● ●
5 BULB; HEADLAMP
(B) 24V 70W 		1-82193-007-0 02 1 0410- ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 75/70W 		1-82194-063-0 02 1 0012- ● ●
6 RIM; HEADLAMP
24V 70W 		1-82114-018-0 02 1 0012-0203 ● ●
6 RIM; HEADLAMP
EXC. EURO3 SPECIFICATION(NJX) 24V 70W 		1-82114-018-0 02 1 0204-0409 ●
6 RIM; HEADLAMP
24V 70W 		1-82114-018-0 02 1 0204-0409 ●
6 RIM; HEADLAMP
24V 70W 		1-82114-018-0 02 1 0410- ● ●
6 RIM; HEADLAMP
24V 75/70W 		1-82114-019-0 02 1 0012-0203 ● ●
6 RIM; HEADLAMP
EXC. EURO3 SPECIFICATION(NJX) 24V 75/70W 		1-82114-019-0 02 1 0204-0409 ●
6 RIM; HEADLAMP
24V 75/70W 		1-82114-019-0 02 1 0204-0409 ●
6 RIM; HEADLAMP
24V 75/70W 		1-82114-019-0 02 1 0410- ● ●
7 NUT; FRT COMB LAMP
M5 		9-99110-405-0 08 1 0012-0512 ● ●
7 NUT; FRT COMB LAMP
M5 		0-91110-505-0 08 1 0601- ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82118-012-0 02 1 0012- ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 04 1 0012-0711 ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82119-084-0 02 1 0712- ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		8-94381-588-0 14 1 0012- ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 0012- ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> (B) 24V 35W 		1-82194-012-0 02 1 0012- ● ●
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 55W 		1-82194-079-0 02 1 0012- ● ●
16 BRACKET; HEADLAMP
(A) 		1-53456-310-0 02 1 0012- ● ●
16 BRACKET; HEADLAMP
(B) 		9-82615-154-2 04 1 0012- ● ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 0012- ● ●
19 NUT; HEADLAMP
EURO3 SPECIFICATION(NJX) (B) 		1-82119-056-0 08 1 0107-0107 ●
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91150-106-0 08 1 0012-0106 ● ●
19 NUT; HEADLAMP
(B) 		1-82119-056-0 04 1 0012-0106 ● ●
19 NUT; HEADLAMP
EXC. EURO3 SPECIFICATION(NJX) (B) 		1-82119-056-0 04 1 0107-0409 ●
19 NUT; HEADLAMP
(B) 		1-82119-056-0 04 1 0107-0409 ●
19 NUT; HEADLAMP
(B) 		1-82119-056-0 04 1 0410- ● ●
19 NUT; HEADLAMP
(B) 		1-82119-056-0 04 1 0410- ● ●
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91150-106-0 08 1 0107-0602 ● ●
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91180-106-0 08 1 0603- ● ●
20 SCREW; HEADLAMP
EURO3 SPECIFICATION(NJX) 		1-82119-023-0 16 1 0107-0107 ●
20 SCREW; HEADLAMP 1-82119-023-0 08 1 0012-0106 ● ●
20 SCREW; HEADLAMP
EXC. EURO3 SPECIFICATION(NJX) 		1-82119-023-0 08 1 0107-0409 ●
20 SCREW; HEADLAMP 1-82119-023-0 08 1 0107-0409 ●
20 SCREW; HEADLAMP 1-82119-023-0 08 1 0410- ● ●
20 SCREW; HEADLAMP 1-82119-023-0 08 1 0410- ● ●
21 SPRING; ADJ HEADLAMP
EURO3 SPECIFICATION(NJX) 		1-82119-105-0 04 1 0107-0107 ●
21 SPRING; ADJ HEADLAMP 1-82119-105-0 02 1 0012-0106 ● ●
21 SPRING; ADJ HEADLAMP
EXC. EURO3 SPECIFICATION(NJX) 		1-82119-105-0 02 1 0107-0409 ●
21 SPRING; ADJ HEADLAMP 1-82119-105-0 02 1 0107-0409 ●
21 SPRING; ADJ HEADLAMP 1-82119-105-0 02 1 0410- ● ●
21 SPRING; ADJ HEADLAMP 1-82119-105-0 02 1 0410- ● ●
22 SCREW; ADJ,HEADLAMP
EURO3 SPECIFICATION(NJX) 		1-82119-095-0 08 1 0107-0107 ●
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 04 1 0012-0106 ● ●
22 SCREW; ADJ,HEADLAMP
EXC. EURO3 SPECIFICATION(NJX) 		1-82119-095-0 04 1 0107-0409 ●
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 04 1 0107-0409 ●
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 04 1 0410- ● ●
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 04 1 0410- ● ●
23 COVER; BULB,HEADLAMP
EURO3 SPECIFICATION(NJX) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82119-013-0 04 1 0107-0107 ●
23 COVER; BULB,HEADLAMP
EURO3 SPECIFICATION(NJX) EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (A) 		1-82119-013-0 04 1 0107-0107 ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82119-013-0 02 1 0012-0106 ● ●
23 COVER; BULB,HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (A) 		1-82119-013-0 02 1 0012-0106 ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82119-013-0 02 1 0012-0106 ● ●
23 COVER; BULB,HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (A) 		1-82119-013-0 02 1 0012-0106 ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. EURO3 SPECIFICATION(NJX) (A) 		1-82119-013-0 02 1 0107-0107 ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. EURO3 SPECIFICATION(NJX) (A) 		1-82119-013-0 02 1 0107-0107 ● ●
23 COVER; BULB,HEADLAMP
EXC. EURO3 SPECIFICATION(NJX),HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HALOGEN HEADLAMPS<TT5> (A) 		1-82119-013-0 02 1 0107-0107 ● ●
23 COVER; BULB,HEADLAMP
EXC. EURO3 SPECIFICATION(NJX),HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HALOGEN HEADLAMPS<TT5> (A) 		1-82119-013-0 02 1 0107-0107 ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82119-013-0 02 1 0108-0407 ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82119-013-0 02 1 0108-0407 ● ●
23 COVER; BULB,HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (A) 		1-82119-013-0 02 1 0108-0407 ● ●
23 COVER; BULB,HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (A) 		1-82119-013-0 02 1 0108-0407 ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82119-013-0 02 1 0408-0409 ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82119-013-0 02 1 0408-0409 ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-147-0 02 1 0012- ● ●
25 SCREW; LAMP
M5X16 W/LK WASHER 		9-03910-516-0 16 1 0012-0604 ● ●
25 SCREW; LAMP
M5X16 W/LK WASHER 		0-36220-516-0 16 1 0605- ● ●
26 BRACKET ASM; HEADLAMP 1-82117-098-0 04 1 0012- ● ●
49 BRACKET; LAMP 1-53456-342-0 01 1 0012- ● ●
60 LAMP ASM; FRT COMB 1-82210-109-1 01 1 0012- ● ●
60 LAMP ASM; FRT COMB 1-82210-108-1 01 1 0012- ● ●
67 GASKET; FRT COMB LAMP 1-82216-004-0 01 1 0012- ● ●
67 GASKET; FRT COMB LAMP 1-82216-003-0 01 1 0012- ● ●
68 BULB; FRT COMB LAMP
(A) 24V 25W 		9-82691-347-0 04 1 0012- ● ●
68 BULB; FRT COMB LAMP
(B) 24V 10/4W 		9-82691-607-0 02 1 0012- ● ●
73 BOLT; BRKT,HEADLAMP
(A) M6X20 FLANGE 		0-28680-620-0 08 1 0012-0512 ● ●
73 BOLT; BRKT,HEADLAMP
(A) M6X20 FLANGE 		0-28650-620-0 08 1 0601- ● ●
73 BOLT; BRKT,HEADLAMP
(B) M10X30 FLANGE 		0-28681-030-0 12 1 0012-0512 ● ●
73 BOLT; BRKT,HEADLAMP
(B) M10X30 FLANGE 		0-28651-030-0 12 1 0601- ● ●
75 SCREW; FRT COMB LAMP
(A) M4X50 		1-82219-015-0 04 1 0012- ● ●
75 SCREW; FRT COMB LAMP
(B) M4X16 		1-82219-016-0 04 1 0012- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 W/LK WASHER 		9-03910-516-0 08 1 0012-0604 ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 W/LK WASHER 		0-36220-516-0 08 1 0605- ● ●
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-020-0 02 1 0012- ● ●
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-021-0 02 1 0012- ● ●
78 LENS ASM; FRT COMB 1-82215-009-0 01 1 0012- ● ●
78 LENS ASM; FRT COMB 1-82215-008-0 01 1 0012- ● ●
131 NUT; BRKT,HEADLAMP
M10 FLANGE 		0-91150-210-0 12 1 0012-0602 ● ●
131 NUT; BRKT,HEADLAMP
M10 FLANGE 		0-91180-210-0 12 1 0603- ● ●
140 NUT
M5 		9-99110-405-0 12 1 0012-0512 ● ●
140 NUT
M5 		0-91110-505-0 12 1 0601- ● ●
161 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0012-0602 ● ●
161 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-139-0 04 1 0012- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-329-0 01 1 0012-0105 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-331-0 01 1 0012- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-328-0 01 1 0012-0105 ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-330-0 01 1 0012- ● ●
227 SEAT; SET SCREW,FRT COMB LAMP 1-82219-017-0 08 1 0012- ● ●
257 BOLT; BRKT HD LAMP
M10X35 FLANGE 		0-28681-035-0 02 1 0012-0512 ● ●
257 BOLT; BRKT HD LAMP
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 0012- ● ●

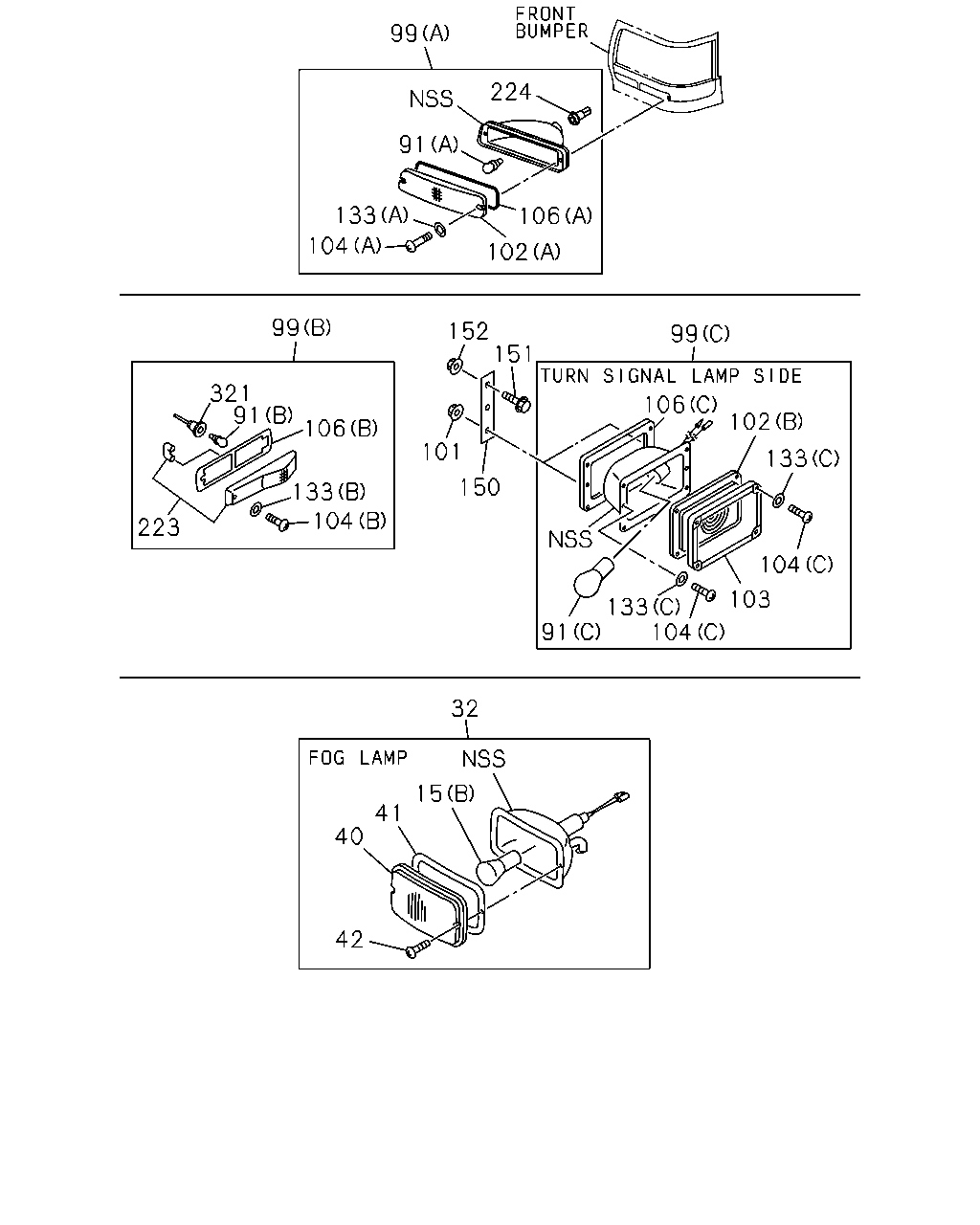

çizim 44127
99 224 91 133 106 104 102 99 152 151 99 321 91 106 102 106 101 133 150 133 104 223 104 103 133 91 104 32 15 41 40 42
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
FOG LAMP<T96> (B) 24V 35W 		1-82194-012-0 02 1 0012- ● ●
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 55W 		1-82194-079-0 02 1 0012- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		1-82110-146-5 02 1 0012- ● ●
40 LENS; FOG LAMP
FOG LAMP<T96> 		1-82115-005-0 02 1 0012- ● ●
41 GASKET; LENS,FOG LAMP
FOG LAMP<T96> 		1-82216-013-0 02 1 0012- ● ●
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		1-82119-009-0 04 1 0012- ● ●
91 BULB; SIDE TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 24V 25W 		1-82194-029-0 02 1 0012- ● ●
91 BULB; SIDE TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 24V 12W 		1-82194-030-0 02 1 0012- ● ●
91 BULB; SIDE TURN SIGNAL
TURN SIGNAL LAMP SIDE<TEL> (C) 24V 25W 		9-82691-347-0 02 1 0012- ● ●
99 LAMP; SIDE FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82210-192-1 01 1 0012- ● ●
99 LAMP; SIDE FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82210-207-1 01 1 0012- ● ●
99 LAMP; SIDE FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82210-191-1 01 1 0012- ● ●
99 LAMP; SIDE FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82210-206-1 01 1 0012- ● ●
99 LAMP; SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> (C) 24V 25W 		1-82220-007-1 01 1 0012- ● ●
99 LAMP; SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> (C) 24V 25W 		1-82220-006-1 01 1 0012- ● ●
101 NUT; LAMP,SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> M4 FLANGE 		5-09440-007-0 12 1 0012- ● ●
102 LENS; SIDE TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) ORANGE 		1-82215-065-0 01 1 0012- ● ●
102 LENS; SIDE TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) ORANGE 		1-82215-064-0 01 1 0012- ● ●
102 LENS; SIDE TURN SIGNAL
TURN SIGNAL LAMP SIDE<TEL> (B) 		1-82225-002-0 02 1 0012- ● ●
103 RIM; SIDE TURN SIGNAL
TURN SIGNAL LAMP SIDE<TEL> 		1-82224-001-0 02 1 0012- ● ●
104 SCREW; SIDE TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82219-026-0 04 1 0012- ● ●
104 SCREW; SIDE TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-86830-149-0 02 1 0012- ● ●
104 SCREW; SIDE TURN SIGNAL
TURN SIGNAL LAMP SIDE<TEL> (C) 		1-82229-004-0 12 1 0012-0404 ● ●
104 SCREW; SIDE TURN SIGNAL
TURN SIGNAL LAMP SIDE<TEL> (C) 		1-82229-009-0 12 1 0405- ● ●
106 GASKET; SIDE TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82216-033-0 02 1 0012- ● ●
106 GASKET; SIDE TURN SIGNAL
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82219-032-0 02 1 0012- ● ●
106 GASKET; SIDE TURN SIGNAL
TURN SIGNAL LAMP SIDE<TEL> (C) 		1-82226-002-0 02 1 0012- ● ●
133 WASHER; PL,SIDE FLASHER LAMP
TURN SIGNAL LAMP SIDE<TEL> (C) 		1-82229-008-0 08 1 0405- ● ●
133 WASHER; PL,SIDE FLASHER LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82216-032-0 04 1 0012- ● ●
133 WASHER; PL,SIDE FLASHER LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-86830-150-0 02 1 0012- ● ●
150 BRACKET; SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> 		1-82187-002-0 04 1 0012- ● ●
151 BOLT; BRKT,SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> M8X25 FLANGE 		0-28680-825-0 04 1 0012-0512 ● ●
151 BOLT; BRKT,SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
152 NUT; BRKT,SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> M8 FLANGE 		0-91150-108-0 04 1 0012-0602 ● ●
152 NUT; BRKT,SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
223 UNIT; LAMP,SIDE FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-241-1 01 1 0012- ● ●
223 UNIT; LAMP,SIDE FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-240-0 01 1 0012-0502 ● ●
223 UNIT; LAMP,SIDE FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-83830-240-1 01 1 0503- ● ●
224 SOCKET; SIDE FLASHER LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82219-034-0 02 1 0012- ● ●
321 HARNESS; SIDE FLASHER LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-253-0 02 1 0012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
