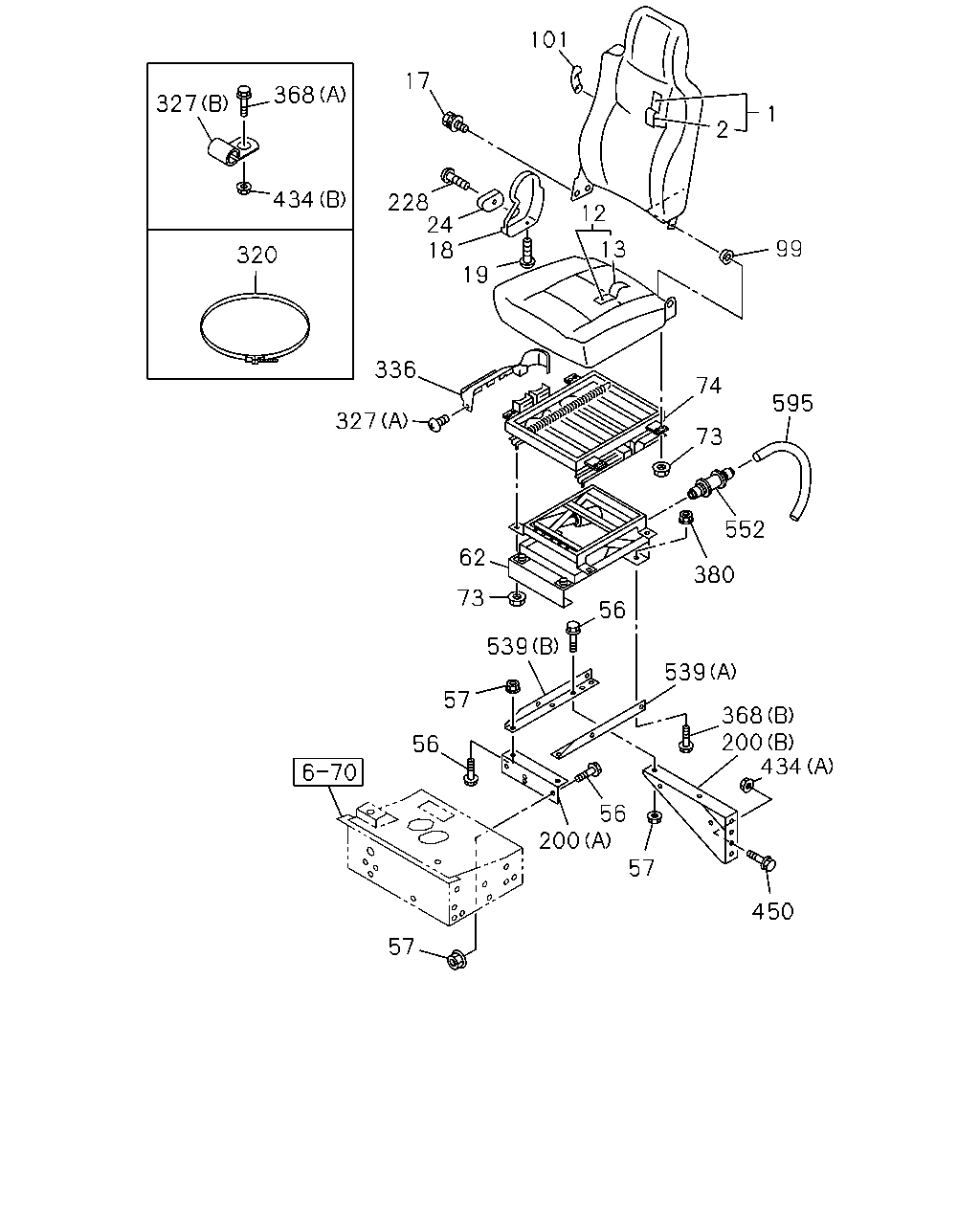

7-50 — FRONT SEAT (#7148) — 132 parça

101 17 368 327 1 2 12 434 228 24 18 99 13 320 19 336 74 595 327 73 552 62 380 73 56 539 539 57 368 200 434 56 56 200 57 450 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75207-160-0	01	1	0012-0212	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75207-447-0	01	1	0301-0308	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75208-065-2	01	1	0309-0903	●	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	8-98135-611-0	01	1	0904-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-560-0	01	1	0012-0308	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-594-1	01	1	0309-	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75207-146-1	01	1	0012-0308	●	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-693-3	01	1	0309-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75127-096-0	01	1	0012-0308	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-681-1	01	1	0309-	●	●
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> M8X20	8-97255-906-0	02	1	0012-	●	●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>	1-75418-050-0	01	1	0012-0308	●	●
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> DARK GRAY	8-97867-020-0	01	1	0309-	●	●
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0012-	●	●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>	1-75418-059-0	01	1	0012-0308	●	●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> DARK GRAY	8-97867-021-0	01	1	0309-0903	●	●
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>	1-75418-066-0	01	1	0904-	●	●
56	BOLT; STAY M10X30 FLANGE	0-28681-030-0	06	1	0012-0111	●	●
56	BOLT; STAY AIR SUSP DRIVER SEAT<A56>,AIR SUSP DRIVER SEAT LESS<NMM> M10X30 FLANGE	0-28681-030-0	06	1	0112-0512	●	●
56	BOLT; STAY AIR SUSP DRIVER SEAT<A56>,AIR SUSP DRIVER SEAT LESS<NMM> M10X30 FLANGE	0-28651-030-0	06	1	0601-	●	●
57	NUT; STAY M10 FLANGE	0-91150-210-0	06	1	0012-0111	●	●
57	NUT; STAY AIR SUSP DRIVER SEAT<A56>,AIR SUSP DRIVER SEAT LESS<NMM> M10 FLANGE	0-91150-210-0	06	1	0112-0602	●	●
57	NUT; STAY AIR SUSP DRIVER SEAT<A56>,AIR SUSP DRIVER SEAT LESS<NMM> M10 FLANGE	0-91180-210-0	06	1	0603-	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75530-156-7	01	1	0012-	●	●
73	NUT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	08	1	0012-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-317-1	01	1	0012-0105	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-330-3	01	1	0106-	●	●
99	BUSHING; SEAT BACK AIR SUSP DRIVER SEAT<A56>	8-97854-087-0	01	1	0012-	●	●
101	LEVER ASM; LUMBAR AIR SUSP DRIVER SEAT<A56>	5-75190-138-0	01	1	0012-	●	●
200	BRACKET; SEAT (A)	1-75590-071-0	01	1	0012-0111	●	●
200	BRACKET; SEAT AIR SUSP DRIVER SEAT<A56>,AIR SUSP DRIVER SEAT LESS<NMM> (A)	1-75590-071-0	01	1	0112-	●	●
200	BRACKET; SEAT (B)	1-75590-072-0	01	1	0012-0111	●	●
200	BRACKET; SEAT AIR SUSP DRIVER SEAT<A56>,AIR SUSP DRIVER SEAT LESS<NMM> (B)	1-75590-072-0	01	1	0112-	●	●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4X6	8-97042-273-0	01	1	0012-0903	●	●
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4	8-98062-662-0	01	1	0904-	●	●
320	CLIP; BAND,SEAT AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=250	1-09707-126-0	03	1	0012-	●	●
320	CLIP; BAND,SEAT AIR SUSP DRIVER SEAT<A56> EXC. AIR HORN(WB8) L=250	1-09707-126-0	02	1	0012-	●	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-249-0	02	1	0012-0308	●	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-273-0	02	1	0309-	●	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> (B) ID=19 L=50	9-09525-886-0	01	1	0012-0606	●	●
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> (B) ID=19 L=50	0-95235-886-0	01	1	0607-	●	●
336	COVER; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-065-3	01	1	0012-0308	●	●
336	COVER; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-303-0	01	1	0309-	●	●
368	BOLT; SEAT AIR SUSP DRIVER SEAT<A56> (A) M8X25 FLANGE	0-28680-825-0	01	1	0012-0512	●	●
368	BOLT; SEAT AIR SUSP DRIVER SEAT<A56> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
368	BOLT; SEAT AIR SUSP DRIVER SEAT<A56> (B) M10X25 FLANGE	0-28681-025-0	04	1	0012-0512	●	●
368	BOLT; SEAT AIR SUSP DRIVER SEAT<A56> (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●
380	NUT; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> M10 FLANGE	0-91150-210-0	04	1	0012-0602	●	●
380	NUT; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
434	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	0012-0111	●	●
434	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR SUSP DRIVER SEAT LESS<NMM> (A) M10 FLANGE	0-91150-210-0	02	1	0112-0602	●	●
434	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR SUSP DRIVER SEAT LESS<NMM> (A) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
434	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	0-91150-108-0	01	1	0012-0602	●	●
434	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
450	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	02	1	0012-0111	●	●
450	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR SUSP DRIVER SEAT LESS<NMM> M10X35 FLANGE	0-28681-035-0	02	1	0112-0512	●	●
450	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR SUSP DRIVER SEAT LESS<NMM> M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
539	STAY; SEAT (A)	1-75590-073-1	01	1	0012-0111	●	●
539	STAY; SEAT AIR SUSP DRIVER SEAT<A56>,AIR SUSP DRIVER SEAT LESS<NMM> (A)	1-75590-073-1	01	1	0112-	●	●
539	STAY; SEAT (B)	1-75590-074-1	01	1	0012-0111	●	●
539	STAY; SEAT AIR SUSP DRIVER SEAT<A56>,AIR SUSP DRIVER SEAT LESS<NMM> (B)	1-75590-074-1	01	1	0112-	●	●
552	CONNECTOR AIR SUSP DRIVER SEAT<A56>	1-09661-310-0	01	1	0012-	●	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=1250 SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0012-0106	●	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=1250 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0107-0212	●	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) L=1250 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0301-	●	●

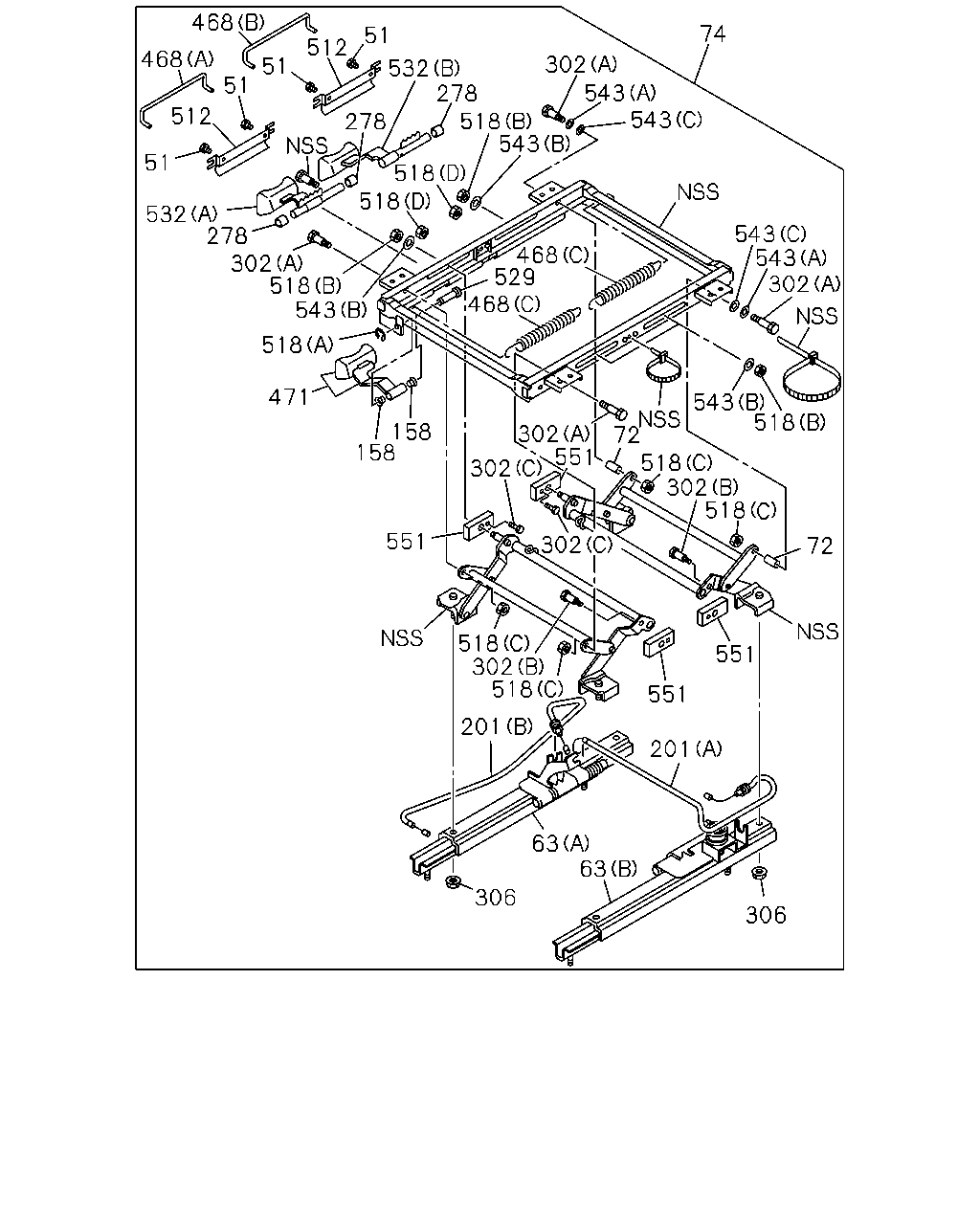

468 74 51 512 468 302 51 532 278 518 543 51 543 543 512 278 51 518 518 532 278 302 518 543 543 543 302 468 529 468 518 471 543 518 551 518 302 302 158 158 551 302 72 518 302 518 551 551 201 201 63 63 306 306 518 72 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	0012-	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-199-1	01	1	0012-	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-323-0	01	1	0012-	●	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-269-0	02	1	0012-0105	●	●
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	0106-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-317-1	01	1	0012-0105	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	1-75518-330-3	01	1	0106-	●	●
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>	1-75518-209-0	02	1	0012-	●	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-288-0	01	1	0012-	●	●
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-289-1	01	1	0012-	●	●
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	0012-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	0012-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	0012-	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-271-1	02	1	0012-0105	●	●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	0106-	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	0012-0105	●	●
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	06	1	0106-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	0012-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	0012-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	0012-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0012-	●	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-291-0	01	1	0012-0903	●	●
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-869-0	01	1	0904-	●	●
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-243-1	02	1	0012-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	0012-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B)	1-75518-264-0	04	1	0012-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	0012-	●	●
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8 FLANGE	8-94152-886-0	04	1	0012-	●	●
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>	1-75518-262-0	01	1	0012-	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-203-0	01	1	0012-	●	●
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-204-1	01	1	0012-	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=6.4	9-09160-506-0	04	1	0012-0903	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	0904-	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=10.5	9-09164-510-0	02	1	0012-0105	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	0106-	●	●
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (C)	1-75518-337-0	02	1	0106-0411	●	●
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	0012-	●	●

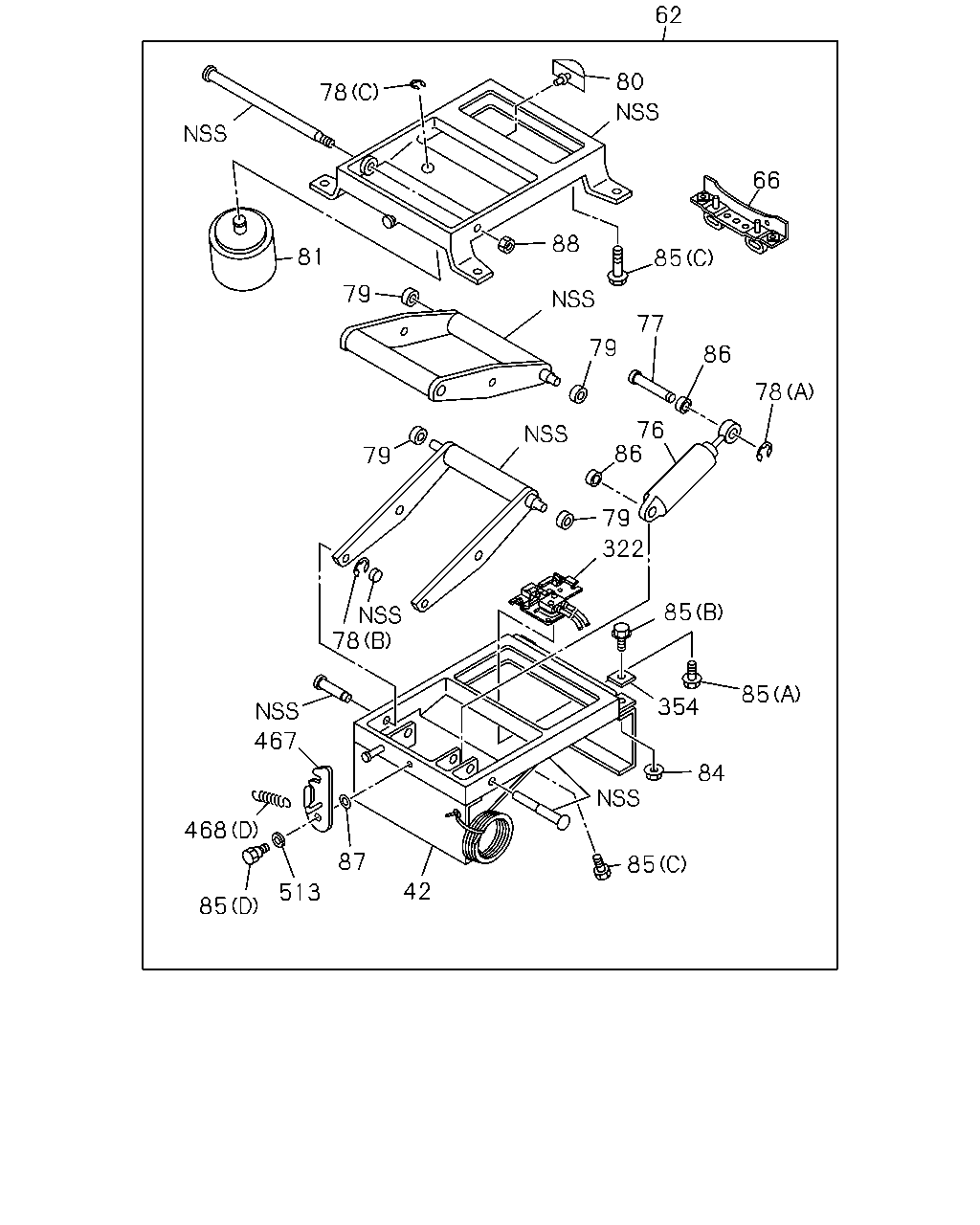

62 80 78 66 88 81 85 79 77 79 86 78 76 86 79 79 322 85 78 85 354 467 84 468 87 85 42 513 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STAND; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75590-021-2	02	1	0012-	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75530-156-7	01	1	0012-	●	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	0012-	●	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	0012-	●	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	0012-	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0012-	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=10	9-09185-410-0	02	1	0012-0411	●	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (C) ID=15	9-09185-415-0	01	1	0012-	●	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	0012-	●	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	0012-	●	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	1-75538-151-2	01	1	0012-	●	●
84	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	5-09440-005-0	02	1	0012-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X30 FLANGE	0-28080-830-0	04	1	0012-0903	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X30 FLANGE	0-28050-830-0	04	1	0904-1010	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X30 W/LK&PL WASHER	0-50140-830-0	04	1	1011-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	0012-0105	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A)	1-75538-208-0	02	1	0106-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D)	1-09980-577-0	01	1	0012-	●	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0012-	●	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0012-	●	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	9-09150-508-0	01	1	0012-	●	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75537-273-1	01	1	0012-	●	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75530-110-0	01	1	0012-0212	●	●
354	BRACKET; SUSPENSION DEVICE AIR SUSP DRIVER SEAT<A56>	1-75590-031-0	04	1	0012-	●	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	0012-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	0012-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	0012-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	0012-	●	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0012-	●	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	0012-	●	●
