4-50 — FRONT SUSPENSION (#71479) — 34 parça

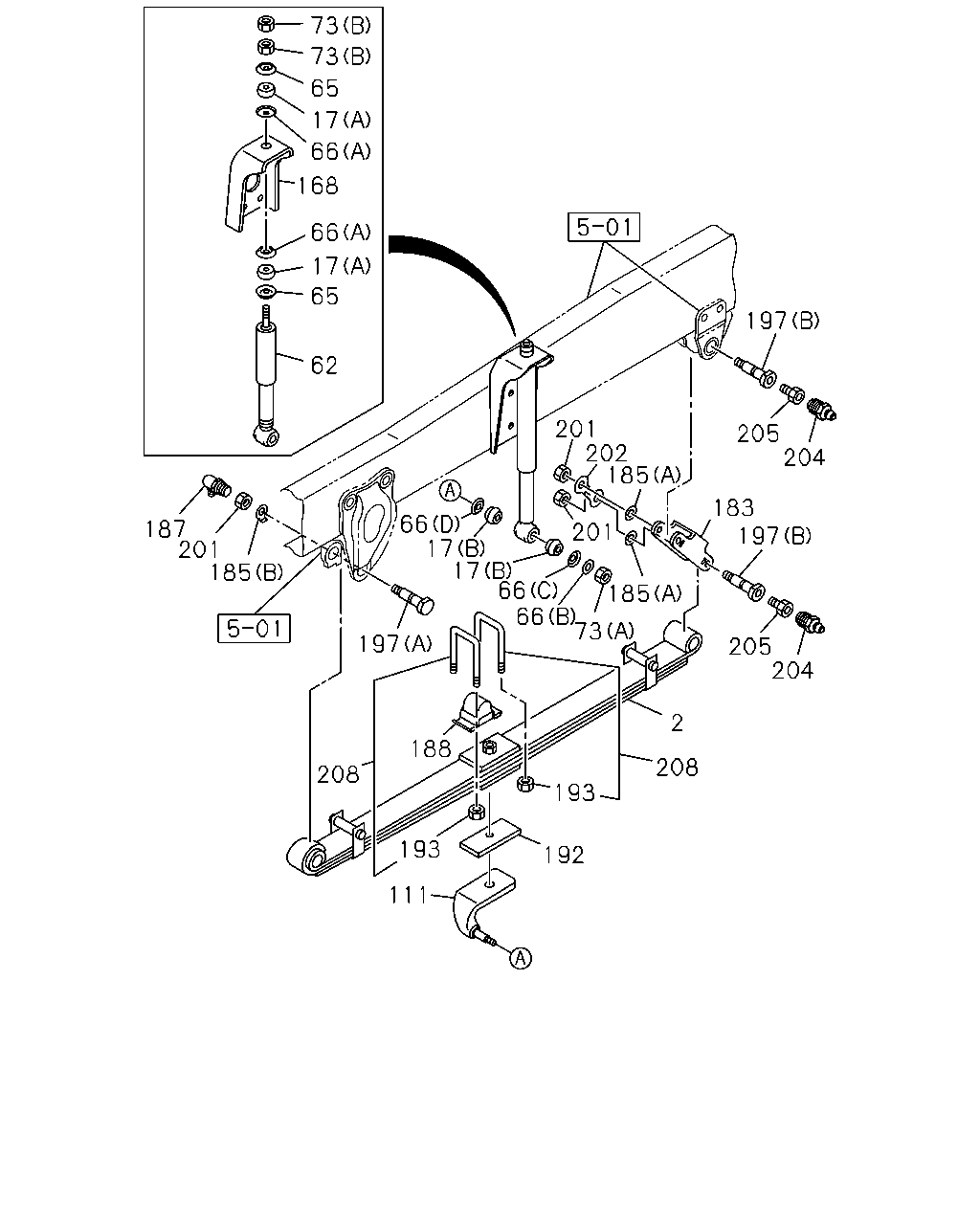

çizim 190277
73 73 65 17 66 168 66 17 65 197 62 201 202 185 205 204 183 197 66 17 17 66 66 73 187 201 185 201 185 197 205 204 2 188 208 208 193 193 192 111
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98063-483-0 01 1 1103-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98229-528-0 01 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98063-484-0 01 1 1103-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98229-529-0 01 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF 		8-98017-556-0 01 1 1103-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF 		8-98017-557-0 01 1 1103-
17 BUSHING; RUBBER,S/ABS
(B) 		1-51631-009-1 04 1 1103-
17 BUSHING; RUBBER,S/ABS
(A) 		9-51631-050-0 04 1 1103-
62 ABSORBER ASM; SHOCK,FRT 1-51630-302-1 02 1 1103-
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 04 1 1103-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1103-
66 WASHER; LK,S/ABS SETTING
(D) ID=23 		1-51631-019-0 02 1 1103-
66 WASHER; LK,S/ABS SETTING
(C) ID=17 		1-51631-020-0 02 1 1103-
66 WASHER; LK,S/ABS SETTING
(A) ID=16.8 		1-51631-022-0 04 1 1103-
73 NUT; BRKT,SHOCK
(A) M16 		0-91110-516-0 02 1 1103-
73 NUT; BRKT,SHOCK
(B) M12 		8-98010-412-0 04 1 1103-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-642-2 01 1 1103-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-641-2 01 1 1103-
168 BRACKET; S/ABS,FRT SUSP 1-51681-820-0 02 1 1103-
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1103-
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1103-
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1103-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-124-0 02 1 1103-
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 1103-
193 NUT; U BOLT
M18 FLANGE 		1-09440-039-1 08 1 1103-
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1103-
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1103-
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1103-
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1103-
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 1103-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1103-
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=165 		1-87870-444-0 04 1 1103-
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=180 		1-87870-484-0 04 1 1103-
