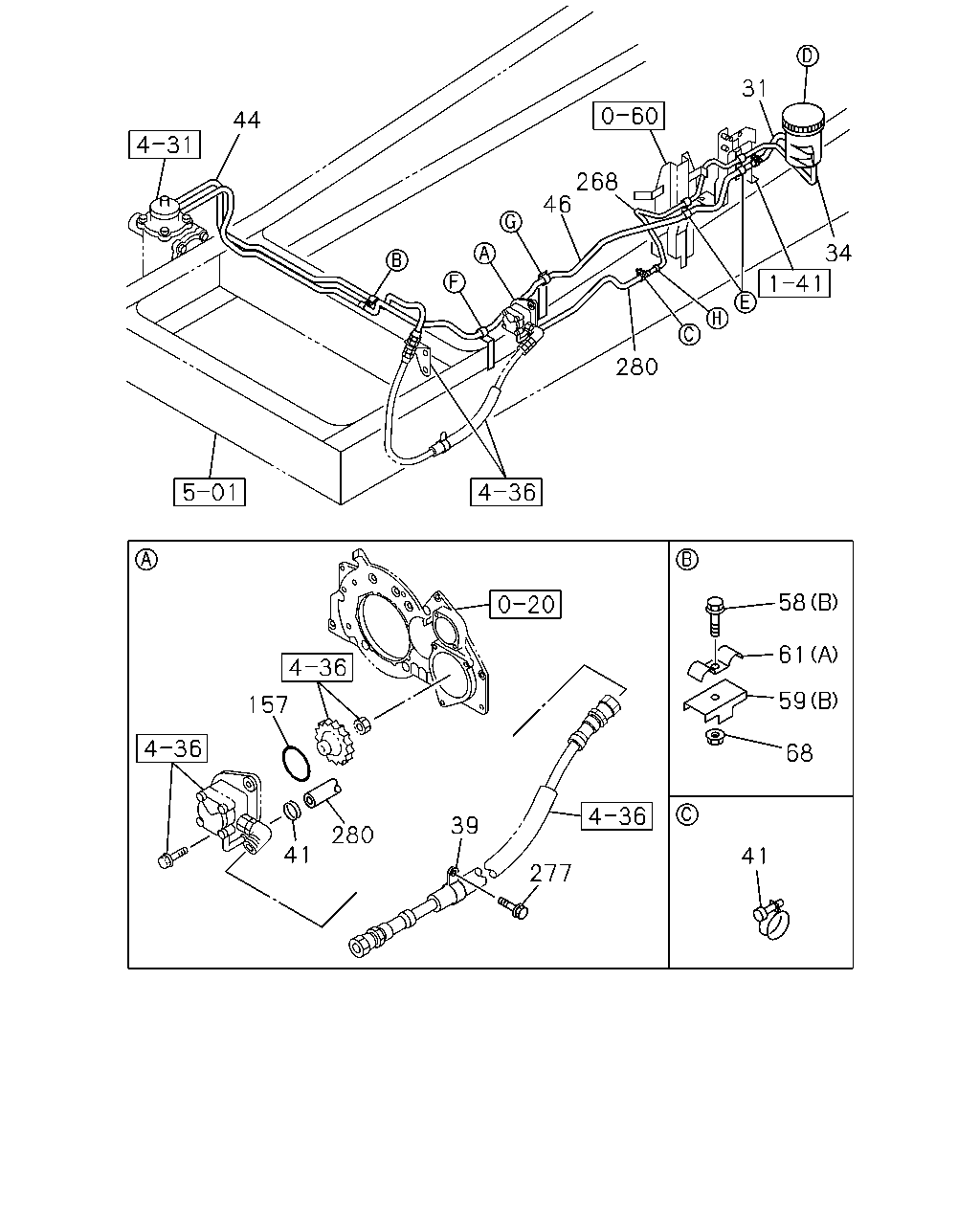

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#71475) — 51 parça

31 44 268 46 34 280 58 61 59 157 68 39 280 41 41 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98093-500-0	01	1	1103-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1103-
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1103-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1103-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98099-152-0	01	1	1103-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2747	8-98099-153-0	01	1	1103-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1103-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	1103-
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1103-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1103-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1103-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1103-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1103-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1103-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1103-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1103-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1103-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-041-0	01	1	1103-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1103-
280	HOSE; P/S OIL PUMP,INL	8-98094-167-0	01	1	1103-

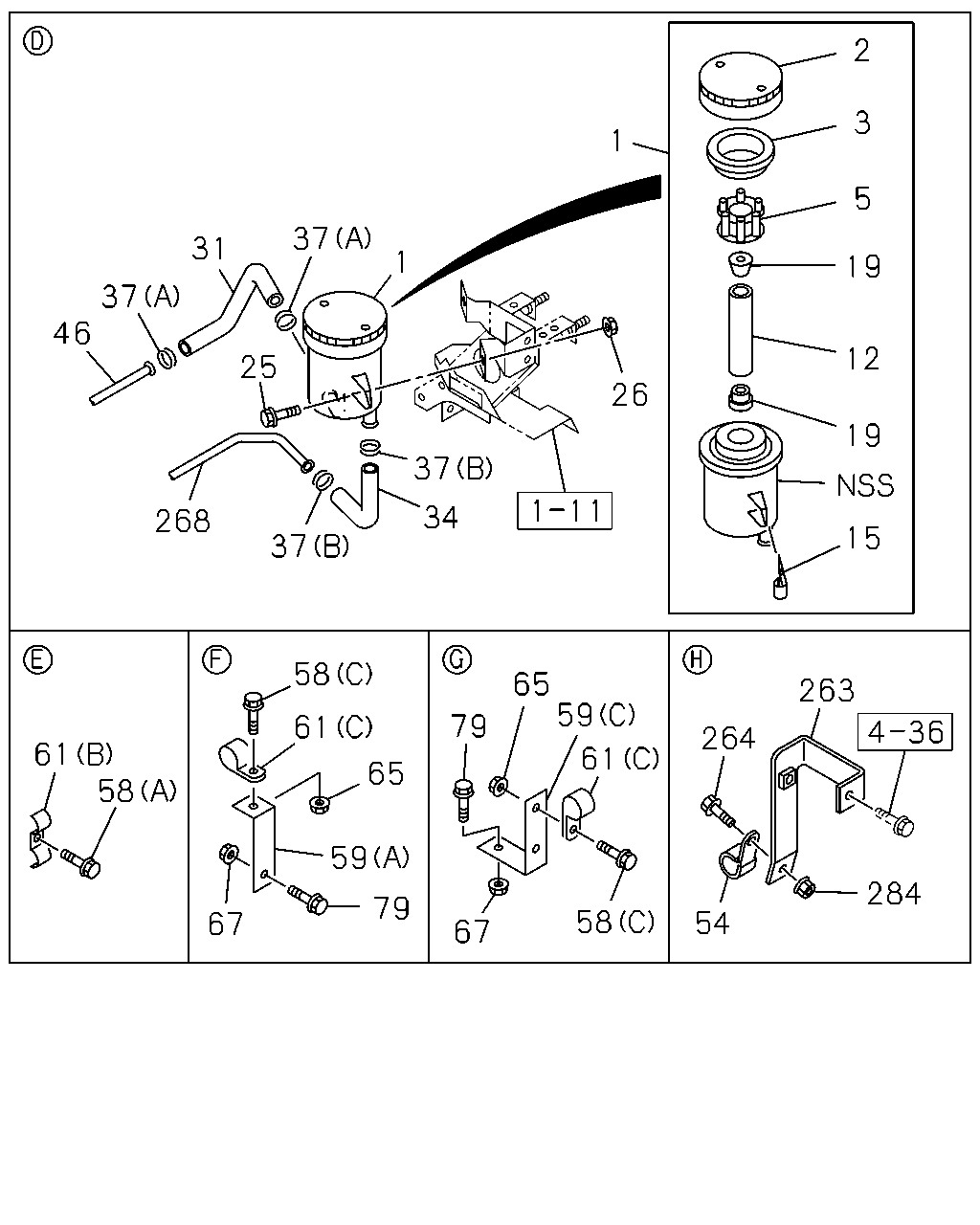

2 3 1 5 37 31 1 19 37 46 12 25 26 19 37 34 268 15 37 58 65 59 263 79 61 264 61 58 61 65 59 284 79 58 54 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1103-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1103-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1103-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1103-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1103-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1103-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1103-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1103-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1103-
31	HOSE; P/S OIL TANK,INL	8-98093-500-0	01	1	1103-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1103-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1103-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1103-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2747	8-98099-153-0	01	1	1103-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1103-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1103-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	02	1	1103-
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1103-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1103-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1103-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1103-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1103-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1103-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1103-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1103-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1103-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1103-
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1103-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1103-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-041-0	01	1	1103-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1103-
