Isuzu WW
▶
TRUCKS
▶
FSR
▶
11367 - FSR-R W/DOC EXC.SPA
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#71466) — 27 parça
◀

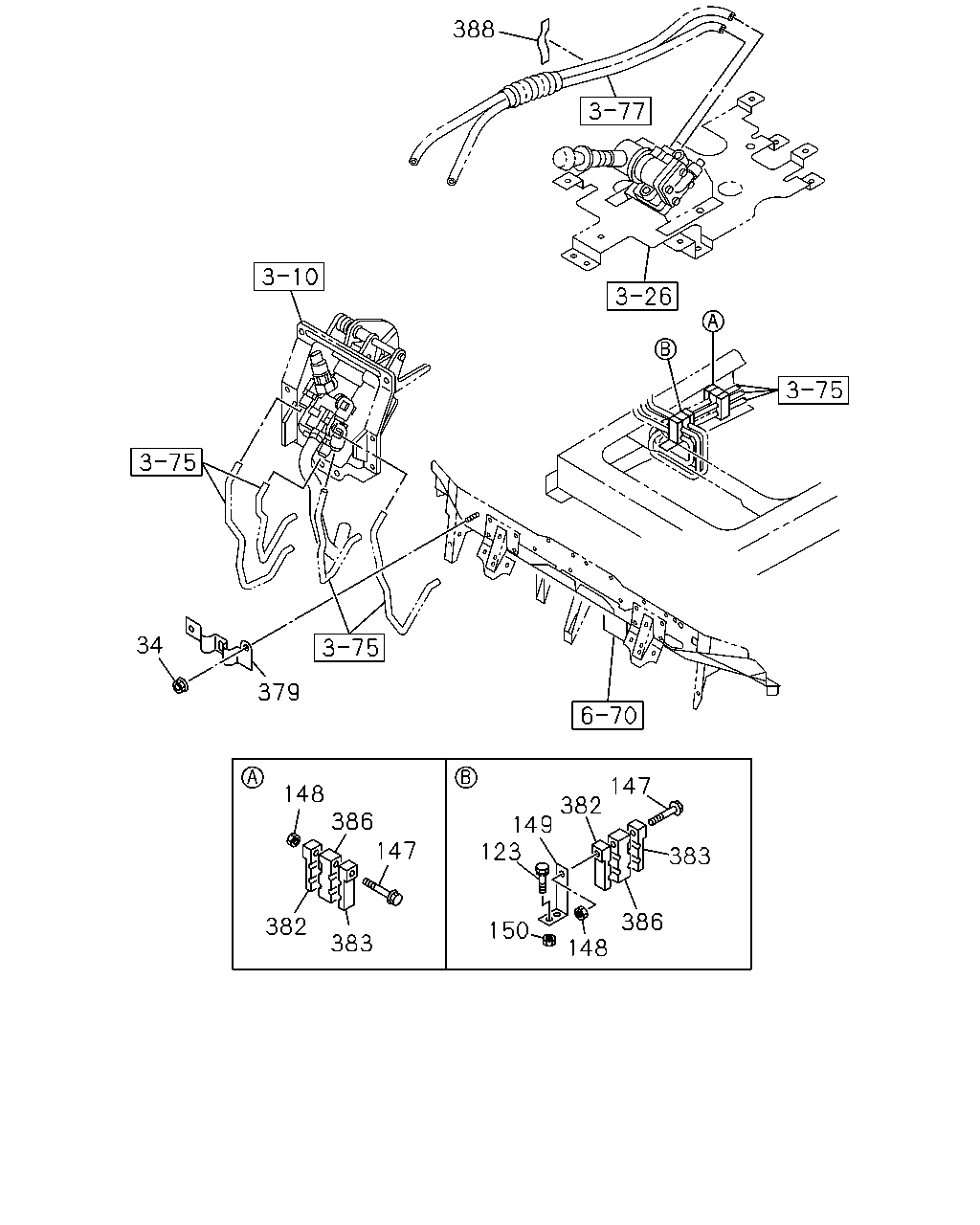

[378A] NO.1 (12 parça)

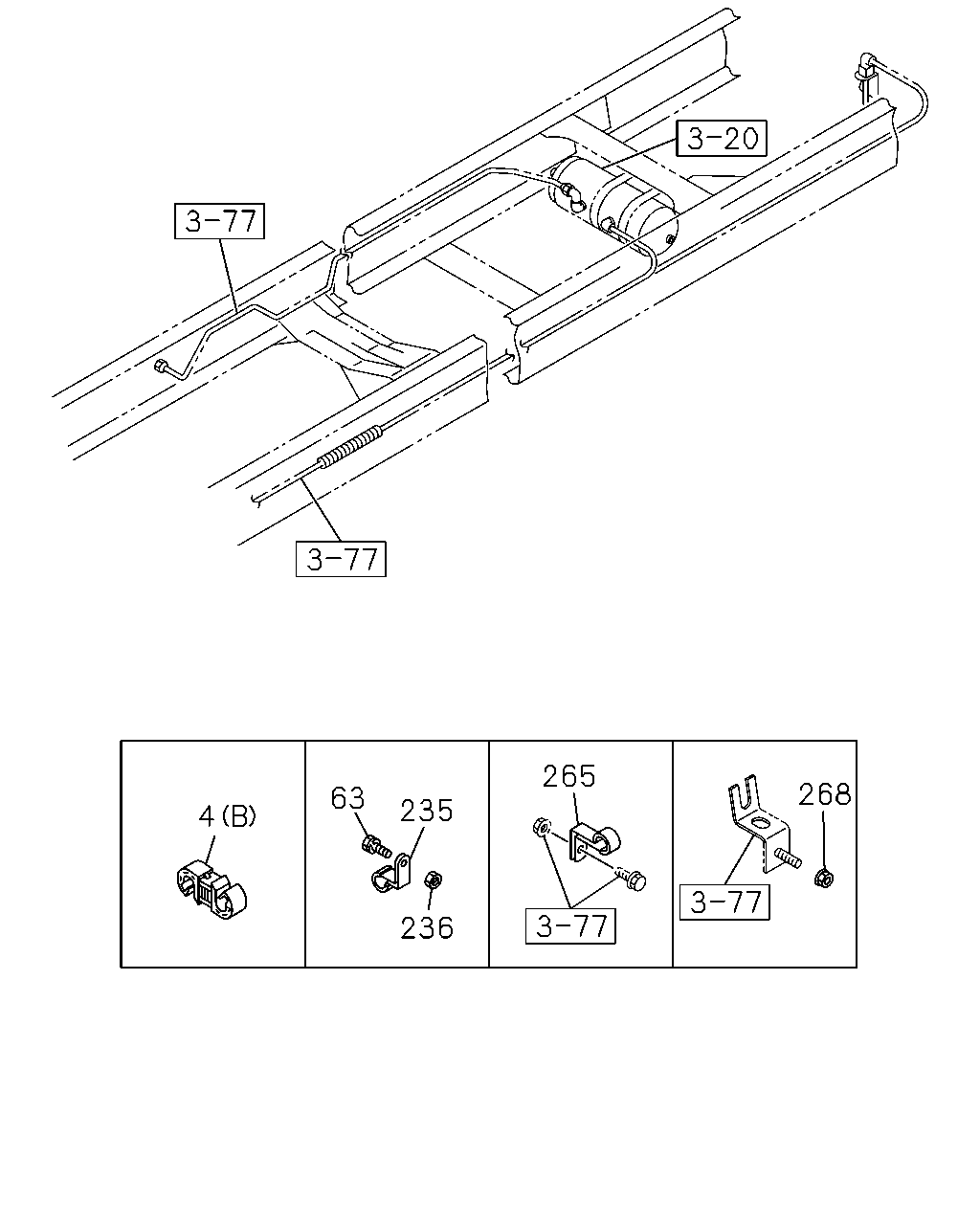

[378A] NO.3 (7 parça)

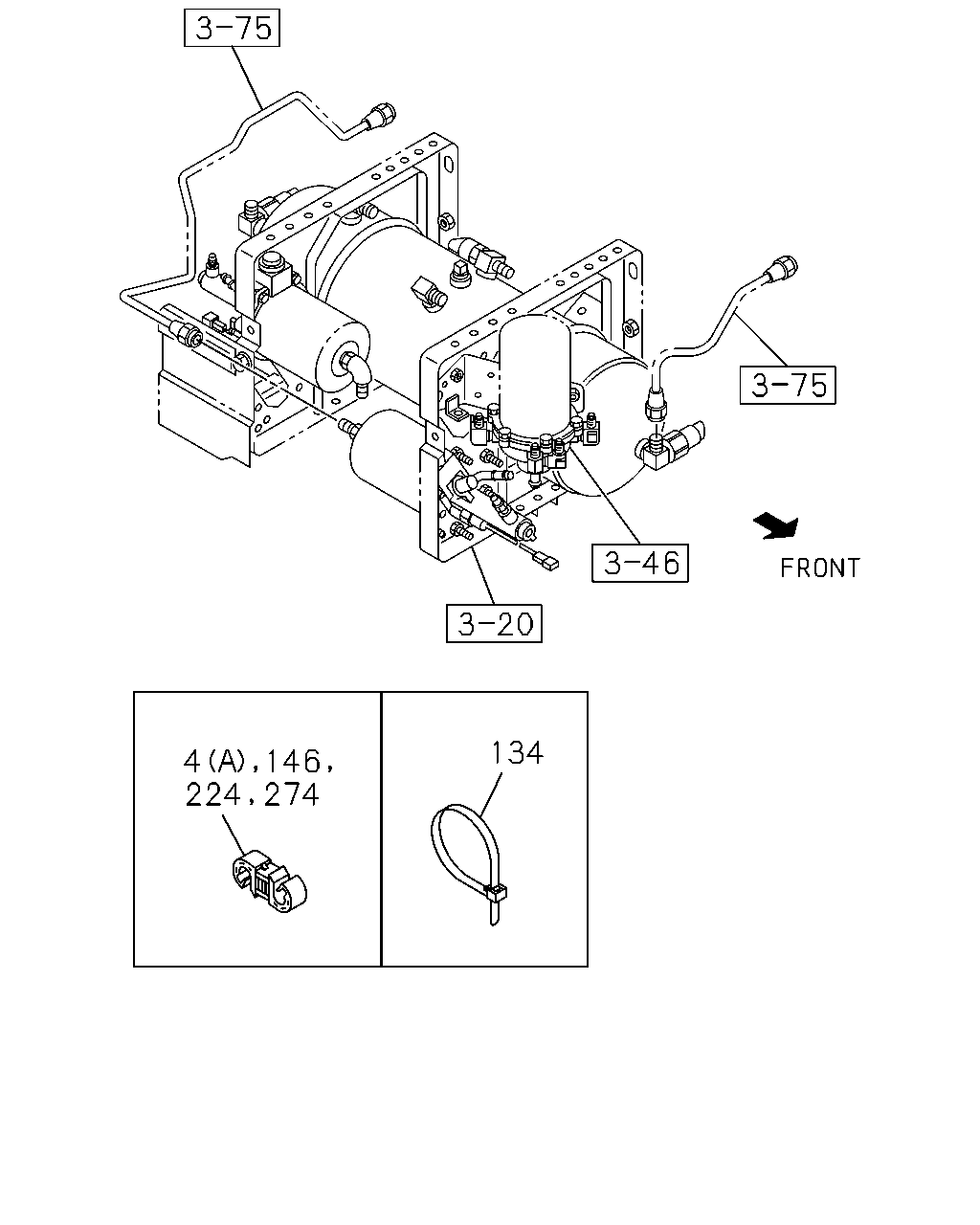

[378A] NO.2 (8 parça)
▶
388
34
379
147
382
149
123
148
386
147
383
386
382
150
383
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
1103-
123
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1103-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
04
1
1103-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
04
1
1103-
149
BRACKET; PIPE CLIP
1-47476-792-0
01
1
1103-1409
149
BRACKET; PIPE CLIP
8-98296-534-0
01
1
1410-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
1103-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1103-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
04
1
1103-
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
04
1
1103-
386
CLIP; CENTER
ID=10
1-09709-242-0
04
1
1103-
388
SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40
1-72498-022-1
03
1
1103-
265
268
63
235
4
236
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
1103-
4
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0
1-09709-274-1
02
1
1103-
63
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
06
1
1103-
235
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20
8-98033-780-0
06
1
1103-
236
NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
06
1
1103-
265
CLIP; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26
8-94176-806-0
01
1
1103-
268
NUT; CLIP BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE
0-91180-210-0
01
1
1103-
134
4
146
224
274
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
1103-
4
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0
1-09709-274-1
02
1
1103-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1103-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
1103-
224
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10
1-09709-277-1
01
1
1103-
224
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> ID=10 & 10
1-09709-277-1
01
1
1103-
224
CLIP; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 10.0
1-09709-274-1
01
1
1103-
274
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> ID=6.35 & 10.0
1-09709-274-1
02
1
1103-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
