3-75 — BRAKE PIPING; AIR,FRONT (#71464) — 40 parça

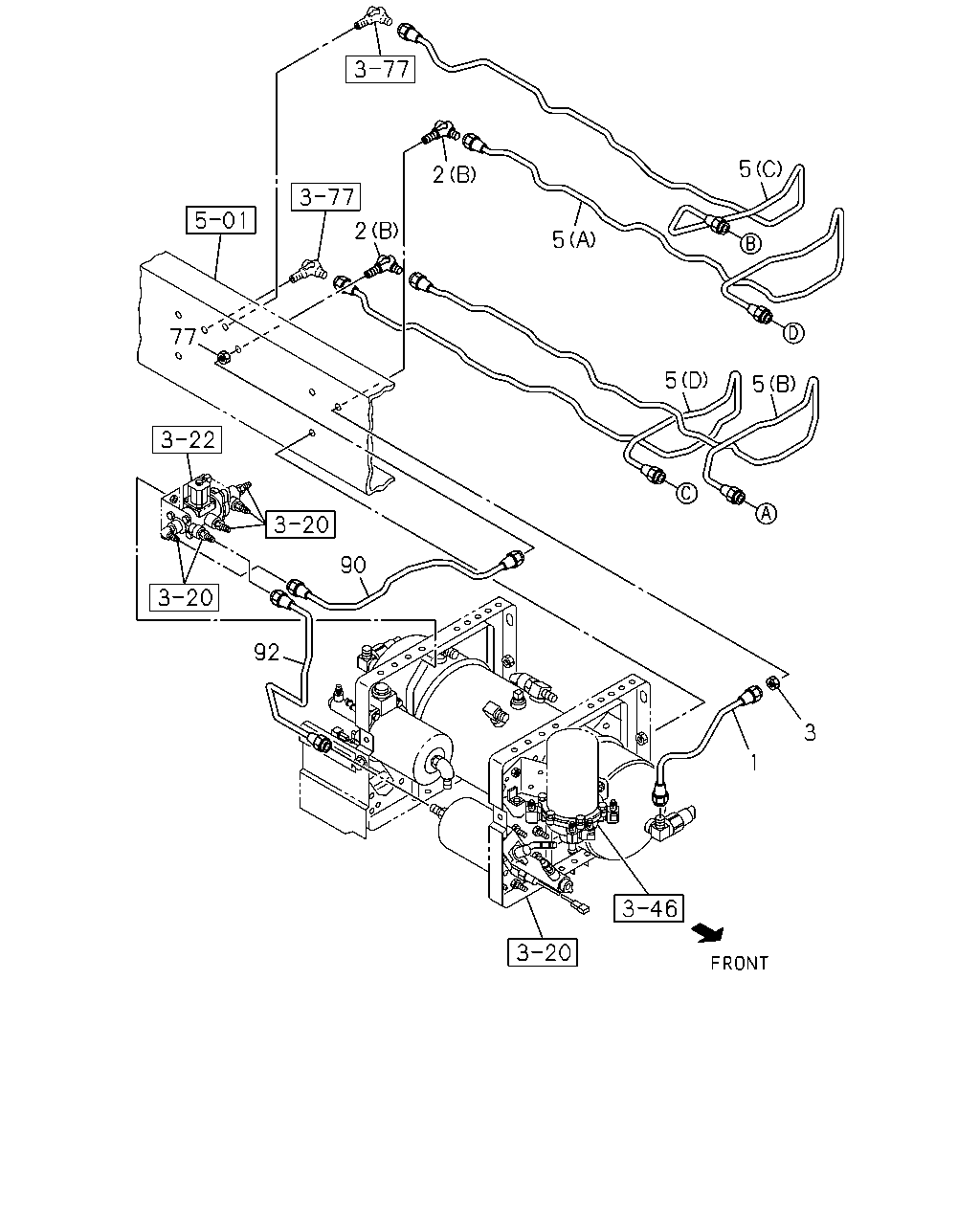

çizim 121796
5 2 2 5 77 5 5 90 92 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 1103-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1103-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1103-
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1103-
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 1103-
5 PIPE; AIR,UNION TO UNION
(A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 1103-
5 PIPE; AIR,UNION TO UNION
(C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 1103-
5 PIPE; AIR,UNION TO UNION
(B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 1103-
5 PIPE; AIR,UNION TO UNION
(D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 1103-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1103-
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 1103-
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=532 SERVICED BY L=550 		1-47428-867-0 01 1 1103-

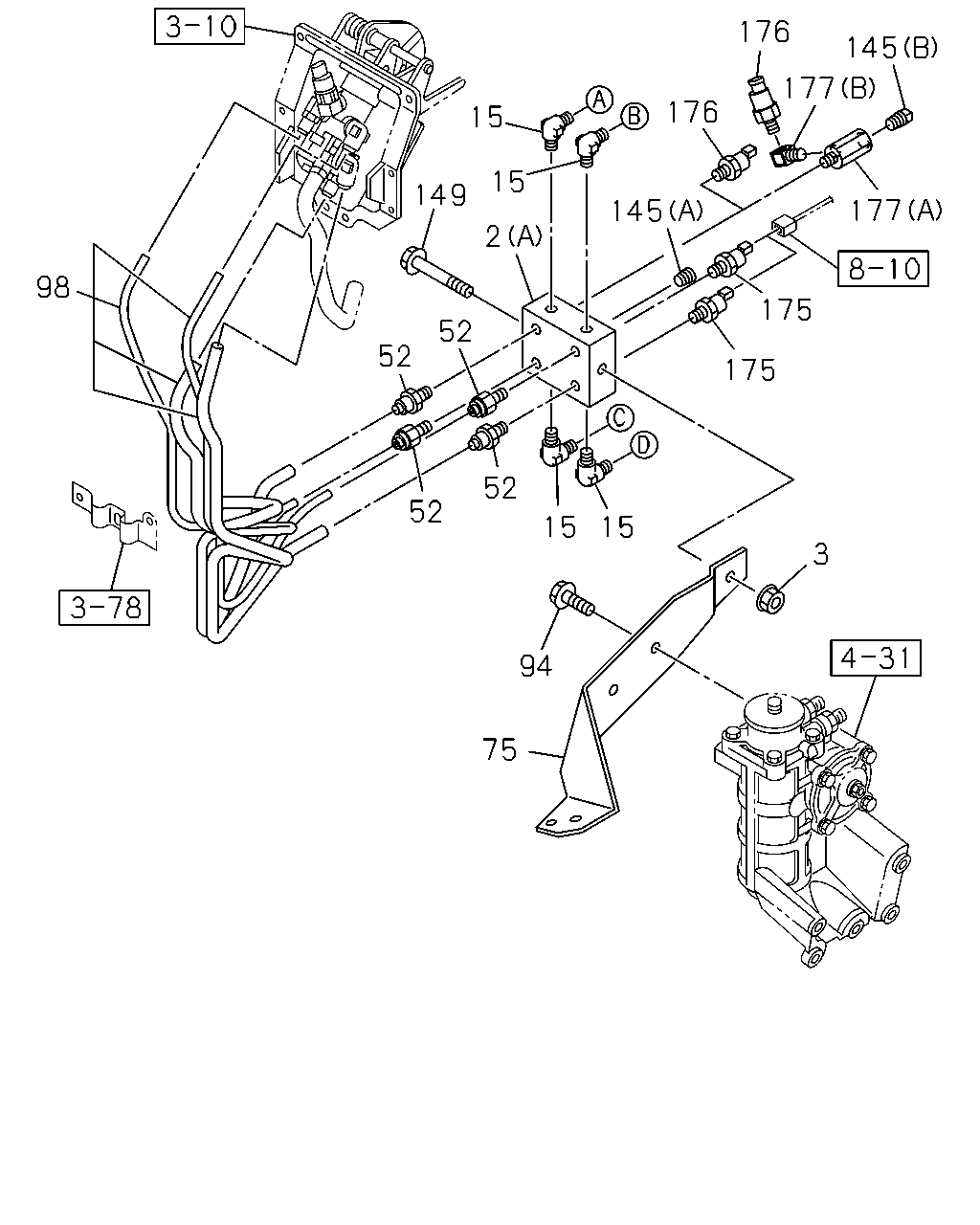

çizim 121826
176 145 177 176 15 15 149 177 145 2 98 175 52 52 175 52 52 15 15 3 94 75
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1103-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1103-
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1103-
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 1103-
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1103-
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1103-
75 BRACKET; UNION 8-98066-785-0 01 1 1103-
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 1103-
98 TUBE; NYLON 8-98079-179-0 01 1 1103-
145 PLUG
(A) PT1/4 		9-99204-513-0 01 1 1103-
145 PLUG
H.S.A SYSTEM<6EP> (B) PT1/2 		9-09204-521-0 01 1 1103-
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1103-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1103-
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> STAMP 0.7 		8-97622-710-0 01 1 1103-
176 SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP> STAMP 0.3 		8-98010-857-0 01 1 1103-
177 CONNECTOR
H.S.A SYSTEM<6EP> (B) PT1/4 2WAY 		1-09660-693-0 01 1 1103-
177 CONNECTOR
H.S.A SYSTEM<6EP> (A) 		8-98134-010-0 01 1 1103-

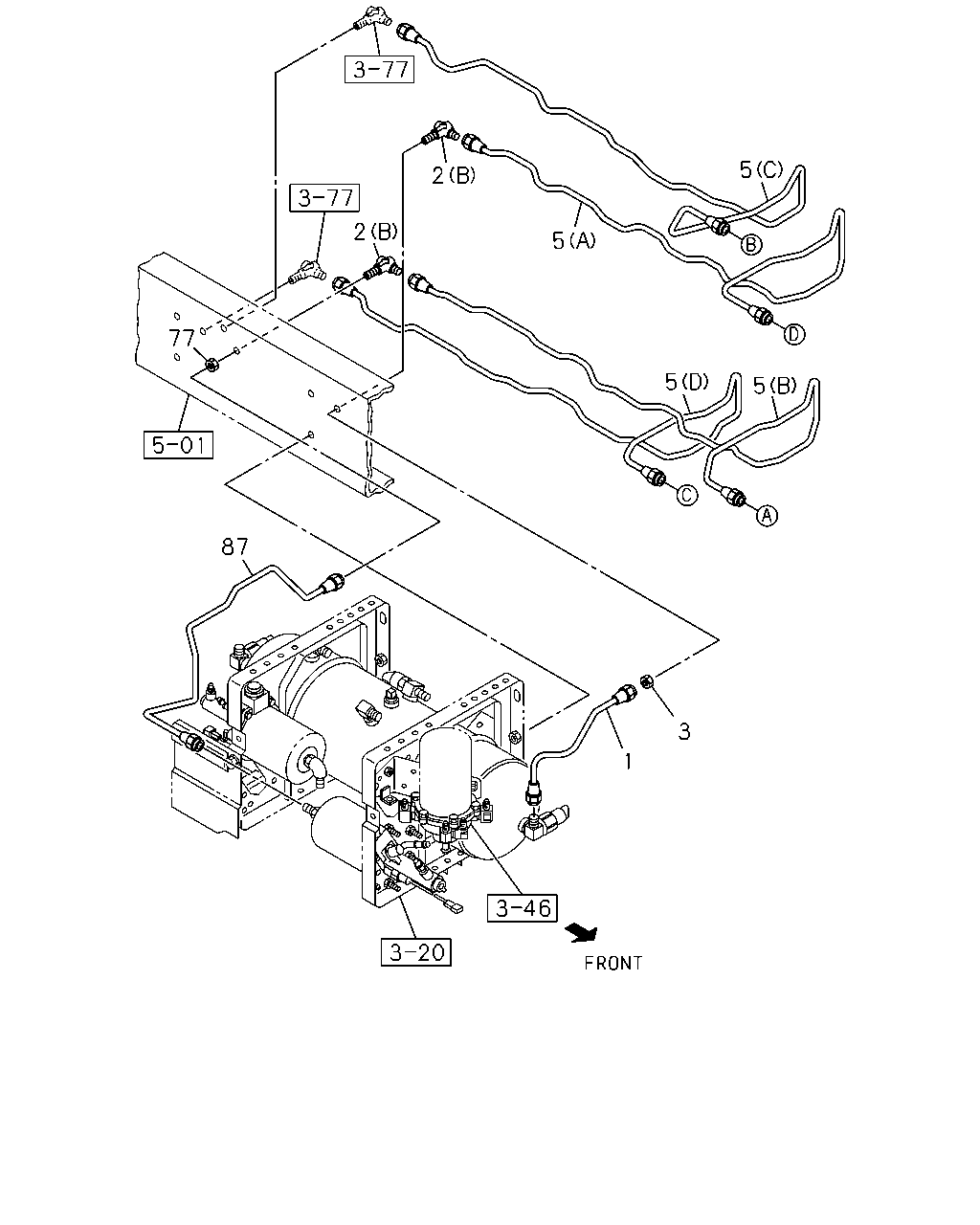

çizim 121830
5 2 2 5 77 5 5 87 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 1103-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1103-
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1103-
3 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1103-
3 NUT; PIPE UNION
M8 FLANGE 		0-91180-108-0 01 1 1103-
5 PIPE; AIR,UNION TO UNION
(A) L=2486 SERVICED BY L=2500 		1-47428-883-0 01 1 1103-
5 PIPE; AIR,UNION TO UNION
(C) L=2788 SERVICED BY L=2900 		1-47428-885-0 01 1 1103-
5 PIPE; AIR,UNION TO UNION
(B) L=2946 SERVICED BY L=3300 		1-47428-886-0 01 1 1103-
5 PIPE; AIR,UNION TO UNION
(D) L=2910 SERVICED BY L=3300 		1-47428-886-0 01 1 1103-
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1103-
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=821 SERVICED BY L=900 		1-47428-873-0 01 1 1103-
