3-70 — BRAKE PIPING; AIR,AIR MASTER (#71463) — 72 parça

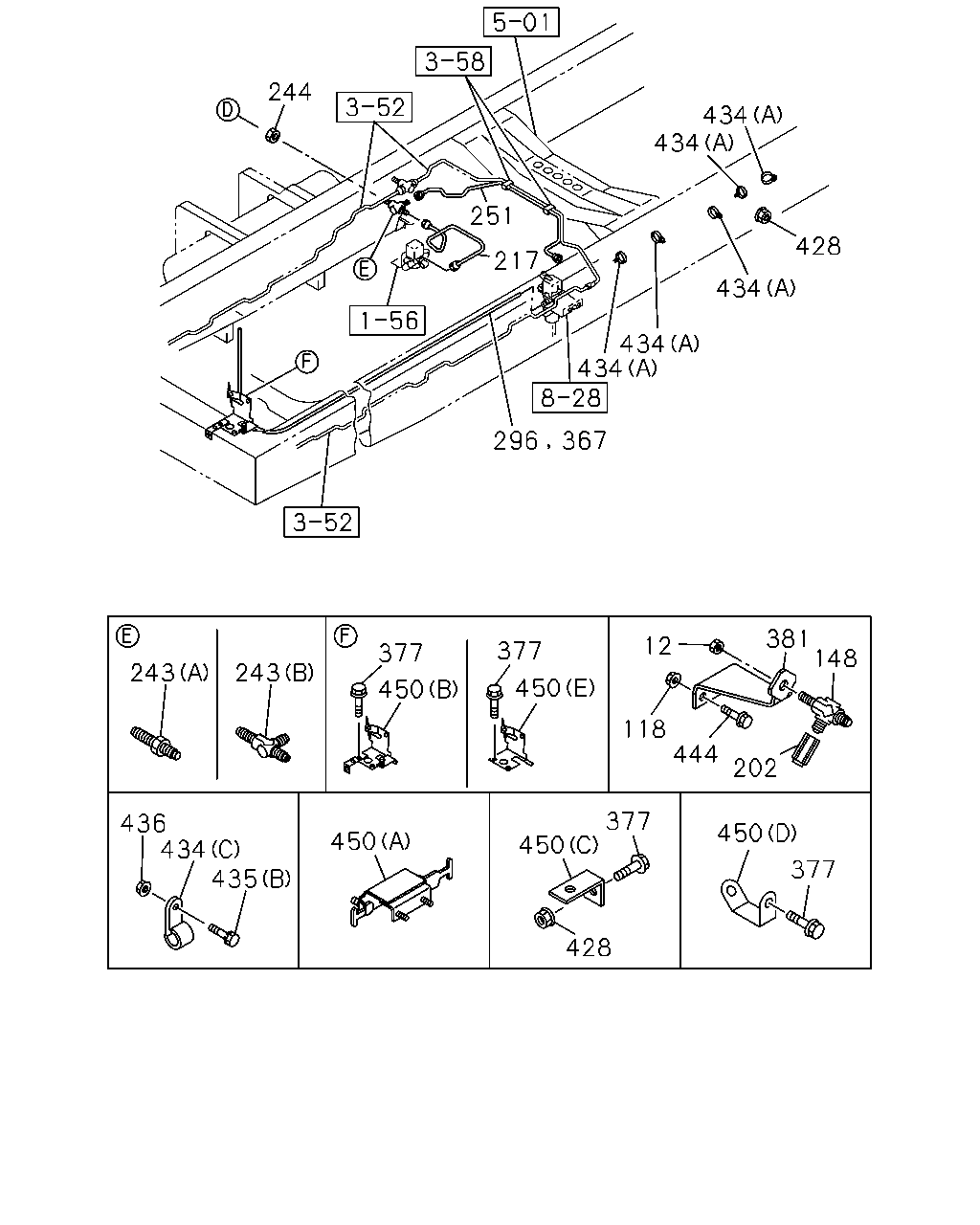

çizim 121182
244 251 217 434 434 428 434 434 434 296 367 243 243 436 434 435 377 450 450 377 450 450 118 428 377 444 12 381 148 202 450 377
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 		0-91111-512-0 01 1 1103-
118 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE 		0-91180-210-0 02 1 1103-
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY 		1-09654-059-2 01 1 1103-
202 ADAPTER
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1103-
217 PIPE; VAC,UNION TO MAG VLV
PTO CONTROL<SV6> L=456 		8-98067-434-0 01 1 1103-
217 PIPE; VAC,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=456 		8-98067-434-0 01 1 1103-
217 PIPE; VAC,UNION TO MAG VLV
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> L=480 		8-98120-257-0 01 1 1103-
243 UNION; AIR PIPE
PTO CONTROL<SV6> (B) M12 3WAY 		0-92138-906-0 01 1 1103-
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 3WAY 		0-92138-906-0 01 1 1103-
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 L=66.5 		0-92113-306-0 01 1 1103-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1103-
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 1103-
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 1103-
296 TUBE; NYLON
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1103-
367 TUBE; CORRUGATE
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1103-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 03 1 1103-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 03 1 1103-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 1103-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 03 1 1103-
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> 		8-98119-700-0 01 1 1103-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1103-
428 NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 1103-
428 NUT; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1103-
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1103-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1103-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1103-1109
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 01 1 1103-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1110-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 1103-1109
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 1103-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1110-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 13 1 1110-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1103-
435 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1103-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE 		0-28650-820-0 01 1 1103-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1103-
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 1103-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (E) 		8-98254-305-0 01 1 1501-
450 BRACKET; CLIP
(A) 		8-98077-895-1 01 1 1103-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-47477-694-0 01 1 1103-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C) 		1-47477-694-0 01 1 1103-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 1103-1412
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98070-479-0 01 1 1103-1412
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98070-479-0 01 1 1501-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98117-686-0 03 1 1103-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (D) 		8-98117-686-0 03 1 1103-

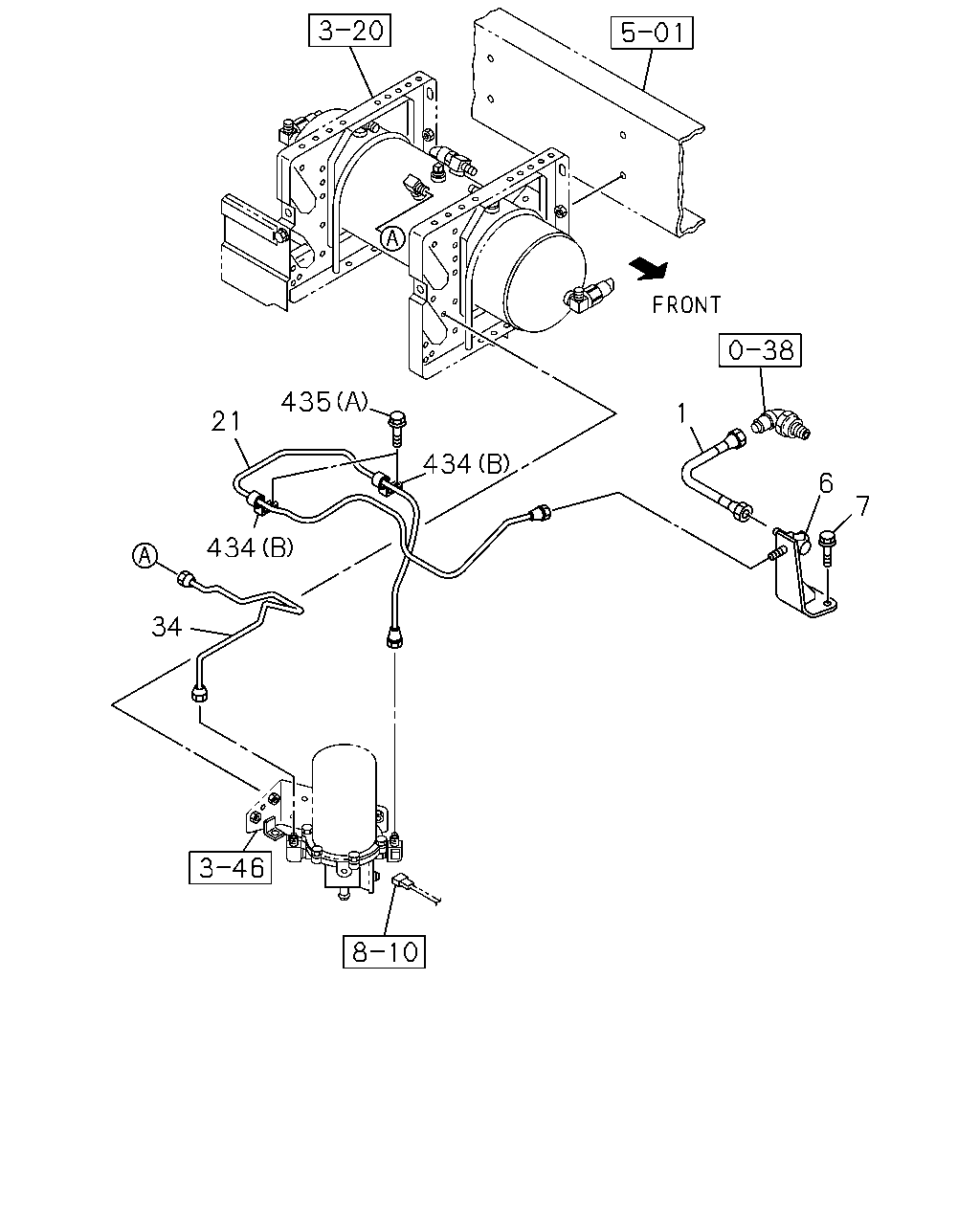

çizim 121315
435 1 21 434 6 7 434 34
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-958-0 01 1 1103-
6 BRACKET; FLEX HOSE,AIR TANK 8-98079-987-1 01 1 1103-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1103-
21 PIPE; AIR,UNION TO AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1816 		8-98083-100-0 01 1 1103-
21 PIPE; AIR,UNION TO AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1798 		8-98083-099-0 01 1 1103-
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1103-
34 PIPE; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 1103-
434 CLIP
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1103-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1103-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1103-1109
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 01 1 1103-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1110-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 12 1 1103-1109
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 12 1 1103-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1110-
434 CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 13 1 1110-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1103-
435 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1103-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE 		0-28650-820-0 01 1 1103-

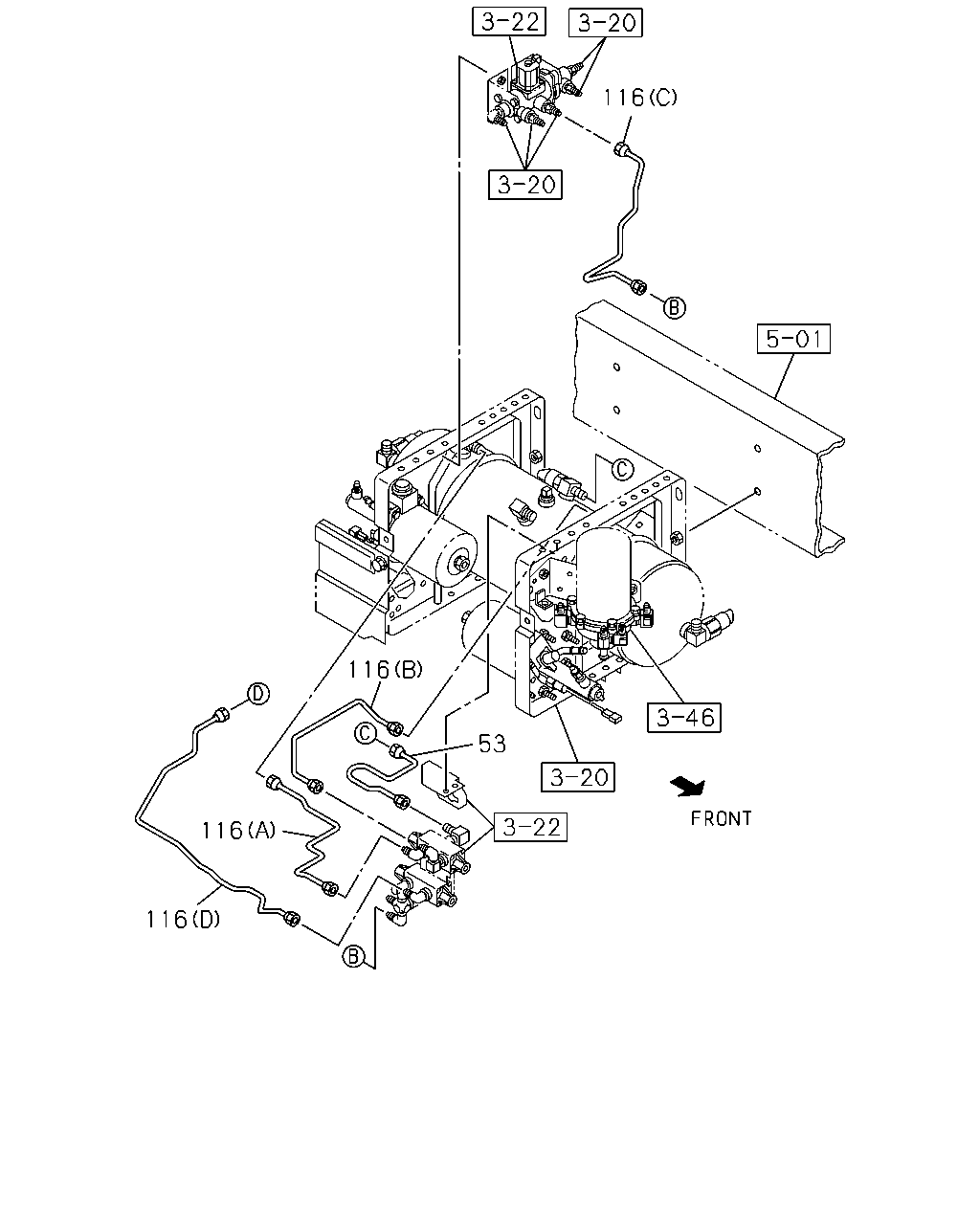

çizim 121600
116 116 53 116 116
BalonParca AdiParca NoAdetTipApplied Date
53 PIPE; AIR,AIR TANK TO VALVE 8-98061-086-0 01 1 1103-
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 1103-
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 1103-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 1103-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 1103-
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 1103-
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 1103-
