◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11367 - FSR-R W/DOC EXC.SPA ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#71461) — 20 parça

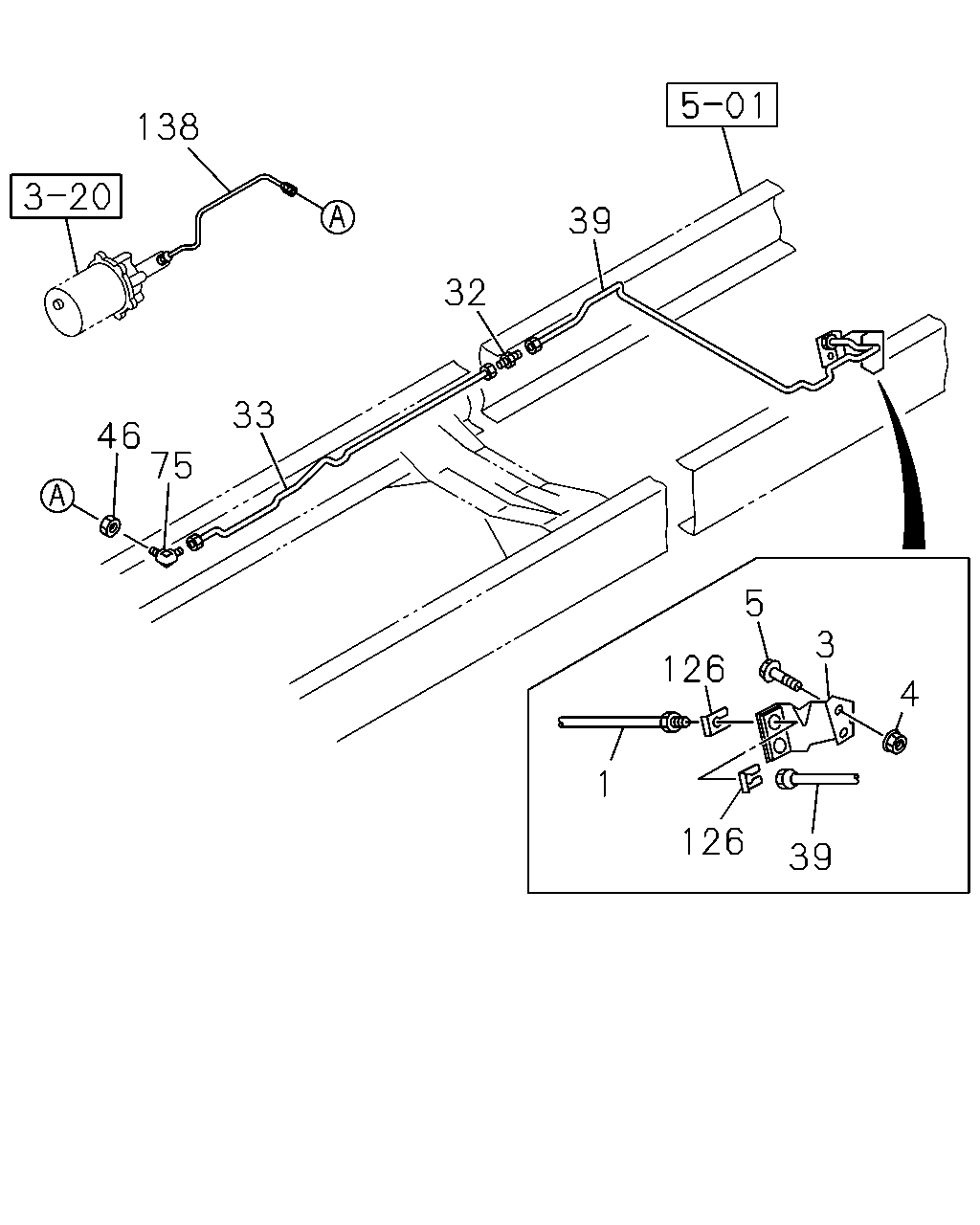

çizim 119930
138 39 32 33 46 75 5 3 126 4 1 126 39
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=485 		8-98057-386-1 01 1 1103-
3 BRACKET; FLEX HOSE,RR BRK 8-98065-999-2 01 1 1103-
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 1103-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1103-
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 01 1 1103-
33 PIPE; OIL,UNION TO UNION
L=2822 		8-98069-815-0 01 1 1103-
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1710 		8-98106-485-0 01 1 1103-
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 01 1 1103-
75 UNION; OIL PIPE 8-98018-438-0 01 1 1103-
126 CLIP; FLEX HOSE 8-97360-054-0 01 1 1103-
138 PIPE; HYDRAULIC UNIT
L=497 		8-98108-125-0 01 1 1103-

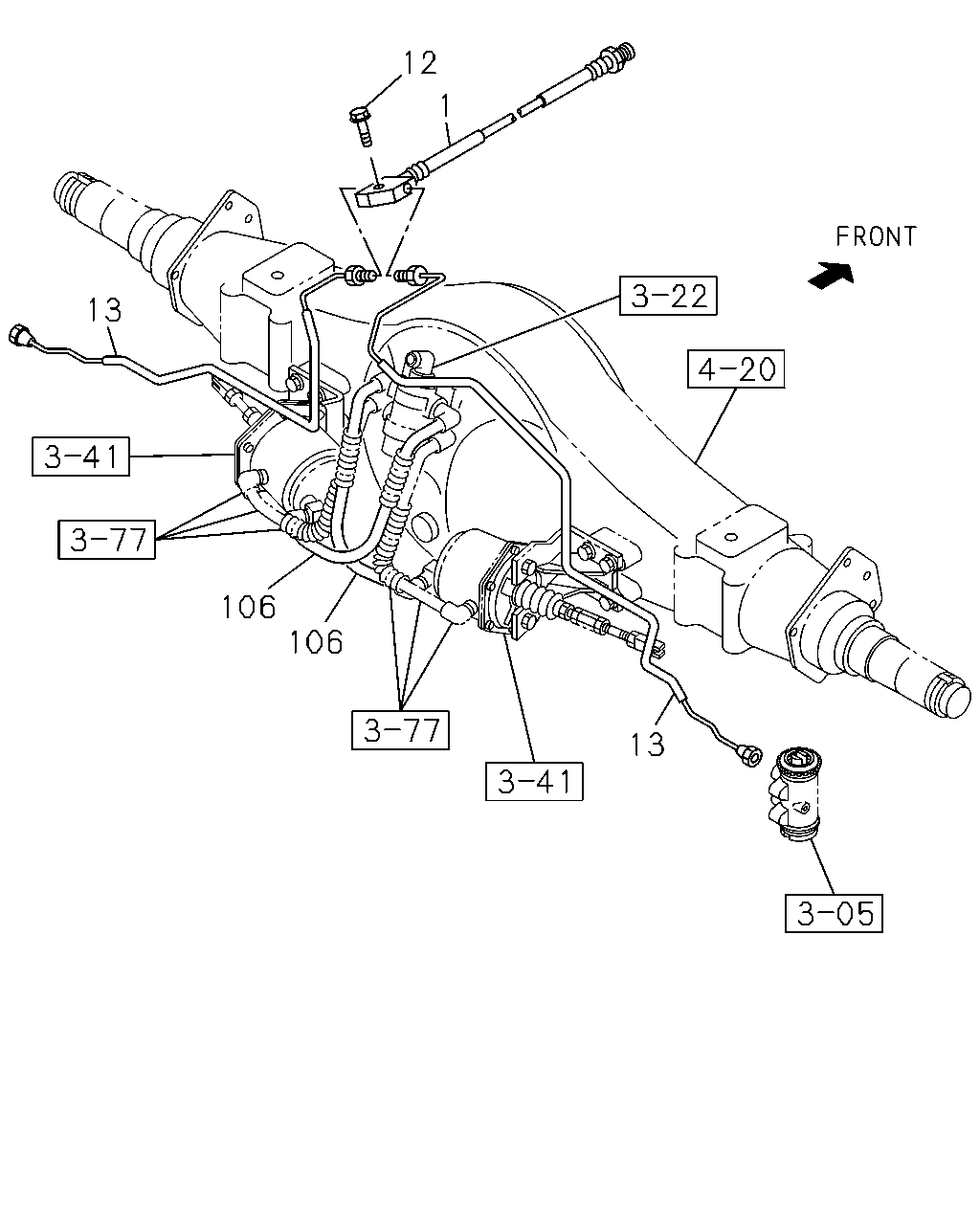

çizim 121174
12 13 1 13 106 106
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=485 		8-98057-386-1 01 1 1103-
12 BOLT; FLEX HOSE TO RR AXLE
M8X35 FLANGE 		0-28650-835-0 01 1 1103-
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE 		8-98029-655-1 01 1 1103-1302
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE 		8-98207-111-0 01 1 1303-
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE 		8-98029-656-0 01 1 1103-1302
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE 		8-98207-112-0 01 1 1303-
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE 		8-98029-685-1 01 1 1103-
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE 		8-98029-686-0 01 1 1103-
106 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98061-971-0 02 1 1103-
