◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11367 - FSR-R W/DOC EXC.SPA ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#71460) — 12 parça

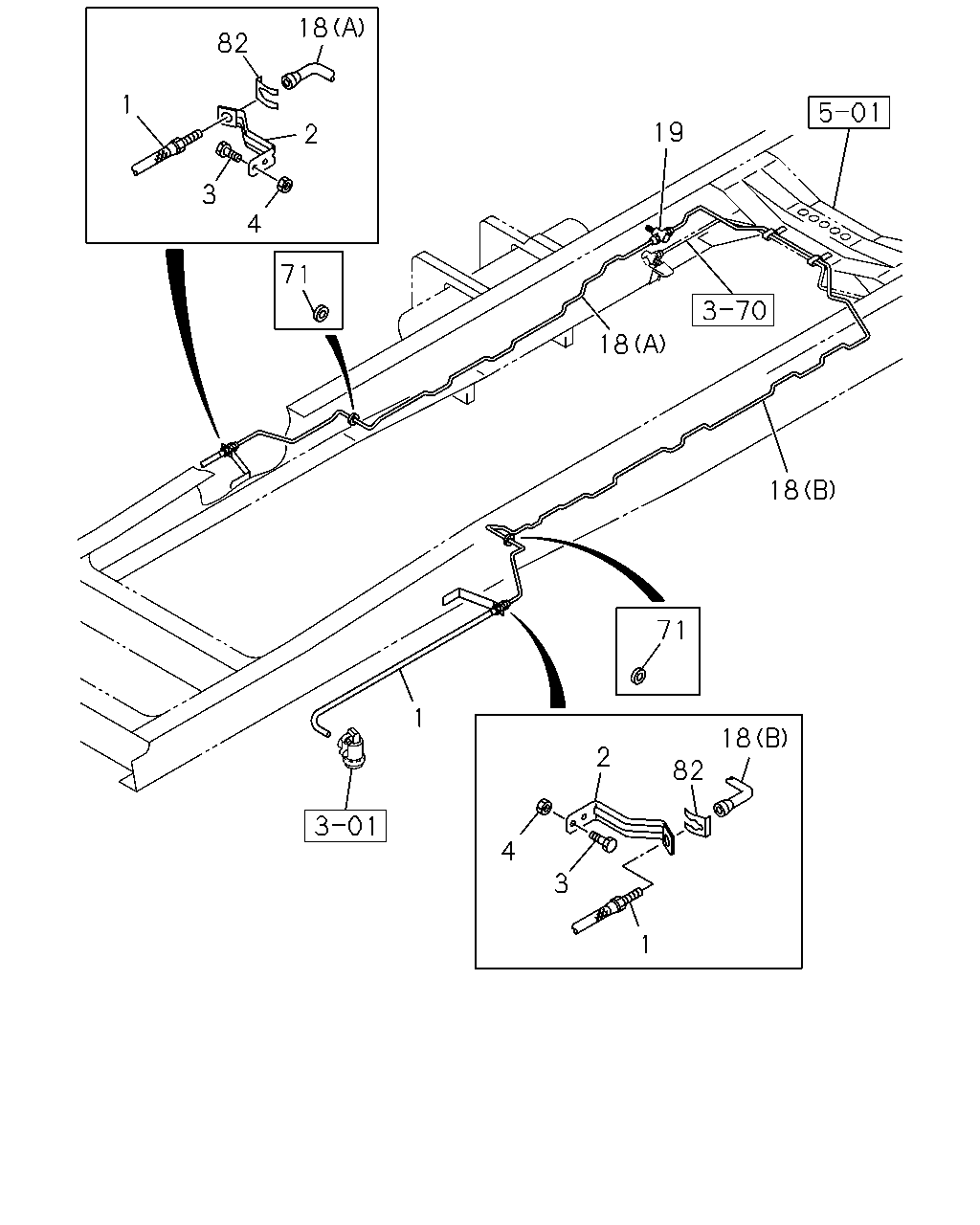

çizim 119863
18 82 1 19 2 3 4 71 18 18 71 1 18 2 82 4 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
L=330 		8-98024-433-0 02 1 1103-
2 BRACKET; FLEX HOSE,FRT BRK 8-98012-343-1 02 1 1103-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1103-
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 1103-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH L=3280 		8-98113-895-0 01 1 1103-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH L=1940 		8-98067-420-1 01 1 1103-
19 UNION; OIL PIPE 8-98113-738-0 01 1 1103-
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1103-
82 PLATE; FLEX HOSE 8-97360-054-0 02 1 1103-

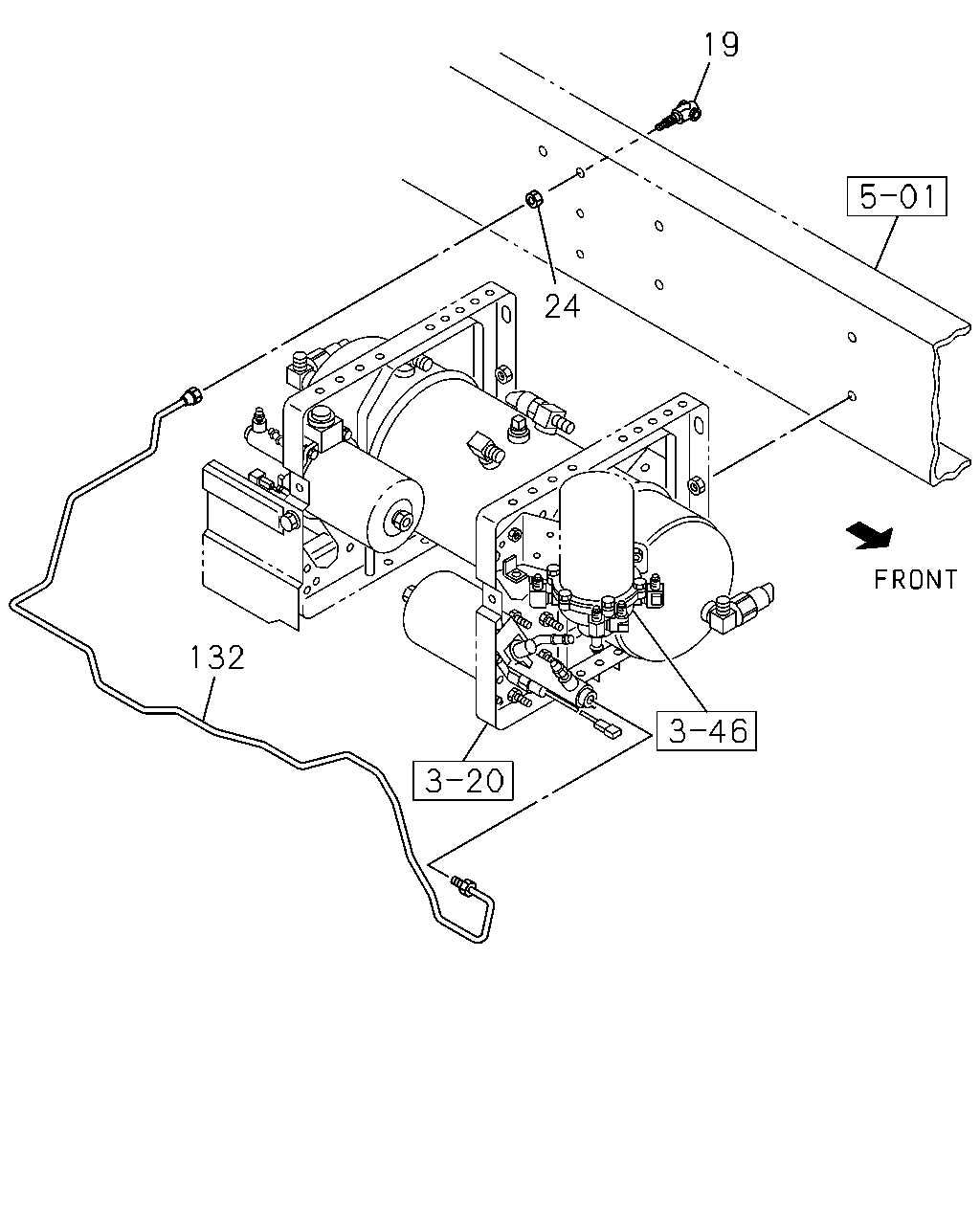

çizim 190265
19 24 132
BalonParca AdiParca NoAdetTipApplied Date
19 UNION; OIL PIPE 8-98113-738-0 01 1 1103-
24 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 01 1 1103-
132 PIPE; OIL,BRK,HYD UNIT
L=1467 		8-98135-796-0 01 1 1103-
