Isuzu WW
▶
TRUCKS
▶
FSR
▶
11367 - FSR-R W/DOC EXC.SPA
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#71452) — 37 parça
◀

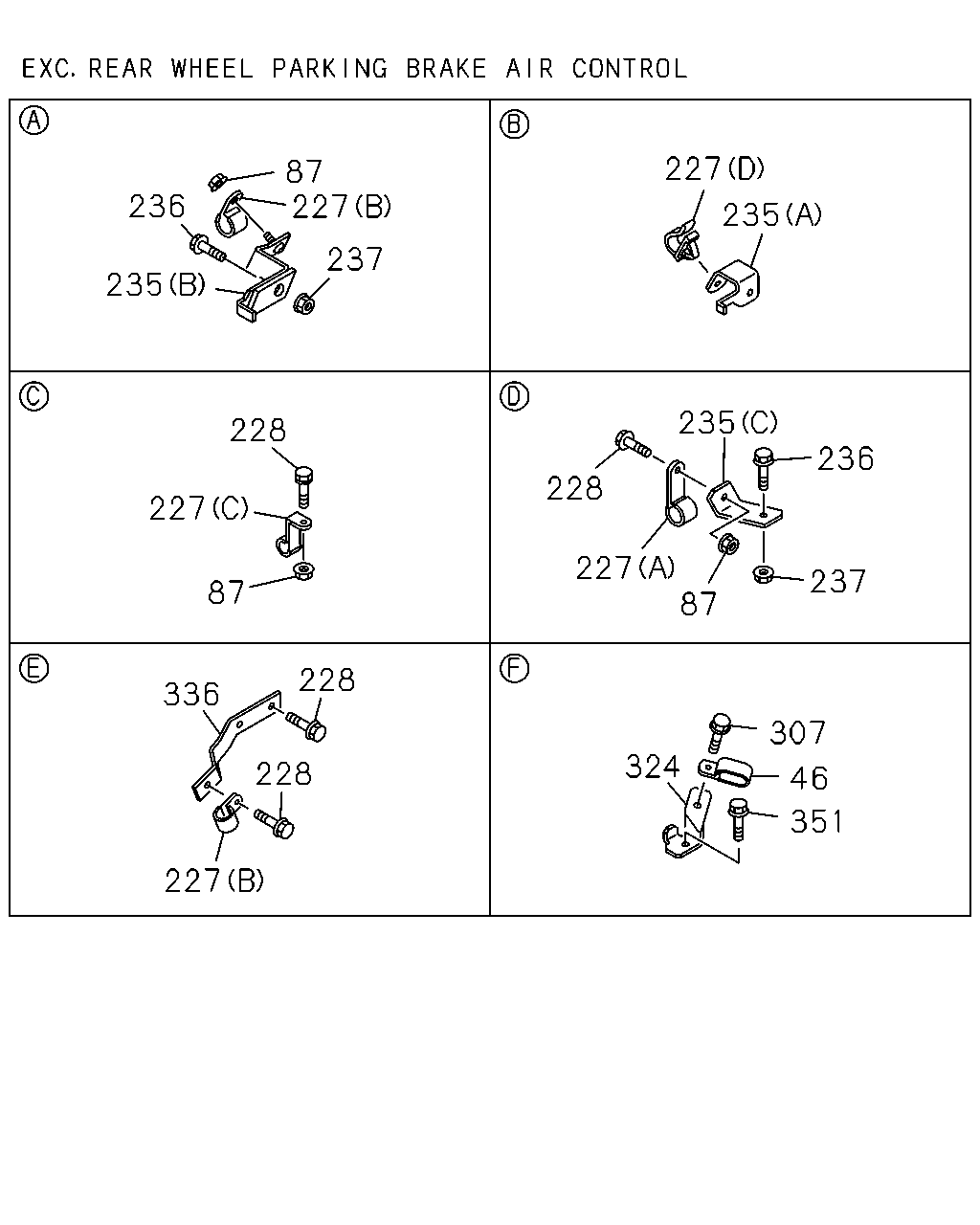

[311A] OTHER PARTS (20 parça)

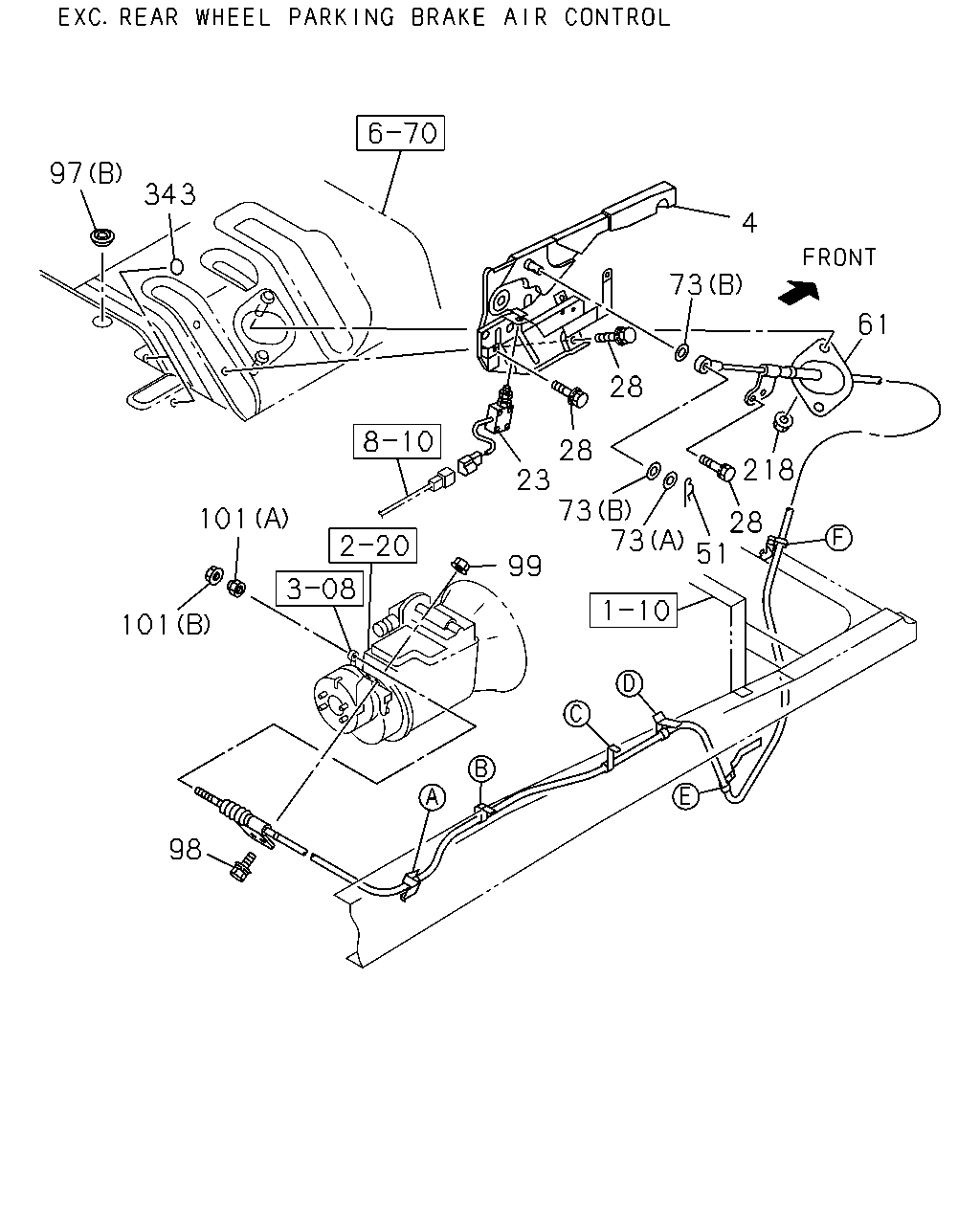

[311A] CABLE ROUTING (15 parça)
[311A] GROMMET (2 parça)
▶
227
87
227
236
235
237
235
235
228
236
228
227
227
87
237
87
228
336
307
324
228
46
351
227
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20
0-95235-535-0
01
1
1103-
87
NUT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
02
1
1103-
227
CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20
0-95235-235-0
02
1
1103-
227
CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=13 L=32
0-95235-265-0
01
1
1103-
227
CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=16 H=30 L=30
1-09701-080-0
01
1
1103-
227
CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=9.5
5-09709-020-0
01
1
1103-
228
BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE
0-28050-816-0
01
1
1103-
228
BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
02
1
1103-
228
BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1103-
235
BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)
1-82699-199-0
01
1
1103-
235
BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
8-98077-903-2
01
1
1103-
235
BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
8-98100-151-0
01
1
1103-
236
BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
01
1
1103-
236
BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE
0-28651-030-0
02
1
1103-1504
236
BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE
0-28051-030-0
02
1
1505-
237
NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE
0-91180-210-0
01
1
1103-
307
BOLT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER
0-51640-825-0
01
1
1103-
324
BRACKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98067-482-1
01
1
1103-
336
BRACKET; RADIATOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98044-680-0
01
1
1103-
351
BOLT; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER
0-51640-825-0
03
1
1103-
97
343
4
73
61
28
28
23
73
73
218
101
28
51
99
101
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-79996-548-0
01
1
1103-
23
SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-82440-100-0
01
1
1103-
28
BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
1103-
51
PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-09987-243-1
01
1
1103-
61
CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4736
8-98102-331-3
01
1
1103-
73
WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30
0-91610-516-0
01
1
1103-
73
WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19
8-94206-429-1
02
1
1103-
97
GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
8-98029-219-1
01
1
1103-
97
GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35
8-94122-971-0
01
1
1103-
98
BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE
0-28651-030-0
02
1
1103-
99
NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE
0-91180-210-0
02
1
1103-
101
NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE
0-91180-108-0
01
1
1103-
101
NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-46259-007-0
01
1
1103-
218
NUT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
02
1
1103-
343
SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK
1-76798-019-0
05
1
1103-
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
97
GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
8-98029-219-1
01
1
1103-
97
GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35
8-94122-971-0
01
1
1103-
