◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#71450) — 507 parça

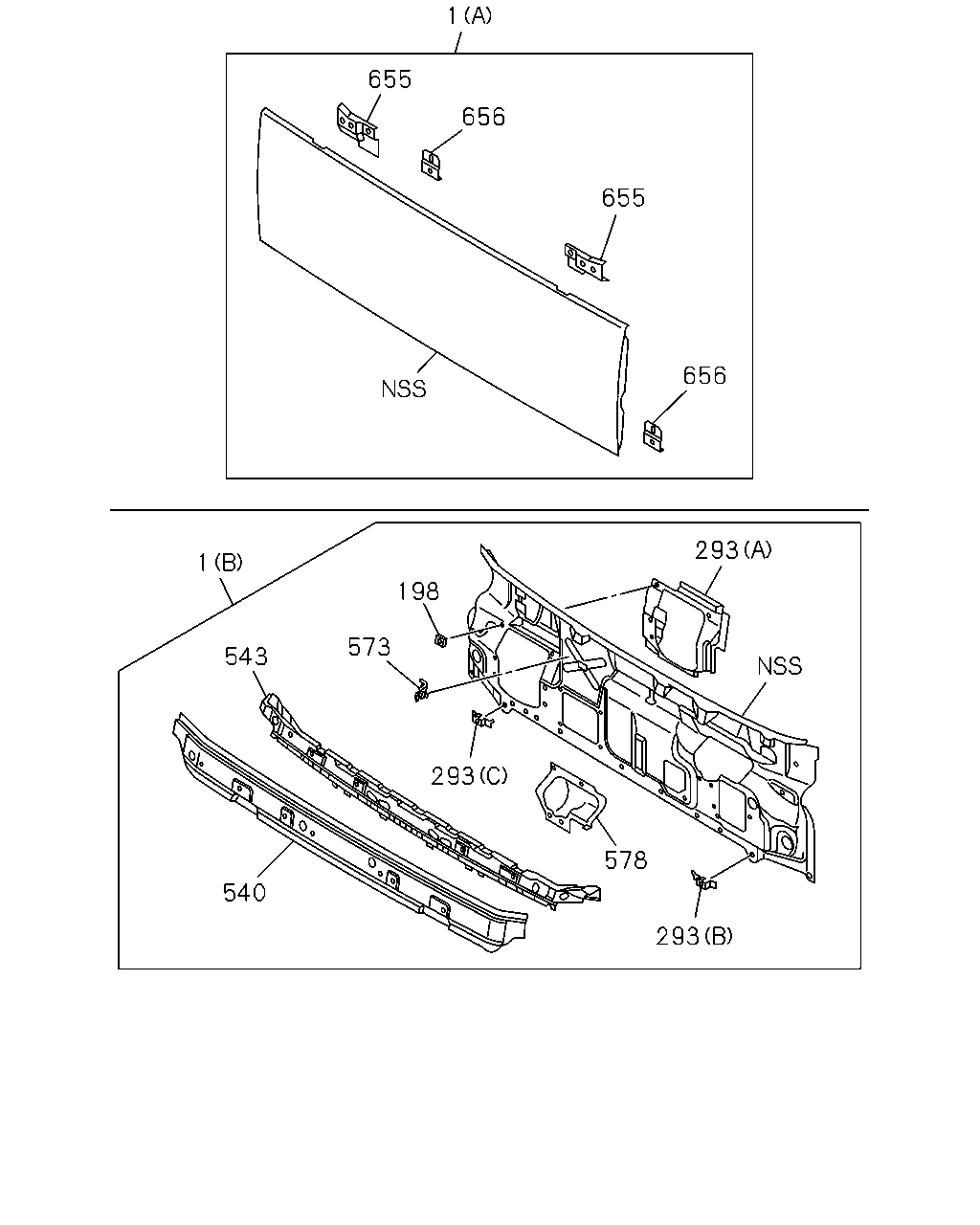

çizim 126339
1 655 656 655 656 293 198 1 543 573 293 578 293 540
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1009-1303 ●
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1304- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1009-1303 ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1304- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1009-1303 ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1304- ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1009-1303 ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1304- ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1009-1303 ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1304- ● ●
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1009-1303 ●
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1304- ● ●
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1009-1303 ●
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1304- ● ●
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1009-1303 ●
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1304- ● ●
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1009-1303 ●
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1304- ● ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1009-1303 ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1304- ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 1009-1303 ●
655 PATCH; HINGE 8-98031-263-0 01 1 1304- ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 1009-1303 ●
655 PATCH; HINGE 8-98031-264-0 01 1 1304- ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1009-1303 ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1304- ● ●

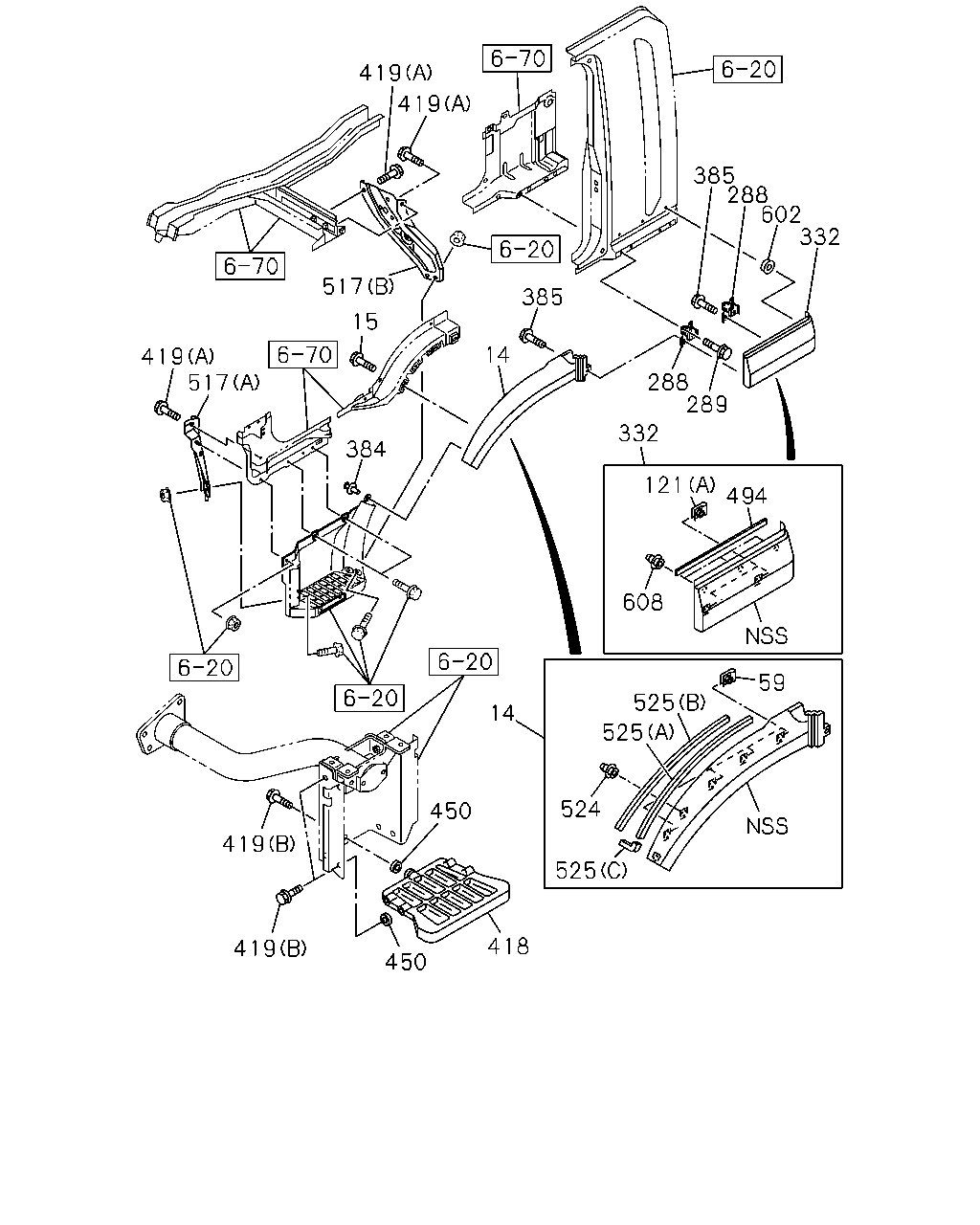

çizim 126516
385 332 602 288 385 14 332 121 289 288 494 59 608 525 525 524 525 418 450 450 419 419 419 15 517 517 419 419 14 384
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1009-1303 ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1009-1303 ●
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1304- ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1304- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1009-1303 ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1304- ● ●
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) 		8-94279-723-0 04 1 1009-1303 ●
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> 		8-94279-723-0 02 1 1009-1303 ●
59 GROMMET; SCREW
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> 		8-94279-723-0 02 1 1009-1303 ●
59 GROMMET; SCREW
SINGAPORE EQUIPMENT(WQ3) 		8-94279-723-0 02 1 1304- ● ●
59 GROMMET; SCREW
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> 		8-94279-723-0 02 1 1304- ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1009-1303 ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1304- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1009-1303 ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1304- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1009-1303 ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1304- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1009-1303 ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1304- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1009-1303 ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1304- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1009-1303 ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1304- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1009-1303 ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1304- ● ●
288 BRACKET; FENDER SKIRT 8-98059-770-1 04 1 1009-1303 ●
288 BRACKET; FENDER SKIRT 8-98059-770-1 04 1 1304- ● ●
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1009-1303 ●
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1304- ● ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-768-2 01 1 1203-1303 ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-768-2 01 1 1304- ● ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-769-2 01 1 1203-1303 ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-769-2 01 1 1304- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 1009-1303 ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 1304- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 1009-1303 ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 1304- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 1009-1303 ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 1304- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 1009-1303 ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 1304- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 1009-1303 ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 1304- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 1009-1303 ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 1304- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 1009-1303 ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 1304- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 1009-1303 ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 1304- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 1009-1303 ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 1304- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 1009-1303 ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 1304- ● ●
332 FENDER; RR
BODY COLOR OMAHA ORANGE(906) CAB ALL PAINTING<TFD> 		8-97411-312-2 01 1 1009-1011 ●
332 FENDER; RR
BODY COLOR OMAHA ORANGE(906) CAB ALL PAINTING<TFD> 		8-97411-306-2 01 1 1009-1011 ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 1009-1303 ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 1304- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 1009-1303 ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 1304- ● ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 1009-1303 ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 1304- ● ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 1009-1303 ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 1304- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1009-1303 ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1304- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1009-1303 ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1304- ● ●
418 BOARD; STEP,CAB
HONG KONG EQUIPMENT(PQ1) 		1-71998-312-2 02 1 1009-1303 ●
418 BOARD; STEP,CAB
HONG KONG EQUIPMENT(PQ1) 		1-71998-312-2 02 1 1304- ● ●
419 BOLT; STEP
(A) M8X20 FLANGE 		0-28650-820-0 08 1 1009-1303 ●
419 BOLT; STEP
(A) M8X20 FLANGE 		0-28650-820-0 08 1 1304- ● ●
419 BOLT; STEP
HONG KONG EQUIPMENT(PQ1) (B) M8X16 FLANGE 		0-28050-816-0 18 1 1009-1303 ●
419 BOLT; STEP
HONG KONG EQUIPMENT(PQ1) (B) M8X16 FLANGE 		0-28050-816-0 18 1 1304- ● ●
450 SPACER
HONG KONG EQUIPMENT(PQ1) 		1-71998-153-0 10 1 1009-1303 ●
450 SPACER
HONG KONG EQUIPMENT(PQ1) 		1-71998-153-0 10 1 1304- ● ●
494 FINISHER; FENDER 8-98072-723-0 01 1 1009-1303 ●
494 FINISHER; FENDER 8-98072-723-0 01 1 1304- ● ●
494 FINISHER; FENDER 8-98041-172-1 01 1 1009-1303 ●
494 FINISHER; FENDER 8-98041-172-1 01 1 1304- ● ●
517 SUPPORT; STEP PANEL
(A) 		8-98037-336-1 01 1 1009-1303 ●
517 SUPPORT; STEP PANEL
(A) 		8-98037-336-1 01 1 1304- ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-351-2 01 1 1009-1303 ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-351-2 01 1 1304- ● ●
517 SUPPORT; STEP PANEL
(A) 		8-98037-335-1 01 1 1009-1303 ●
517 SUPPORT; STEP PANEL
(A) 		8-98037-335-1 01 1 1304- ● ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-350-2 01 1 1009-1303 ●
517 SUPPORT; STEP PANEL
(B) 		8-98037-350-2 01 1 1304- ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1009-1303 ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1304- ● ●
525 SEAL; FENDER
(A) 		8-98061-760-0 02 1 1009-1303 ●
525 SEAL; FENDER
(A) 		8-98061-760-0 02 1 1304- ● ●
525 SEAL; FENDER
(B) 		8-98061-761-0 02 1 1009-1303 ●
525 SEAL; FENDER
(B) 		8-98061-761-0 02 1 1304- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1009-1303 ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1304- ● ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		1-09989-021-0 06 1 1009-1302 ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303-1303 ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1304- ● ●
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1009-1303 ●
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1304- ● ●

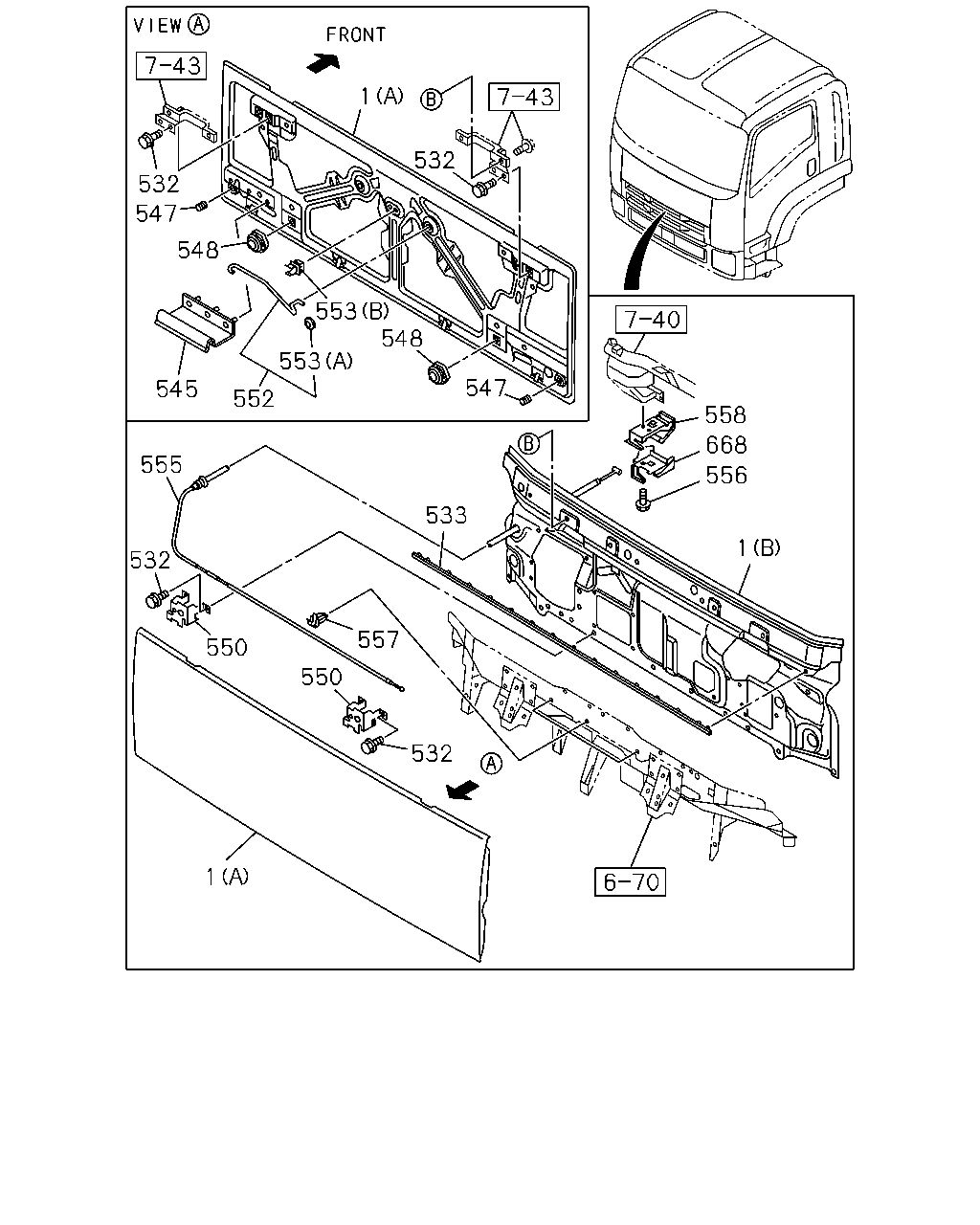

çizim 126598
1 532 532 547 548 553 553 548 547 558 668 556 1 533 557 550 550 532 555 545 552 532 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1009-1303 ●
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1304- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1009-1303 ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1304- ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1009-1303 ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1304- ● ●
533 SEAL; FRT PANEL 8-98096-289-0 01 1 1009-1303 ●
533 SEAL; FRT PANEL 8-98096-289-0 01 1 1304- ● ●
545 SEAL; FRT LID 8-98123-265-0 01 1 1009-1303 ●
545 SEAL; FRT LID 8-98123-265-0 01 1 1304- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1009-1303 ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1304- ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1009-1303 ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1304- ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1009-1303 ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1304- ● ●
552 STAY; FRT LID 8-98089-838-0 01 1 1009-1303 ●
552 STAY; FRT LID 8-98089-838-0 01 1 1304- ● ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1009-1303 ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1304- ● ●
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1009-1303 ●
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1304- ● ●
555 CABLE; FRT LID 8-98036-574-1 01 1 1009-1303 ●
555 CABLE; FRT LID 8-98036-574-1 01 1 1304- ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1009-1303 ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1304- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1009-1303 ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1304- ● ●
558 LEVER; FRT LID 1-79338-007-0 01 1 1009-1303 ●
558 LEVER; FRT LID 1-79338-007-1 01 1 1304- ● ●
668 COVER; LEVER,FRT LID 8-98076-339-0 01 1 1009-1303 ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1304- ● ●

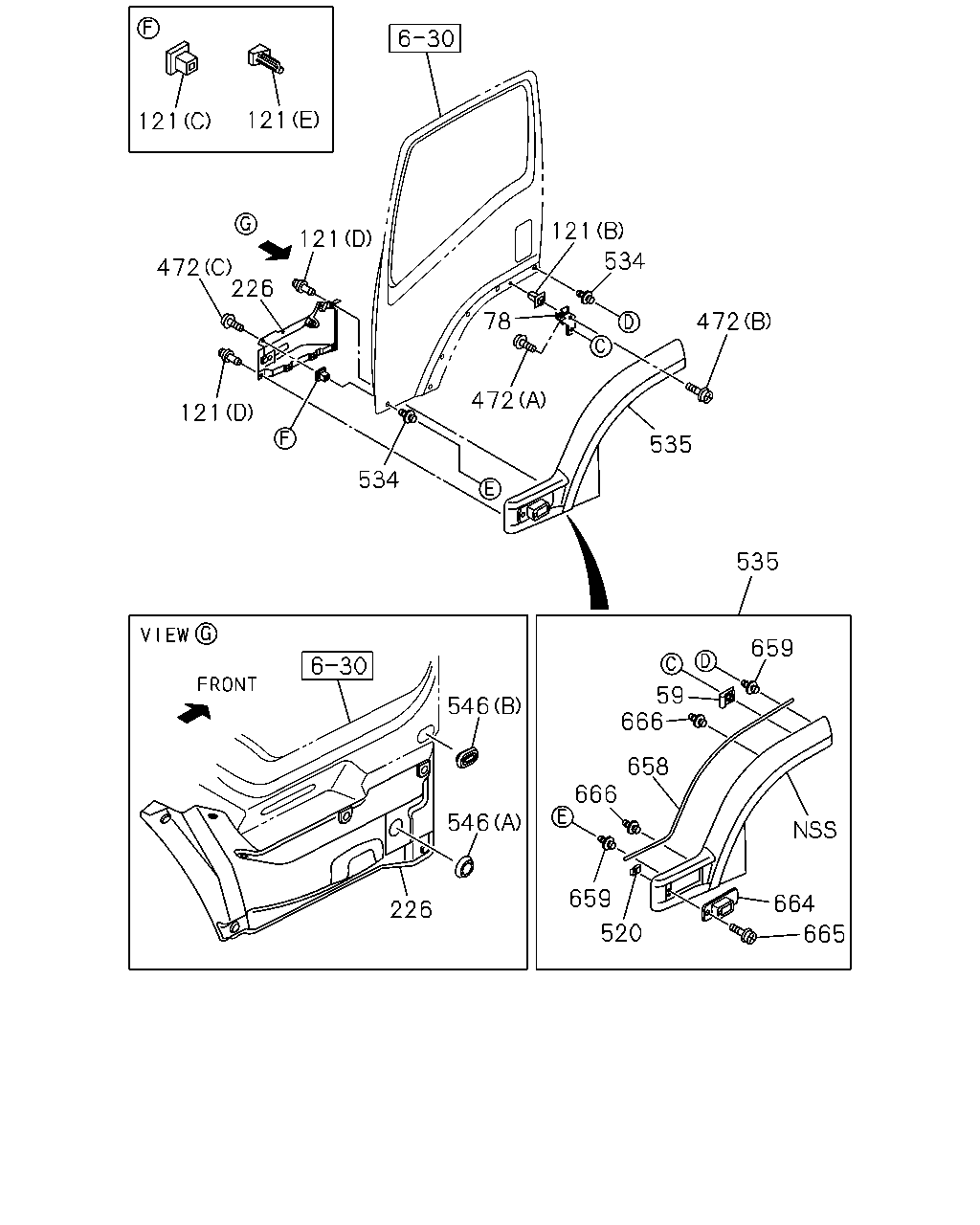

çizim 126611
472 535 535 472 78 534 121 121 472 226 121 534 546 546 226 659 520 666 658 666 59 659 664 665 121 121
BalonParca AdiParca NoAdetTipApplied Date A B
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) 		8-94279-723-0 04 1 1009-1303 ●
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> 		8-94279-723-0 02 1 1009-1303 ●
59 GROMMET; SCREW
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> 		8-94279-723-0 02 1 1009-1303 ●
59 GROMMET; SCREW
SINGAPORE EQUIPMENT(WQ3) 		8-94279-723-0 02 1 1304- ● ●
59 GROMMET; SCREW
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> 		8-94279-723-0 02 1 1304- ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1009-1303 ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1304- ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1009-1303 ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1304- ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1009-1303 ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1304- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1009-1303 ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1304- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1009-1303 ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1304- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1009-1303 ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1304- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1009-1303 ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1304- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1009-1303 ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1304- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1009-1303 ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1304- ● ●
226 PROTECTOR; FRT
HONG KONG EQUIPMENT(PQ1) 		8-98080-915-1 01 1 1009-1303 ●
226 PROTECTOR; FRT
HONG KONG EQUIPMENT(PQ1) 		8-98080-915-1 01 1 1304- ● ●
226 PROTECTOR; FRT
HONG KONG EQUIPMENT(PQ1) 		8-98080-914-1 01 1 1009-1303 ●
226 PROTECTOR; FRT
HONG KONG EQUIPMENT(PQ1) 		8-98080-914-1 01 1 1304- ● ●
226 PROTECTOR; FRT
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98037-715-2 01 1 1009-1303 ●
226 PROTECTOR; FRT
SINGAPORE EQUIPMENT(WQ3) 		8-98037-715-2 01 1 1304- ● ●
226 PROTECTOR; FRT
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98037-714-2 01 1 1009-1303 ●
226 PROTECTOR; FRT
SINGAPORE EQUIPMENT(WQ3) 		8-98037-714-2 01 1 1304- ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1009-1303 ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1304- ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1009-1303 ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1304- ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1009-1303 ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1304- ● ●
520 NUT; FENDER
CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) 		8-94279-501-0 02 1 1011-1011 ●
520 NUT; FENDER
CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) 		8-94279-501-0 04 1 1012-1303 ●
520 NUT; FENDER 8-94279-501-0 02 1 1009-1010 ●
520 NUT; FENDER
EXC. CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 1011-1303 ●
520 NUT; FENDER
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 1011-1303 ●
520 NUT; FENDER
SINGAPORE EQUIPMENT(WQ3) 		8-94279-501-0 02 1 1304- ● ●
520 NUT; FENDER
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 1304- ● ●
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 1009-1302 ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303-1303 ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> GREEN 		8-97423-885-3 01 1 1203-1303 ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> GREEN 		8-97423-885-3 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> GREEN 		8-97423-886-3 01 1 1203-1303 ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> GREEN 		8-97423-886-3 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) GREEN 		8-97423-770-1 01 1 1203-1303 ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> GREEN 		8-97423-770-1 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) GREEN 		8-97423-771-1 01 1 1203-1303 ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> GREEN 		8-97423-771-1 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) WHITE 		8-97415-394-1 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> WHITE 		8-97415-394-1 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) WHITE 		8-97415-393-1 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> WHITE 		8-97415-393-1 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> WHITE 		8-97412-855-3 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> WHITE 		8-97412-855-3 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> WHITE 		8-97412-848-3 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> WHITE 		8-97412-848-3 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) RED 		8-97418-323-1 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> RED 		8-97418-323-1 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) RED 		8-97418-309-1 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> RED 		8-97418-309-1 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> RED 		8-97412-856-3 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> RED 		8-97412-856-3 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> RED 		8-97412-849-3 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> RED 		8-97412-849-3 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) RED 		8-97418-371-1 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> RED 		8-97418-371-1 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) RED 		8-97418-368-1 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> RED 		8-97418-368-1 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> RED 		8-97412-859-3 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> RED 		8-97412-859-3 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> RED 		8-97412-852-3 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> RED 		8-97412-852-3 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) YELLOW 		8-97418-369-1 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> YELLOW 		8-97418-369-1 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) YELLOW 		8-97418-366-1 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> YELLOW 		8-97418-366-1 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> YELLOW 		8-97412-858-3 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> YELLOW 		8-97412-858-3 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> YELLOW 		8-97412-851-3 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> YELLOW 		8-97412-851-3 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) BLUE 		8-97418-329-1 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> BLUE 		8-97418-329-1 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) BLUE 		8-97418-315-1 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> BLUE 		8-97418-315-1 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> BLUE 		8-97417-734-3 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> BLUE 		8-97417-734-3 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> BLUE 		8-97417-724-3 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> BLUE 		8-97417-724-3 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR OMAHA ORANGE(906) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97418-370-1 01 1 1009-1011 ●
535 FENDER; BLISTER
BODY COLOR OMAHA ORANGE(906) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97418-367-1 01 1 1009-1011 ●
535 FENDER; BLISTER
BODY COLOR OMAHA ORANGE(906) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> 		8-97418-682-3 01 1 1009-1011 ●
535 FENDER; BLISTER
BODY COLOR OMAHA ORANGE(906) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> 		8-97418-681-3 01 1 1009-1011 ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) BEIGE 		8-97418-328-1 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> BEIGE 		8-97418-328-1 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) BEIGE 		8-97418-314-1 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> BEIGE 		8-97418-314-1 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> BEIGE 		8-97412-857-3 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> BEIGE 		8-97412-857-3 01 1 1304- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> BEIGE 		8-97412-850-3 01 1 1009-1303 ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> BEIGE 		8-97412-850-3 01 1 1304- ● ●
535 FENDER; BLISTER
HONG KONG EQUIPMENT(PQ1) EXC. CAB ALL PAINTING<TFD> 		8-98080-876-2 01 1 1009-1303 ●
535 FENDER; BLISTER
HONG KONG EQUIPMENT(PQ1) EXC. CAB ALL PAINTING<TFD> 		8-98080-875-2 01 1 1009-1303 ●
535 FENDER; BLISTER
EXC. HONG KONG EQUIPMENT(PQ1),CAB ALL PAINTING<TFD> 		8-98166-375-0 01 1 1009-1303 ●
535 FENDER; BLISTER
SINGAPORE EQUIPMENT(WQ3) EXC. CAB ALL PAINTING<TFD> 		8-98166-375-0 01 1 1304- ● ●
535 FENDER; BLISTER
EXC. HONG KONG EQUIPMENT(PQ1),CAB ALL PAINTING<TFD> 		8-98166-374-0 01 1 1009-1303 ●
535 FENDER; BLISTER
SINGAPORE EQUIPMENT(WQ3) EXC. CAB ALL PAINTING<TFD> 		8-98166-374-0 01 1 1304- ● ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1009-1303 ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1304- ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1009-1303 ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1304- ● ●
658 FINISHER; BLISTER FENDER
CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) 		8-98041-168-3 02 1 1009-1303 ●
658 FINISHER; BLISTER FENDER
CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) 		8-98041-169-3 02 1 1009-1303 ●
658 FINISHER; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 1009-1303 ●
658 FINISHER; BLISTER FENDER
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 1009-1303 ●
658 FINISHER; BLISTER FENDER
SINGAPORE EQUIPMENT(WQ3) 		8-98041-169-3 01 1 1304- ● ●
658 FINISHER; BLISTER FENDER
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 1304- ● ●
658 FINISHER; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 1009-1303 ●
658 FINISHER; BLISTER FENDER
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 1009-1303 ●
658 FINISHER; BLISTER FENDER
SINGAPORE EQUIPMENT(WQ3) 		8-98041-168-3 01 1 1304- ● ●
658 FINISHER; BLISTER FENDER
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 1304- ● ●
659 CLIP; FENDER
CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) D5.4X8 		1-09983-154-0 16 1 1009-1303 ●
659 CLIP; FENDER
EXC. CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 08 1 1009-1303 ●
659 CLIP; FENDER
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 08 1 1009-1303 ●
659 CLIP; FENDER
SINGAPORE EQUIPMENT(WQ3) D5.4X8 		1-09983-154-0 08 1 1304- ● ●
659 CLIP; FENDER
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 08 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-784-0 01 1 1203-1303 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> GREEN 		8-97423-784-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-785-0 01 1 1203-1303 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> GREEN 		8-97423-785-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-597-0 01 1 1009-1303 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> WHITE 		8-97421-597-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-469-0 01 1 1009-1303 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> WHITE 		8-97421-469-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-637-0 01 1 1009-1303 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> RED 		8-97421-637-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-471-0 01 1 1009-1303 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> RED 		8-97421-471-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-481-0 01 1 1009-1303 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> RED 		8-97421-481-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-477-0 01 1 1009-1303 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> RED 		8-97421-477-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-479-0 01 1 1009-1303 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> YELLOW 		8-97421-479-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-475-0 01 1 1009-1303 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> YELLOW 		8-97421-475-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-626-0 01 1 1009-1303 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> BLUE 		8-97421-626-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-615-0 01 1 1009-1303 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> BLUE 		8-97421-615-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR OMAHA ORANGE(906) CAB ALL PAINTING<TFD> 		8-97421-644-0 01 1 1009-1011 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR OMAHA ORANGE(906) CAB ALL PAINTING<TFD> 		8-97421-642-0 01 1 1009-1011 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-640-0 01 1 1009-1303 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> BEIGE 		8-97421-640-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-473-0 01 1 1009-1303 ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) CAB ALL PAINTING<TFD> BEIGE 		8-97421-473-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98075-507-0 01 1 1009-1303 ●
664 BASE; DOOR,SIDE TURN
SINGAPORE EQUIPMENT(WQ3) EXC. CAB ALL PAINTING<TFD> 		8-98075-507-0 01 1 1304- ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98075-506-0 01 1 1009-1303 ●
664 BASE; DOOR,SIDE TURN
SINGAPORE EQUIPMENT(WQ3) EXC. CAB ALL PAINTING<TFD> 		8-98075-506-0 01 1 1304- ● ●
665 SCREW; FENDER
CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) M6X20 W/PL WASHER 		0-36210-620-0 02 1 1011-1011 ●
665 SCREW; FENDER
CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) M6X20 W/PL WASHER 		0-36210-620-0 04 1 1012-1303 ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1009-1010 ●
665 SCREW; FENDER
EXC. CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1011-1303 ●
665 SCREW; FENDER
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1011-1303 ●
665 SCREW; FENDER
SINGAPORE EQUIPMENT(WQ3) M6X20 W/PL WASHER 		0-36210-620-0 02 1 1304- ● ●
665 SCREW; FENDER
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1304- ● ●
666 CLIP; BLISTER FENDER
CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) 		8-98071-178-0 04 1 1009-1011 ●
666 CLIP; BLISTER FENDER
CAB ALL PAINTING<TFD> EXC. HONG KONG EQUIPMENT(PQ1) 		8-98071-178-0 08 1 1012-1303 ●
666 CLIP; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 1009-1303 ●
666 CLIP; BLISTER FENDER
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 1009-1303 ●
666 CLIP; BLISTER FENDER
SINGAPORE EQUIPMENT(WQ3) 		8-98071-178-0 04 1 1304- ● ●
666 CLIP; BLISTER FENDER
HONG KONG EQUIPMENT(PQ1) CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 1304- ● ●

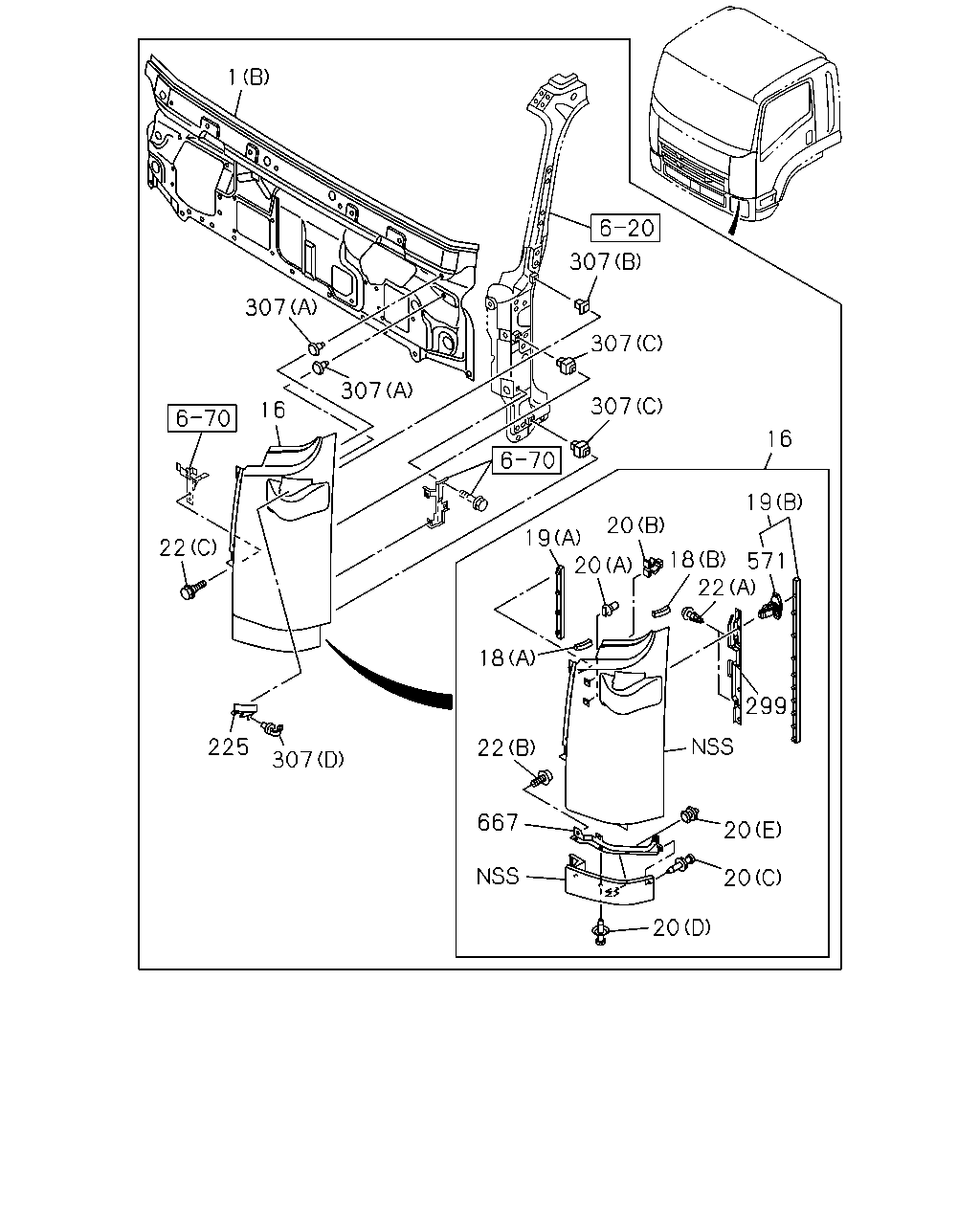

çizim 126794
20 20 20 299 22 19 16 20 20 19 18 22 667 18 307 307 307 307 307 225 22 16 307 1 571
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1009-1303 ●
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1304- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1009-1303 ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> GREEN 		8-97423-765-2 01 1 1310- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> GREEN 		8-97423-767-0 01 1 1310- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> WHITE 		8-97413-088-2 01 1 1310- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> WHITE 		8-97421-836-0 01 1 1310- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> RED 		8-97418-360-2 01 1 1310- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> RED 		8-97421-834-0 01 1 1310- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BEIGE 		8-97418-361-2 01 1 1310- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> BEIGE 		8-97421-839-0 01 1 1310- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BLUE 		8-97418-362-2 01 1 1310- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> BLUE 		8-97421-840-0 01 1 1310- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> YELLOW 		8-97418-363-2 01 1 1310- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> YELLOW 		8-97421-838-0 01 1 1310- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> RED 		8-97418-365-2 01 1 1310- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> RED 		8-97421-835-0 01 1 1310- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> GREEN 		8-97423-883-2 01 1 1203-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> GREEN 		8-97423-883-2 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> GREEN 		8-97423-884-0 01 1 1203-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> GREEN 		8-97423-884-0 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-764-2 01 1 1203-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-764-2 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> GREEN 		8-97423-765-2 01 1 1203-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> GREEN 		8-97423-767-0 01 1 1203-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) EXC. CAB ALL PAINTING<TFD> GREEN 		8-97423-766-0 01 1 1203-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) EXC. CAB ALL PAINTING<TFD> GREEN 		8-97423-766-0 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97413-087-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97413-087-2 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> WHITE 		8-97413-088-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. CAB ALL PAINTING<TFD> WHITE 		8-97421-820-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. CAB ALL PAINTING<TFD> WHITE 		8-97421-820-0 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> WHITE 		8-97413-086-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> WHITE 		8-97413-086-2 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> WHITE 		8-97421-828-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> WHITE 		8-97421-828-0 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> WHITE 		8-97421-836-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97418-354-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97418-354-2 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> RED 		8-97418-360-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. CAB ALL PAINTING<TFD> RED 		8-97421-818-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. CAB ALL PAINTING<TFD> RED 		8-97421-818-0 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> RED 		8-97421-121-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> RED 		8-97421-121-2 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> RED 		8-97421-826-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> RED 		8-97421-826-0 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> RED 		8-97421-834-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97418-359-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97418-359-2 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> RED 		8-97418-365-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. CAB ALL PAINTING<TFD> RED 		8-97421-819-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. CAB ALL PAINTING<TFD> RED 		8-97421-819-0 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> RED 		8-97421-126-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> RED 		8-97421-126-2 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> RED 		8-97421-827-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> RED 		8-97421-827-0 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> RED 		8-97421-835-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97418-357-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97418-357-2 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> YELLOW 		8-97418-363-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. CAB ALL PAINTING<TFD> YELLOW 		8-97421-822-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. CAB ALL PAINTING<TFD> YELLOW 		8-97421-822-0 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> YELLOW 		8-97421-124-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> YELLOW 		8-97421-124-2 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> YELLOW 		8-97421-830-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> YELLOW 		8-97421-830-0 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> YELLOW 		8-97421-838-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97418-356-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97418-356-2 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BLUE 		8-97418-362-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. CAB ALL PAINTING<TFD> BLUE 		8-97421-824-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. CAB ALL PAINTING<TFD> BLUE 		8-97421-824-0 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> BLUE 		8-97421-123-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> BLUE 		8-97421-123-2 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> BLUE 		8-97421-832-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> BLUE 		8-97421-832-0 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> BLUE 		8-97421-840-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR OMAHA ORANGE(906) CAB ALL PAINTING<TFD> 		8-97418-358-2 01 1 1009-1011 ●
16 PANEL; FRONT,SIDE
BODY COLOR OMAHA ORANGE(906) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97418-364-2 01 1 1009-1011 ●
16 PANEL; FRONT,SIDE
BODY COLOR OMAHA ORANGE(906) EXC. CAB ALL PAINTING<TFD> 		8-97421-817-0 01 1 1009-1011 ●
16 PANEL; FRONT,SIDE
BODY COLOR OMAHA ORANGE(906) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> 		8-97421-125-2 01 1 1009-1011 ●
16 PANEL; FRONT,SIDE
BODY COLOR OMAHA ORANGE(906) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> 		8-97421-825-0 01 1 1009-1011 ●
16 PANEL; FRONT,SIDE
BODY COLOR OMAHA ORANGE(906) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> 		8-97421-833-0 01 1 1009-1011 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97418-355-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97418-355-2 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> BEIGE 		8-97418-361-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. CAB ALL PAINTING<TFD> BEIGE 		8-97421-823-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. CAB ALL PAINTING<TFD> BEIGE 		8-97421-823-0 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> BEIGE 		8-97421-122-2 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> CAB ALL PAINTING<TFD> BEIGE 		8-97421-122-2 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> BEIGE 		8-97421-831-0 01 1 1009-1303 ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. CAB ALL PAINTING<TFD> BEIGE 		8-97421-831-0 01 1 1304- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, CAB ALL PAINTING<TFD> BEIGE 		8-97421-839-0 01 1 1009-1303 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1009-1303 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1009-1303 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1304- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1304- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1009-1303 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1009-1303 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1304- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1304- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1009-1303 ●
19 SEAL; FRT SIDE PANEL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98036-581-0 01 1 1304-1309 ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1310- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1009-1303 ●
19 SEAL; FRT SIDE PANEL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98041-359-2 01 1 1304-1309 ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1310- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1009-1303 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1304- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1009-1303 ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1304- ● ●
20 CLIP; FRT PANEL SIDE
(D) D8X13.5 		1-09987-248-1 02 1 1009-1303 ●
20 CLIP; FRT PANEL SIDE
(D) D8X13.5 		1-09987-248-1 02 1 1009-1303 ●
20 CLIP; FRT PANEL SIDE
(D) D8X13.5 		1-09987-248-1 02 1 1304- ● ●
20 CLIP; FRT PANEL SIDE
(D) D8X13.5 		1-09987-248-1 02 1 1304- ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-97013-997-0 01 1 1009-1303 ●
20 CLIP; FRT PANEL SIDE
(C) 		8-97013-997-0 01 1 1009-1303 ●
20 CLIP; FRT PANEL SIDE
(C) 		8-97013-997-0 01 1 1304- ● ●
20 CLIP; FRT PANEL SIDE
(C) 		8-97013-997-0 01 1 1304- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 02 1 1009-1303 ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 02 1 1009-1303 ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1304- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1304- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 01 1 1009-1303 ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 01 1 1009-1303 ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1304- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1304- ● ●
20 CLIP; FRT PANEL SIDE
(E) H=15.3 		8-97804-778-0 01 1 1009-1303 ●
20 CLIP; FRT PANEL SIDE
(E) H=15.3 		8-97804-778-0 01 1 1009-1303 ●
20 CLIP; FRT PANEL SIDE
(E) H=15.3 		8-97804-778-0 01 1 1304- ● ●
20 CLIP; FRT PANEL SIDE
(E) H=15.3 		8-97804-778-0 01 1 1304- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009-1303 ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009-1303 ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1304- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1304- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1009-1303 ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1009-1303 ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1304- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1304- ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 1009-1303 ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 1304-1505 ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506- ● ●
225 COVER; SIDE,FRT
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98041-431-1 01 1 1009-1303 ●
225 COVER; SIDE,FRT
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98041-431-1 01 1 1304- ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1009-1303 ●
299 COVER; FRT PANEL SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98034-814-1 01 1 1304-1309 ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1310- ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1009-1303 ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1304- ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1009-1303 ●
307 GROMMET; FRT PANEL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-97410-738-0 02 1 1304-1309 ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1310- ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1009-1303 ●
307 GROMMET; FRT PANEL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98021-300-1 04 1 1304-1309 ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1310- ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1009-1303 ●
307 GROMMET; FRT PANEL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) OD=20 		8-98034-363-1 04 1 1304-1309 ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1310- ● ●
307 GROMMET; FRT PANEL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98028-743-0 01 1 1009-1303 ●
307 GROMMET; FRT PANEL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98028-743-0 01 1 1304- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1009-1303 ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1009-1303 ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1304- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1304- ● ●
667 STAY; EXT,SIDE PANEL 8-98054-092-1 01 1 1009-1303 ●
667 STAY; EXT,SIDE PANEL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98054-092-1 01 1 1304-1309 ● ●
667 STAY; EXT,SIDE PANEL 8-98054-092-1 01 1 1310- ● ●
667 STAY; EXT,SIDE PANEL 8-98054-091-1 01 1 1009-1303 ●
667 STAY; EXT,SIDE PANEL 8-98054-091-1 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
