6-03 — RADIATOR GRILLE (#71448) — 50 parça

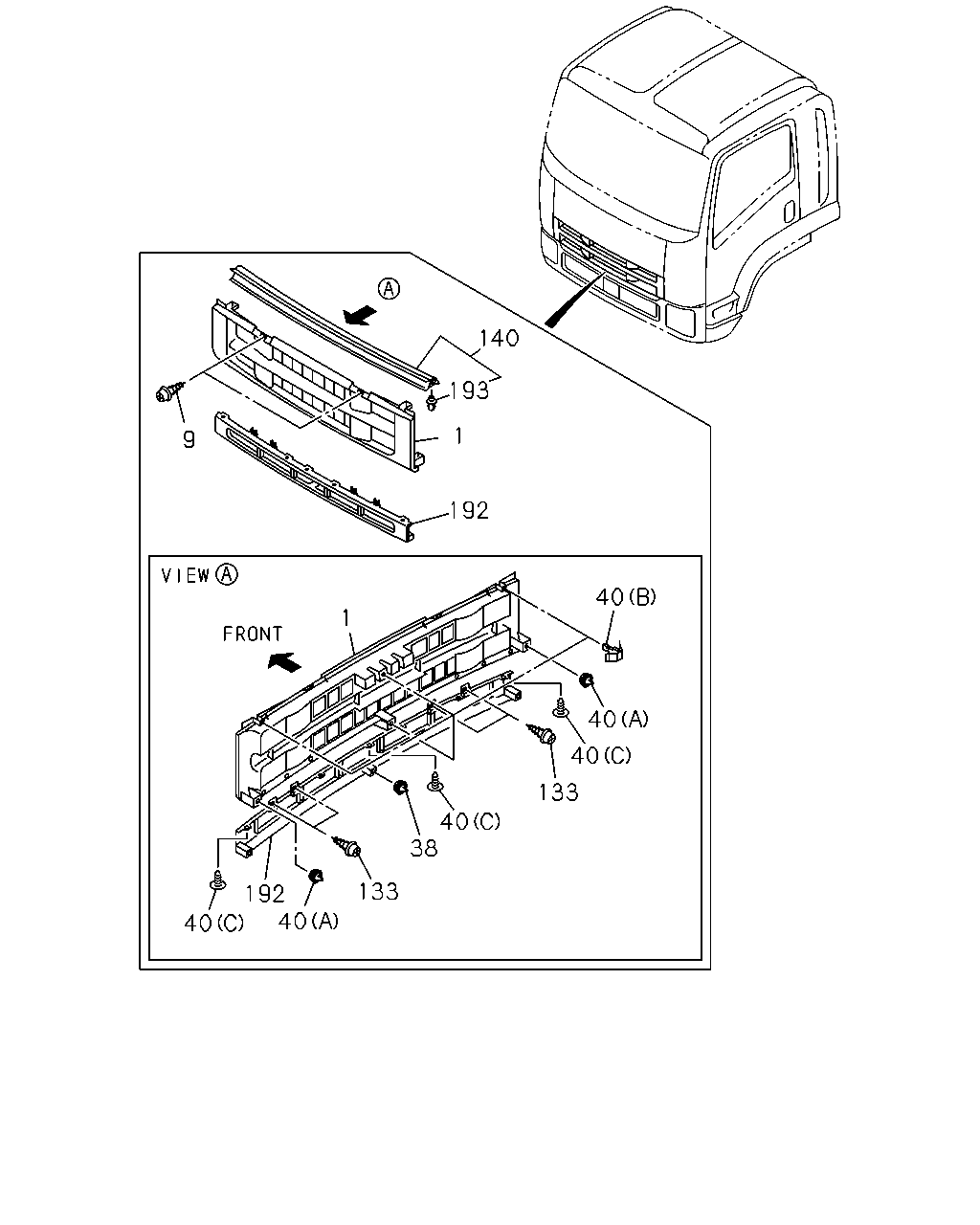

çizim 126465
140 193 1 192 9 40 40 40 133 40 38 133 40 192 40 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR TOLL GREEN(543) RADIATOR GRILLE PAINTED<TL4> GREEN 		8-97423-772-6 01 1 1203-1303 ●
1 GRILLE; RAD
BODY COLOR TOLL GREEN(543) RADIATOR GRILLE PAINTED<TL4> GREEN 		8-97423-772-6 01 1 1304- ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) RADIATOR GRILLE PAINTED<TL4> WHITE 		8-97407-868-6 01 1 1009-1303 ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) RADIATOR GRILLE PAINTED<TL4> WHITE 		8-97407-868-6 01 1 1304- ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) RADIATOR GRILLE PAINTED<TL4> RED 		8-97411-746-6 01 1 1009-1303 ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) RADIATOR GRILLE PAINTED<TL4> RED 		8-97411-746-6 01 1 1304- ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) RADIATOR GRILLE PAINTED<TL4> RED 		8-97411-749-6 01 1 1009-1303 ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) RADIATOR GRILLE PAINTED<TL4> RED 		8-97411-749-6 01 1 1304- ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) RADIATOR GRILLE PAINTED<TL4> YELLOW 		8-97411-748-6 01 1 1009-1303 ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) RADIATOR GRILLE PAINTED<TL4> YELLOW 		8-97411-748-6 01 1 1304- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) RADIATOR GRILLE PAINTED<TL4> BLUE 		8-97413-914-6 01 1 1009-1303 ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) RADIATOR GRILLE PAINTED<TL4> BLUE 		8-97413-914-6 01 1 1304- ● ●
1 GRILLE; RAD
BODY COLOR OMAHA ORANGE(906) RADIATOR GRILLE PAINTED<TL4> 		8-97418-372-6 01 1 1009-1011 ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) RADIATOR GRILLE PAINTED<TL4> BEIGE 		8-97411-747-6 01 1 1009-1303 ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) RADIATOR GRILLE PAINTED<TL4> BEIGE 		8-97411-747-6 01 1 1304- ● ●
1 GRILLE; RAD
EXC. RADIATOR GRILLE PAINTED<TL4> DARK GRAY 		8-98040-997-6 01 1 1009-1303 ●
1 GRILLE; RAD
EXC. RADIATOR GRILLE PAINTED<TL4> DARK GRAY 		8-98040-997-6 01 1 1304- ● ●
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1009-1303 ●
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1304- ● ●
38 CLIP; GRILLE
H=15.3 		8-97804-778-0 01 1 1009-1303 ●
38 CLIP; GRILLE
H=15.3 		8-97804-778-0 01 1 1304- ● ●
40 CLIP; RAD GRILLE
(C) D8X13.5 		1-09987-248-1 07 1 1009-1303 ●
40 CLIP; RAD GRILLE
(C) D8X13.5 		1-09987-248-1 07 1 1304- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 04 1 1009-1303 ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 04 1 1304- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1009-1303 ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1304- ● ●
133 SCREW; COVER
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 1009-1303 ●
133 SCREW; COVER
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 1304- ● ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1009-1303 ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1304- ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR TOLL GREEN(543) RADIATOR GRILLE PAINTED<TL4> GREEN 		8-97423-773-0 01 1 1203-1303 ●
192 EXTENSION; RAD GRILLE
BODY COLOR TOLL GREEN(543) RADIATOR GRILLE PAINTED<TL4> GREEN 		8-97423-773-0 01 1 1304- ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR ARC WHITE(729) RADIATOR GRILLE PAINTED<TL4> WHITE 		8-97413-103-0 01 1 1009-1303 ●
192 EXTENSION; RAD GRILLE
BODY COLOR ARC WHITE(729) RADIATOR GRILLE PAINTED<TL4> WHITE 		8-97413-103-0 01 1 1304- ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR CARDINAL RED(736) RADIATOR GRILLE PAINTED<TL4> RED 		8-97418-373-0 01 1 1009-1303 ●
192 EXTENSION; RAD GRILLE
BODY COLOR CARDINAL RED(736) RADIATOR GRILLE PAINTED<TL4> RED 		8-97418-373-0 01 1 1304- ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR FIRE RED(915) RADIATOR GRILLE PAINTED<TL4> RED 		8-97418-378-0 01 1 1009-1303 ●
192 EXTENSION; RAD GRILLE
BODY COLOR FIRE RED(915) RADIATOR GRILLE PAINTED<TL4> RED 		8-97418-378-0 01 1 1304- ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR GOLDEN YELLOW(904) RADIATOR GRILLE PAINTED<TL4> YELLOW 		8-97418-376-0 01 1 1009-1303 ●
192 EXTENSION; RAD GRILLE
BODY COLOR GOLDEN YELLOW(904) RADIATOR GRILLE PAINTED<TL4> YELLOW 		8-97418-376-0 01 1 1304- ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR MARINE BLUE(890) RADIATOR GRILLE PAINTED<TL4> BLUE 		8-97418-375-0 01 1 1009-1303 ●
192 EXTENSION; RAD GRILLE
BODY COLOR MARINE BLUE(890) RADIATOR GRILLE PAINTED<TL4> BLUE 		8-97418-375-0 01 1 1304- ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR OMAHA ORANGE(906) RADIATOR GRILLE PAINTED<TL4> 		8-97418-377-0 01 1 1009-1011 ●
192 EXTENSION; RAD GRILLE
BODY COLOR SAHARA BEIGE(829) RADIATOR GRILLE PAINTED<TL4> BEIGE 		8-97418-374-0 01 1 1009-1303 ●
192 EXTENSION; RAD GRILLE
BODY COLOR SAHARA BEIGE(829) RADIATOR GRILLE PAINTED<TL4> BEIGE 		8-97418-374-0 01 1 1304- ● ●
192 EXTENSION; RAD GRILLE
EXC. RADIATOR GRILLE PAINTED<TL4> 		8-98165-182-0 01 1 1009-1303 ●
192 EXTENSION; RAD GRILLE
EXC. RADIATOR GRILLE PAINTED<TL4> 		8-98165-182-0 01 1 1304- ● ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1009-1303 ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1304- ● ●
