6-01 — FRONT BUMPER (#71447) — 84 parça

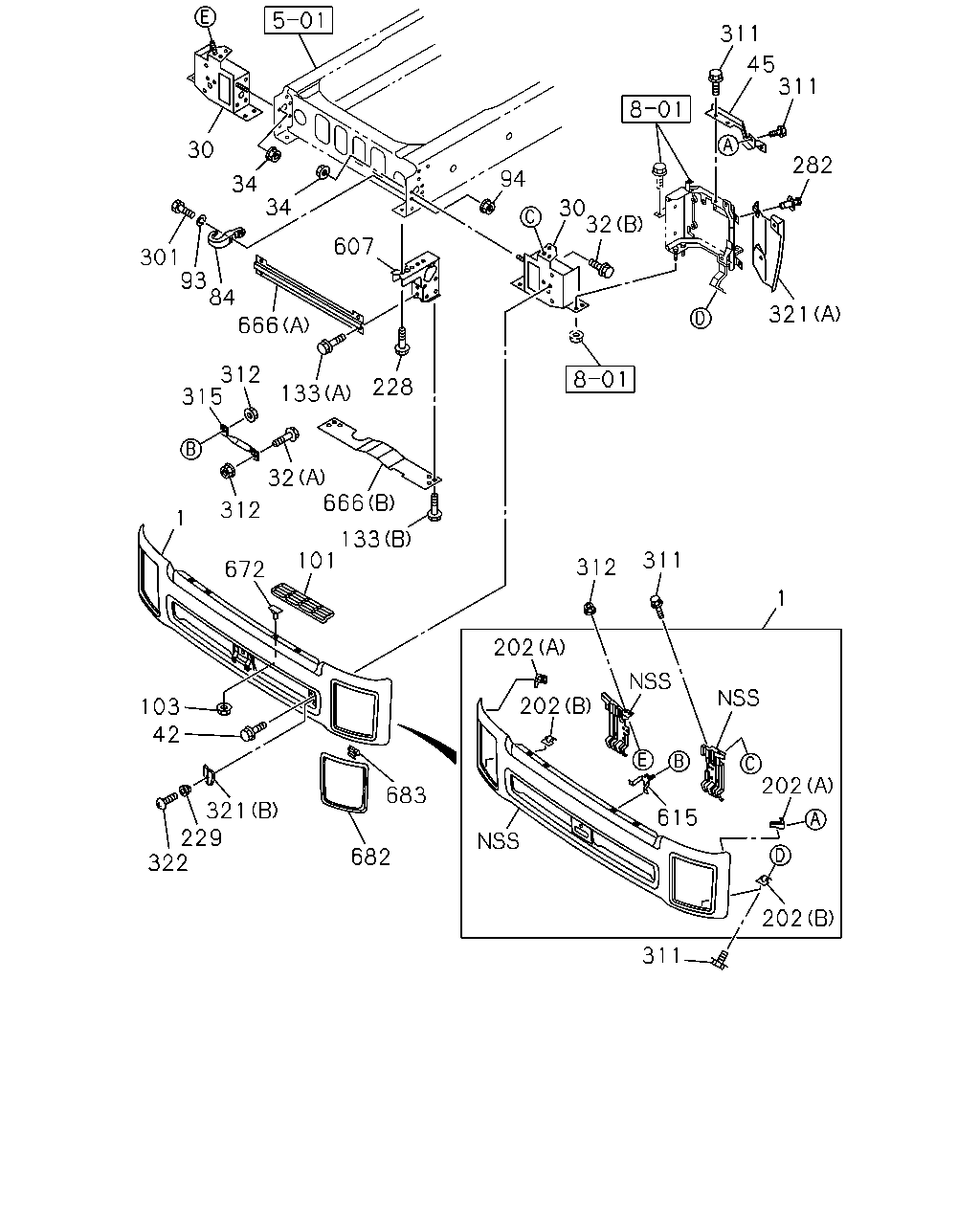

çizim 189492
311 311 321 32 30 94 607 34 34 30 301 666 84 93 133 312 228 32 312 315 672 666 133 101 683 682 321 229 322 42 615 311 202 202 1 311 312 202 202 282 45 103 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 1009-1303 ●
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 1304- ● ●
30 BRACKET; FRT BUMPER 8-98055-264-0 01 1 1009-1303 ●
30 BRACKET; FRT BUMPER 8-98055-264-0 01 1 1304- ● ●
30 BRACKET; FRT BUMPER 8-98055-263-0 01 1 1009-1303 ●
30 BRACKET; FRT BUMPER 8-98055-263-0 01 1 1304- ● ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 10 1 1009-1303 ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 10 1 1304- ● ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 1009-1303 ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 1304- ● ●
34 NUT; BRKT,BUMPER
M12 FLANGE 		0-91180-212-0 06 1 1009-1303 ●
34 NUT; BRKT,BUMPER
M12 FLANGE 		0-91180-212-0 06 1 1304- ● ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 1009-1303 ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 1304- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 1009-1303 ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 1304- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 1009-1303 ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 1304- ● ●
84 HOOK 8-98099-119-0 01 1 1009-1303 ●
84 HOOK 8-98099-119-0 01 1 1304- ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1009-1303 ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1304- ● ●
94 NUT; HOOK
M16 		0-91110-516-0 01 1 1009-1303 ●
94 NUT; HOOK
M16 		0-91110-516-0 01 1 1304- ● ●
101 STEP; BUMPER 8-97611-543-0 01 1 1009-1303 ●
101 STEP; BUMPER 8-97611-543-0 01 1 1304- ● ●
101 STEP; BUMPER 8-97611-542-0 01 1 1009-1303 ●
101 STEP; BUMPER 8-97611-542-0 01 1 1304- ● ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 1009-1303 ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 1304- ● ●
133 BOLT; PROTECTOR FIX
(A) M12X60 FLANGE 		0-28051-260-0 04 1 1009-1303 ●
133 BOLT; PROTECTOR FIX
(A) M12X60 FLANGE 		0-28051-260-0 04 1 1304- ● ●
133 BOLT; PROTECTOR FIX
(B) M12X25 FLANGE 		0-28661-225-0 06 1 1009-1207 ●
133 BOLT; PROTECTOR FIX
(B) M12X30 FLANGE 		0-28661-230-0 06 1 1208-1303 ●
133 BOLT; PROTECTOR FIX
(B) M12X30 FLANGE 		0-28661-230-0 06 1 1304- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-636-0 01 1 1009- ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-637-0 01 1 1009- ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-640-1 01 1 1009- ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-641-1 01 1 1009- ●
228 BOLT; BRKT
M16X50 		0-20851-650-0 08 1 1009-1303 ●
228 BOLT; BRKT
M16X50 		0-20851-650-0 08 1 1304- ● ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 1009-1303 ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 1304- ● ●
282 FASTENER; BUMPER FILLER
NEW ZEALAND EQUIPMENT(PK5) D8X13.5 		1-09987-248-1 08 1 1009-1303 ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 01 1 1009-1303 ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 01 1 1304- ● ●
301 BOLT; HOOK TO FRAME
M16X40 		0-20851-640-0 01 1 1009-1303 ●
301 BOLT; HOOK TO FRAME
M16X40 		0-20851-640-0 01 1 1304- ● ●
311 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1009-1303 ●
311 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1304- ● ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 1009-1303 ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 1304- ● ●
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1009-1303 ●
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1304- ● ●
315 STAY; BUMPER 8-97617-115-0 01 1 1009-1303 ●
315 STAY; BUMPER 8-97617-115-0 01 1 1304- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 1009-1303 ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 1304- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 1009-1303 ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 1304- ● ●
321 COVER; BUMPER FRT SIDE
NEW ZEALAND EQUIPMENT(PK5) (A) 		8-97619-120-0 01 1 1009-1303 ●
321 COVER; BUMPER FRT SIDE
NEW ZEALAND EQUIPMENT(PK5) (A) 		8-97619-119-0 01 1 1009-1303 ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1009-1303 ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1304- ● ●
607 BRACKET
RADIATOR PROTECTOR<YC6> 		8-98234-551-0 01 1 1304- ● ●
607 BRACKET
RADIATOR PROTECTOR<YC6> 		8-98234-552-0 01 1 1304- ● ●
607 BRACKET 8-98055-268-1 01 1 1009-1303 ●
607 BRACKET
EXC. RADIATOR PROTECTOR<YC6> 		8-98055-268-1 01 1 1304- ● ●
607 BRACKET 8-98055-267-1 01 1 1009-1303 ●
607 BRACKET
EXC. RADIATOR PROTECTOR<YC6> 		8-98055-267-1 01 1 1304- ● ●
615 BRACKET; BUMPER CENTER 8-97613-643-1 01 1 1009- ●
666 PROTECTOR; UNDER
RADIATOR PROTECTOR<YC6> (A) 		8-98234-550-0 01 1 1304- ● ●
666 PROTECTOR; UNDER
(B) 		8-97608-467-1 01 1 1009-1303 ●
666 PROTECTOR; UNDER
(B) 		8-97608-467-1 01 1 1304- ● ●
666 PROTECTOR; UNDER
(A) 		8-97610-033-0 01 1 1009-1303 ●
666 PROTECTOR; UNDER
EXC. RADIATOR PROTECTOR<YC6> (A) 		8-97610-033-0 01 1 1304- ● ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 1009-1303 ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 1304- ● ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 1009-1303 ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 1304- ● ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 1009-1303 ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 1304- ● ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 1009-1303 ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 1304- ● ●
