◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#71446) — 25 parça

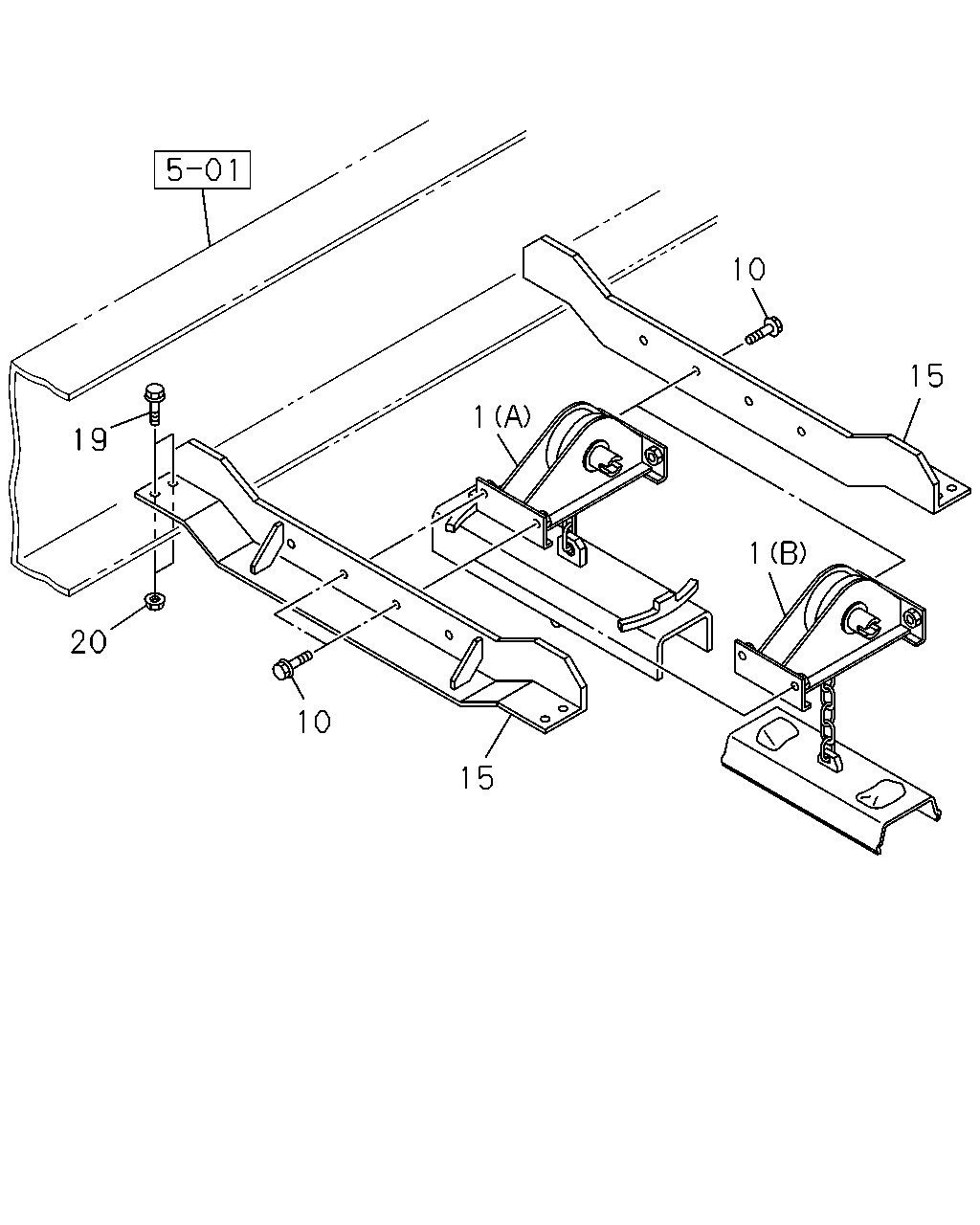

çizim 125999
1 15 10 1 10 15 20 19
BalonParca AdiParca NoAdetTipApplied Date
1 HANGER ASM; TIRE FT
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53630-210-4 01 1 1009-
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) 		1-53630-208-3 01 1 1009-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 1009-
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-97608-196-1 02 1 1009-
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X40 FLANGE 		0-28051-040-0 08 1 1009-
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 1009-

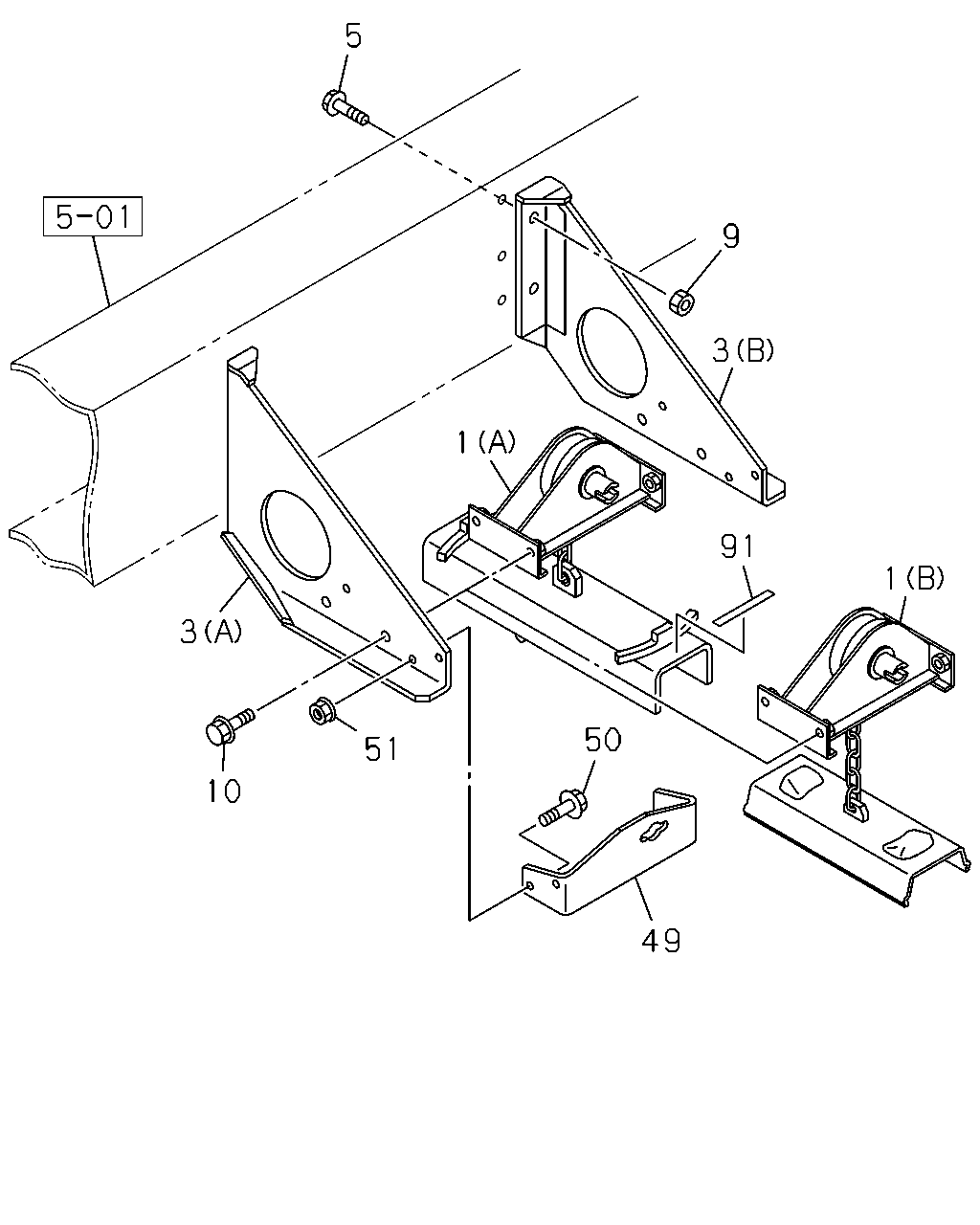

çizim 126216
1 1 5 9 3 91 49 50 51 10 3
BalonParca AdiParca NoAdetTipApplied Date
1 HANGER ASM; TIRE FT
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53630-210-4 01 1 1009-
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) 		1-53630-208-3 01 1 1009-
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 4900MM(49W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (B) 		8-98268-901-0 01 1 1403-
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 4900MM(49W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A) 		8-98268-902-0 01 1 1403-
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-479-0 01 1 1304-1402
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (B) 		1-53631-479-0 01 1 1403-
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-480-0 01 1 1304-1402
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A) 		1-53631-480-0 01 1 1403-
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-97383-718-1 01 1 1009-1303
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-97383-718-1 01 1 1304-
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		8-97383-719-1 01 1 1009-1303
3 BRACKET; TIRE CARRIER,FRT
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		8-97383-719-1 01 1 1304-
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28651-240-0 04 1 1009-
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 04 1 1009-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 1009-
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		8-97383-722-0 01 1 1009-
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE 		0-28650-825-0 04 1 1009-
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91180-108-0 04 1 1009-
91 PAD; TIRE CARRIER
WHEEL BASE 4900MM(49W) SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 1403-
